Message ID: 59     Entry time: Mon Sep 6 14:13:17 2021
Author: CB ML
Subject: Motors mounted - first attempt
Mounted both  motors on CARME. Started
with outside motor.

M6x160 screws proved slightly too long to
fix bellows to rod and seal the vacuum.
Had to be manually shortened by 1 cm
roughly.

Mounted whole assembly but could not fix
actuator rod to moving plate due to holes
mis-alignment.

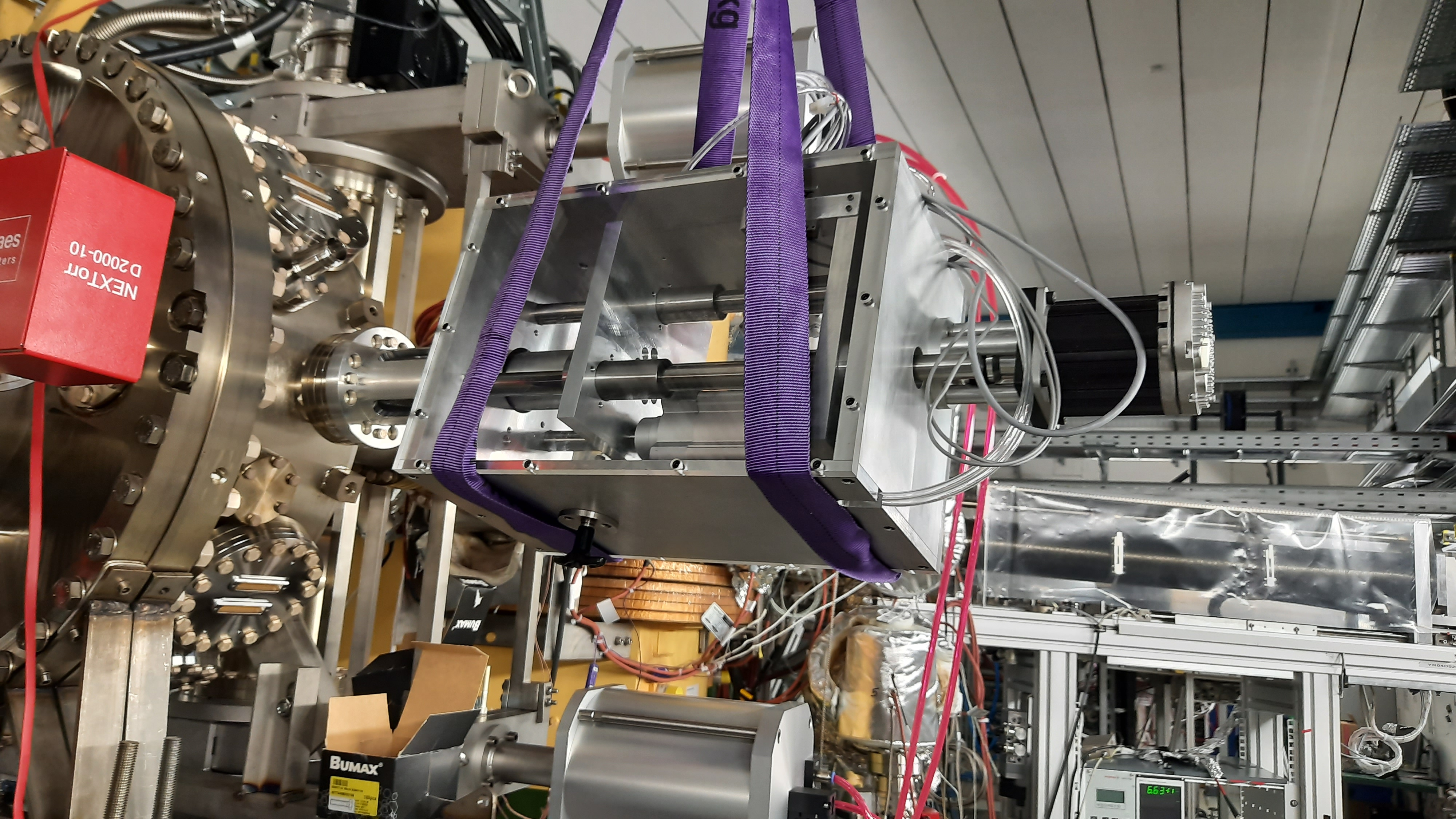

Mounted motor on CARME but could not align
holes on flange and chamber without
turning motor to the side... see attach 3 and 4


Got in contact with Peter over lunch and
understood issue.

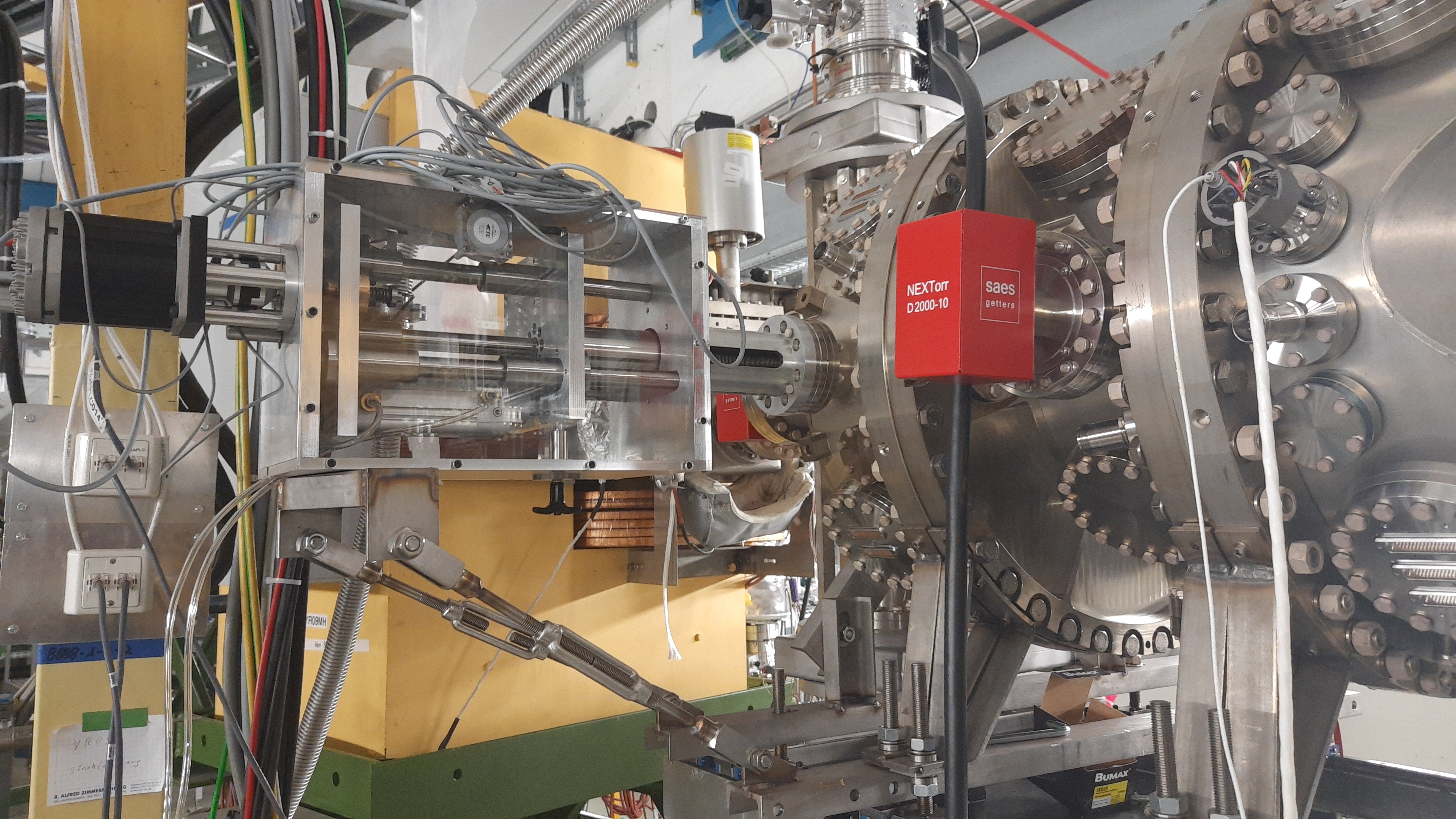

Mounted second motor with experience
acquired. No issues. All screws go in.
Motor box level. See attach 5

Will need to dismount / remount first
motor box before pumping down. Currently
secure on CARME thanks to adjustable
support.

Note we forgot to buy DN 40 CF gaskets. ML
supplied a few. Will buy more. Needed
between bellows and rod.


Strain relief mentioned in previous ELOG
entry was taken to workshop and hole re-
drilled. Workshop reports other hole is OK
for M3 screw. Either screw used or hole
were poorly machined. M3 screws should be
correct. Re-machined part sent for
cleaning.

Will try with clean parts again tomorrow
unless we remount motors.

Activities for the day cut shorter due to
SPARC meeting this week.
Attachment 1: 20210906_113522.jpg  2.507 MB  Uploaded Mon Sep 6 15:23:18 2021  | Hide | Hide all
Attachment 2: 20210906_113519.jpg  2.596 MB  Uploaded Mon Sep 6 15:24:04 2021  | Hide | Hide all
Attachment 3: 20210906_115601.jpg  2.069 MB  Uploaded Mon Sep 6 15:24:42 2021  | Hide | Hide all
Attachment 4: 20210906_152607.jpg  2.346 MB  Uploaded Mon Sep 6 15:26:31 2021  | Hide | Hide all
Attachment 5: 20210906_143944.jpg  3.355 MB  Uploaded Mon Sep 6 15:27:06 2021  | Hide | Hide all
