Message ID: 104     Entry time: Fri Dec 6 20:34:56 2019
Author: CA, DK, NH
Subject: Dec 6 Night Shift
21.35 AIDA DAQ currently running, TapeService on, not writing to storage

      System wide checks ok

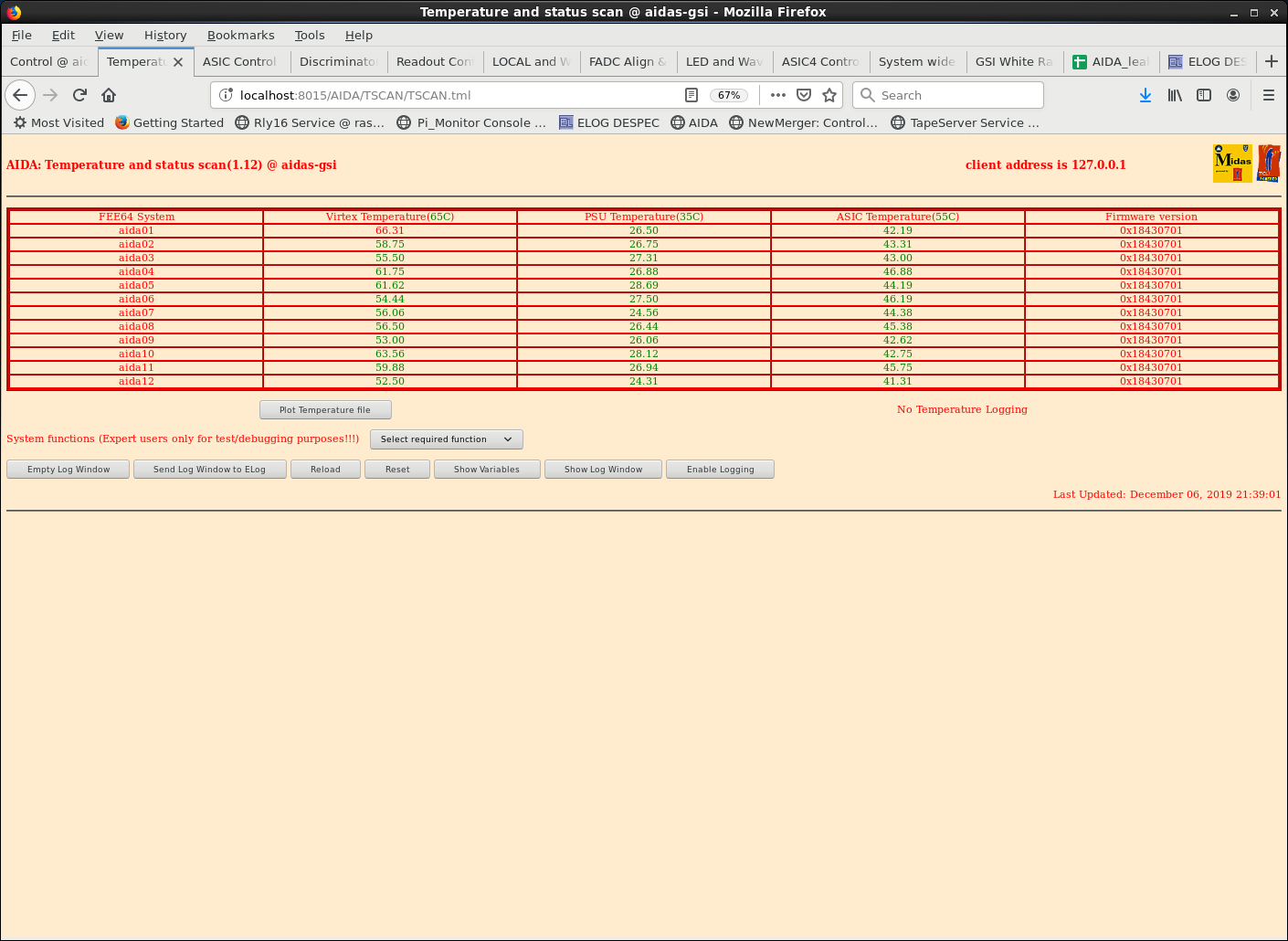

      Attachments 1-3: temperatures, good event stats, detector bias/leakage currents ok

22.04 waiting for beam. Possibility of fragments, further news to come

22.43 expecting fragments with 300 MeV/u 40Ar primary beam

      histograms zeroed

00.31 still waiting for beam

      detector bias/leakage currents ok (see google spreadsheet)

      FEE64 temps and good event statistics ok

02:02 still awaiting beam - issues with interlock

03:17 beam tuning - centering primary beam on target

03:43 beam reached AIDA, fragmentation beam (see elog entry by DK for PID)

      primary beam 300 Mev/u 40Ar, fragments in region of 34Si

      started writing to file Dec19/R2 at rate ~ 4000 kb/s

      histograms zeroed

03.49 system wide checks all ok

      attachments 4-6:

      temperatures ok

      bias/leakage currents ok

      good event statistics ok, except aida09 running slightly fast

04:03 attachments 7-8 - 1.8.H energy spectra

                      - no high energy events seen in aida10 -> checked ASIC control

                      - still no high energy events in aida10

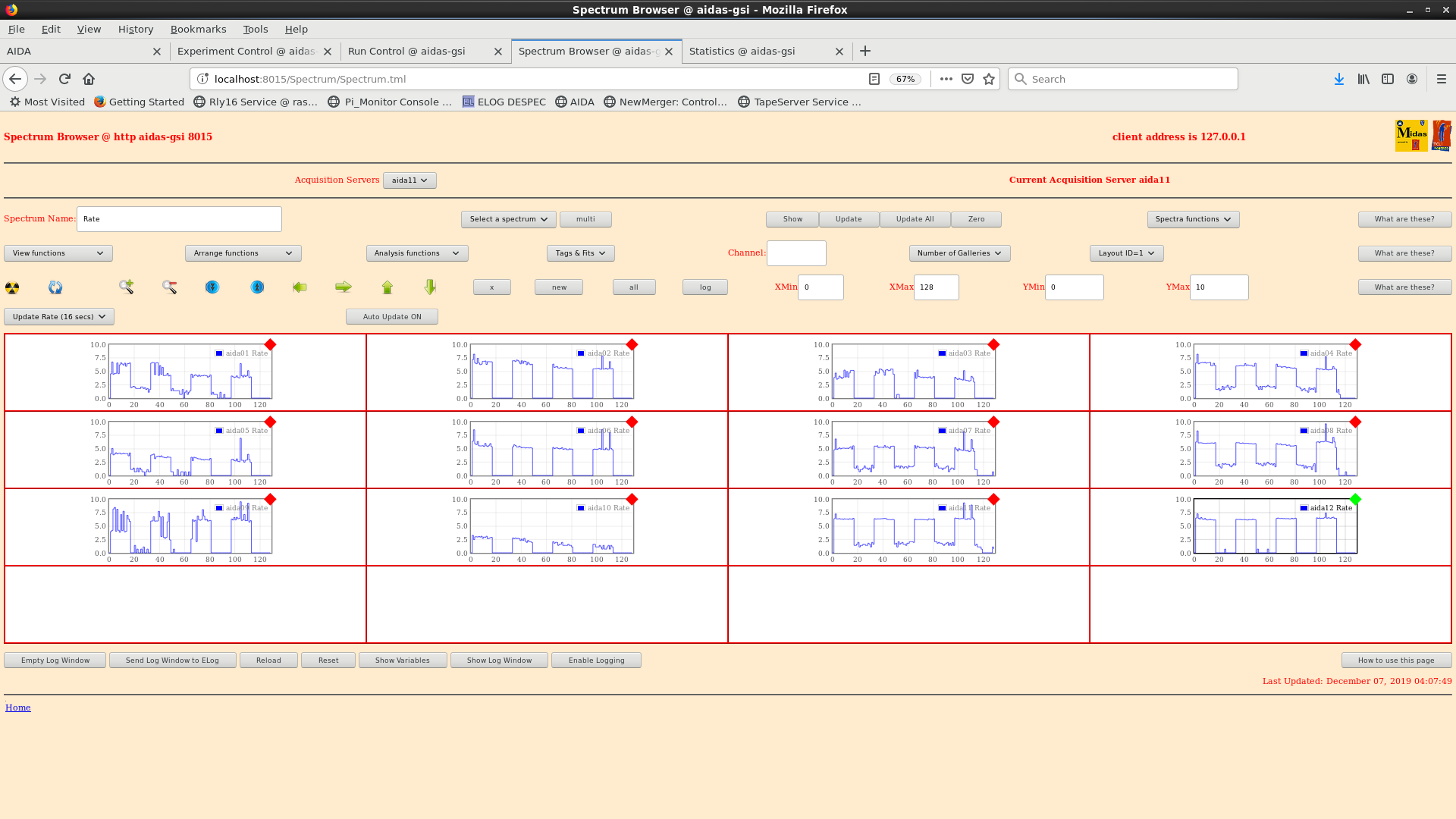

04:09 attachment 9 - rate spectra for all FEE modules

04.16 attachment 10 - 1D hits for all FEE modules

04.19 beam stop - file R2_3

04:52 beam back on - file R2_6 - rate of ~ 5000 ions per spill

06:13 temperatures ok

      good event statistics ok (aida09 still running fast) - attachment 11

      detector bias/ leakage currents ok - see google spreadsheet

      all system wide checks ok

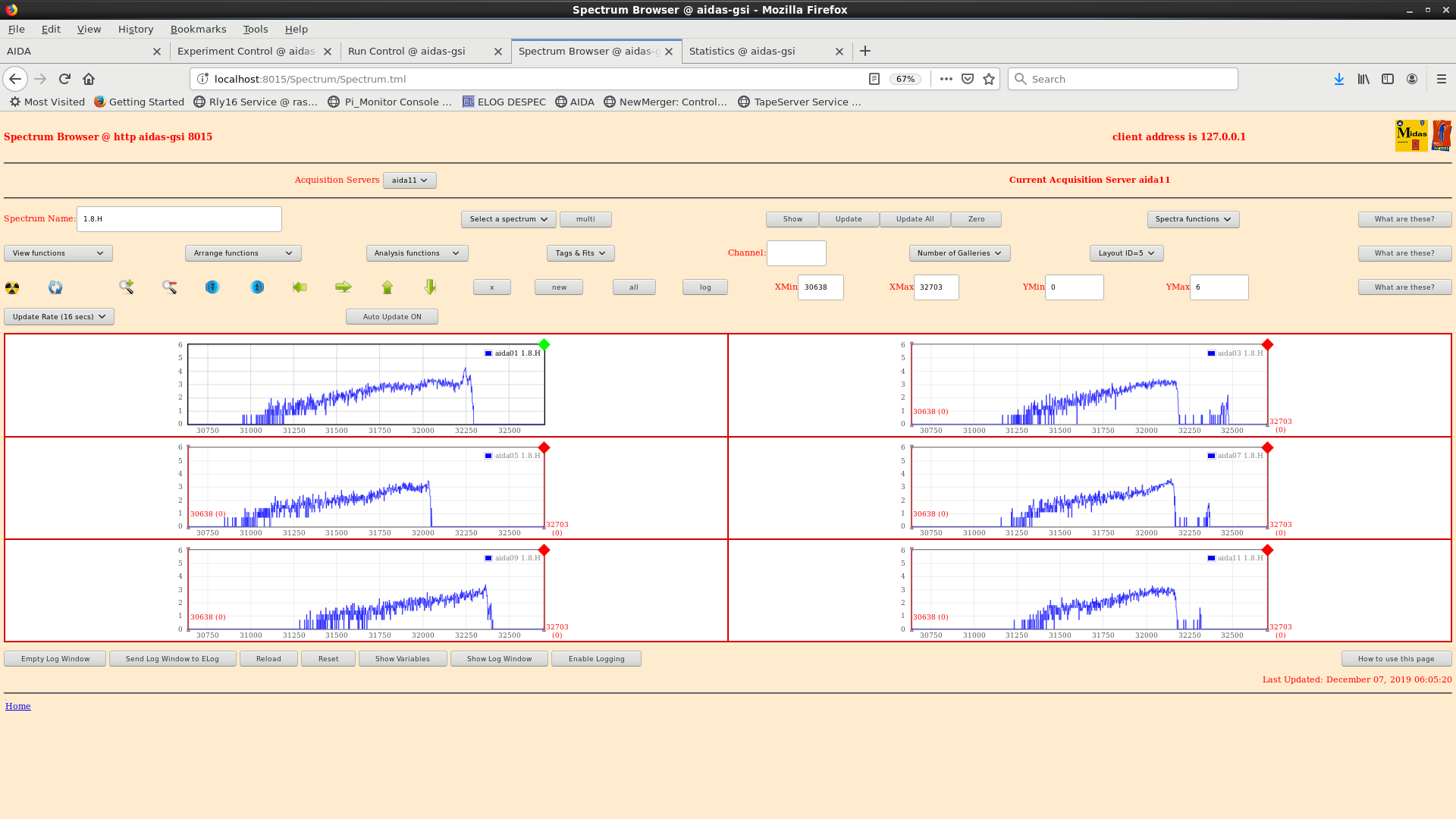

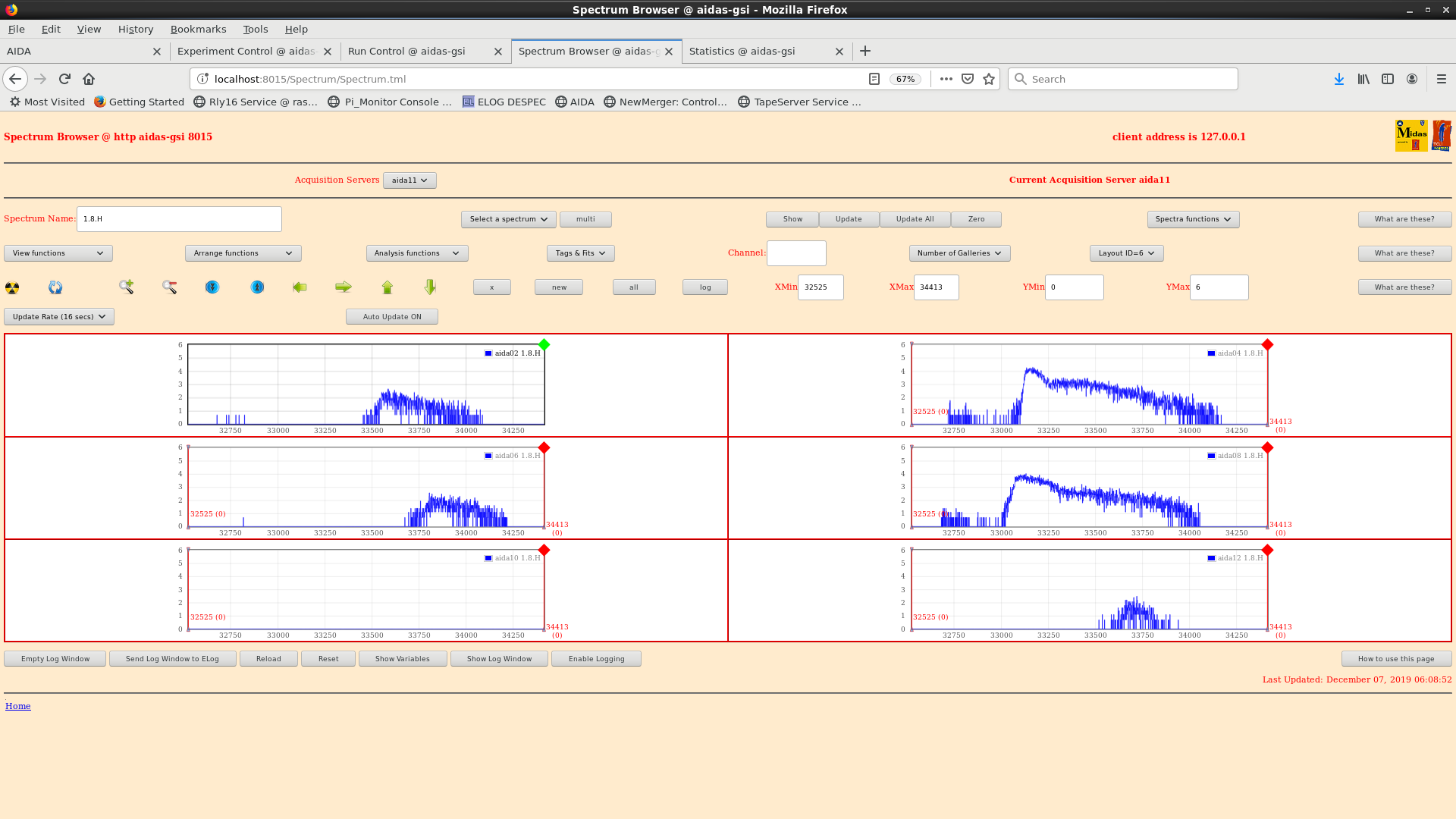

      1.8.H spectra - attachments 12/13

06:20 attachment 14 - rate spectra for all FEE modules

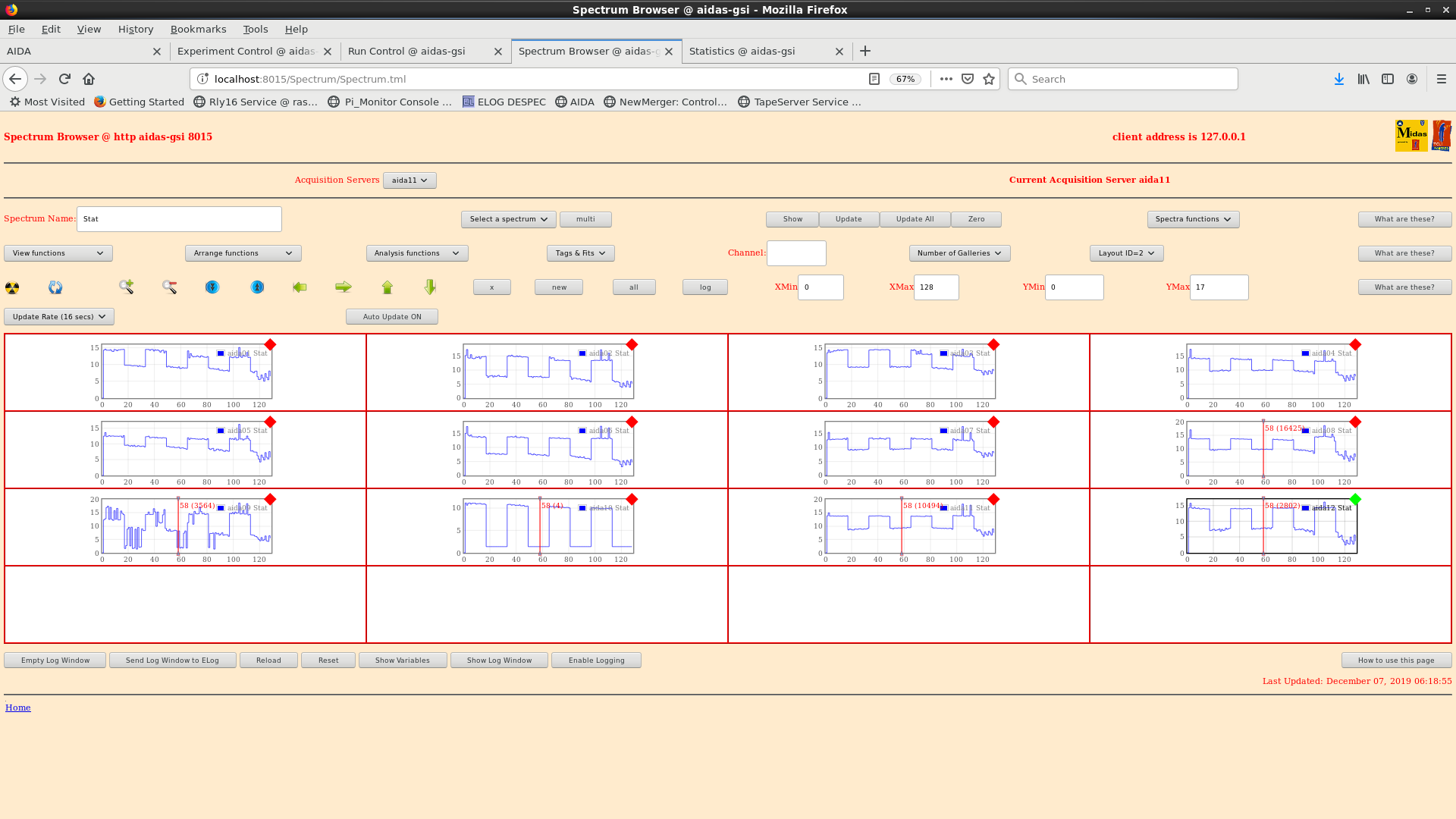

      attachment 15 - 1D hits for all FEE modules

      still no high energy events in aida10



Attachment 1: 191206_2139_temp.png  99 kB  | Hide | Hide all
Attachment 2: 191206_2140_bias.png  11 kB  | Hide | Hide all
Attachment 3: 191206_2140_stats.png  82 kB  | Hide | Hide all
Attachment 4: 191107_0351_temp.png  99 kB  Uploaded Sat Dec 7 02:54:59 2019  | Hide | Hide all
Attachment 5: 191207_0352_bias.png  11 kB  Uploaded Sat Dec 7 02:54:59 2019  | Hide | Hide all

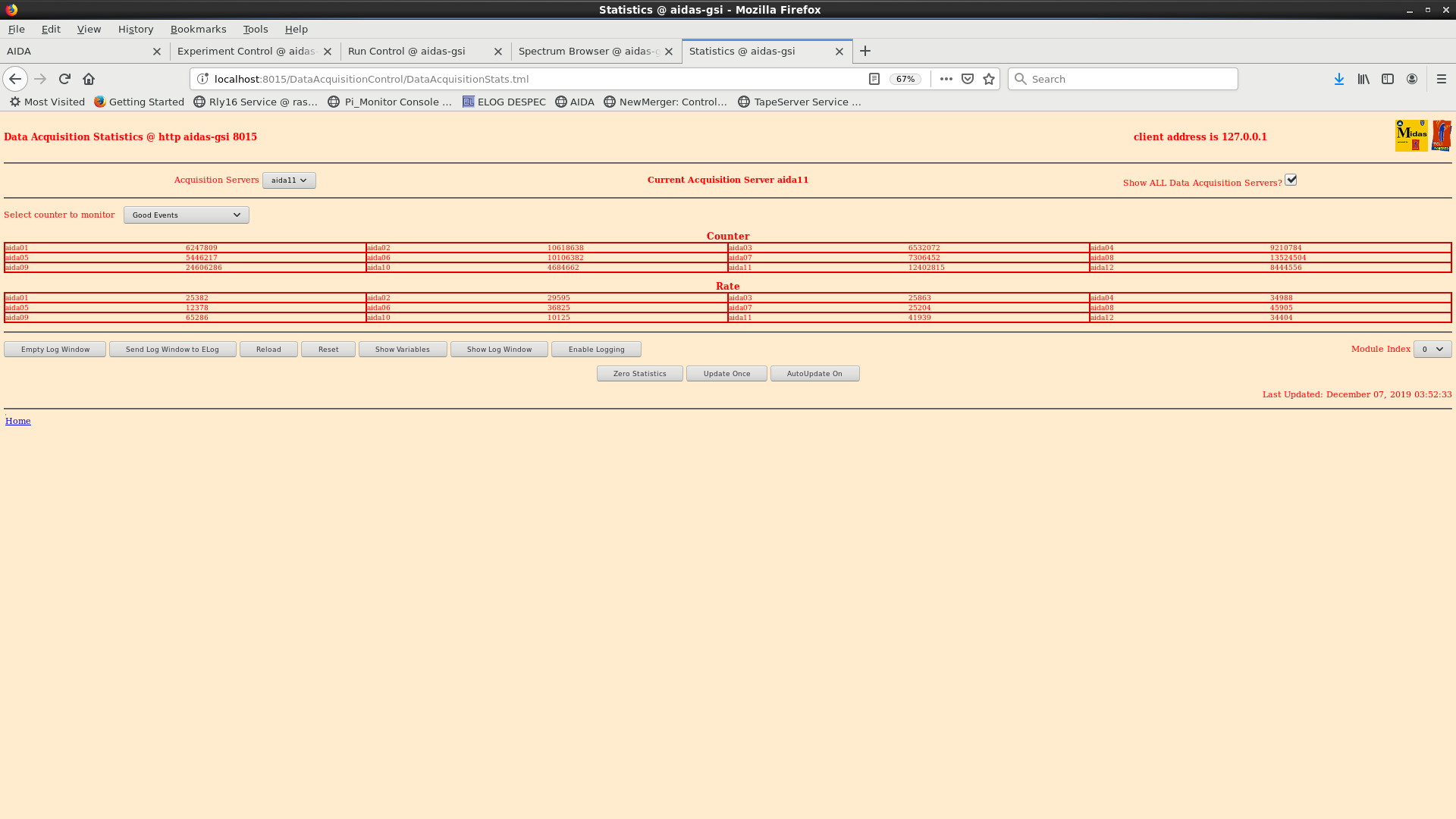

Attachment 6: 191207_0352_stats.png  81 kB  Uploaded Sat Dec 7 02:54:59 2019  | Hide | Hide all
Attachment 7: 191207_18h_2.png  139 kB  Uploaded Sat Dec 7 03:05:31 2019  | Hide | Hide all
Attachment 8: 191207_18H_1.png  142 kB  Uploaded Sat Dec 7 03:05:31 2019  | Hide | Hide all
Attachment 9: 191207_0408_rates.png  134 kB  Uploaded Sat Dec 7 03:09:17 2019  | Hide | Hide all
Attachment 10: 191207_0415_statspec.png  148 kB  Uploaded Sat Dec 7 03:16:17 2019  | Hide | Hide all
Attachment 11: 191207_0614_stats.png  82 kB  Uploaded Sat Dec 7 05:15:55 2019  | Hide | Hide all
Attachment 12: 191207_0606_18H_1.png  157 kB  Uploaded Sat Dec 7 05:17:04 2019  | Hide | Hide all
Attachment 13: 191207_0609_18h_2.png  149 kB  Uploaded Sat Dec 7 05:17:04 2019  | Hide | Hide all
Attachment 14: 191207_0618_rate.png  142 kB  Uploaded Sat Dec 7 05:19:49 2019  | Hide | Hide all
Attachment 15: 191207_0619_hits.png  143 kB  Uploaded Sat Dec 7 05:19:49 2019  | Hide | Hide all
