c 09.00 aida03 drops Histogram enable at DAQ GO
        NH determined this was due to Options DB corruption and fixed

09.55 DAQ currently running No Storage mode

ASIC settings 2019Oct31-13.24.23 (different from the December ones yesterday which experienced corruption)
     slow comparator 0xa

BNC PB-5 pulser
     amplitude 1.0V , attenuator x1
     frequency 2Hz
     decay time 1ms

DSSSD biases & leakage currents OK - attachment 1
FEE64 temps OK - attachment 2
good events statistics OK - attachment 3

system wide checks - attachments 4-11
    aida06, 08, 10, 12 re-calibrated OK, all others OK
    aida03 failed WR decoder status - collect all WR errors for baseline - all FEE64s pass WR decoder status
    sync all ASIC clocks using ReSync

merger & TapeServer OK - attachments 12-14

13.29 DAQ to disk file S480/R6

ASIC settings 2019Oct31-13.24.23
     slow comparator 0xa
     aida01 LEC/MEC fast comparator 0x64, all other FEE64s 0xff

14.57 fast comparator thresholds LEC/MEC changed to 0xff for all FEEs

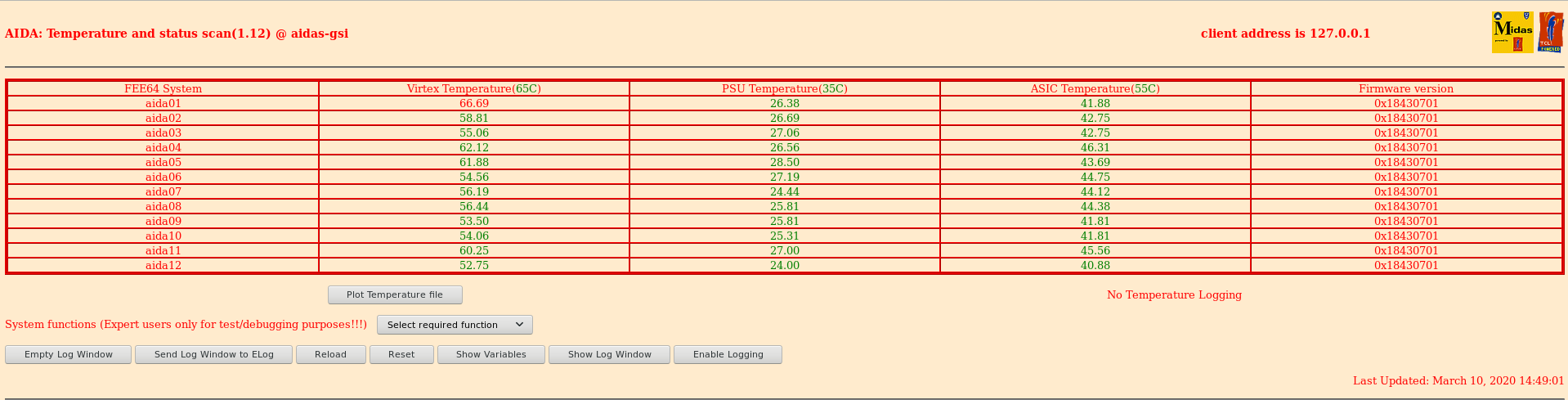

15.01 FEE temperatures normal, aida1 virtex temperature still slightly over 65 degrees (attachment 15)
      leakage currents recorded to spreadsheet (attachment 16)

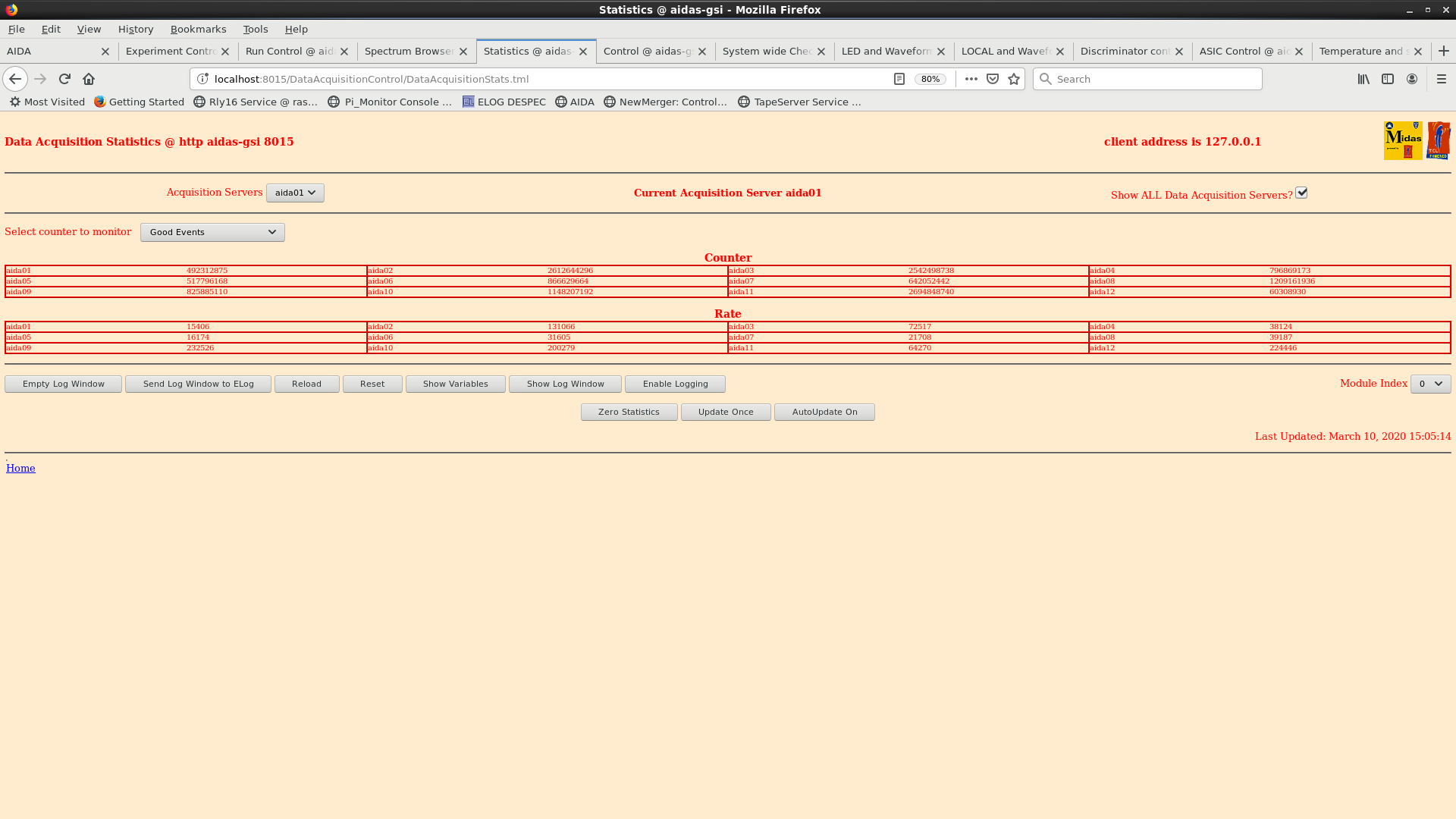

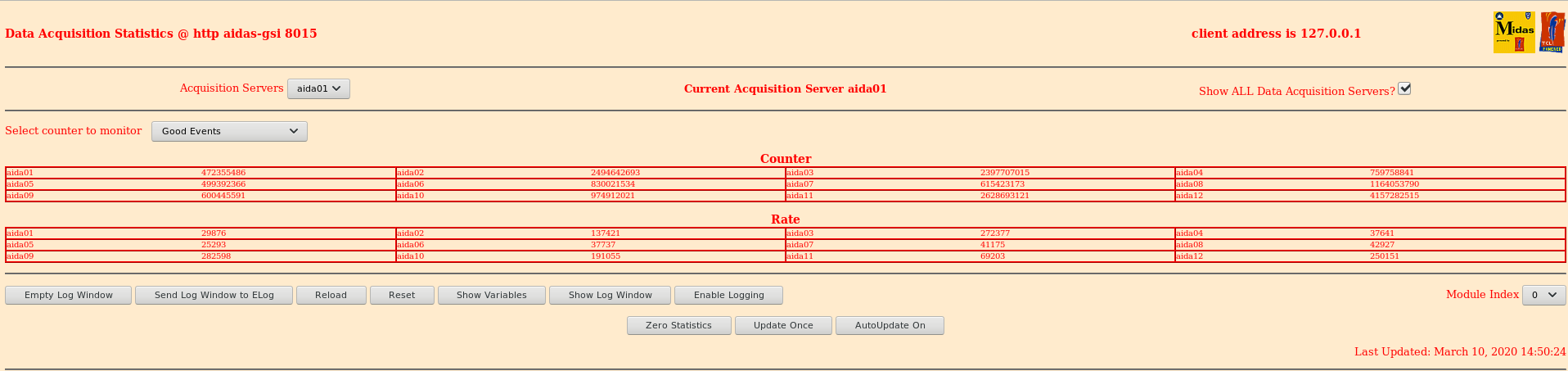

      good events rate similar to previous, high in DSSD3 and seems to be returning to normal in DSSD1 except in one FEE (attachments 17 and 18)
      system wide checks OK

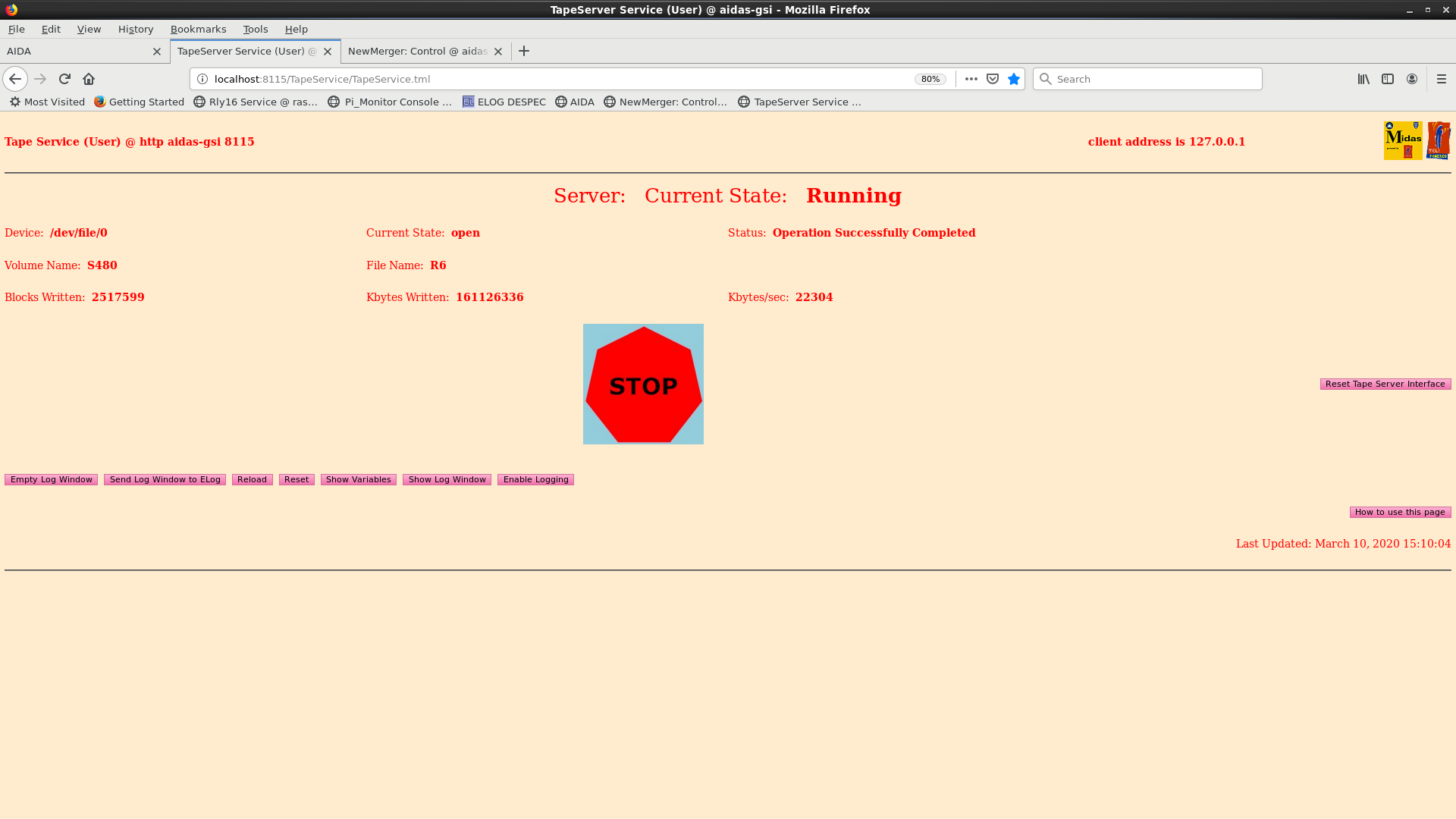

      data rate around 22000 KB per second (attachment 19)
as of 15.12 on file R6_80

attachment 20 is total event stats shows events are being implanted

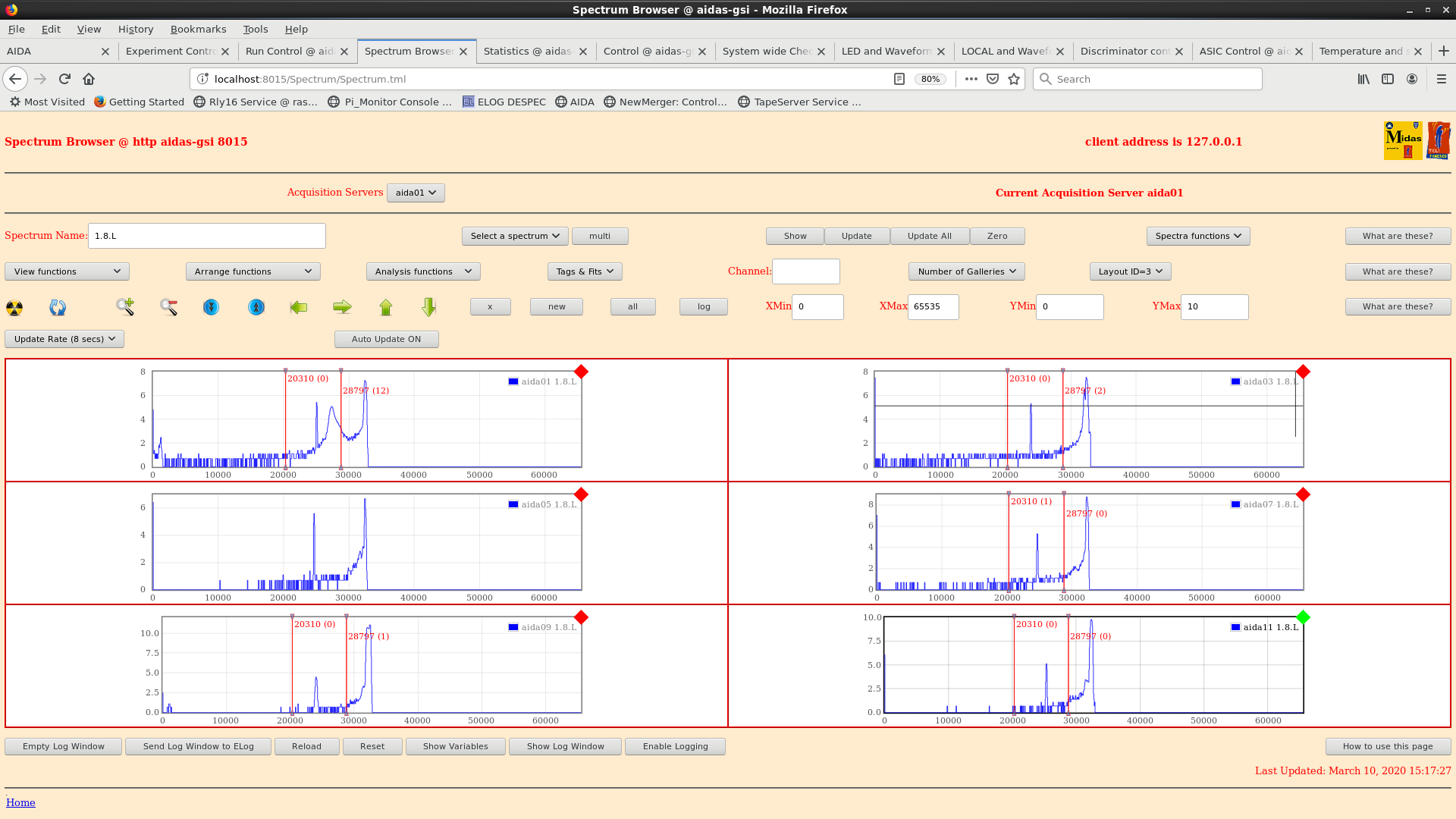

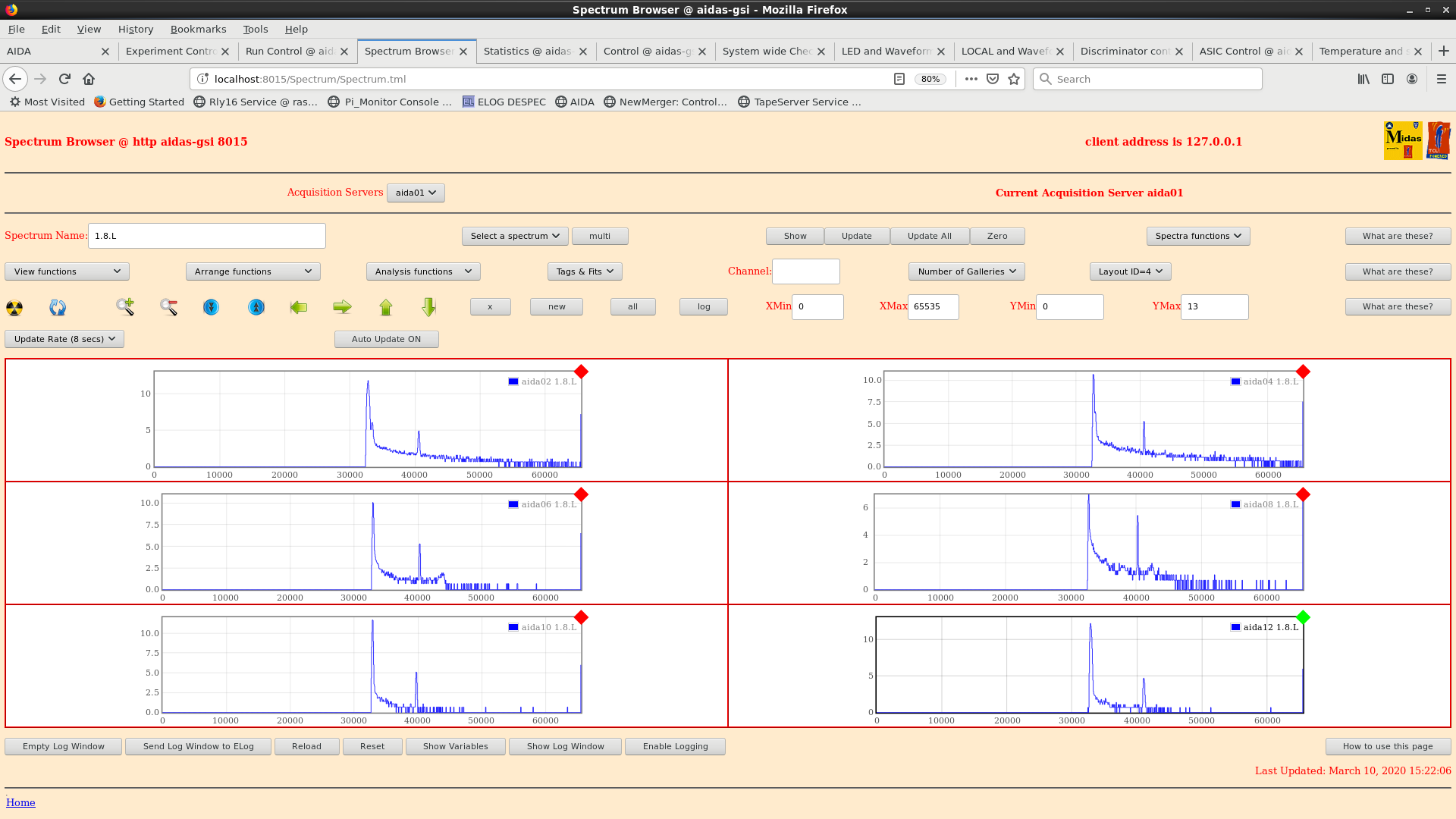

attachment 21 and 22 show low energy spectrum left most peak is pulser and rightmost is central noise. middle peak in aida1

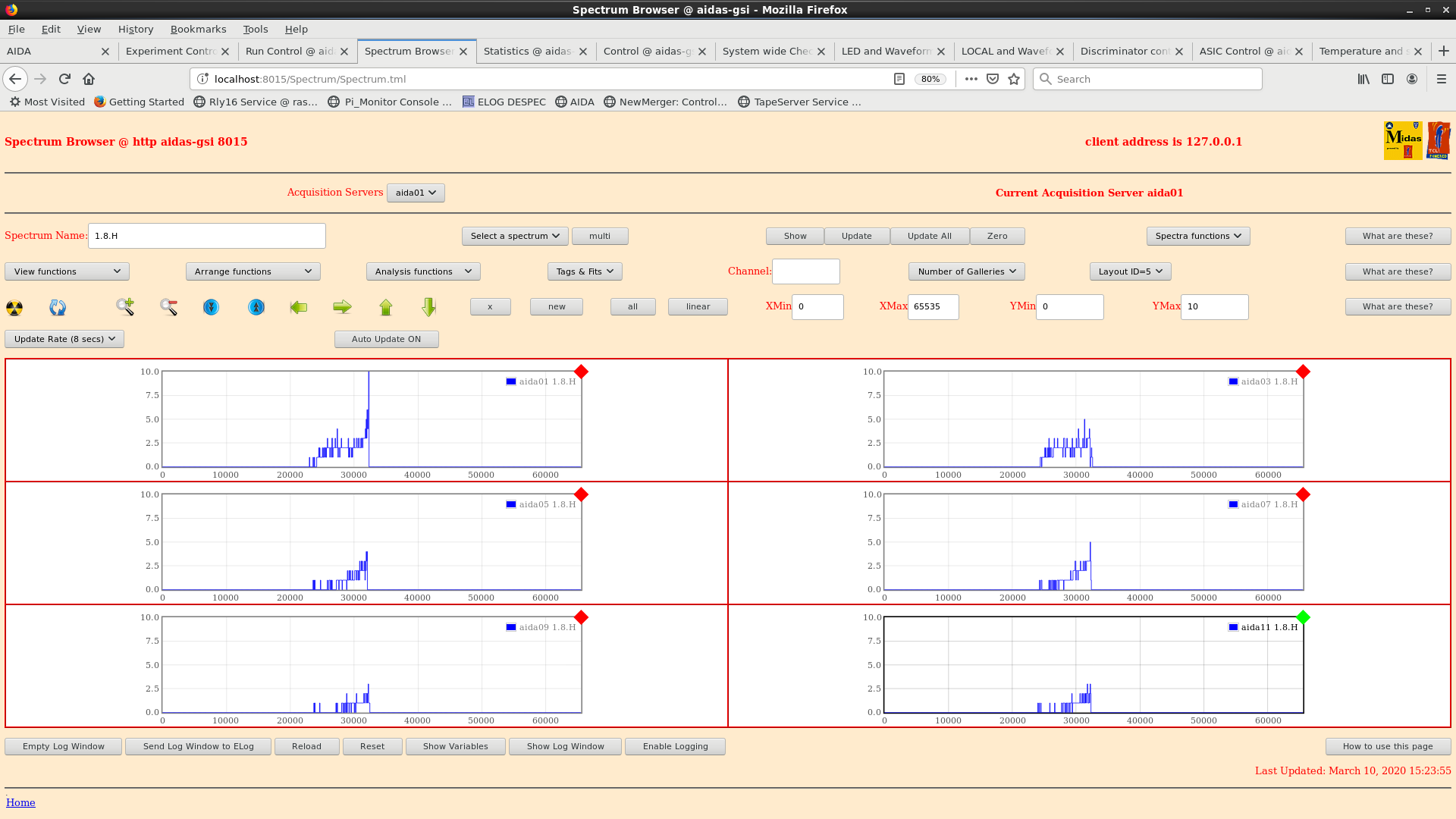

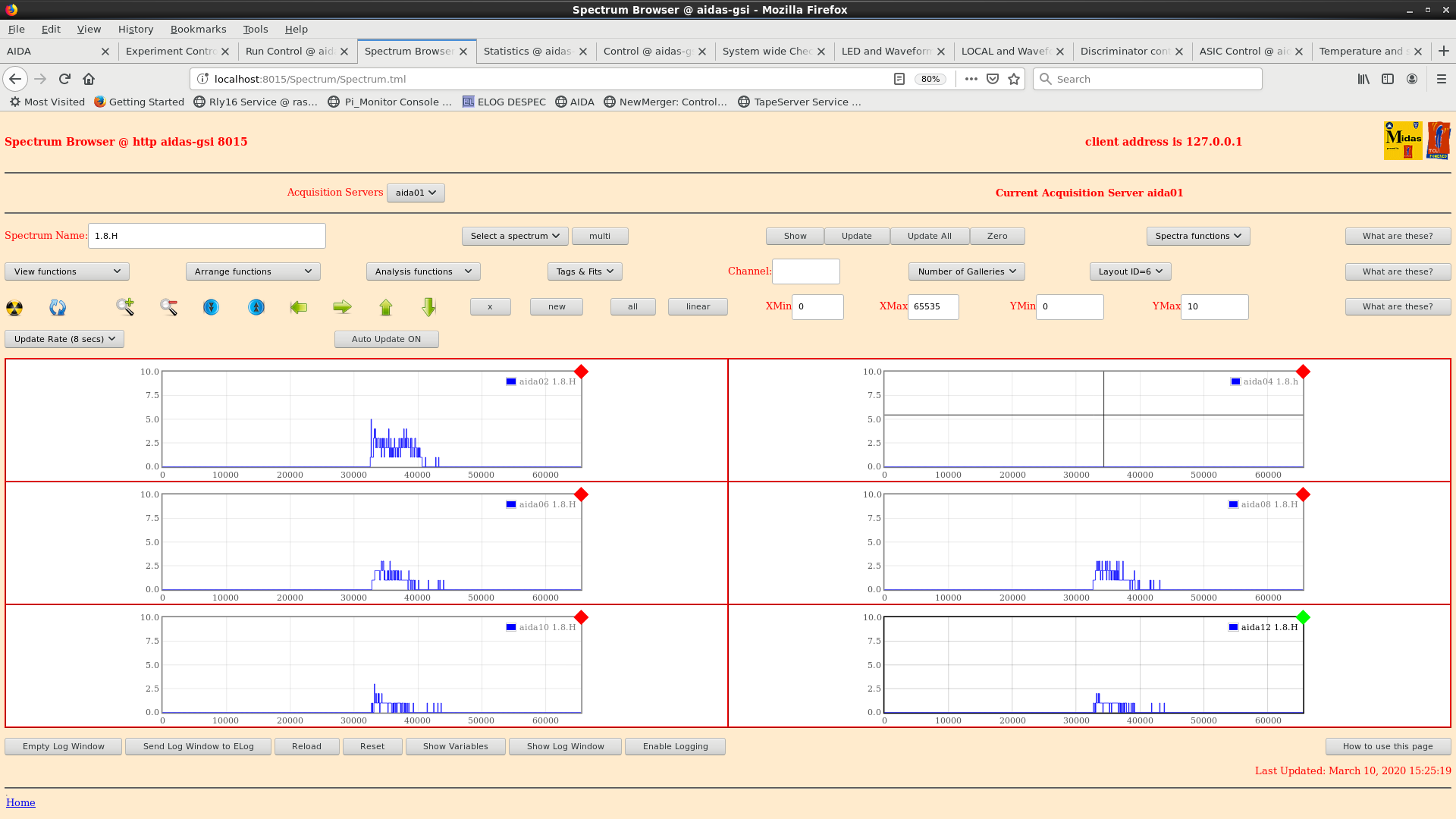

attachment 23 and 24 show high energy spectrum, aida4 histogram not being produced unsure why.

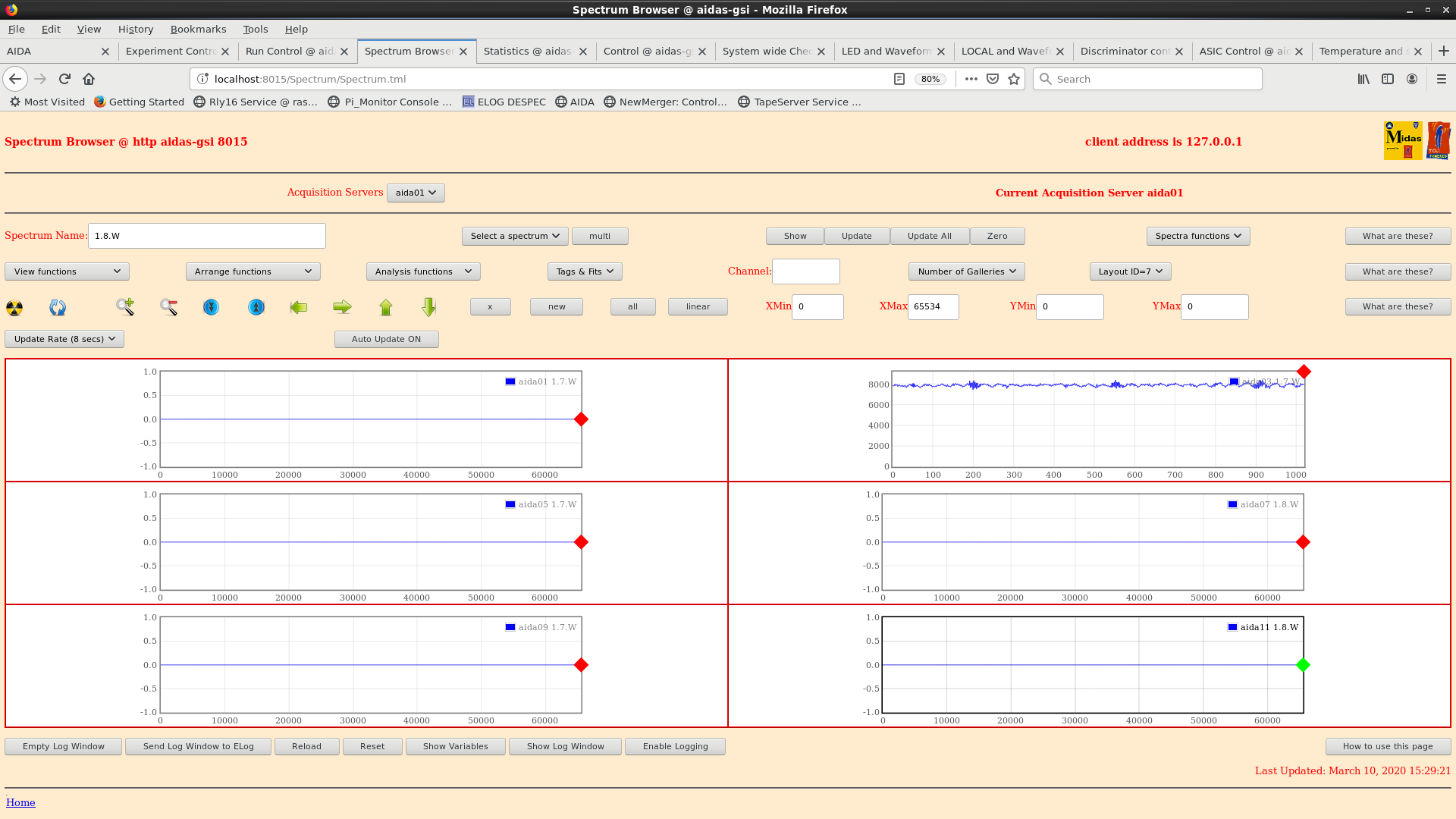

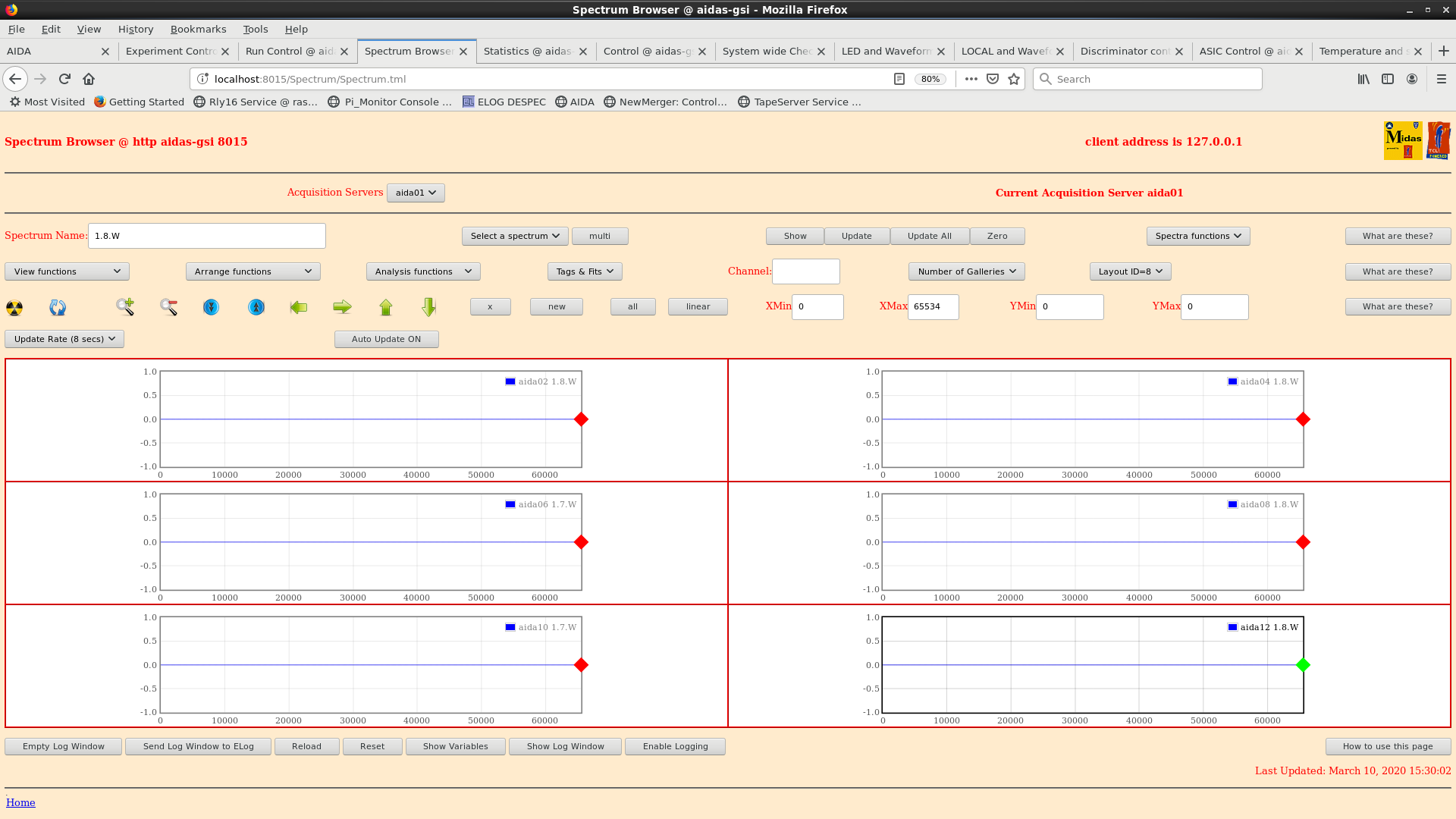

attachment 25 and 26 show waveforms, only aida3 histogram working

16.00 checked ASIC control, all OK

16.35 spill is now changed to 10s with beam intensity increase by factor of 10. 3000 implants per spill.

16.42 leakage currents recorded to spreadsheet

17.10 system wide checks ok

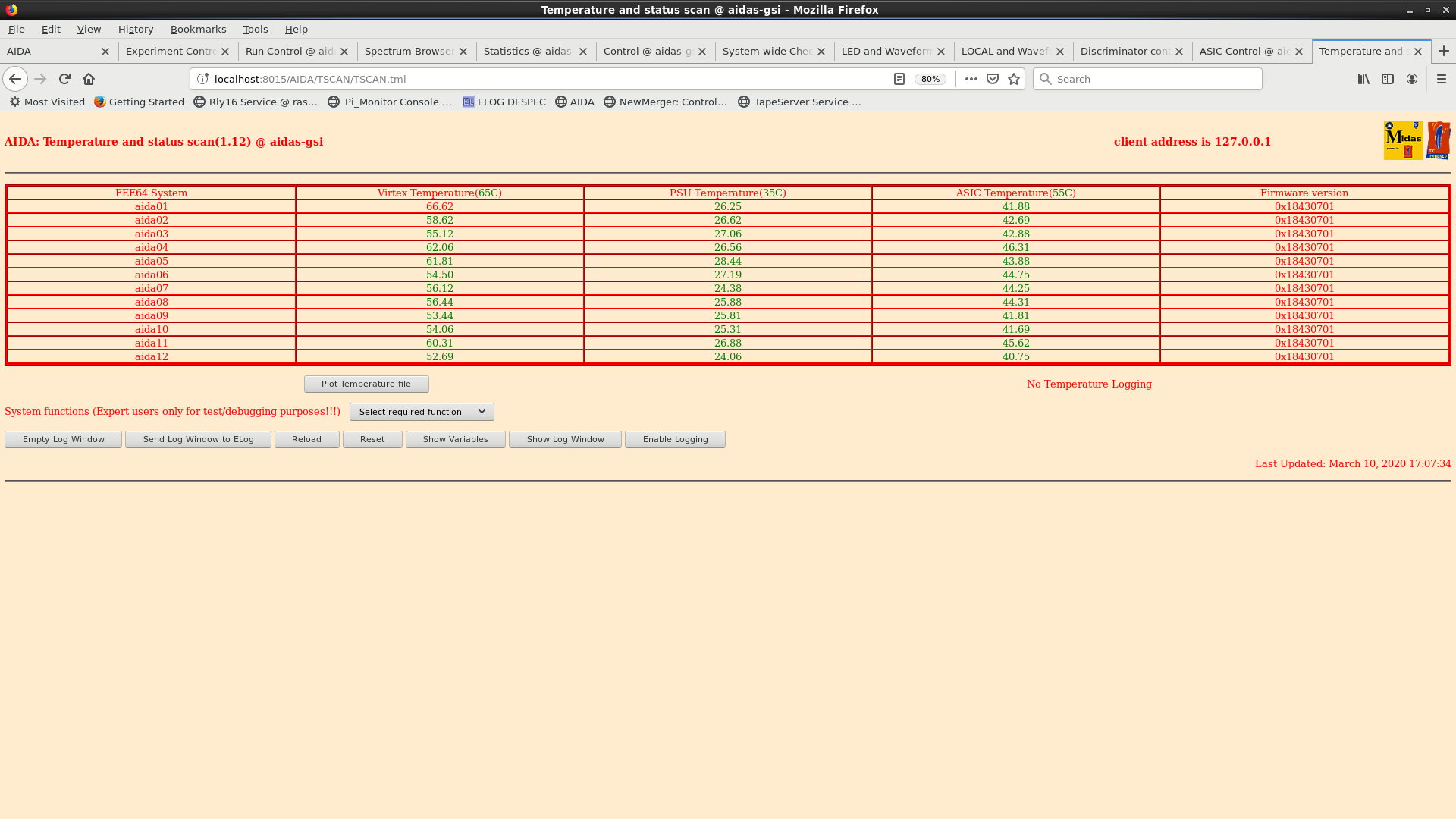

      fee64 temperatures ok - attachment 27

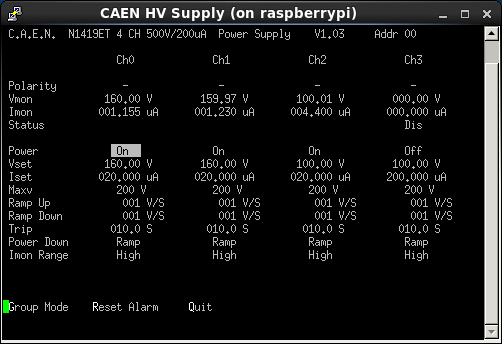

      detector bias/leakage currents ok - attachment 28
      good event statistics ok - attachment 29

17.15 moved slit at S2 - rate drop to try remove some 96Pd

17.20 writing to file R6_166

17.44 merger/tapeserver ok. Data rate ~ 25000 kb/s

18:10 Fine tuning implantation profile
      Removing 0.25mm Al degrader (60 mg/cm^2) to get 96Pd slightly further in to AIDA.
      DESPEC is closing the current file, R6_203 was just finished on AIDA on typing this.
      (Maybe the end  of run S480f004_ on DESPEC side but that elog was not updated since 16:40?)
      Decision based on assumption of 6 GeV 96Pd having a range 1 mm in silicon.

19.16 system wide checks ok
      good event statistics ok - attachment 30
      detector bias/leakage currents ok - attachment 31
      fee64 temperatures ok - attachment 32

19.39 TapeServer/Merger ok. Writing to file R6_265. Data rate ~ 25000 kb/s

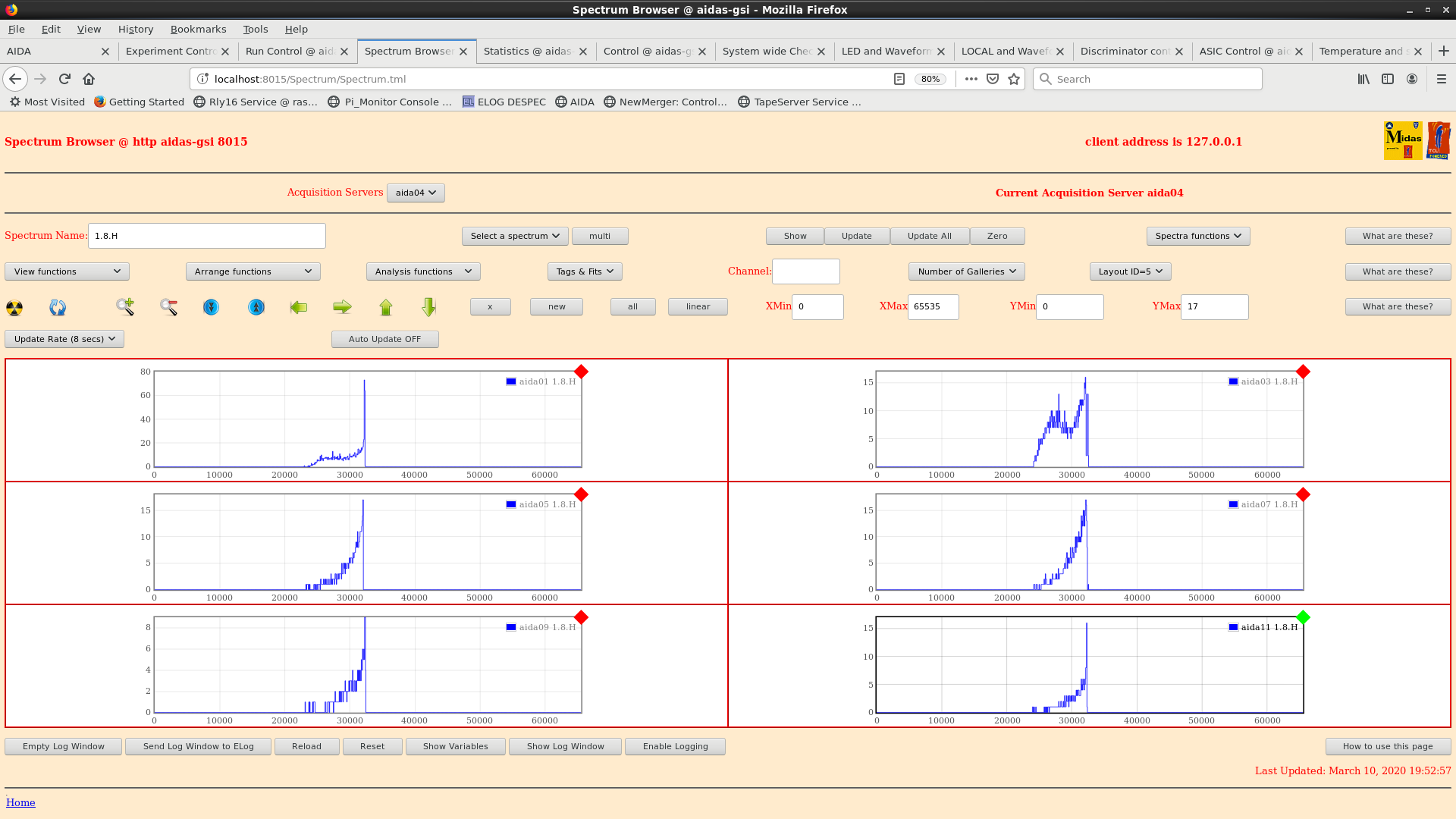

20.07 1.8.H high energy spectra front and back side (attachments 33 + 34)

20.36 S4 timing change, increased by factor of 2

20.38 Merger/TapeServer ok. Data being forwarded to MBS.

20.38 writing to file R6_308 at rate of ~ 25000 kb/s

21:21 system wide checks ok
      good event statistics ok - attachment 35
      fee64 temperatures ok - attachment 36
      detector bias/leakage currents ok - attachment 37

21:57 TapeServer/merger ok
      data forwarding to MBS ok
      writing to file R6_368 at rate of ~26000 kb/s

23:10 system wide checks ok
      good event statistics ok - attachment 38
      fee64 temperatures ok - attachment 39
      detector bias/leakage currents ok - attachment 40

23:24 TapeServer/merger ok
      data forwarding to MBS ok
      writing to file R6_435 at rate of 27000 kb/s

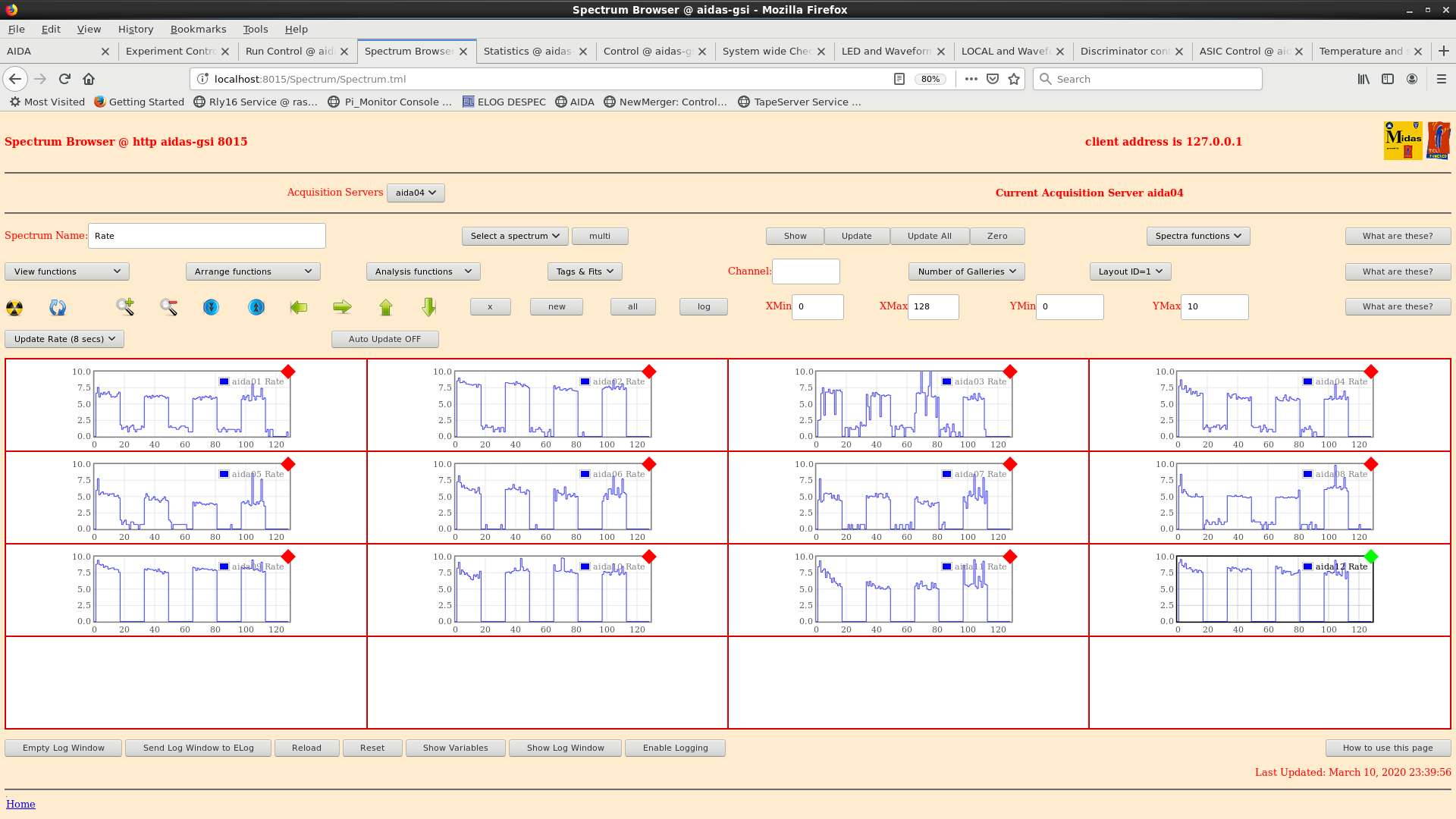

23:42 rate spectra - attachment 41
