ASIC settings 2019Oct31-13.24.23
     slow comparator 0xa

BNC PB-5 pulser
     amplitude 1.0V , attenuator x1
     frequency 2Hz
     decay time 1ms

00.00 DAQ momentarily set to NoStorage
      OH changes symbolic link such that AIDA is writing directly to mounted hard-drives ("SecondDrive" and "ThirdDrive")

00.02 DAQ now writing to file again - /media/SecondDrive/TapeData/S480/R12_0

00.30 all system wide checks ok

      FEE64 temperatures ok - attachment 1

      good event statistics ok - attachment 2

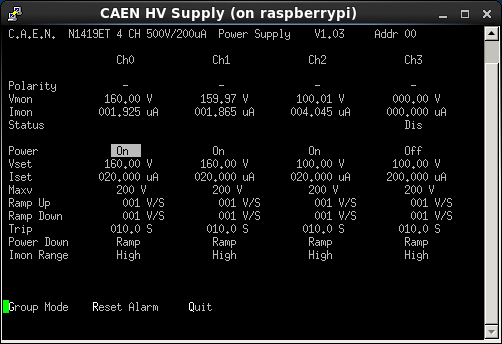

      detector bias and leakage currents ok - attachment 3

00:43 merger ok - writing at ~ 3 million items/s

      TapeServer ok - writing at ~ 27 Mb/s

      Data forwarding to MBS ok

02:14 all system wide checks ok

      FEE64 temperatures ok - attachment 4

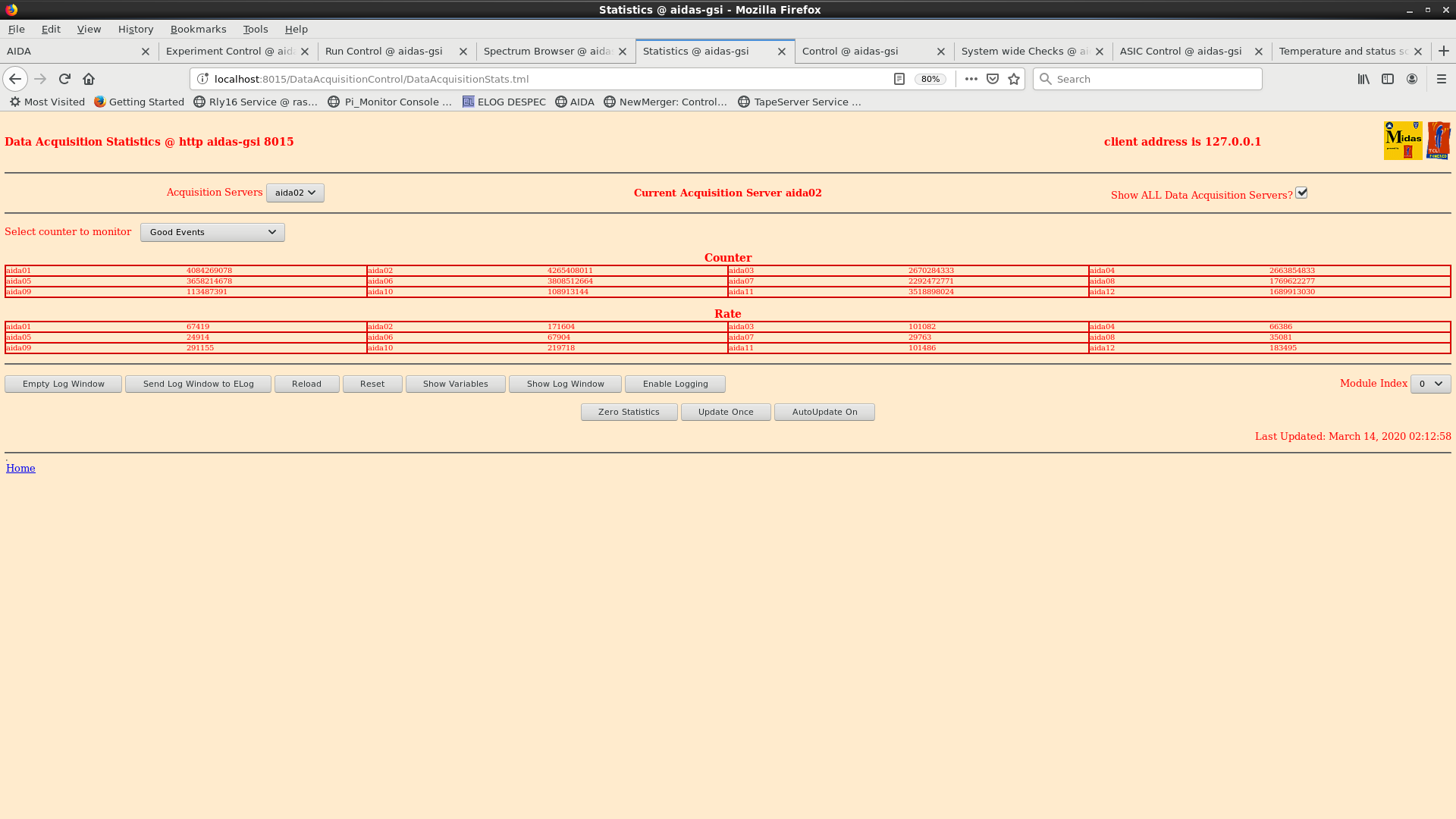

      good event statistics ok - attachment 5

      detector bias and leakage currents ok - attachment 6

02:17 Merger ok  ~ 2.7 million items/s

      TapeServer ok  ~ 27 Mb/s

      Data forwarding to MBS ok

02:18 currently writing to file /media/SecondDrive/TapeData/S480/R12_110

02:57 attachments 7 & 8 - high energy channel spectra

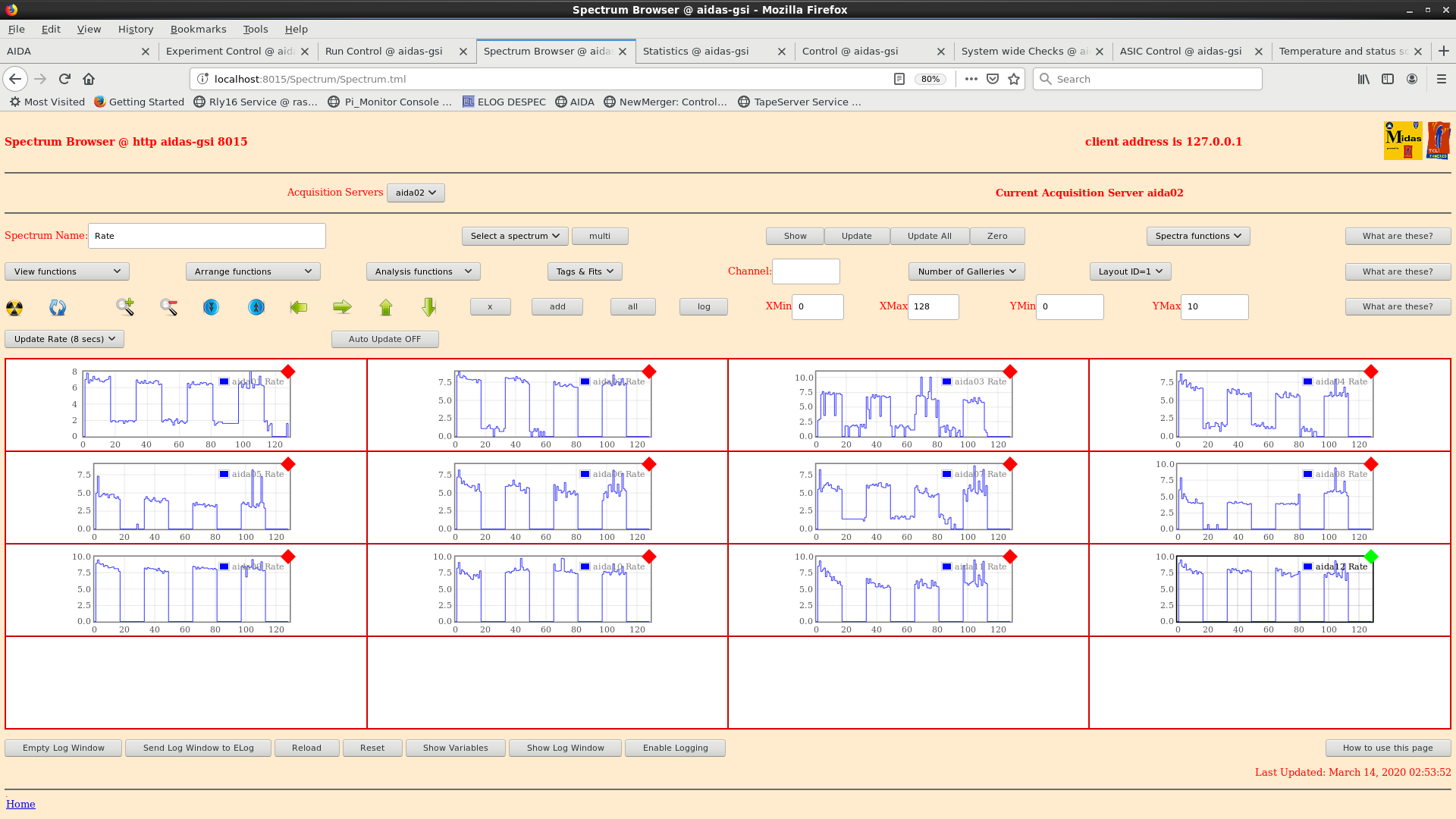

      attachment 9 - hit rate spectra

04:21  FEE64 temperatures ok - attachment 10

      good event statistics ok - attachment 11

      detector bias and leakage currents ok - attachment 12

      system wide checks ok - except WR decoder status (see attachment 13)

04:26 check ASIC control

04:30 system functions -> select required function -> collect all WhiteRabbit status error counters for baseline
      WR decoder status check now ok

04:50 Merger ok  ~ 3 million items/s

      TapeServer ok  ~ 25 Mb/s

      Data forwarding to MBS ok

04:52 currently writing to file /media/SecondDrive/TapeData/S480/R12_231

06:11 all system wide checks ok

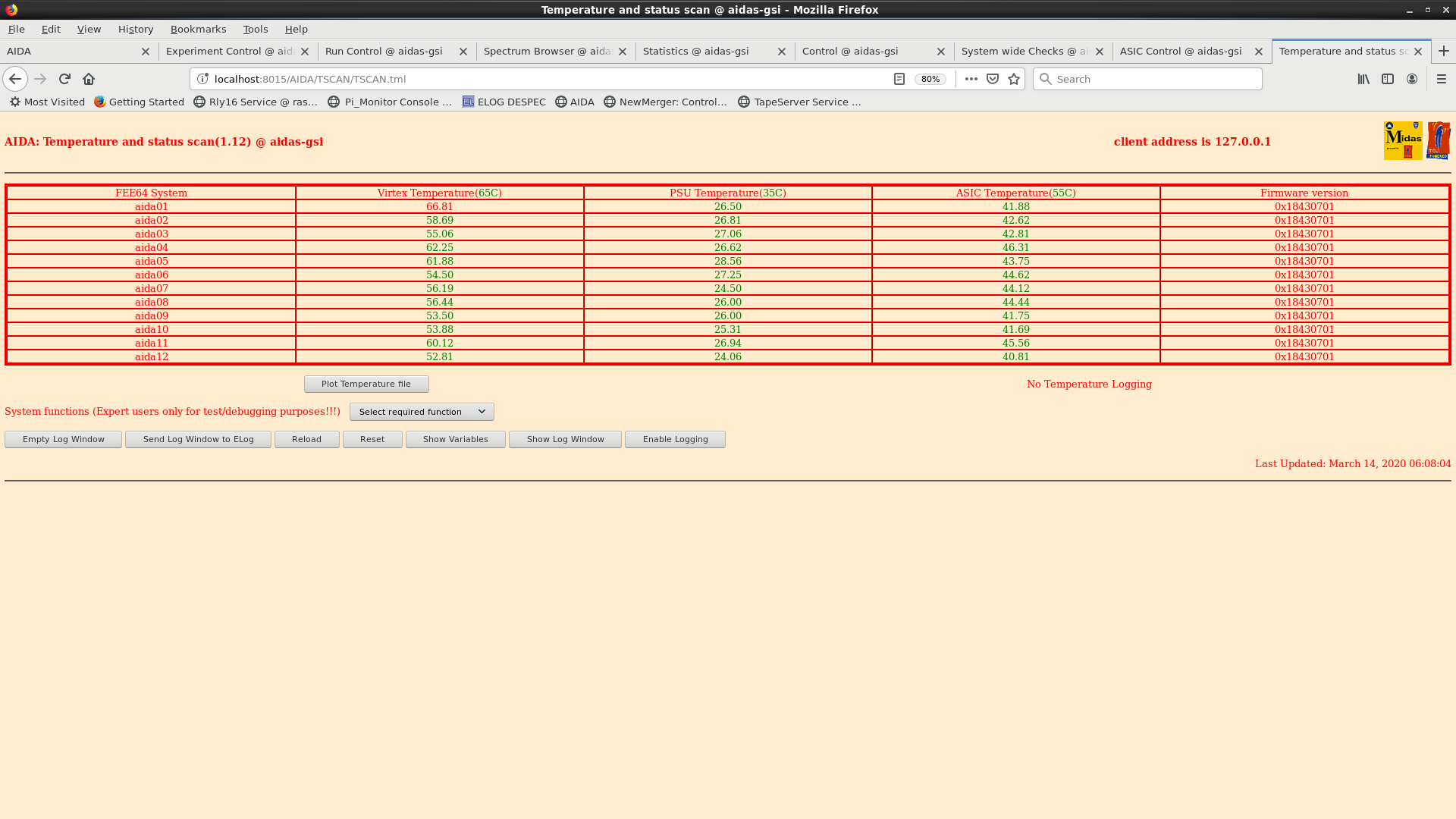

      FEE64 temperatures ok - attachment 14

      good event statistics ok - attachment 15

      detector bias and leakage currents ok - attachment 16


06:41 Merger ok  ~ 3.3 million items/s

      TapeServer ok  ~ 25 Mb/s

      Data forwarding to MBS ok

06:42 currently writing to file /media/SecondDrive/TapeData/S480/R12_315

07:25 hit-rate spectra - attachment 17

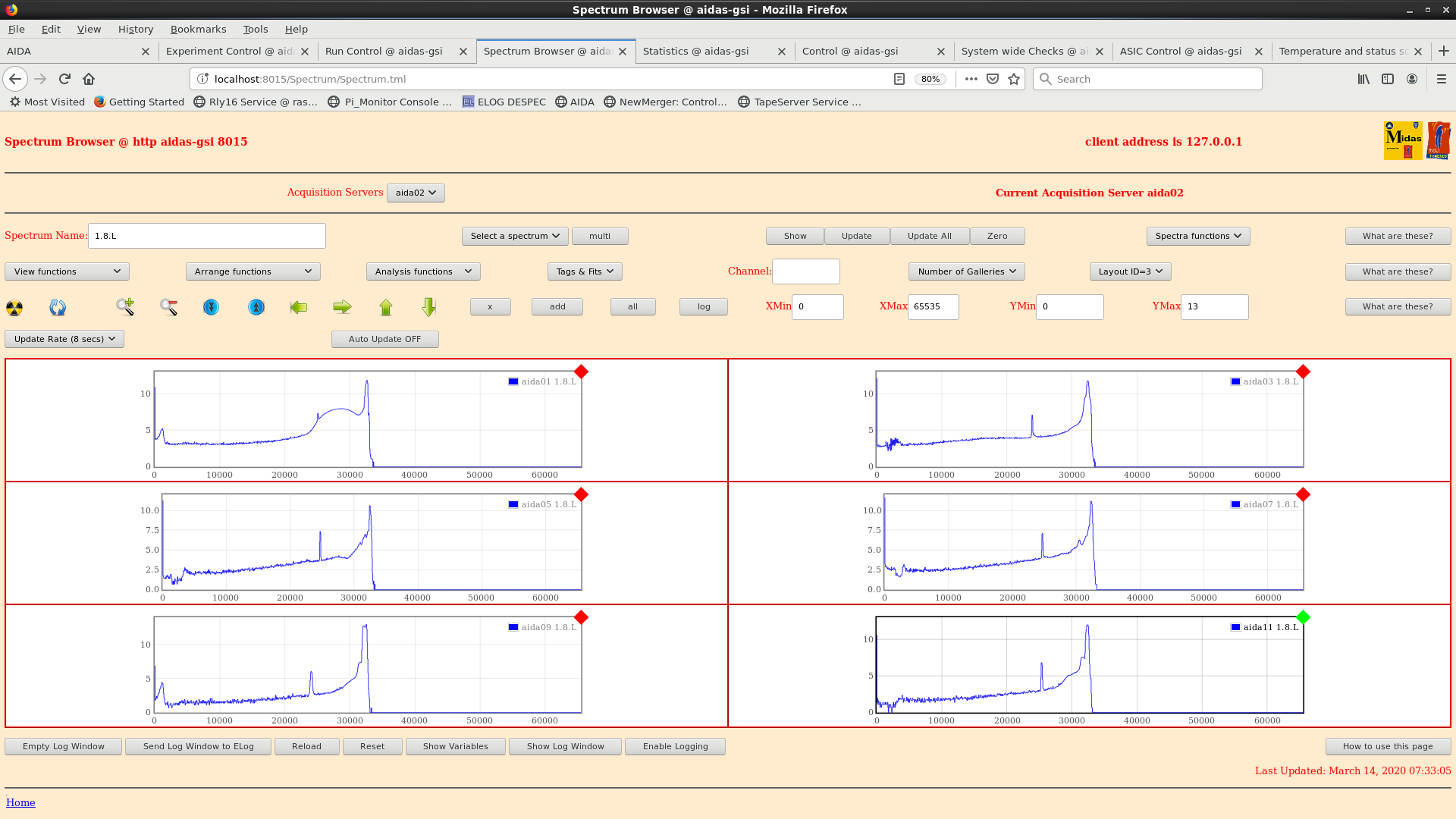

07:36 low energy channel spectra (1.8.L) - attachments 18 & 19
