| DESPEC |
 |
|
|
|
Message ID: 151
Entry time: Sat Mar 14 07:13:59 2020
|
| Author: |
DK, TD, LS, CG |
| Subject: |
Saturday 14th March 08:00 - 24:00 |
|
|
8:15
All system wide checks passed
Leak currents are continuing to creep up - attachment #1
FEE temperatures fine - attachment #2
Stats about where they have been - attachment #3
Implants look as previously (5ish counts per channel in SSD1 and SSD2) - attachment #4
Merger fine, 3 Mega items / sec
TapeServer still writing about 25 MB/s
09.37 analysis of data file S480/R12_443
deadtime aida09 c. 5%, all other FEE64s <<1%
See attachment #5
09.54.51
biases, SSD1 and 2 over 2 uA each now - attachment #6

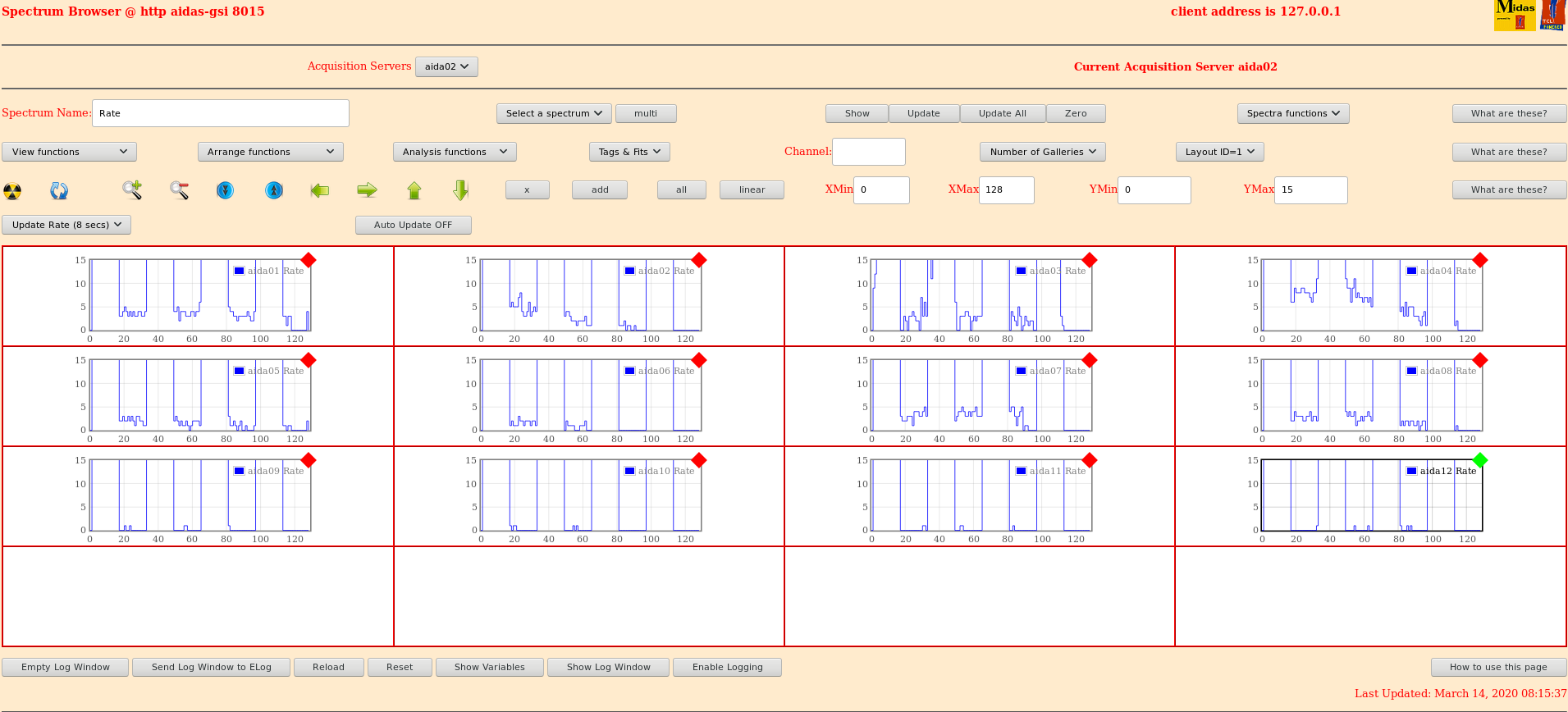

11:20
All system-wide checks okay
Merger okay, 3 Mega items / sec
TapeServer normal, 27 MB/sec
Biases as attachment #7
Stats as #8
Temps as #9
Histos as #10

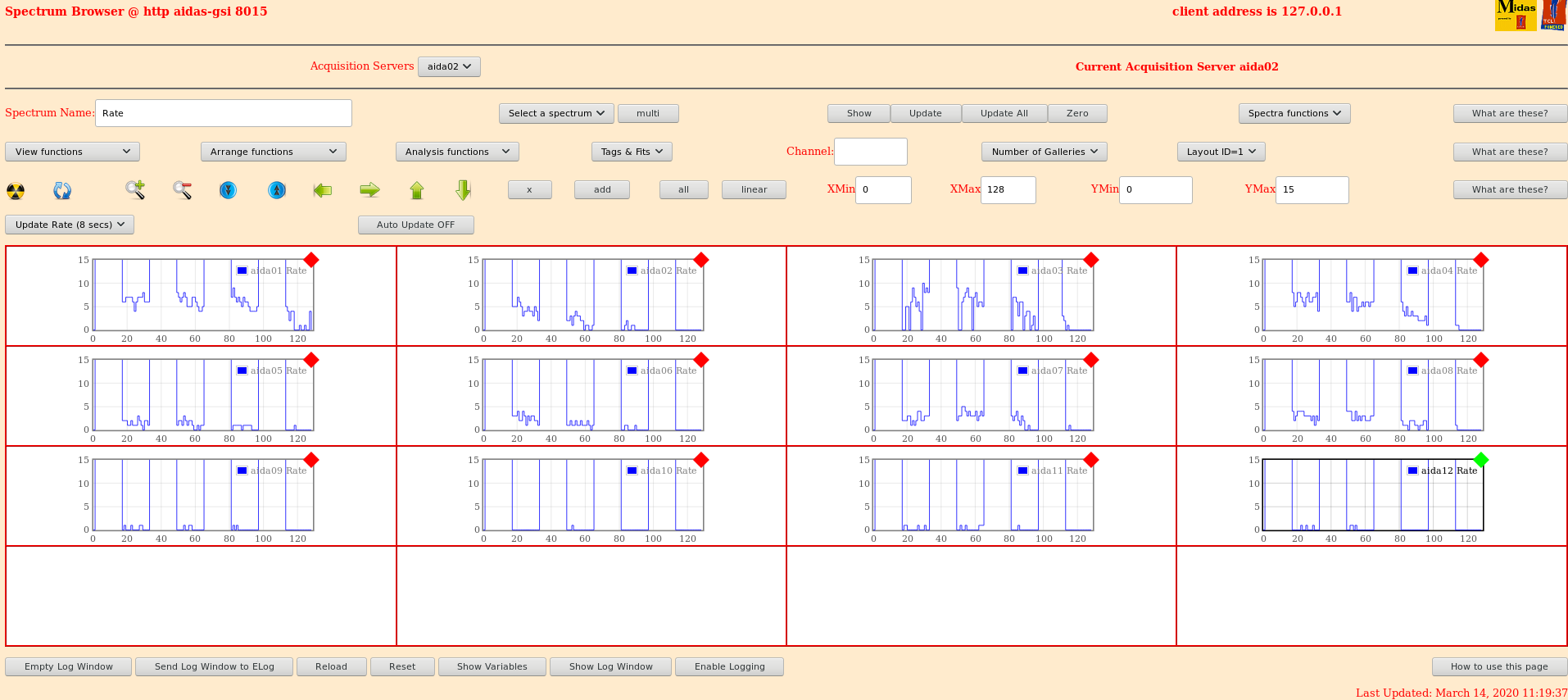

14:10
All system wide checks okay
Stats #11
Temps #12
Implants #13
Leak currents are getting a bit higher #14

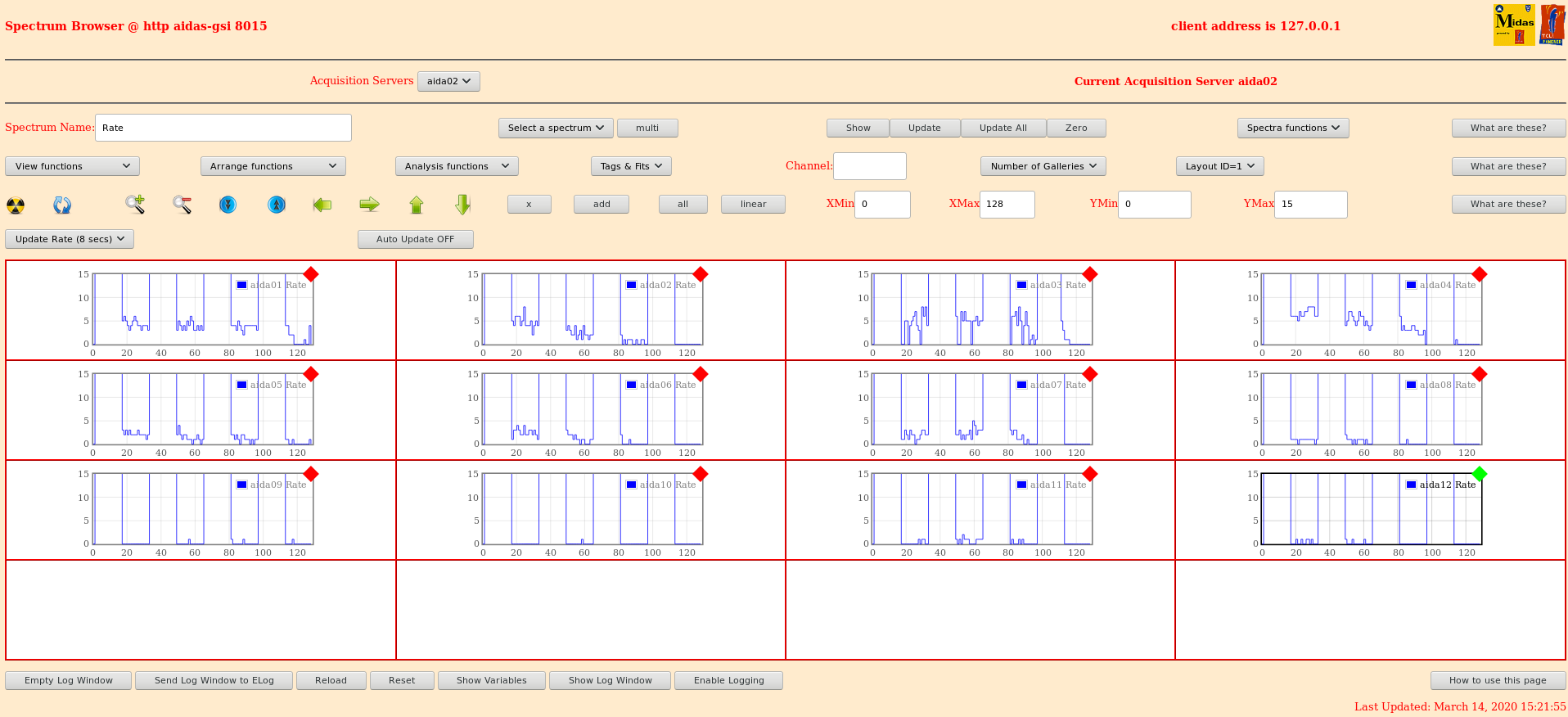

15:30
All system wide checks passed
Stats attachment #15
Temps attachment #16
Implants attachment #17
Biases / leak currents attachment #18
Merger okay, 3 Mega items / sec
TapeServer okay, writing 27 MB/s
16.12 all online spectra zero'd
16.31 stat & rate spectra - attachments 19-22
1.8.L spectra - attachments 23 & 24
aida03 pulser peak 57 ch FWHM
1.8.H spectra - attachments 25 & 26
NewMerger & TapeServer - attachments 27 & 28
18.29
system wide checks all okay
FEE temperatures normal (attachment 29)

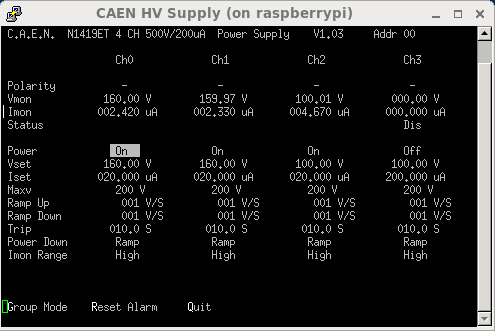

Leakage currents okay and recorded to spreadsheet (attachment 30)

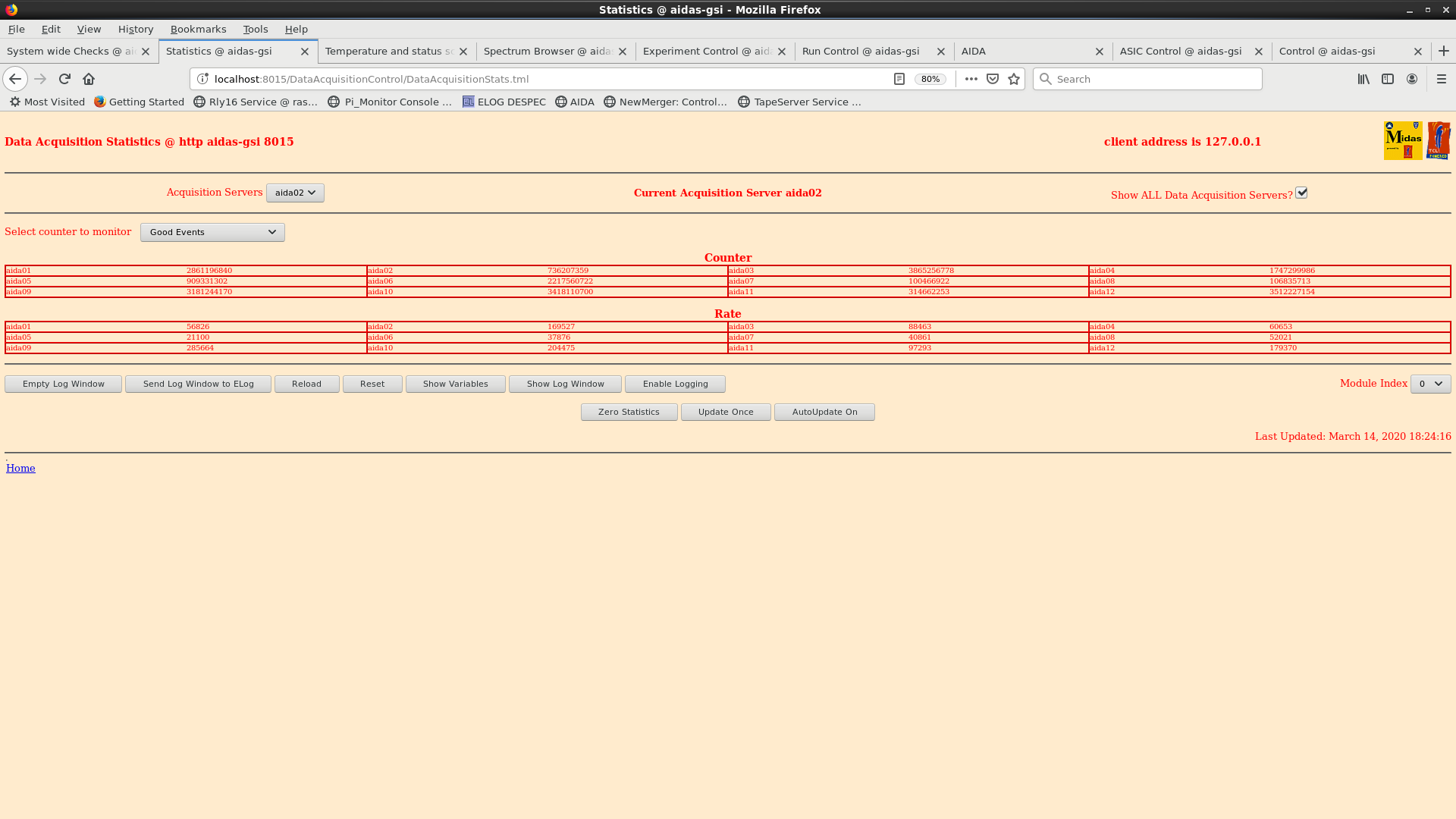

Good event statistics okay (attachment 31)
Merger running at 3M items/sec
Tape server running at 25MB/sec
20.25
system wide checks all okay
FEE temperatures normal (attachment 32)

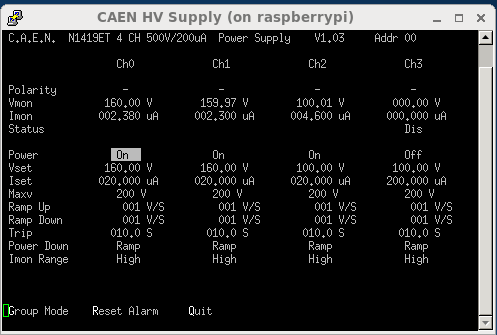

Leakage currents okay and recorded to spreadsheet (attachment 33)
Good event statistics okay (attachment 34)
Merger running at 3M items/sec
Tape server running at 26MB/sec
as of 20.39 just finished R12_961

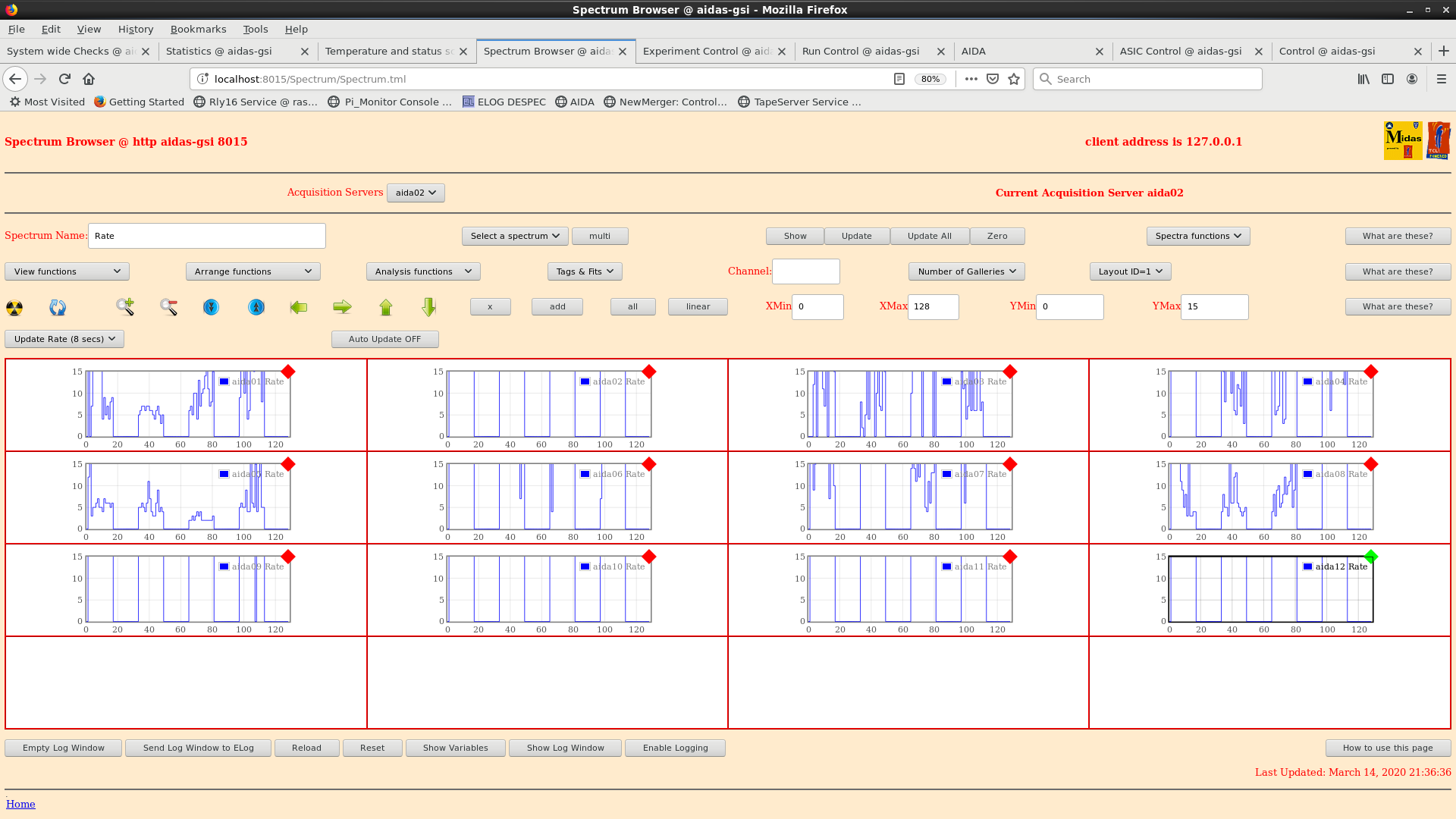

21.36 beam is down confirmed by rates histogram (attachment 35), informed others on shift

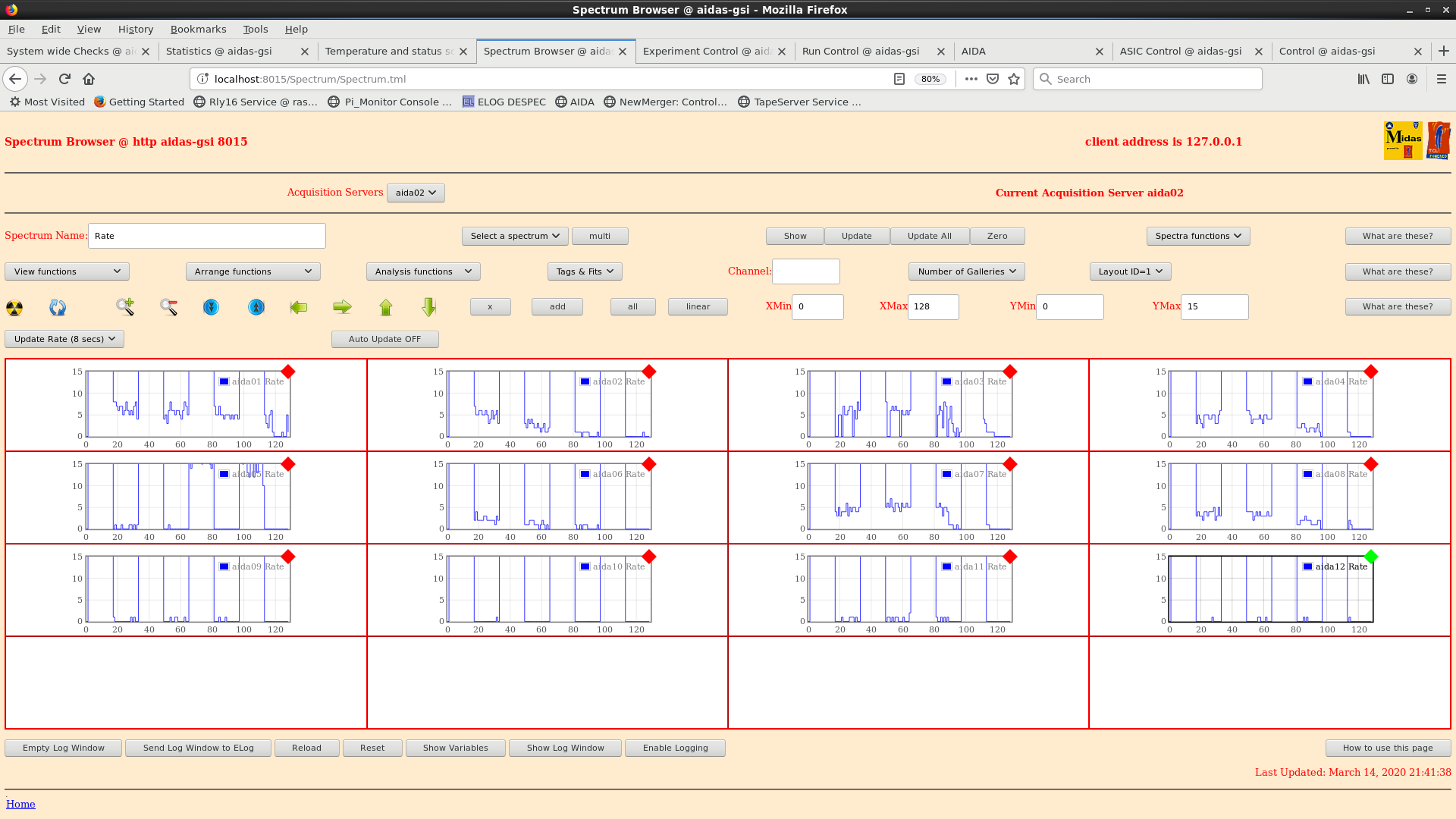

was down for maybe 5 minutes is back on at 21.40 (attachment 36)
think between R12_1004 to R12_1008
22.10
system wide checks all okay

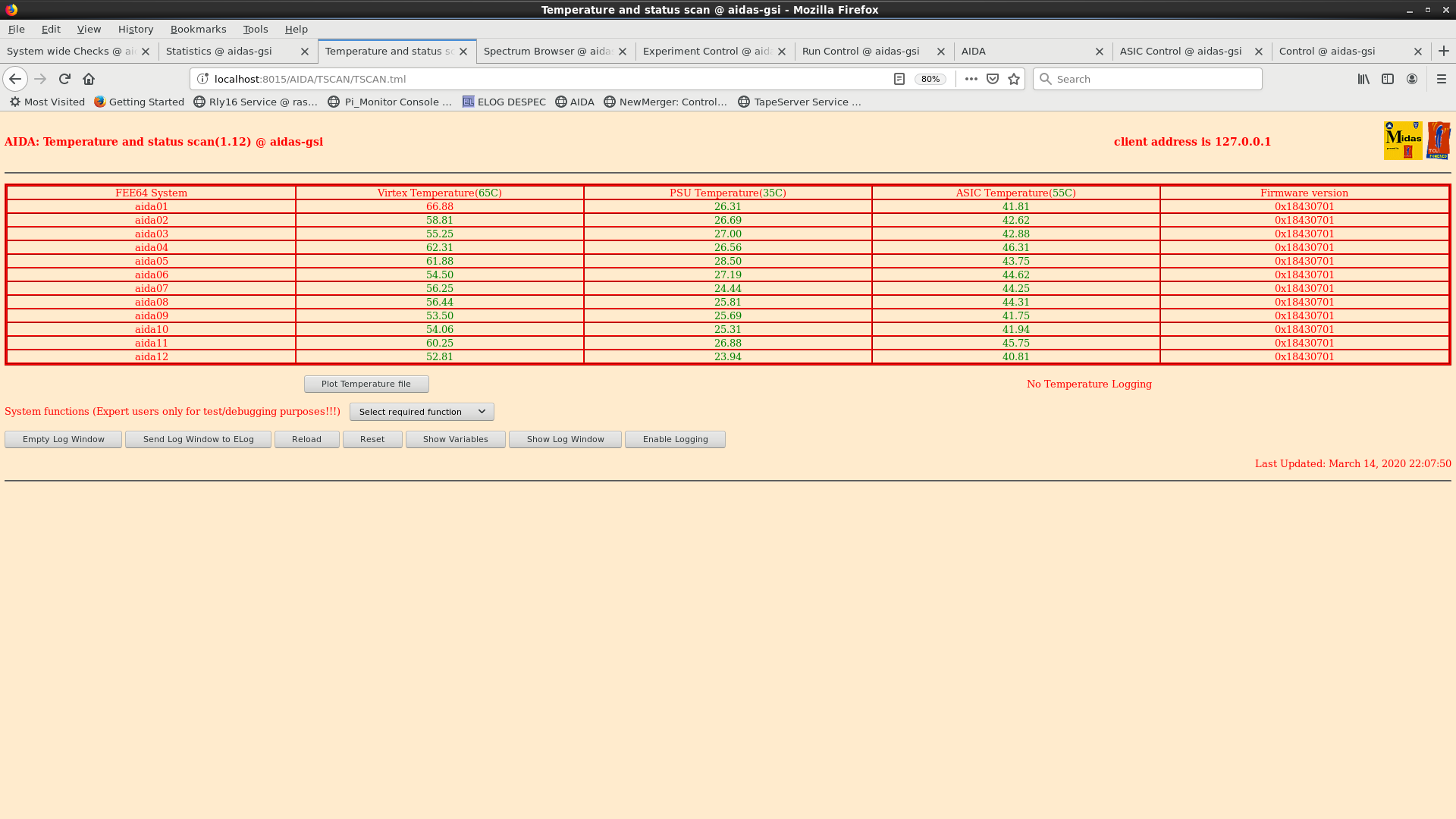

FEE temperatures normal (attachment 37)
Leakage currents okay and recorded to spreadsheet (attachment 38)
Good event statistics okay (attachment 39)
Merger running at 3M items/sec
Tape server running at 26MB/sec
23.03 someone comes to ask if we see an increase in implantation rate as they do their side
I checked the rates histogram and good events and see nothing that would indicate an increase (attachment 40 and 41)
FEE temperatures and leakage currents do not seem any different either
believe they are calling someone about the issue
23.30 leaving now to catch bus but people on night shift have been told how to check on AIDA and know that CG is on call if needed |
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - January 2019
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 86997080 ( 1109430.4 Hz)
Other data format: 174986804 ( 2231519.6 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 29 ( 0.4 Hz)
RESUME: 29 ( 0.4 Hz)
SYNC100: 87327942 ( 1113649.7 Hz)
WR48-63: 87327942 ( 1113649.7 Hz)
FEE64 disc: 330862 ( 4219.3 Hz)
MBS info: 0 ( 0.0 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 102097 ( 1302.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 78.416 s
FEE elapsed dead time(s) elapsed idle time(s)
1 0.000 0.000
2 0.116 0.000
3 0.000 0.000
4 0.000 0.000
5 0.066 0.000
6 0.000 0.000
7 0.000 0.000
8 4.659 3.647
9 0.000 0.000
10 0.112 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 3143962 6596287 0 0 1 1 3246749 3246749 102787 0 0 19287
1 11441532 22943556 0 0 0 0 11461696 11461696 20164 0 0 9627
2 6435721 13042134 0 0 2 2 6492617 6492617 56896 0 0 12957
3 3633801 7382655 0 0 0 0 3672152 3672152 38351 0 0 19271
4 1100939 2276428 0 0 0 0 1125789 1125789 24850 0 0 7339
5 2632637 5296610 0 0 2 2 2643081 2643081 10444 0 0 4759
6 1846149 3780603 0 0 0 0 1875584 1875584 29435 0 0 12550
7 2374464 4801965 0 0 0 0 2392143 2392143 17679 0 0 8964
8 20263627 40557223 0 0 22 22 20273602 20273602 9975 0 0 2005
9 14853979 29722517 0 0 0 0 14858832 14858832 4853 0 0 1283
10 6417731 12865067 0 0 2 2 6427598 6427598 9867 0 0 2254
11 12852538 25721759 0 0 0 0 12858099 12858099 5561 0 0 1801
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time:34518.602s ( 0.927 blocks/s, 0.058 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
