Message ID: 162 Entry time: Tue Nov 24 13:10:42 2020

Author:	NH
Subject:	Waveforms with frame grounded

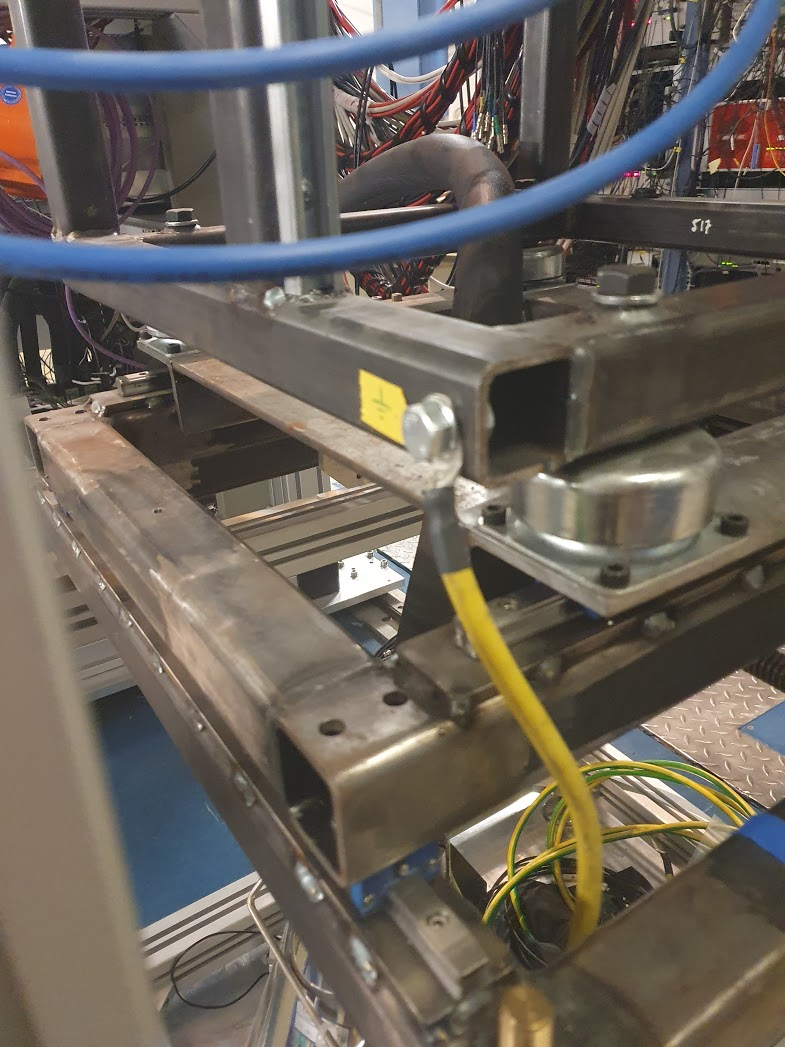

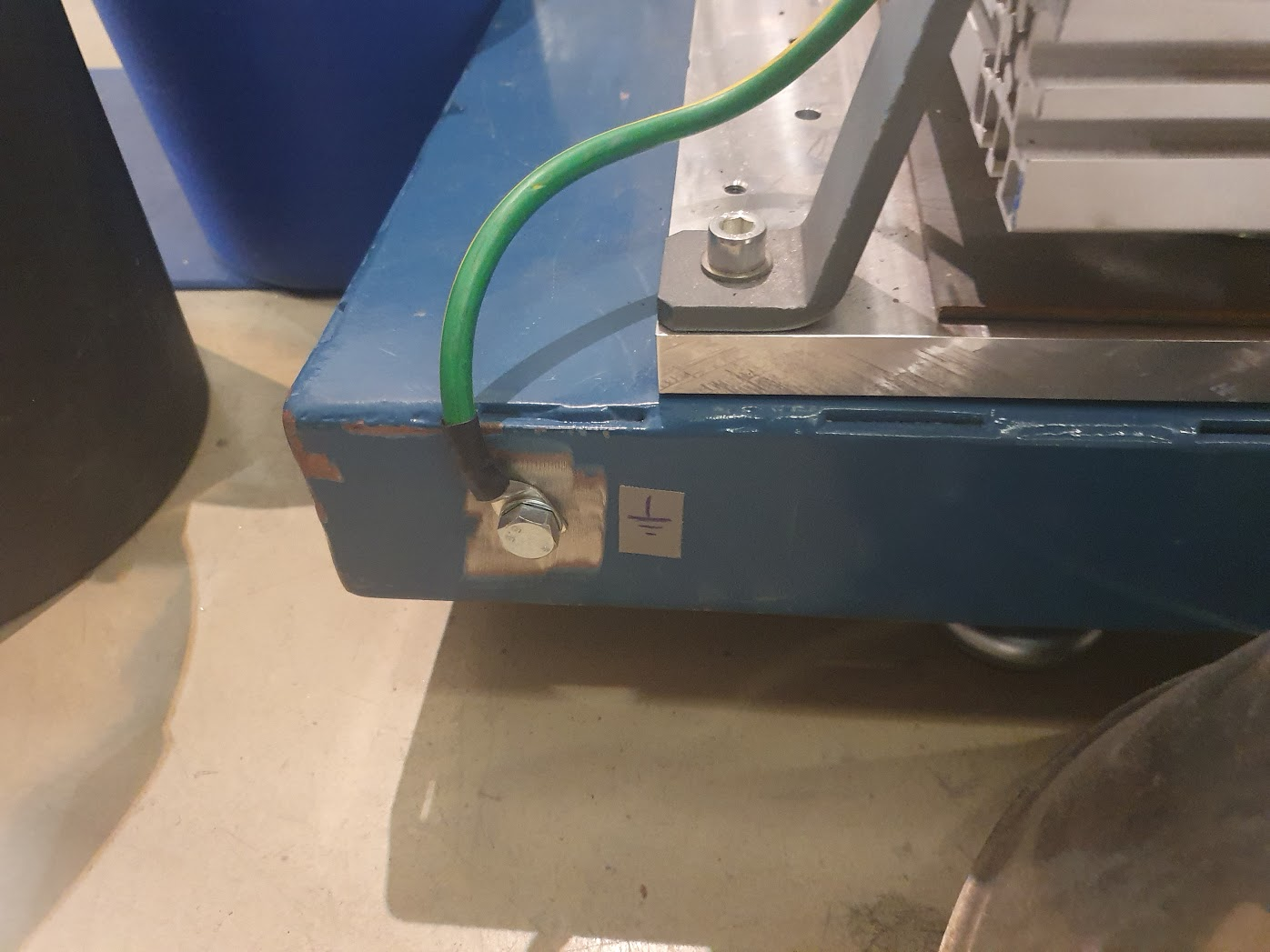

AIDA Frame is now grounded to platform (will add photo later)

Waveforms improved from April (c.f. https://elog.ph.ed.ac.uk/DESPEC/125) but comparison not truly fair (other systems may be offline now)

Attachment 1:

waves_odd.png 73 kB | Hide | Hide all

Attachment 2:

waves_even.png 70 kB | Hide | Hide all

Attachment 3:

20201124_164416.jpg 146 kB Uploaded Wed Nov 25 16:38:28 2020 | Hide | Hide all

Attachment 4:

20201124_164413.jpg 154 kB Uploaded Wed Nov 25 16:38:39 2020 | Hide | Hide all
