21.04 DAQ continues OK - file R20_379

      ASIC settings 2019Dec19-16.19.51
      DSSSD#1 slow comparator 0xa
      DSSSD#2 slow comparator 0xa
      DSSSD#3 slow comparator 0xd

      BNC PB-5 Pulser
      Amplitude1.0V
      Attenuation x1
      Frequency 2Hz
      tau_d 1ms
      - polarity
      Delay 250ns, tail pulse

      System wide checks all OK *except*

ADC Calibration
FEE64 module aida07 failed
FEE64 module aida10 failed
Calibration test result: Passed 10, Failed 2

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

Check FPGA Timestamp Errors
Base 		Current 		Difference
aida12 fault 	 0x0 : 	 0x1 : 	 1
FPGA Timestamp error counter test result: Passed 11, Failed 1

If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

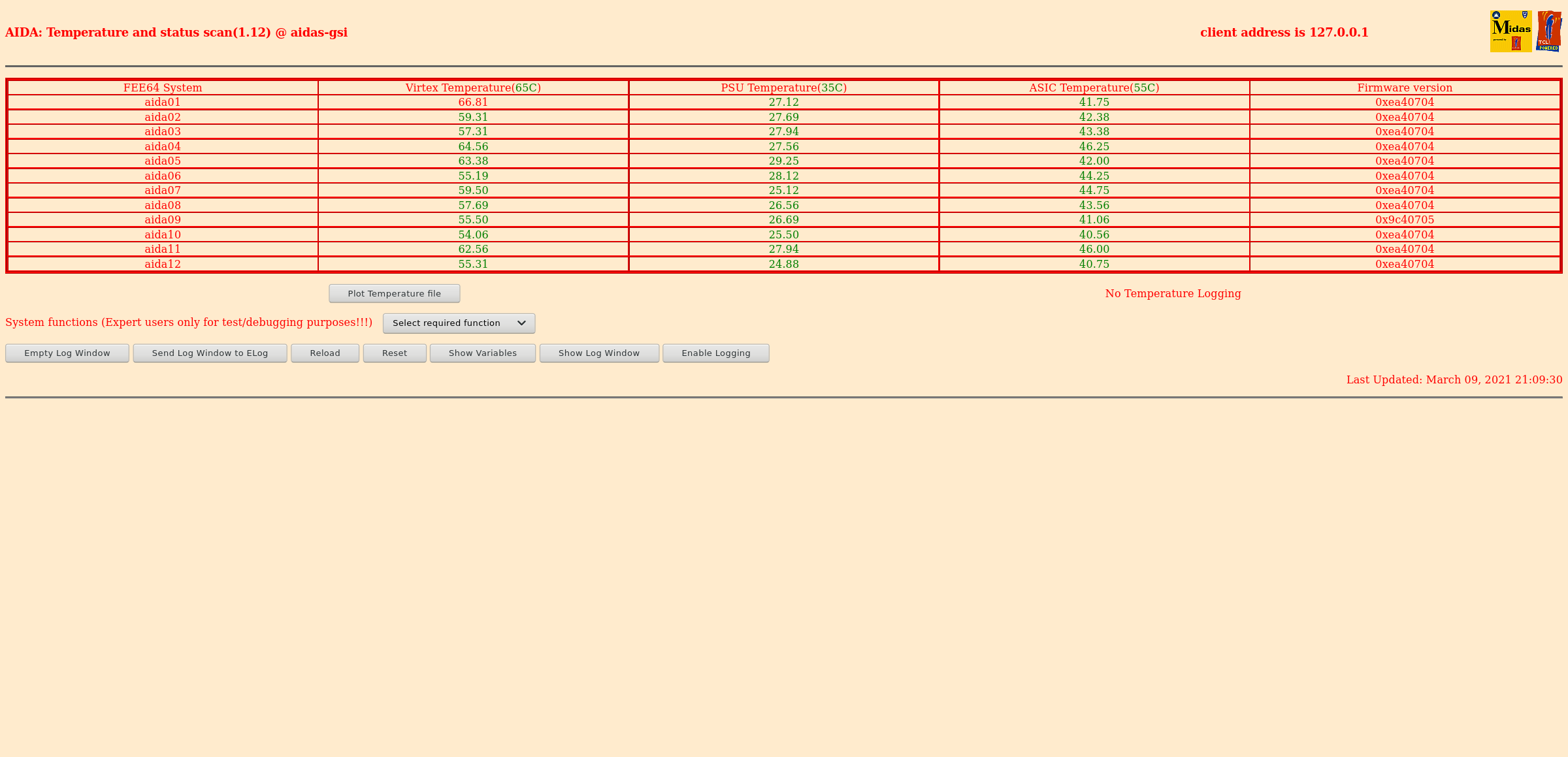

      FEE64 Temperatures OK - attachment 1

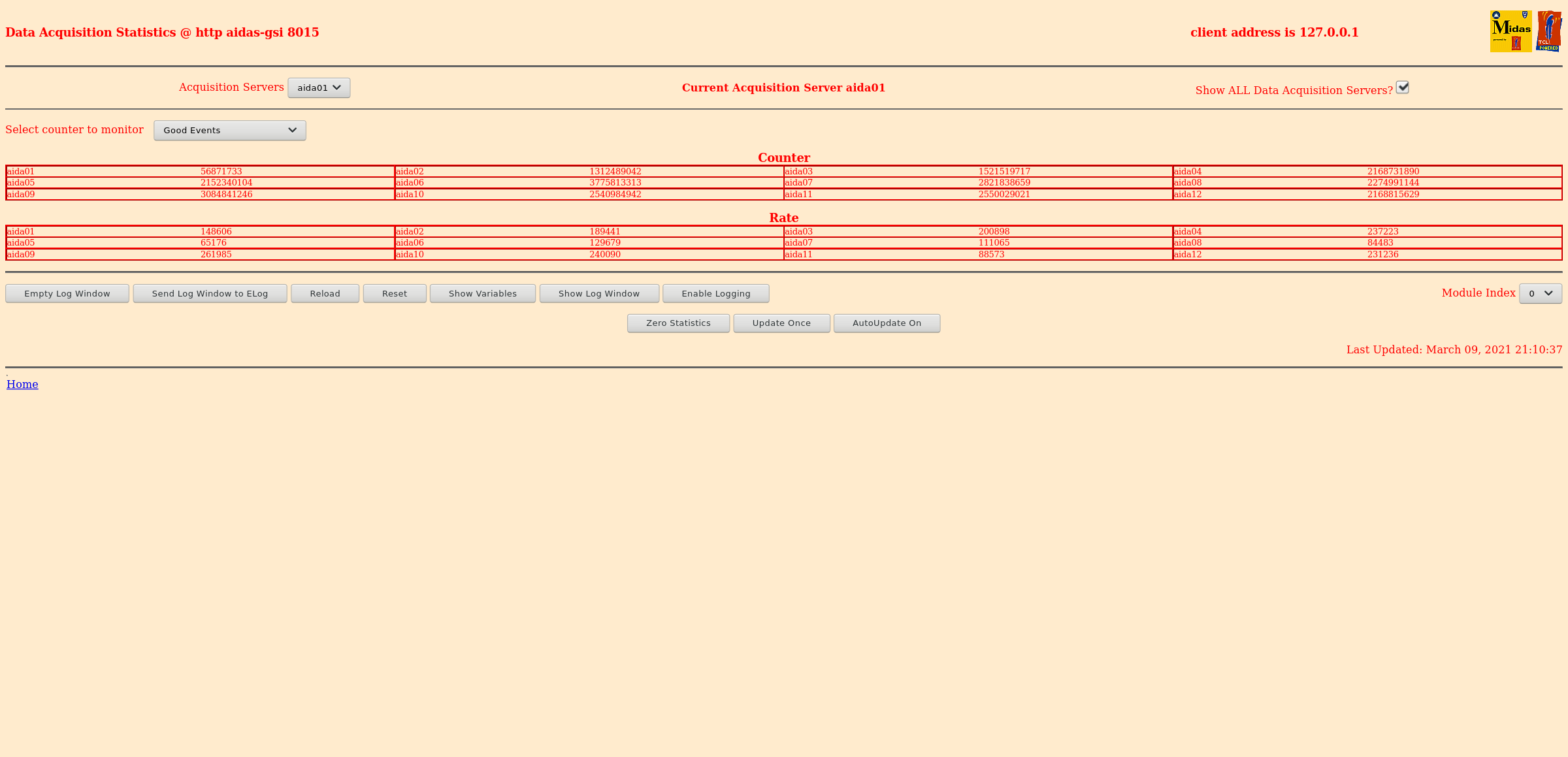

      Good event statistics OK - attachment 2
      Detector bias & leakage currents OK - attachment 3
      Merger OK - 4.2M data items/s
      TapeServer OK - 45 Mb/s

21.20 no merger server error/warning messages since 16.30UTC

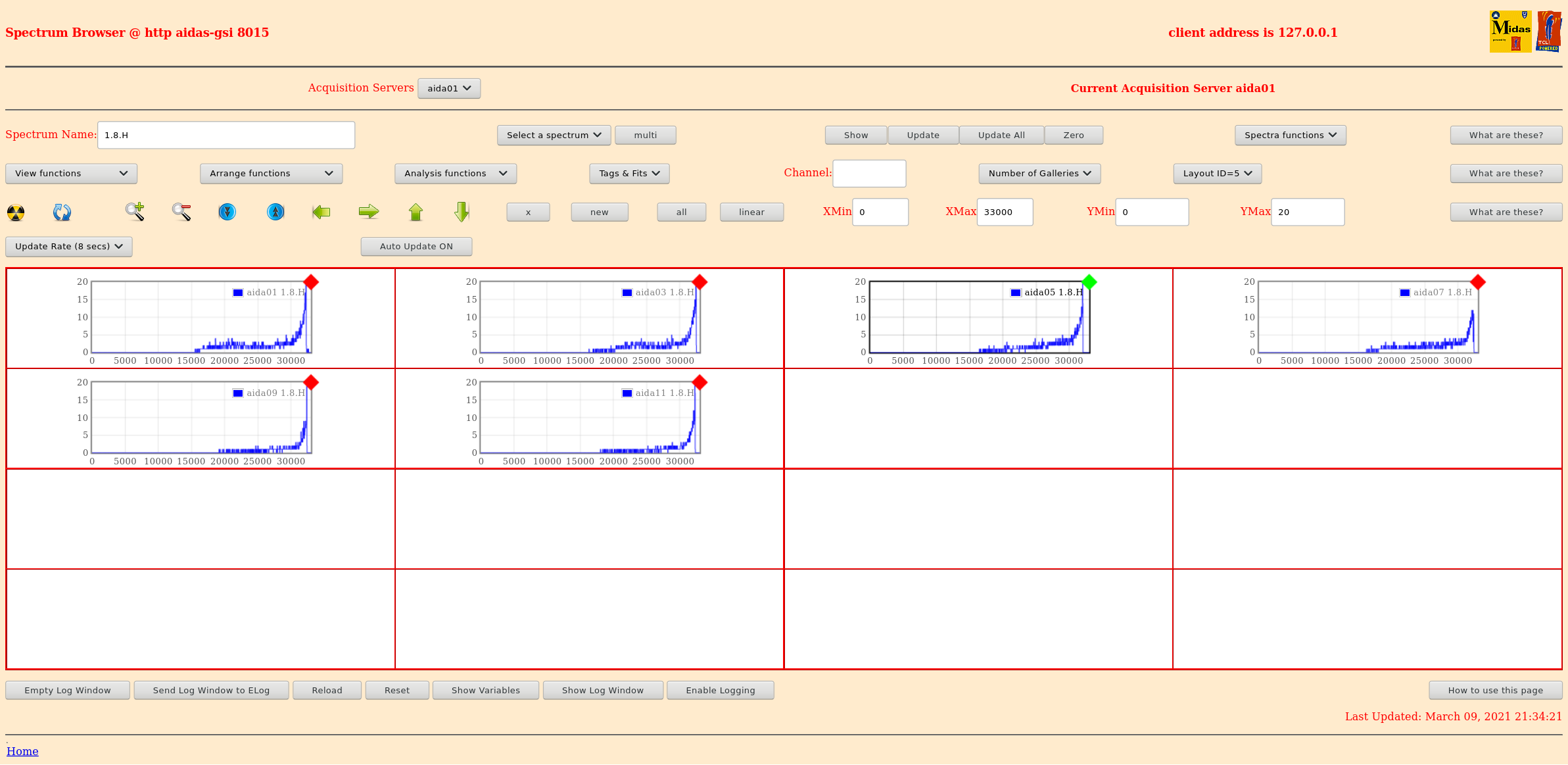

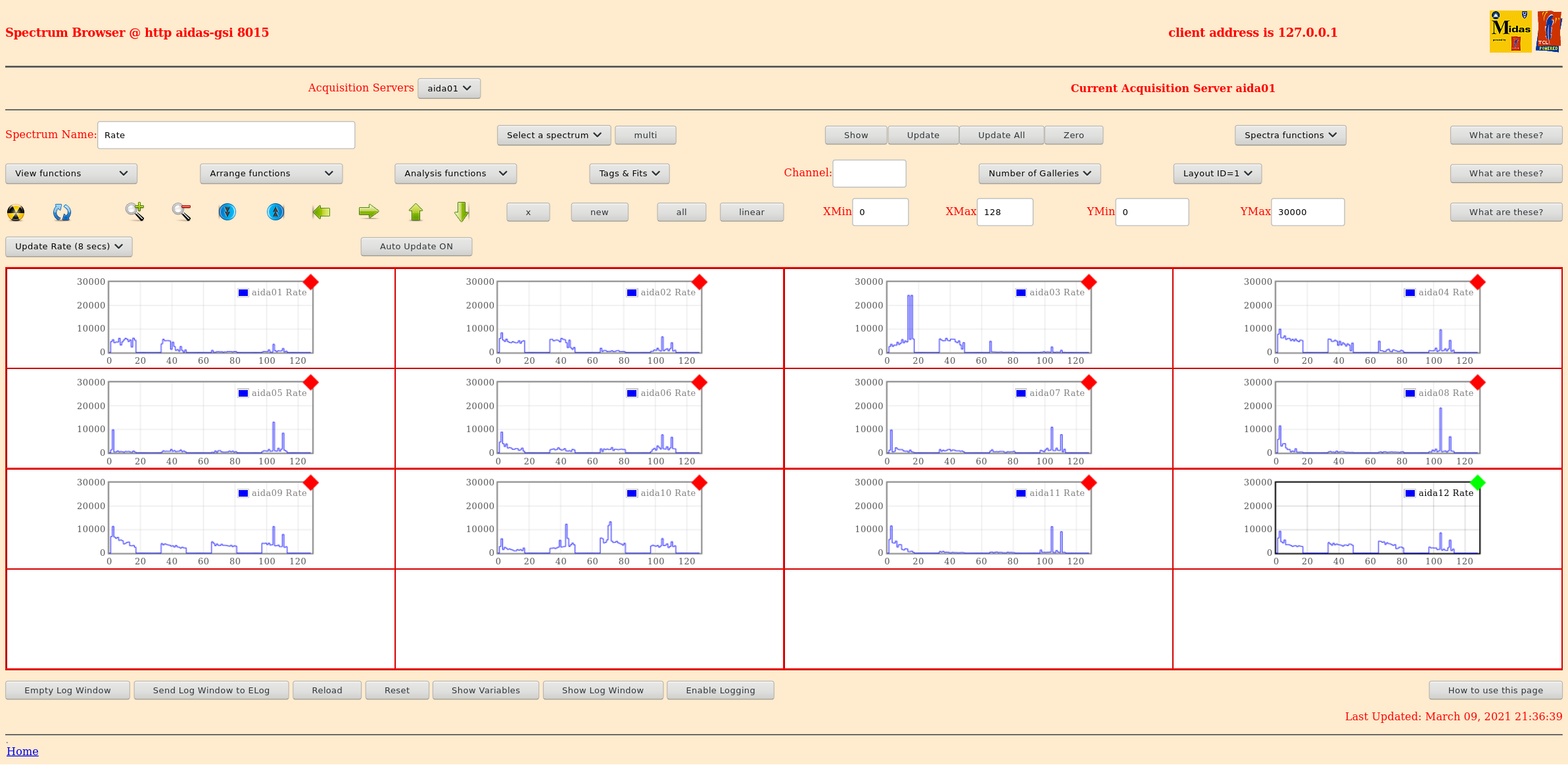

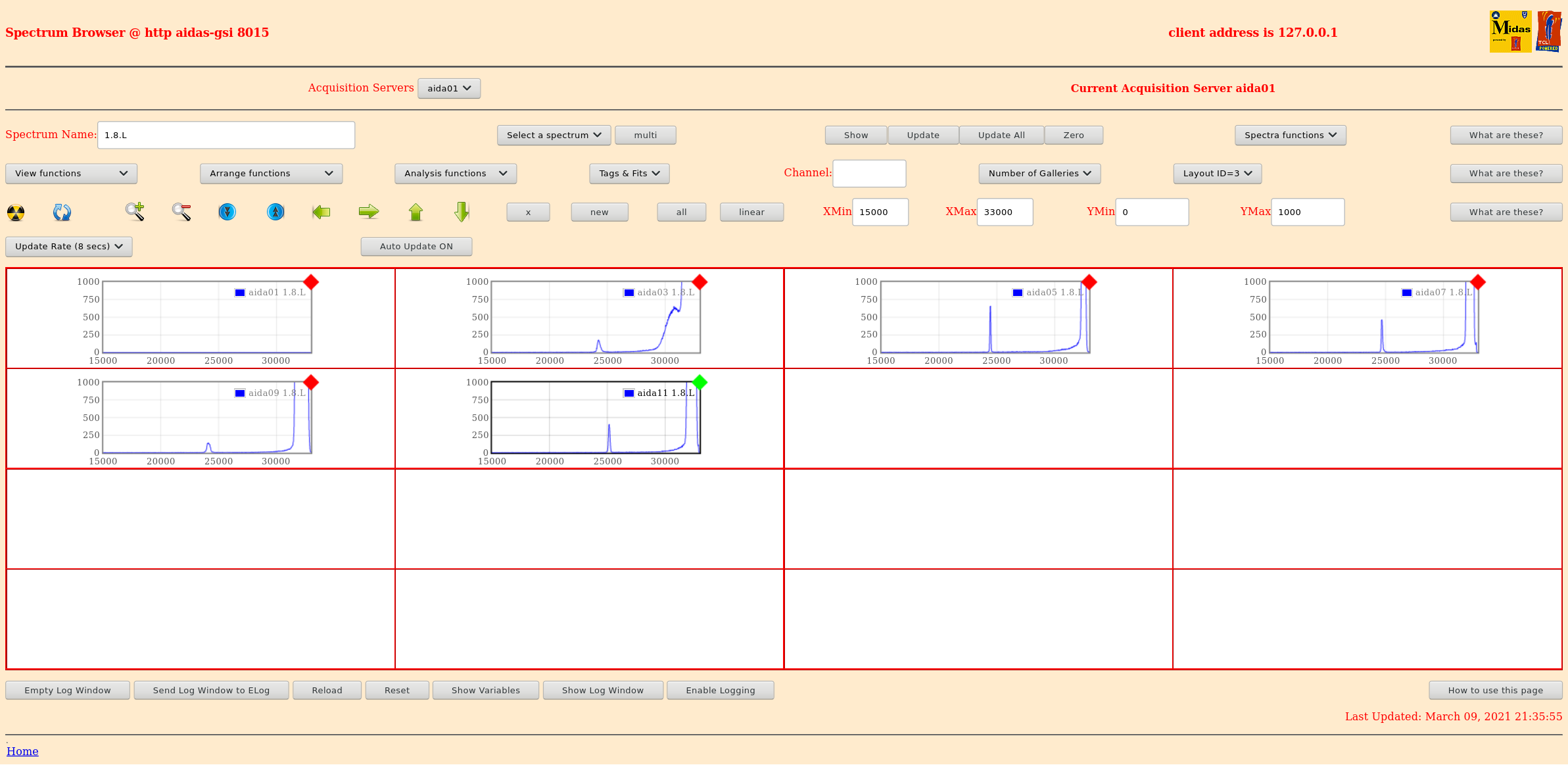

21.35 p+n junction strip  HEC & LEC spectra, Rate spectra common y-scale 0-30000 & 0-10
      all spectra zero'd

22.05 no beam for 2-3h whilst accelerator generator is fixed
