01.38 DAQ continues OK - file R22_388

      ASIC settings 2019Dec19-16.19.51
      DSSSD#1 slow comparator 0xa
      DSSSD#2 slow comparator 0xa
      DSSSD#3 slow comparator 0xd

      BNC PB-5 Pulser
      Amplitude1.0V
      Attenuation x1
      Frequency 2Hz
      tau_d 1ms
      - polarity
      Delay 250ns, tail pulse

      System wide checks all OK *except*

FEE64 module aida07 failed
FEE64 module aida10 failed
Calibration test result: Passed 10, Failed 2

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

      FEE64 Temperatures OK - attachment 1
      Good event statistics OK - attachment 2
      Detector bias & leakage currents OK - attachment 3
      Merger OK - 4.4M data items/s
      TapeServer OK - 14Mb/s

01.47 no merger server error/warning messages since last check by TD at start of shift 00.00

03.44 merger server error/warning messages since last check e.g.

MERGE Data Link (30260): bad timestamp  6 3 0xc1bd7e9a 0x0ce9c9c6 0x0000292e0ce9c9c6 0x166b292e0ce9c9c6 0x166b292e0cea5486

03.46 DAQ continues OK - file R22_441

      System wide checks all OK *except*

FEE64 module aida07 failed
FEE64 module aida10 failed
Calibration test result: Passed 10, Failed 2
If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

FPGA timestamp errors
			 Base 		Current 		Difference
aida07 fault 	 0x1 : 	 0x2 : 	 1
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

      FEE64 Temperatures OK - attachment 4
      Good event statistics OK - attachment 5
      Detector bias & leakage currents OK - attachment 6
      Merger OK - 4.6M data items/s
      TapeServer OK - 15Mb/s

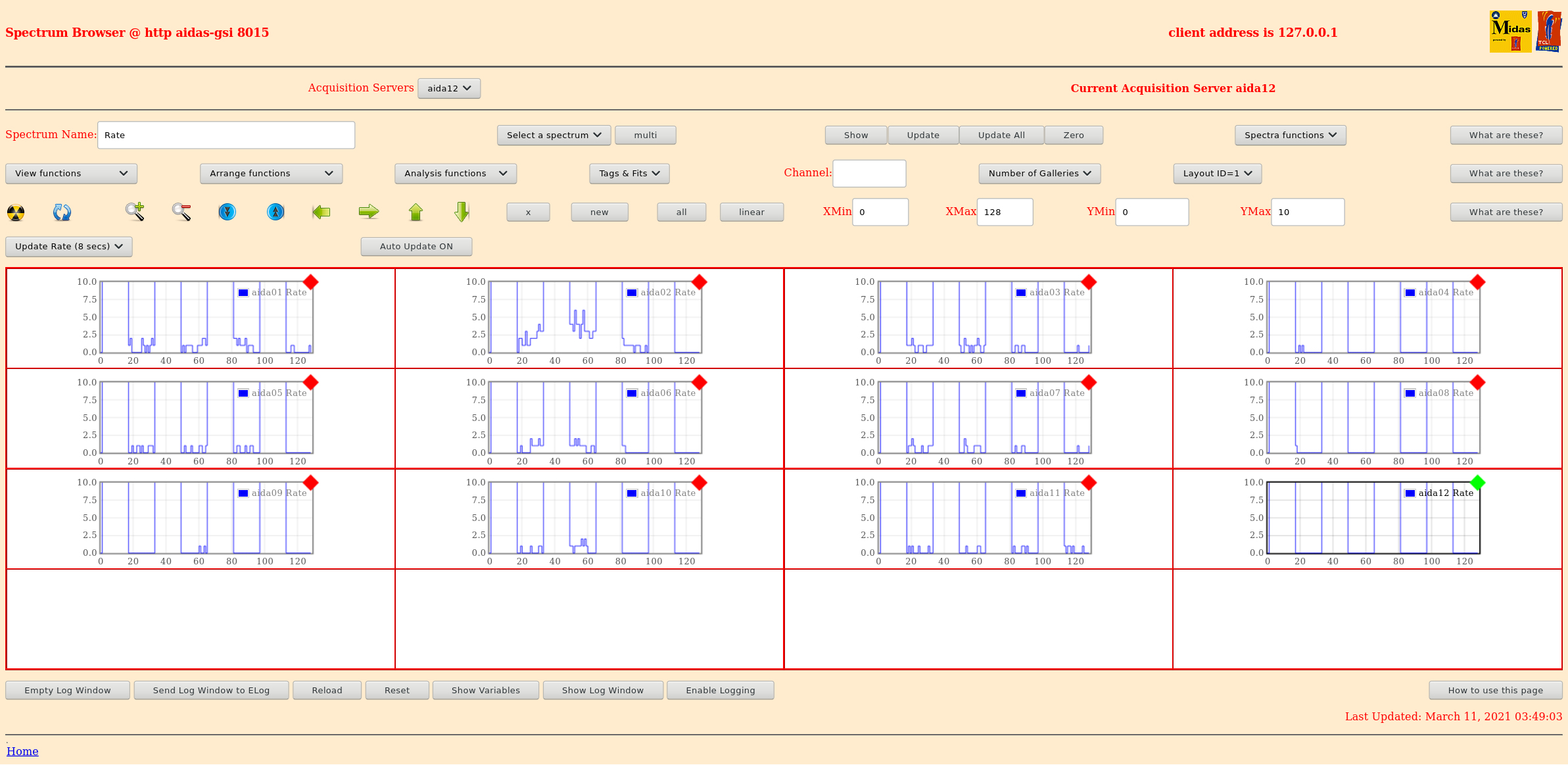

02.51 Rate spectra - attachment 7

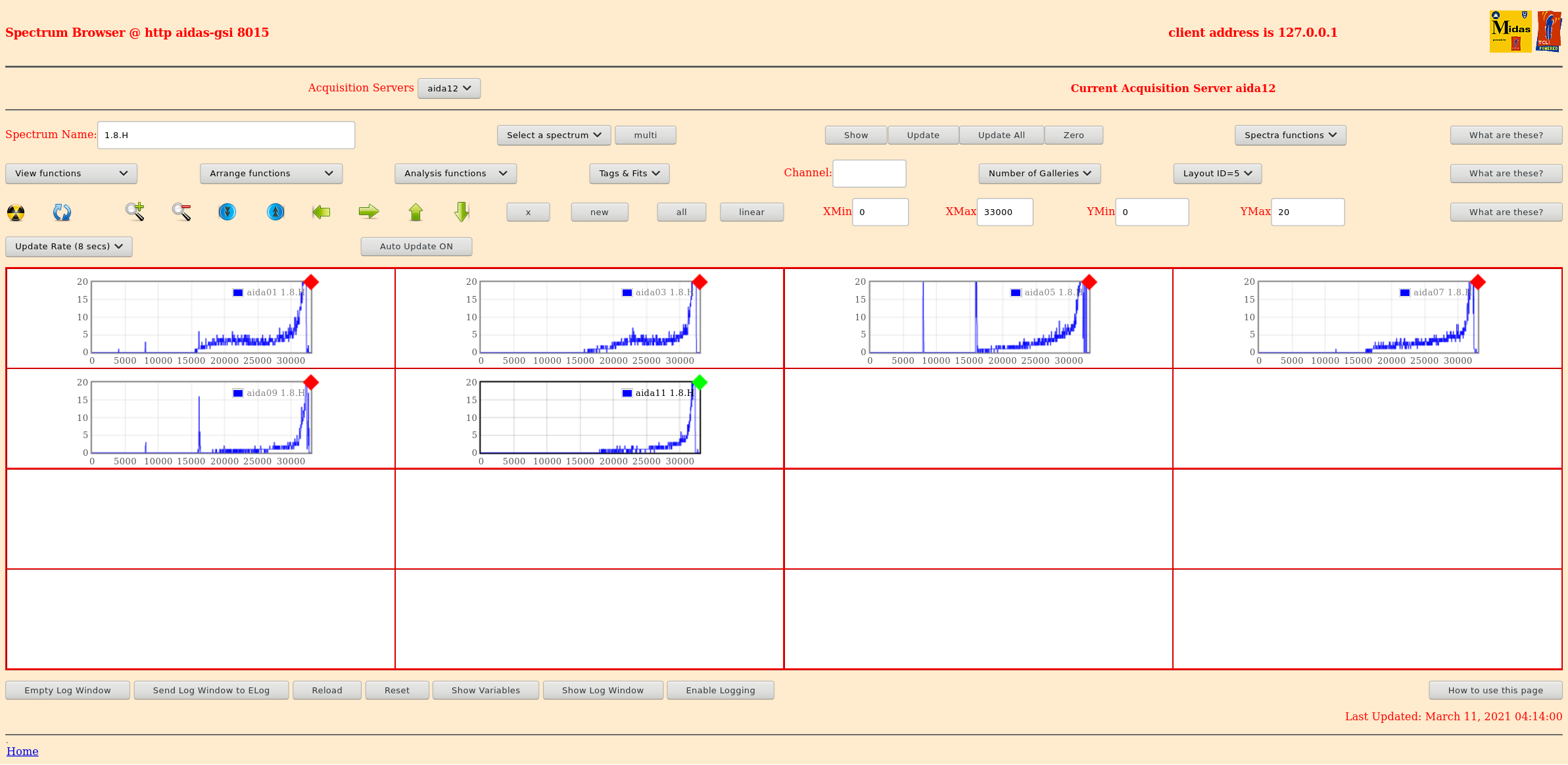

04.14 p+n junction HEC spectra - attachment 8

      all spectra zero'd

06.22 merger server error/warning messages since last check e.g.

MERGE Data Link (30265): bad timestamp  11 3 0xc2fc8067 0x02df391e 0x0000324e62df391e 0x166b324e62df391e 0x166b324e643c775e

06.23 DAQ continues OK - file R22_508

      System wide checks all OK *except*

FEE64 module aida07 failed
FEE64 module aida10 failed
Calibration test result: Passed 10, Failed 2
If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

White rabbit decoder status
		 Base 		Current 	Difference
aida01 fault 	 0xe67 : 	 0xe68 : 	 1
aida02 fault 	 0x6b22 : 	 0x6b23 : 	 1
aida03 fault 	 0x4c76 : 	 0x4c77 : 	 1
aida04 fault 	 0x7542 : 	 0x7543 : 	 1
aida05 fault 	 0x1597 : 	 0x1599 : 	 2
aida06 fault 	 0xe241 : 	 0xe243 : 	 2
aida07 fault 	 0x749 : 	 0x74c : 	 3
aida08 fault 	 0xf854 : 	 0xf856 : 	 2
White Rabbit error counter test result: Passed 4, Failed 8

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

FPGA timestamp errors

			 Base 		Current 		Difference
aida07 fault 	 0x1 : 	 0x2 : 	 1
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

      FEE64 Temperatures OK - attachment 9
      Good event statistics OK - attachment 10
      Detector bias & leakage currents OK - attachment 11
      Merger OK - 4.8M data items/s
      TapeServer OK - 14Mb/s
