Message ID: 203
Entry time: Wed Mar 17 10:31:09 2021
|
| Author: |
TD |
| Subject: |
Wednesday 17 March |
|
|
11.28 DAQ continues OK - no storage
ASIC settings 2019Dec19-16.19.51
DSSSD#1 slow comparator 0xa
DSSSD#2 slow comparator 0xa
DSSSD#3 slow comparator 0xd
BNC PB-5 Pulser
Amplitude1.0V
Attenuation x1
Frequency 2Hz
tau_d 1ms
- polarity
Delay 250ns, tail pulse
10.26 System wide checks
FEE64 module aida09 global clocks failed, 6
Clock status test result: Passed 11, Failed 1
Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable
FEE64 module aida07 failed
FEE64 module aida09 failed
Calibration test result: Passed 10, Failed 2
If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module
Base Current Difference
aida05 fault 0x6acb : 0x6acc : 1
aida06 fault 0x8394 : 0x8395 : 1
aida07 fault 0x8c77 : 0x8c7a : 3
aida08 fault 0x1692 : 0x1693 : 1
White Rabbit error counter test result: Passed 8, Failed 4
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
FPGA Timestamp error counter test result: Passed 12, Failed 0
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 25 16 3 6 1 3 2 2 3 4 10 : 54676
aida02 : 17 13 14 10 5 5 2 3 3 3 6 : 37516
aida03 : 19 10 8 3 2 3 2 4 2 3 6 : 36220
aida04 : 2 6 2 3 3 2 2 3 2 4 15 : 74360
aida05 : 89 48 20 3 3 34 21 20 6 4 7 : 64324
aida06 : 31 11 1 10 0 1 1 3 4 2 5 : 31140
aida07 : 21 13 8 4 3 2 4 4 3 3 6 : 37756
aida08 : 37 10 2 0 1 2 2 4 3 3 6 : 36932
aida09 : 4 18 6 3 1 3 1 2 3 3 6 : 35872
aida10 : 20 4 1 3 0 2 2 3 3 3 6 : 36320
aida11 : 2 6 6 2 2 4 2 3 2 3 6 : 35672
aida12 : 15 10 2 3 1 2 2 3 3 3 6 : 36428
FEE64 Temperatures OK - attachment 1

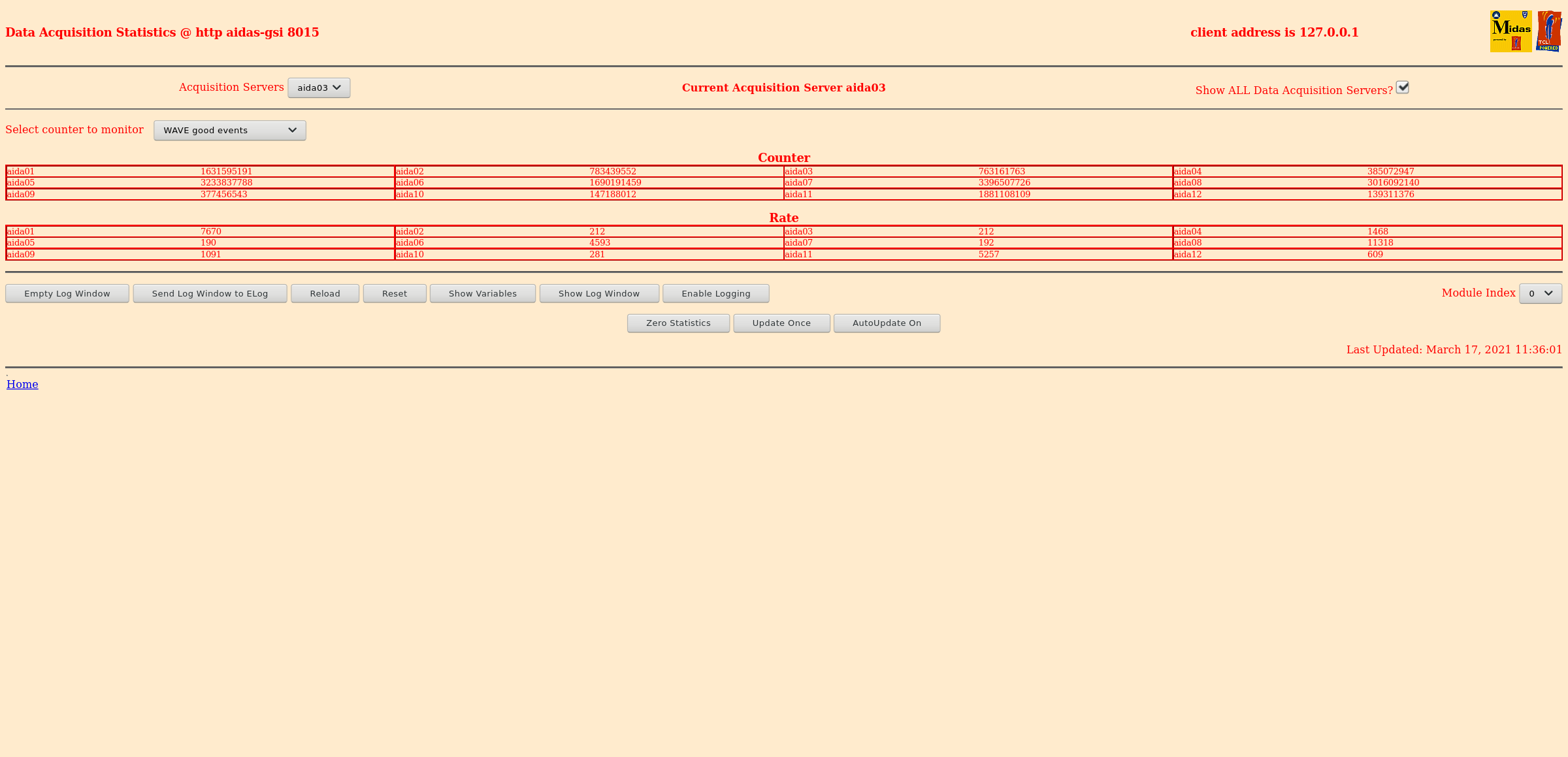

Good event, disc info #6 & good wave statistics - attachments 2, 3 & 4
note high disc rates (c. 200k) in FEE64s aida03, aida05 & aida07
Detector bias & leakage currents OK - attachment 5
Merger OK - 4.5M data items/s
TapeServer OK - 15Mb/s

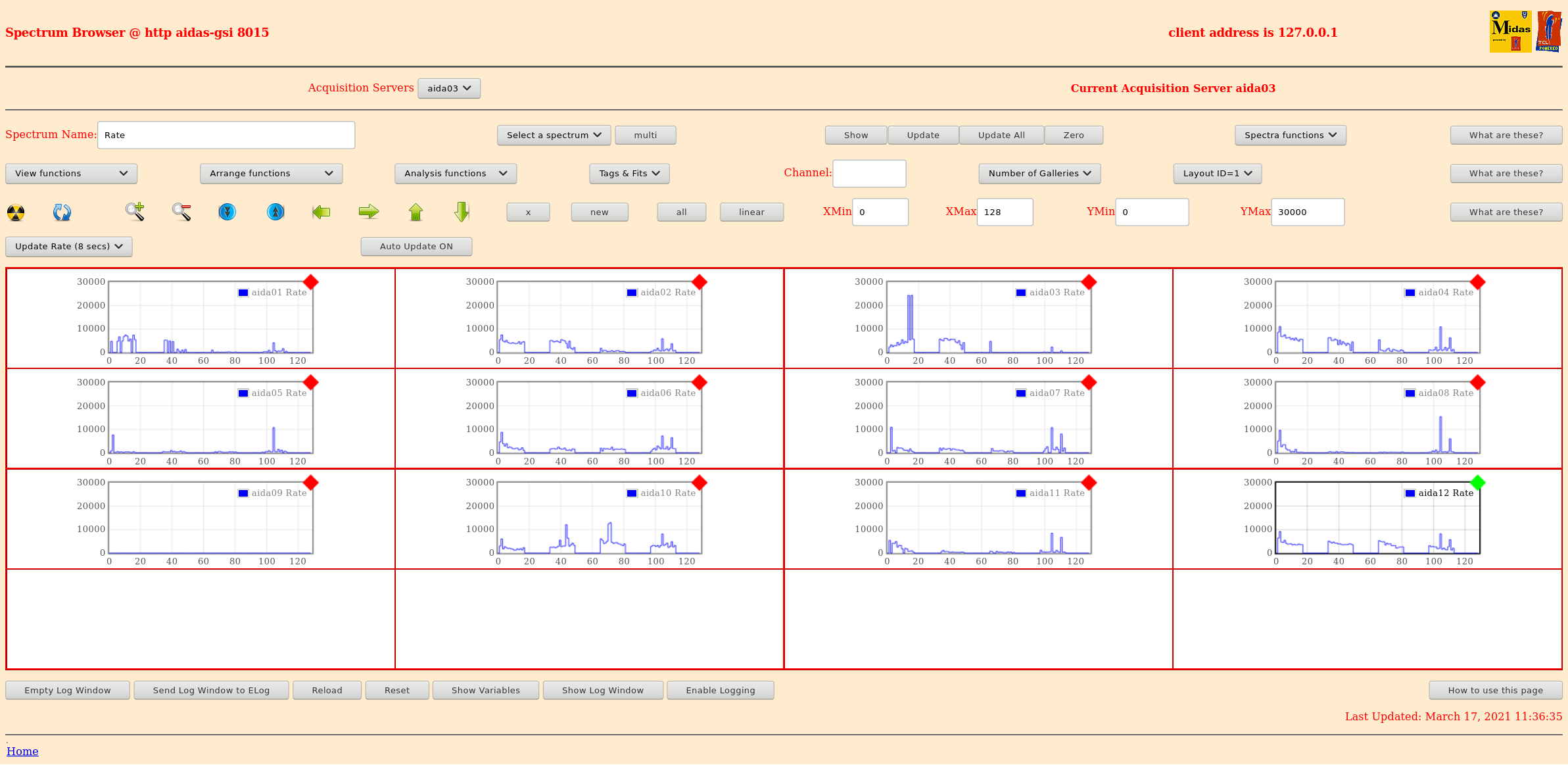

Rate spectra - attachment 6
11.41 Merger errors since yesterday's Elog
MERGE Data Link (20502): bad timestamp 2 3 0xc08e4cce 0x0c1c8460 0x0000f14c5c1c8460 0x166cf14c5c1c8460 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp 2 3 0xc0967f4f 0x0c1c8460 0x0000f14c5c1c8460 0x166cf14c5c1c8460 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp 2 3 0xc0807dc7 0x0c1c9bd0 0x0000f14c5c1c9bd0 0x166cf14c5c1c9bd0 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp 2 3 0xc0957ee9 0x0c1c9bd0 0x0000f14c5c1c9bd0 0x166cf14c5c1c9bd0 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp 2 3 0xc0857eea 0x0c1ca3a0 0x0000f14c5c1ca3a0 0x166cf14c5c1ca3a0 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp 2 3 0xc0977df3 0x0c1ca3a0 0x0000f14c5c1ca3a0 0x166cf14c5c1ca3a0 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp 2 3 0xc08a7edd 0x0c1cab70 0x0000f14c5c1cab70 0x166cf14c5c1cab70 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp 2 3 0xc09c7c7f 0x0c1cab70 0x0000f14c5c1cab70 0x166cf14c5c1cab70 0x166cf1515c1c74c0
MERGE Data Link (20502): bad timestamp 2 3 0xc09d7fd8 0x0c1cb340 0x0000f14c5c1cb340 0x166cf14c5c1cb340 0x166cf1515c1c74c0
:
:
MERGE Data Link (20502): bad timestamp 2 3 0x8263ffff 0x0433c338 0x000018ff4433c338 0x166d18ff4433c338 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp 2 3 0x8263ffff 0x0433c356 0x000018ff4433c356 0x166d18ff4433c356 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp 2 3 0x8263f080 0x0433c36a 0x000018ff4433c36a 0x166d18ff4433c36a 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp 2 3 0x82630f7f 0x0433c374 0x000018ff4433c374 0x166d18ff4433c374 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp 2 3 0x8263ffff 0x0433c388 0x000018ff4433c388 0x166d18ff4433c388 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp 2 3 0x8263ffff 0x0433c3a6 0x000018ff4433c3a6 0x166d18ff4433c3a6 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp 2 3 0x8263efff 0x0433c3c4 0x000018ff4433c3c4 0x166d18ff4433c3c4 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp 2 3 0x8263ffff 0x0433c3d8 0x000018ff4433c3d8 0x166d18ff4433c3d8 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp 2 3 0x8263ffff 0x0433c3f6 0x000018ff4433c3f6 0x166d18ff4433c3f6 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp 2 3 0x8263efff 0x0433c414 0x000018ff4433c414 0x166d18ff4433c414 0x166d18ff4e17c2c0
MERGE Data Link (20502): bad timestamp 2 3 0x82218ff4 0x0433c41e 0x000018ff4433c41e 0x166d18ff4433c41e 0x166d18ff4e17c2c0
From Tuesday, March 16, 2021 9:54:36.584 PM to Wednesday, March 17, 2021 10:02:05.935 AM
11.46 Grafana record of bias & leakage current for the 7 days to date - attachment 7
11.51 ASIC check load - all FEE64s, all ASICs
11.51 Disable 'no storage' mode and start writing to disk file S452/R58
12.01 R58_18 & R58_19 *no* change
12.16 R58_24 & R58_25 *all* waveforms disabled (Run Control tab)
12.23 R58_27 & R58_28 *all* discriminators disabled (Discriminator tab) *but* disc rates now low - see attachment 8 cf. attachment 3
12.27 Enable 'no storage' mode
12.38 Analysis of files R58_19, R58_25 & R58_28 - see attachments 9, 10 & 11
Disabling waveforms significantly reduces pause/resume for aida01 - aida08
Effect of disabling discriminators less clear - disc rate zero for all FEE64s except aida03 (2k). |
|
|
|
|
|
.png.png "Screenshot_2021-03-17_Statistics_aidas-gsi(1).png")
|
|
.png.png "Screenshot_2021-03-17_Statistics_aidas-gsi(2).png")
|
|
|
|
|
|
|
|
.png.png "Screenshot_2021-03-17_Statistics_aidas-gsi(3).png")
|
|
*** TDR format 3.3.0 analyser - TD - January 2019
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 260603204 ( 1825295.6 Hz)
Other data format: 1316796 ( 9223.0 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1800 ( 12.6 Hz)
RESUME: 1800 ( 12.6 Hz)
SYNC100: 532 ( 3.7 Hz)
WR48-63: 532 ( 3.7 Hz)
FEE64 disc: 351517 ( 2462.1 Hz)
MBS info: 960615 ( 6728.3 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 2 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 142.773 s
FEE elapsed dead time(s) elapsed idle time(s)
1 0.872 137.171
2 2.370 140.392
3 4.557 140.929
4 12.507 102.274
5 9.566 138.244
6 0.000 130.460
7 0.043 132.607
8 21.086 137.171
9 14.355 142.539
10 0.094 126.165
11 38.783 127.507
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 21184711 1567 0 0 302 302 78 78 0 807 0 0
1 26163497 939 0 0 5 5 40 40 0 849 0 0
2 26414580 834315 0 0 9 9 78 78 351513 482628 0 0
3 30144417 476485 0 0 23 23 54 54 0 476331 0 0
4 6641111 1448 0 0 716 716 8 8 0 0 0 0
5 18794955 716 0 0 334 334 24 24 0 0 0 0
6 13042480 36 0 0 0 0 18 18 0 0 0 0
7 9502247 42 0 0 1 1 20 20 0 0 0 0
8 31490514 302 0 0 109 109 42 42 0 0 0 0
9 33799793 352 0 0 86 86 88 88 4 0 0 2
10 11018662 96 0 0 2 2 46 46 0 0 0 0
11 32406237 498 0 0 213 213 36 36 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time:45075.926s ( 0.710 blocks/s, 0.044 Mb/s)
|
|
*** TDR format 3.3.0 analyser - TD - January 2019
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 261566975 ( 1848651.9 Hz)
Other data format: 353025 ( 2495.0 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 498 ( 3.5 Hz)
RESUME: 497 ( 3.5 Hz)
SYNC100: 528 ( 3.7 Hz)
WR48-63: 528 ( 3.7 Hz)
FEE64 disc: 350128 ( 2474.6 Hz)
MBS info: 846 ( 6.0 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 0 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 141.491 s
FEE elapsed dead time(s) elapsed idle time(s)
1 2.252 140.123
2 1.261 137.707
3 1.206 132.607
4 0.000 122.675
5 0.045 124.017
6 0.225 128.312
7 0.137 137.171
8 25.852 127.238
9 22.485 137.976
10 0.119 139.318
11 34.852 135.828
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 22601243 1010 0 0 5 5 77 77 0 846 0 0
1 25817640 118 0 0 10 10 49 49 0 0 0 0
2 26662668 350294 0 0 10 10 73 73 350128 0 0 0
3 31065481 116 0 0 9 9 49 49 0 0 0 0
4 7606752 38 0 0 0 0 19 19 0 0 0 0
5 20370392 52 0 0 3 3 23 23 0 0 0 0
6 13822142 52 0 0 5 5 21 21 0 0 0 0
7 9358078 60 0 0 5 5 25 25 0 0 0 0
8 31862906 361 0 0 132 131 49 49 0 0 0 0
9 30480452 364 0 0 115 115 67 67 0 0 0 0
10 7772769 92 0 0 5 5 41 41 0 0 0 0
11 34146452 468 0 0 199 199 35 35 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time:45119.996s ( 0.709 blocks/s, 0.044 Mb/s)
|
|
*** TDR format 3.3.0 analyser - TD - January 2019
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 261917114 ( 1867522.0 Hz)
Other data format: 2886 ( 20.6 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 500 ( 3.6 Hz)
RESUME: 500 ( 3.6 Hz)
SYNC100: 523 ( 3.7 Hz)
WR48-63: 523 ( 3.7 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 840 ( 6.0 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 1 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 140.248 s
FEE elapsed dead time(s) elapsed idle time(s)
1 2.196 135.828
2 1.735 133.949
3 1.362 133.412
4 0.000 133.949
5 0.624 134.218
6 0.297 110.595
7 0.085 138.513
8 26.310 131.265
9 16.413 138.781
10 0.037 139.318
11 35.860 131.265
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 22486922 1022 0 0 7 7 84 84 0 840 0 0
1 25724429 84 0 0 9 9 33 33 0 0 0 0
2 26397664 186 0 0 7 7 86 86 0 0 0 0
3 31045386 104 0 0 11 11 41 41 0 0 0 0
4 7561349 28 0 0 0 0 14 14 0 0 0 0
5 20305012 70 0 0 8 8 27 27 0 0 0 0
6 14228124 40 0 0 6 6 14 14 0 0 0 0
7 9428091 66 0 0 3 3 30 30 0 0 0 0
8 31422421 379 0 0 144 145 45 45 0 0 0 0
9 32040015 335 0 0 92 91 76 76 0 0 0 1
10 7197353 72 0 0 2 2 34 34 0 0 0 0
11 34080348 500 0 0 211 211 39 39 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time:45164.730s ( 0.709 blocks/s, 0.044 Mb/s)
|
