16.54 Pulser walkthrough

      ASIC settings 2019Dec19-16.19.51
      DSSSD#1 slow comparator 0xa
      DSSSD#2 slow comparator 0xa
      DSSSD#3 slow comparator 0xa

      BNC PB-5 Pulser
      Amplitude1.0V
      Attenuation x1
      Frequency 2Hz
      tau_d 1ms
      - polarity
      Delay 250ns, tail pulse

      file NULL/R4

      BNC PB-5 settings changed by terminal command line using the commands

      set rep rate 25
      set attenuation 5
      set amplitude 10
      set amplitude 9
      :
      :
      set amplitude 1
      set attenuation 1
      set rep rate 2

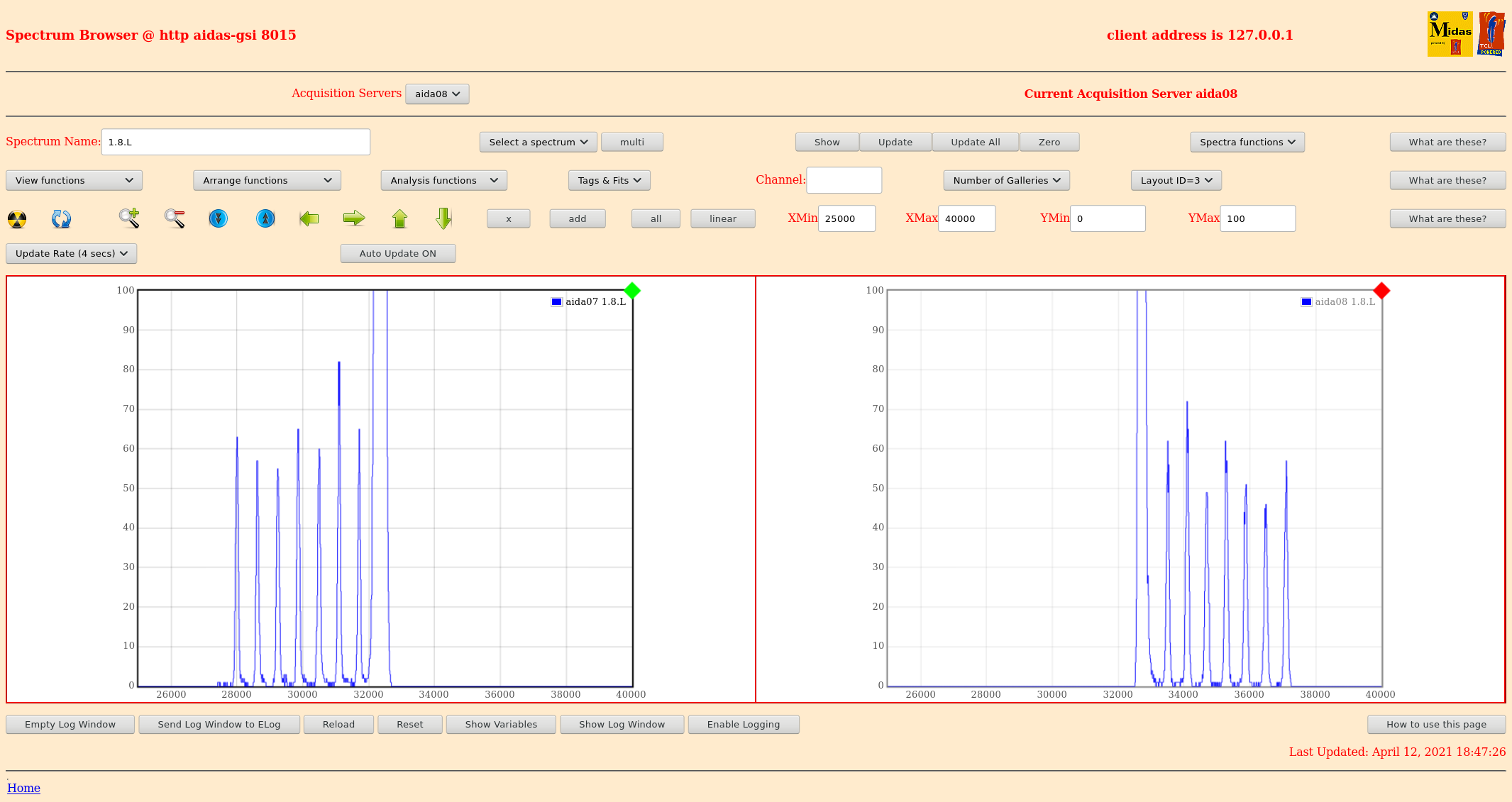

      aida07 & aida08 1.8.L spectra - see attachment 1

17.26 run ends OK file NULL/R4_27

17.26 file NULL/R5

      amplitudes 0.6, 1, 1.4, 1.8, 2.2, 2.6, 3

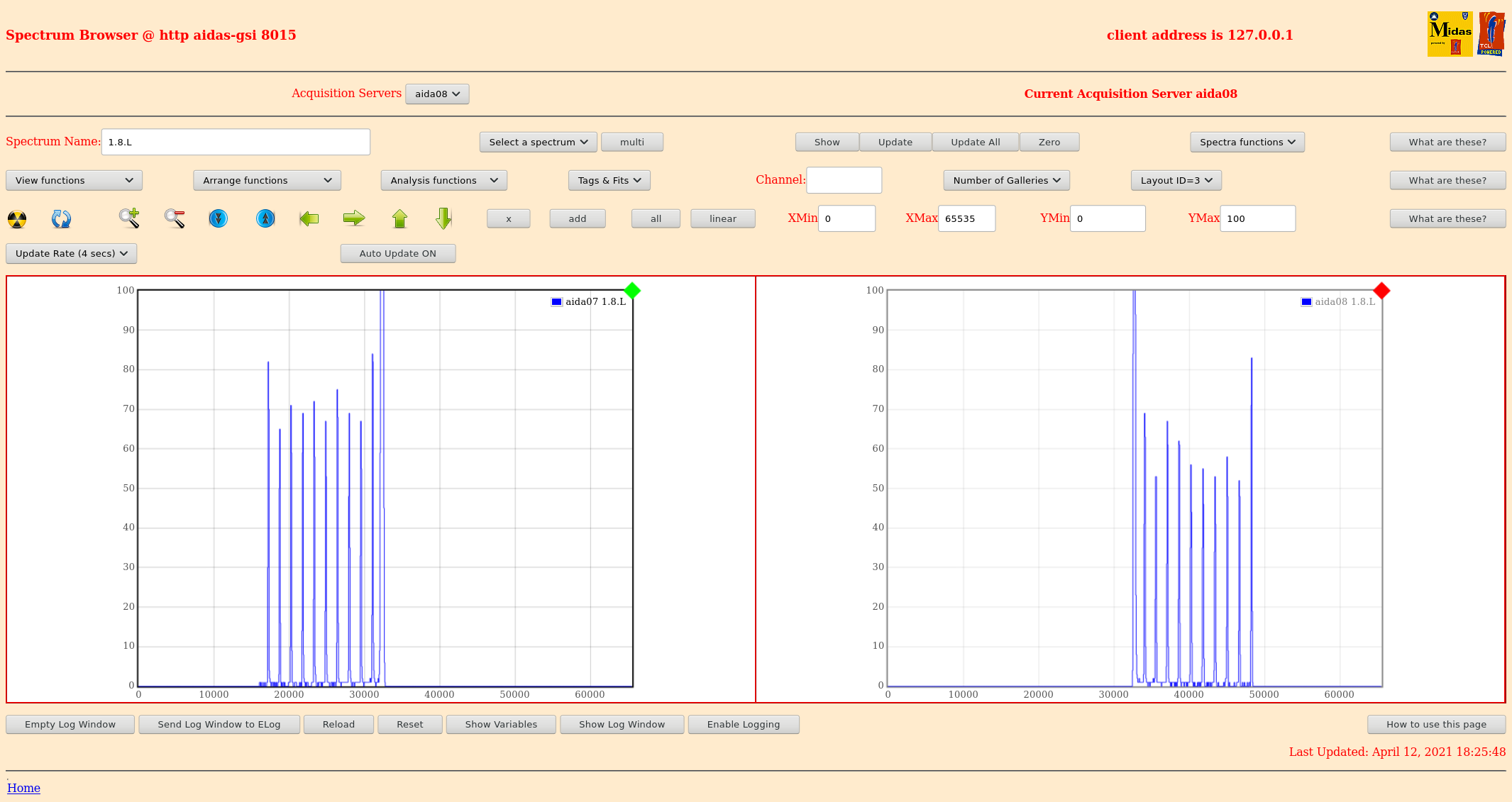

      aida07 & aida08 1.8.L spectra - see attachment 2

17.47 run ends OK NULL/R5_23

17.53 system wide checks

Clock status test result: Passed 12, Failed 0

Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable

FEE64 module aida07 failed
Calibration test result: Passed 11, Failed 1

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

White Rabbit error counter test result: Passed 12, Failed 0

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR


			 Base 		Current 		Difference
aida09 fault 	 0x0 : 	 0x1 : 	 1
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last


Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     16     11      3      2      0      2      4      2      3      4     11   : 58888
aida02 :      7     11      4      2      0      4      3      2      3      3      7   : 40436
aida03 :     38      7      7      2      6      4      1      3      3      3      6   : 36864
aida04 :     19     10      5      2      1      3      1      4      2      4     15   : 74732
aida05 :     30      5      4      3      2      3      4      3      3      4     15   : 76096
aida06 :     24      4      3      3      1      4      2      3      2      4      7   : 41808
aida07 :     22      7     11      7      1      6      3      4      3      3      6   : 37984
aida08 :     13      7      5      2      1      4      3      3      1      4      6   : 36924
aida09 :     33      9     10      6      4      4      2      2      2      4      6   : 37676
aida10 :     15      7      7      1      1      3      1      3      2      3      7   : 39364
aida11 :     30     13      8      3      4      4      3      3      3      3      6   : 37312
aida12 :     17      9      4      3      2      3      2      2      3      3      7   : 40236

17.57 Slow comparator 0xa -> 0x64
      BNC PB-5 Pulser OFF

      file NULL/R9
      alpha background

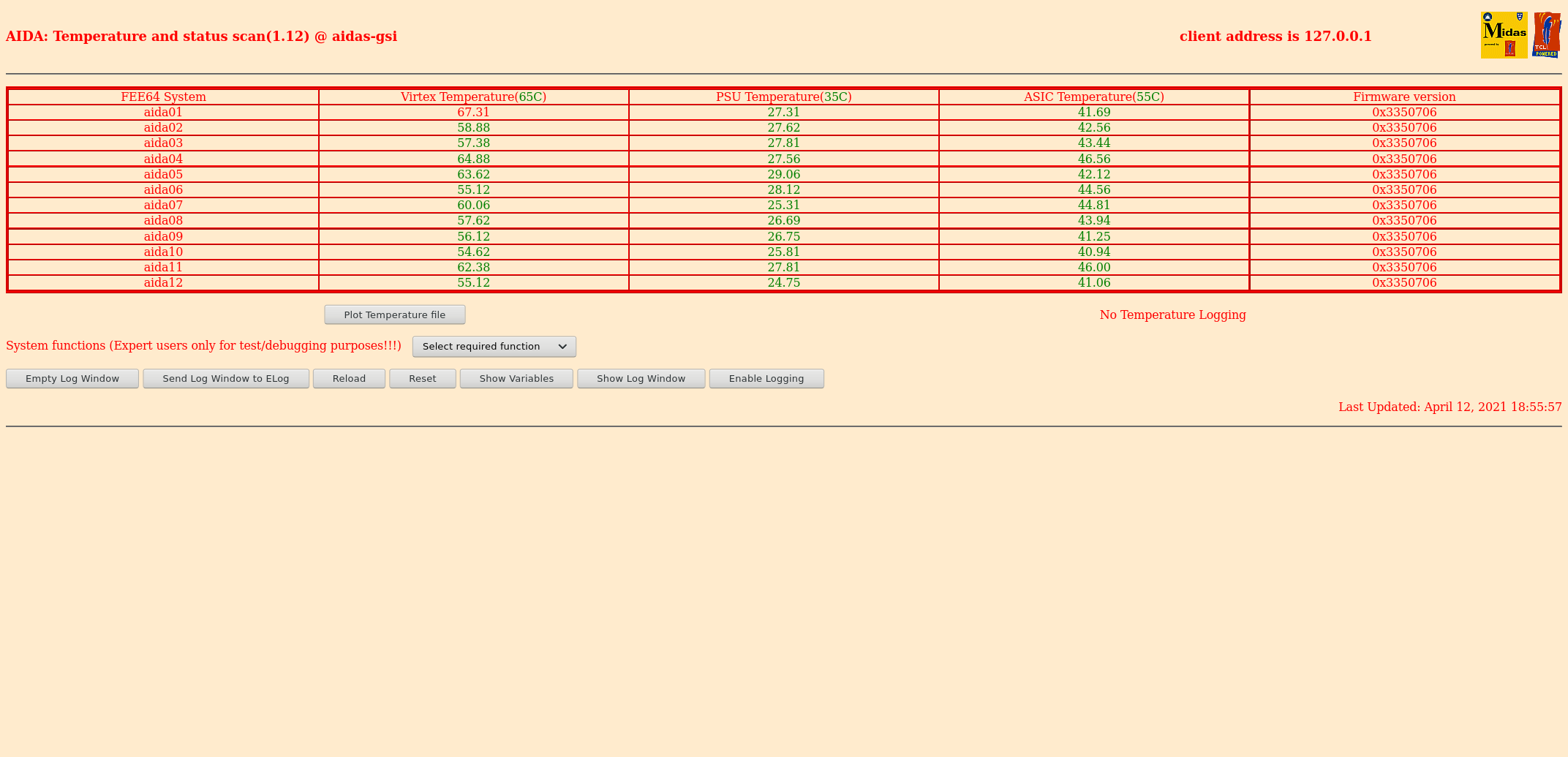

      FEE64 temperatures OK - see attachment 3

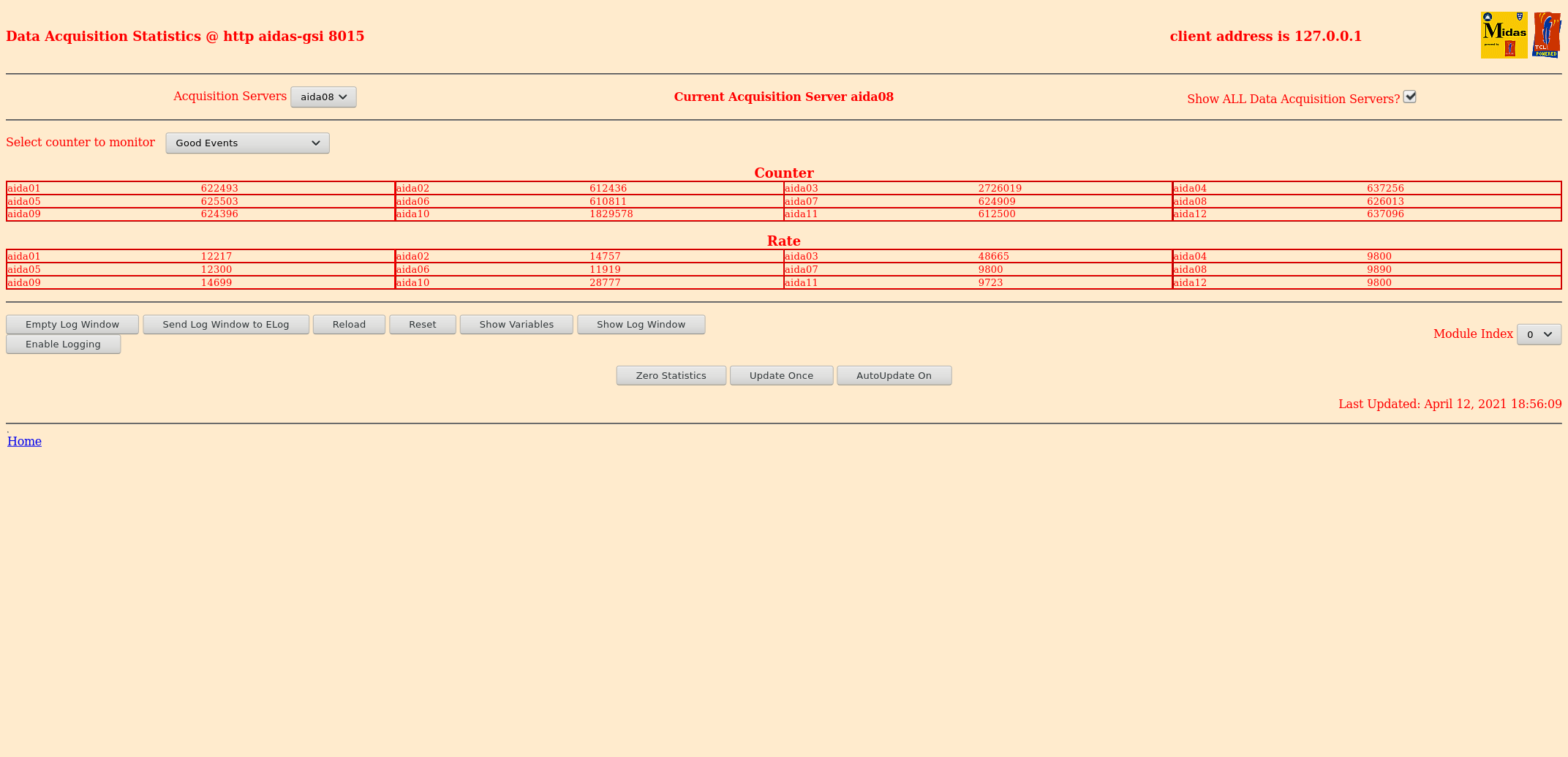

      statistics OK - see attachment 4
      DSSSD bias & leakage currents OK - see attachment 5
      tape server & merger - attachment 6

11:31 13.04.21
      file NULL/R9 stopped for work in day
      will resume alpha over night again
