Message ID: 257     Entry time: Wed Apr 21 11:27:55 2021
Author: OH
Subject: Wed 21st April 12:00-16:00
12:30 MBS has crashed
      This time AIDA is still running fine.

      Stats ok - attachment 1
      Temperature - attachment 2
      Bias and leakage currents - attachment 3

      All system wide checks ok *except*

			 Base 		Current 		Difference
aida12 fault 	 0x0 : 	 0x19 : 	 25
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

     Now also note errors on aida7 and aida03 in the merger TS errors
     (0 represents the sum across all FEE)
0	1355800	0x0014b018
1	0	0x00000000
2	0	0x00000000
3	33	0x00000021
4	0	0x00000000
5	0	0x00000000
6	0	0x00000000
7	10	0x0000000a
8	0	0x00000000
9	0	0x00000000
10	0	0x00000000
11	1355757	0x0014afed

15:30 CA takes over

      Stats ok - attachment 4
      Temperature - attachment 5
      Bias and leakage currents - attachment 6

      all system wide checks ok *except*

			 Base 		Current 		Difference
aida12 fault 	 0x0 : 	 0x19 : 	 27
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

15:42 db check and ucesb ok
Attachment 1: 210421_1338_Stats.png  67 kB  Uploaded Wed Apr 21 13:44:23 2021  | Hide | Hide all

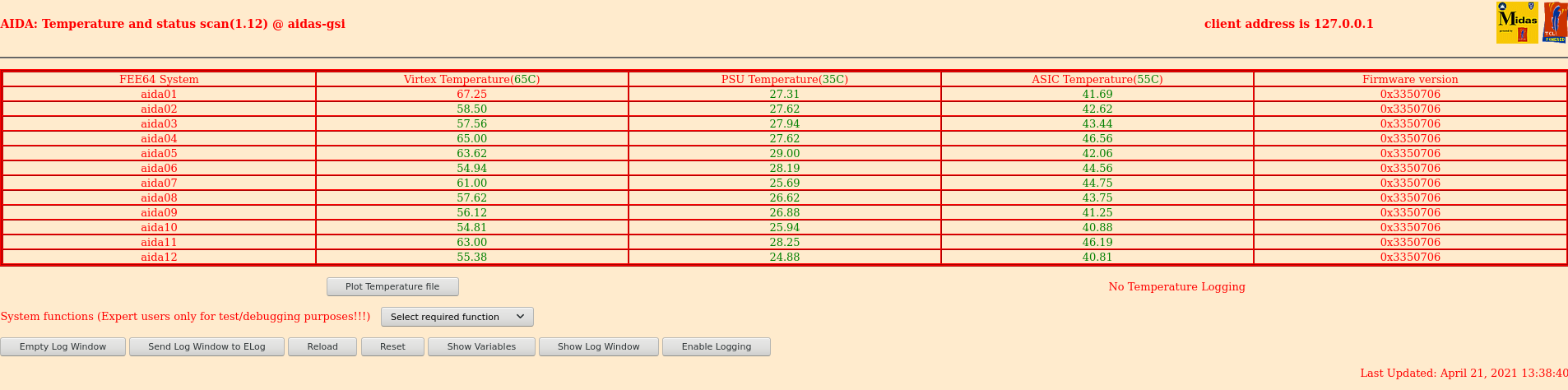

Attachment 2: 210421_1328_Temp.png  94 kB  Uploaded Wed Apr 21 13:44:33 2021  | Hide | Hide all
Attachment 3: 210421_1342_Bias.png  10 kB  Uploaded Wed Apr 21 13:44:33 2021  | Hide | Hide all

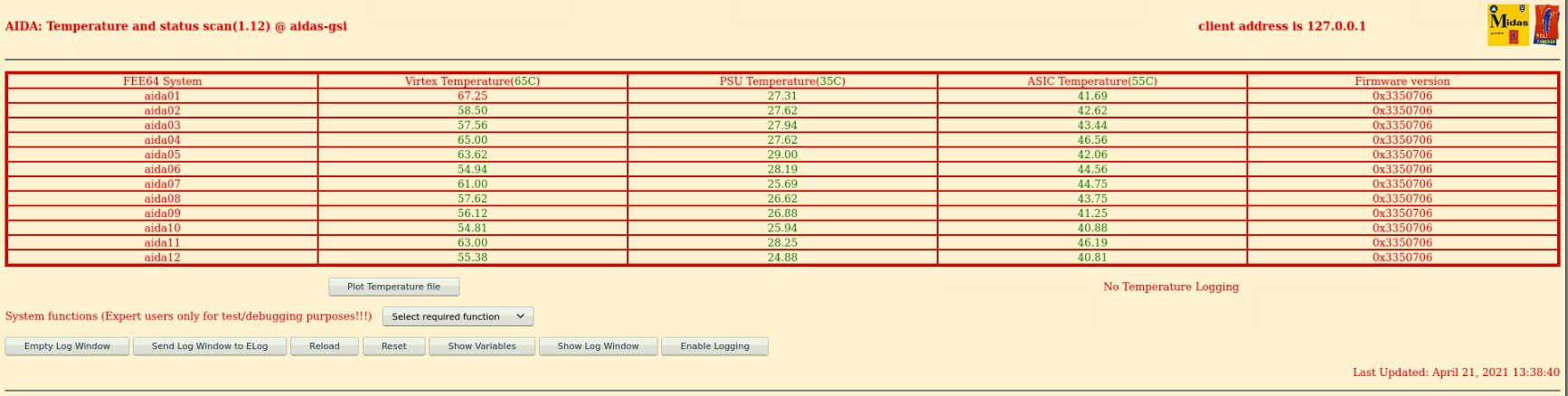

Attachment 4: Screenshot_from_2021-04-21_14-33-36.png  163 kB  Uploaded Wed Apr 21 15:37:53 2021  | Hide | Hide all

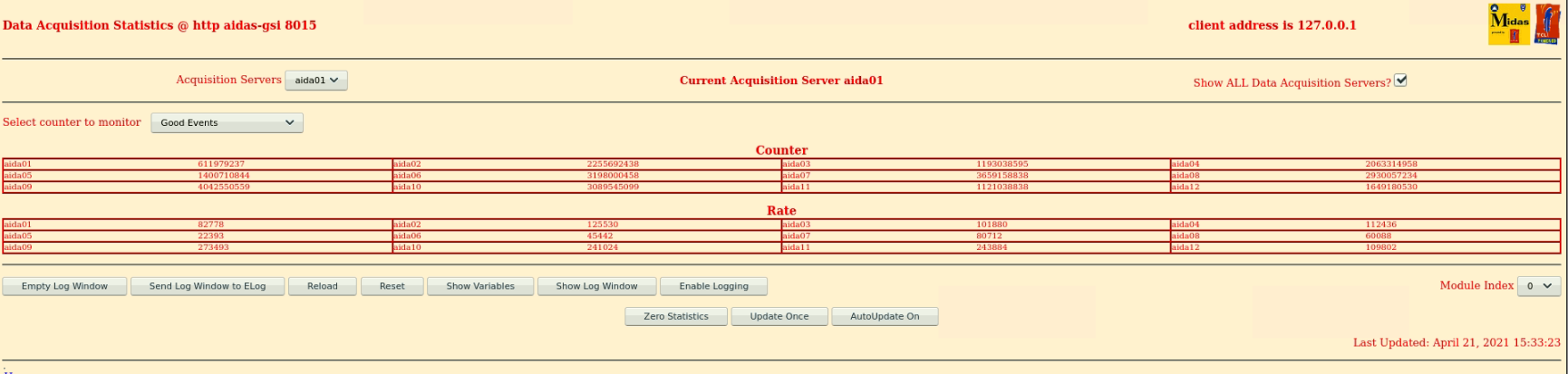

Attachment 5: Screenshot_from_2021-04-21_14-34-29.png  122 kB  Uploaded Wed Apr 21 15:37:53 2021  | Hide | Hide all

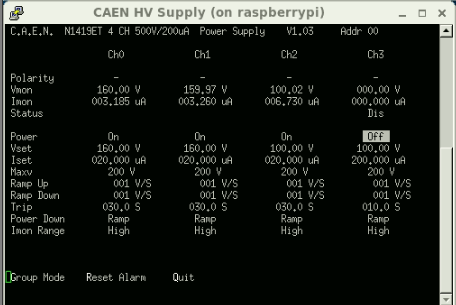

Attachment 6: Screenshot_from_2021-04-21_14-36-08.png  47 kB  Uploaded Wed Apr 21 15:37:53 2021  | Hide | Hide all
