Message ID: 263 Entry time: Thu Apr 22 23:17:46 2021

Author:	DJ
Subject:	Friday 23rd April 00:00-08:00

Took over from TD ... All is well.

00:45 System Wide Checks

Clock: 12 passed, 0 failed.

ADC Calibration: Passed 12, 0 failed.

White Rabbit Decoder: Passed 4,failed 8. - See screenshot.

FPGA Passed 11, failed 1. - See screenshot.

FEE64 Linux: See screenshot.

-----

02:49 run closed. Checking beam.

03:00 File 55 opened.

03:13:23 DAQ crashed due to AIDA02 rebooting. TD restarted DAQ. Ready at approx 04:00.

File 56 opened at 4:24.

---------

04:30 System Wide Checks (See screenshots)

White Rabbit Decoder: Passed 12, failed 0.

FPGA: page not loading properly.

----

05:37 System wide checks. See screenshots

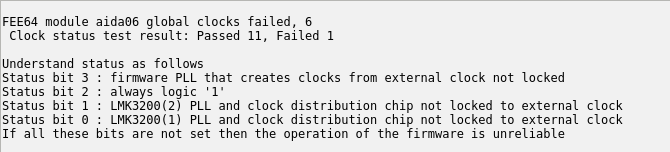

Clock: Status: 11 passed. 1 fail.

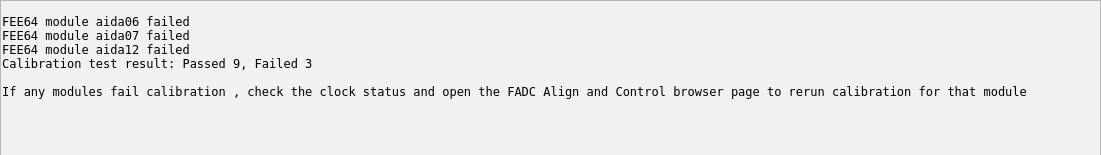

ADC calibration: Passed 9, failed 3.

White Rabbit decoder: Passed 12, failed 0.

-----

07:32 System wide checks (See screenshots).

Attachment 1:

Screenshot_2021-04-23_Statistics_aidas-gsi.png 85 kB Uploaded Fri Apr 23 00:20:11 2021 | Hide | Hide all

Attachment 2:

Screenshot_2021-04-23_Temperature_and_status_scan_aidas-gsi.png 113 kB Uploaded Fri Apr 23 00:36:01 2021 | Hide | Hide all

Attachment 3:

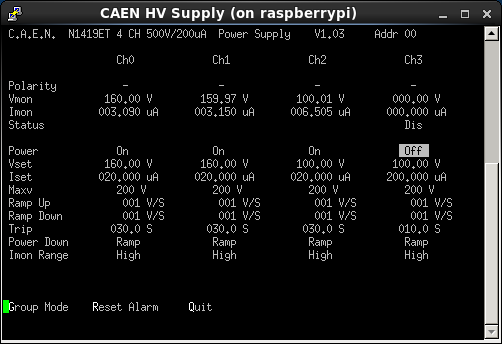

Screenshot-CAEN_HV_Supply.png 12 kB Uploaded Fri Apr 23 00:41:43 2021 | Hide | Hide all

Attachment 4:

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi.png 41 kB Uploaded Fri Apr 23 01:01:23 2021 | Hide | Hide all

Attachment 5:

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(1).png 18 kB Uploaded Fri Apr 23 01:04:17 2021 | Hide | Hide all

Attachment 6:

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(2).png 38 kB Uploaded Fri Apr 23 01:07:21 2021 | Hide | Hide all

Attachment 7:

Screenshot_2021-04-23_Statistics_aidas-gsi(1).png 83 kB Uploaded Fri Apr 23 04:06:50 2021 | Hide | Hide all

Attachment 8:

Screenshot_2021-04-23_Temperature_and_status_scan_aidas-gsi(1).png 113 kB Uploaded Fri Apr 23 04:11:46 2021 | Hide | Hide all

Attachment 9:

60.png 12 kB Uploaded Fri Apr 23 04:18:44 2021 | Hide | Hide all

Attachment 10:

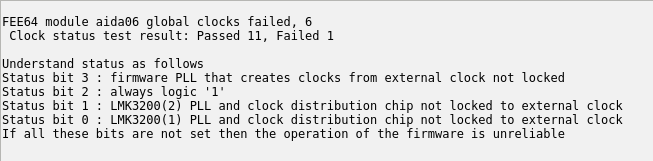

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(3).png 29 kB Uploaded Fri Apr 23 04:31:05 2021 | Hide | Hide all

Attachment 11:

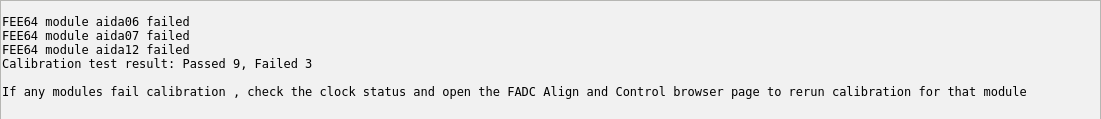

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(4).png 17 kB Uploaded Fri Apr 23 04:32:52 2021 | Hide | Hide all

Attachment 12:

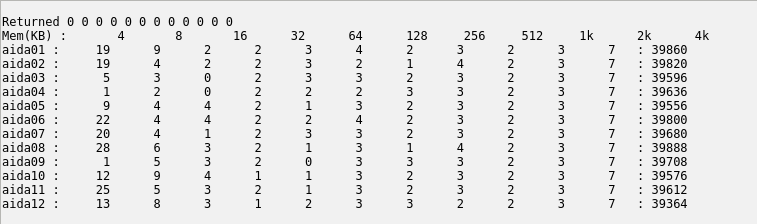

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(5).png 36 kB Uploaded Fri Apr 23 04:36:15 2021 | Hide | Hide all

Attachment 13:

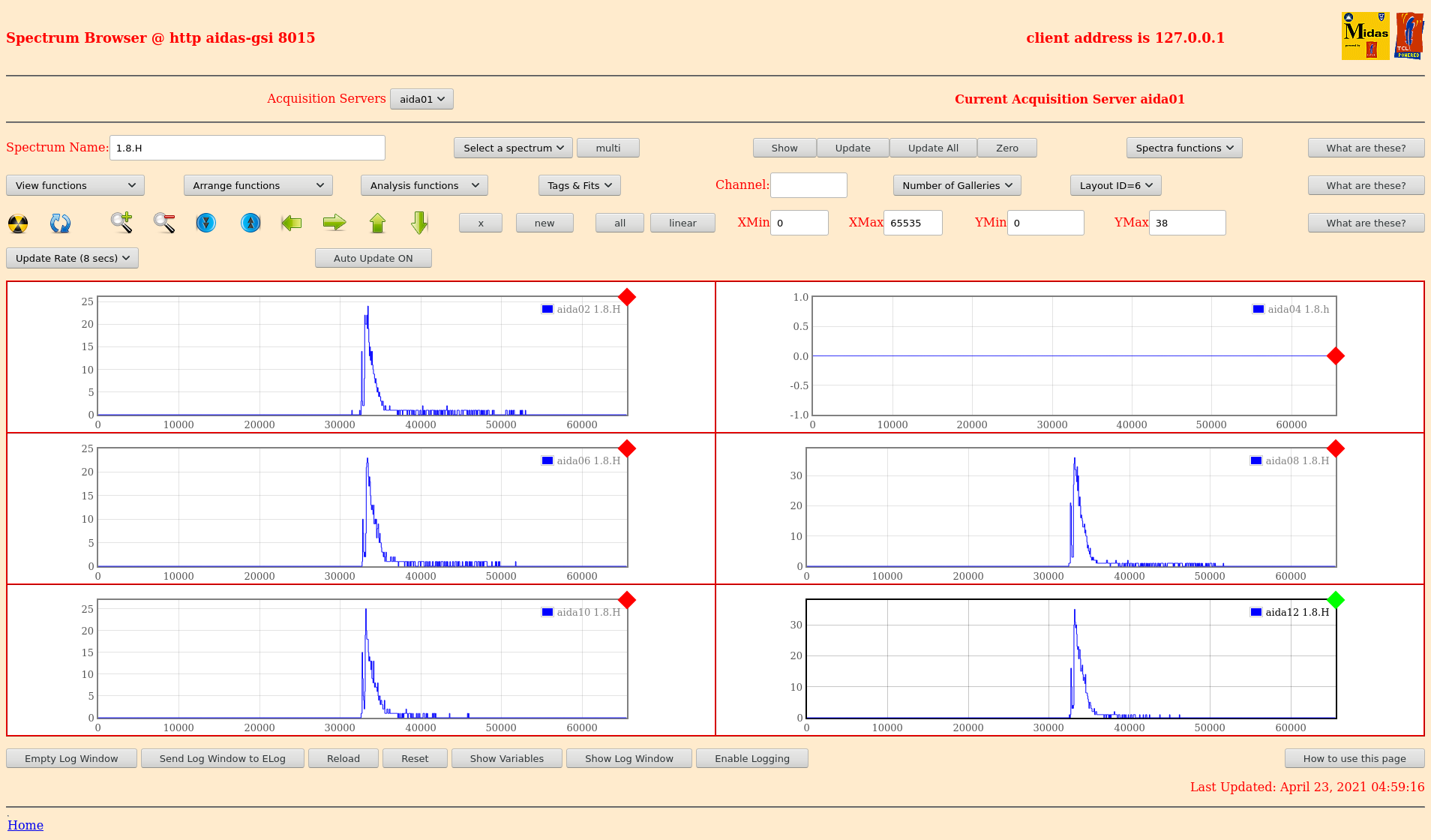

Screenshot_2021-04-23_Spectrum_Browser_aidas-gsi.png 155 kB Uploaded Fri Apr 23 05:05:36 2021 | Hide | Hide all

Attachment 14:

Screenshot_2021-04-23_Spectrum_Browser_aidas-gsi.png 155 kB Uploaded Fri Apr 23 05:06:32 2021 | Hide | Hide all

Attachment 15:

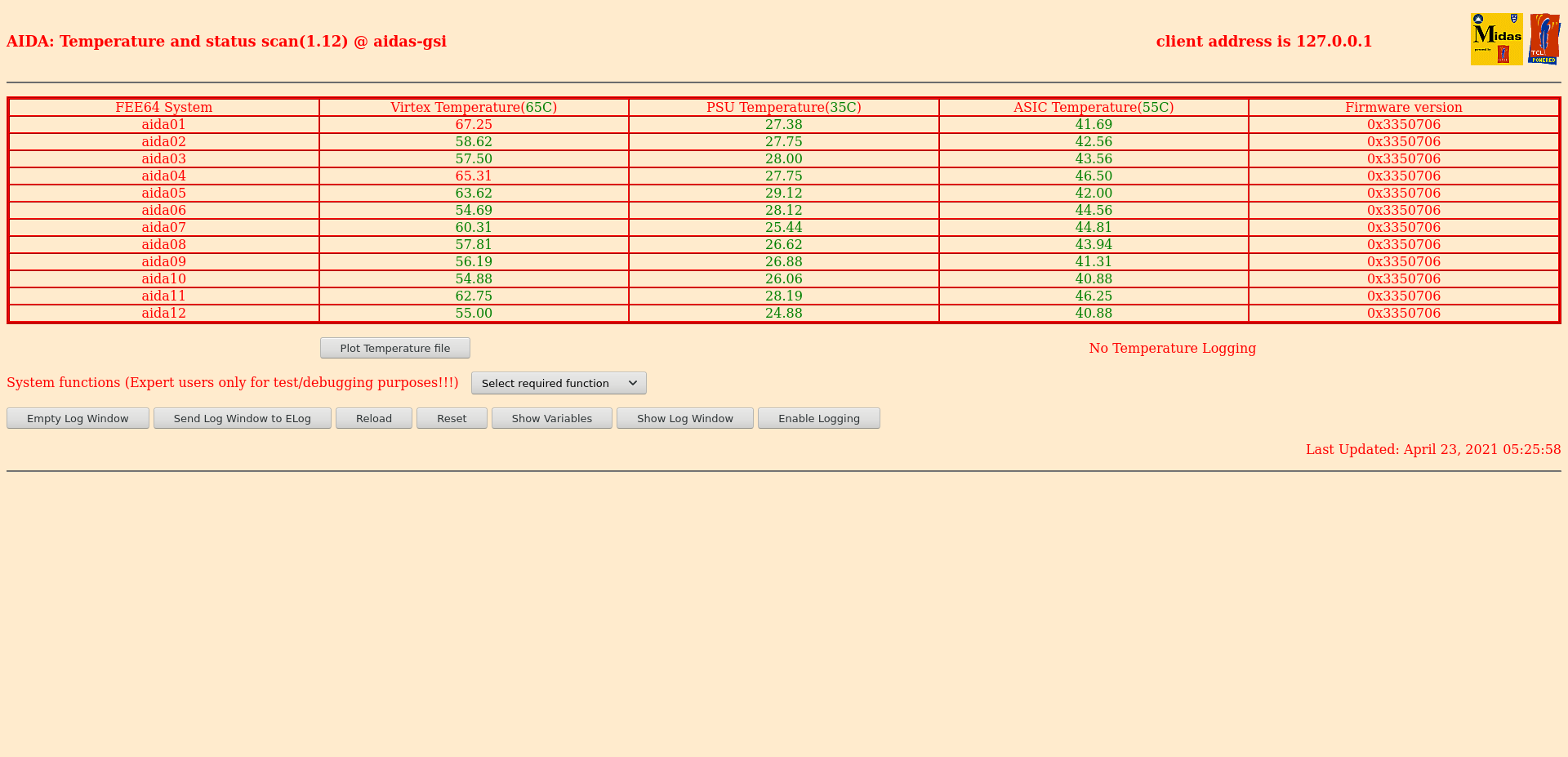

Screenshot_2021-04-23_Temperature_and_status_scan_aidas-gsi(2).png 113 kB Uploaded Fri Apr 23 05:29:02 2021 | Hide | Hide all

Attachment 16:

Screenshot_2021-04-23_Statistics_aidas-gsi(2).png 81 kB Uploaded Fri Apr 23 05:30:03 2021 | Hide | Hide all

Attachment 17:

61.png 12 kB Uploaded Fri Apr 23 05:31:51 2021 | Hide | Hide all

Attachment 18:

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(6).png 29 kB Uploaded Fri Apr 23 05:44:21 2021 | Hide | Hide all

Attachment 19:

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(7).png 18 kB Uploaded Fri Apr 23 05:46:01 2021 | Hide | Hide all

Attachment 20:

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(8).png 37 kB Uploaded Fri Apr 23 05:49:29 2021 | Hide | Hide all

Attachment 21:

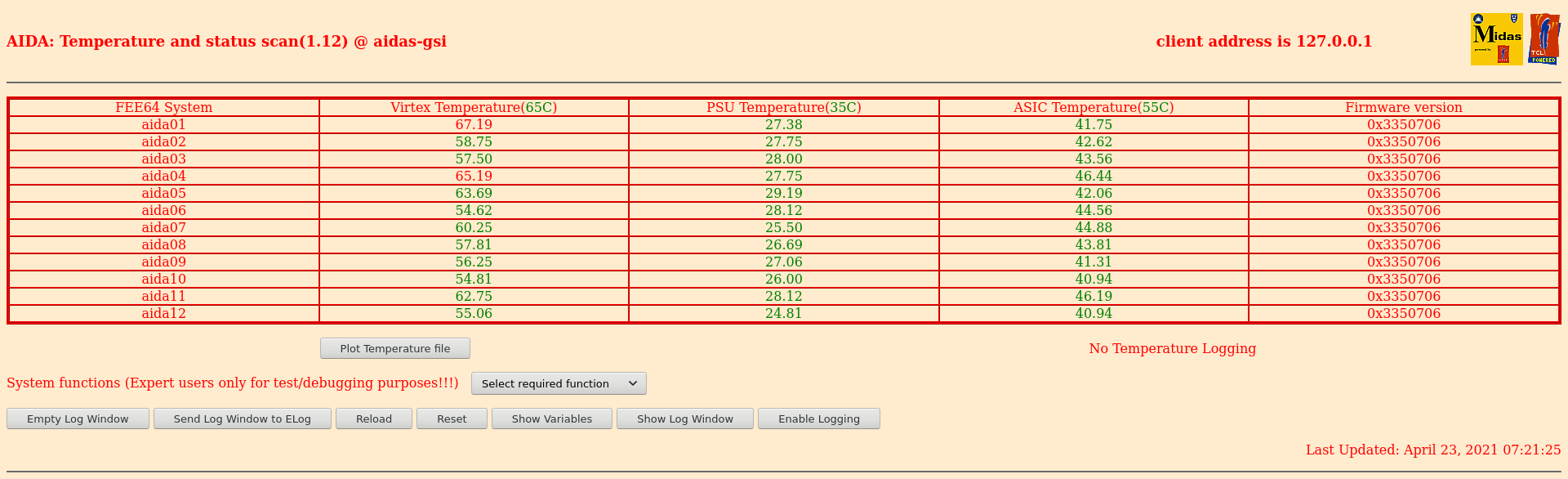

Screenshot_2021-04-23_Temperature_and_status_scan_aidas-gsi(3).png 108 kB Uploaded Fri Apr 23 07:23:26 2021 | Hide | Hide all

Attachment 22:

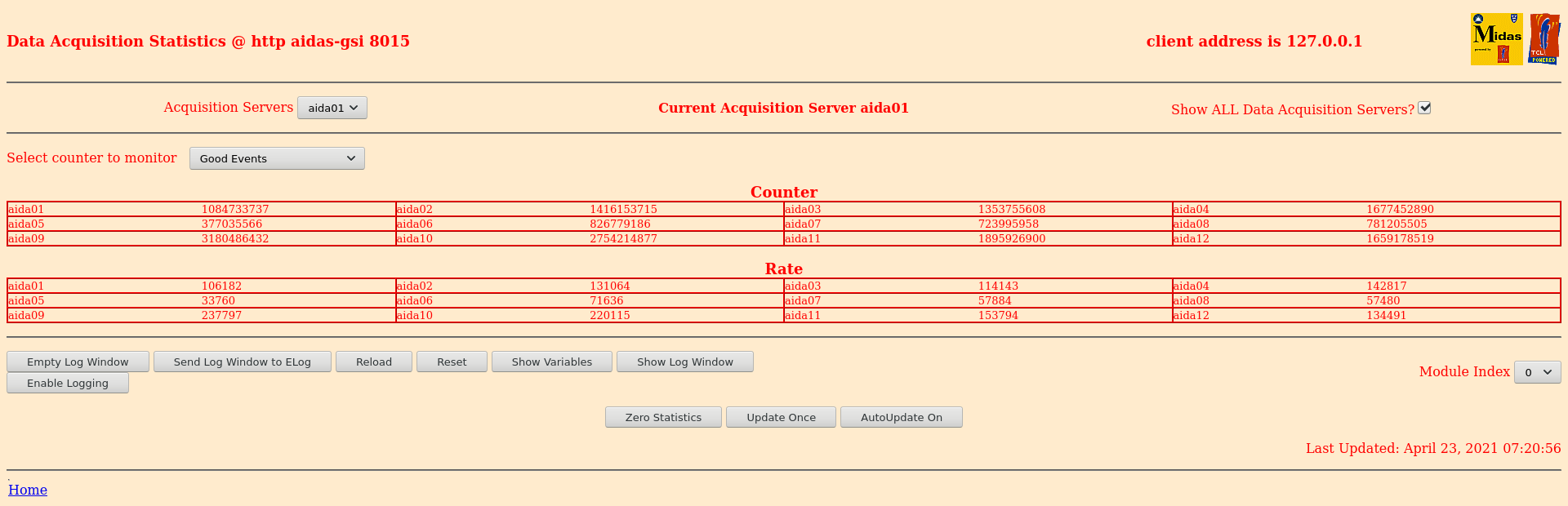

Screenshot_2021-04-23_Statistics_aidas-gsi(3).png 82 kB Uploaded Fri Apr 23 07:24:05 2021 | Hide | Hide all

Attachment 23:

63.png 12 kB Uploaded Fri Apr 23 07:24:43 2021 | Hide | Hide all

Attachment 24:

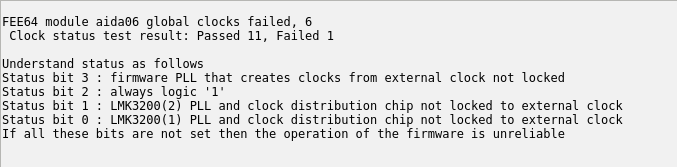

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(9).png 29 kB Uploaded Fri Apr 23 07:33:23 2021 | Hide | Hide all

Attachment 25:

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(10).png 17 kB Uploaded Fri Apr 23 07:33:43 2021 | Hide | Hide all

Attachment 26:

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(11).png 23 kB Uploaded Fri Apr 23 07:34:07 2021 | Hide | Hide all

Attachment 27:

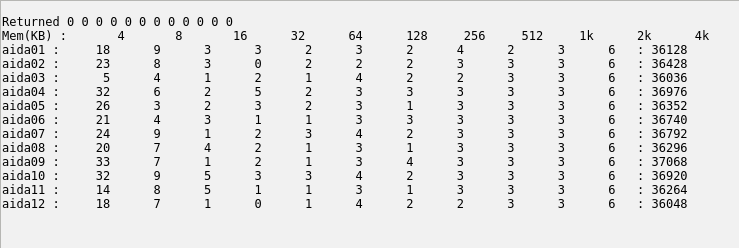

Screenshot_2021-04-23_System_wide_Checks_aidas-gsi(12).png 37 kB Uploaded Fri Apr 23 07:34:27 2021 | Hide | Hide all
