22:26 Tape server set up to write to directory May21
      DAQ stopped
      Slow comparator set to 0x64 for all FEE64 and an ASIC check performed
      Pulser turned off
      DAQ started
      ~300k in merger - 38kB per second to file

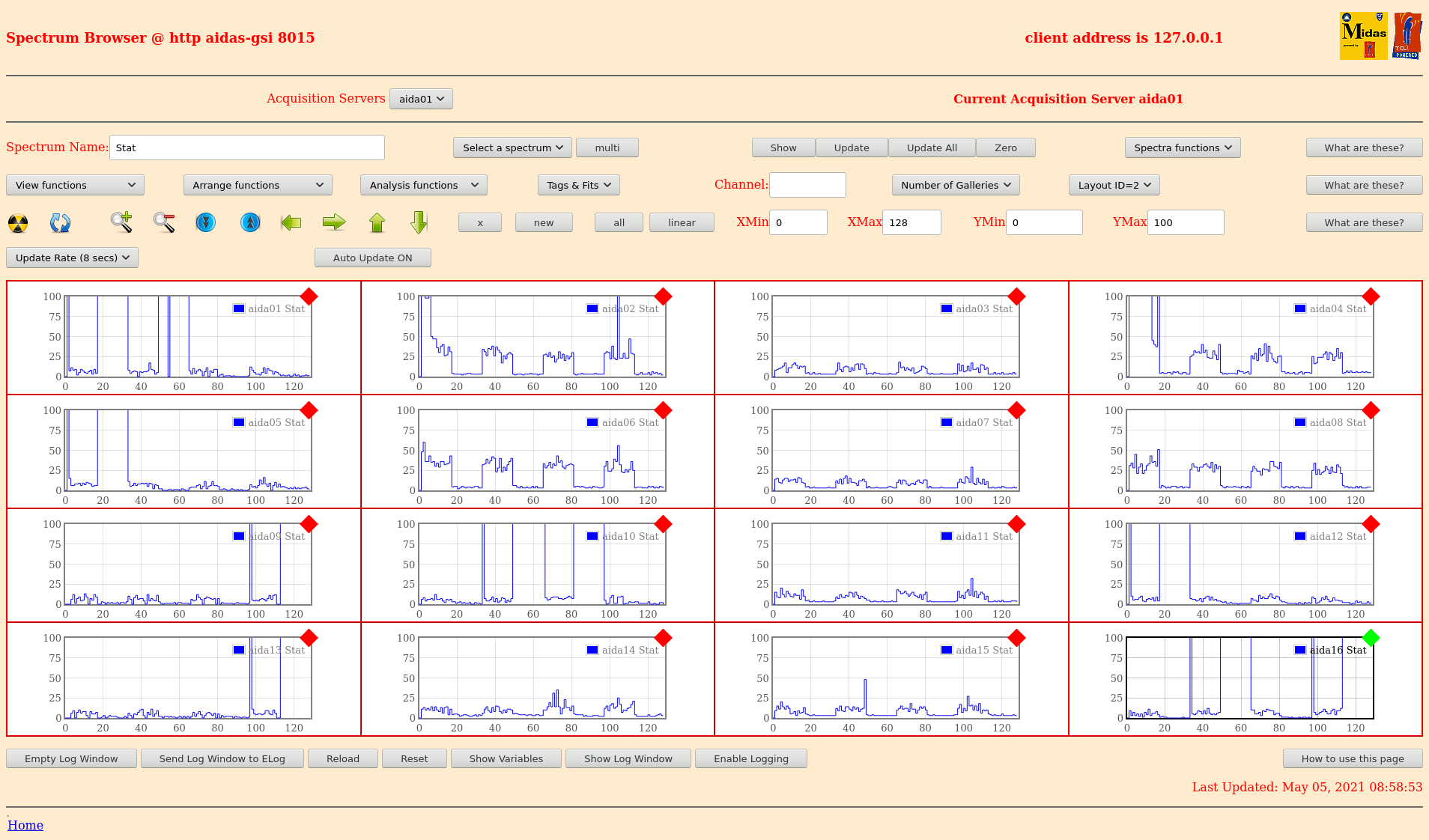

      Statistics good (all FEE show 0 bar FEE4 at 3k) - attachment 1
      All system wide checks ok apart from FPGA check

	        Base	Current  	Difference
aida13 fault 	 0x0 : 	 0x62 : 	 98
FPGA Timestamp error counter test result: Passed 15, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

     Histograms zeroed.
     DSSD1 at 130V
     DSSD2 at 100V

08:47 Found DAQ running at c. 3M data items/s / 13MB/s
      Switched Tape Server to no storage mode

[npg@aidas-gsi ~]$ ls -lrth /TapeData/May21
total 113G
-rw-rw-r--. 1 npg npg  64K May  4 22:24 R1_0
-rw-rw-r--. 1 npg npg  64K May  4 22:24 R1_1
-rw-rw-r--. 1 npg npg  64K May  4 22:24 R1_2
-rw-rw-r--. 1 npg npg  64K May  4 22:24 R1_3
-rw-rw-r--. 1 npg npg  64K May  4 22:24 R1_4
-rw-rw-r--. 1 npg npg  64K May  4 22:24 R1_5
-rw-rw-r--. 1 npg npg  64K May  4 22:24 R1_6
-rw-rw-r--. 1 npg npg  64K May  4 22:24 R1_7
-rw-rw-r--. 1 npg npg  64K May  4 22:24 R1_8
-rw-rw-r--. 1 npg npg  64K May  4 22:24 R1_9
-rw-rw-r--. 1 npg npg 1.3G May  5 06:15 R1_10
-rw-rw-r--. 1 npg npg 2.0G May  5 06:17 R1_11
-rw-rw-r--. 1 npg npg 2.0G May  5 06:20 R1_12
-rw-rw-r--. 1 npg npg 2.0G May  5 06:23 R1_13
-rw-rw-r--. 1 npg npg 2.0G May  5 06:25 R1_14
-rw-rw-r--. 1 npg npg 2.0G May  5 06:28 R1_15
-rw-rw-r--. 1 npg npg 2.0G May  5 06:30 R1_16
-rw-rw-r--. 1 npg npg 2.0G May  5 06:33 R1_17
-rw-rw-r--. 1 npg npg 2.0G May  5 06:36 R1_18
-rw-rw-r--. 1 npg npg 2.0G May  5 06:38 R1_19
-rw-rw-r--. 1 npg npg 2.0G May  5 06:41 R1_20
-rw-rw-r--. 1 npg npg 2.0G May  5 06:43 R1_21
-rw-rw-r--. 1 npg npg 2.0G May  5 06:46 R1_22
-rw-rw-r--. 1 npg npg 2.0G May  5 06:49 R1_23
-rw-rw-r--. 1 npg npg 2.0G May  5 06:51 R1_24
-rw-rw-r--. 1 npg npg 2.0G May  5 06:54 R1_25
-rw-rw-r--. 1 npg npg 2.0G May  5 06:57 R1_26
-rw-rw-r--. 1 npg npg 2.0G May  5 06:59 R1_27
-rw-rw-r--. 1 npg npg 2.0G May  5 07:02 R1_28
-rw-rw-r--. 1 npg npg 2.0G May  5 07:04 R1_29
-rw-rw-r--. 1 npg npg 2.0G May  5 07:07 R1_30
-rw-rw-r--. 1 npg npg 2.0G May  5 07:10 R1_31
-rw-rw-r--. 1 npg npg 2.0G May  5 07:12 R1_32
-rw-rw-r--. 1 npg npg 2.0G May  5 07:15 R1_33
-rw-rw-r--. 1 npg npg 2.0G May  5 07:18 R1_34
-rw-rw-r--. 1 npg npg 2.0G May  5 07:20 R1_35
-rw-rw-r--. 1 npg npg 2.0G May  5 07:23 R1_36
-rw-rw-r--. 1 npg npg 2.0G May  5 07:25 R1_37
-rw-rw-r--. 1 npg npg 2.0G May  5 07:28 R1_38
-rw-rw-r--. 1 npg npg 2.0G May  5 07:31 R1_39
-rw-rw-r--. 1 npg npg 2.0G May  5 07:33 R1_40
-rw-rw-r--. 1 npg npg 2.0G May  5 07:36 R1_41
-rw-rw-r--. 1 npg npg 2.0G May  5 07:39 R1_42
-rw-rw-r--. 1 npg npg 2.0G May  5 07:41 R1_43
-rw-rw-r--. 1 npg npg 2.0G May  5 07:44 R1_44
-rw-rw-r--. 1 npg npg 2.0G May  5 07:46 R1_45
-rw-rw-r--. 1 npg npg 2.0G May  5 07:49 R1_46
-rw-rw-r--. 1 npg npg 2.0G May  5 07:52 R1_47
-rw-rw-r--. 1 npg npg 2.0G May  5 07:54 R1_48
-rw-rw-r--. 1 npg npg 2.0G May  5 07:57 R1_49
-rw-rw-r--. 1 npg npg 2.0G May  5 08:00 R1_50
-rw-rw-r--. 1 npg npg 2.0G May  5 08:02 R1_51
-rw-rw-r--. 1 npg npg 2.0G May  5 08:05 R1_52
-rw-rw-r--. 1 npg npg 2.0G May  5 08:07 R1_53
-rw-rw-r--. 1 npg npg 2.0G May  5 08:10 R1_54
-rw-rw-r--. 1 npg npg 2.0G May  5 08:13 R1_55
-rw-rw-r--. 1 npg npg 2.0G May  5 08:15 R1_56
-rw-rw-r--. 1 npg npg 2.0G May  5 08:18 R1_57
-rw-rw-r--. 1 npg npg 2.0G May  5 08:20 R1_58
-rw-rw-r--. 1 npg npg 2.0G May  5 08:23 R1_59
-rw-rw-r--. 1 npg npg 2.0G May  5 08:26 R1_60
-rw-rw-r--. 1 npg npg 2.0G May  5 08:28 R1_61
-rw-rw-r--. 1 npg npg 2.0G May  5 08:31 R1_62
-rw-rw-r--. 1 npg npg 2.0G May  5 08:34 R1_63
-rw-rw-r--. 1 npg npg 2.0G May  5 08:36 R1_64
-rw-rw-r--. 1 npg npg 2.0G May  5 08:39 R1_65
-rw-rw-r--. 1 npg npg 2.0G May  5 08:41 R1_66
-rw-rw-r--. 1 npg npg 1.6G May  5 08:44 R1_67
[npg@aidas-gsi ~]$

      Rate increased c. 06.15
       multiple ASICs in multiple FEE64s hot HEC channels
      ASIC check load restores rates to those at beginning of May21/R1
      Switched Tape Server to storage mode - file May21/R1_67

08.53 All system wide checks OK *except*

			 Base 		Current 		Difference
aida07 fault 	 0x0 : 	 0x1 : 	 1
aida08 fault 	 0x0 : 	 0x1 : 	 1
aida13 fault 	 0x62 : 	 0x9380 : 	 37662
FPGA Timestamp error counter test result: Passed 13, Failed 3
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

      Most recent merger errors

MERGE Data Link (2497): bad timestamp  7 3 0xd1fc813c 0x073033d6 0x00001083773033d6 0x167c1083773033d6 0x167c108377304b46
MERGE Data Link (2497): bad timestamp  7 3 0xd1ce7ff9 0x07303ba6 0x0000108377303ba6 0x167c108377303ba6 0x167c108377304b46
MERGE Data Link (2497): bad timestamp  7 3 0xd1dd806e 0x07303ba6 0x0000108377303ba6 0x167c108377303ba6 0x167c108377304b46
MERGE Data Link (2497): bad timestamp  7 3 0xd1ed7fc1 0x07303ba6 0x0000108377303ba6 0x167c108377303ba6 0x167c108377304b46
MERGE Data Link (2497): bad timestamp  7 3 0xd1fd803c 0x07303ba6 0x0000108377303ba6 0x167c108377303ba6 0x167c108377304b46
MERGE Data Link (2497): bad timestamp  7 3 0xd1cf8066 0x07304376 0x0000108377304376 0x167c108377304376 0x167c108377304b46
MERGE Data Link (2497): bad timestamp  7 3 0xd1de8110 0x07304376 0x0000108377304376 0x167c108377304376 0x167c108377304b46
MERGE Data Link (2497): bad timestamp  7 3 0xd1ee8086 0x07304376 0x0000108377304376 0x167c108377304376 0x167c108377304b46
MERGE Data Link (2497): bad timestamp  7 3 0xd1fe7ff7 0x07304376 0x0000108377304376 0x167c108377304376 0x167c108377304b46
MERGE Data Link (2497): bad timestamp  7 3 0xd1c38041 0x0e60a6d6 0x000010832e60a6d6 0x167c10832e60a6d6 0x167c108377304b46

09.04 FEE64 temps OK - attachment 2

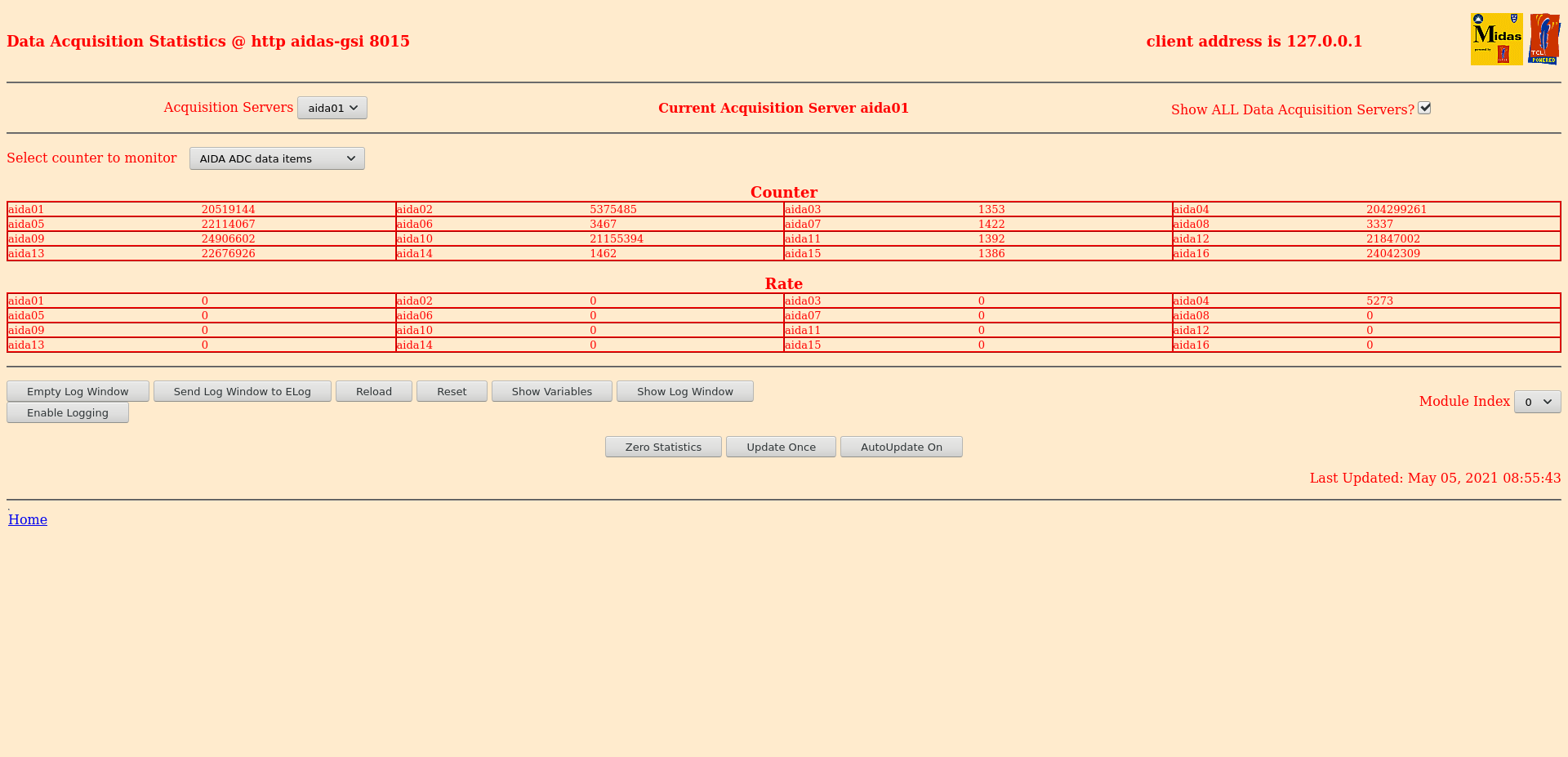

      ADC data item stats - attachment 3

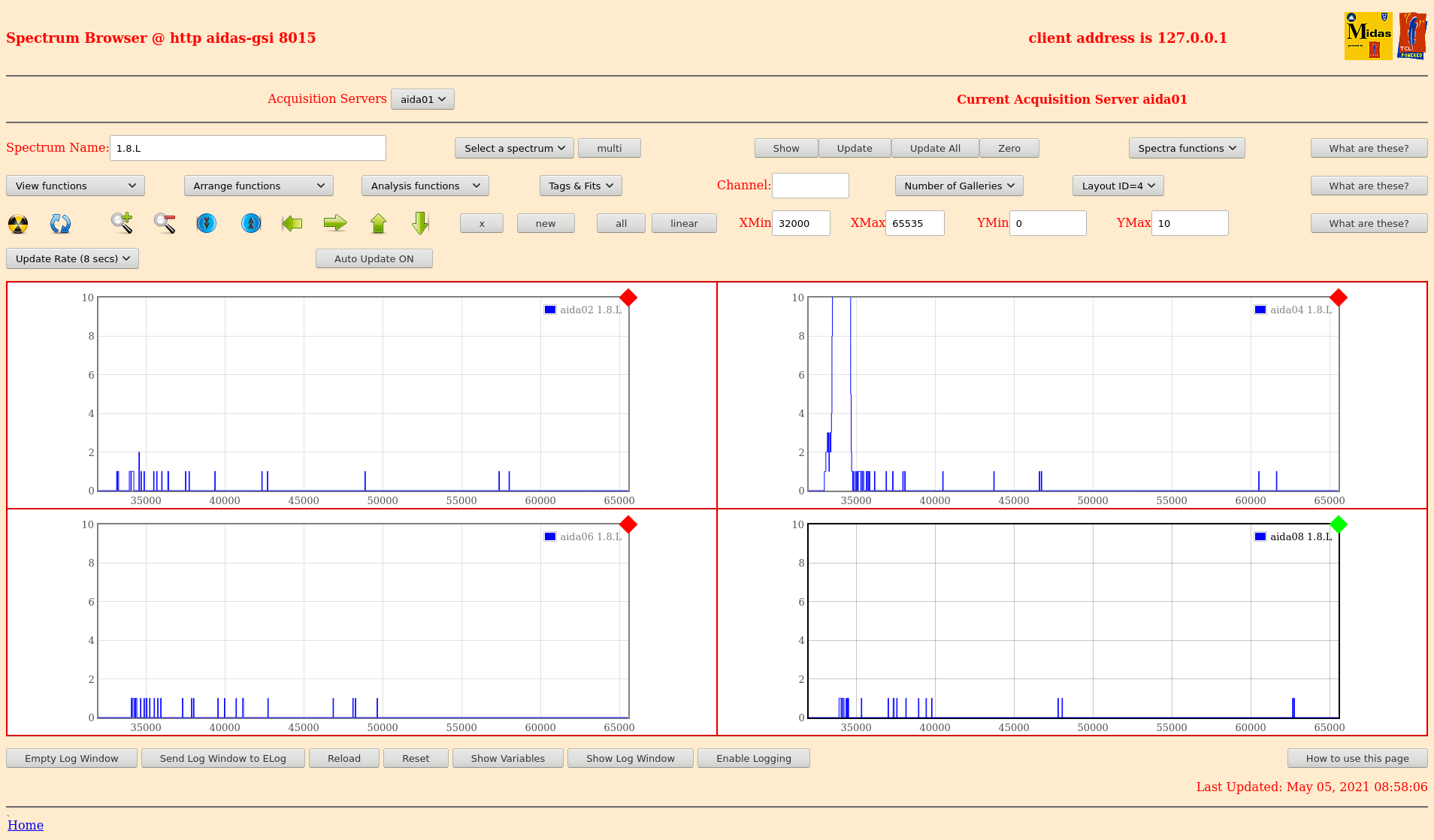

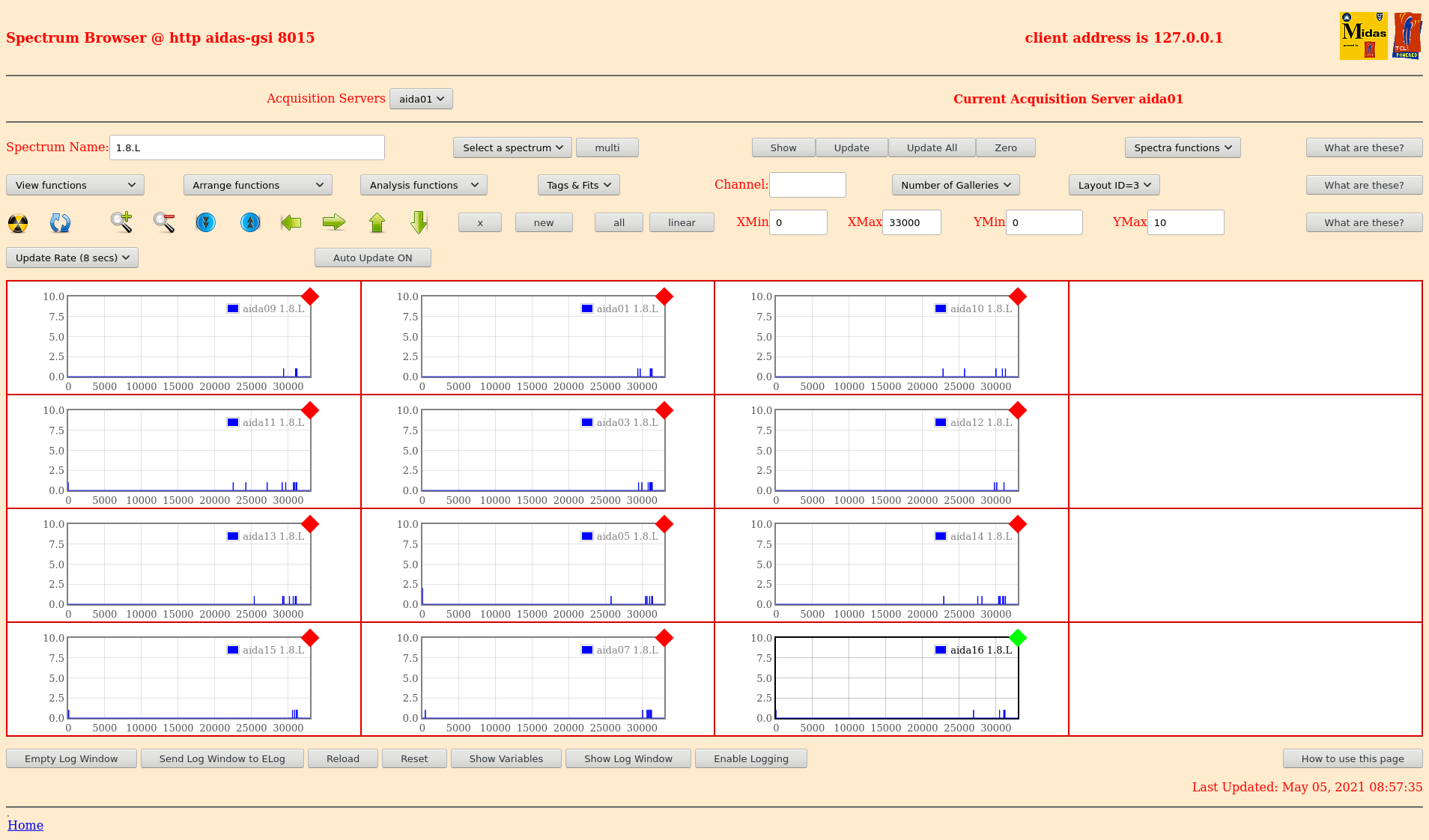

      1.8.L spectra - attachments 4 & 5

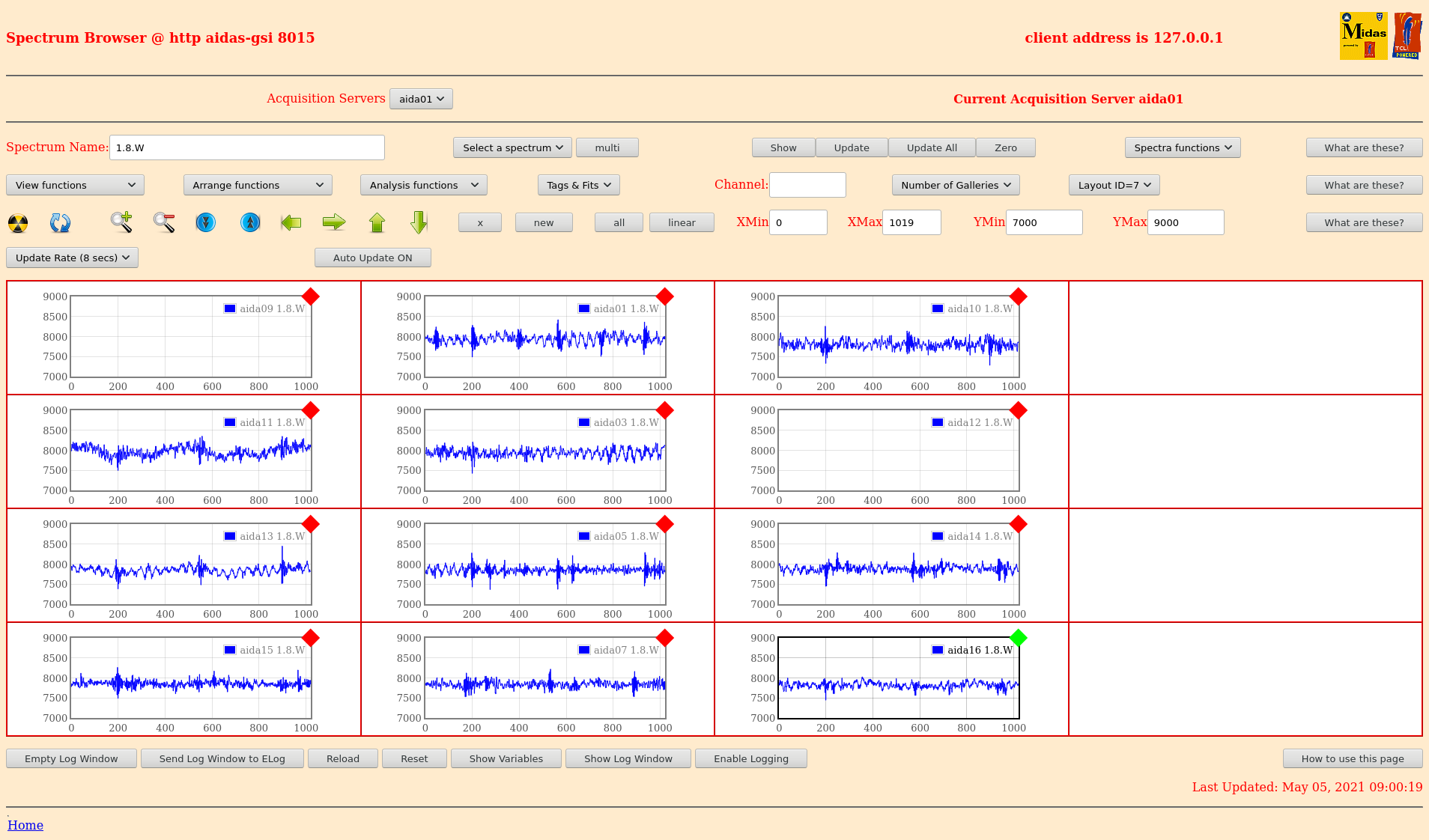

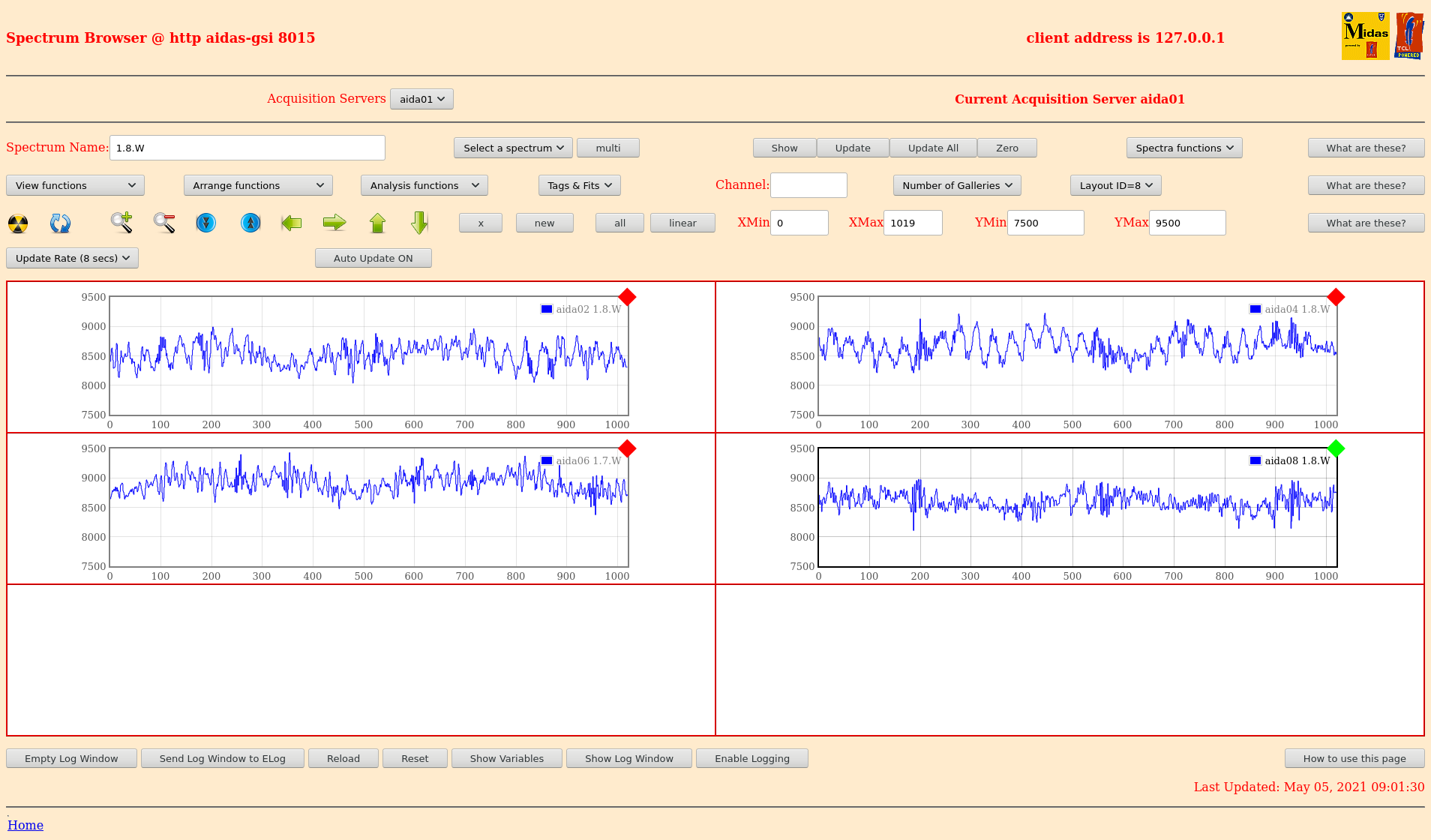

      1.8.W spectra - attachments 6 & 7
      Grafana DSSSD bias & Leakage current most recent 24h - attachment 8
      DSSSD bias & leakage current - attacment 9

11:32 R1 stopped to realign boards and check situation in S4
