16th May 2021 - 00:00 - 08:00 Shift
Author: CA
00:15 System wide checks;
FEE64 module aida06 global clocks failed, 6
FEE64 module aida09 global clocks failed, 6
Clock status test result: Passed 14, Failed 2
Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable
FEE64 module aida09 failed
Calibration test result: Passed 15, Failed 1
If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module
Base Current Difference
aida05 fault 0x714c : 0x7154 : 8
White Rabbit error counter test result: Passed 15, Failed 1
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Base Current Difference
aida05 fault 0x0 : 0x3 : 3
aida12 fault 0x0 : 0x3 : 3
aida13 fault 0x0 : 0x4d : 77
FPGA Timestamp error counter test result: Passed 13, Failed 3
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 19 10 3 1 2 3 2 3 2 3 7 : 39660
aida02 : 29 5 3 1 1 3 2 3 2 3 7 : 39596
aida03 : 15 7 1 1 2 3 2 3 2 3 7 : 39588
aida04 : 44 26 19 5 2 4 3 3 2 2 7 : 38608
aida05 : 20 10 3 0 1 4 2 2 3 3 7 : 40208
aida06 : 27 6 2 1 2 4 2 4 2 3 7 : 40284
aida07 : 25 5 3 1 2 3 2 3 2 3 7 : 39644
aida08 : 23 8 2 3 1 4 2 3 2 3 7 : 39772
aida09 : 23 10 3 2 3 4 1 3 2 3 7 : 39644
aida10 : 18 10 3 2 3 2 2 2 2 4 7 : 41160
aida11 : 16 7 3 2 1 2 2 3 2 3 7 : 39464
aida12 : 21 4 7 1 3 3 3 3 2 3 7 : 40004
aida13 : 25 6 3 2 1 3 1 4 2 3 7 : 39876
aida14 : 20 8 10 1 1 2 2 2 2 4 7 : 41104
aida15 : 26 6 3 3 0 4 3 2 2 3 7 : 39464
aida16 : 9 8 2 4 1 3 1 4 2 3 7 : 39876
00:30 Stats ok - 210516_0030_stats.png

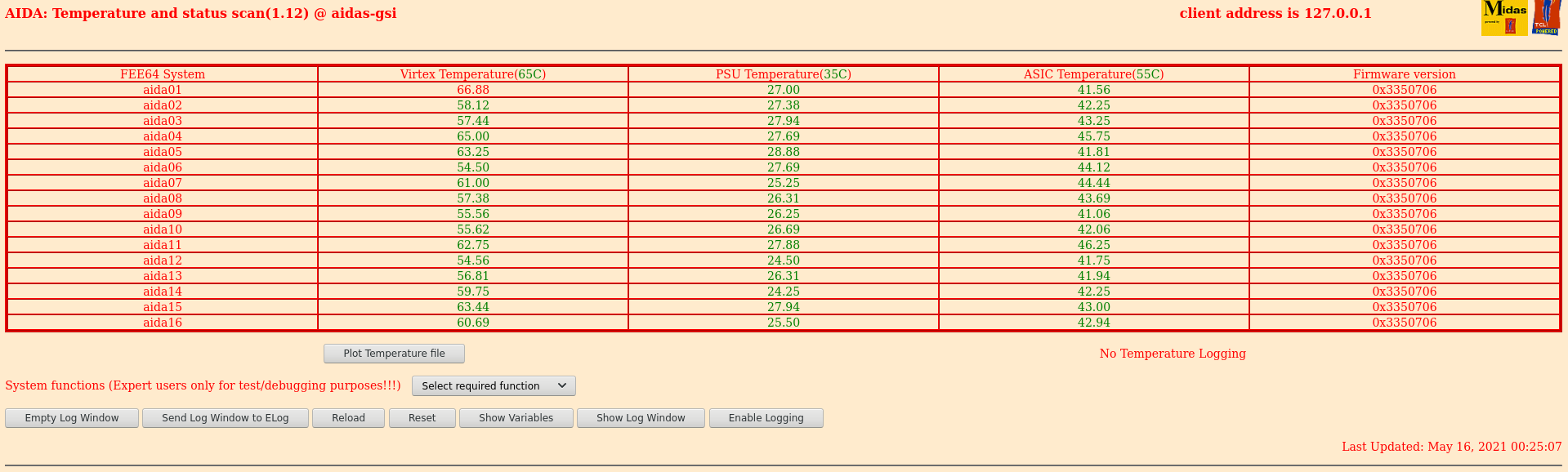

Temps ok - 210516_0030_temps.png

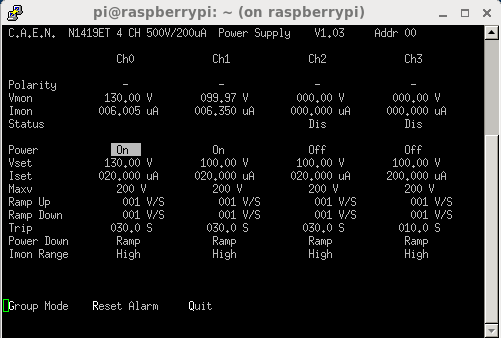

Bias ok - 210516_0030_bias.png
00:38 analyzer output R7_178 - Deadtime at 7.3% - 210516_R7_178_analysis.txt
02:21 system wide checks as above, except;
Base Current Difference
aida05 fault 0x714c : 0x7159 : 13
White Rabbit error counter test result: Passed 15, Failed 1
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Base Current Difference
aida05 fault 0x0 : 0x7 : 7
aida12 fault 0x0 : 0x3 : 3
aida13 fault 0x0 : 0x4d : 77
FPGA Timestamp error counter test result: Passed 13, Failed 3
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
02:28 Stats ok - 210516_0230_stats.png
Temps ok - 210516_0230_temps.png
Bias ok - 210516_0230_bias.png
02:33 analyzer output R7_216 - Deadtime at 6.5% - 210516_R7_216_analysis.txt
04:36 system wide checks same as above, except;
Base Current Difference
aida05 fault 0x714c : 0x715c : 16
White Rabbit error counter test result: Passed 15, Failed 1
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Base Current Difference
aida05 fault 0x0 : 0x9 : 9
aida12 fault 0x0 : 0x3 : 3
aida13 fault 0x0 : 0x4d : 77
FPGA Timestamp error counter test result: Passed 13, Failed 3
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
04:37 Stats ok - 210516_0430_stats.png
Temps ok - 210516_0430_temps.png
Bias ok - 210516_0430_bias.png
04:44 analyzer output R7_260 - Deadtime at 6.9% - 210516_R7_260_analysis.txt
06:38 system wide checks same as before, except;
Base Current Difference
aida01 fault 0xf294 : 0xf296 : 2
aida02 fault 0xd8ec : 0xd8ee : 2
aida03 fault 0xf001 : 0xf003 : 2
aida04 fault 0xd992 : 0xd994 : 2
aida05 fault 0x714c : 0x7161 : 21
aida06 fault 0x5a49 : 0x5a4a : 1
aida07 fault 0x5aca : 0x5acb : 1
aida08 fault 0xb92e : 0xb92f : 1
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
06:40 Stats ok - 210516_0640_stats.png
Temps ok - 210516_0640_temps.png
Bias ok - 210516_0640_bias.png
06:45 analyzer output R7_298 - Deadtime at 5.8% - 210516_R7_298_analysis.txt |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 255660963 ( 1413413.6 Hz)
Other data format: 6259037 ( 34602.9 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 192 ( 1.1 Hz)
RESUME: 192 ( 1.1 Hz)
SYNC100: 32674 ( 180.6 Hz)
WR48-63: 32674 ( 180.6 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 6193305 ( 34239.5 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 287054 ( 1587.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 180.882 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.117 0.000
1 8.836 0.000
2 1.027 0.000
3 5.545 0.000
4 0.000 5.604
5 0.873 0.000
6 0.370 0.000
7 0.861 0.000
8 0.767 0.000
9 0.000 63.434
10 13.201 0.000
11 3.930 0.000
12 0.813 0.000
13 0.000 30.131
14 0.448 0.000
15 1.895 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 9469697 3614 0 0 3 3 1264 1264 0 1080 0 15256
1 23268933 6078 0 0 41 41 2998 2998 0 0 0 31257
2 14135373 1756135 0 0 5 5 1968 1968 0 1752189 0 25654
3 26646926 1718468 0 0 28 28 3507 3507 0 1711398 0 36818
4 2828773 749772 0 0 0 0 426 426 0 748920 0 7104
5 14183721 453202 0 0 5 5 1830 1830 0 449532 0 20813
6 11921192 886700 0 0 5 5 1583 1583 0 883524 0 13410
7 19791515 651950 0 0 5 5 2639 2639 0 646662 0 25026
8 22244739 5464 0 0 4 4 2728 2728 0 0 0 32840
9 1601175 378 0 0 0 0 189 189 0 0 0 2522
10 41869813 10332 0 0 63 63 5103 5103 0 0 0 18083
11 18332381 4602 0 0 16 16 2285 2285 0 0 0 5732
12 14937821 3786 0 0 7 7 1886 1886 0 0 0 28026
13 2220427 536 0 0 0 0 268 268 0 0 0 2121
14 11574320 2908 0 0 3 3 1451 1451 0 0 0 17899
15 20634157 5112 0 0 7 7 2549 2549 0 0 0 4493
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 47.672s ( 671.255 blocks/s, 41.953 Mb/s)
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 255713262 ( 1398395.0 Hz)
Other data format: 6206738 ( 33942.2 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 185 ( 1.0 Hz)
RESUME: 185 ( 1.0 Hz)
SYNC100: 32681 ( 178.7 Hz)
WR48-63: 32681 ( 178.7 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 6141006 ( 33582.7 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 279005 ( 1525.8 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 182.862 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.488 0.000
1 8.465 0.000
2 0.216 0.000
3 7.120 0.000
4 0.011 8.896
5 0.764 0.000
6 0.401 0.000
7 1.395 0.000
8 0.721 0.000
9 0.000 86.292
10 11.881 0.000
11 1.912 0.000
12 0.187 0.000
13 0.000 15.181
14 0.528 0.000
15 0.095 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 9424415 3624 0 0 2 2 1264 1264 0 1092 0 14964
1 23109905 5922 0 0 39 39 2922 2922 0 0 0 29876
2 14322958 1782809 0 0 3 3 2029 2029 0 1778745 0 25108
3 26234410 1716299 0 0 35 35 3458 3458 0 1709313 0 35100
4 2817740 734656 0 0 1 1 433 433 0 733788 0 6814
5 13978921 443934 0 0 4 4 1871 1871 0 440184 0 20242
6 11924553 862150 0 0 4 4 1621 1621 0 858900 0 13000
7 19324336 623898 0 0 11 11 2446 2446 0 618984 0 24043
8 21963572 5366 0 0 5 5 2678 2678 0 0 0 32304
9 1580877 372 0 0 0 0 186 186 0 0 0 2567
10 42874488 10618 0 0 59 59 5250 5250 0 0 0 17549
11 18504188 4566 0 0 14 14 2269 2269 0 0 0 5838
12 14580871 3684 0 0 2 2 1840 1840 0 0 0 27687
13 2240991 612 0 0 0 0 306 306 0 0 0 2138
14 11530867 2858 0 0 4 4 1425 1425 0 0 0 17152
15 21300170 5370 0 0 2 2 2683 2683 0 0 0 4623
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 45.405s ( 704.764 blocks/s, 44.048 Mb/s)
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 255591110 ( 1400708.0 Hz)
Other data format: 6328890 ( 34684.0 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 179 ( 1.0 Hz)
RESUME: 179 ( 1.0 Hz)
SYNC100: 32680 ( 179.1 Hz)
WR48-63: 32680 ( 179.1 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 6263172 ( 34323.9 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 288458 ( 1580.8 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 182.473 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 7.649 0.000
2 0.265 0.000
3 5.929 0.000
4 0.000 21.293
5 1.614 0.000
6 0.390 0.000
7 0.004 0.000
8 1.749 0.000
9 0.000 75.748
10 12.608 0.000
11 1.662 0.000
12 0.334 0.000
13 0.000 39.700
14 0.092 0.000
15 1.009 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 9481493 3580 0 0 0 0 1244 1244 0 1092 0 15504
1 23234003 5924 0 0 42 42 2920 2920 0 0 0 30950
2 14360490 1787895 0 0 2 2 2026 2026 0 1783839 0 26238
3 26580599 1734745 0 0 32 32 3537 3537 0 1727607 0 36830
4 2867864 759325 0 0 0 0 449 449 0 758427 0 7075
5 13998560 454755 0 0 6 6 1806 1806 0 451131 0 20732
6 12019427 893028 0 0 3 3 1644 1644 0 889734 0 13550
7 19745451 656494 0 0 1 1 2575 2575 0 651342 0 25286
8 21649633 5478 0 0 7 7 2732 2732 0 0 0 32719
9 1602793 374 0 0 0 0 187 187 0 0 0 2586
10 42457575 10646 0 0 62 62 5261 5261 0 0 0 18276
11 18423606 4634 0 0 16 16 2301 2301 0 0 0 6050
12 14493303 3540 0 0 2 2 1768 1768 0 0 0 27878
13 2240564 512 0 0 0 0 256 256 0 0 0 2153
14 11446056 2794 0 0 2 2 1395 1395 0 0 0 17997
15 20989693 5166 0 0 4 4 2579 2579 0 0 0 4634
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 52.041s ( 614.900 blocks/s, 38.431 Mb/s)
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 254484788 ( 1267953.1 Hz)
Other data format: 7435212 ( 37045.4 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 166 ( 0.8 Hz)
RESUME: 166 ( 0.8 Hz)
SYNC100: 32747 ( 163.2 Hz)
WR48-63: 32747 ( 163.2 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 7369386 ( 36717.5 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 359272 ( 1790.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 200.705 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.411 0.000
1 11.545 0.000
2 1.046 0.000
3 6.943 0.000
4 0.008 8.993
5 0.438 0.000
6 0.000 0.000
7 1.702 0.000
8 0.655 0.000
9 0.000 75.734
10 6.237 0.000
11 1.119 0.000
12 0.217 0.000
13 0.000 28.278
14 0.250 0.000
15 0.105 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 8401665 3348 0 0 2 2 1072 1072 0 1200 0 19564
1 26165949 6958 0 0 57 57 3422 3422 0 0 0 37826
2 13624578 2004081 0 0 4 4 1973 1973 0 2000127 0 32349
3 29939387 1947767 0 0 35 35 4004 4004 0 1939689 0 45332
4 3232848 946545 0 0 1 1 548 548 0 945447 0 8745
5 15270389 573894 0 0 6 6 1986 1986 0 569910 0 26107
6 10372112 1114231 0 0 0 0 1457 1457 0 1111317 0 17063
7 19130864 806574 0 0 8 8 2431 2431 0 801696 0 31336
8 24018310 5808 0 0 5 5 2899 2899 0 0 0 41117
9 1787485 418 0 0 0 0 209 209 0 0 0 3357
10 42125761 10654 0 0 29 29 5298 5298 0 0 0 22828
11 16187533 3960 0 0 11 11 1969 1969 0 0 0 7397
12 14311704 3490 0 0 1 1 1744 1744 0 0 0 35224
13 2388212 620 0 0 0 0 310 310 0 0 0 2664
14 9736084 2414 0 0 1 1 1206 1206 0 0 0 22553
15 17791907 4450 0 0 6 6 2219 2219 0 0 0 5810
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 43.287s ( 739.250 blocks/s, 46.203 Mb/s)
|
