System checks gave 11 passed/1 failed, except for ADC timimgs: 10 passed/2 failed.
FEE64 module aida09 global clocks failed, 6
Clock status test result: Passed 11, Failed 1
Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable
FEE64 module aida07 failed
FEE64 module aida09 failed
Calibration test result: Passed 10, Failed 2
Base Current Difference
aida07 fault 0xd052 : 0xd056 : 4
White Rabbit error counter test result: Passed 11, Failed 1
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Base Current Difference
aida12 fault 0x0 : 0x16 : 22
FPGA Timestamp error counter test result: Passed 11, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module
Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 2 6 2 0 5 5 1 2 3 3 6 : 36120
aida02 : 25 10 0 4 3 5 2 3 3 3 6 : 36980
aida03 : 22 12 5 2 1 3 2 3 3 3 6 : 36616
aida04 : 16 3 3 3 4 4 4 2 3 3 6 : 36840
aida05 : 14 5 6 2 3 4 4 2 3 3 6 : 36800
aida06 : 30 10 6 3 3 4 2 3 3 3 6 : 36936
aida07 : 27 11 1 0 0 3 2 3 3 3 6 : 36436
aida08 : 38 7 7 3 3 2 2 3 3 3 6 : 36704
aida09 : 4 6 4 2 4 4 1 4 3 3 6 : 37056
aida10 : 21 10 3 3 1 5 1 3 3 3 6 : 36596
aida11 : 24 8 2 1 4 3 2 4 2 3 6 : 36192
aida12 : 31 12 4 3 5 5 2 2 3 3 6 : 36668
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1025 Last changed Mon Apr 19 10:32:22 CEST 2021
FEE : aida02 => Options file size is 1014 Last changed Fri Apr 16 00:56:20 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Wed Apr 14 21:52:04 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Sat Apr 17 06:07:36 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Fri Apr 16 00:53:25 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Wed Apr 14 21:52:04 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Wed Apr 14 21:52:04 CEST 2021
FEE : aida08 => Options file size is 1014 Last changed Wed Apr 14 21:52:04 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Wed Apr 14 21:52:05 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Wed Apr 14 21:52:06 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Wed Apr 14 21:52:05 CEST 2021
FEE : aida12 => Options file size is 1025 Last changed Mon Apr 19 09:05:25 CEST 2021
There should be a separate elog note about changing one of the bias voltages.
All histograms zeroed at 16:13.

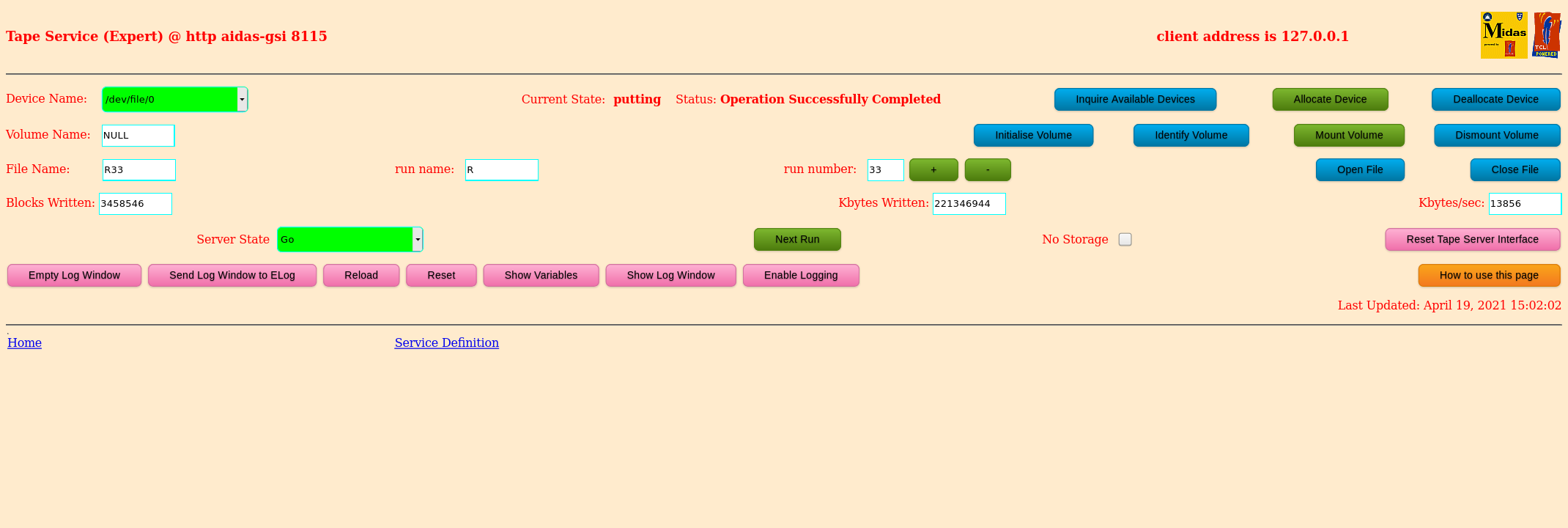

16.20 DAQ continues file NULL/R33_156
aida09 HEC fast comparator 0x2->0x1
DSSSD#3 bias -100->-120V |
