| DESPEC |
 |
|
|
|
Message ID: 344
Entry time: Sat May 22 13:40:56 2021
|
| Author: |
TD |
| Subject: |
Saturday 22 May |
|
|
14.37 DAQ continues file S496/R15_14

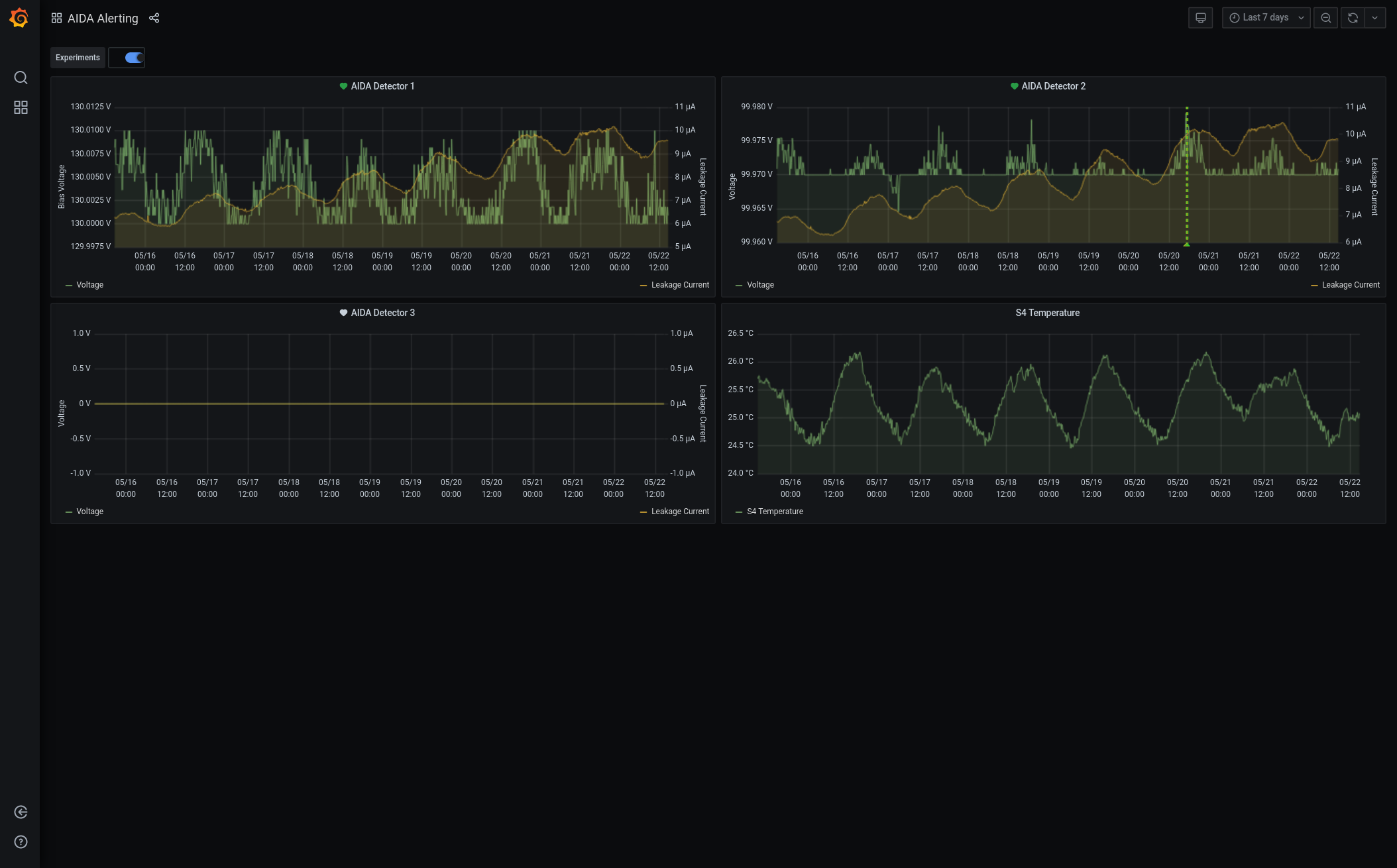

Grafana - DSSSD bias & leakage current - attachment 1

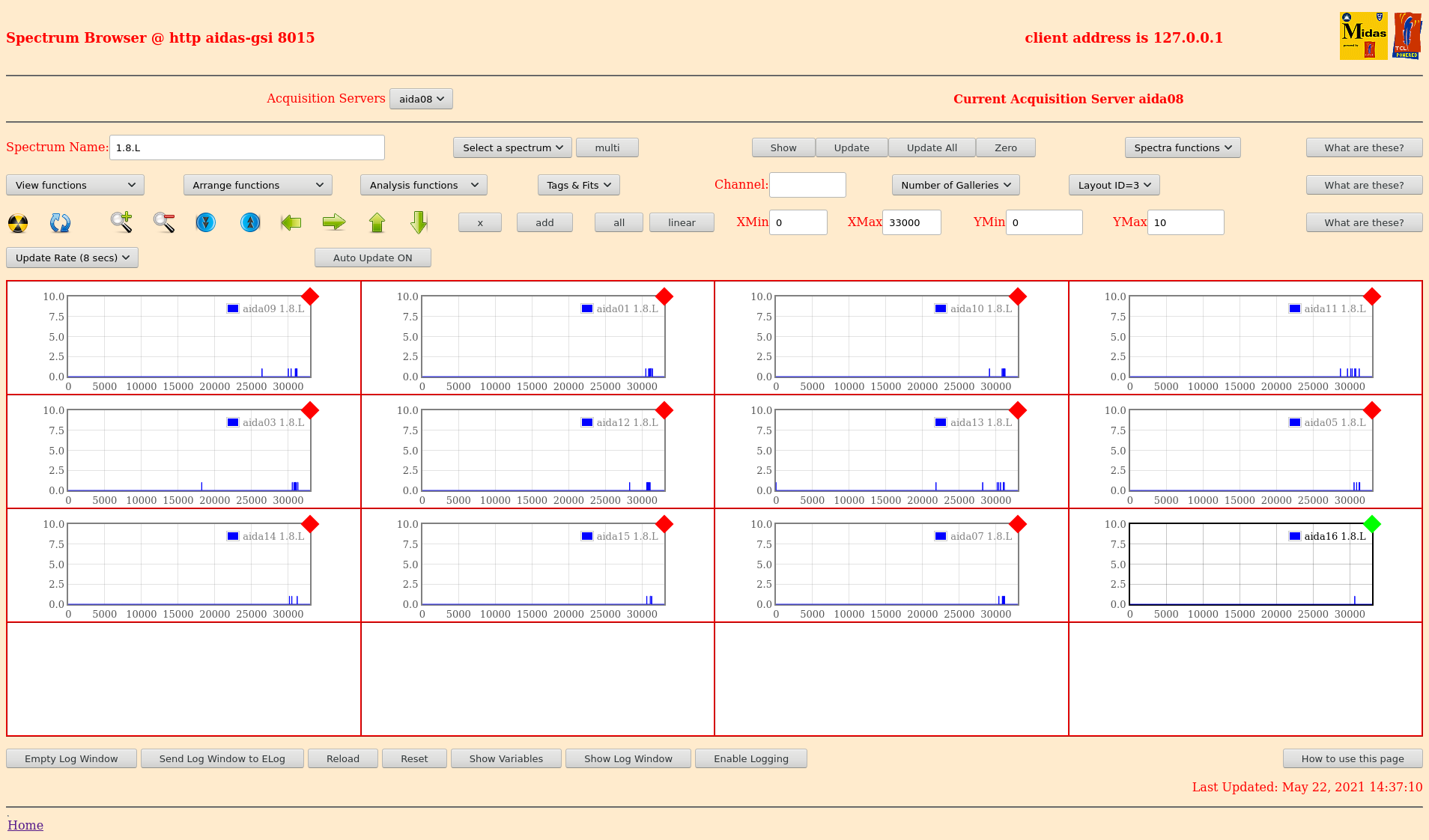

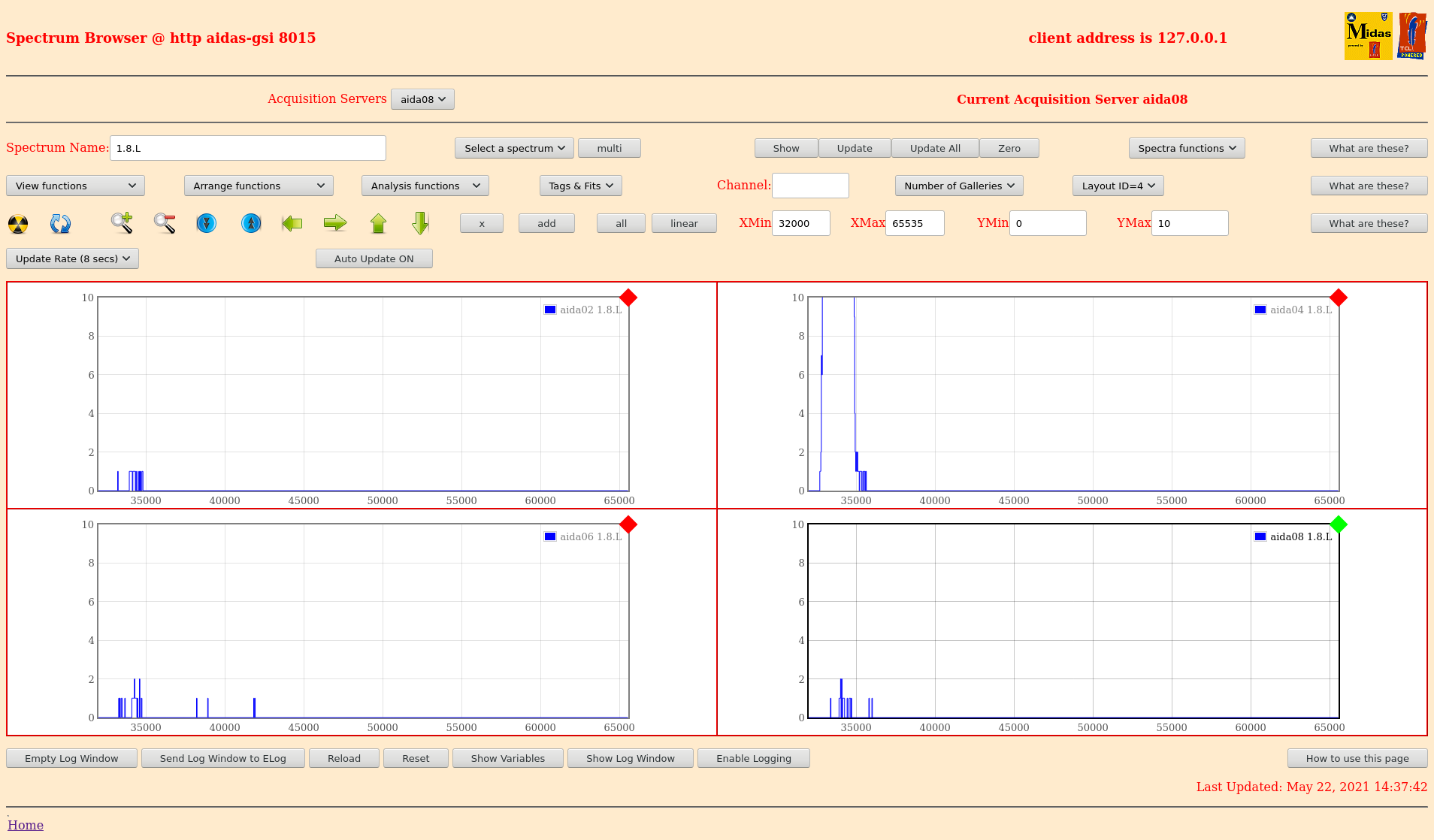

1.8.L spectra - attachments 2 & 3

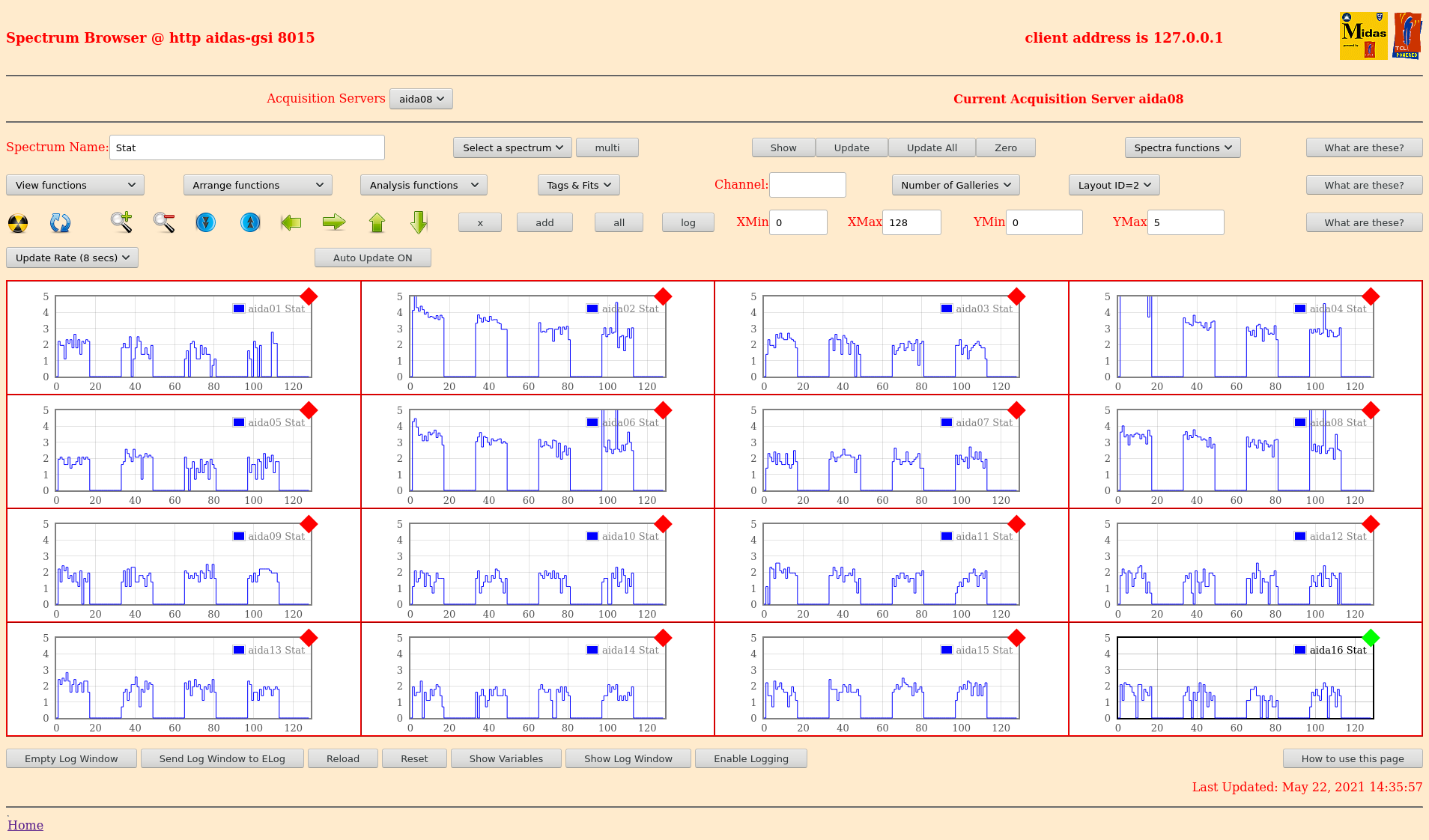

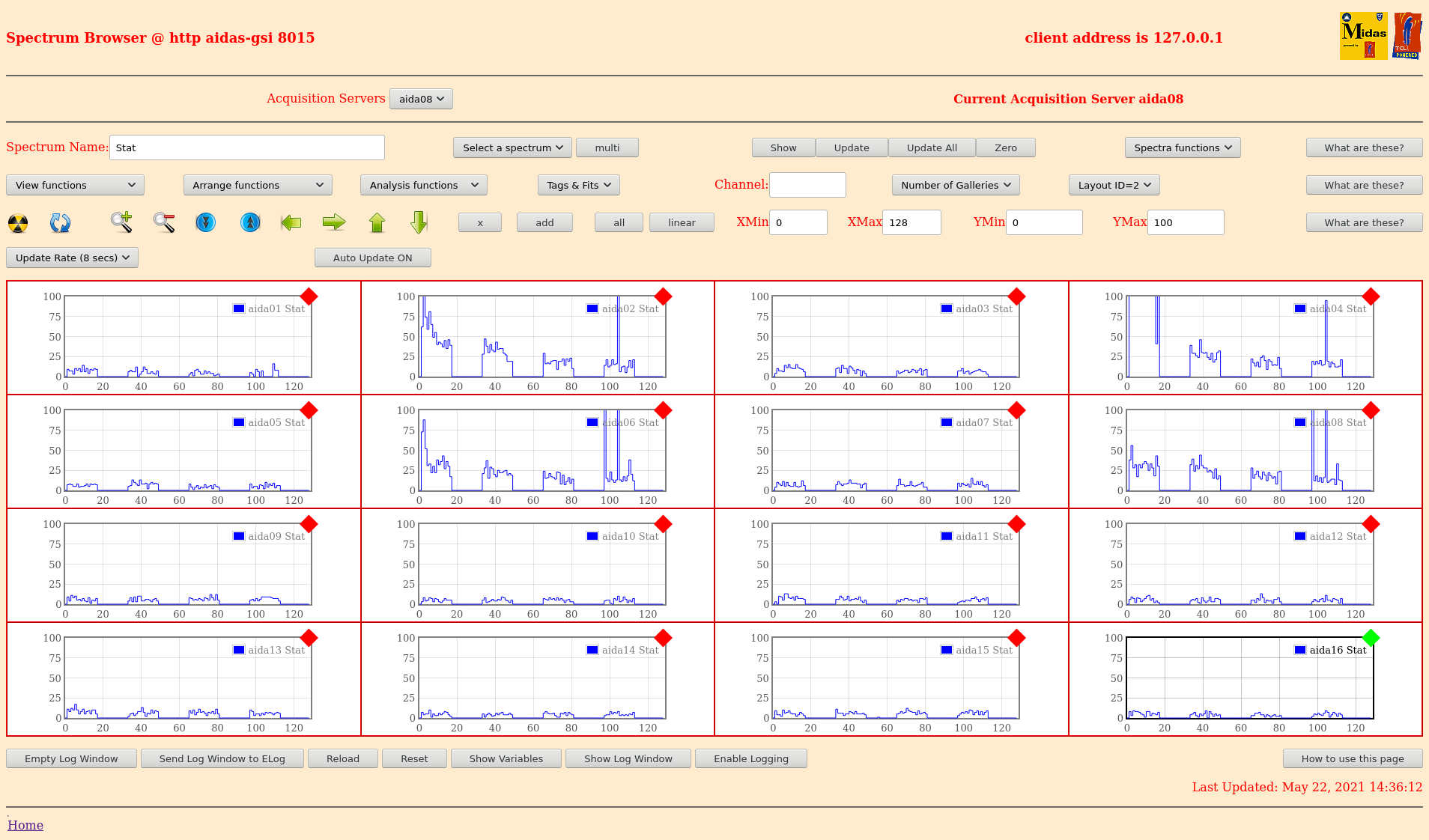

Stat spectra - attachments 4 & 5
FEE64 temperatures OK - attachment 6

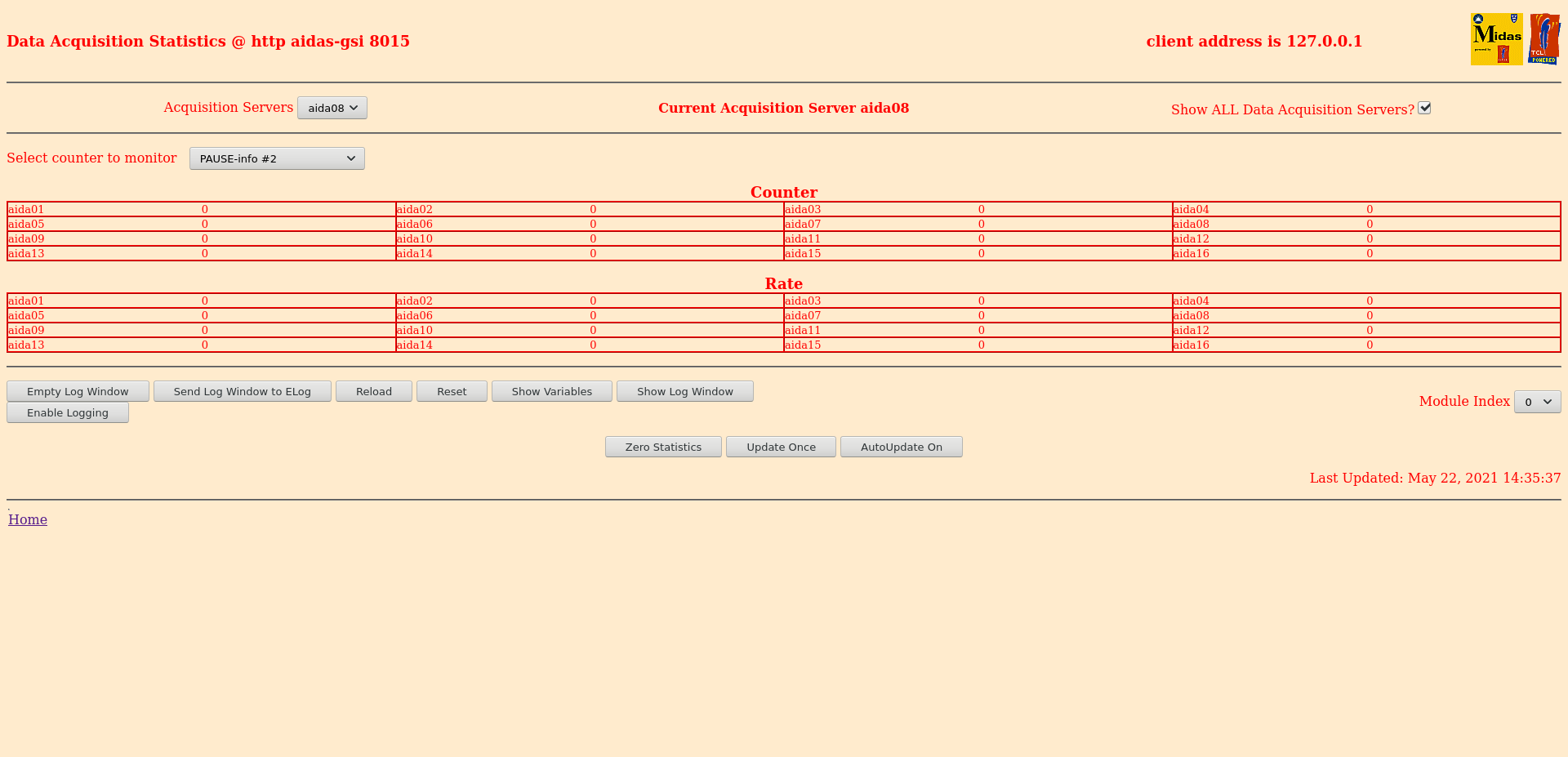

stats - ADC data items, pause items OK - attachments 7 & 8
DSSSD bias & leakage current OK - attachment 9
Merger/Tape Server/Merger stats - attachment 10
analysis of file S496/R14_1920 - attachment 11
all FEE64 deadtime 0% as expected
17.30 aida01, 3, 5, 9 & 11 have hot HEC channels
ASIC check fixes
All histogram, statistics & merger statistics zero'd
DAQ continues
Note gamma-ray source tests have started with FATIMA and DEGAS
20.20 Analysis file R15_19 - attachment 12
[npg@aidas-gsi S496]$ df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/vg_aidasgsi-lv_root
50G 18G 30G 37% /
tmpfs 7.9G 665M 7.2G 9% /dev/shm
/dev/sda2 477M 42M 410M 10% /boot
/dev/sda1 200M 264K 200M 1% /boot/efi
/dev/mapper/vg_aidasgsi-lv_home
401G 90G 292G 24% /home
/dev/mapper/vg_aidas2-lv_home
7.2T 6.3T 530G 93% /media/1e121361-83d3-4825-b6ae-8700b07e0ca7
/dev/sdd1 7.2T 5.6T 1.3T 82% /media/SecondDrive
/dev/sdc1 7.2T 6.6T 259G 97% /media/ThirdDrive
estimate 90/2 x 3168s = 40h to filesystem full - OK
20.22 All system wide checks OK *except*
Base Current Difference
aida01 fault 0xf82c : 0xf82f : 3
aida02 fault 0xdda6 : 0xdda9 : 3
aida03 fault 0xb13d : 0xb140 : 3
aida04 fault 0xf4cd : 0xf4d0 : 3
aida05 fault 0x500 : 0x575 : 117
aida06 fault 0xc6e7 : 0xc6e9 : 2
aida07 fault 0x4920 : 0x4922 : 2
aida08 fault 0xbd9a : 0xbd9c : 2
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 8 4 6 6 1 4 3 3 4 3 6 : 38048
aida02 : 11 8 10 3 4 4 3 4 3 3 6 : 37740
aida03 : 2 8 3 3 2 2 1 4 2 4 6 : 37720
aida04 : 26 15 17 4 4 2 1 4 2 4 6 : 38256
aida05 : 15 6 4 1 1 2 1 3 3 4 6 : 38156
aida06 : 7 7 16 6 3 4 2 2 3 4 6 : 38612
aida07 : 11 5 12 3 3 3 2 3 1 3 7 : 38836
aida08 : 13 6 7 2 1 2 2 2 3 4 6 : 37972
aida09 : 23 3 8 5 0 5 3 3 4 3 6 : 38164
aida10 : 12 5 7 1 2 2 4 3 2 4 6 : 37992
aida11 : 19 2 7 1 2 2 1 2 3 4 6 : 37740
aida12 : 21 5 3 3 3 3 1 2 3 4 6 : 37964
aida13 : 18 7 7 1 2 4 2 3 2 4 6 : 37776
aida14 : 8 3 13 7 2 4 2 3 2 4 6 : 37992
aida15 : 11 5 14 1 3 4 2 3 2 4 6 : 37908
aida16 : 17 6 6 2 2 3 1 2 3 4 6 : 37908
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Mon May 17 11:43:04 CEST 2021
FEE : aida02 => Options file size is 1014 Last changed Thu Apr 29 14:43:46 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Wed May 05 12:15:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021

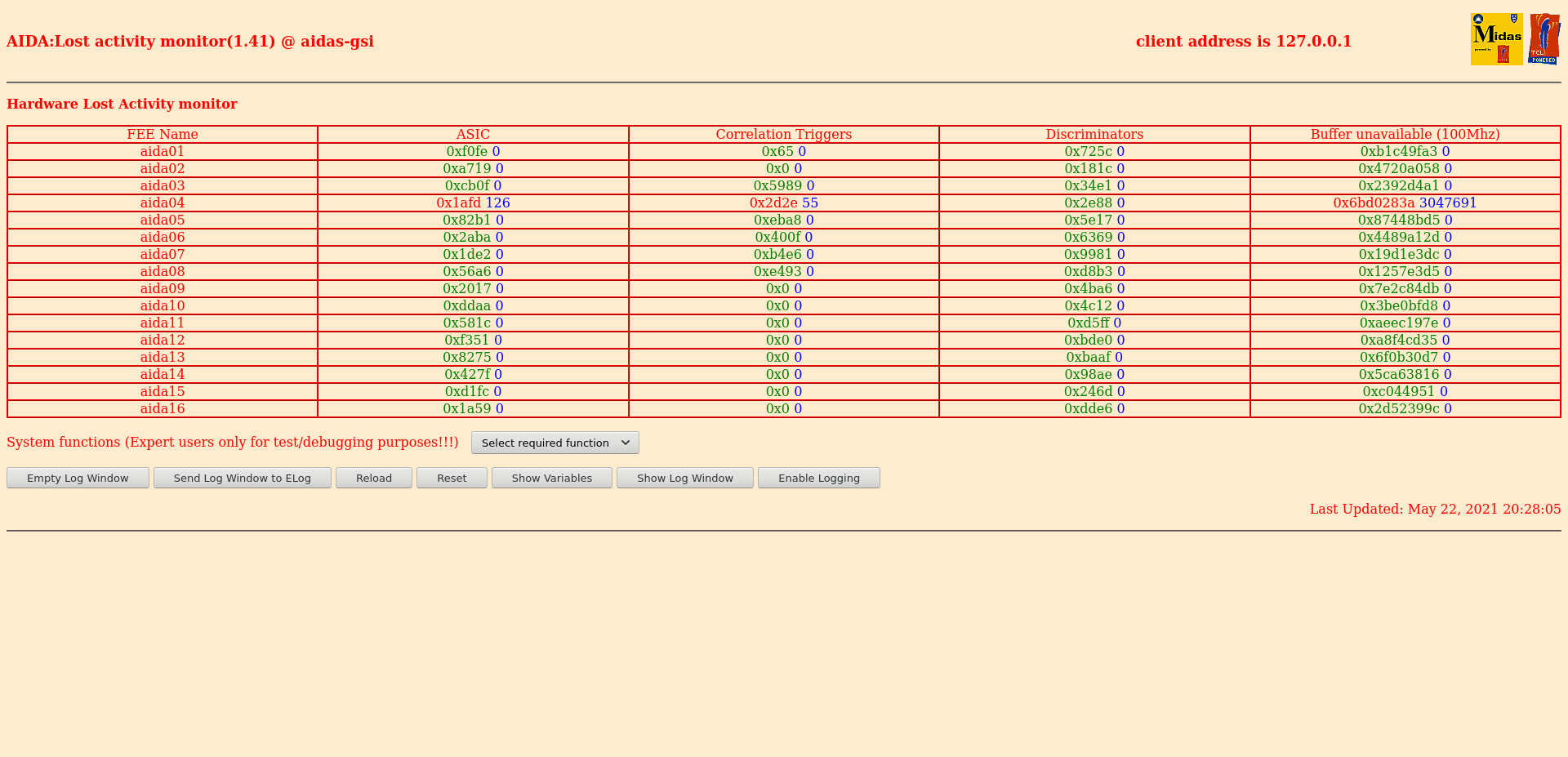

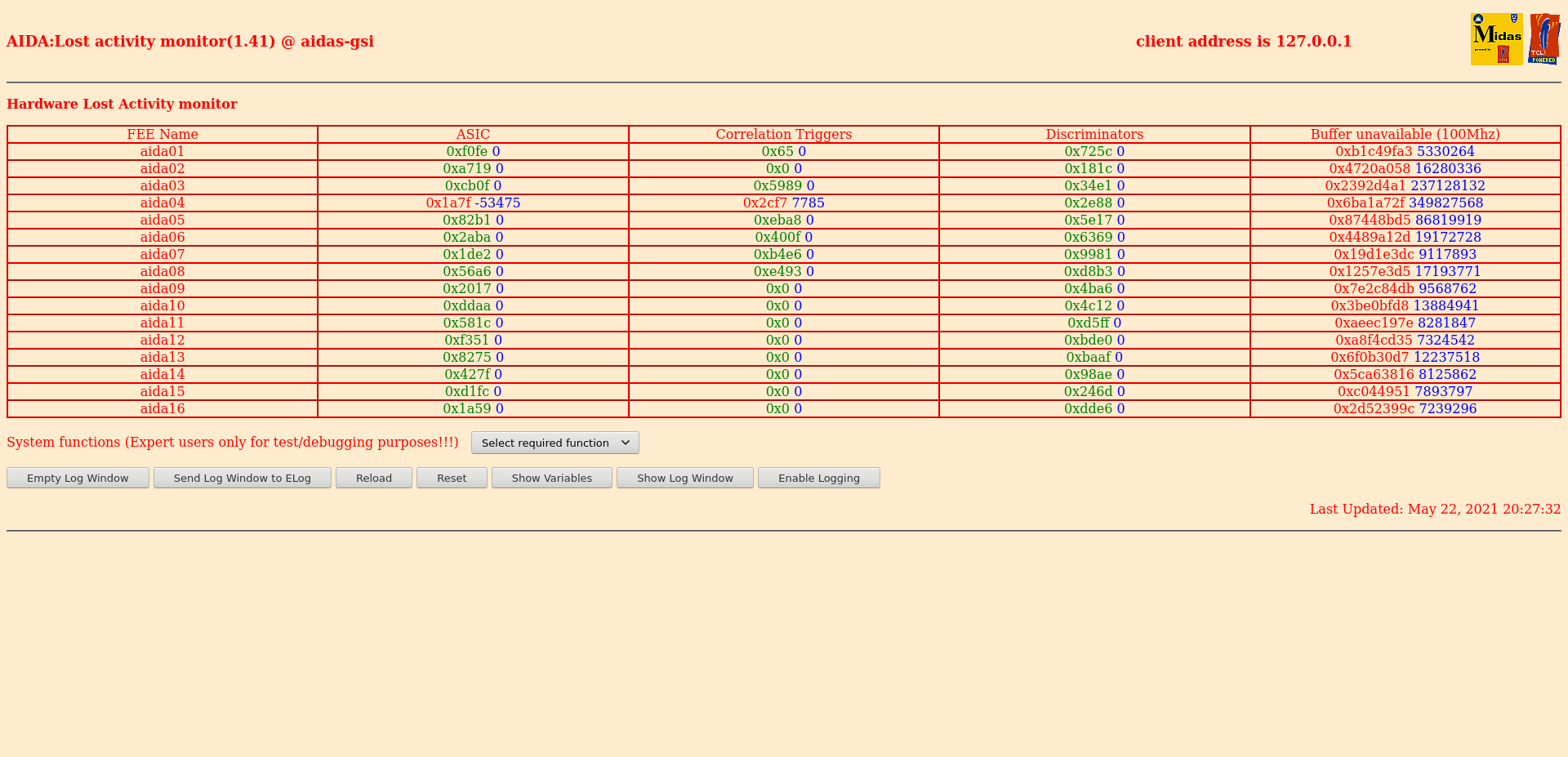

19.30 Lost activity monitors - attachments 13-15

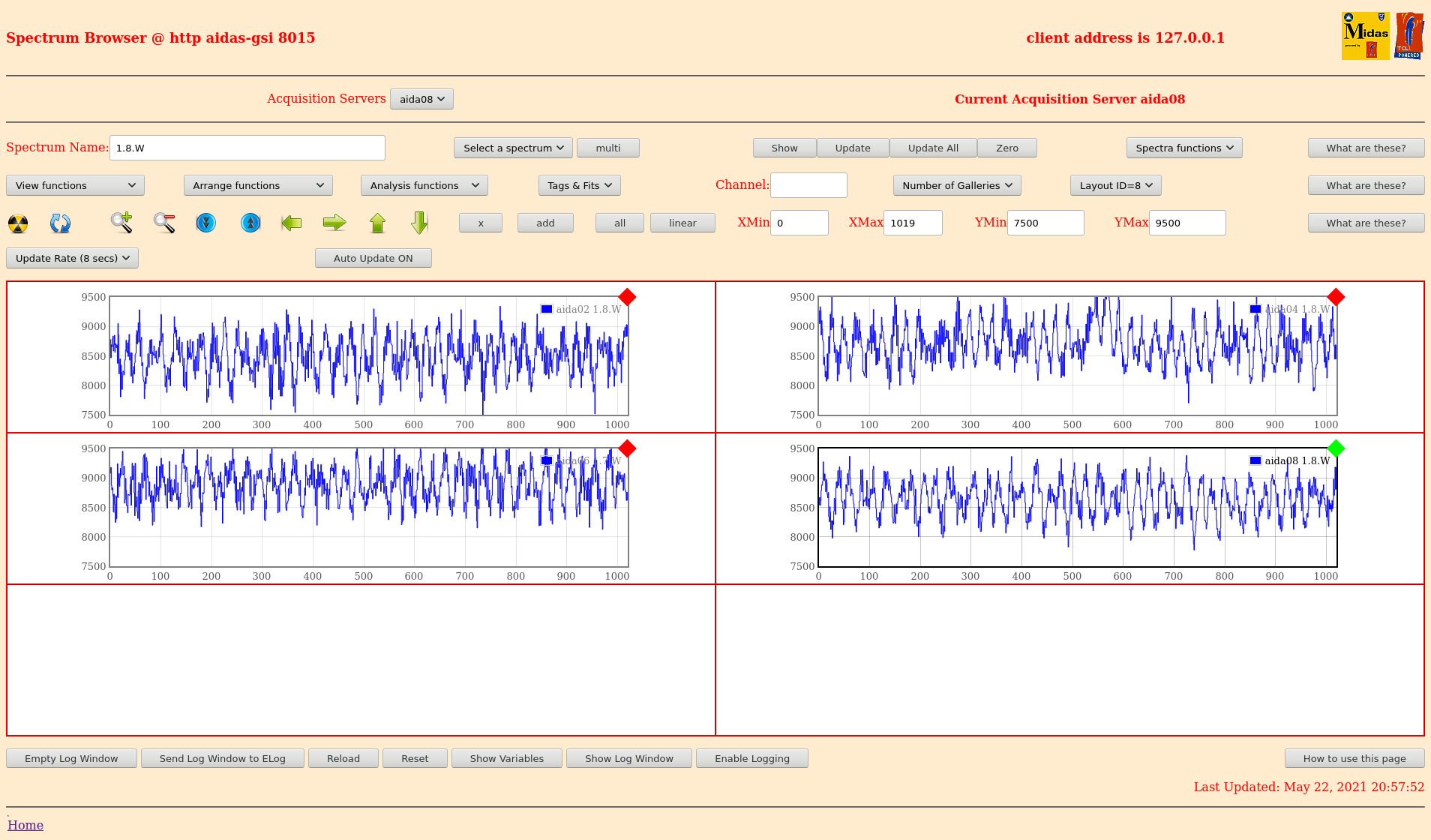

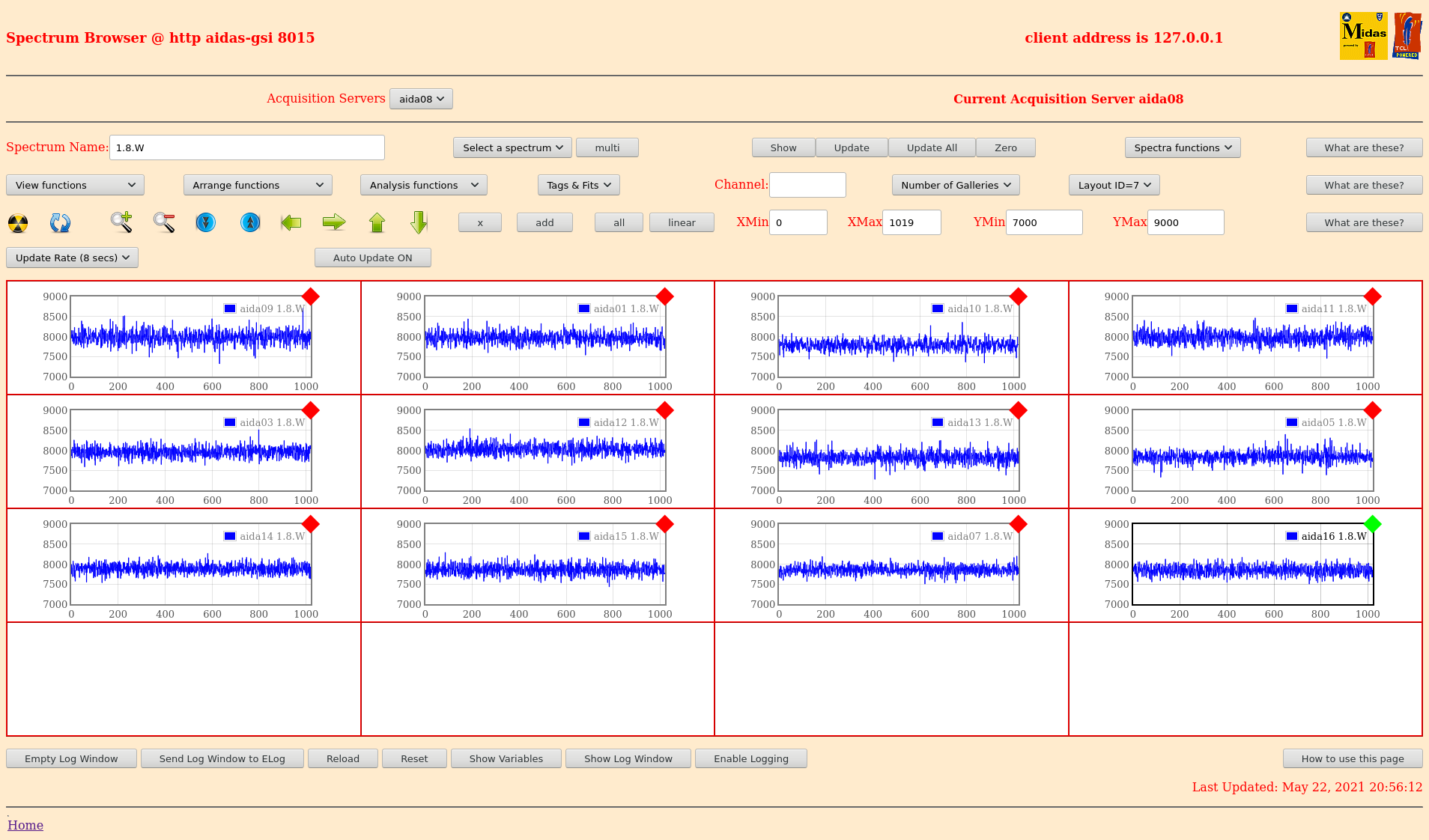

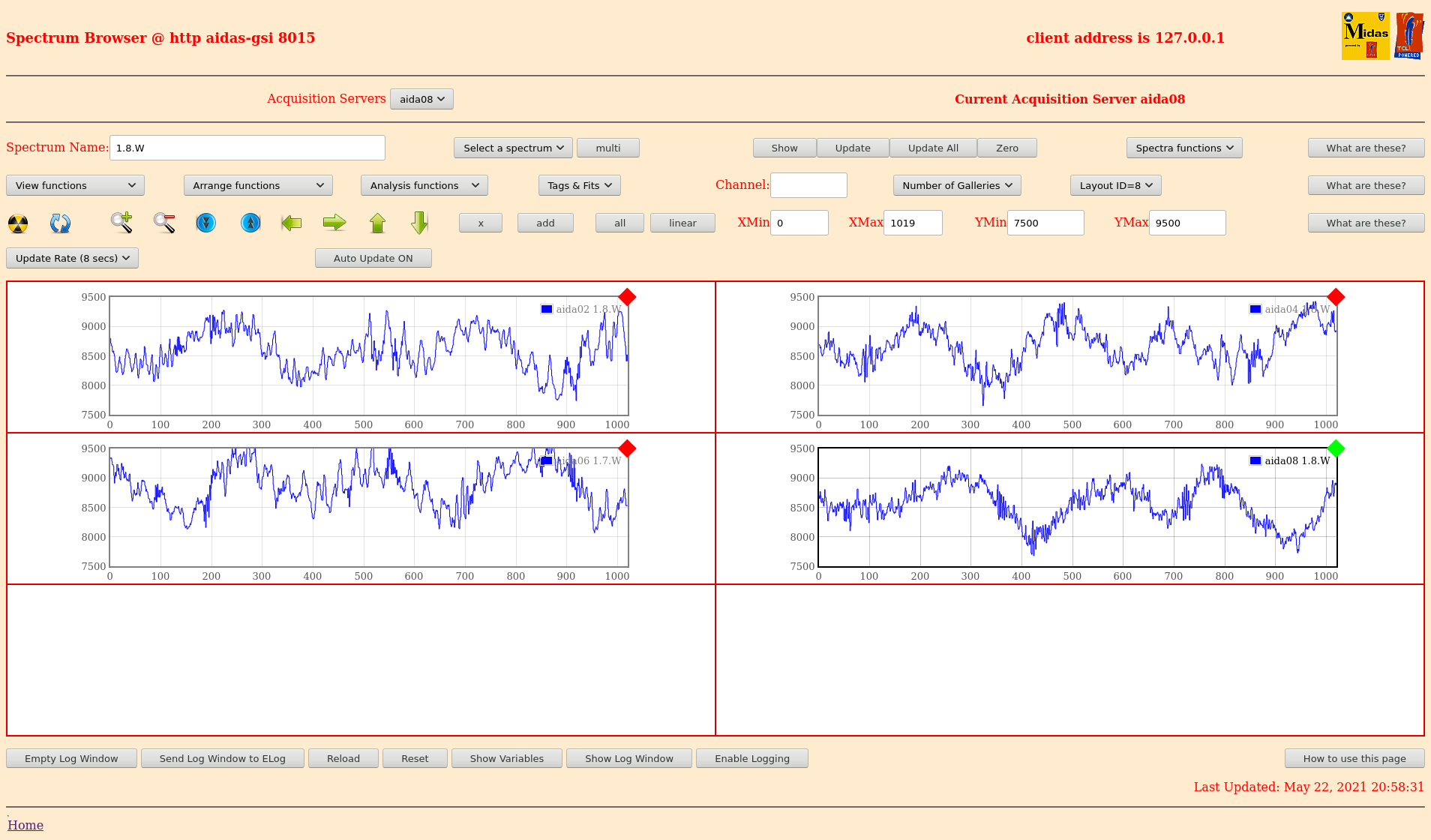

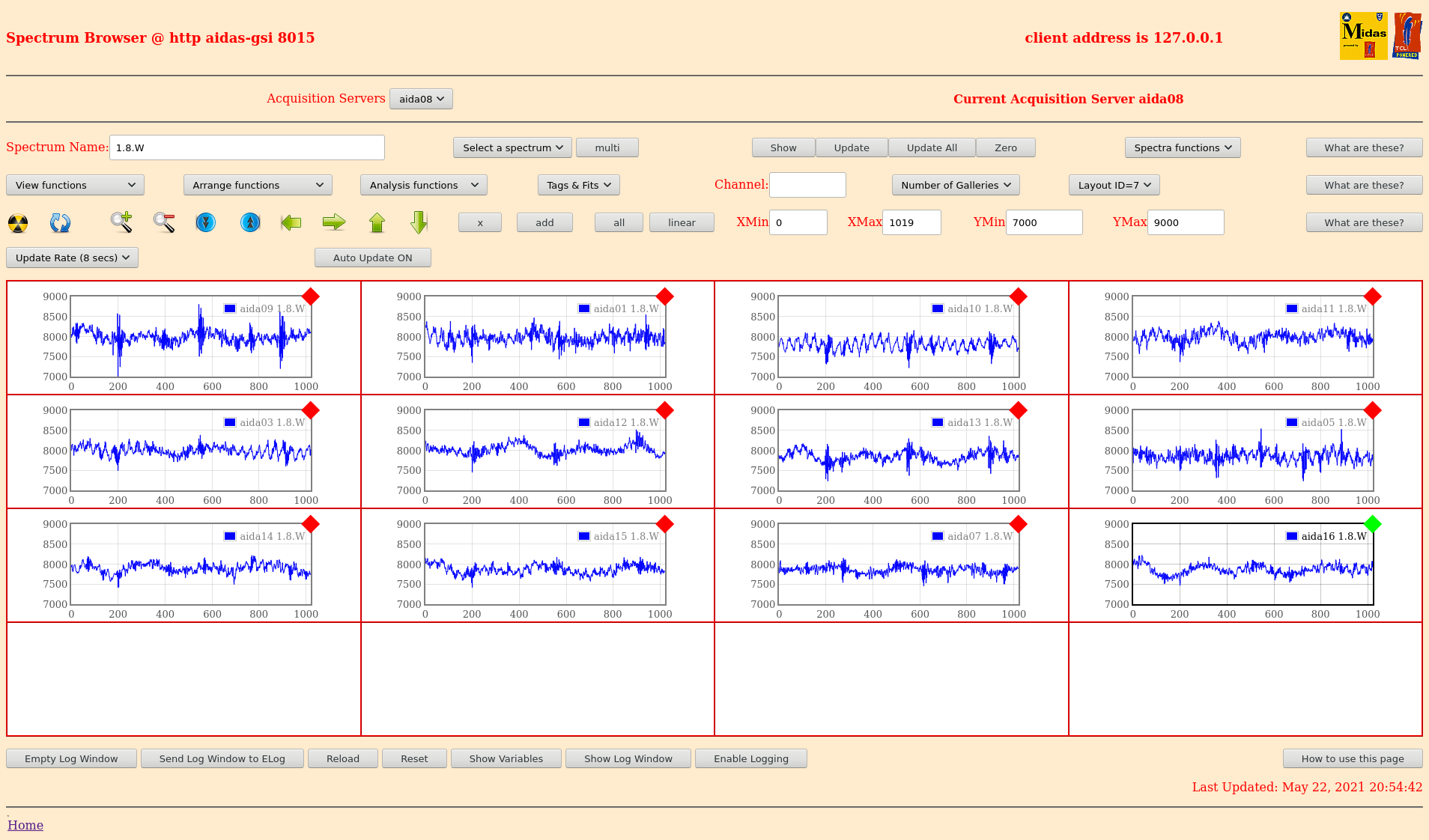

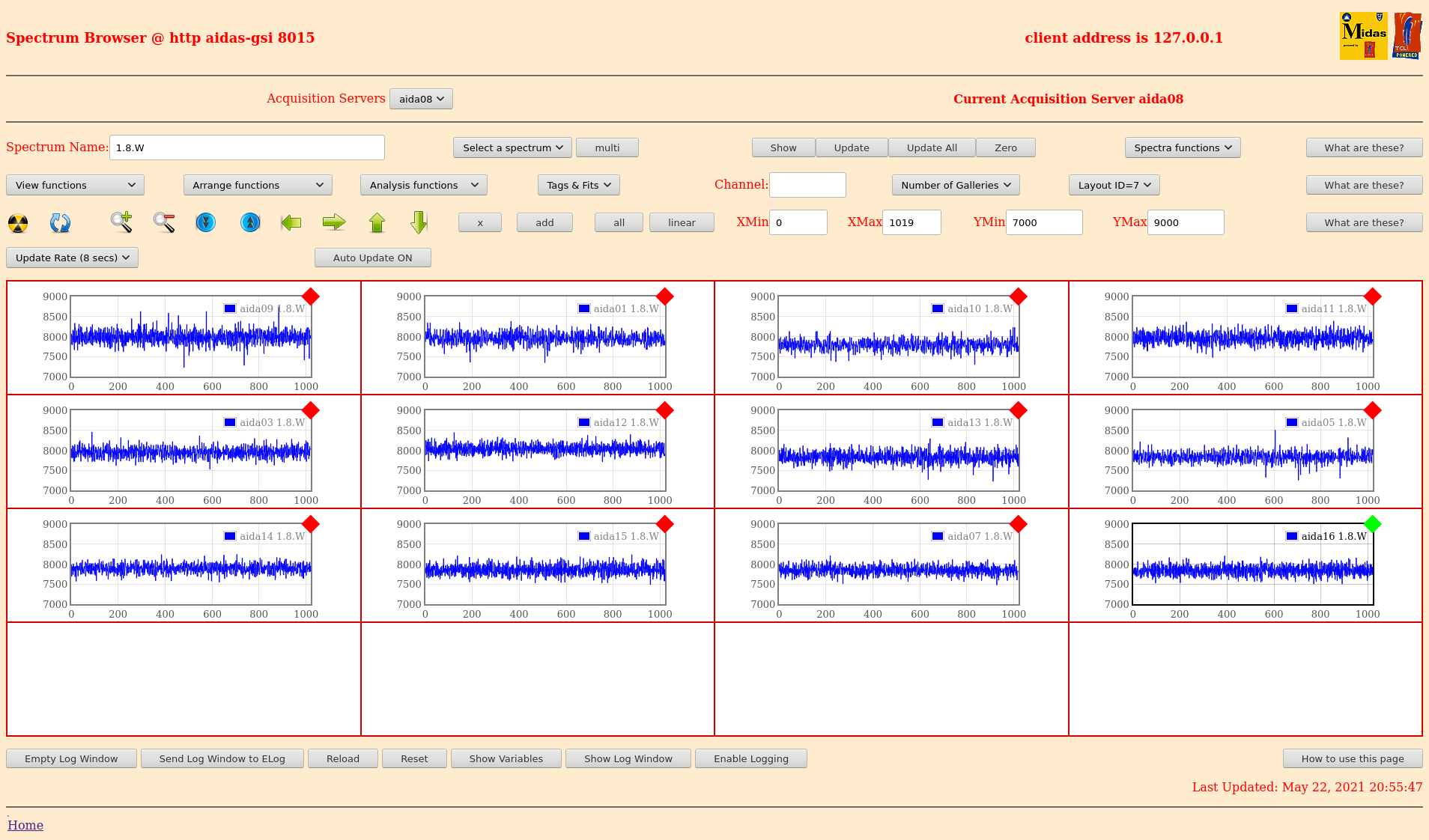

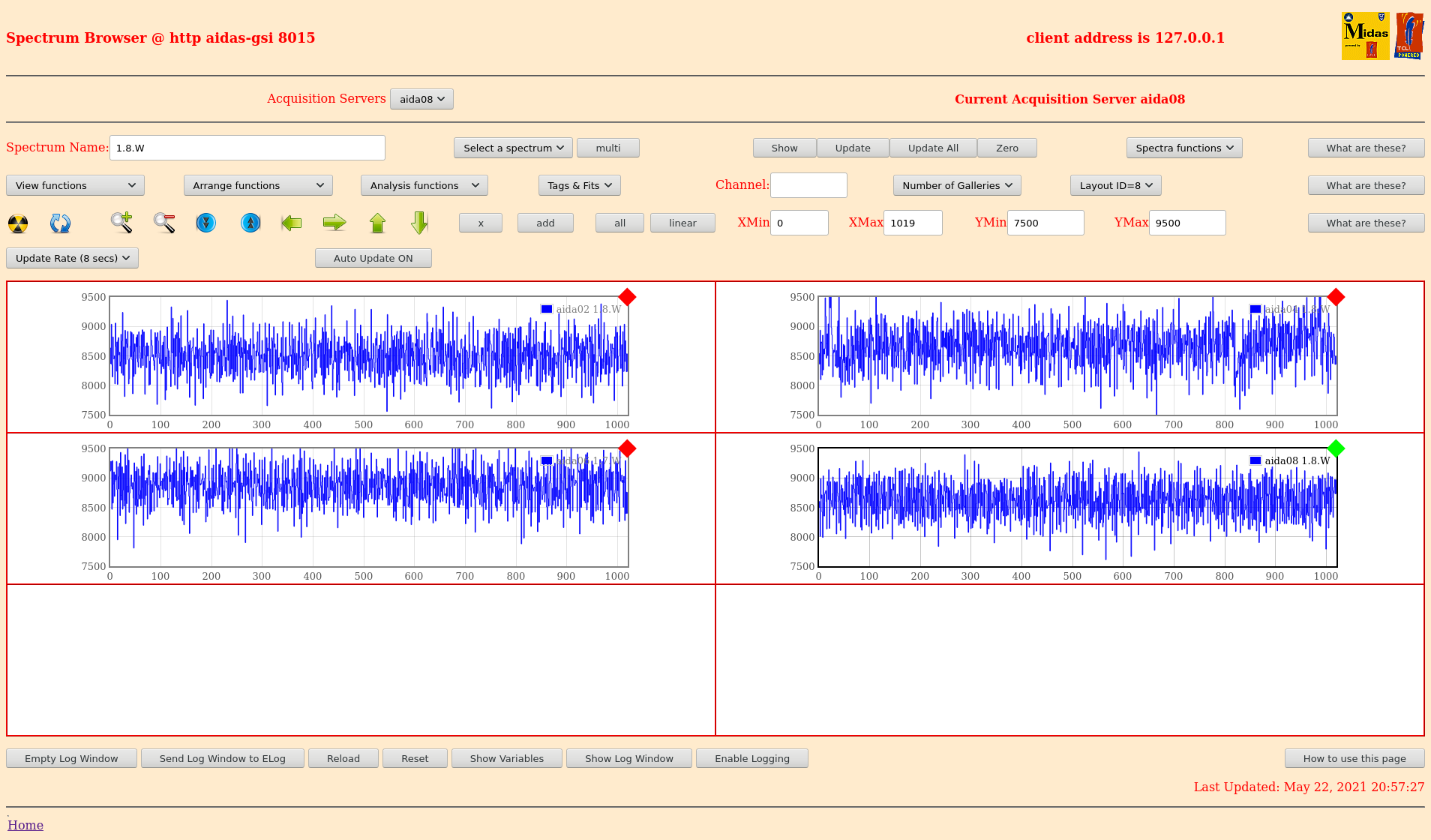

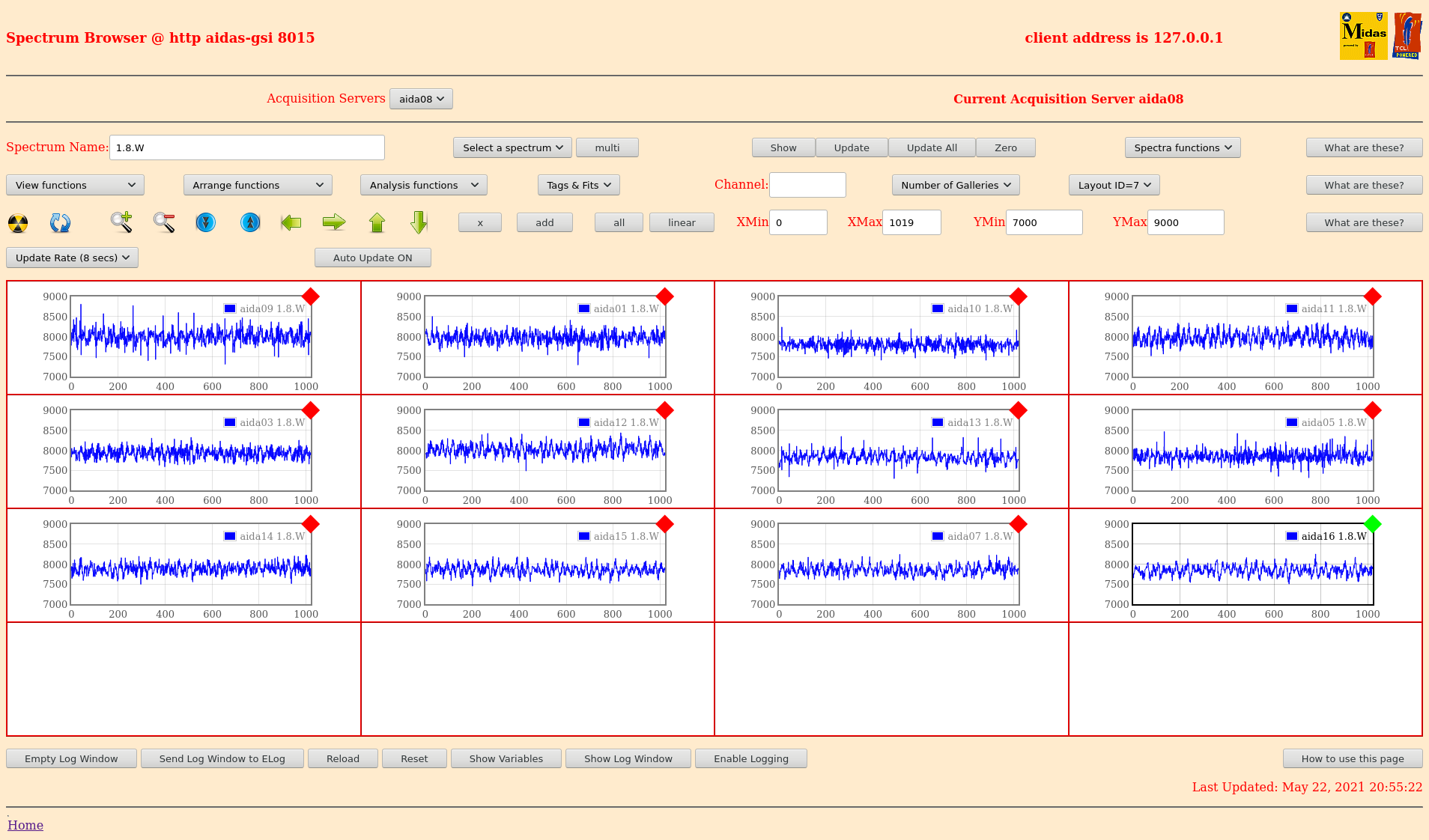

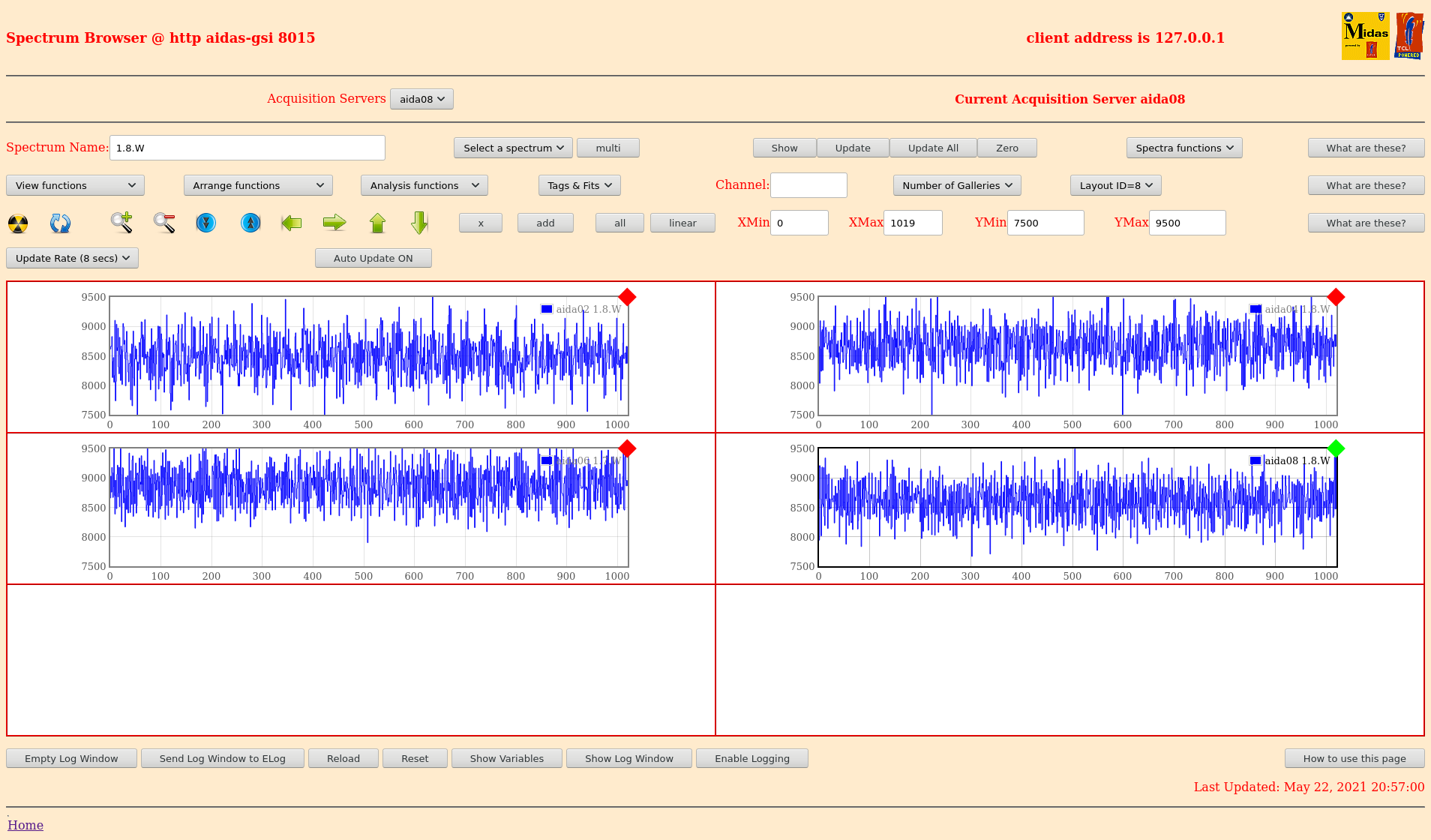

20.54 1.8.W spectra 20us FSR attachments 16 & 23
1.8.W spectra 200us FSR attachments 17 & 22
1.8.W spectra 2ms FSR attachments 18 & 21
1.8.W spectra 20ms FSR attachments 19 & 20 |
|
.png.png "Screenshot_2021-05-22_AIDA_Alerting_-_Grafana(1).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(11).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(10).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(9).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(8).png")
|
|
.png.png "Screenshot_2021-05-22_Statistics_aidas-gsi(9).png")
|
|
.png.png "Screenshot_2021-05-22_Statistics_aidas-gsi(8).png")
|
|
.png.png "Screenshot_2021-05-22_Temperature_and_status_scan_aidas-gsi(3).png")
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 102550190 ( 10129.0 Hz)
Other data format: 159369822 ( 15741.1 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 69714 ( 6.9 Hz)
WR48-63: 69714 ( 6.9 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 159230394 ( 15727.3 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 0 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 10124.450 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 0.000
2 0.000 67.951
3 0.000 0.000
4 0.000 0.000
5 0.000 9971.491
6 0.000 0.000
7 0.000 10069.837
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 213 0 0 0 0 0 0 0 0 0 0 0
1 1159 2 0 0 0 0 1 1 0 0 0 0
2 279 79660137 0 0 0 0 22470 22470 0 79615197 0 0
3 101219504 79708933 0 0 0 0 46868 46868 0 79615197 0 0
4 246 0 0 0 0 0 0 0 0 0 0 0
5 588847 366 0 0 0 0 183 183 0 0 0 0
6 280 0 0 0 0 0 0 0 0 0 0 0
7 737827 382 0 0 0 0 191 191 0 0 0 0
8 262 0 0 0 0 0 0 0 0 0 0 0
9 221 0 0 0 0 0 0 0 0 0 0 0
10 242 2 0 0 0 0 1 1 0 0 0 0
11 210 0 0 0 0 0 0 0 0 0 0 0
12 273 0 0 0 0 0 0 0 0 0 0 0
13 193 0 0 0 0 0 0 0 0 0 0 0
14 250 0 0 0 0 0 0 0 0 0 0 0
15 184 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 45.816s ( 698.440 blocks/s, 43.652 Mb/s)
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 55871232 ( 17633.8 Hz)
Other data format: 206048770 ( 65032.0 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 56 ( 0.0 Hz)
RESUME: 56 ( 0.0 Hz)
SYNC100: 43803 ( 13.8 Hz)
WR48-63: 43803 ( 13.8 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 205961052 ( 65004.3 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 0 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 3168.420 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 2865.072
2 0.000 0.000
3 0.419 0.000
4 0.000 0.000
5 0.000 2166.184
6 0.000 0.000
7 0.000 1949.169
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 55 0 0 0 0 0 0 0 0 0 0 0
1 133932 56 0 0 0 0 28 28 0 0 0 0
2 84 103025372 0 0 0 0 18982 18982 0 102987408 0 0
3 42389344 103017790 0 0 56 56 22017 22017 0 102973644 0 0
4 56 0 0 0 0 0 0 0 0 0 0 0
5 6040914 2574 0 0 0 0 1287 1287 0 0 0 0
6 103 0 0 0 0 0 0 0 0 0 0 0
7 7306081 2976 0 0 0 0 1488 1488 0 0 0 0
8 78 0 0 0 0 0 0 0 0 0 0 0
9 86 0 0 0 0 0 0 0 0 0 0 0
10 68 0 0 0 0 0 0 0 0 0 0 0
11 75 0 0 0 0 0 0 0 0 0 0 0
12 116 2 0 0 0 0 1 1 0 0 0 0
13 80 0 0 0 0 0 0 0 0 0 0 0
14 80 0 0 0 0 0 0 0 0 0 0 0
15 80 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 43.406s ( 737.221 blocks/s, 46.076 Mb/s)
|
|
.png.png "Screenshot_2021-05-22_Lost_activity_monitor_aidas-gsi(4).png")
|
|
.png.png "Screenshot_2021-05-22_Lost_activity_monitor_aidas-gsi(3).png")
|
|
.png.png "Screenshot_2021-05-22_Lost_activity_monitor_aidas-gsi(2).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(19).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(18).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(17).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(16).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(15).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(14).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(13).png")
|
|
.png.png "Screenshot_2021-05-22_Spectrum_Browser_aidas-gsi(12).png")
|
