| DESPEC |
 |
|
|
|
Message ID: 347
Entry time: Tue May 25 11:16:54 2021
|
| Author: |
TD |
| Subject: |
Tuesday 25 May |
|
|
12.16 DAQ continues file S496/R18_324
alpha background
Tape server c. 2.5Mb/s
ASIC check
Tape server c. 300kb/s - presumably hot HEC channels
12.20 All system wide checks OK *except*
Base Current Difference
aida01 fault 0x82b0 : 0x82b1 : 1
aida02 fault 0xfe72 : 0xfe73 : 1
aida03 fault 0x97f4 : 0x97f5 : 1
aida04 fault 0x950 : 0x951 : 1
aida05 fault 0x8e93 : 0x8e94 : 1
aida06 fault 0x545a : 0x545b : 1
aida07 fault 0xc04d : 0xc04e : 1
aida08 fault 0xa0f7 : 0xa0f8 : 1
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 2 6 6 2 1 3 2 2 2 4 6 : 37016
aida02 : 3 6 5 3 3 4 3 2 1 3 7 : 38572
aida03 : 21 10 8 6 3 3 2 3 2 4 6 : 37924
aida04 : 29 15 4 5 3 4 2 3 3 3 6 : 37004
aida05 : 17 5 2 2 2 2 2 2 2 4 6 : 36940
aida06 : 1 6 0 1 2 2 2 3 3 4 6 : 38356
aida07 : 11 6 7 4 3 3 3 3 2 4 6 : 38028
aida08 : 13 8 3 2 2 3 3 2 1 3 7 : 38372
aida09 : 7 9 2 1 3 3 3 3 2 4 6 : 37860
aida10 : 9 8 4 2 0 3 3 3 1 4 6 : 36708
aida11 : 16 6 3 2 2 3 3 3 1 4 6 : 36832
aida12 : 21 10 7 4 2 4 2 2 1 3 7 : 38420
aida13 : 8 3 3 1 3 3 3 3 2 4 6 : 37832
aida14 : 14 3 6 1 0 4 2 2 2 4 6 : 37072
aida15 : 2 4 2 2 1 3 3 4 2 4 6 : 38216
aida16 : 16 5 5 3 0 3 2 2 2 4 6 : 37016
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Sun May 23 12:04:25 CEST 2021
FEE : aida02 => Options file size is 1025 Last changed Sun May 23 00:19:21 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Sun May 23 00:16:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
Grafana - DSSSD bias & leakage cuuent - most recent 7 days - attachment 1

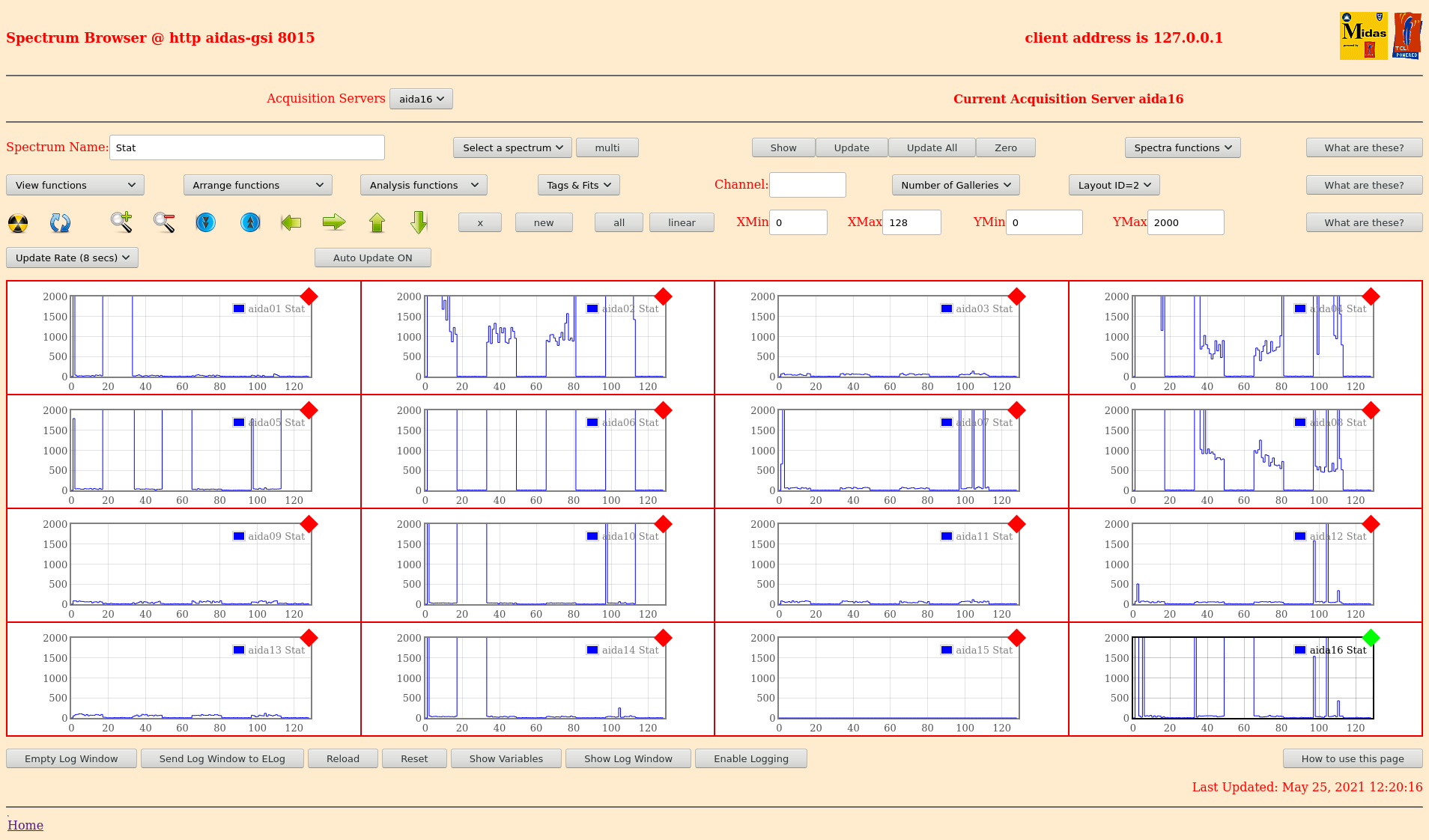

Rate spectra - attachment 2

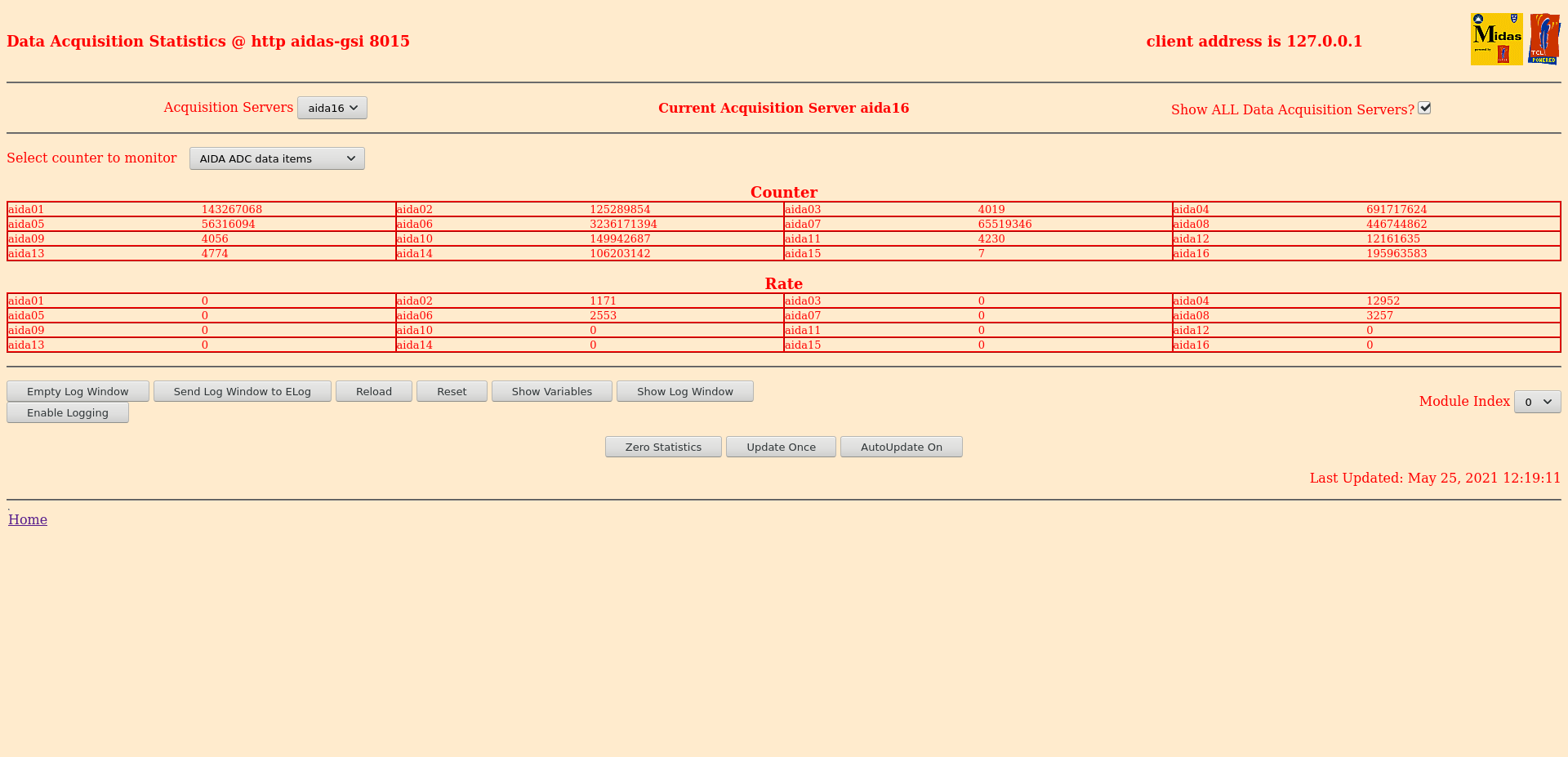

ADC data item stats - attachment 3

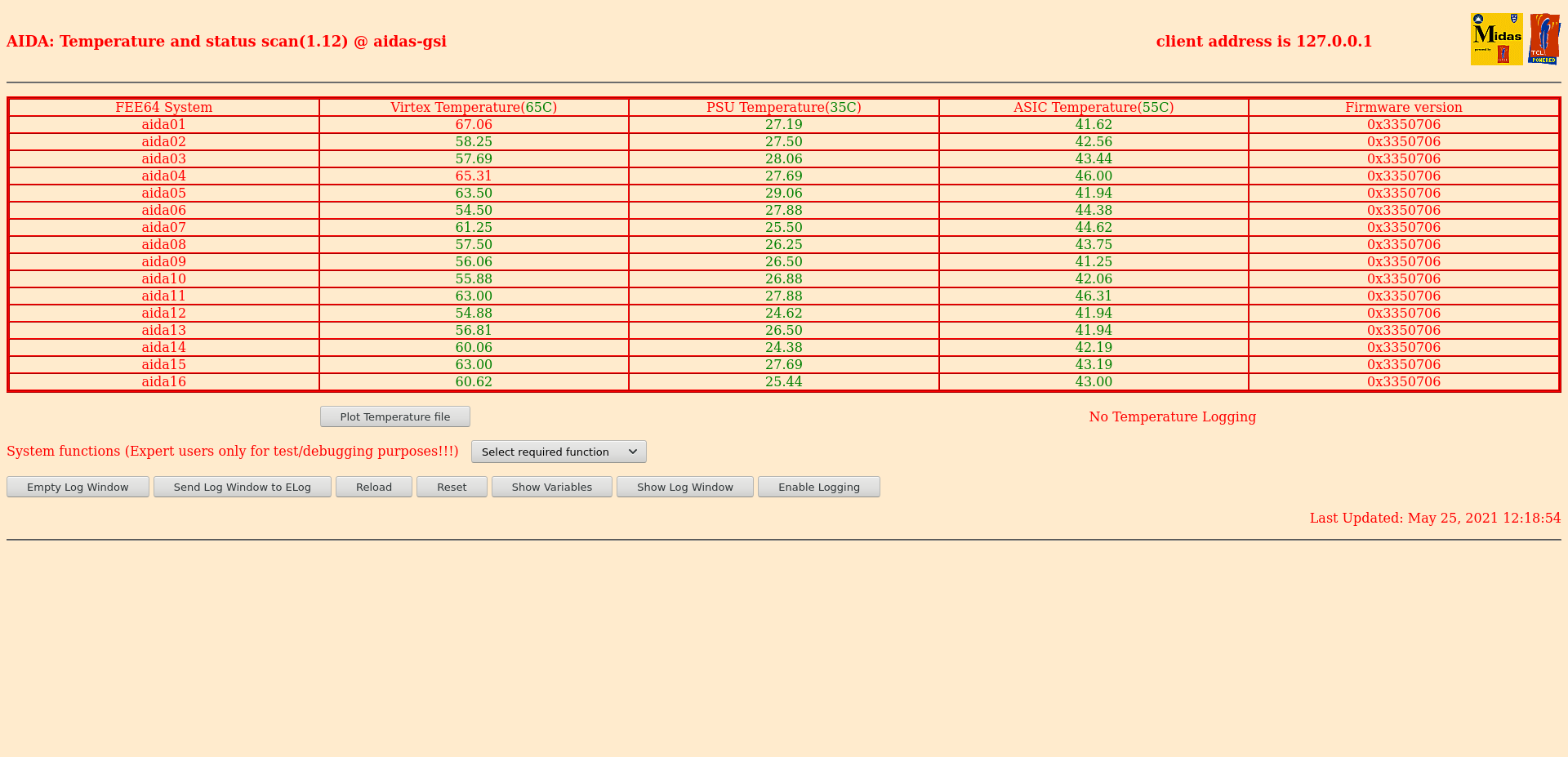

FEE64 temps OK - attachment 4
DSSSD bias & leakage current OK - attachment 5
Merger/Tape Server/Merger stats - attachment 6
no merger errors reported since previous restart
17.30 analysis of file S496/R18_340
max deadtime 0.36% aida04 |
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 63855540 ( 23748.1 Hz)
Other data format: 198064462 ( 73660.8 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 109 ( 0.0 Hz)
RESUME: 109 ( 0.0 Hz)
SYNC100: 42015 ( 15.6 Hz)
WR48-63: 42015 ( 15.6 Hz)
FEE64 disc: 1291036 ( 480.1 Hz)
MBS info: 196689178 ( 73149.3 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 35 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 2688.871 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 2304.866
2 0.344 0.000
3 9.625 0.000
4 0.000 0.000
5 0.000 1450.665
6 0.000 0.000
7 0.000 1243.447
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 303 7 0 0 0 0 1 1 5 0 0 5
1 3031185 1240 0 0 0 0 620 620 0 0 0 0
2 536 98548687 0 0 20 20 16872 16872 2 98514901 0 3
3 44821969 99507955 0 0 89 89 21248 21248 1291004 98174277 0 0
4 514 3 0 0 0 0 1 1 1 0 0 1
5 7529304 3056 0 0 0 0 1528 1528 0 0 0 0
6 1314 2 0 0 0 0 0 0 2 0 0 2
7 8467764 3488 0 0 0 0 1744 1744 0 0 0 0
8 226 4 0 0 0 0 0 0 4 0 0 4
9 144 4 0 0 0 0 0 0 4 0 0 4
10 524 1 0 0 0 0 0 0 1 0 0 0
11 432 2 0 0 0 0 0 0 2 0 0 2
12 719 0 0 0 0 0 0 0 0 0 0 0
13 154 7 0 0 0 0 1 1 5 0 0 7
14 0 0 0 0 0 0 0 0 0 0 0 0
15 452 6 0 0 0 0 0 0 6 0 0 7
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 39.492s ( 810.287 blocks/s, 50.643 Mb/s)
|
