| DESPEC |
 |
|
|
|
Message ID: 351
Entry time: Sat May 29 13:13:45 2021
|
| Author: |
TD |
| Subject: |
Saturday 29 May |
|
|
14.10 DAQ continues - file S496/R18_539
alpha background
increased data rate due to ht HEC channels since c. 06.00 this am - ASIC check fixes problem
All system wide checks OK *except*
Base Current Difference
aida01 fault 0x82b0 : 0x82b7 : 7
aida02 fault 0xfe72 : 0xfe79 : 7
aida03 fault 0x97f4 : 0x97fb : 7
aida04 fault 0x950 : 0x957 : 7
aida05 fault 0x8e93 : 0x8e97 : 4
aida06 fault 0x545a : 0x545e : 4
aida07 fault 0xc04d : 0xc051 : 4
aida08 fault 0xa0f7 : 0xa0fb : 4
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 15 8 7 2 2 2 2 2 2 4 6 : 37036
aida02 : 14 3 5 2 2 4 3 3 2 4 6 : 37984
aida03 : 15 11 8 6 3 3 2 3 3 3 6 : 36884
aida04 : 43 13 5 5 3 4 2 3 3 3 6 : 37060
aida05 : 19 3 5 4 2 2 2 2 2 4 6 : 37044
aida06 : 17 4 1 3 2 3 3 4 2 4 6 : 38356
aida07 : 16 6 2 1 0 2 2 3 2 4 6 : 37296
aida08 : 21 8 1 1 3 4 4 3 2 4 6 : 38276
aida09 : 13 10 2 1 2 3 2 2 2 4 6 : 37060
aida10 : 13 9 4 1 1 3 3 3 1 4 6 : 36764
aida11 : 13 9 2 1 2 3 3 3 1 4 6 : 36796
aida12 : 11 6 4 2 2 4 2 3 2 4 6 : 37724
aida13 : 7 6 6 2 1 3 2 2 2 4 6 : 37036
aida14 : 9 7 7 1 1 3 2 2 2 4 6 : 37036
aida15 : 14 5 2 2 1 3 3 4 2 4 6 : 38272
aida16 : 9 4 10 1 2 3 2 2 2 4 6 : 37124
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Sun May 23 12:04:25 CEST 2021
FEE : aida02 => Options file size is 1025 Last changed Sun May 23 00:19:21 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Sun May 23 00:16:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

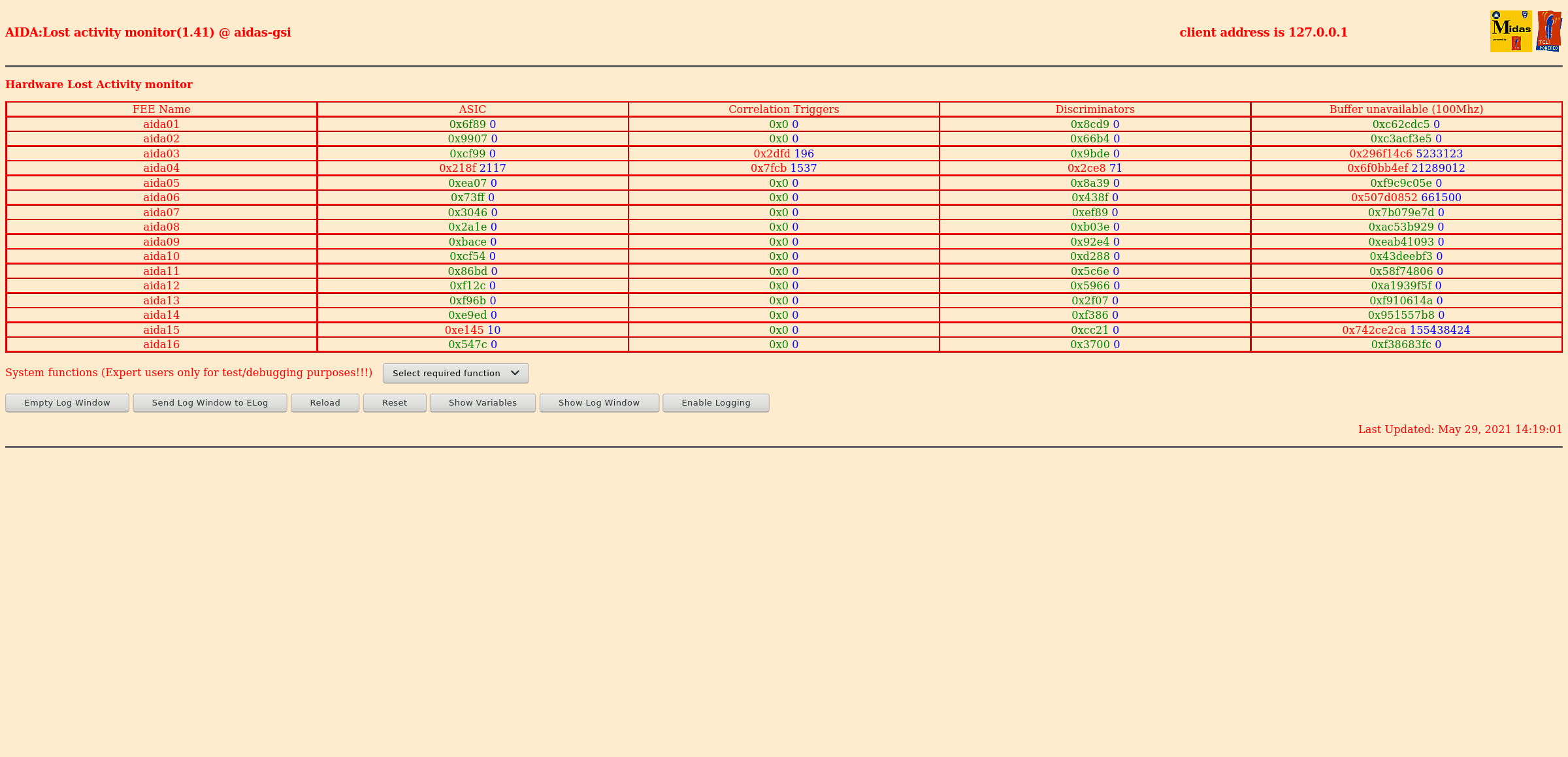

Lost activity monitor - attachment 2

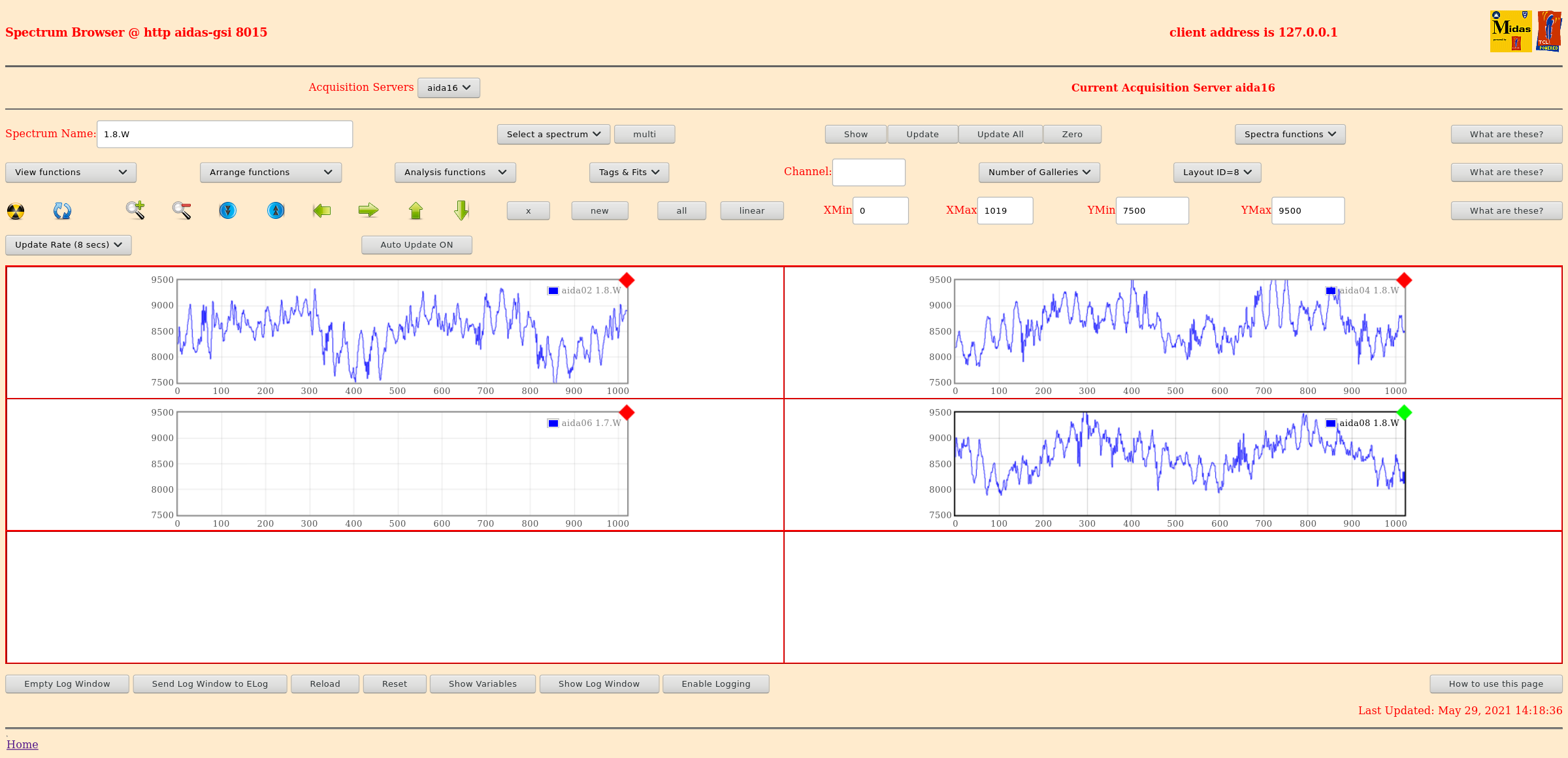

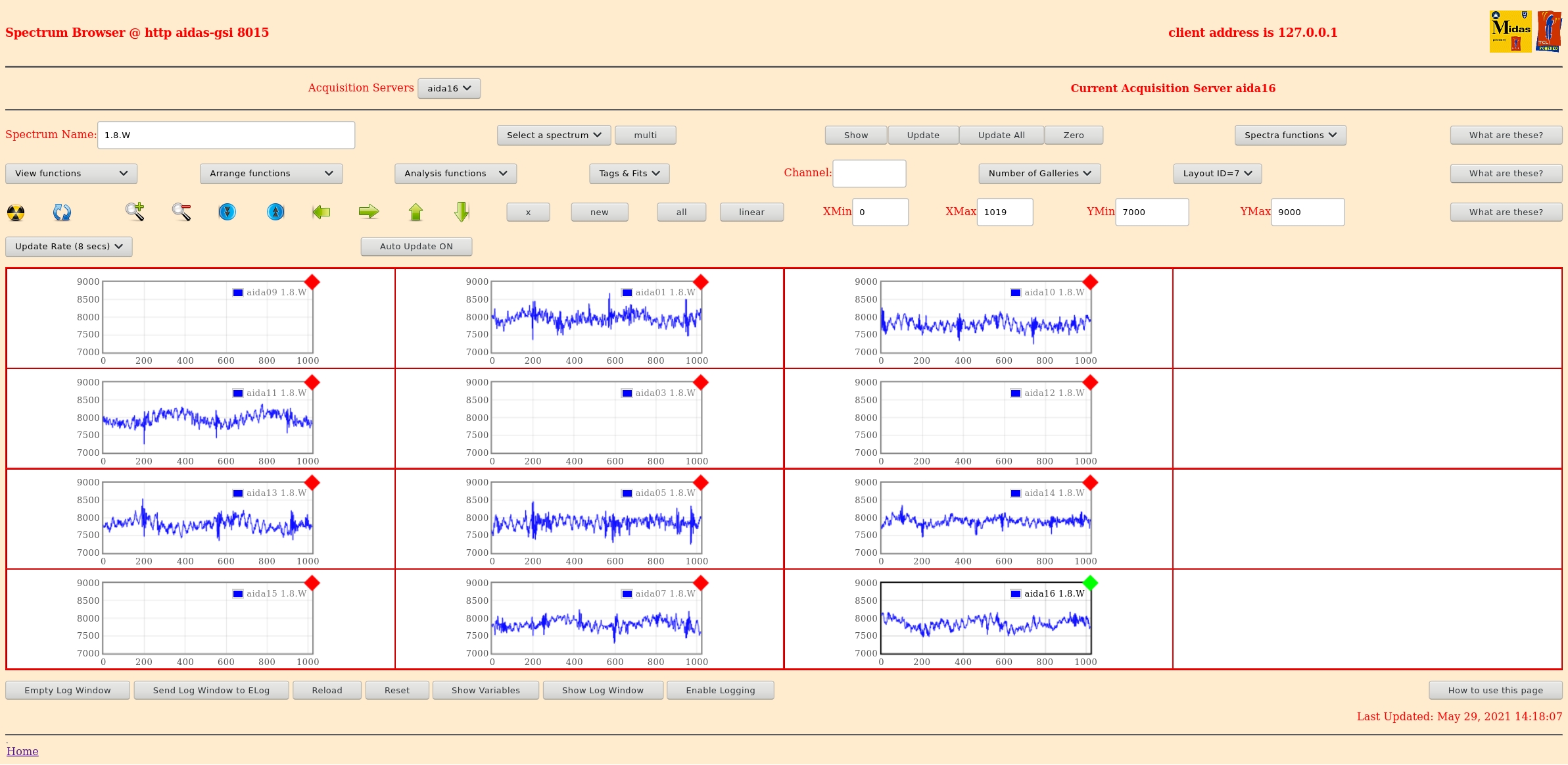

1.8.W spectra - attachments 3 & 4
ADC data item stats - attachment 5
FEE64 temps OK - attachment 6
DSSSD bias & leakage current OK - attachment 7
Merger/Tape Server/Merger stats - attachment 8
no merger errors reported since previous restart
14.24 All histograms, statistics and merger statistics zero'd
16.16 analysis of file S496/R18_541 - attachment 9
max deadtime 0.12% aida04
18.40 DAQ continues - file S496/R18_551
alpha background
increased data rate due to ht HEC channels since c. 18.00 this am - ASIC check fixes problem |
|
|
|
|
|
.png.png "Screenshot_2021-05-29_Spectrum_Browser_aidas-gsi(1).png")
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 46792076 ( 18702.9 Hz)
Other data format: 215127929 ( 85987.1 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 89 ( 0.0 Hz)
RESUME: 89 ( 0.0 Hz)
SYNC100: 41318 ( 16.5 Hz)
WR48-63: 41318 ( 16.5 Hz)
FEE64 disc: 1013016 ( 404.9 Hz)
MBS info: 214032099 ( 85549.1 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 0 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 2501.862 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 1964.282
2 0.467 0.000
3 3.050 0.000
4 0.000 1832.921
5 0.000 844.521
6 0.000 1829.325
7 0.000 869.373
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 499 0 0 0 0 0 0 0 0 0 0 0
1 74891 24 0 0 0 0 12 12 0 0 0 0
2 1032 92085039 0 0 27 27 16251 16251 0 92052483 0 0
3 37271457 93008741 0 0 62 62 19135 19135 1013015 91957332 0 0
4 552 7507421 0 0 0 0 925 925 0 7505571 0 0
5 4051453 7509613 0 0 0 0 2021 2021 0 7505571 0 0
6 1401 7507471 0 0 0 0 950 950 0 7505571 0 0
7 5387708 7509619 0 0 0 0 2024 2024 0 7505571 0 0
8 460 0 0 0 0 0 0 0 0 0 0 0
9 183 0 0 0 0 0 0 0 0 0 0 0
10 537 0 0 0 0 0 0 0 0 0 0 0
11 388 0 0 0 0 0 0 0 0 0 0 0
12 674 0 0 0 0 0 0 0 0 0 0 0
13 244 1 0 0 0 0 0 0 1 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 597 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 31.855s ( 1004.537 blocks/s, 62.784 Mb/s)
|
