Message ID: 352
Entry time: Sun May 30 08:57:53 2021
|
| Author: |
TD |
| Subject: |
Sunday 30 May |
|
|
09.55 DAQ continues - file S496/R18_588
alpha background
increased data rate due to hot HEC channels since c. 06.00 this am - ASIC check fixes problem
All system wide checks OK *except*
Base Current Difference
aida01 fault 0x82b0 : 0x82b7 : 7
aida02 fault 0xfe72 : 0xfe79 : 7
aida03 fault 0x97f4 : 0x97fb : 7
aida04 fault 0x950 : 0x957 : 7
aida05 fault 0x8e93 : 0x8e98 : 5
aida06 fault 0x545a : 0x545f : 5
aida07 fault 0xc04d : 0xc052 : 5
aida08 fault 0xa0f7 : 0xa0fc : 5
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 6 9 5 1 3 2 2 2 2 4 6 : 37008
aida02 : 3 5 5 2 2 4 3 3 2 4 6 : 37956
aida03 : 22 12 7 5 3 3 2 3 3 3 6 : 36872
aida04 : 40 13 5 5 3 4 2 3 3 3 6 : 37048
aida05 : 15 5 5 4 2 2 2 2 2 4 6 : 37044
aida06 : 11 6 2 1 2 3 3 4 2 4 6 : 38300
aida07 : 17 5 4 3 1 3 3 2 2 4 6 : 37324
aida08 : 1 8 1 2 2 4 4 3 2 4 6 : 38164
aida09 : 10 8 6 1 2 4 3 3 1 4 6 : 36968
aida10 : 14 7 5 2 1 3 3 3 1 4 6 : 36800
aida11 : 7 9 3 1 2 3 3 3 1 4 6 : 36788
aida12 : 3 5 2 3 1 4 2 3 2 4 6 : 37620
aida13 : 12 4 4 2 1 3 2 2 2 4 6 : 37008
aida14 : 11 10 5 1 1 3 2 2 2 4 6 : 37036
aida15 : 11 5 1 2 1 3 3 4 2 4 6 : 38244
aida16 : 10 4 8 1 2 3 2 2 2 4 6 : 37096
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Sun May 23 12:04:25 CEST 2021
FEE : aida02 => Options file size is 1025 Last changed Sun May 23 00:19:21 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Sun May 23 00:16:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

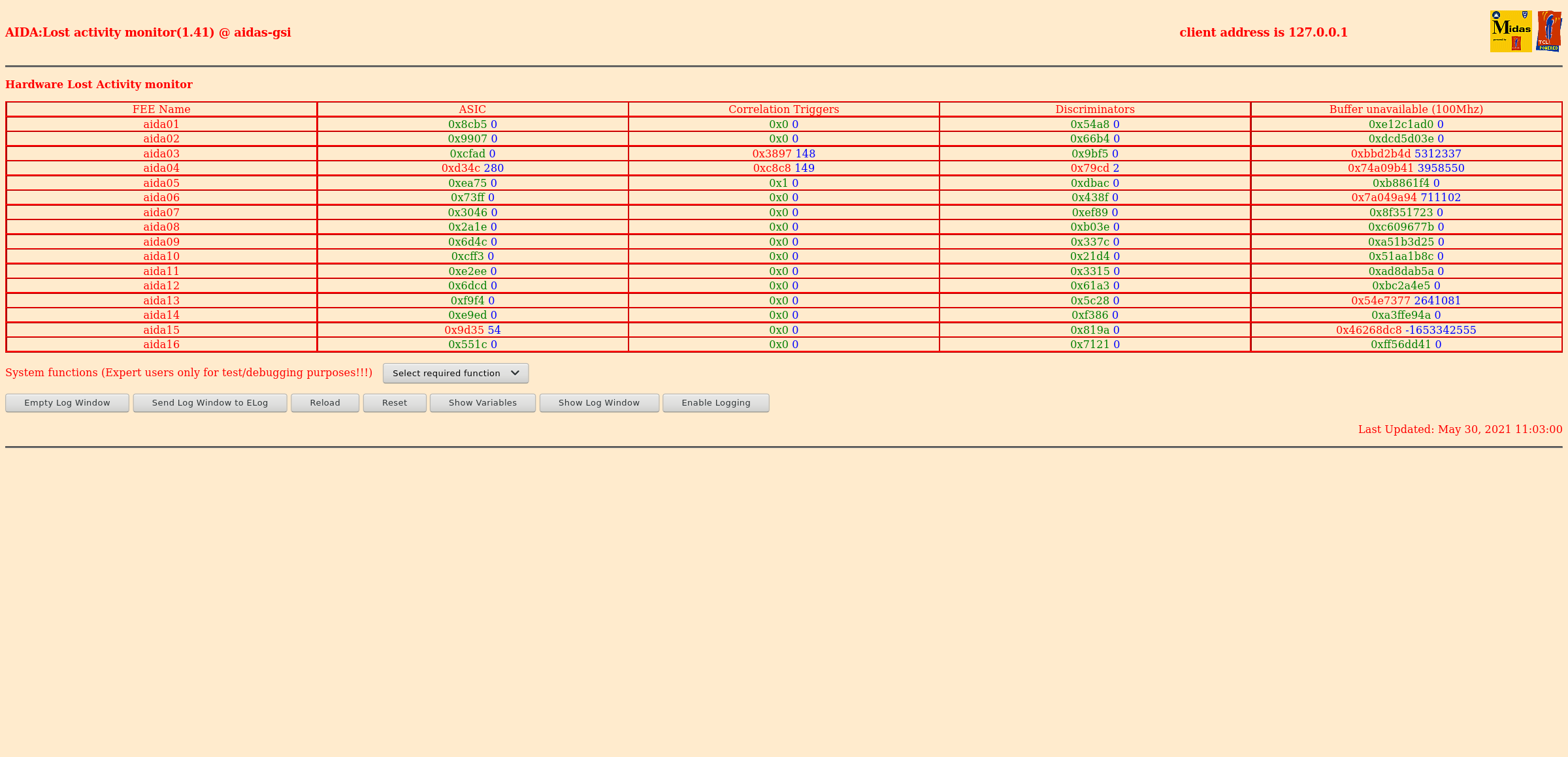

Lost activity monitor - attachment 2

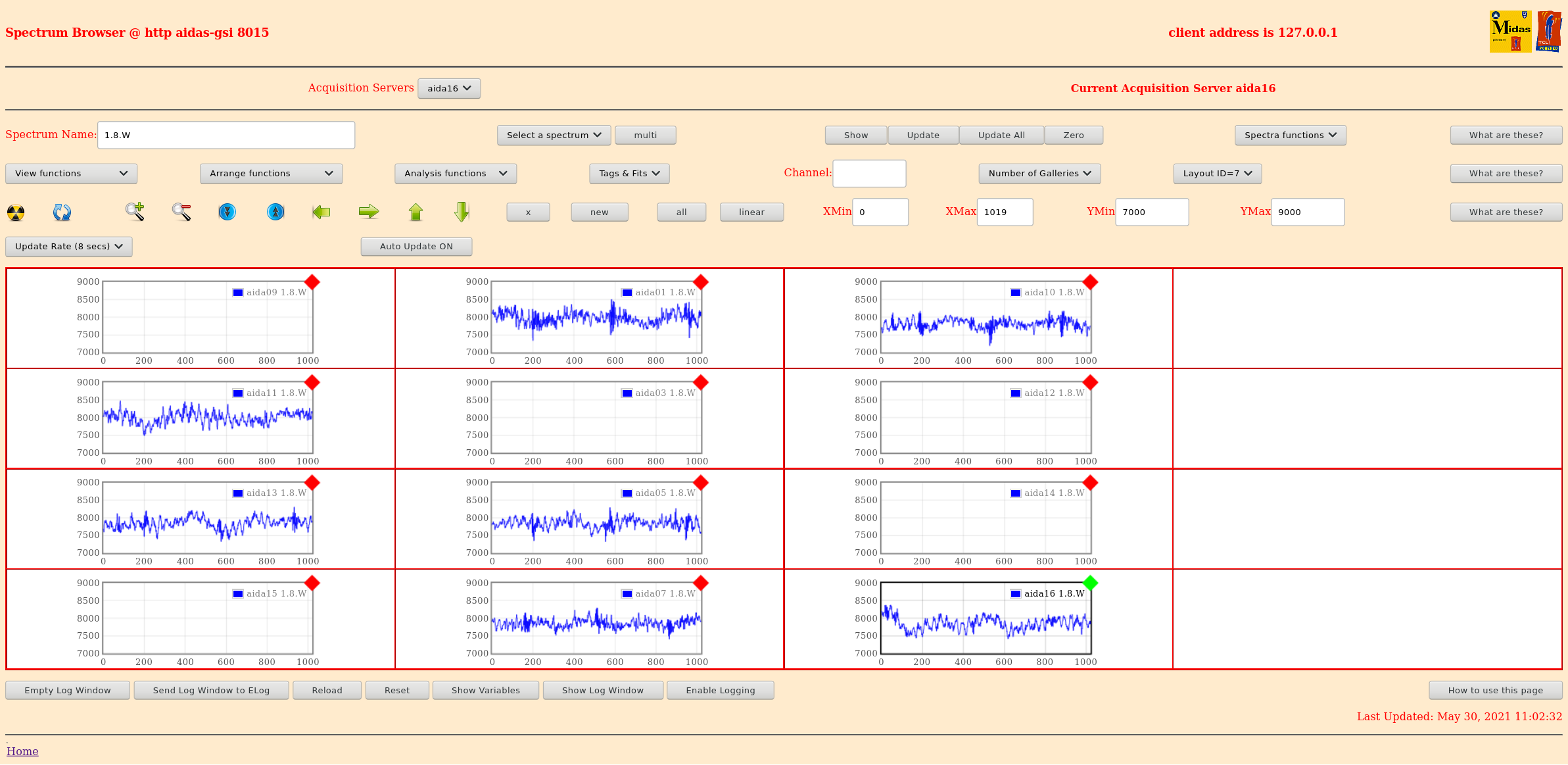

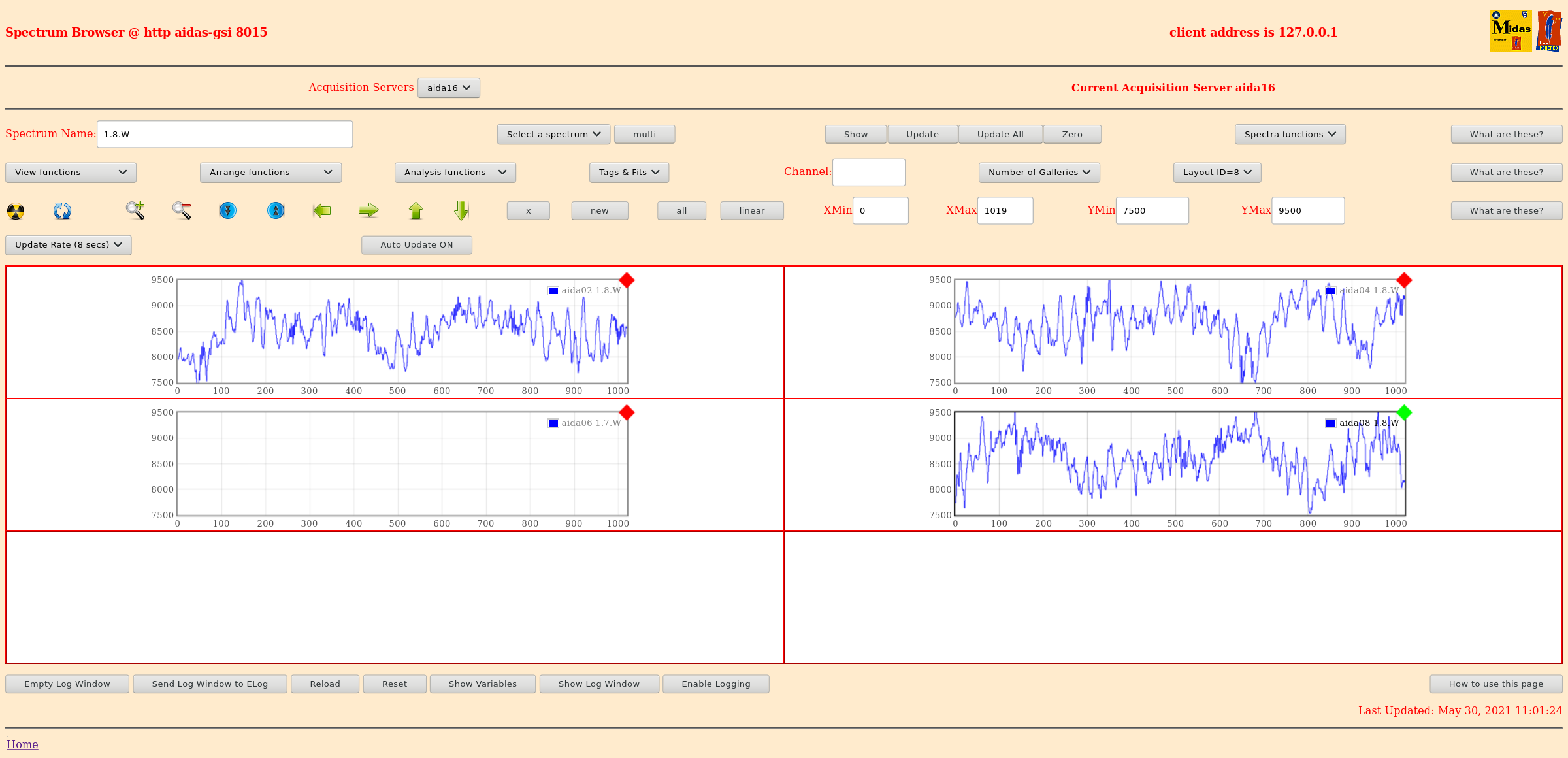

1.8.W spectra - attachments 3 & 4

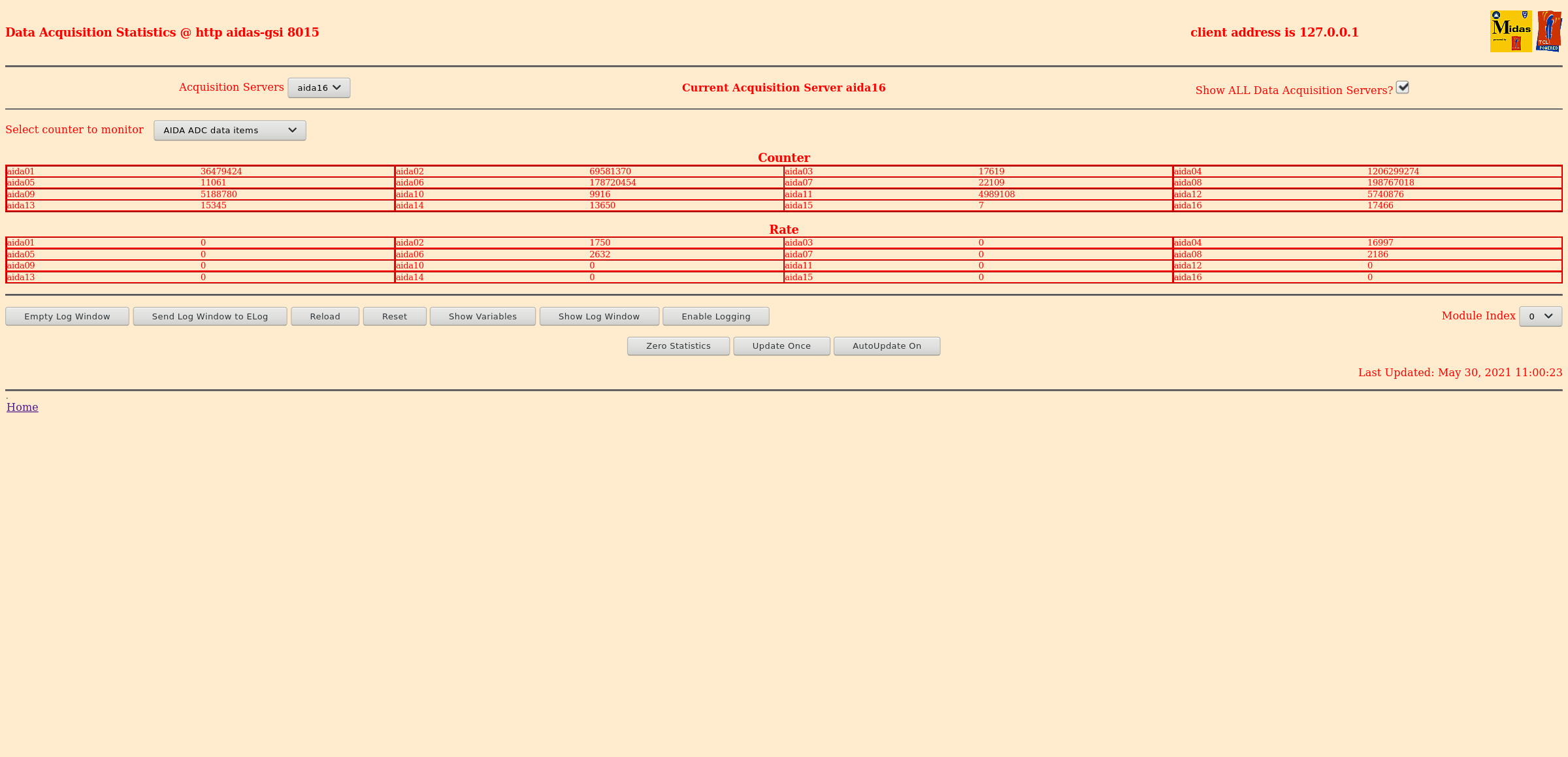

ADC data item stats - attachment 5
FEE64 temps OK - attachment 6
DSSSD bias & leakage current OK - attachment 7
Merger/Tape Server/Merger stats - attachment 8
no merger errors reported since previous restart
14.24 All histograms, statistics and merger statistics zero'd
16.16 analysis of file S496/R18_541 - attachment 9
max deadtime 0.02% aida03
18.40 DAQ continues - file S496/R18_589
alpha background
increased data rate due to hot HEC channels since c. 18.00 this am - ASIC check fixes problem |
|
|
|
|
|
.png.png "Screenshot_2021-05-30_Spectrum_Browser_aidas-gsi(1).png")
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 31985
ADC data format: 58630511 ( 25364.6 Hz)
Other data format: 203166719 ( 87893.5 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 35 ( 0.0 Hz)
RESUME: 35 ( 0.0 Hz)
SYNC100: 40596 ( 17.6 Hz)
WR48-63: 40596 ( 17.6 Hz)
FEE64 disc: 1341777 ( 580.5 Hz)
MBS info: 201743680 ( 87277.8 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 0 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 2311.511 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 1879.226
2 0.365 0.000
3 0.313 0.000
4 0.000 1697.189
5 0.000 557.330
6 0.000 1686.560
7 0.000 647.171
8 0.000 0.000
9 0.000 0.000
10 0.382 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 157 0 0 0 0 0 0 0 0 0 0 0
1 3314609 1296 0 0 0 0 648 648 0 0 0 0
2 413 87031526 0 0 19 19 14856 14856 0 87001776 0 0
3 42258127 88383449 0 0 15 15 18954 18954 1341775 87003736 0 0
4 153 6936262 0 0 0 0 860 860 0 6934542 0 0
5 6312304 6939162 0 0 0 0 2310 2310 0 6934542 0 0
6 544 6936170 0 0 0 0 814 814 0 6934542 0 0
7 6741331 6938850 0 0 0 0 2154 2154 0 6934542 0 0
8 448 0 0 0 0 0 0 0 0 0 0 0
9 79 0 0 0 0 0 0 0 0 0 0 0
10 1189 2 0 0 1 1 0 0 0 0 0 0
11 111 2 0 0 0 0 0 0 2 0 0 0
12 767 0 0 0 0 0 0 0 0 0 0 0
13 99 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 180 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 31.504s ( 1015.271 blocks/s, 63.454 Mb/s)
|
