| DESPEC |
 |
|
|
|
Message ID: 355
Entry time: Fri Jun 4 08:40:52 2021
|
| Author: |
TD |
| Subject: |
Friday 4 June |
|
|
09.20 DAQ found stopped
files in /TapeData/S496 indicate increased data rate yesterday evening from c. 18.00 until data stopped at c. midnight
aida15 rebooted at 00.02
regained control of DAQ and issued DAQ STOP by restarting NewMerger *twice*
11.00 DAQ reset and setup
All system wide checks OK *except*
Base Current Difference
aida05 fault 0x4d3c : 0x4d3c : 0
aida05 : WR status 0x10
White Rabbit error counter test result: Passed 15, Failed 1
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 2 4 2 8 5 4 1 2 2 4 7 : 41352
aida02 : 0 3 3 6 6 4 1 2 2 4 7 : 41352
aida03 : 2 4 2 12 1 3 2 2 2 4 7 : 41352
aida04 : 2 2 1 7 4 3 2 2 2 4 7 : 41352
aida05 : 2 3 1 5 3 2 3 2 2 4 7 : 41360
aida06 : 2 4 2 6 4 3 2 2 2 4 7 : 41352
aida07 : 1 5 2 9 4 2 4 3 1 4 7 : 41324
aida08 : 0 3 1 7 4 3 4 3 1 4 7 : 41352
aida09 : 3 3 0 8 2 2 3 2 2 4 7 : 41380
aida10 : 1 2 2 11 3 2 3 3 3 3 7 : 41044
aida11 : 2 3 1 6 6 4 2 3 3 3 7 : 41072
aida12 : 4 2 1 8 3 3 3 3 1 4 7 : 41072
aida13 : 2 4 1 8 4 4 2 3 3 3 7 : 41016
aida14 : 1 4 1 9 4 4 2 3 3 3 7 : 41044
aida15 : 0 5 1 2 2 1 2 4 3 4 7 : 42872
aida16 : 1 3 2 9 4 4 4 4 2 3 7 : 41052
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Fri Jun 04 09:30:42 CEST 2021
FEE : aida02 => Options file size is 1025 Last changed Sun May 23 00:19:21 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Sun May 23 00:16:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
11.03 DAQ resumes file S496/R32
alpha background
slow comparator 0x64
BNC PB-5 pulser OFF

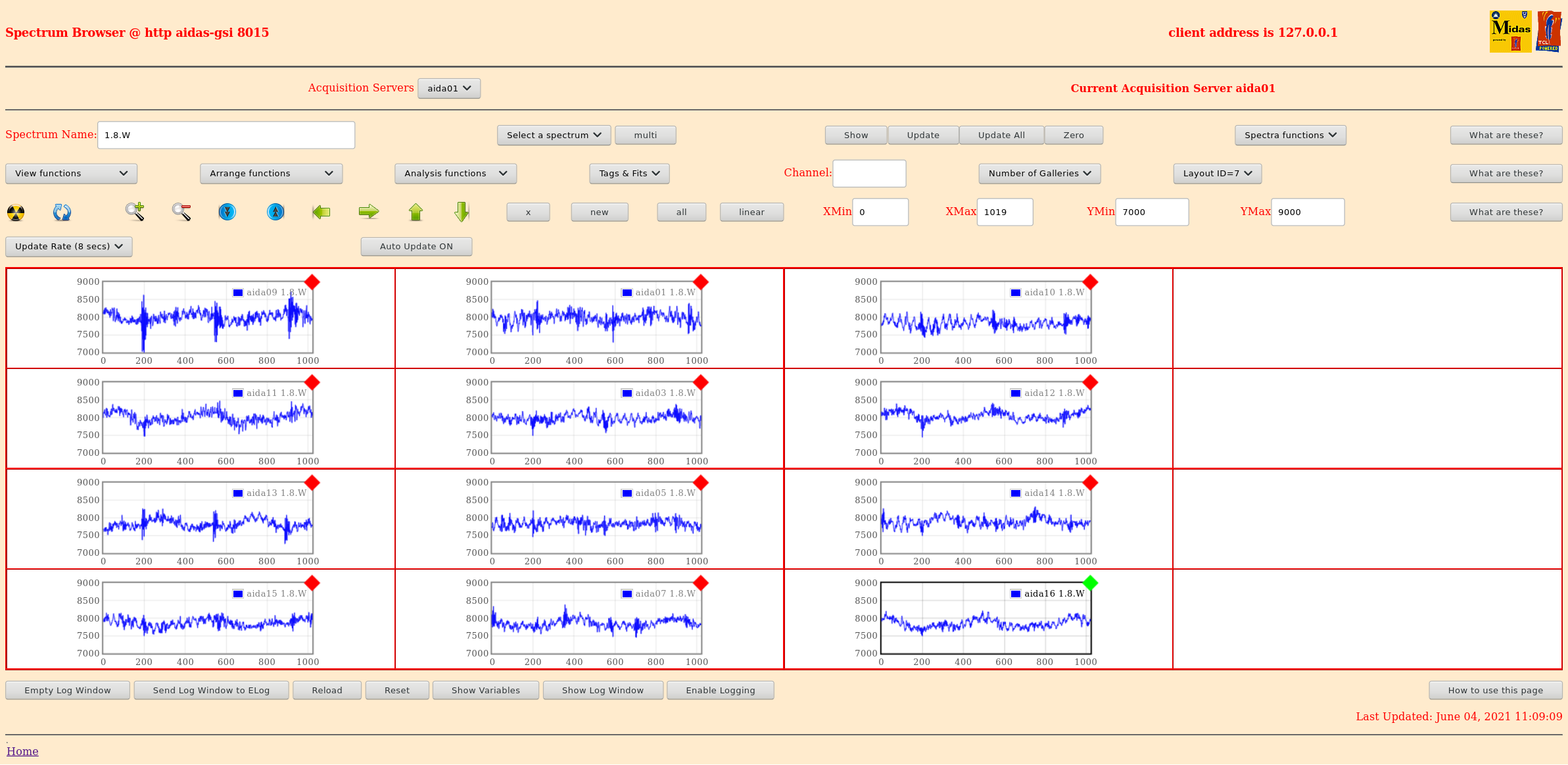

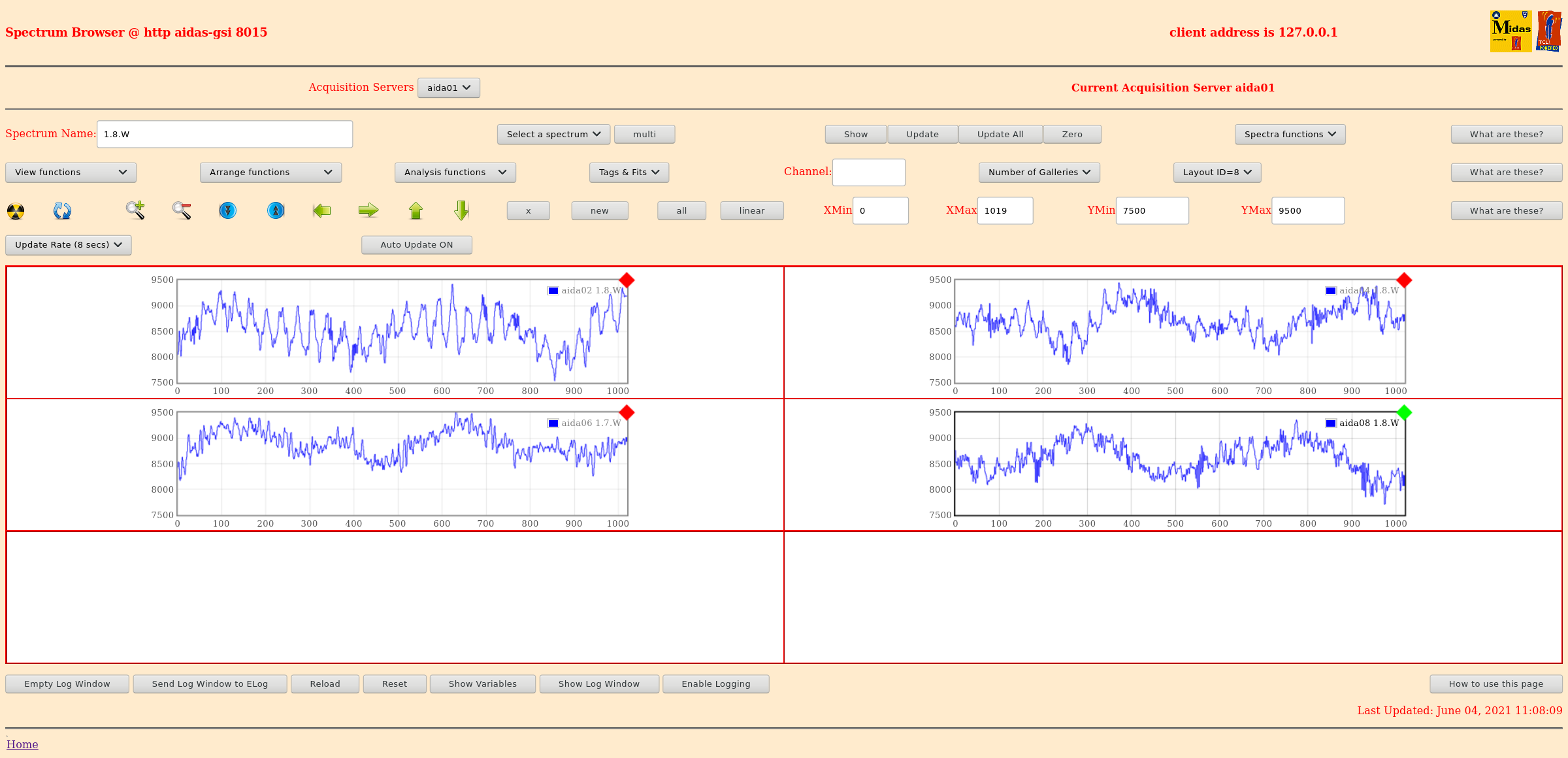

11.09 1.8.W spectra - 20us FSR - attachments 1 & 2
Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 3

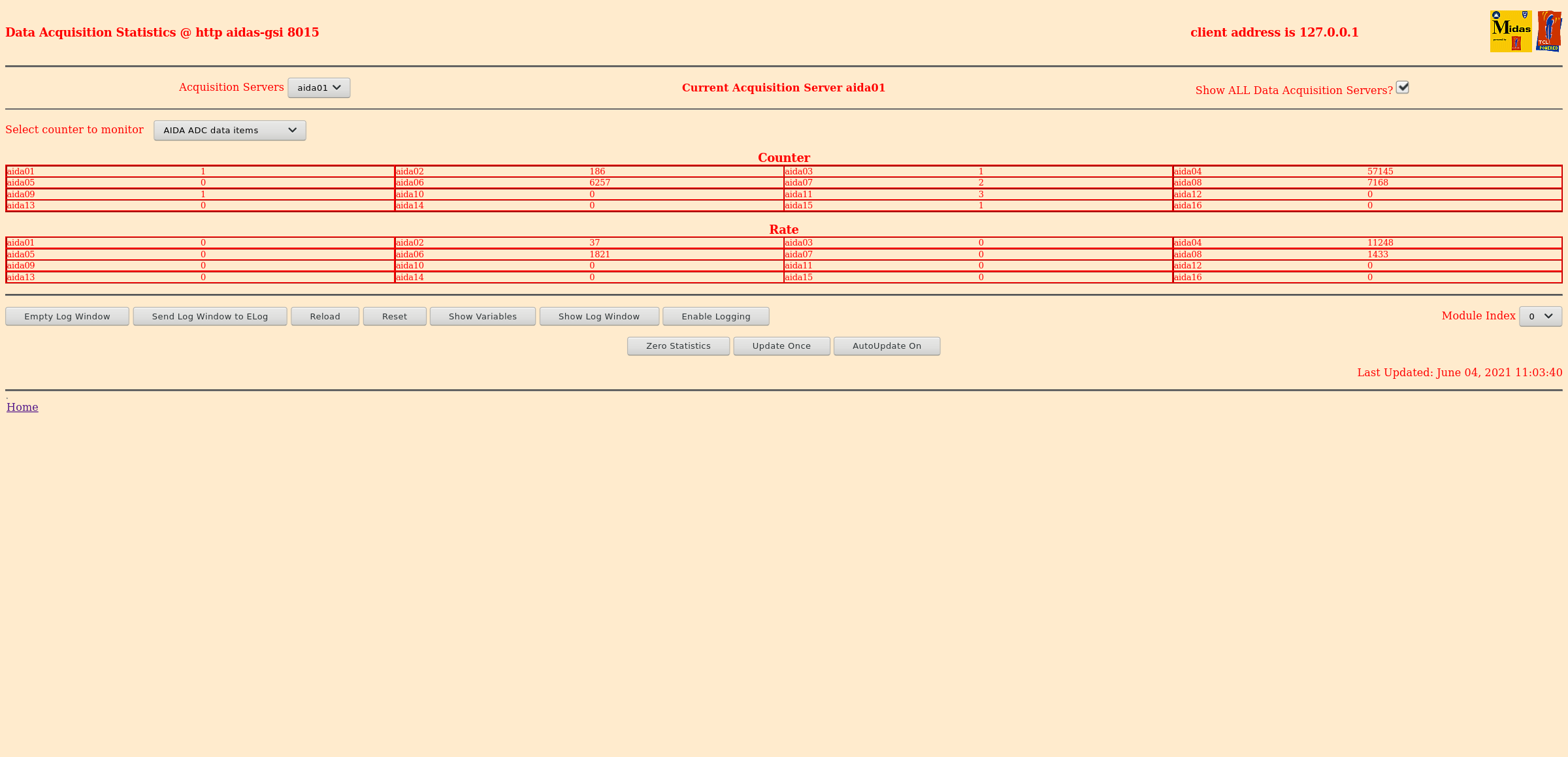

ADC data items - attachment 4

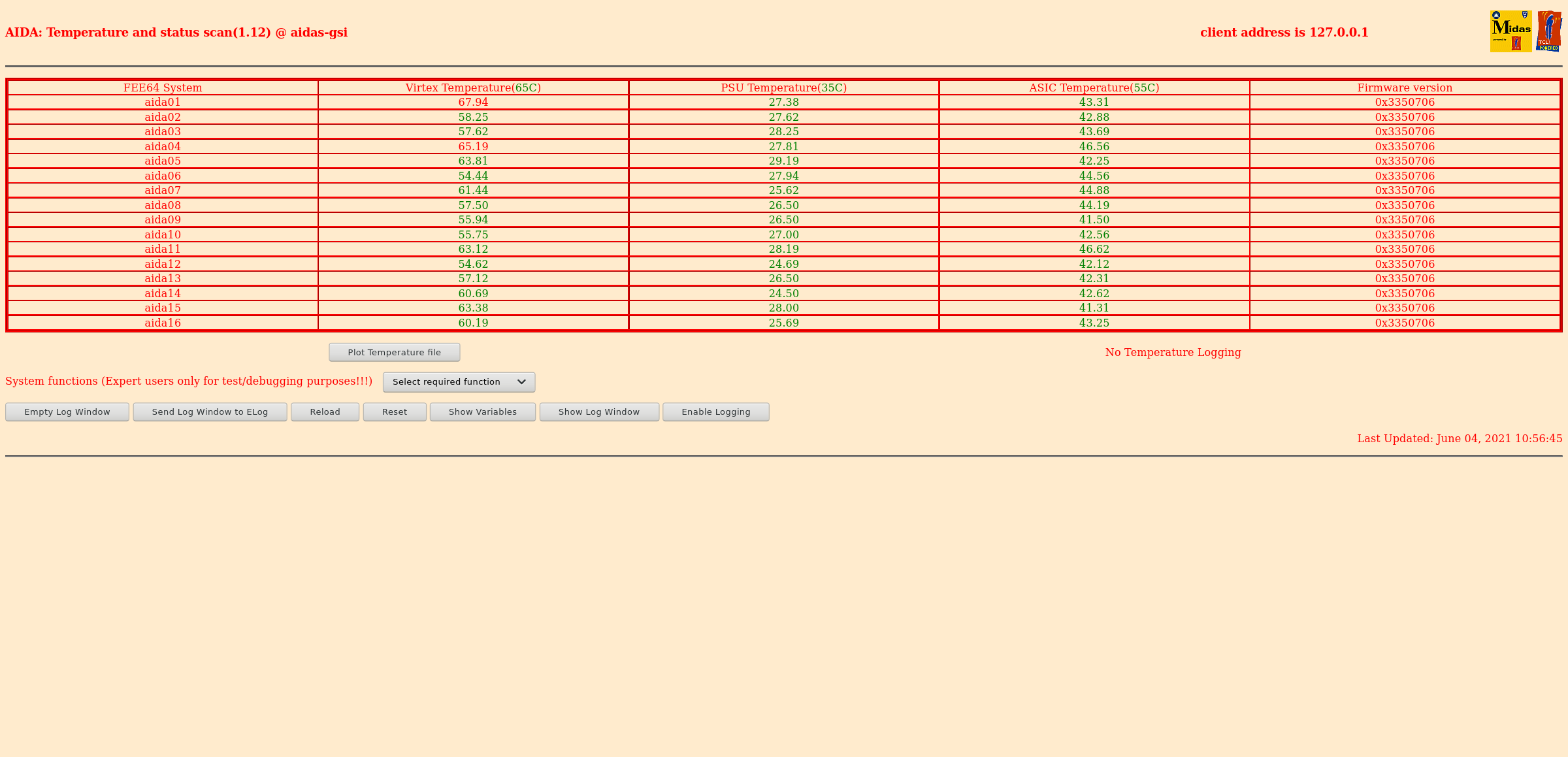

FEE64 temperatures OK - attachment 5
DSSSD bias & leakage currents OK - attachment 6
Merger/Tape Server/Merger statistics - attachment 7
no merger errors reported since previous restart
13.07 analysis of file S496/R32_16 - attachment 8
max deadtime 0.18% aida04 |
|
.png.png "Screenshot_2021-06-04_Spectrum_Browser_aidas-gsi(1).png")
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 49166189 ( 17465.0 Hz)
Other data format: 212753815 ( 75575.1 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 137 ( 0.0 Hz)
RESUME: 137 ( 0.0 Hz)
SYNC100: 42486 ( 15.1 Hz)
WR48-63: 42486 ( 15.1 Hz)
FEE64 disc: 1037793 ( 368.6 Hz)
MBS info: 211630776 ( 75176.2 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 0 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 2815.130 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 2759.088
2 0.741 0.000
3 4.946 0.000
4 0.000 0.000
5 0.000 2173.993
6 0.000 0.000
7 0.000 2104.432
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 184 0 0 0 0 0 0 0 0 0 0 0
1 115458 62 0 0 0 0 31 31 0 0 0 0
2 444 105932150 0 0 36 36 18754 18754 0 105894570 0 0
3 39683483 106817705 0 0 101 101 21752 21752 1037793 105736206 0 0
4 154 0 0 0 0 0 0 0 0 0 0 0
5 4413391 1852 0 0 0 0 926 926 0 0 0 0
6 586 0 0 0 0 0 0 0 0 0 0 0
7 4948958 2044 0 0 0 0 1022 1022 0 0 0 0
8 489 0 0 0 0 0 0 0 0 0 0 0
9 77 0 0 0 0 0 0 0 0 0 0 0
10 1172 0 0 0 0 0 0 0 0 0 0 0
11 163 2 0 0 0 0 1 1 0 0 0 0
12 754 0 0 0 0 0 0 0 0 0 0 0
13 94 0 0 0 0 0 0 0 0 0 0 0
14 605 0 0 0 0 0 0 0 0 0 0 0
15 177 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 29.027s ( 1102.409 blocks/s, 68.901 Mb/s)
|
