Message ID: 357
Entry time: Sat Jun 5 11:20:15 2021
|
| Author: |
TD |
| Subject: |
Saturday 5 June |
|
|
12.25 DAQ continues OK - file S496/R32_48
alpha background
All system wide checks OK *except*
Base Current Difference
aida01 fault 0x8944 : 0x8946 : 2
aida02 fault 0x9b36 : 0x9b38 : 2
aida03 fault 0xf26b : 0xf26d : 2
aida04 fault 0x57a0 : 0x57a2 : 2
aida05 fault 0x4d3c : 0x4d3d : 1
aida05 : WR status 0x10
aida06 fault 0x640c : 0x640d : 1
aida07 fault 0x255e : 0x255f : 1
aida08 fault 0xffbd : 0xffbe : 1
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 10 6 1 2 4 4 2 2 1 4 7 : 40360
aida02 : 4 3 3 3 3 4 2 2 1 4 7 : 40312
aida03 : 13 5 4 4 2 4 1 3 2 3 7 : 39580
aida04 : 16 5 3 3 2 4 1 3 2 3 7 : 39544
aida05 : 8 6 1 2 3 3 1 3 1 4 7 : 40416
aida06 : 4 3 2 1 3 3 1 3 1 4 7 : 40360
aida07 : 6 6 2 4 4 2 3 2 1 4 7 : 40424
aida08 : 6 4 1 1 4 3 3 2 1 4 7 : 40424
aida09 : 16 1 3 1 0 2 2 3 1 4 7 : 40344
aida10 : 2 5 1 4 1 3 2 4 2 3 7 : 40064
aida11 : 14 3 2 1 4 4 3 3 2 3 7 : 40080
aida12 : 11 2 2 4 4 4 3 3 2 3 7 : 40156
aida13 : 11 3 2 2 3 4 3 3 2 3 7 : 40036
aida14 : 6 5 0 4 3 4 3 3 2 3 7 : 40064
aida15 : 11 6 3 1 3 1 2 4 1 4 7 : 40940
aida16 : 12 5 0 4 4 4 3 3 2 3 7 : 40152
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Fri Jun 04 09:30:42 CEST 2021
FEE : aida02 => Options file size is 1025 Last changed Sun May 23 00:19:21 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Sun May 23 00:16:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

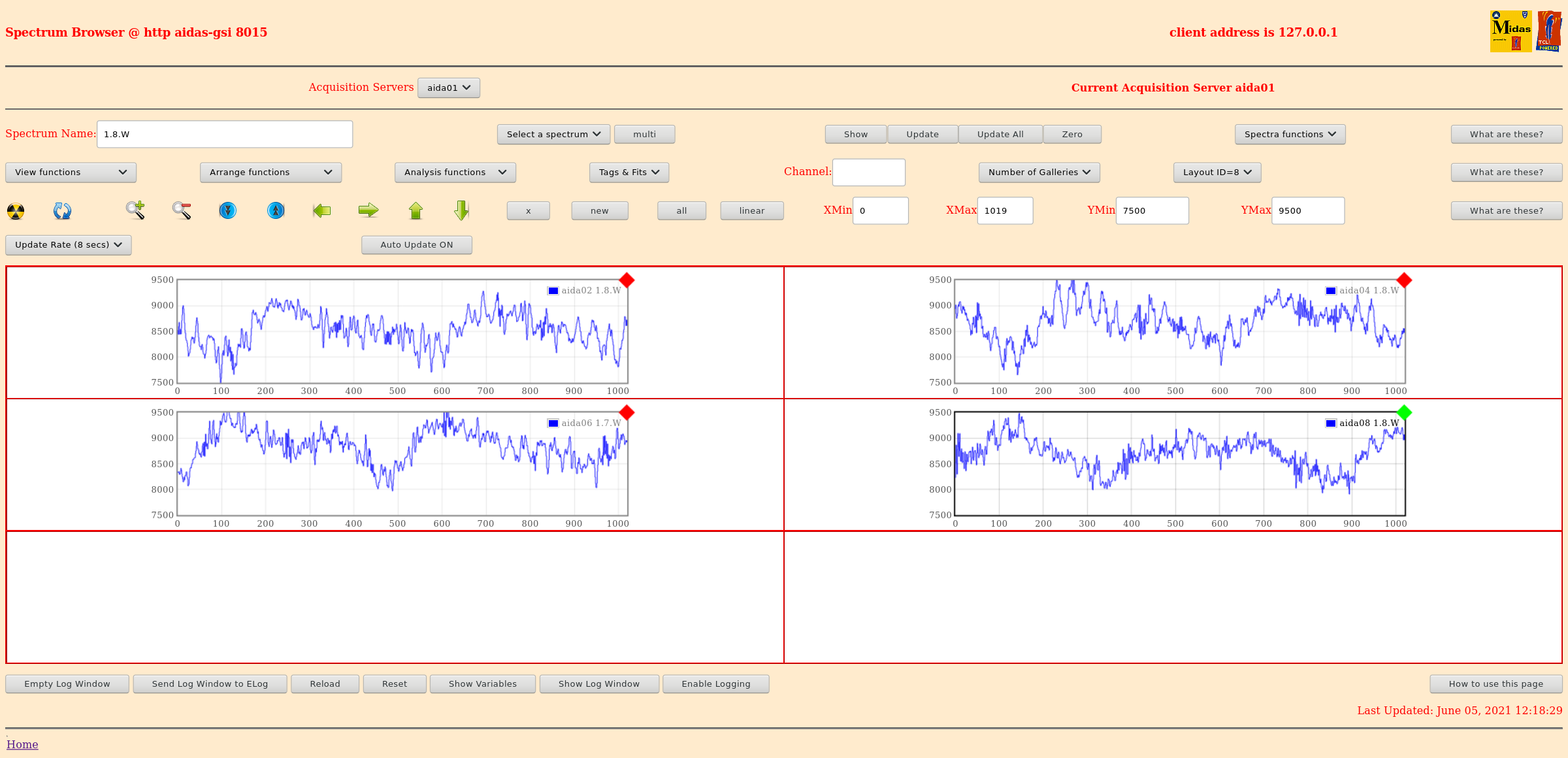

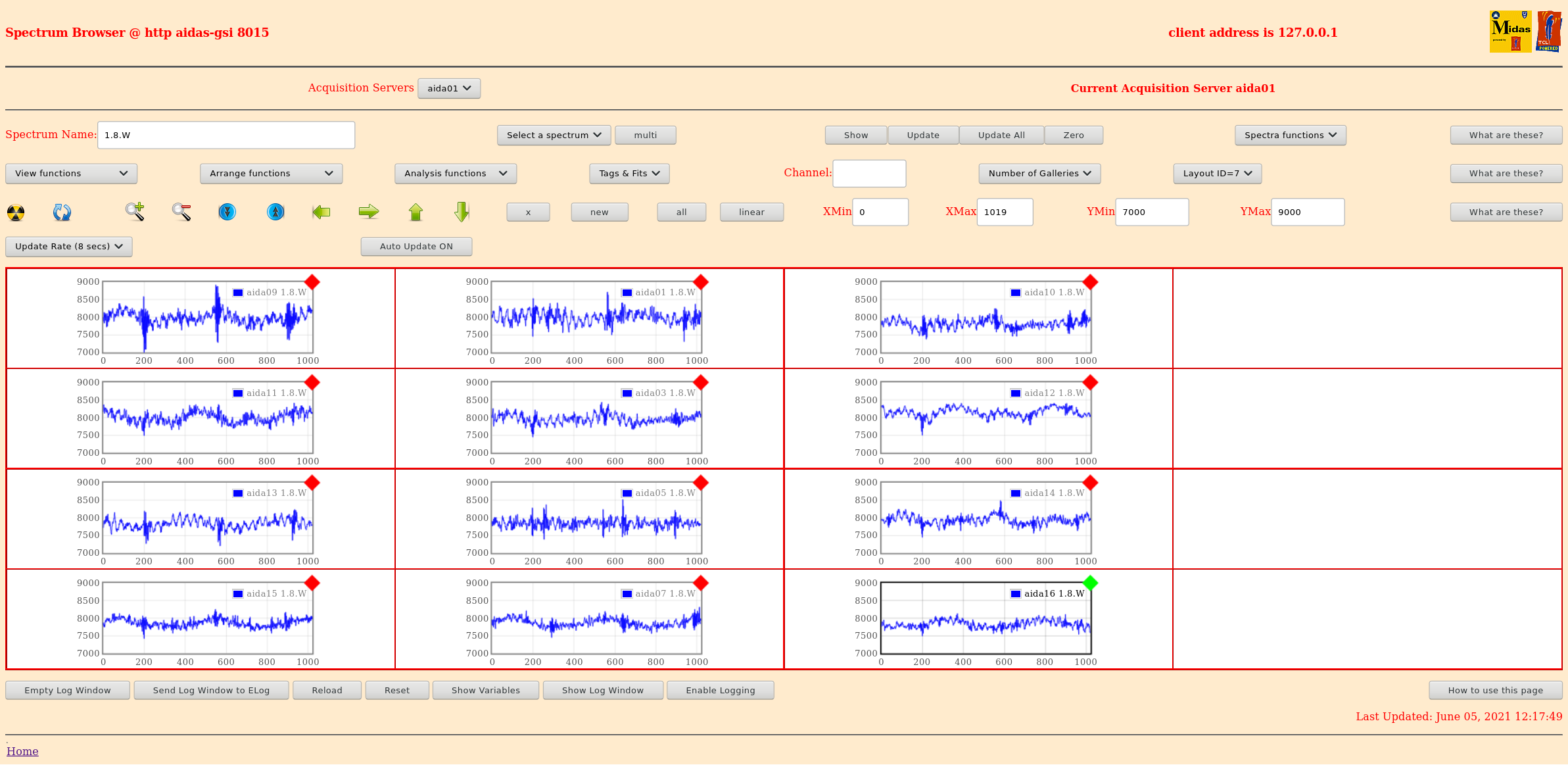

1.8.W spectra - 20us FSR - attachments 2 & 3

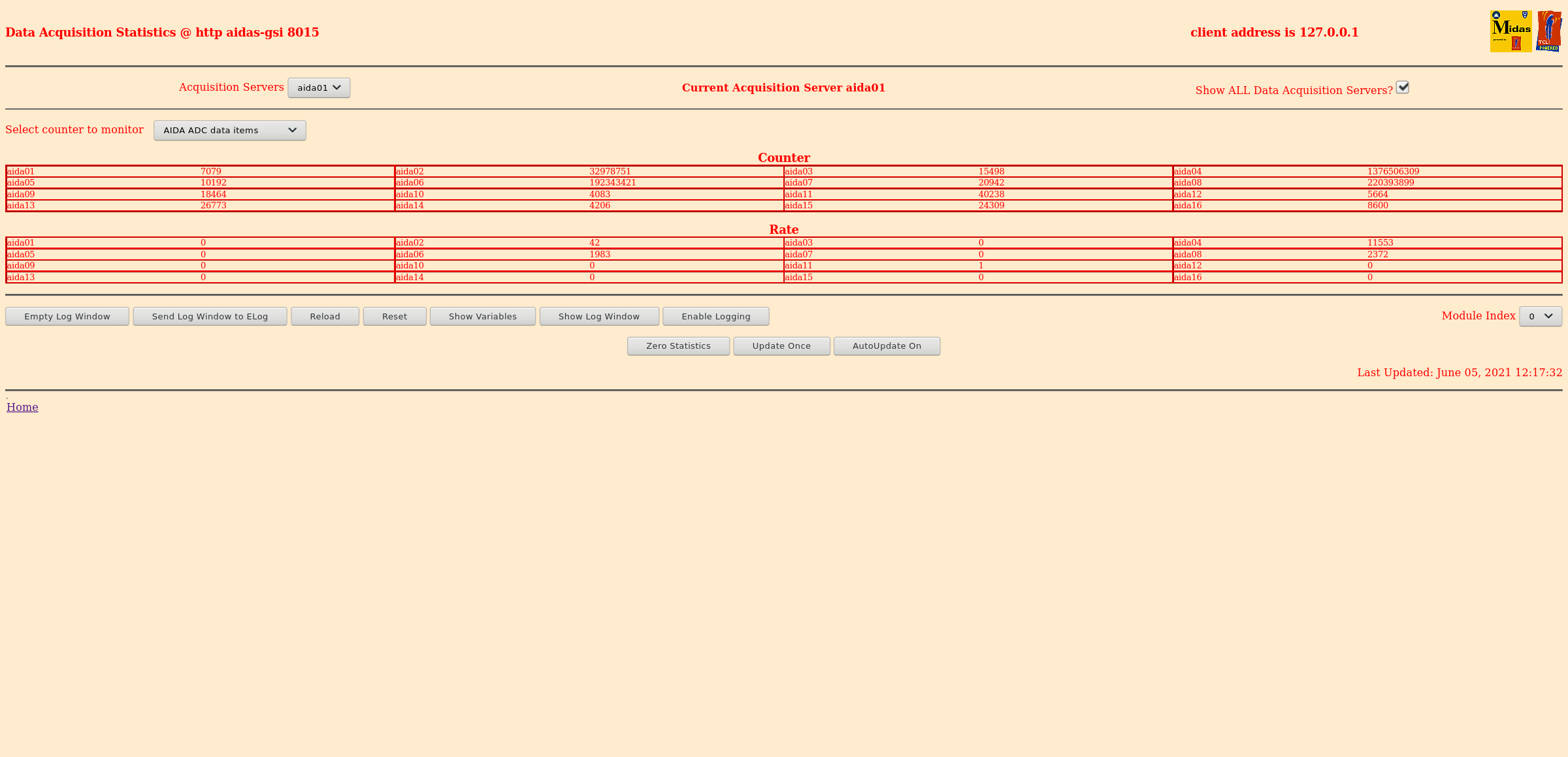

ADC data items - attachment 4

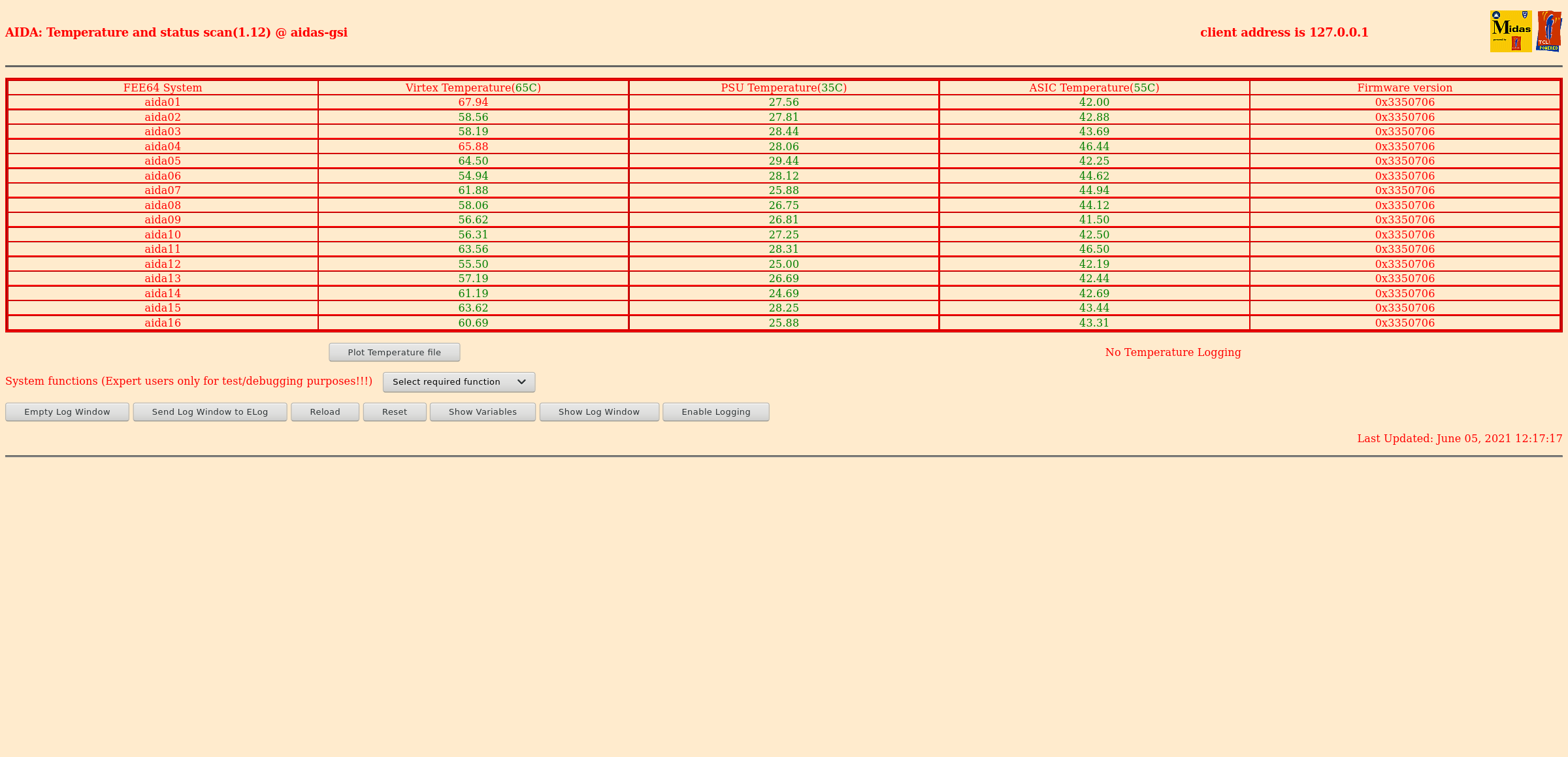

FEE64 temperatures OK - attachment 5
DSSSD bias & leakage currents OK - attachment 6
Merger/Tape Server/Merger statistics - attachment 7
no merger errors reported since previous restart
analysis of file S496/R32_47 - attachment 8
max deadtime 0.35% aida04
13.56 Lost activity monitor - see attachment 9 |
|
|
|
.png.png "Screenshot_2021-06-05_Spectrum_Browser_aidas-gsi(1).png")
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 47883982 ( 17391.8 Hz)
Other data format: 214036019 ( 77739.3 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 184 ( 0.1 Hz)
RESUME: 184 ( 0.1 Hz)
SYNC100: 42255 ( 15.3 Hz)
WR48-63: 42255 ( 15.3 Hz)
FEE64 disc: 1053753 ( 382.7 Hz)
MBS info: 212897388 ( 77325.8 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 0 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 2753.252 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 2696.425
2 0.825 0.000
3 9.735 0.000
4 0.000 0.000
5 0.000 2175.120
6 0.000 0.000
7 0.000 2003.563
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 187 0 0 0 0 0 0 0 0 0 0 0
1 86597 40 0 0 0 0 20 20 0 0 0 0
2 381 106659018 0 0 37 37 18746 18746 0 106621452 0 0
3 38584230 107373193 0 0 147 147 21605 21605 1053753 106275936 0 0
4 143 0 0 0 0 0 0 0 0 0 0 0
5 4208337 1756 0 0 0 0 878 878 0 0 0 0
6 545 0 0 0 0 0 0 0 0 0 0 0
7 5000124 2012 0 0 0 0 1006 1006 0 0 0 0
8 478 0 0 0 0 0 0 0 0 0 0 0
9 96 0 0 0 0 0 0 0 0 0 0 0
10 1149 0 0 0 0 0 0 0 0 0 0 0
11 117 0 0 0 0 0 0 0 0 0 0 0
12 706 0 0 0 0 0 0 0 0 0 0 0
13 105 0 0 0 0 0 0 0 0 0 0 0
14 636 0 0 0 0 0 0 0 0 0 0 0
15 151 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 29.996s ( 1066.806 blocks/s, 66.675 Mb/s)
|
|
.png.png "Screenshot_2021-06-05_Lost_activity_monitor_aidas-gsi(1).png")
|
