12.26 DAQ continues file S496/R32_428
High data rate from c. 06.00 this morning
ASIC check
System wide checks OK *except*
Base Current Difference
aida01 fault 0x8944 : 0x8947 : 3
aida02 fault 0x9b36 : 0x9b39 : 3
aida03 fault 0xf26b : 0xf26e : 3
aida04 fault 0x57a0 : 0x57a3 : 3
aida05 fault 0x4d3c : 0x4d3d : 1
aida05 : WR status 0x10
aida06 fault 0x640c : 0x640d : 1
aida07 fault 0x255e : 0x255f : 1
aida08 fault 0xffbd : 0xffbe : 1
White Rabbit error counter test result: Passed 8, Failed 8
Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR
Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) : 4 8 16 32 64 128 256 512 1k 2k 4k
aida01 : 35 11 6 3 4 4 2 2 2 4 6 : 37540
aida02 : 30 8 7 3 4 4 3 2 2 4 6 : 37768
aida03 : 38 8 13 3 4 3 1 3 3 3 6 : 36744
aida04 : 37 9 7 2 3 4 2 3 3 3 6 : 36940
aida05 : 29 5 9 3 3 3 1 3 2 4 6 : 37580
aida06 : 38 6 2 3 3 3 2 3 2 4 6 : 37768
aida07 : 31 9 2 7 4 2 3 2 2 4 6 : 37572
aida08 : 34 6 3 5 4 4 3 2 2 4 6 : 37768
aida09 : 29 2 12 5 1 3 3 2 2 4 6 : 37540
aida10 : 24 8 15 3 5 3 3 3 1 4 6 : 37296
aida11 : 35 4 15 3 3 4 3 3 1 4 6 : 37308
aida12 : 36 5 3 5 6 4 3 3 1 4 6 : 37384
aida13 : 31 10 4 3 6 4 3 3 1 4 6 : 37356
aida14 : 37 7 1 4 5 4 3 3 1 4 6 : 37276
aida15 : 34 10 6 3 4 1 2 4 2 4 6 : 38168
aida16 : 31 9 3 3 5 4 3 3 1 4 6 : 37268
Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same
FEE : aida01 => Options file size is 1026 Last changed Fri Jun 04 09:30:42 CEST 2021
FEE : aida02 => Options file size is 1025 Last changed Sun May 23 00:19:21 CEST 2021
FEE : aida03 => Options file size is 1014 Last changed Thu Apr 29 14:43:50 CEST 2021
FEE : aida04 => Options file size is 1025 Last changed Fri May 14 16:54:56 CEST 2021
FEE : aida05 => Options file size is 1025 Last changed Mon May 17 06:25:41 CEST 2021
FEE : aida06 => Options file size is 1014 Last changed Thu Apr 29 14:43:59 CEST 2021
FEE : aida07 => Options file size is 1014 Last changed Thu Apr 29 14:44:02 CEST 2021
FEE : aida08 => Options file size is 1025 Last changed Sun May 23 00:16:54 CEST 2021
FEE : aida09 => Options file size is 1014 Last changed Thu Apr 29 14:44:08 CEST 2021
FEE : aida10 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida11 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida12 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida13 => Options file size is 1025 Last changed Fri May 07 19:40:34 CEST 2021
FEE : aida14 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida15 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 2021
FEE : aida16 => Options file size is 1014 Last changed Thu Apr 29 14:44:57 CEST 202
Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1

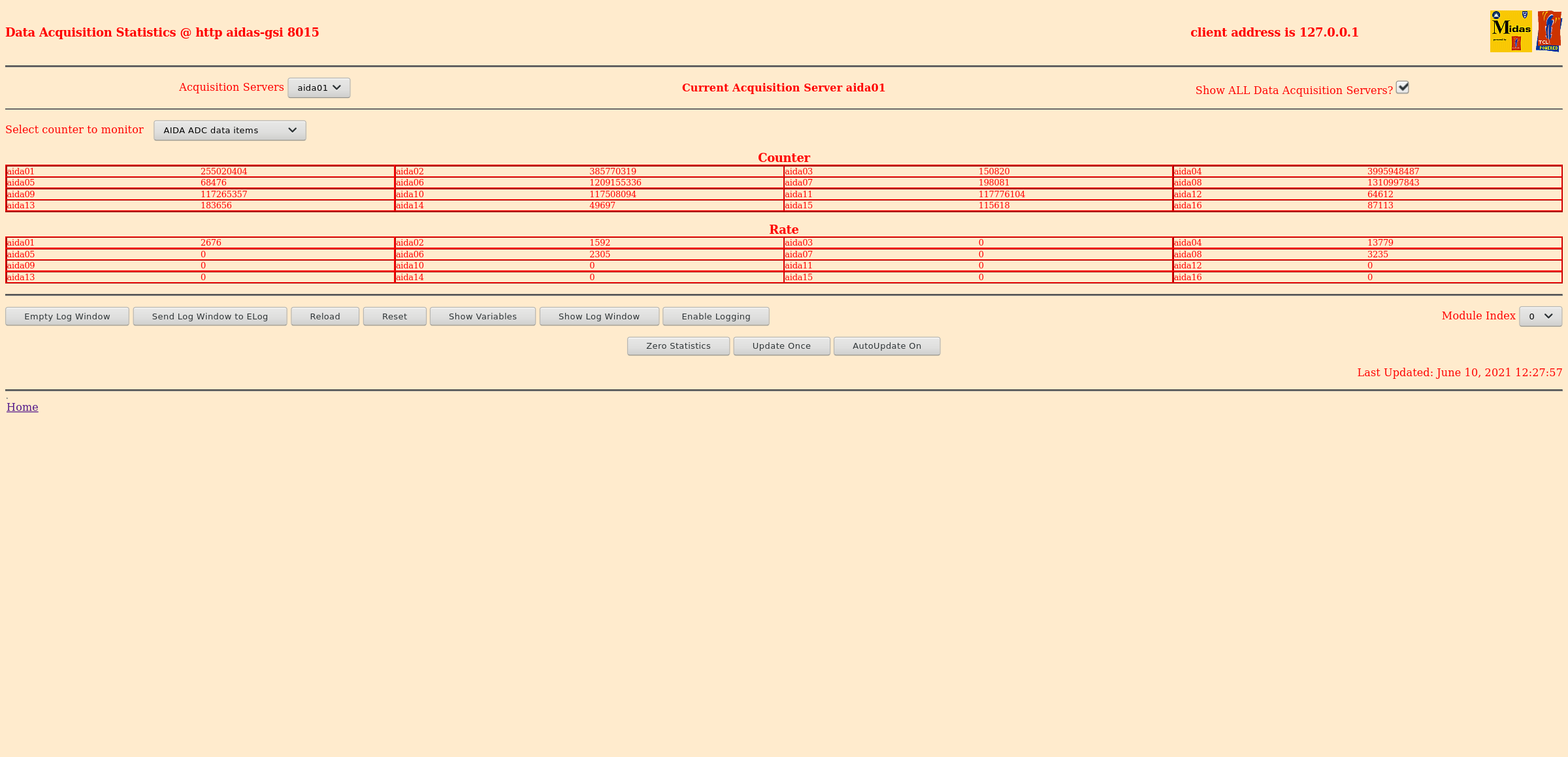

Lost activity monitor - attachment 2

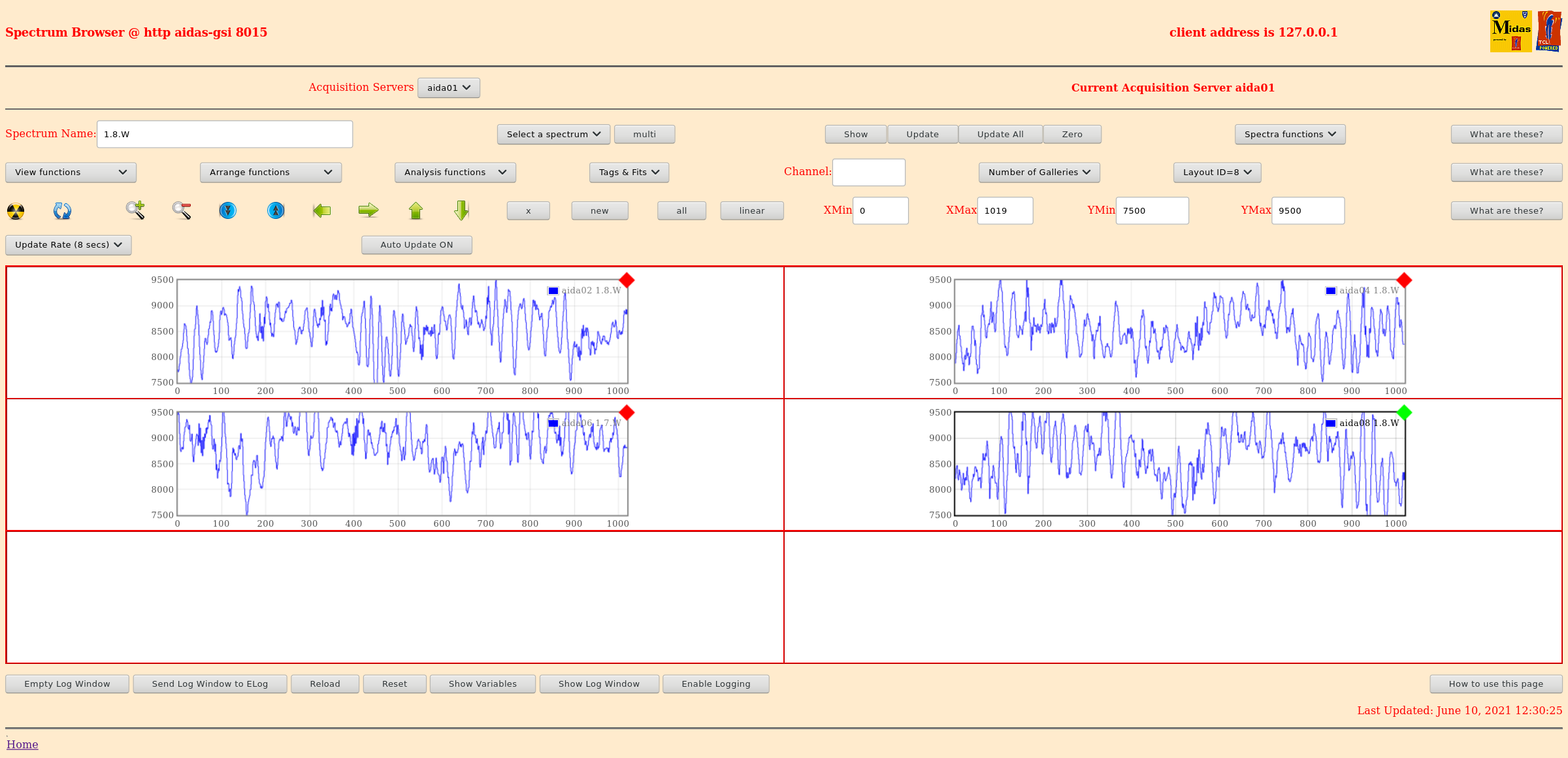

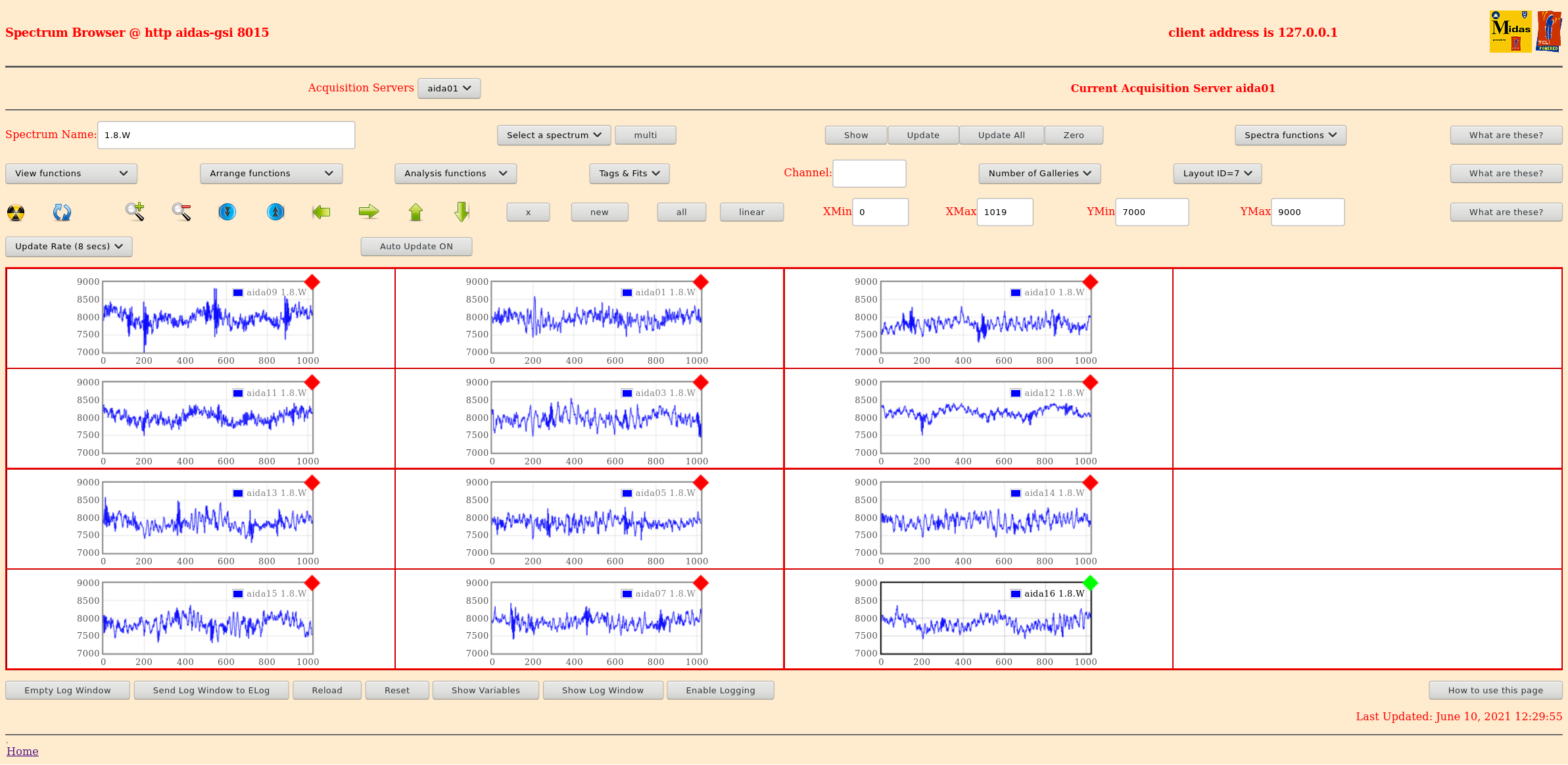

1.8.W spectra - 20us FSR - attachments 3 & 4
ADC data items - attachment 5
FEE64 temperatures OK - attachment 6
DSSSD bias & leakage currents OK - attachment 7
Merger/Tape Server/Merger statistics - attachment 8
no merger errors reported since previous restart
15.07 analysis of file S496/R32_431 - attachment 9
max dead time aida04 0.33% |
|
|
|
|
|
.png.png "Screenshot_2021-06-10_Spectrum_Browser_aidas-gsi(1).png")
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 54180182 ( 19758.0 Hz)
Other data format: 207739819 ( 75756.7 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 105 ( 0.0 Hz)
RESUME: 105 ( 0.0 Hz)
SYNC100: 42213 ( 15.4 Hz)
WR48-63: 42213 ( 15.4 Hz)
FEE64 disc: 1515114 ( 552.5 Hz)
MBS info: 206140069 ( 75173.4 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 6 ( 0.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 2742.196 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 2662.854
2 0.384 0.000
3 9.009 0.000
4 0.000 0.000
5 0.000 1805.119
6 0.000 0.000
7 0.000 1797.783
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 559 0 0 0 0 0 0 0 0 0 0 0
1 413404 177 0 0 0 0 84 84 9 0 0 0
2 1153 103268358 0 0 19 19 17963 17963 0 103232394 0 0
3 42054837 104466440 0 0 86 86 21757 21757 1515079 102907675 0 0
4 515 0 0 0 0 0 0 0 0 0 0 0
5 5561752 2359 0 0 0 0 1175 1175 9 0 0 0
6 1738 2 0 0 0 0 1 1 0 0 0 0
7 6142236 2472 0 0 0 0 1232 1232 8 0 0 0
8 565 1 0 0 0 0 0 0 1 0 0 2
9 190 0 0 0 0 0 0 0 0 0 0 0
10 694 0 0 0 0 0 0 0 0 0 0 0
11 417 6 0 0 0 0 0 0 6 0 0 4
12 967 4 0 0 0 0 1 1 2 0 0 0
13 244 0 0 0 0 0 0 0 0 0 0 0
14 285 0 0 0 0 0 0 0 0 0 0 0
15 626 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 29.160s ( 1097.388 blocks/s, 68.587 Mb/s)
|
