19.04 All system wide checks OK *except*

		 Base 		Current 	Difference
aida01 fault 	 0x8944 : 	 0x8960 : 	 28
aida02 fault 	 0x9b36 : 	 0x9b52 : 	 28
aida03 fault 	 0xf26b : 	 0xf287 : 	 28
aida04 fault 	 0x57a0 : 	 0x57bc : 	 28
aida05 fault 	 0x4d3c : 	 0x4d55 : 	 25
aida05 : WR status 0x10
 aida06 fault 	 0x640c : 	 0x6425 : 	 25
aida07 fault 	 0x255e : 	 0x2577 : 	 25
aida08 fault 	 0xffbd : 	 0xffd6 : 	 25
aida09 fault 	 0x87e : 	 0x895 : 	 23
aida10 fault 	 0xc557 : 	 0xc56e : 	 23
aida11 fault 	 0x683e : 	 0x6855 : 	 23
aida12 fault 	 0x1c35 : 	 0x1c4c : 	 23
aida13 fault 	 0x8f41 : 	 0x8f58 : 	 23
aida14 fault 	 0x1b47 : 	 0x1b5e : 	 23
aida15 fault 	 0x4e4 : 	 0x127e : 	 3482
aida16 fault 	 0xf570 : 	 0xf587 : 	 23
White Rabbit error counter test result: Passed 0, Failed 16

			 Base 		Current 		Difference
aida01 fault 	 0x0 : 	 0x2 : 	 2
aida02 fault 	 0x0 : 	 0x2 : 	 2
aida05 fault 	 0x0 : 	 0x2 : 	 2
aida06 fault 	 0x0 : 	 0x2 : 	 2
aida09 fault 	 0x0 : 	 0x2 : 	 2
aida10 fault 	 0x0 : 	 0x2 : 	 2
aida11 fault 	 0x0 : 	 0x2 : 	 2
aida12 fault 	 0x0 : 	 0x3e03 : 	 15875
aida13 fault 	 0x0 : 	 0x32d4 : 	 13012
aida14 fault 	 0x0 : 	 0x2 : 	 2
aida15 fault 	 0x0 : 	 0x2 : 	 2
aida16 fault 	 0x0 : 	 0x2 : 	 2
FPGA Timestamp error counter test result: Passed 4, Failed 12
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Returned 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     53     10      4      4      4      4      2      2      3      3      6   : 36580
aida02 :     28      7     10      4      3      4      3      2      2      4      6   : 37768
aida03 :     41     10      7      6      5      3      1      3      3      3      6   : 36836
aida04 :     45      7      2      4      3      4      2      3      3      3      6   : 36940
aida05 :     35      8      8      4      4      4      2      2      2      4      6   : 37580
aida06 :     45      6      6      3      3      3      2      3      4      3      6   : 37860
aida07 :     37     10      6      4      5      2      3      2      2      4      6   : 37636
aida08 :     32      5     10      4      4      4      3      2      2      4      6   : 37832
aida09 :     24      5      8      7      1      3      3      2      2      4      6   : 37544
aida10 :     29      9     12      5      4      3      3      3      3      3      6   : 37276
aida11 :     33      7      7      6      3      4      3      3      1      4      6   : 37292
aida12 :     36     11      6      6      3      4      3      3      1      4      6   : 37320
aida13 :     37      7      6      6      5      3      3      3      1      4      6   : 37292
aida14 :     25      9      7      6      5      3      3      3      3      3      6   : 37276
aida15 :      3      3      4      3      0      3      3      2      1      4      7   : 40260
aida16 :     35      7      6      6      4      4      3      3      1      4      6   : 37348

Collecting the file size of each FEE64 Options CONTENTS file to check they are all the same

 FEE : aida01 =>   Options file size is 1026 	 Last changed Sat Jun 12 15:46:33 CEST 2021
 FEE : aida02 =>   Options file size is 1025 	 Last changed Sun May 23 00:19:21 CEST 2021
 FEE : aida03 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:50 CEST 2021
 FEE : aida04 =>   Options file size is 1025 	 Last changed Fri May 14 16:54:56 CEST 2021
 FEE : aida05 =>   Options file size is 1025 	 Last changed Mon May 17 06:25:41 CEST 2021
 FEE : aida06 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:43:59 CEST 2021
 FEE : aida07 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:02 CEST 2021
 FEE : aida08 =>   Options file size is 1025 	 Last changed Sun May 23 00:16:54 CEST 2021
 FEE : aida09 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:08 CEST 2021
 FEE : aida10 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida11 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida12 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida13 =>   Options file size is 1025 	 Last changed Fri May 07 19:40:34 CEST 2021
 FEE : aida14 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021
 FEE : aida15 =>   Options file size is 1025 	 Last changed Sat Jun 12 15:48:28 CEST 2021
 FEE : aida16 =>   Options file size is 1014 	 Last changed Thu Apr 29 14:44:57 CEST 2021

19.07 Hot HEC channels - ASIC check

      Grafana - DSSSD bias & leakage current - most recent 7 days - attachment 1
      Lost activity monitor - attachment 2

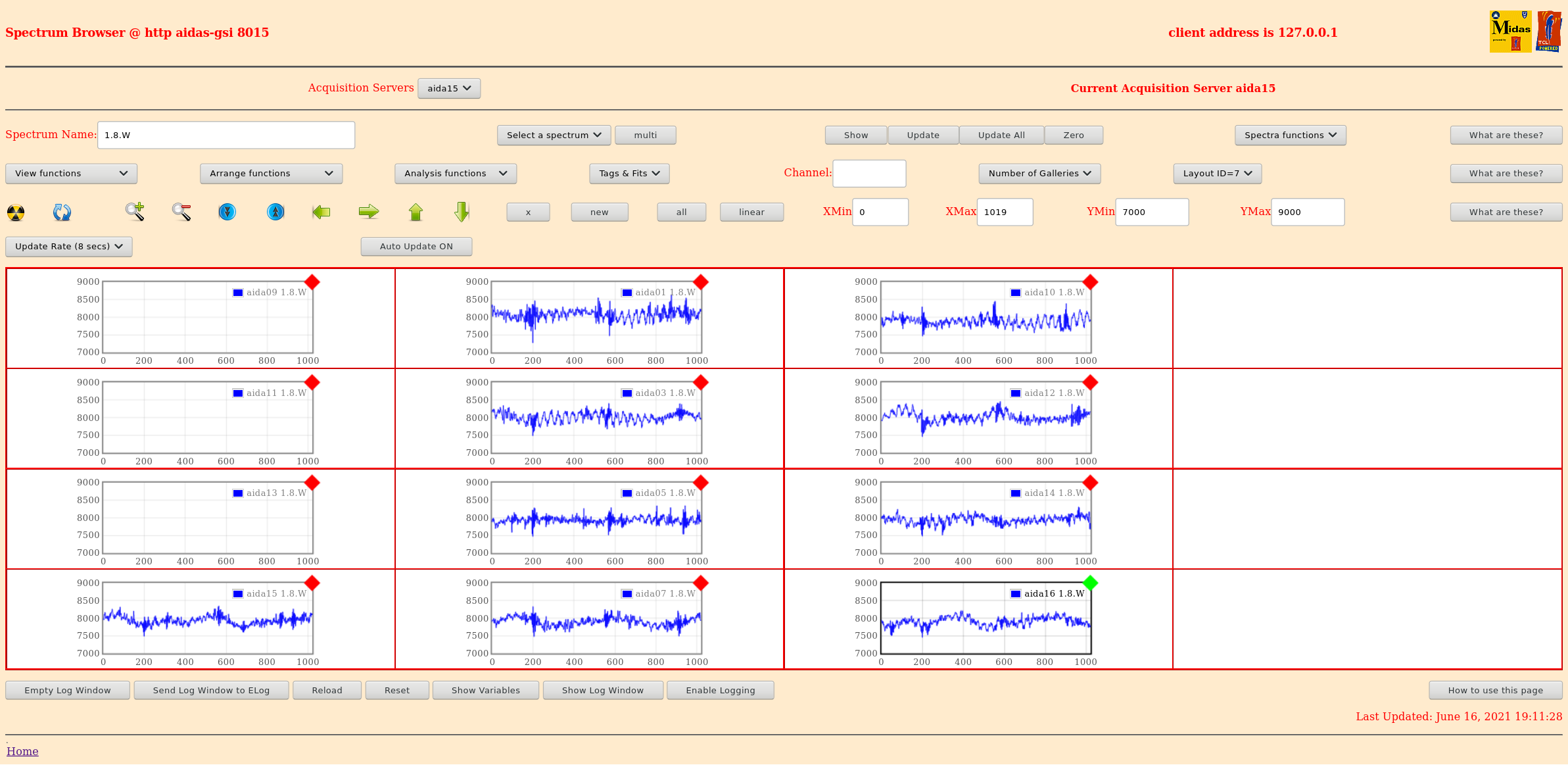

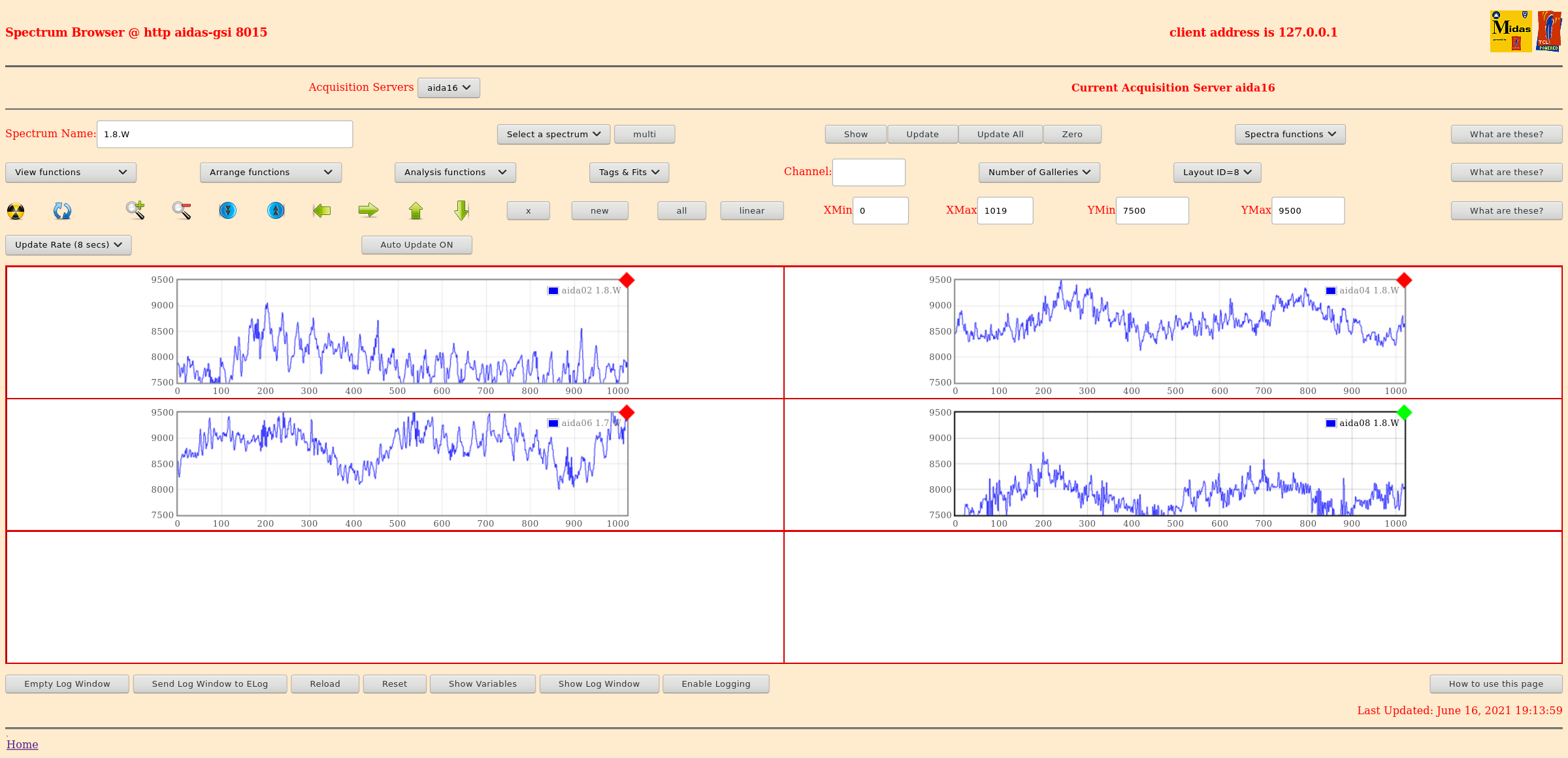

      1.8.W spectra - 20us FSR - attachments 3 & 4

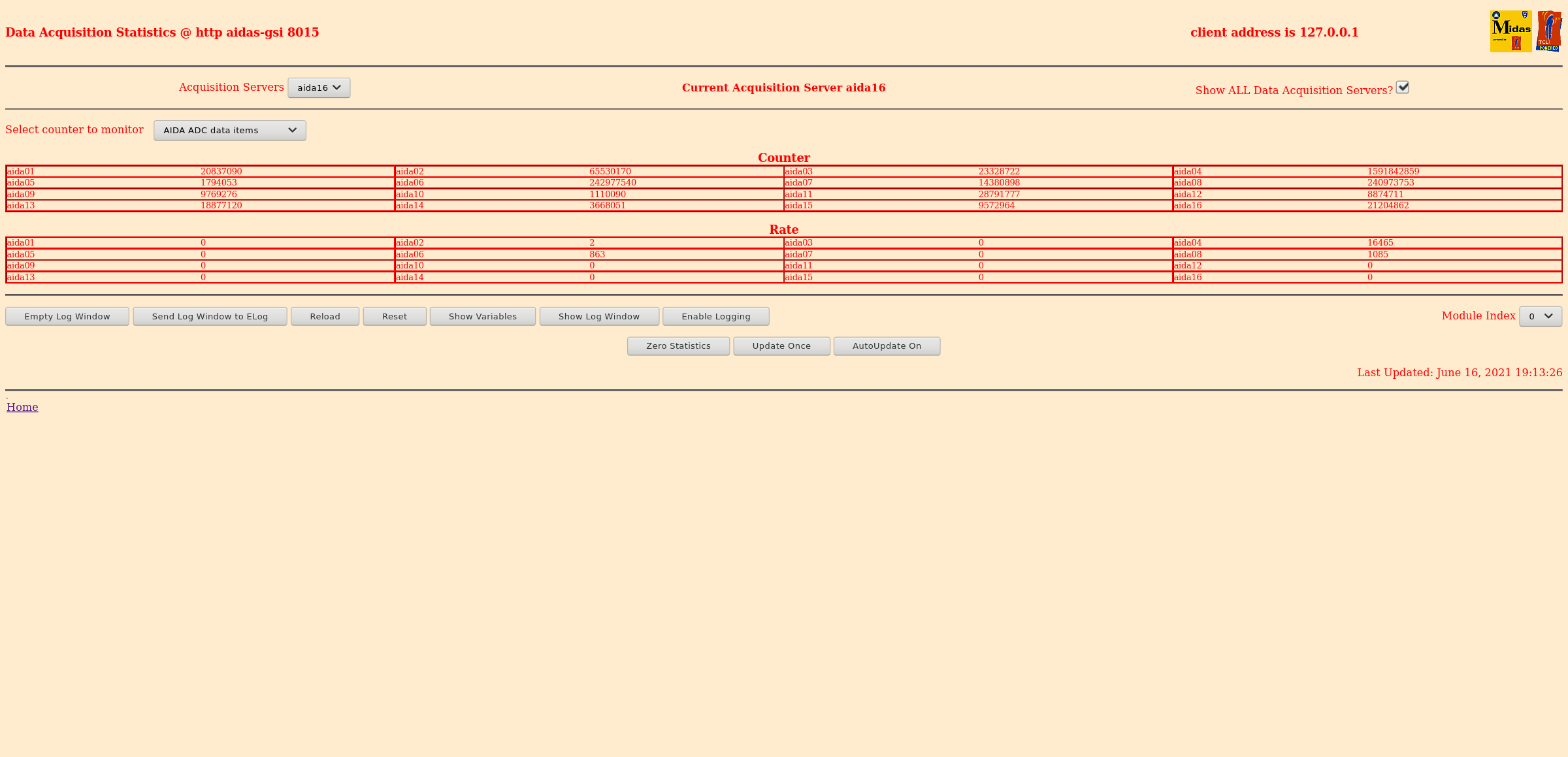

      ADC data items - attachment 5

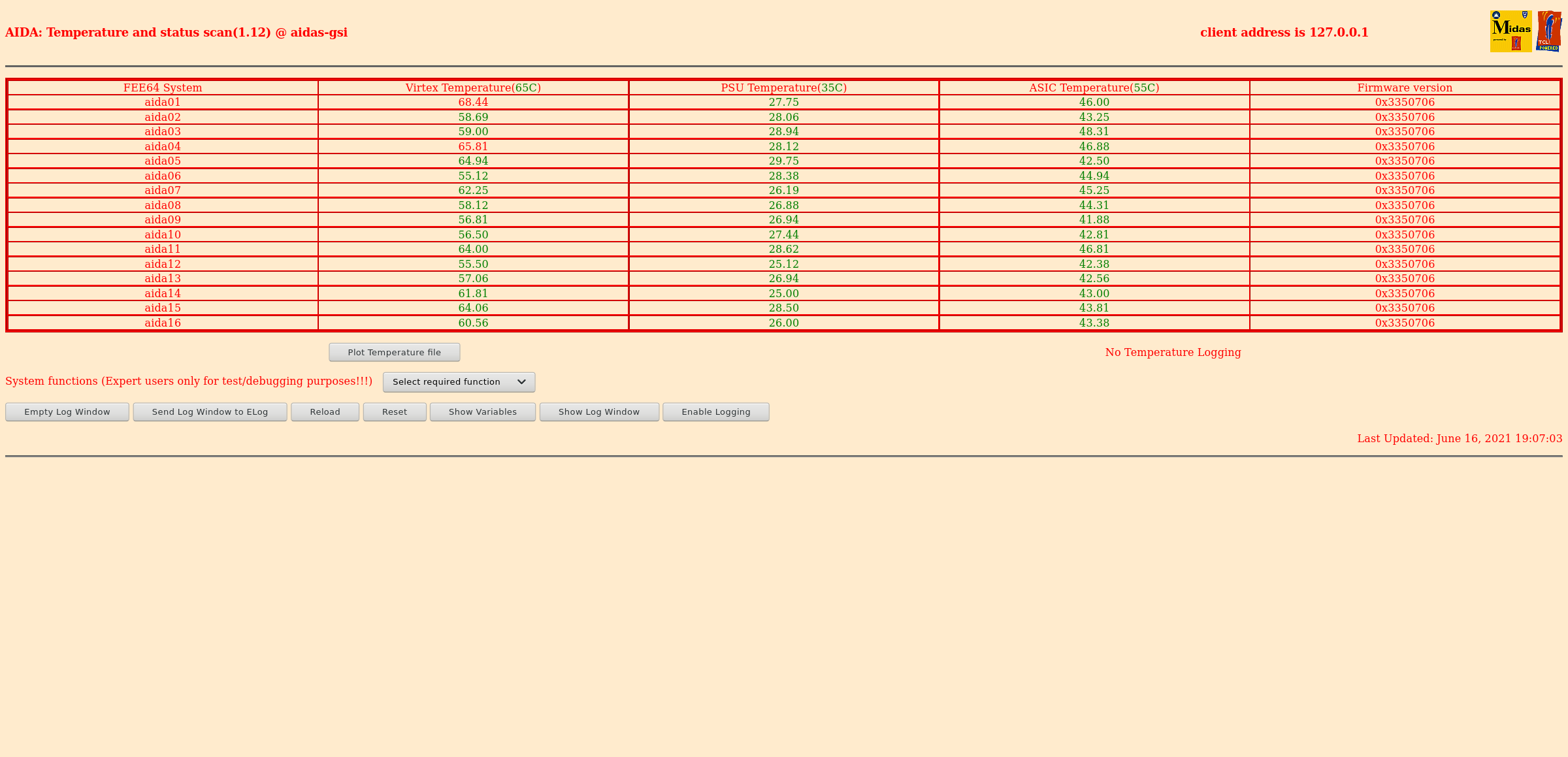

      FEE64 temperatures OK - attachment 6
      DSSSD bias & leakage currents - attachment 7
       significant increases of leakage current to c. 12uA - temperature c. 30 deg C
      Merger/Tape Server/Merger statistics - attachment 8
       no merger errors reported since previous restart
