AIDA adaptor PCB config - all LKs removed *except*

aida04 & aida08 LK1

aida02 & aida07 LK2, LK3 & LK4

aida09, aida01, aida10, aida11, aida15, aida12 & aida16 LK2 & LK4



10.05 check all ASICs all FEE64s
      zero histograms

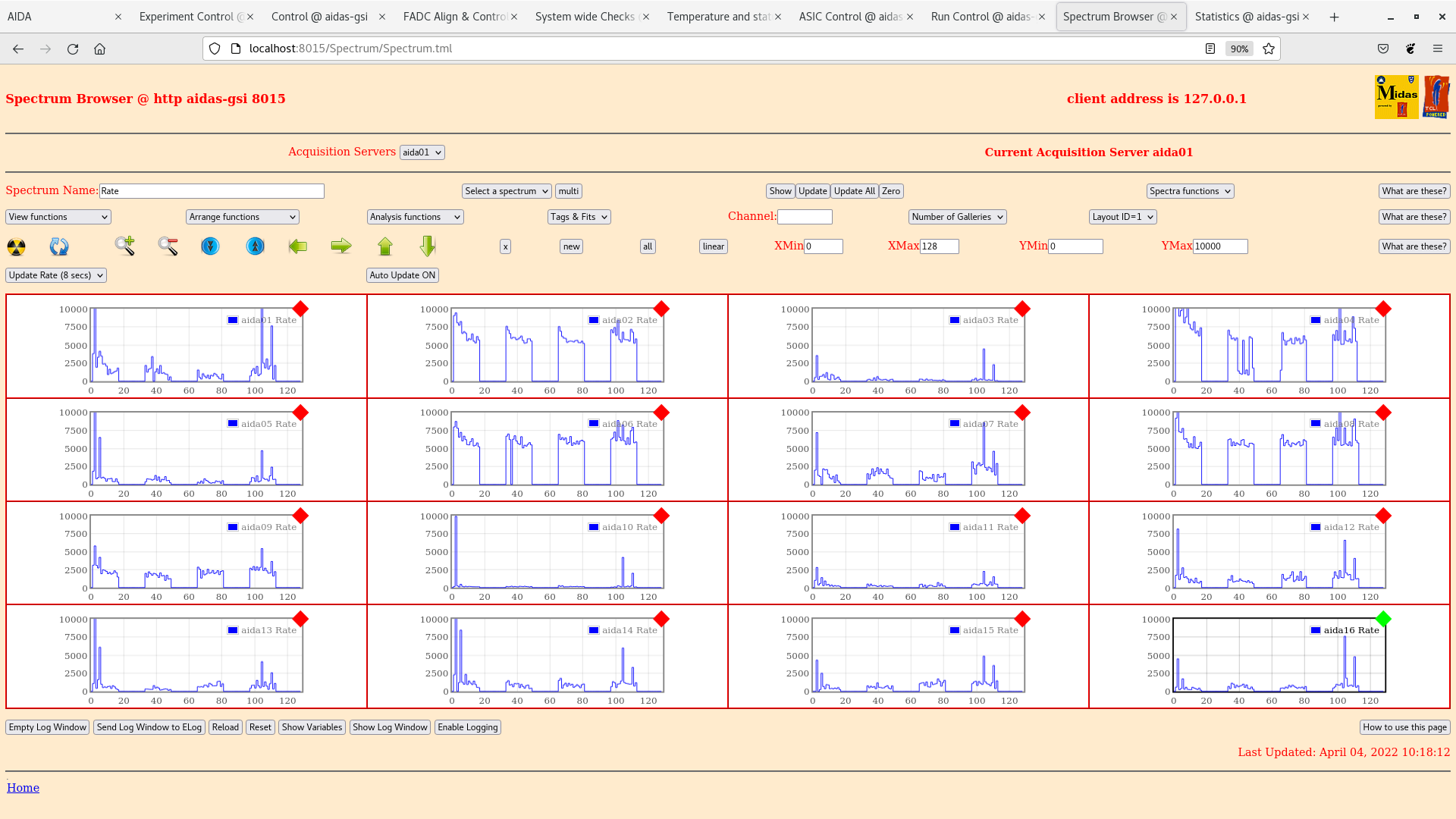

Attachment 1 per FEE64 rate spectra

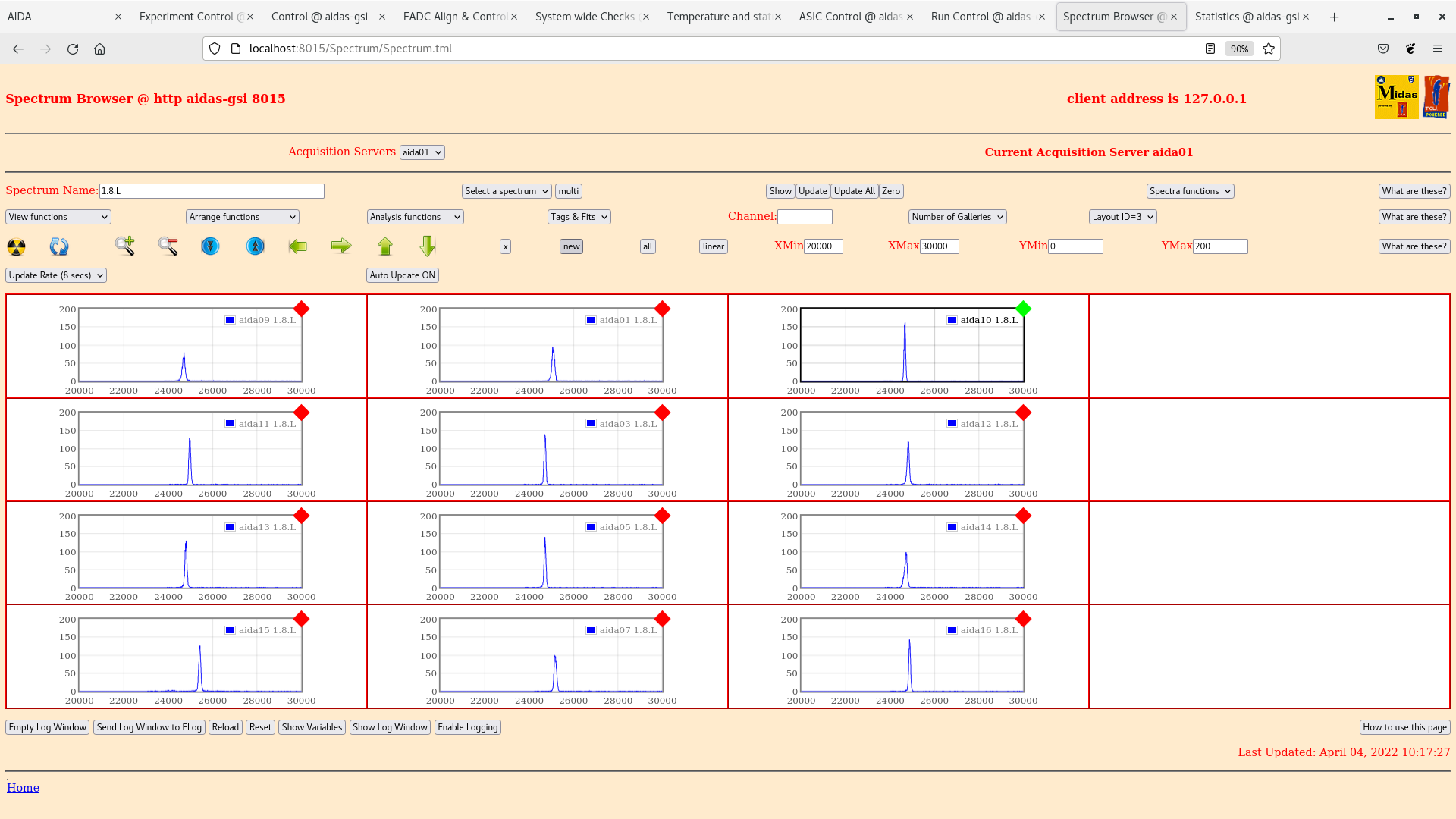

Attachment 2 per FEE64 p+n 1.8.L spectra - aida10 peak width 79 ch FWHM

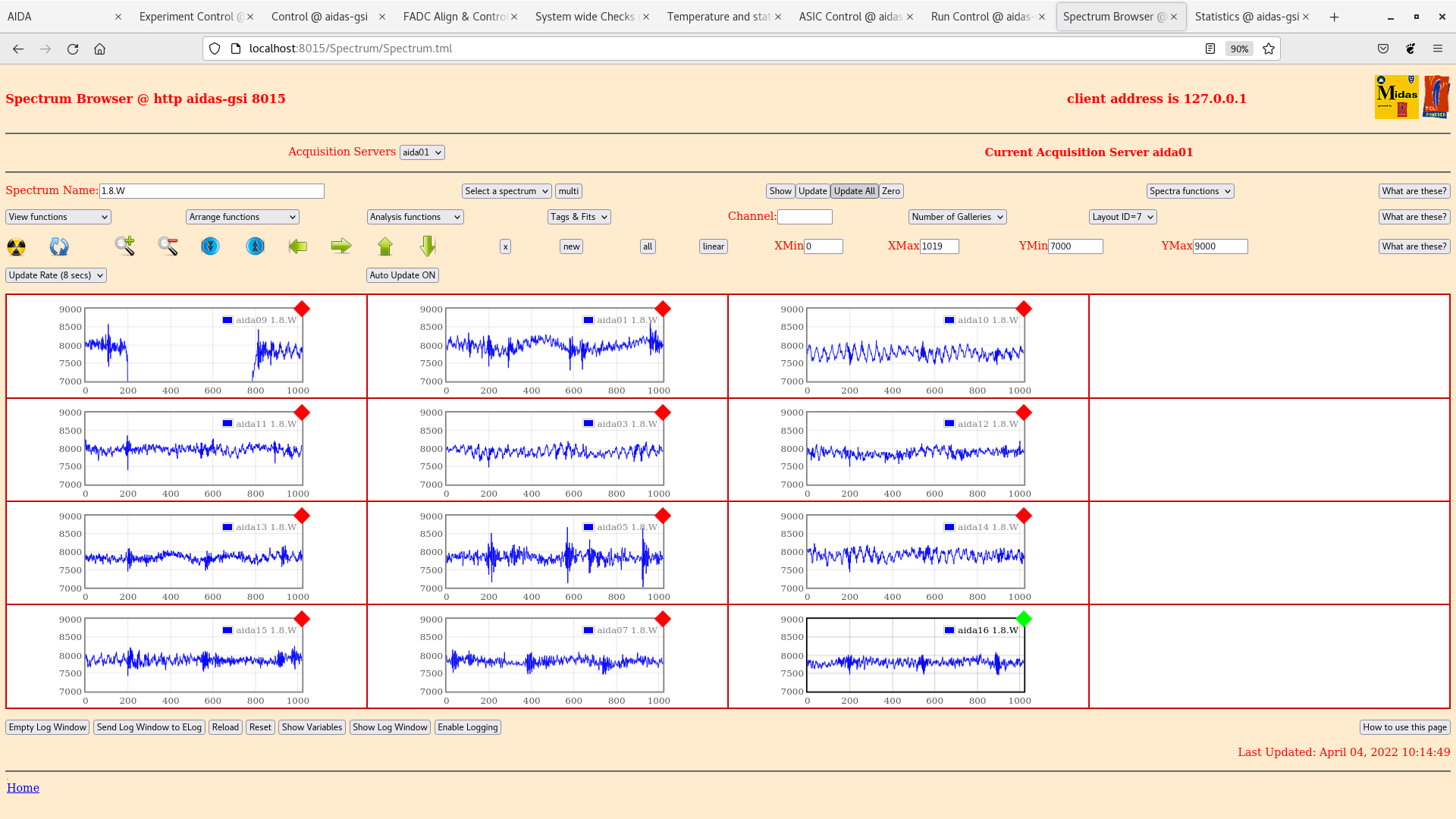

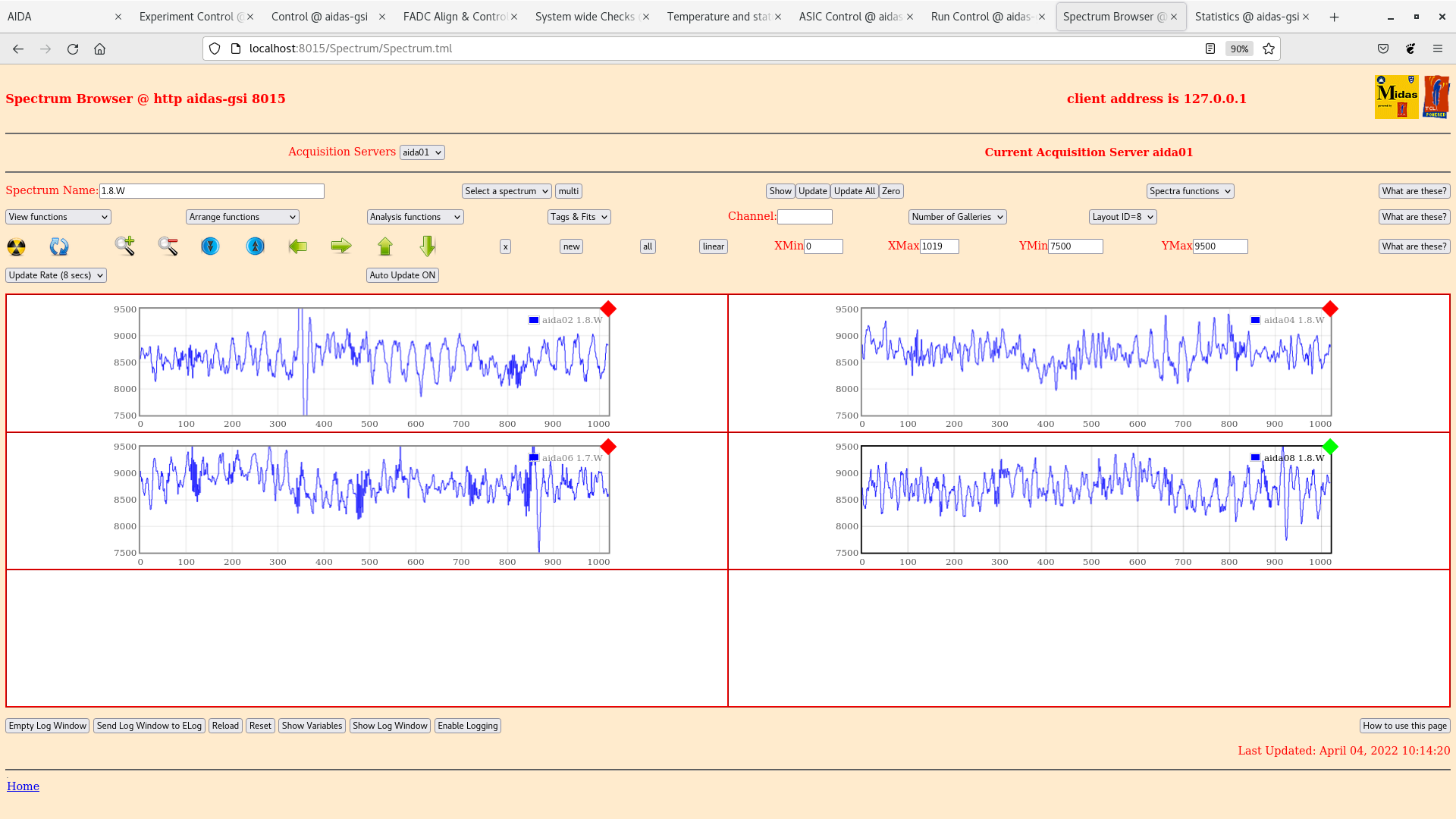

Attachment 3 per FEE64 p+n 1.8.W spectra 20us FSR

Attachment 4 per FEE64 n+n 1.8.W spectra 20us FSR

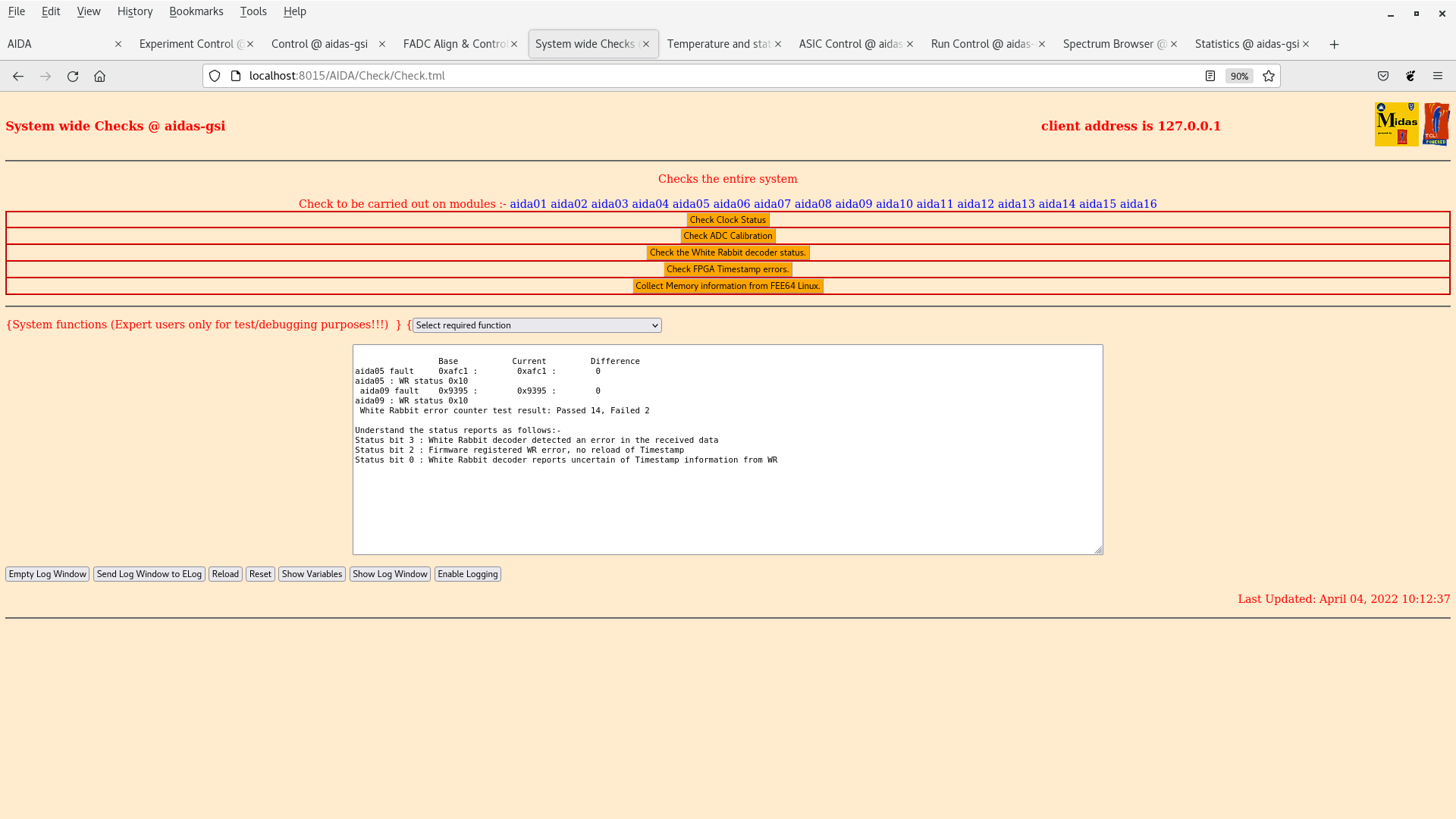

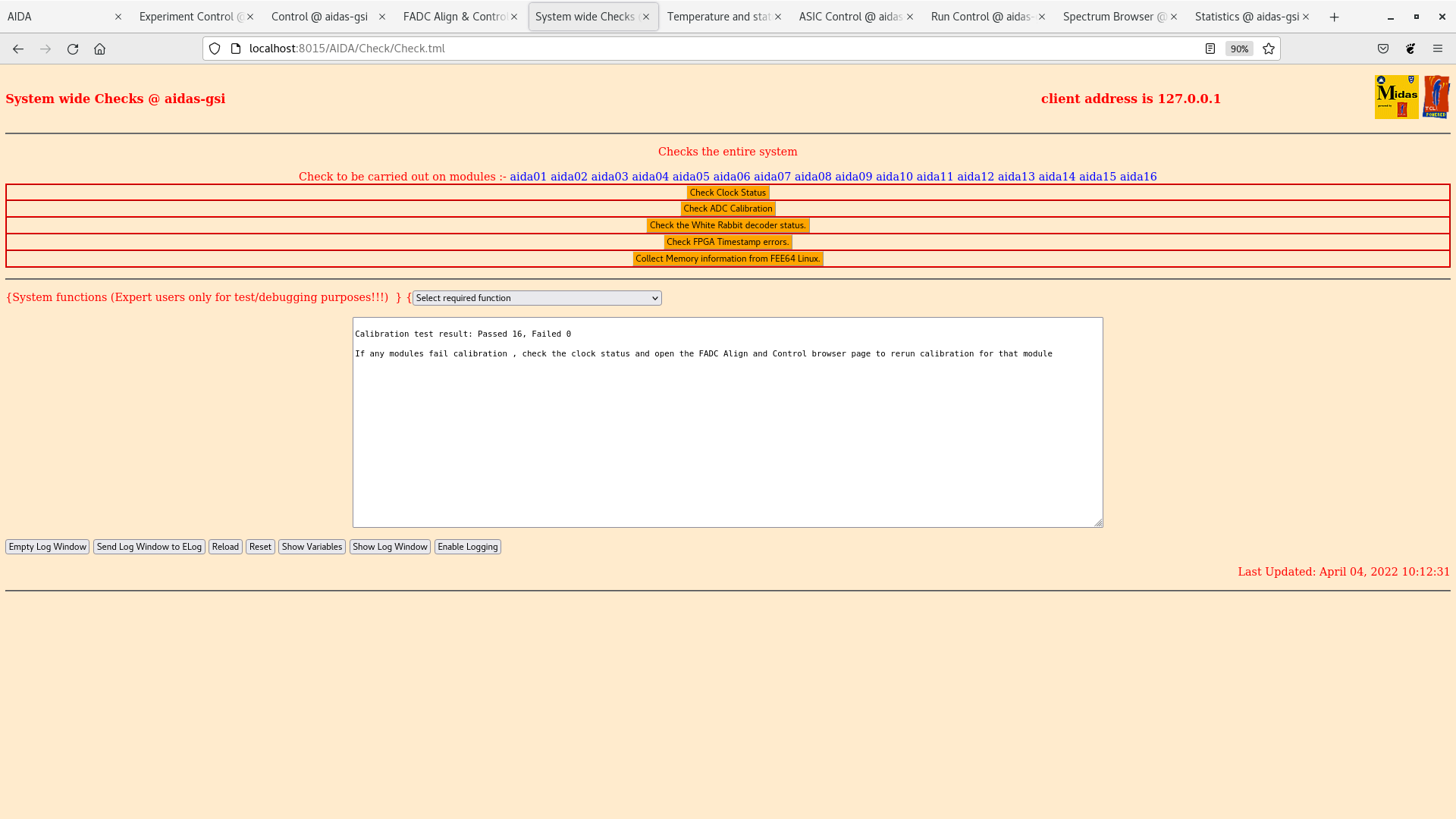

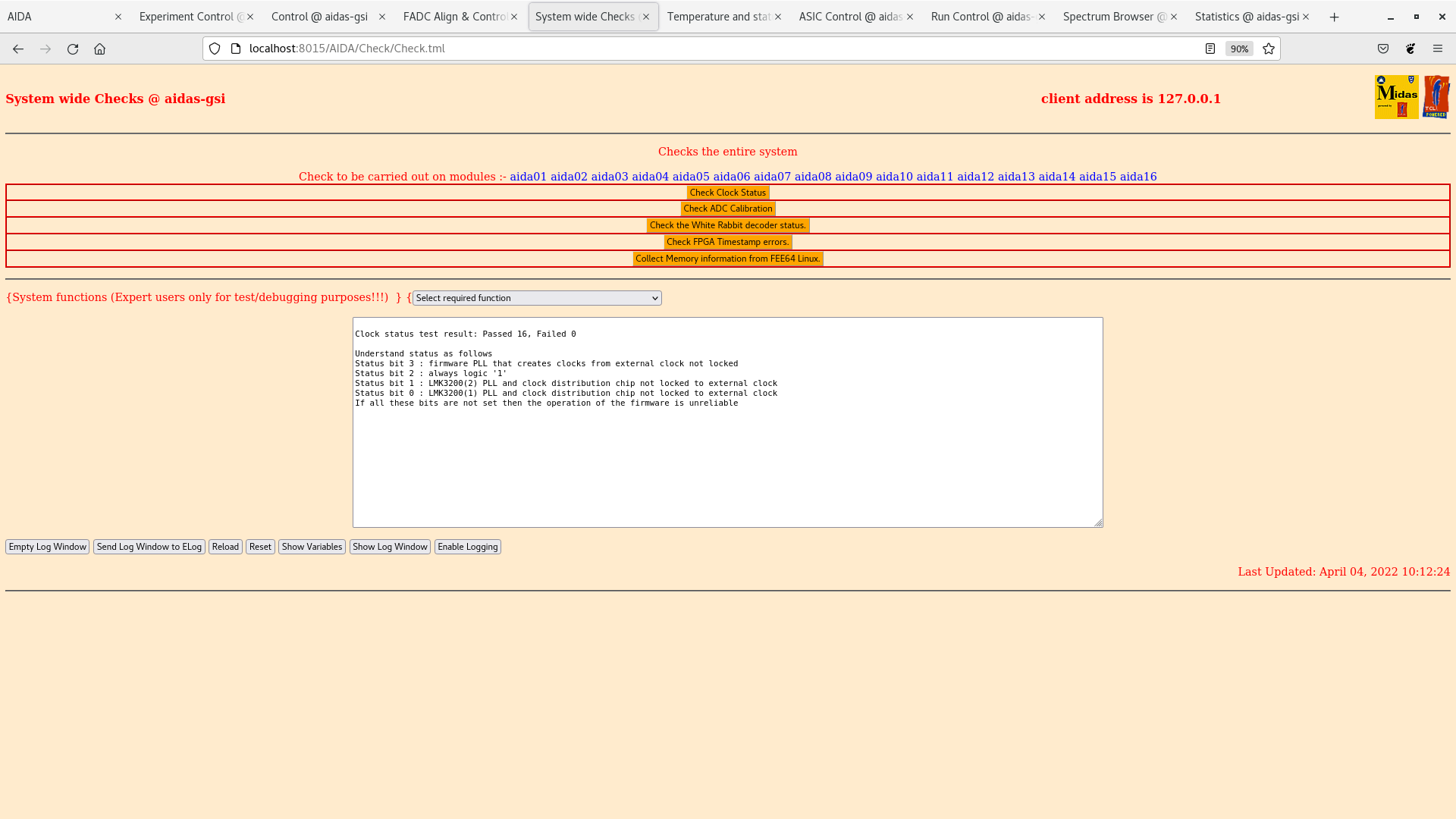

Attachments 5-8 - system wide checks - all OK *except*

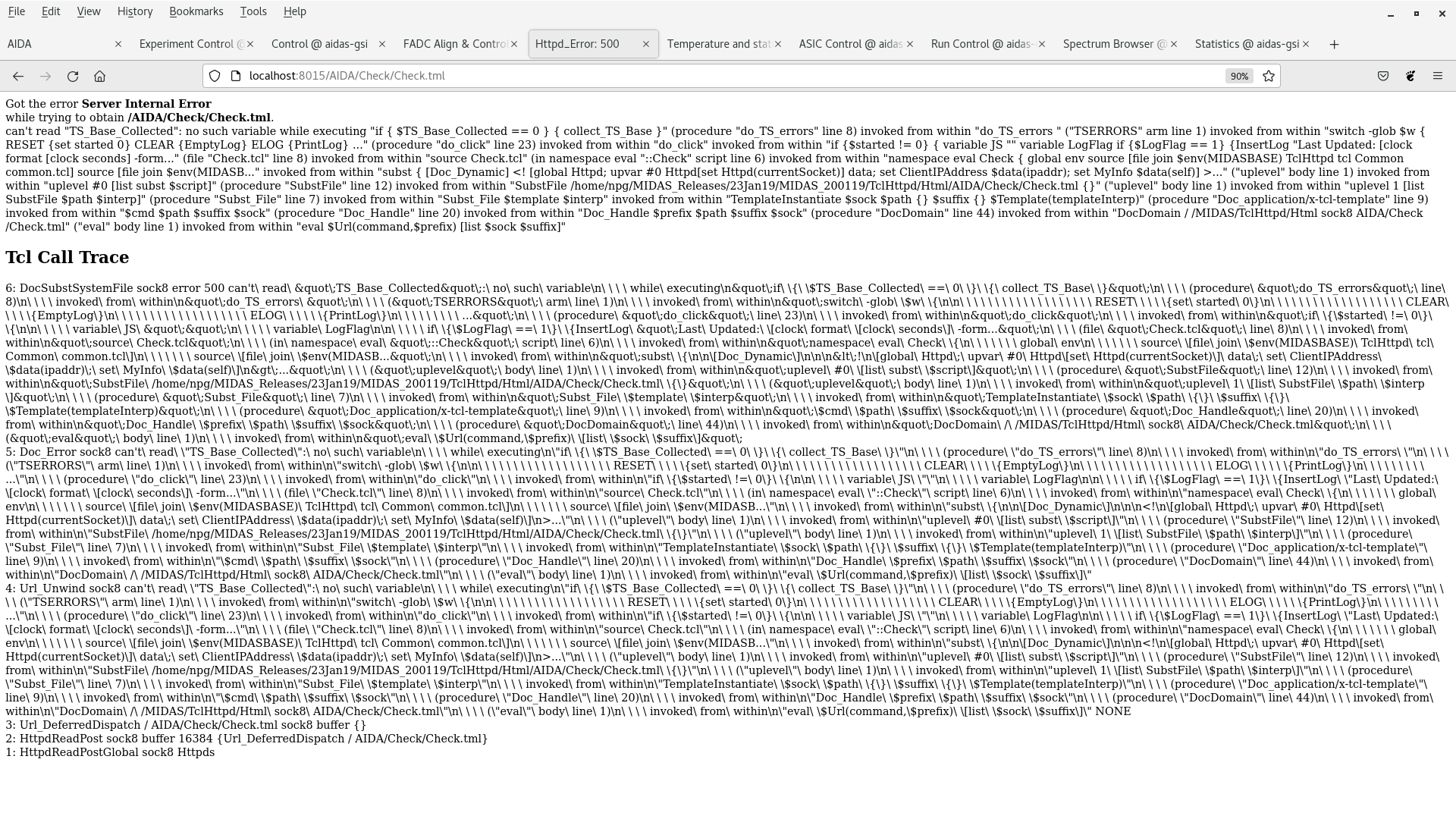

  FPGA timestamp errors no longer works
  aida05 & aida09 report WR decoder error 0x10

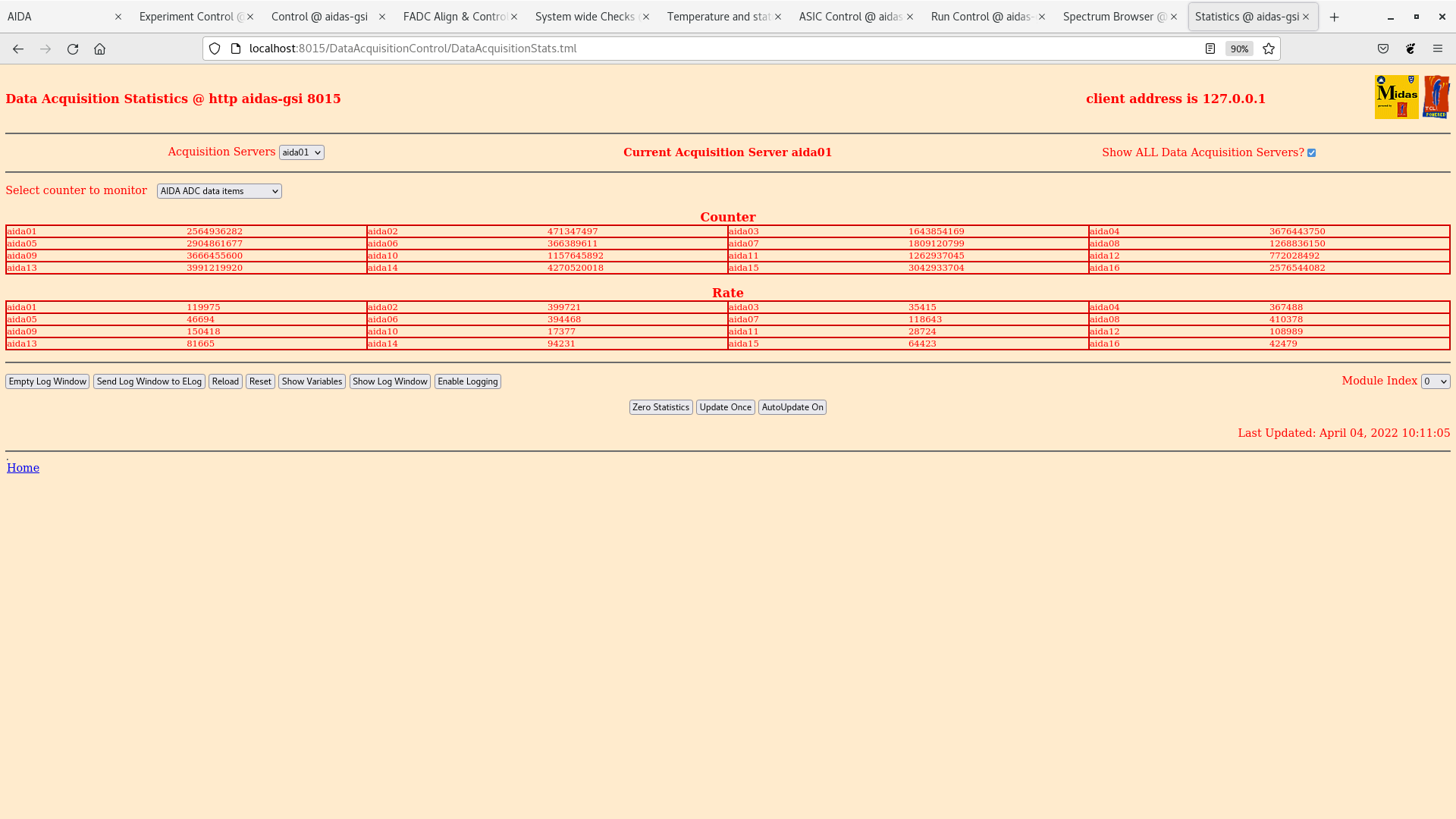

Attachment 9 ADC data item stats

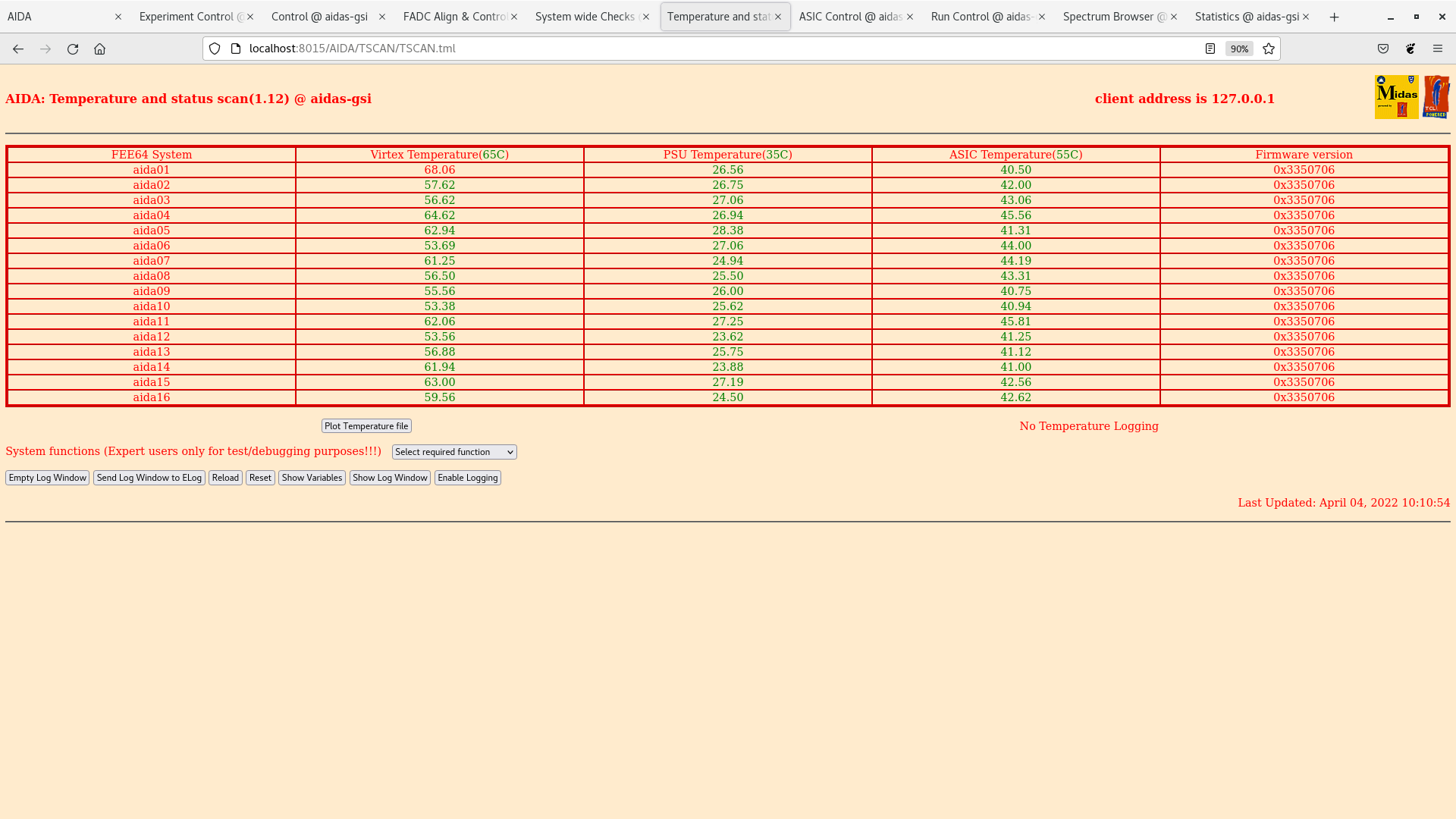

Attachment 10 FEE64 temps OK

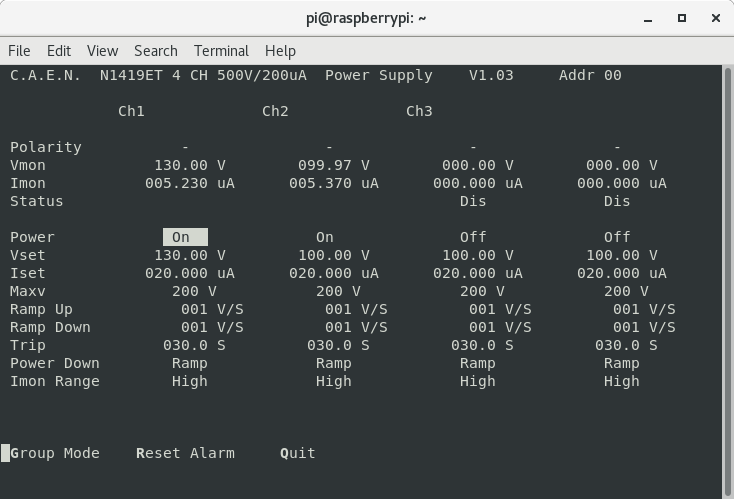

Attachment 11 DSSSD bias & leakage current OK

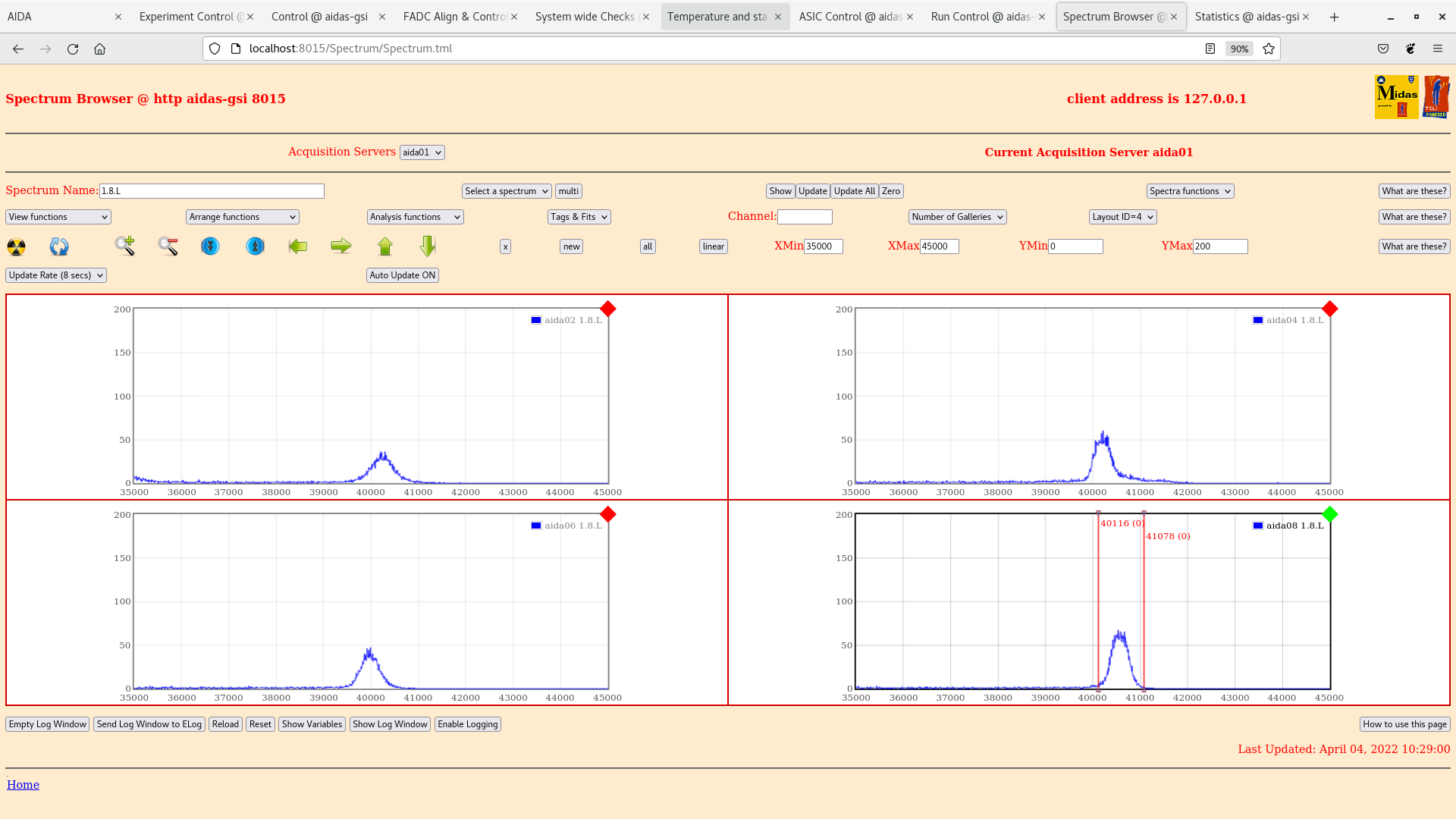

Attachment 12 per FEE64 n+n 1.8.L spectra - aida08 peak width 369 ch FWHM


14.25 DAQ STOP
      DSSSD bias OFF

      AIDA triple snout removed from AIDA stand and moved to table by aida-gsi (Messeheute)
