8:15am S4 CONTROLLED ACCESS to remove beam plug and check bPlas/AIDA response to beam

Reseat aida05 ribbon cable on adapter board while in...

No difference to rates, aida05 still shows hot asic01
aida14 seems seated OK, still asic02 basically empty

Noise level still high, threshold set to 0x20 (320 keV) which has decent rate

Start forwarding to MBS with 0x20 thresholds

10.12 slow comparator 0x20 -> 0xa

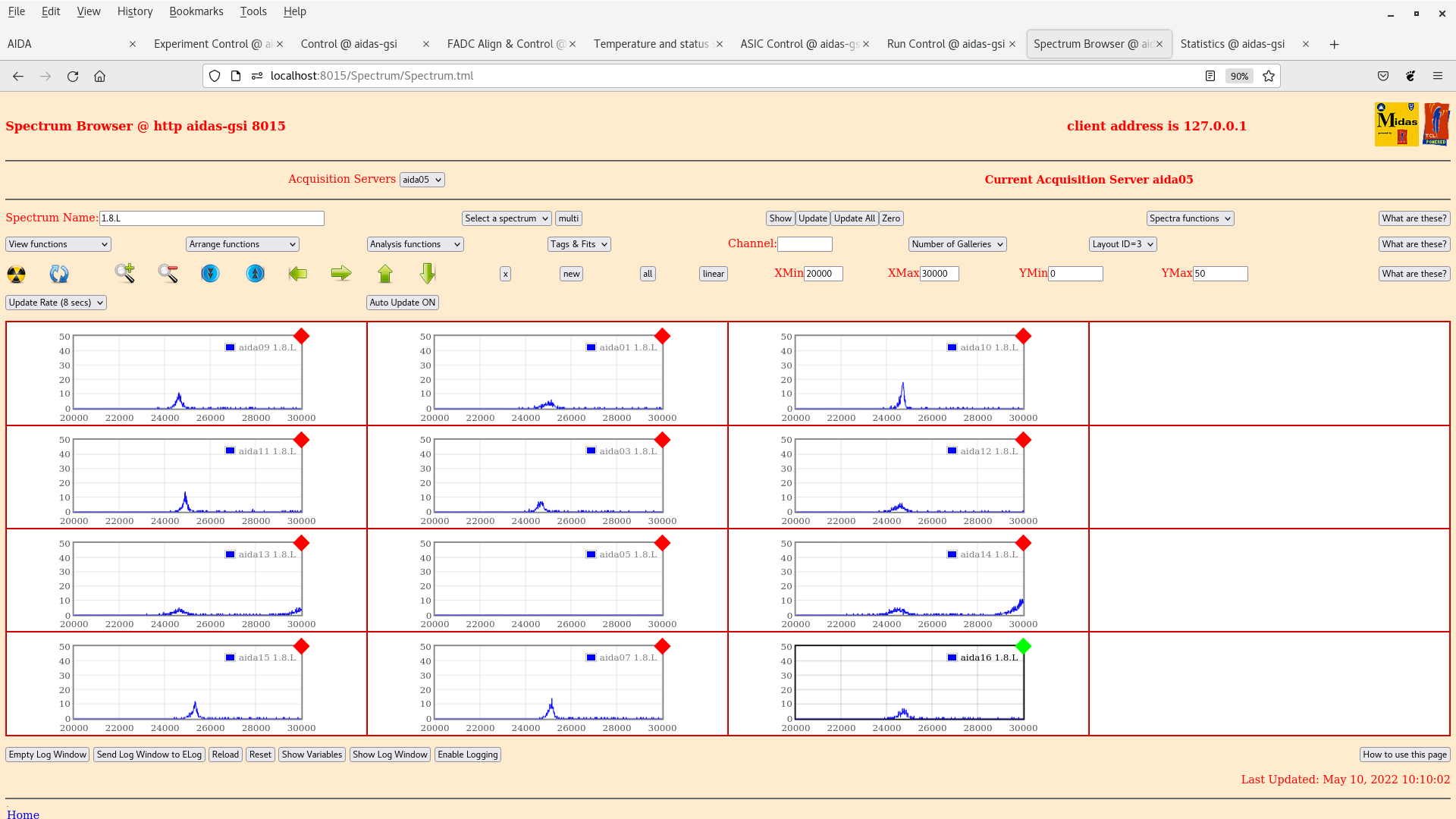

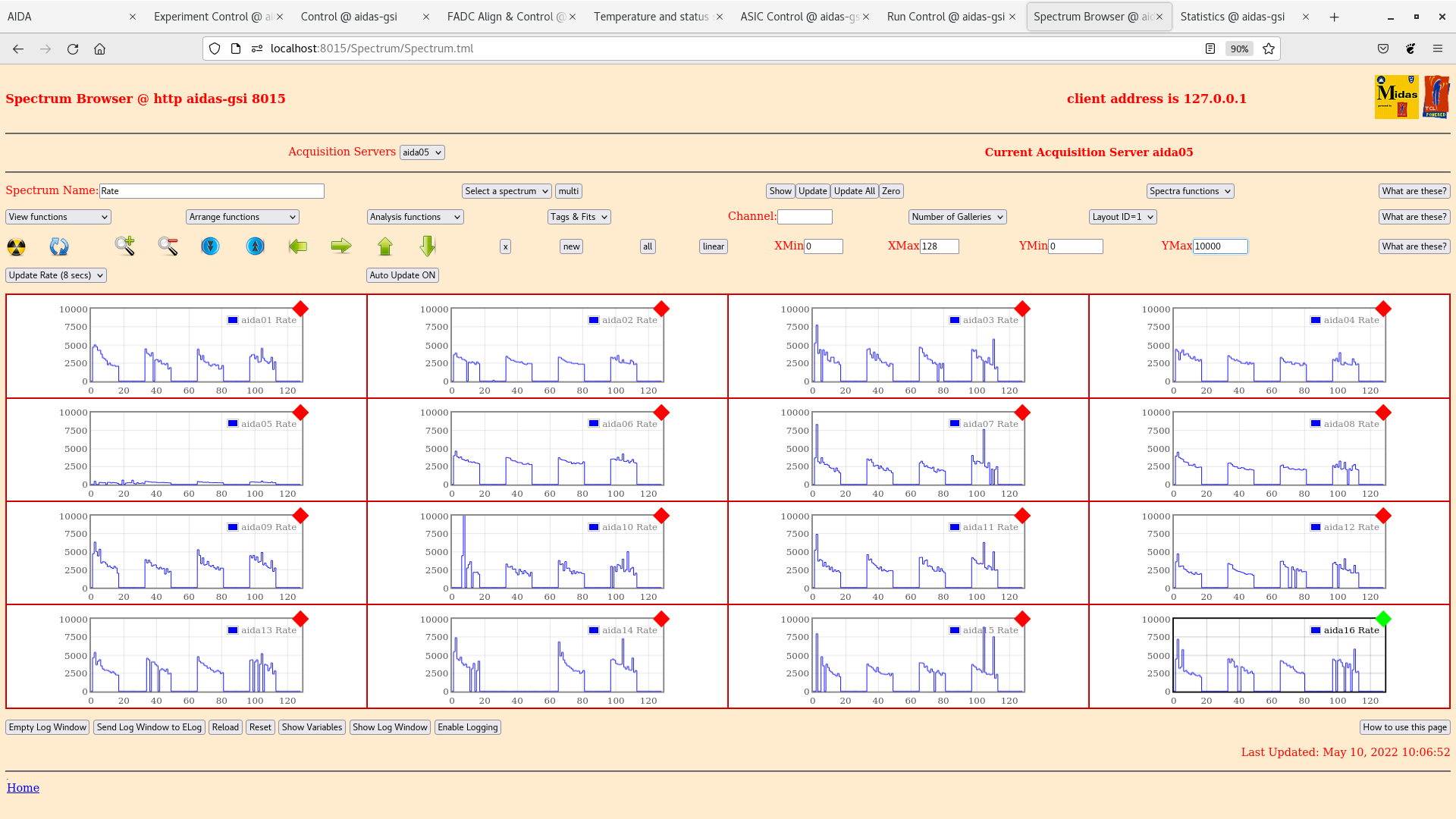

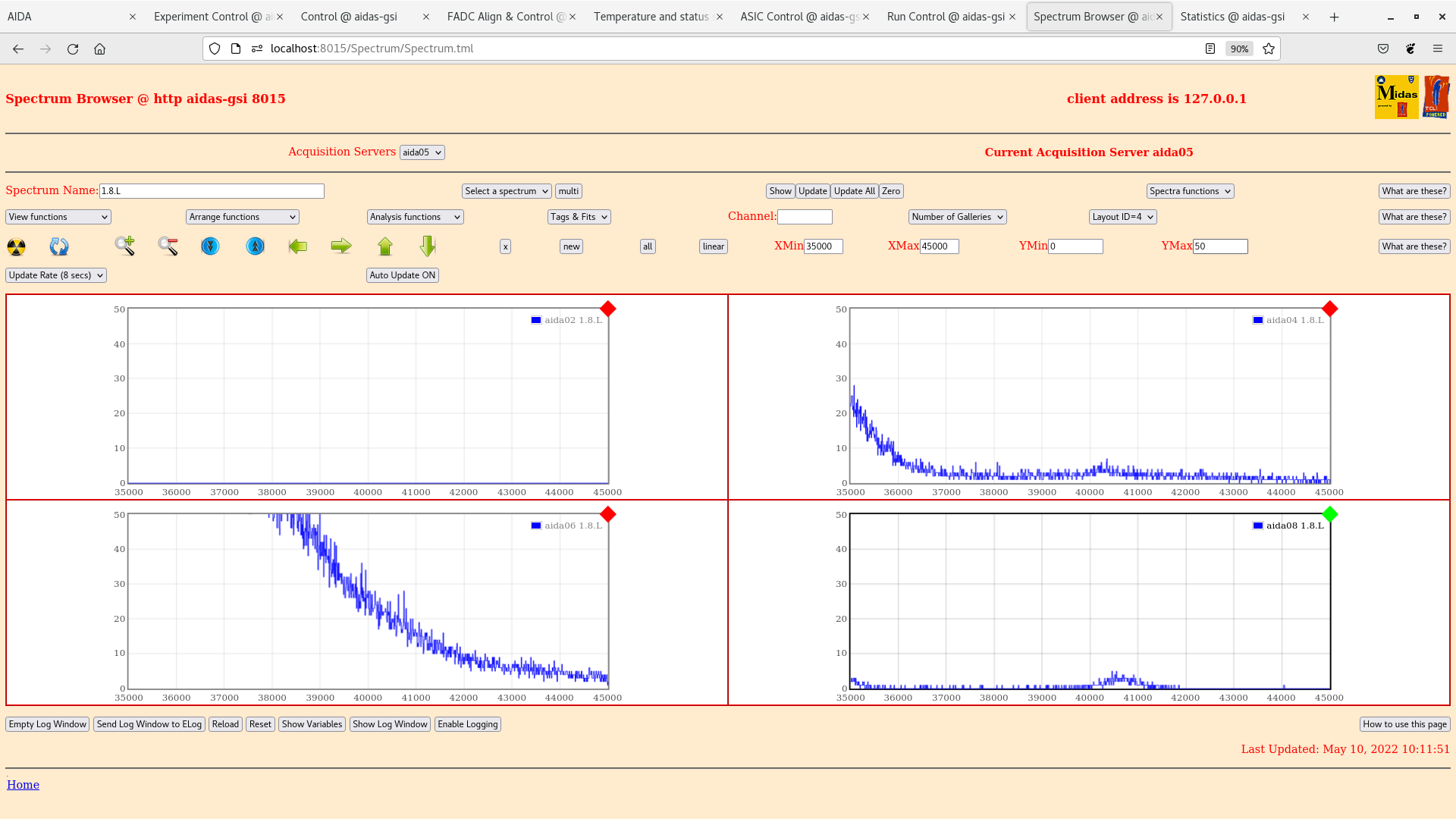

Attachments 1-5

Attachment 6 ADC data items
             c. 150-180k per FEE64, c. 21Mb to disk

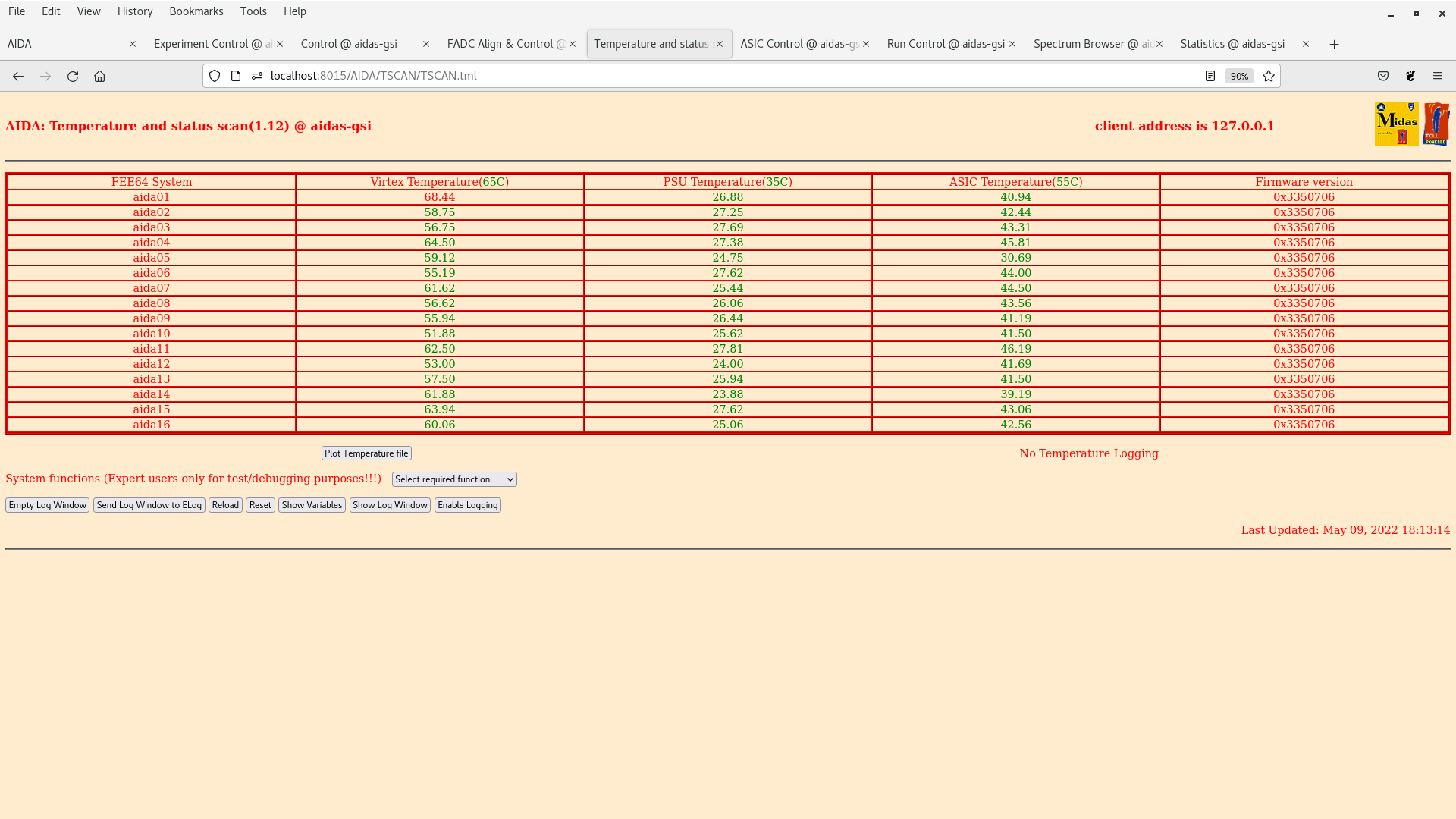

Attachment 7 FEE64 temps OK

Attachment 8 DSSSD bias & leakage currents OK


13.30 system checks

      N.B. aida05 ASIC temp low and pause/resume data rate high

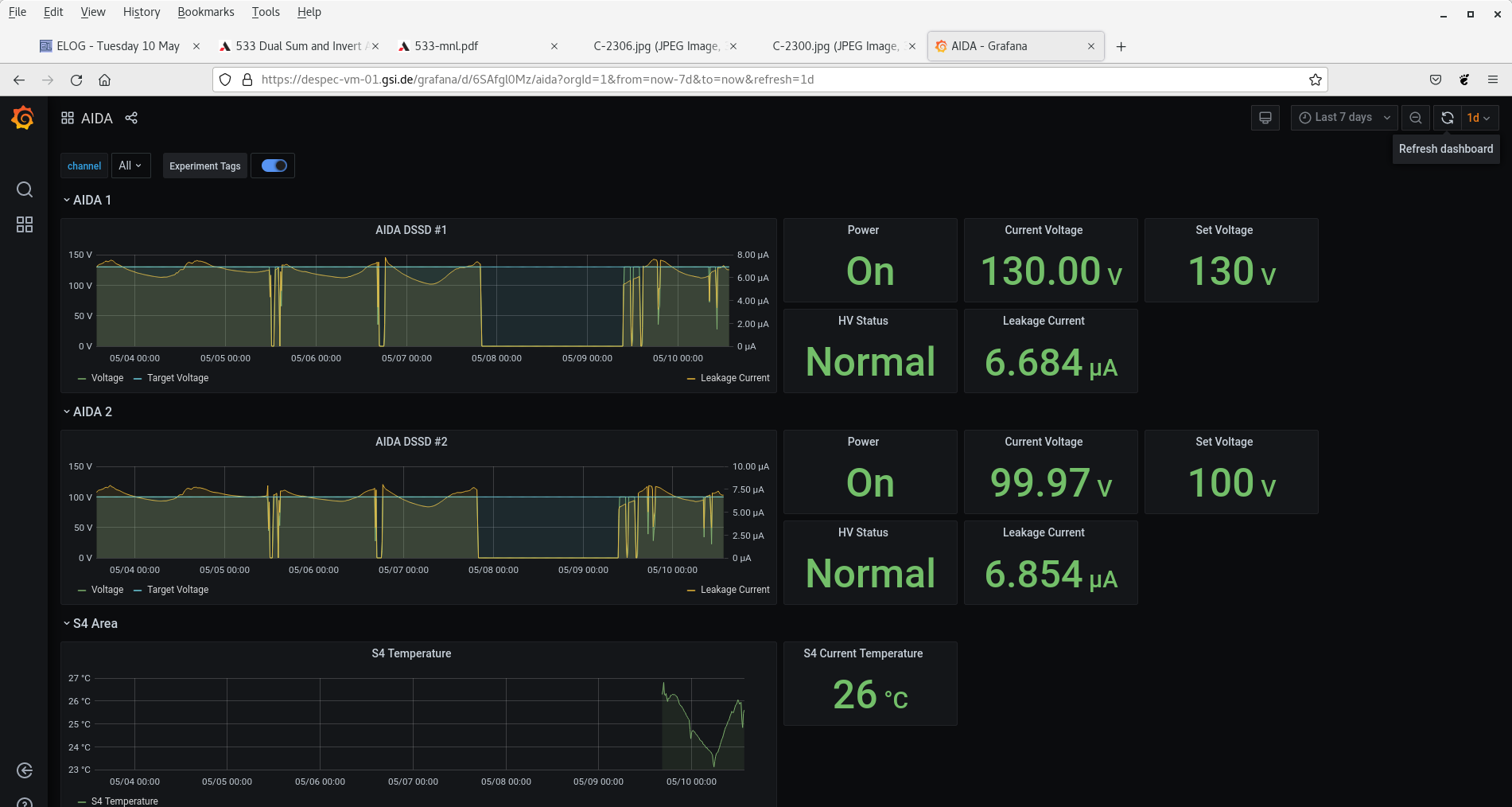

Attachment 9 grafana monitor of DSSSD bias & leakage current & temperature OK

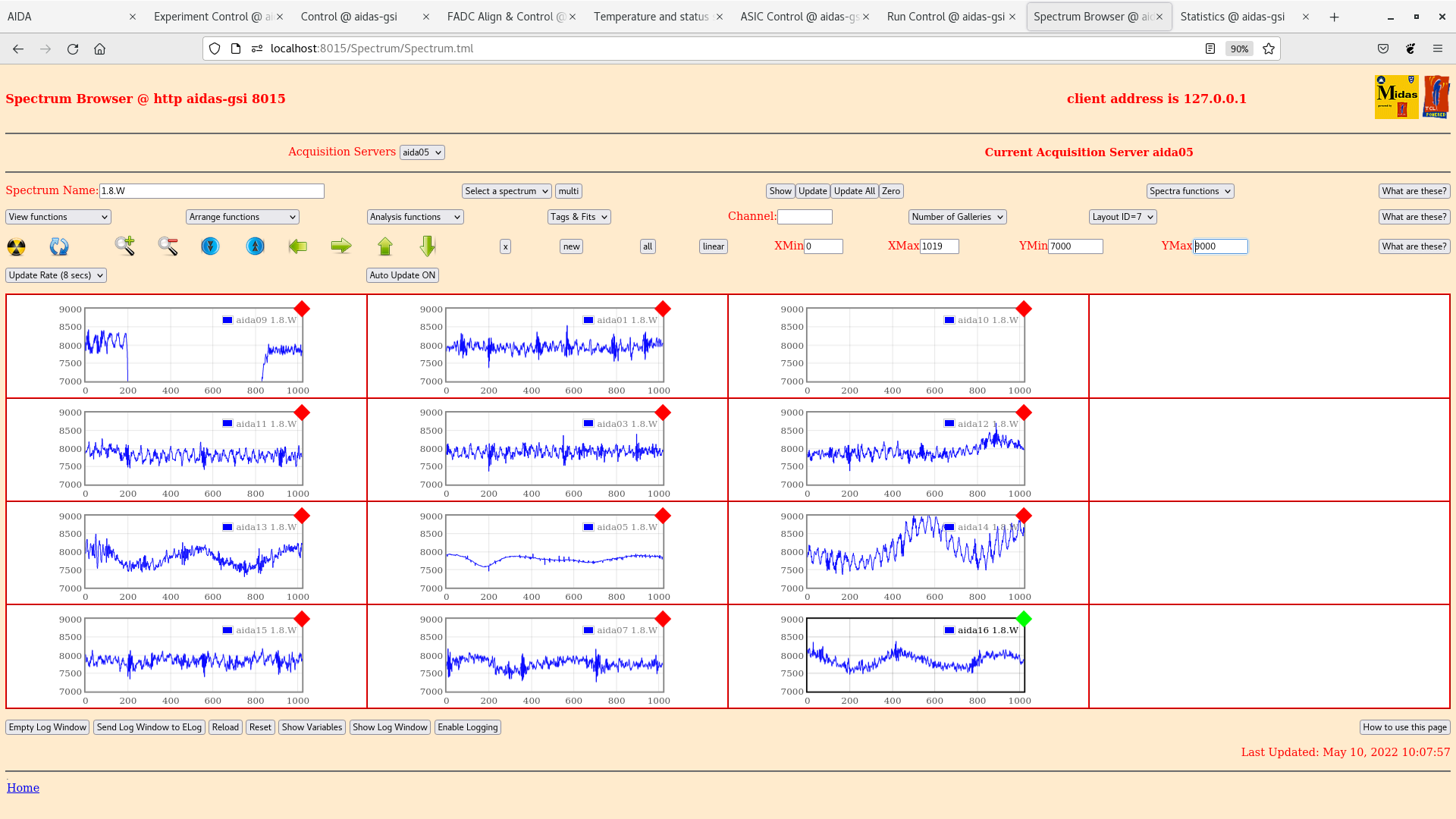

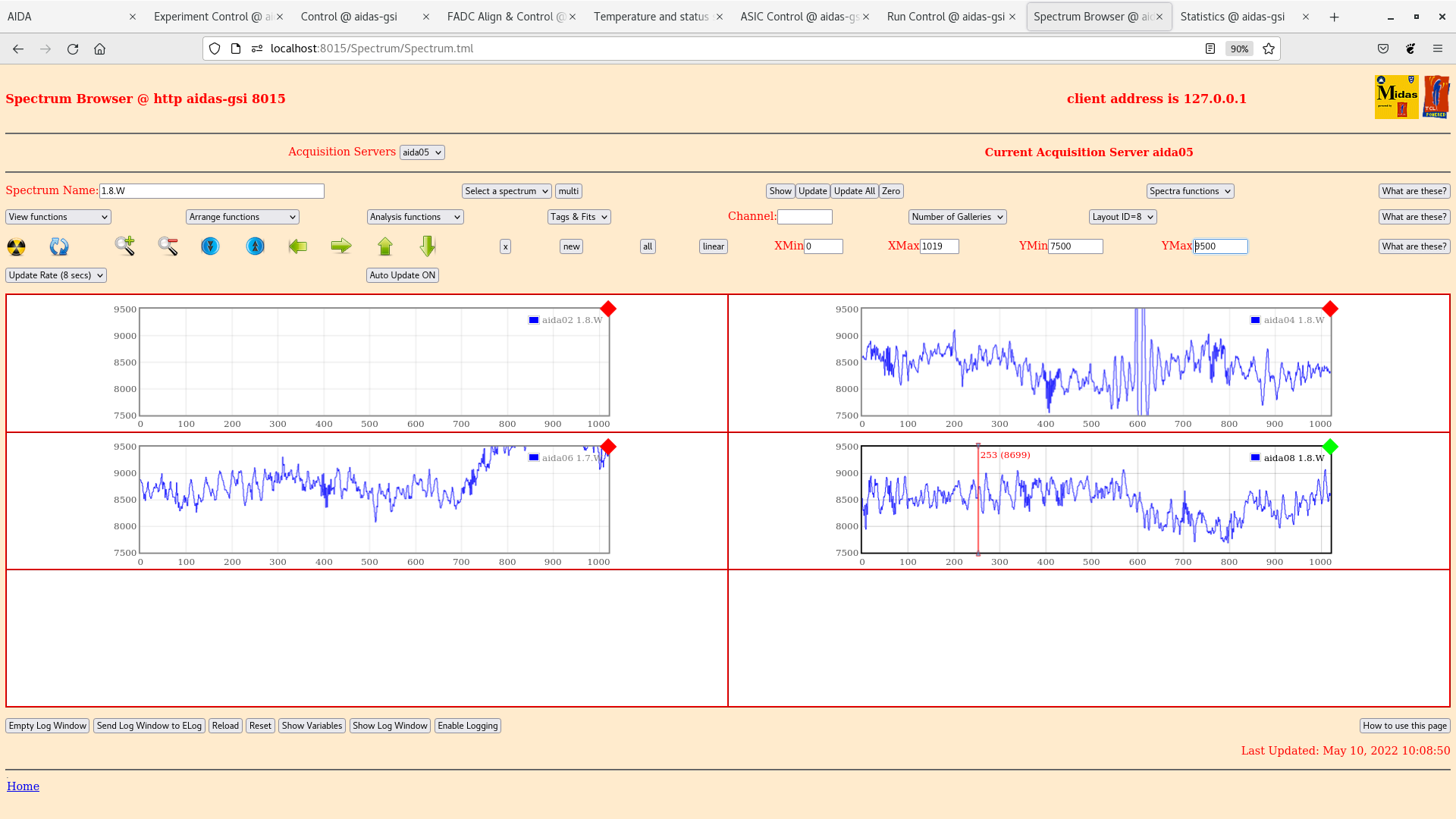

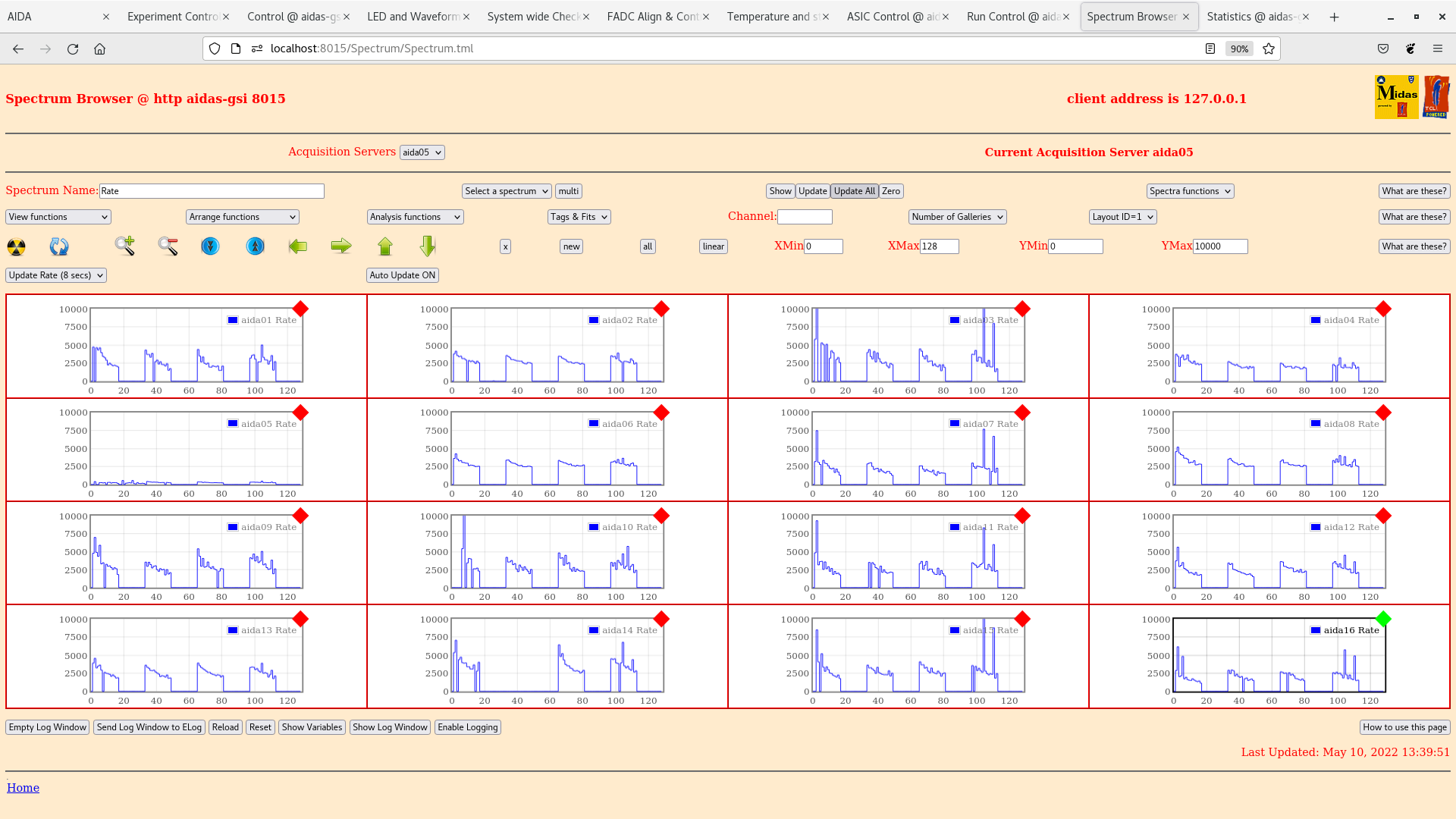

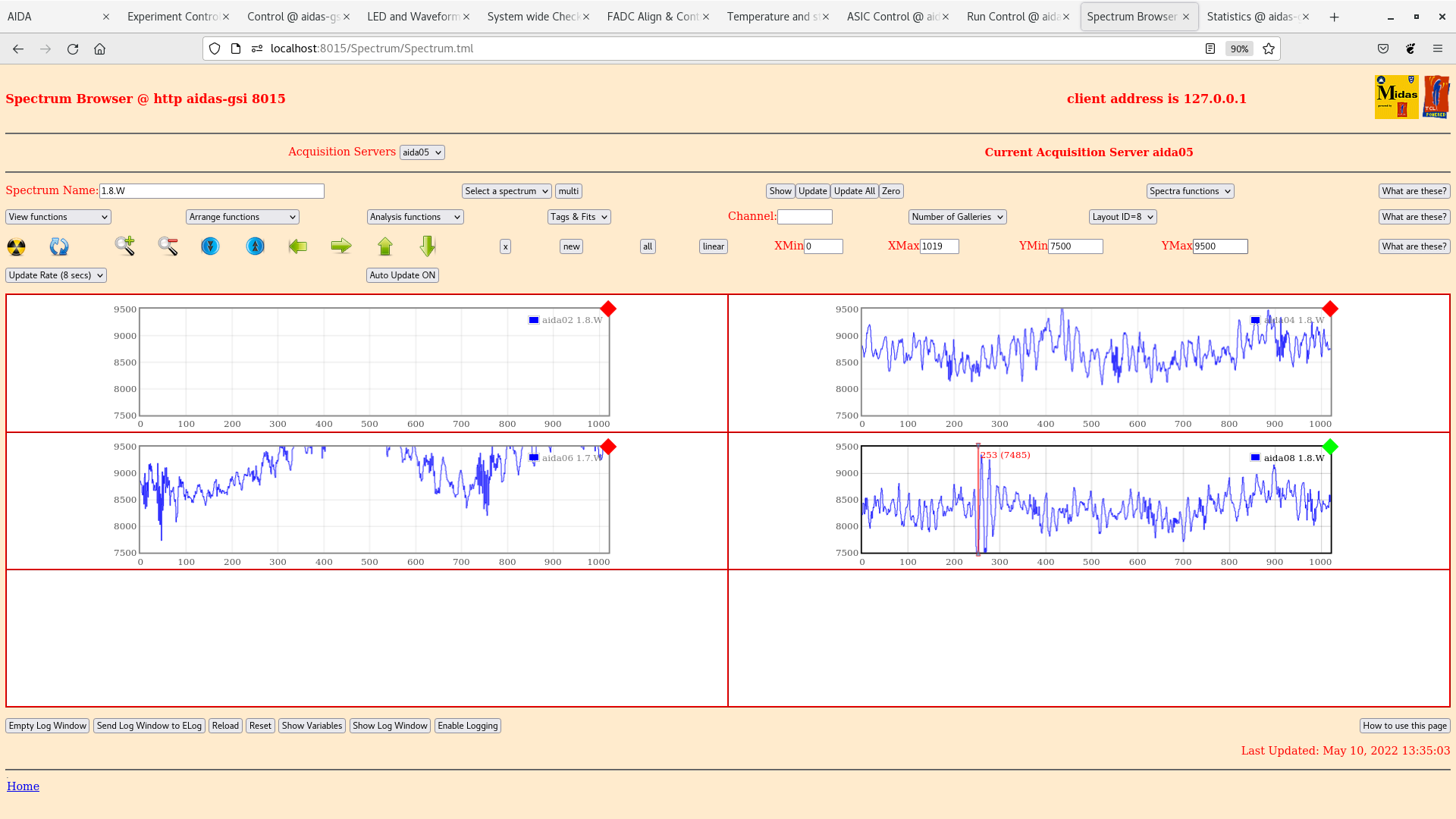

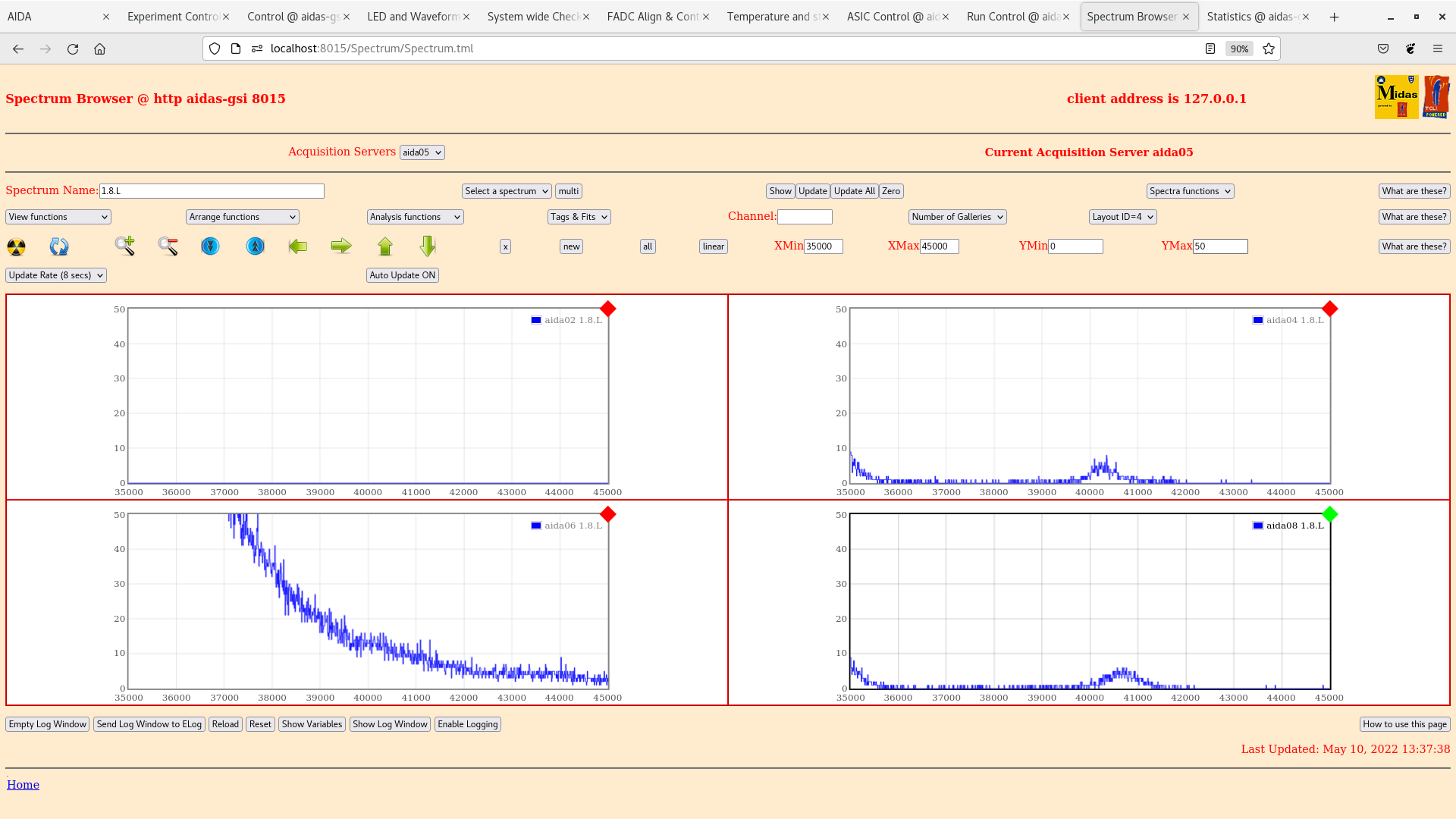

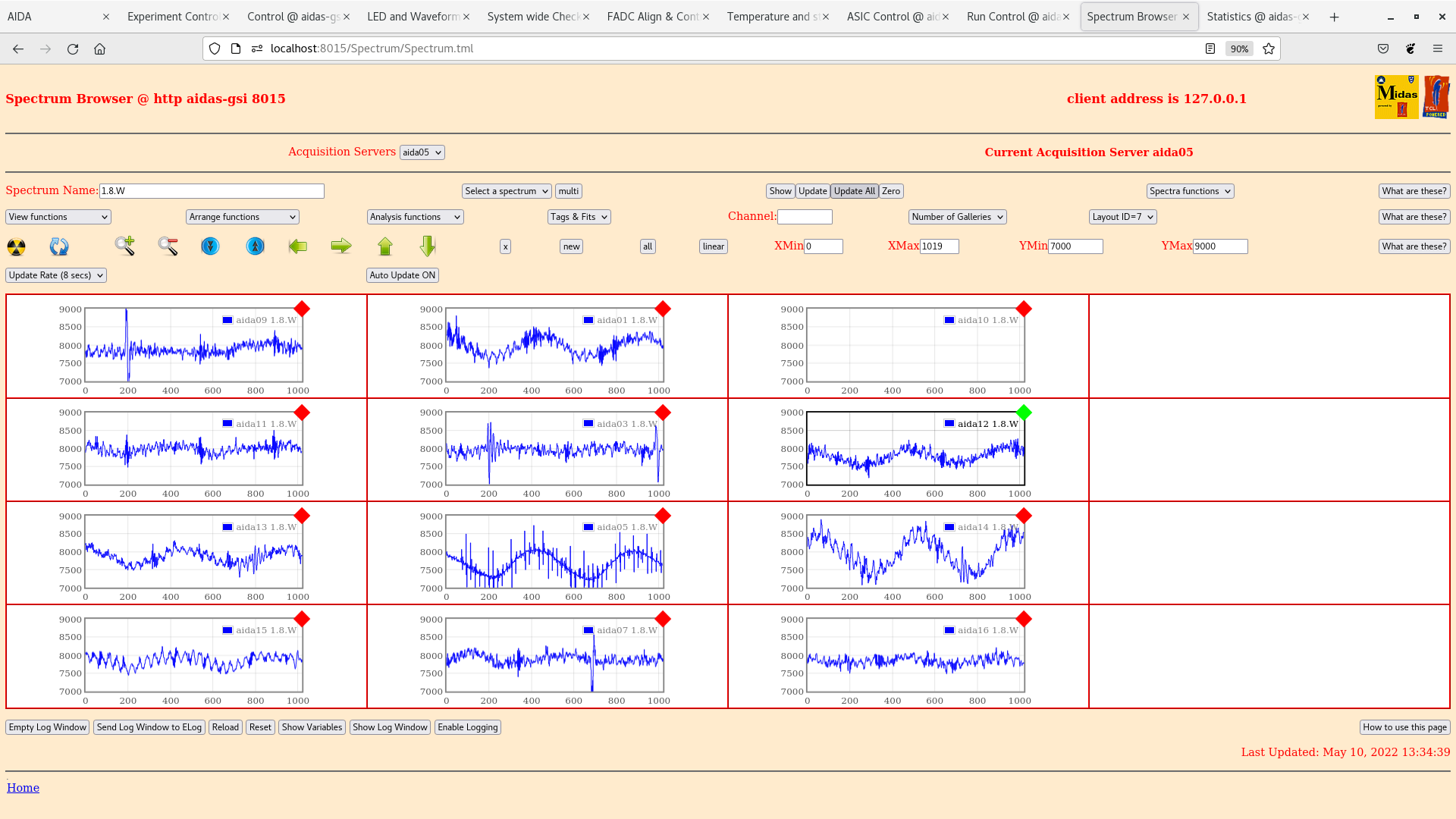

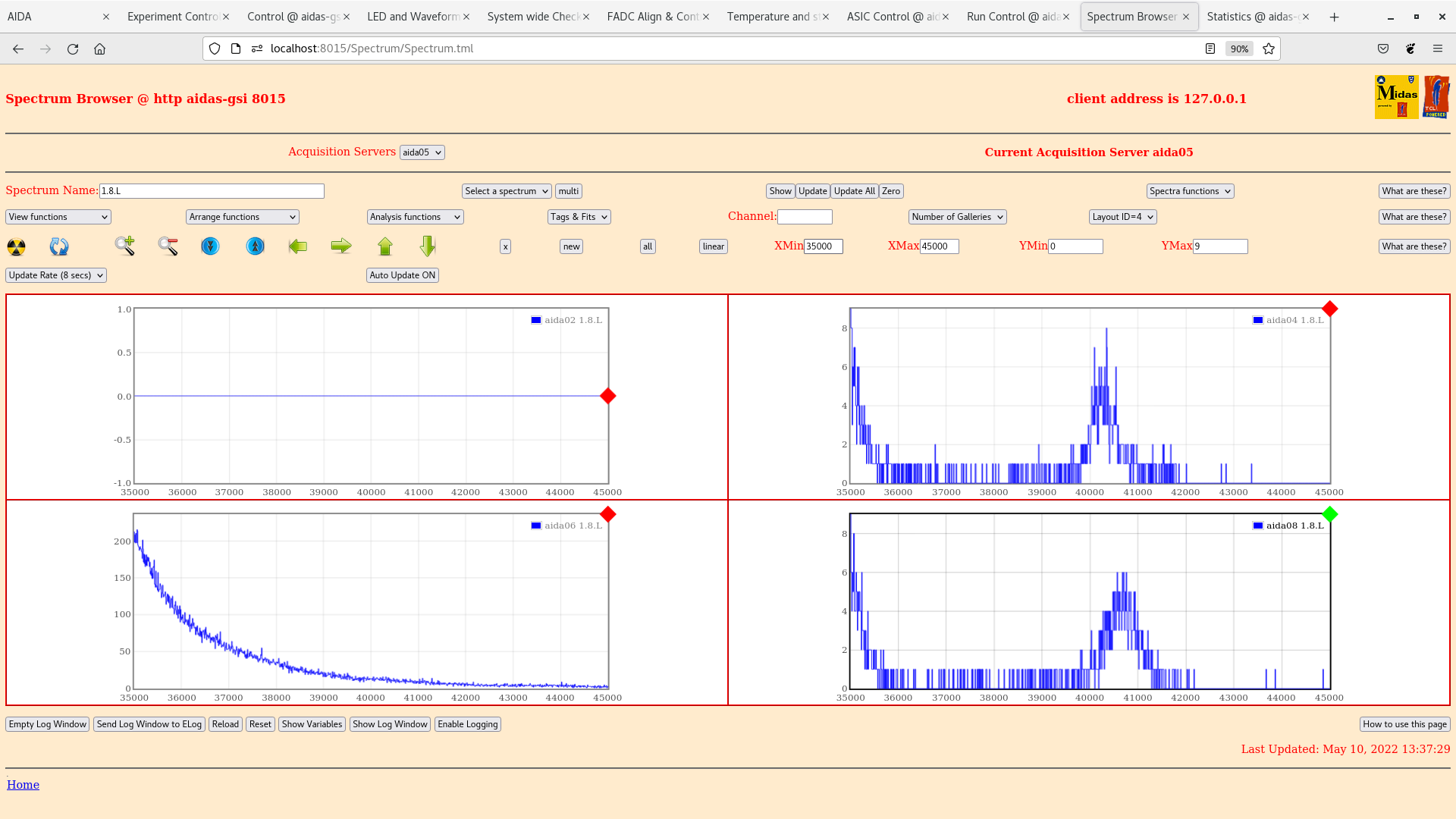

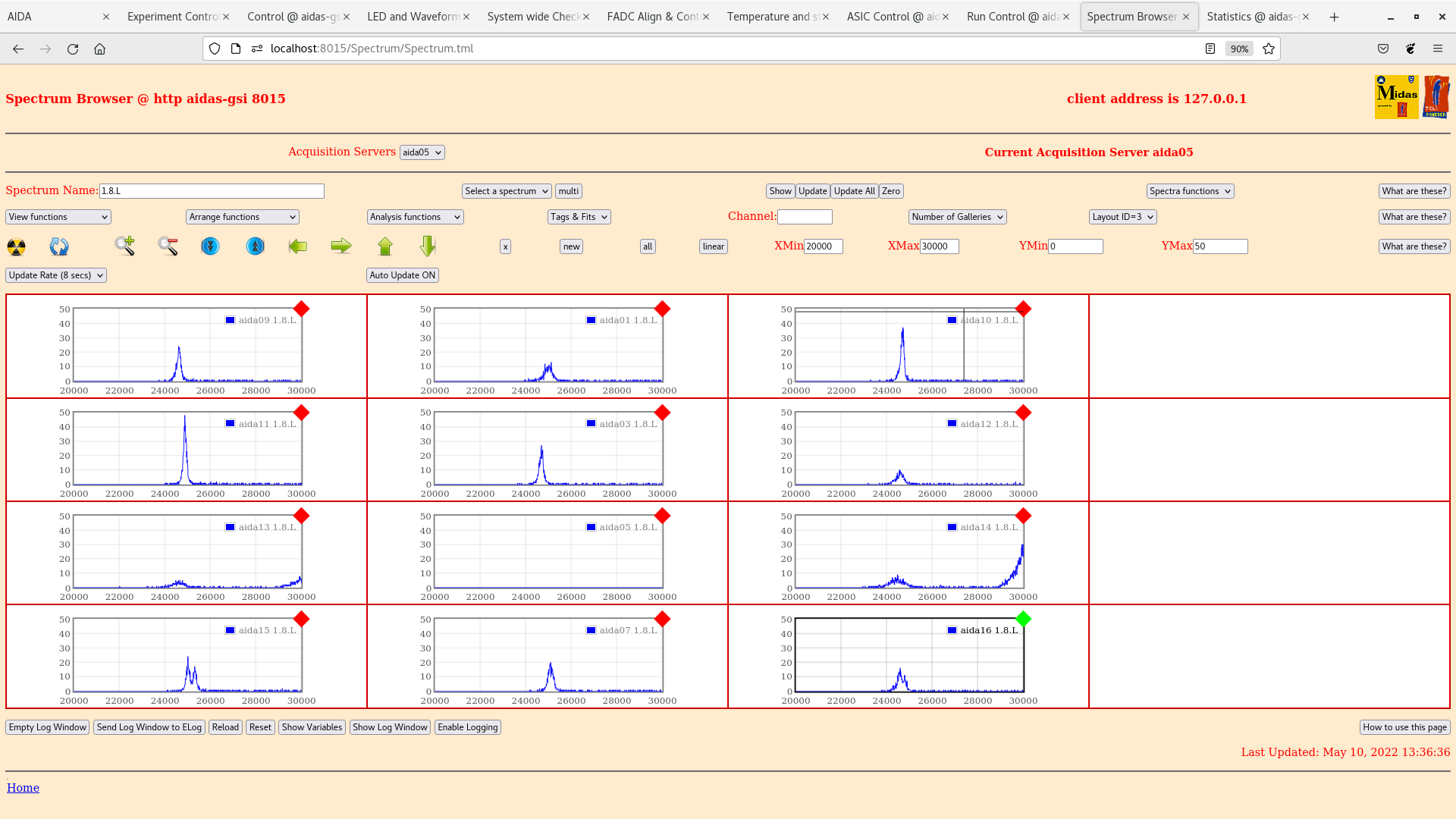

Attachments 10-15 spectra

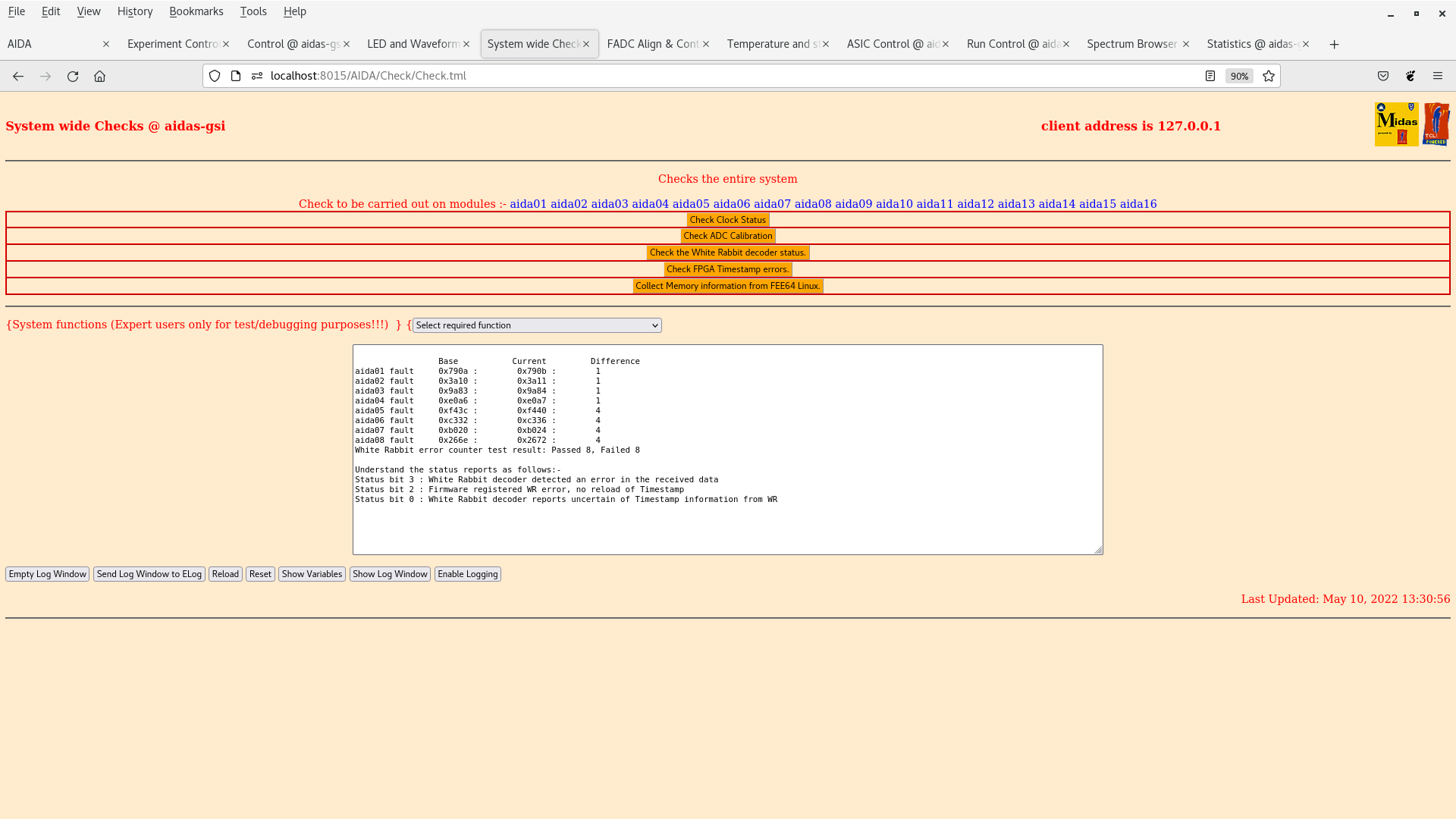

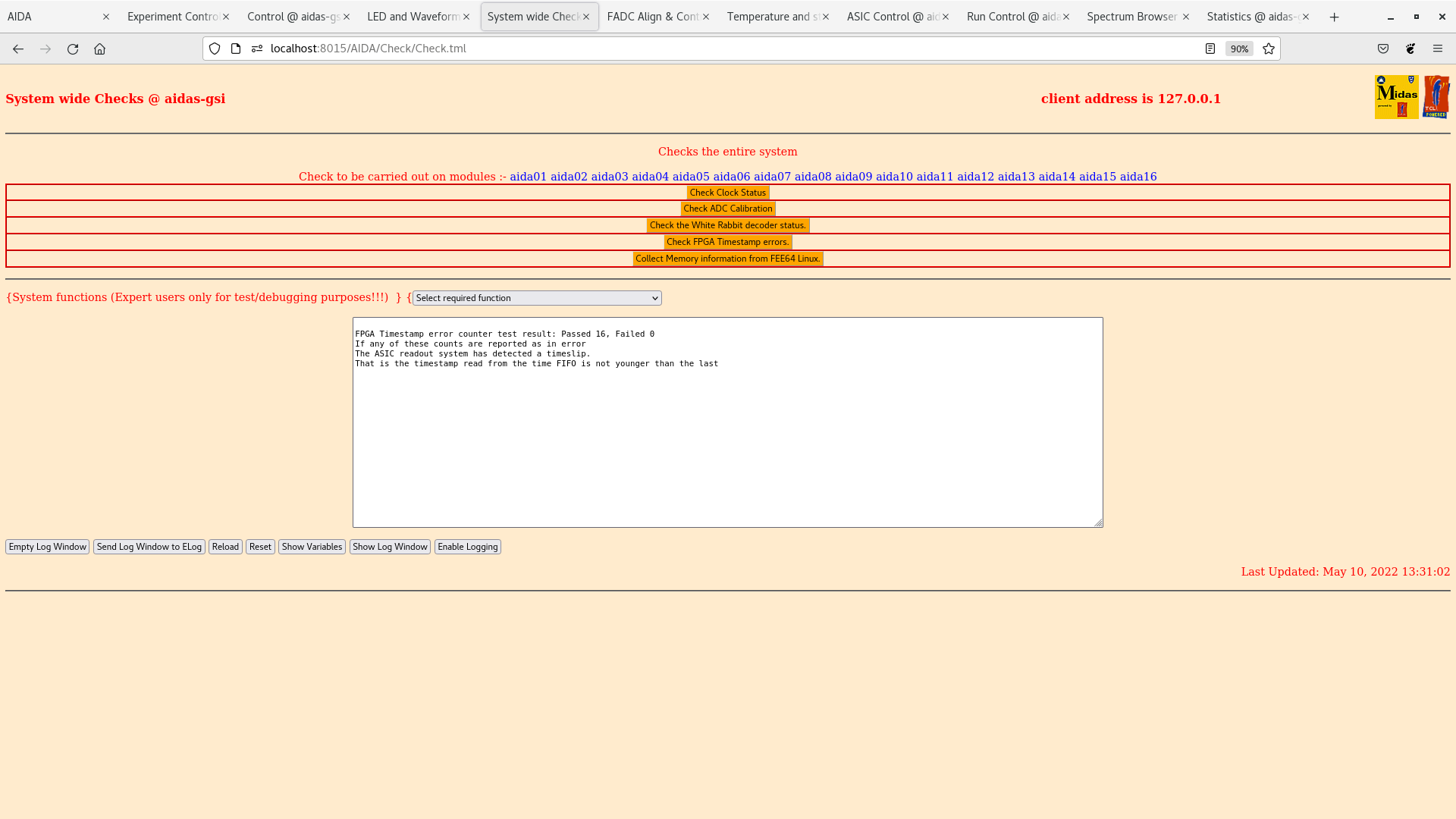

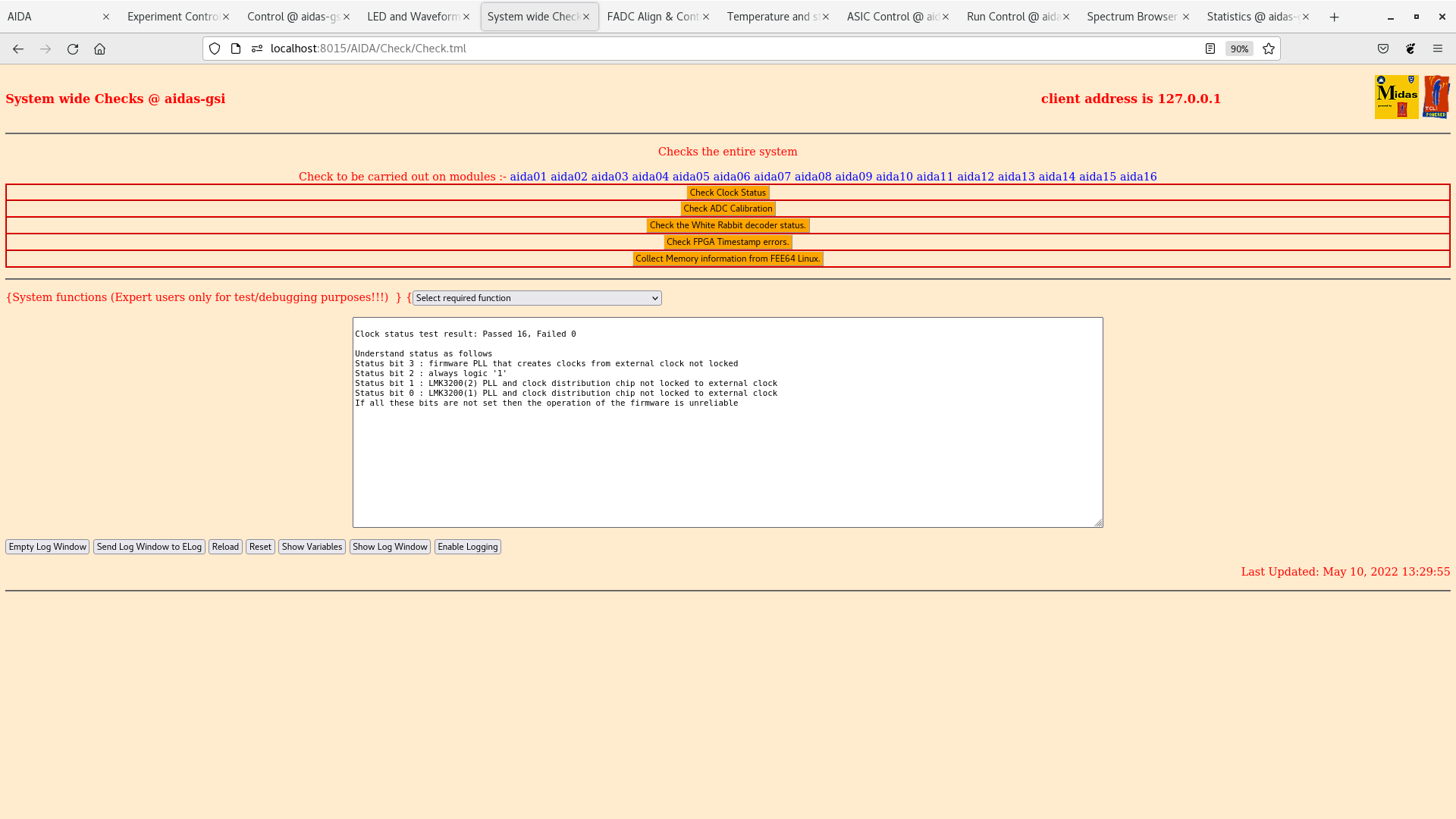

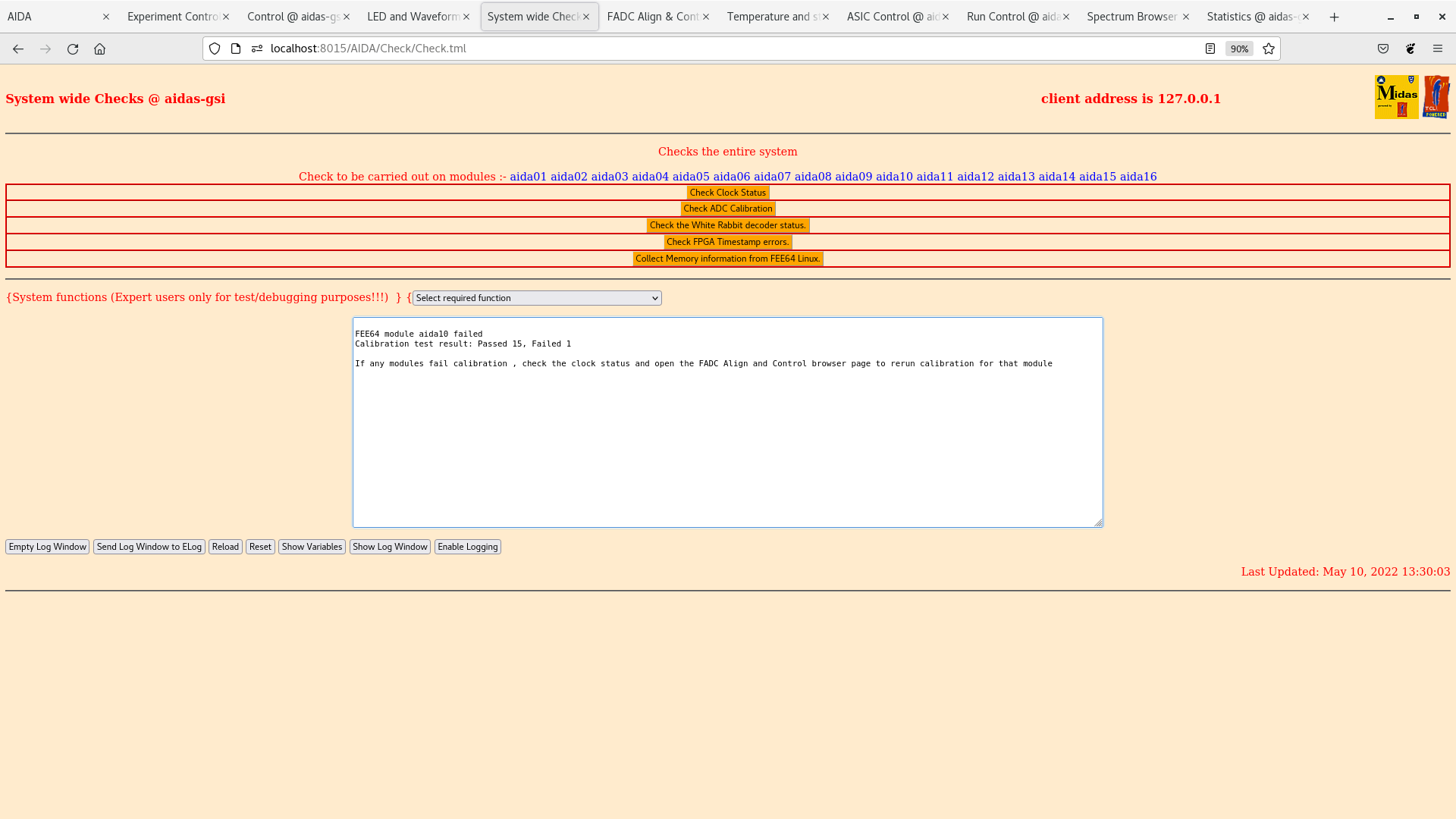

Attacahments 16-19 system wide checks OK *except* WR error counter

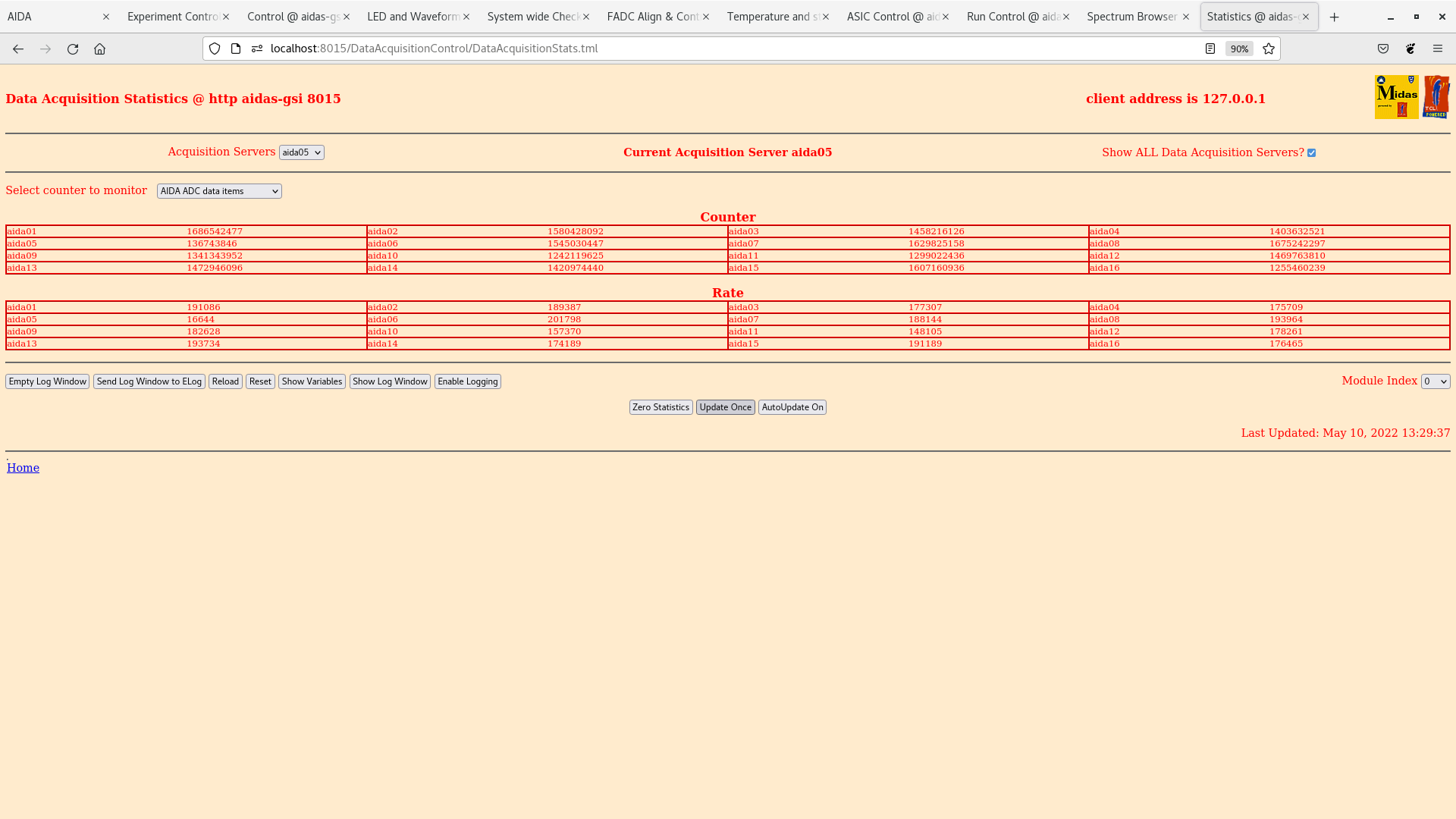

Attachment 20 ADC data items
             c. 150-180k per FEE64, c. 21Mb to disk

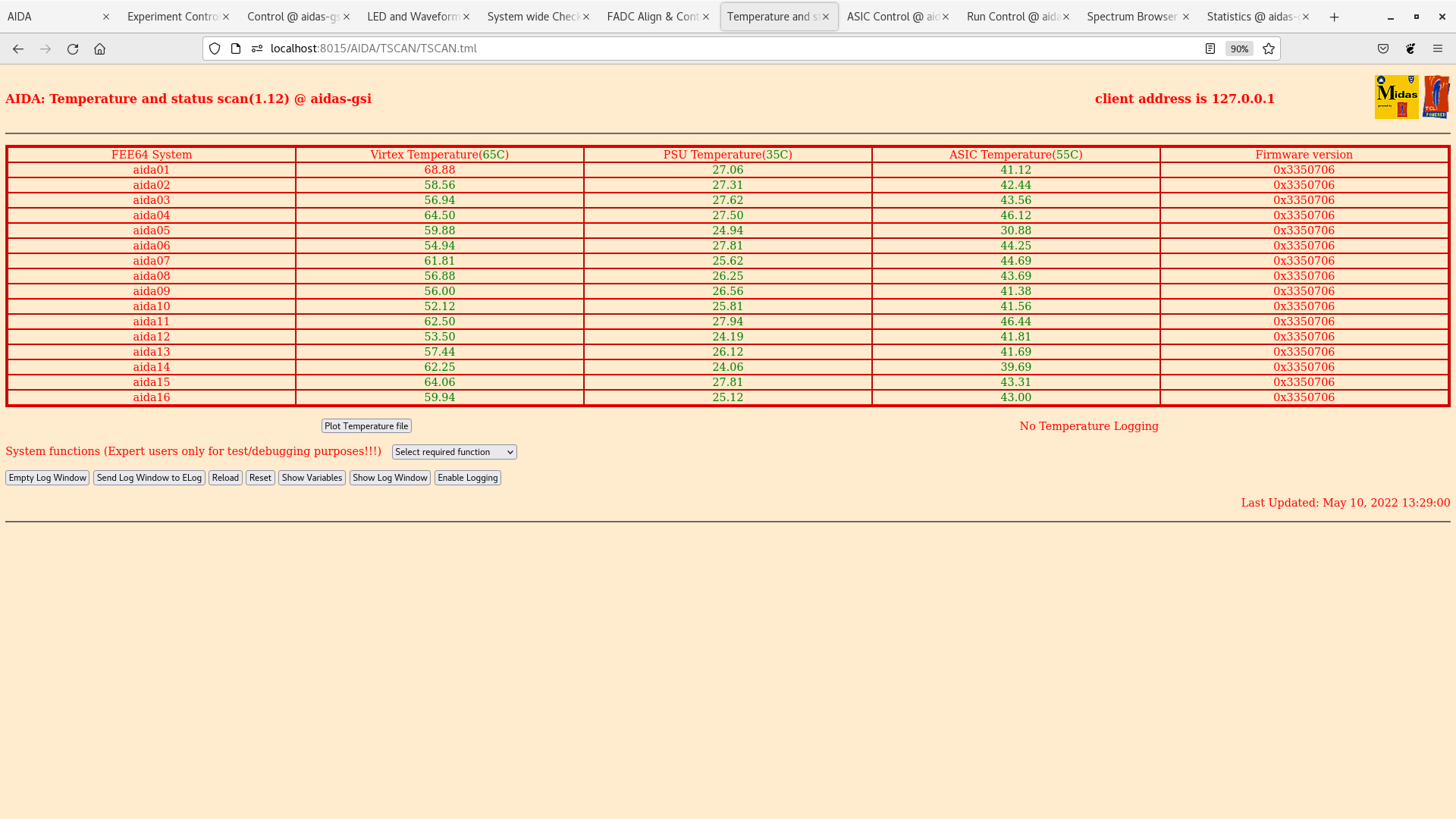

Attachment 21 FEE64 temps OK

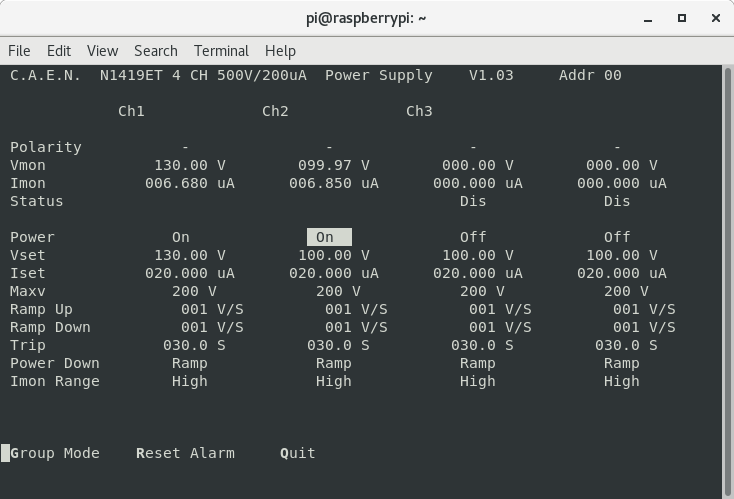

Attachment 22 DSSSD bias & leakage currents OK

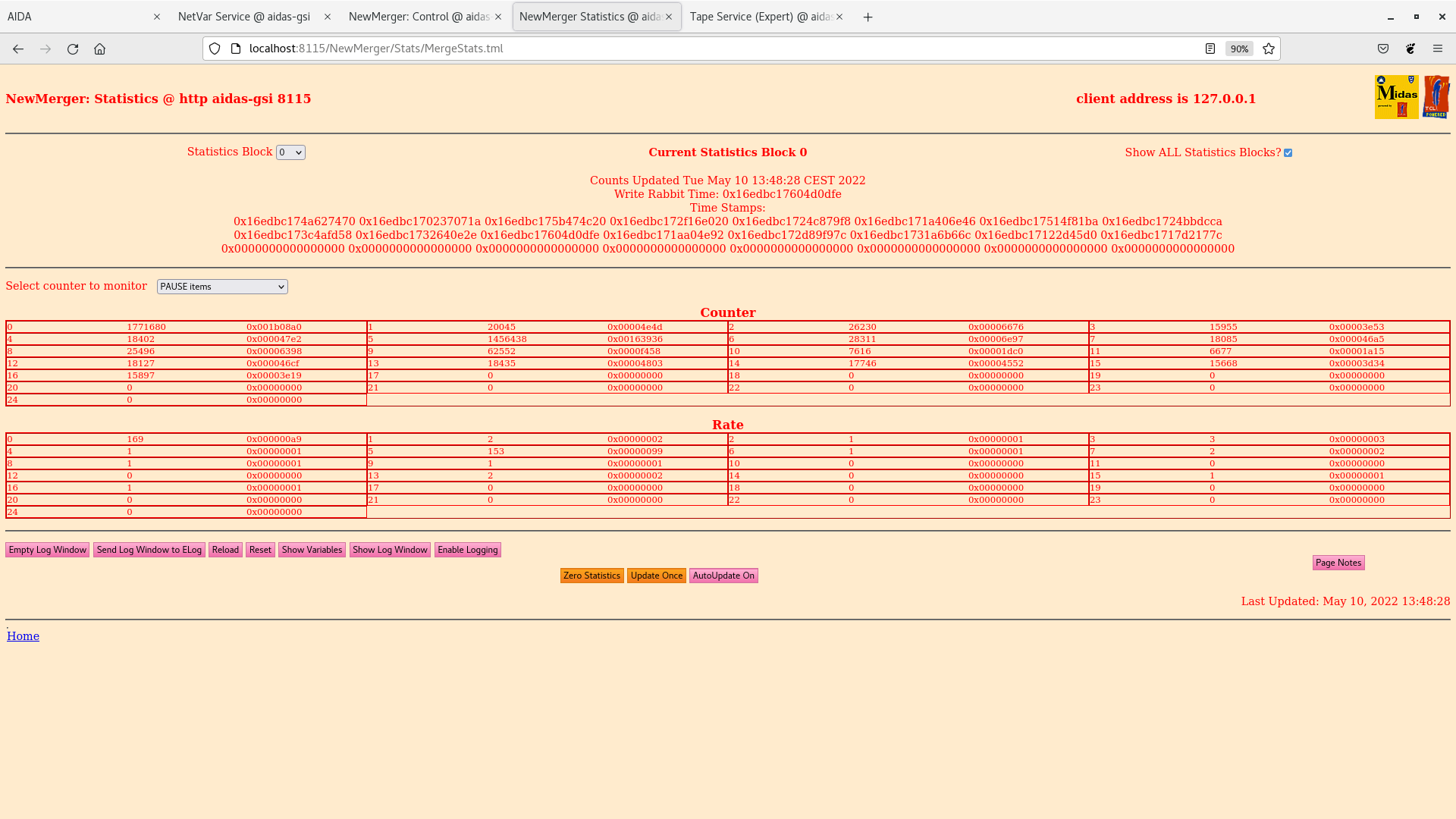

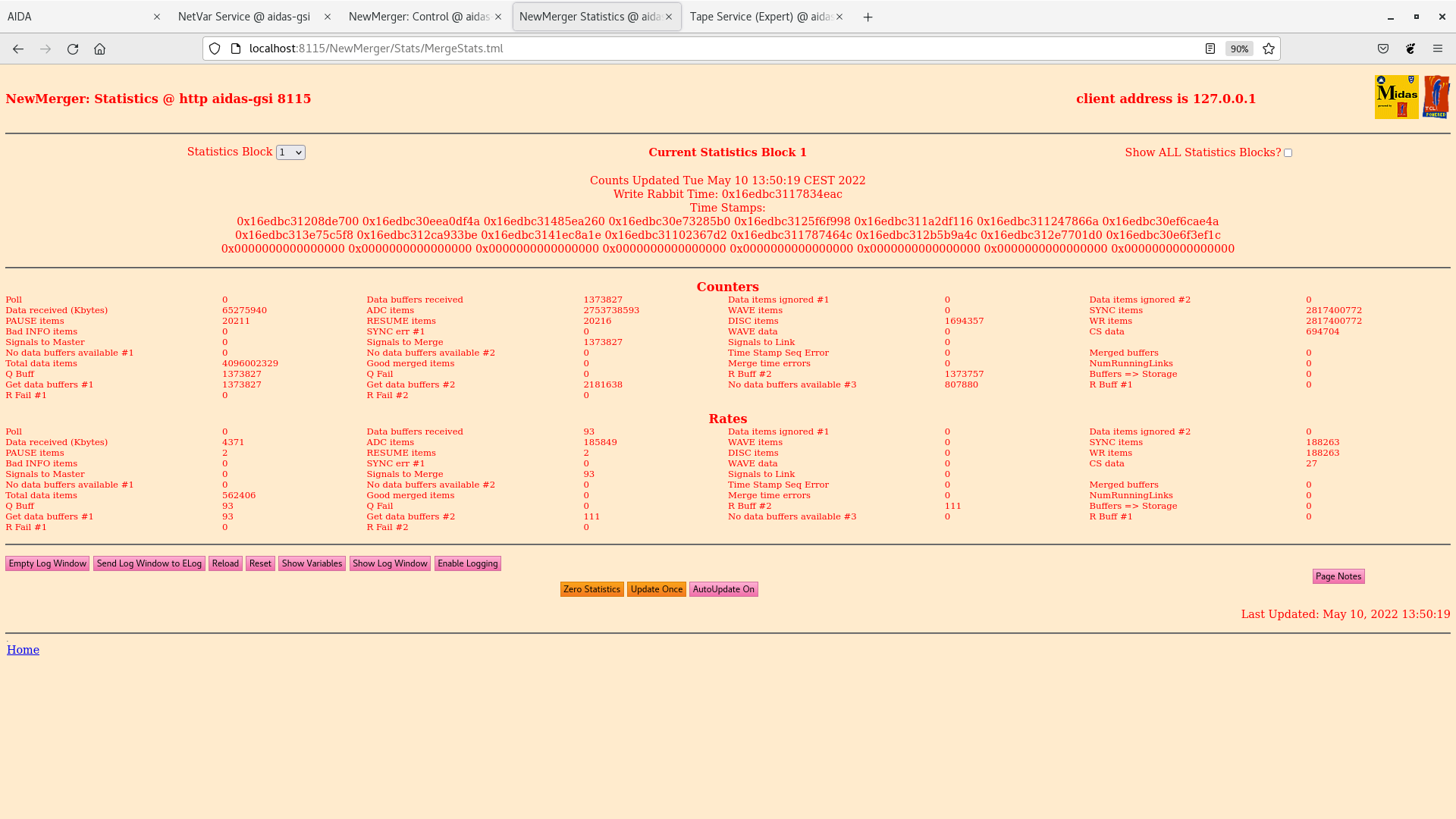

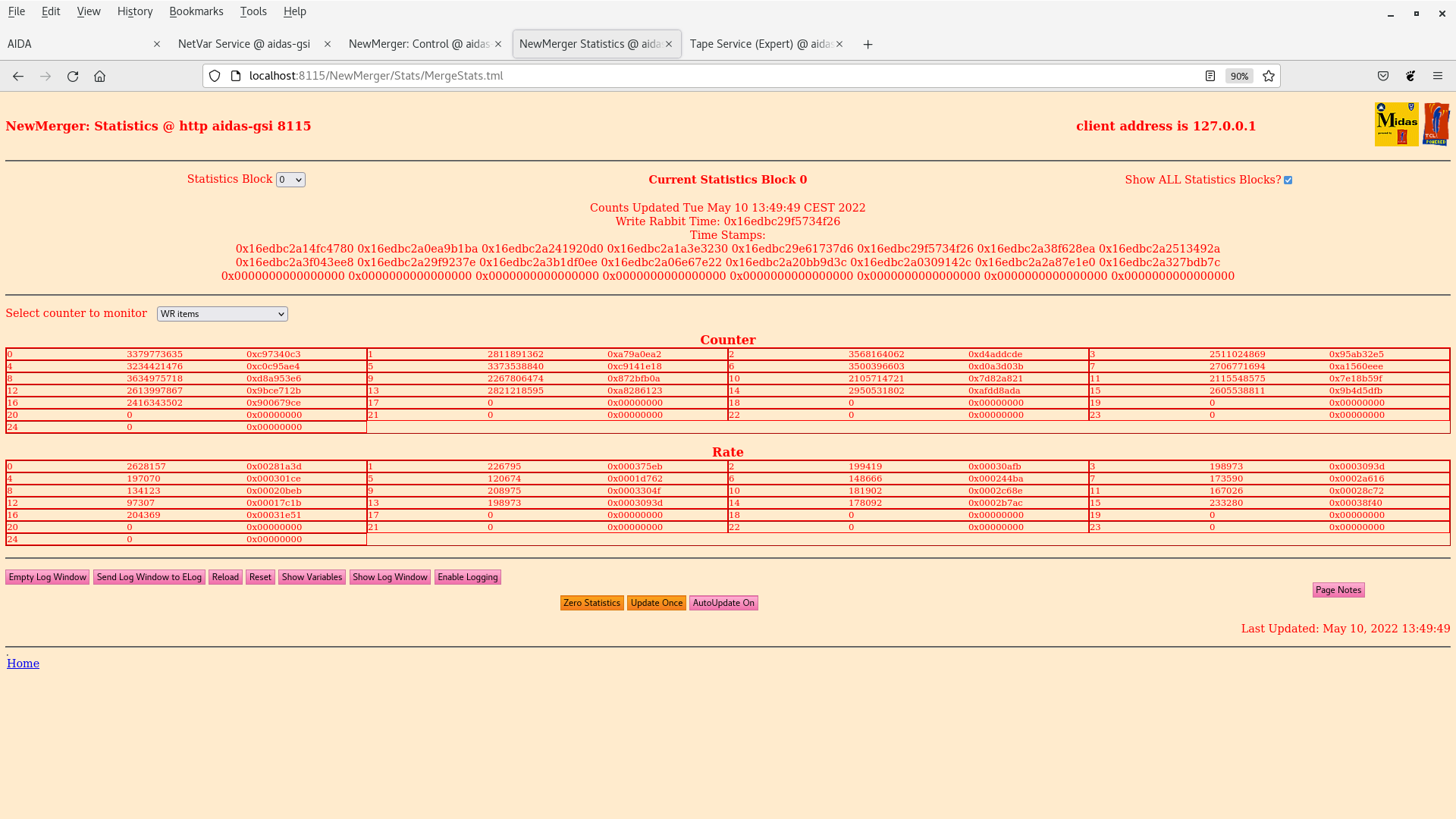

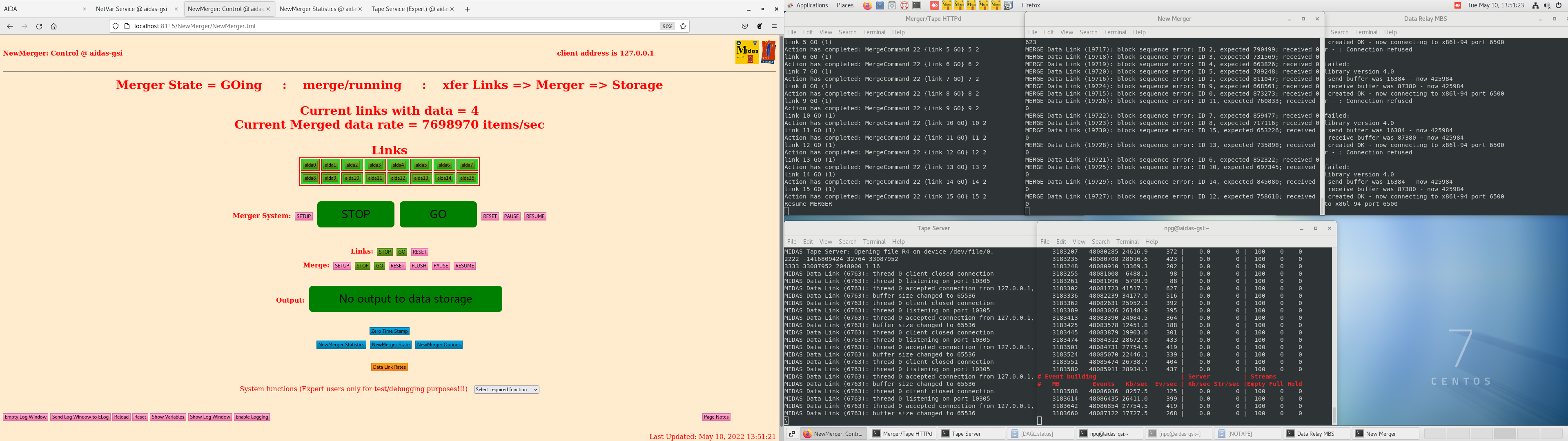

Attachments 23-29 newMerger stats

20:37 - Begin implantation test, raise threshold to 0x64 just to ensure system is stable

22:26 - No implantation test although we had some brief beam through AIDA.
      - FRS team having difficulty aligning beam still, will work overnight and try to implant tomorrow
        Will keep DAQ on 0x64 to eliminate deadtime issues for implantation
