2x MSL type BB18(DS)-1000 installed
Adaptor PCB LK config
all FEE64s LK2, LK4 fitted
n+n FEE64s LK1 fitted
bottom p+n FEE64s LK3 fitted
AIDA PSU config
top 1-3 2-4
bottom 5-7 6-8
DSSSD bias -> p+n FEE64 core, n+n FEE64 braid
Heavy duty grounds not connected to FEE64 adaptor PCBs
ASIC settings 2021Apr29-13-16-00
slow comparator 0xa
BNC PB-5 settings
amplitude 1.000V
attenuation x1
tau_d 1ms
frequency 25Hz
polarity +

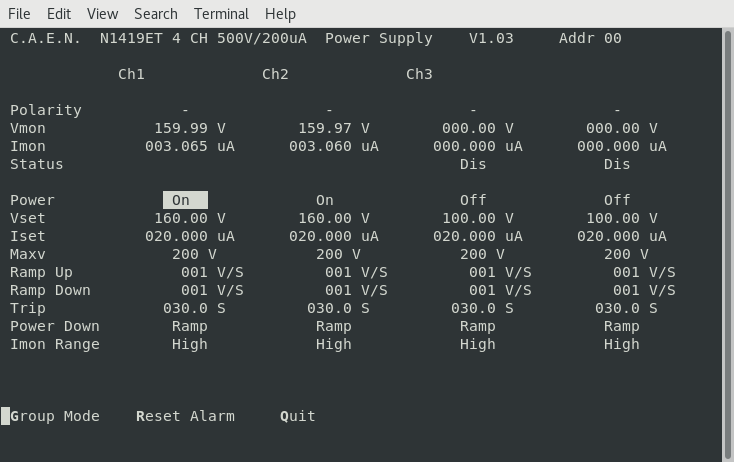

Attachment 1 - DSSSD bias & Leakage current - OK

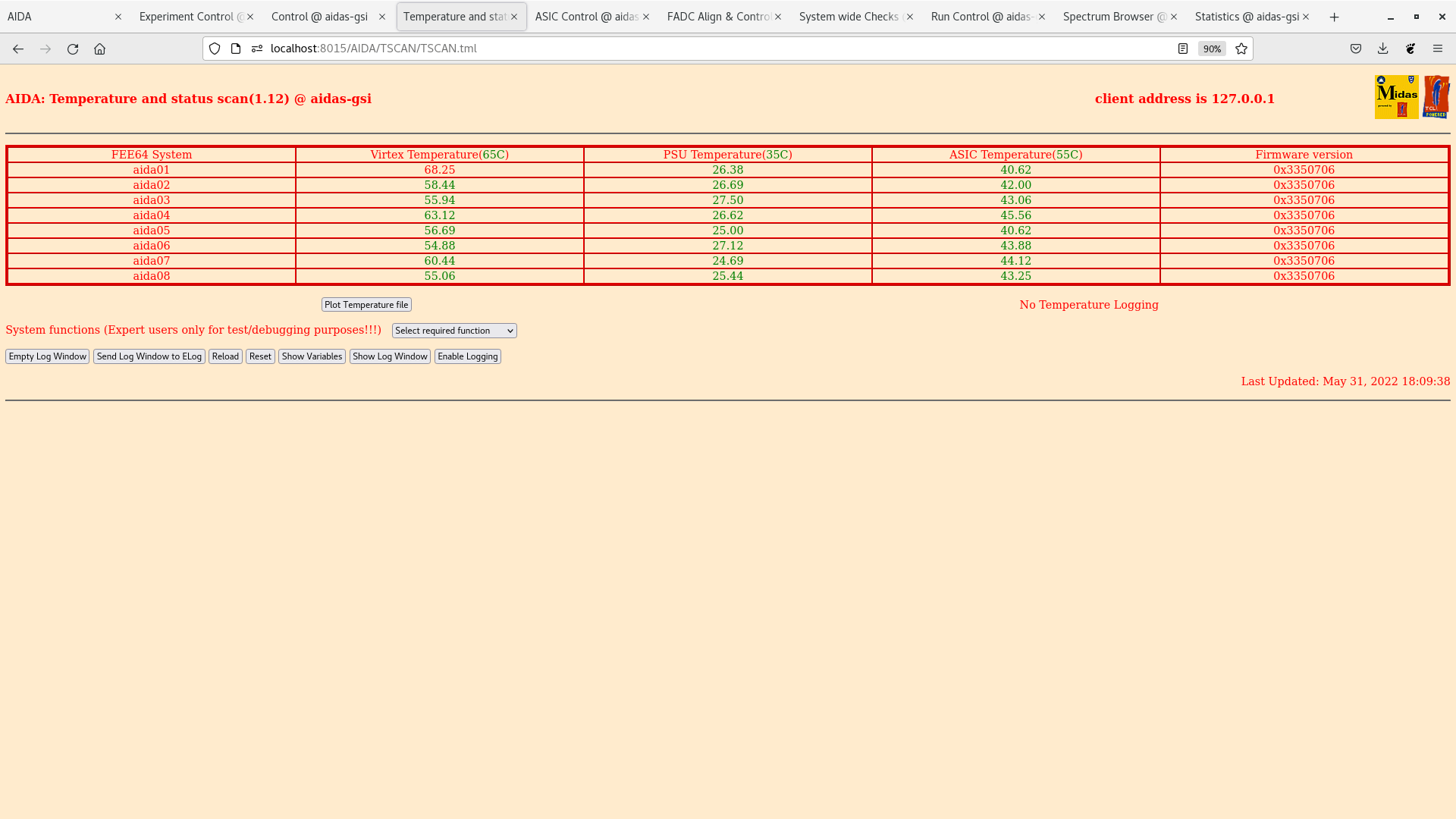

Attachment 2 - FEE64 temps OK

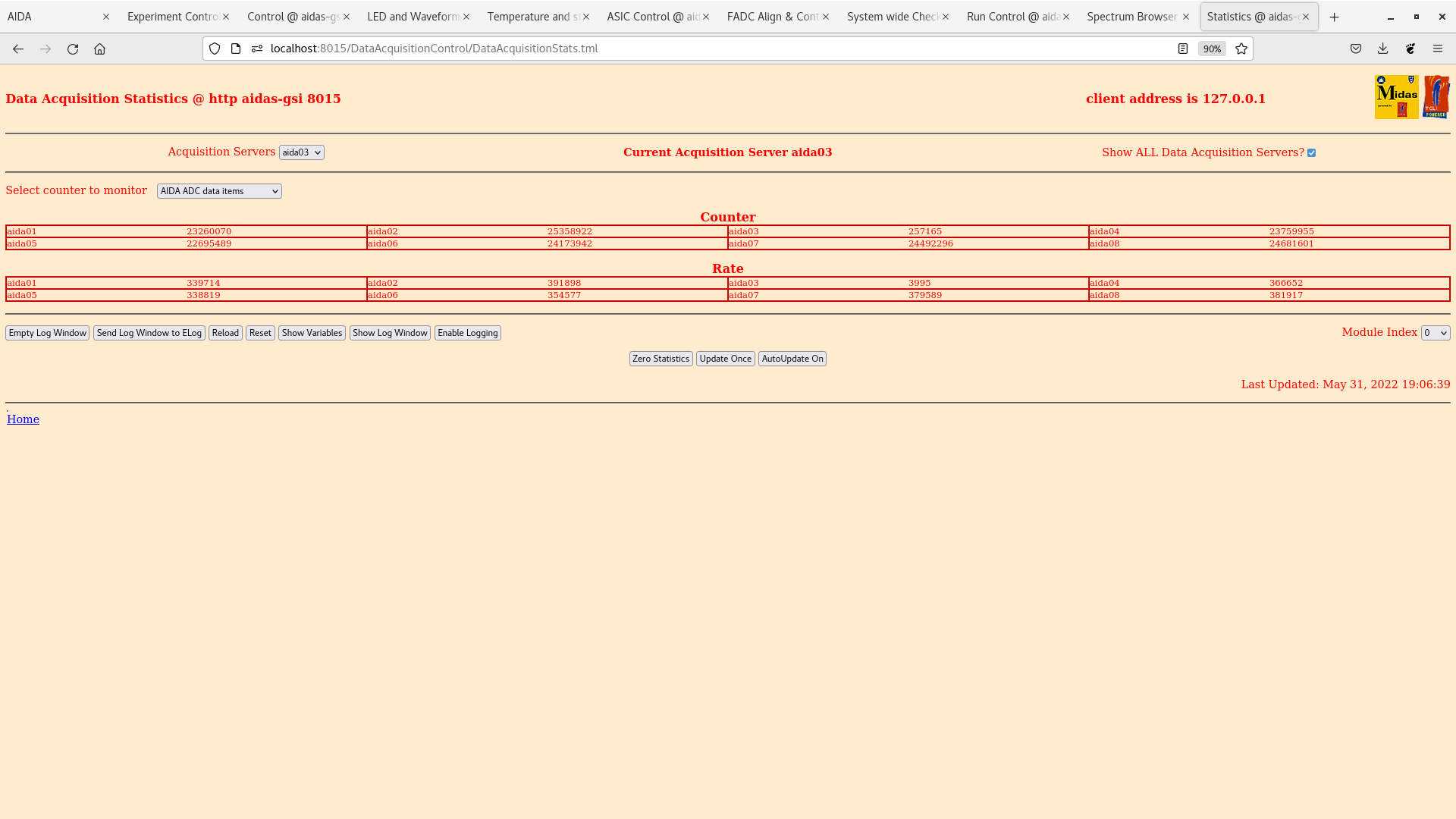

Attachment 3 - adc data item stats

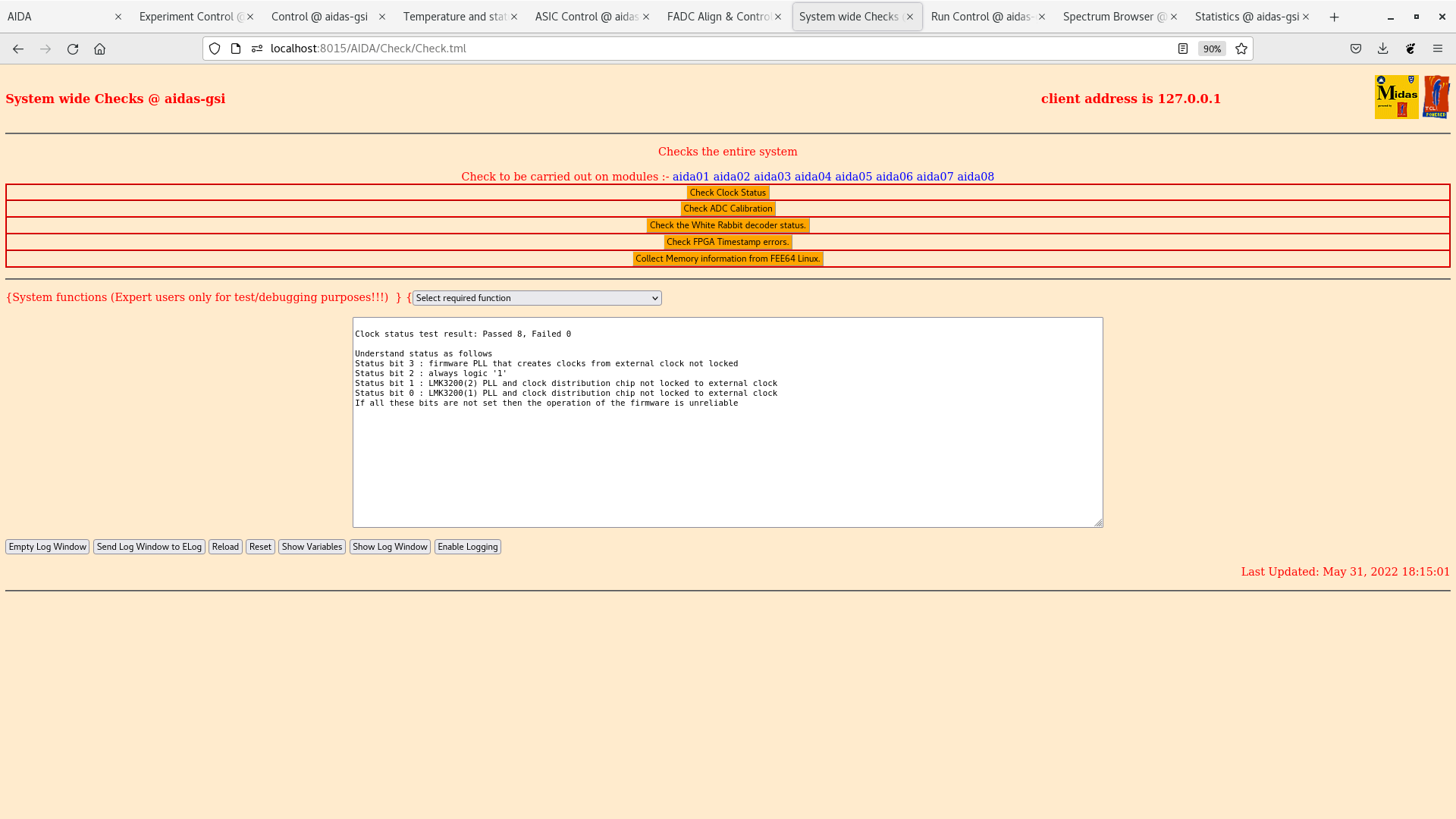

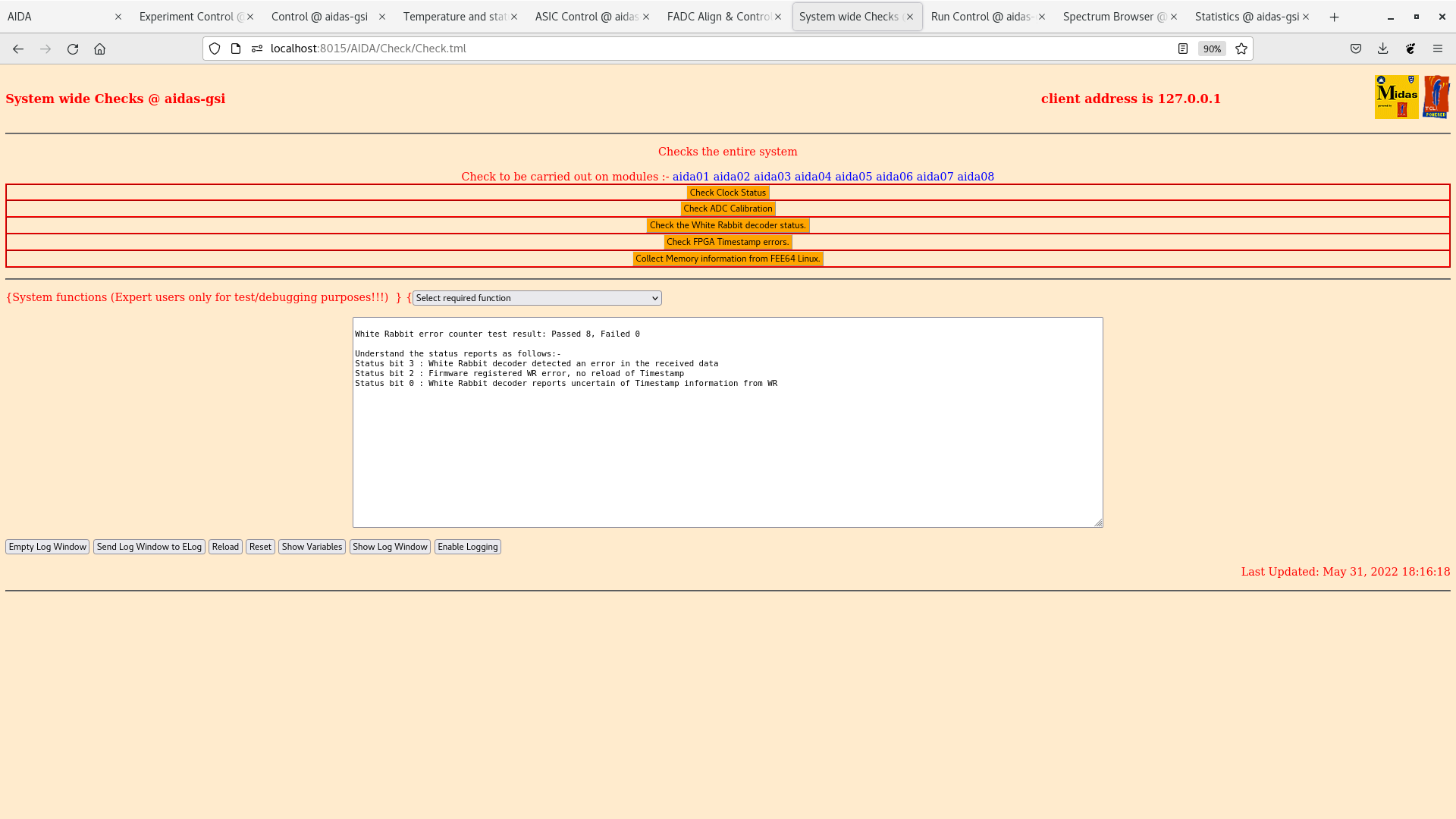

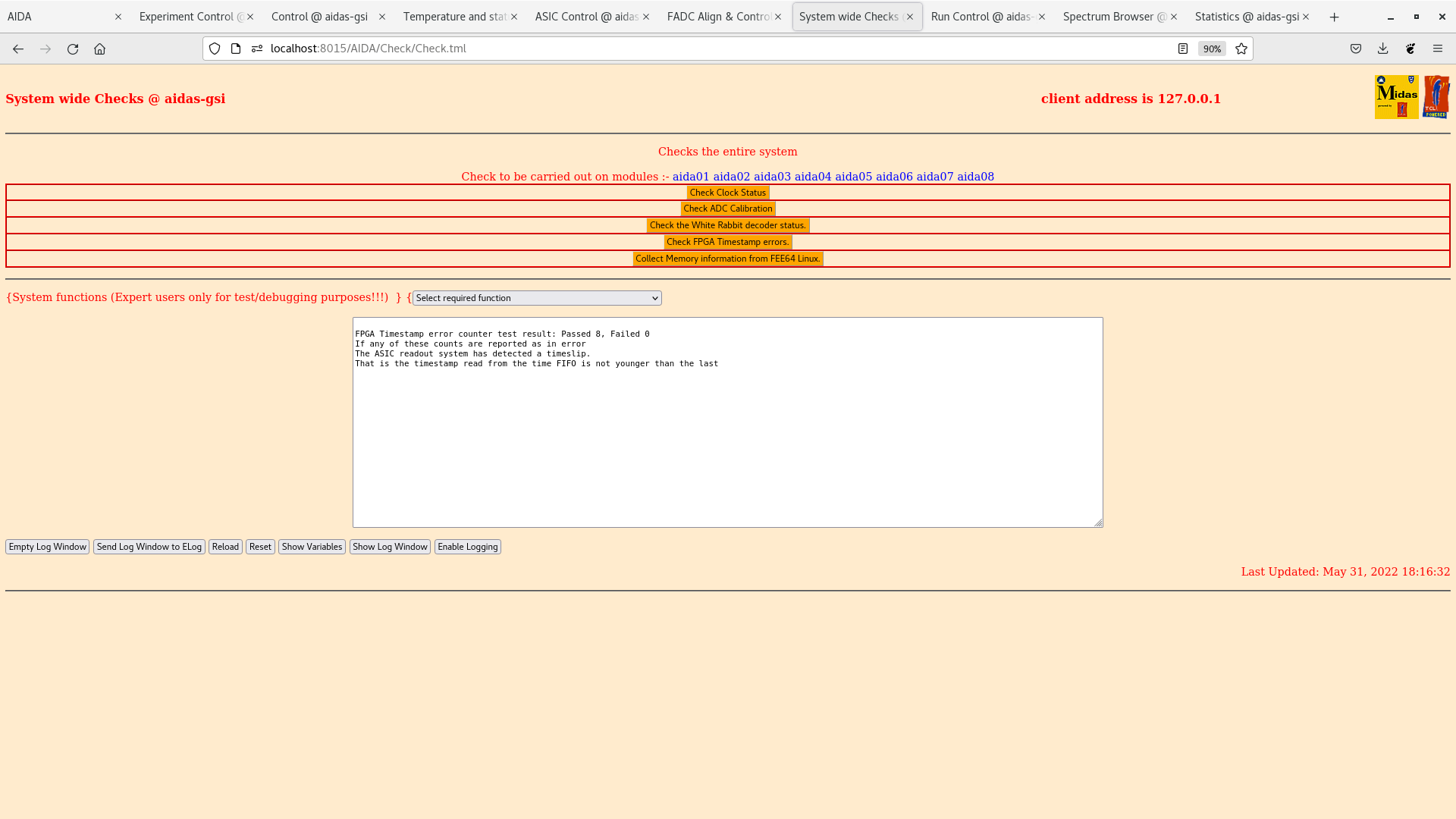

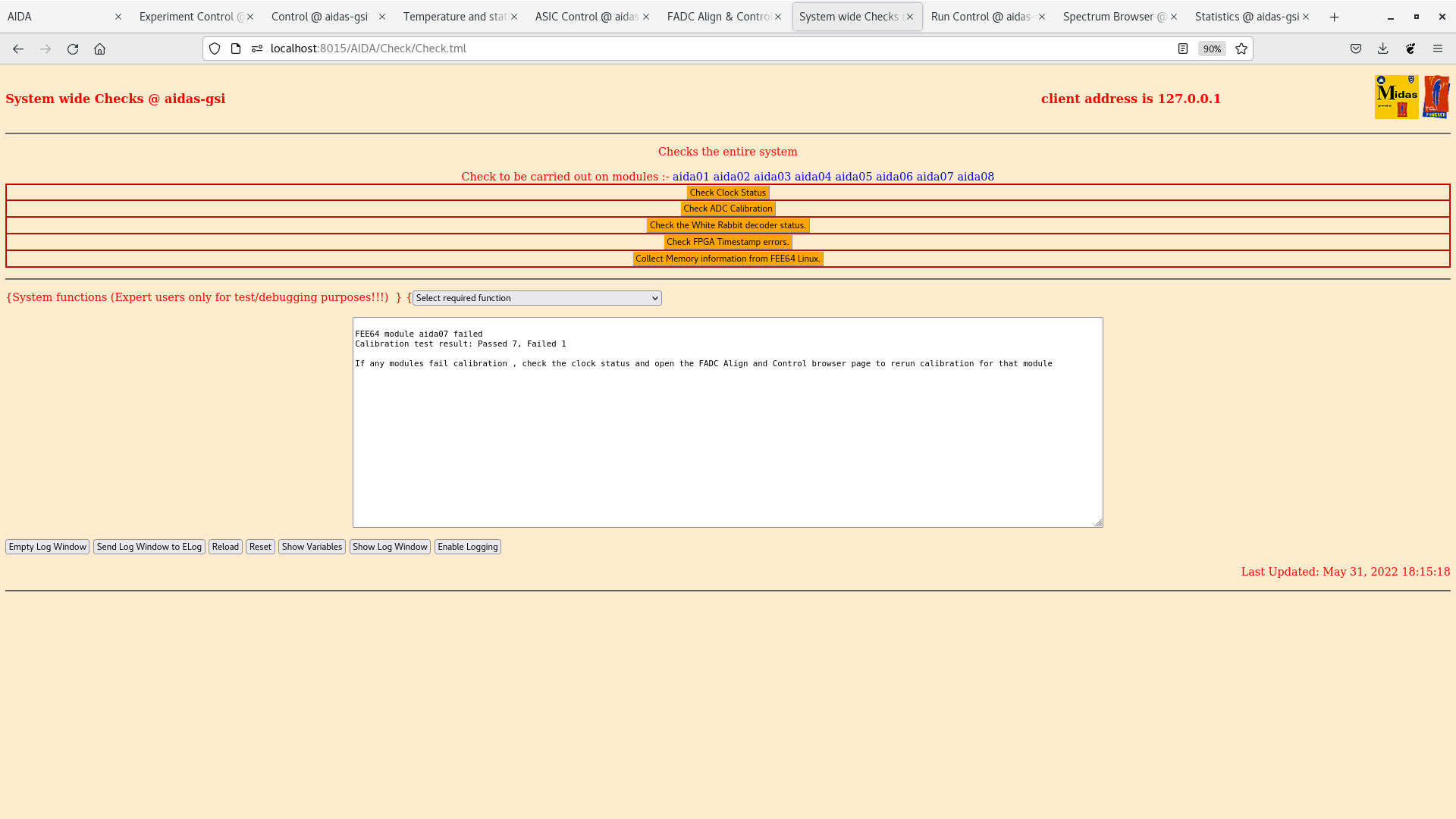

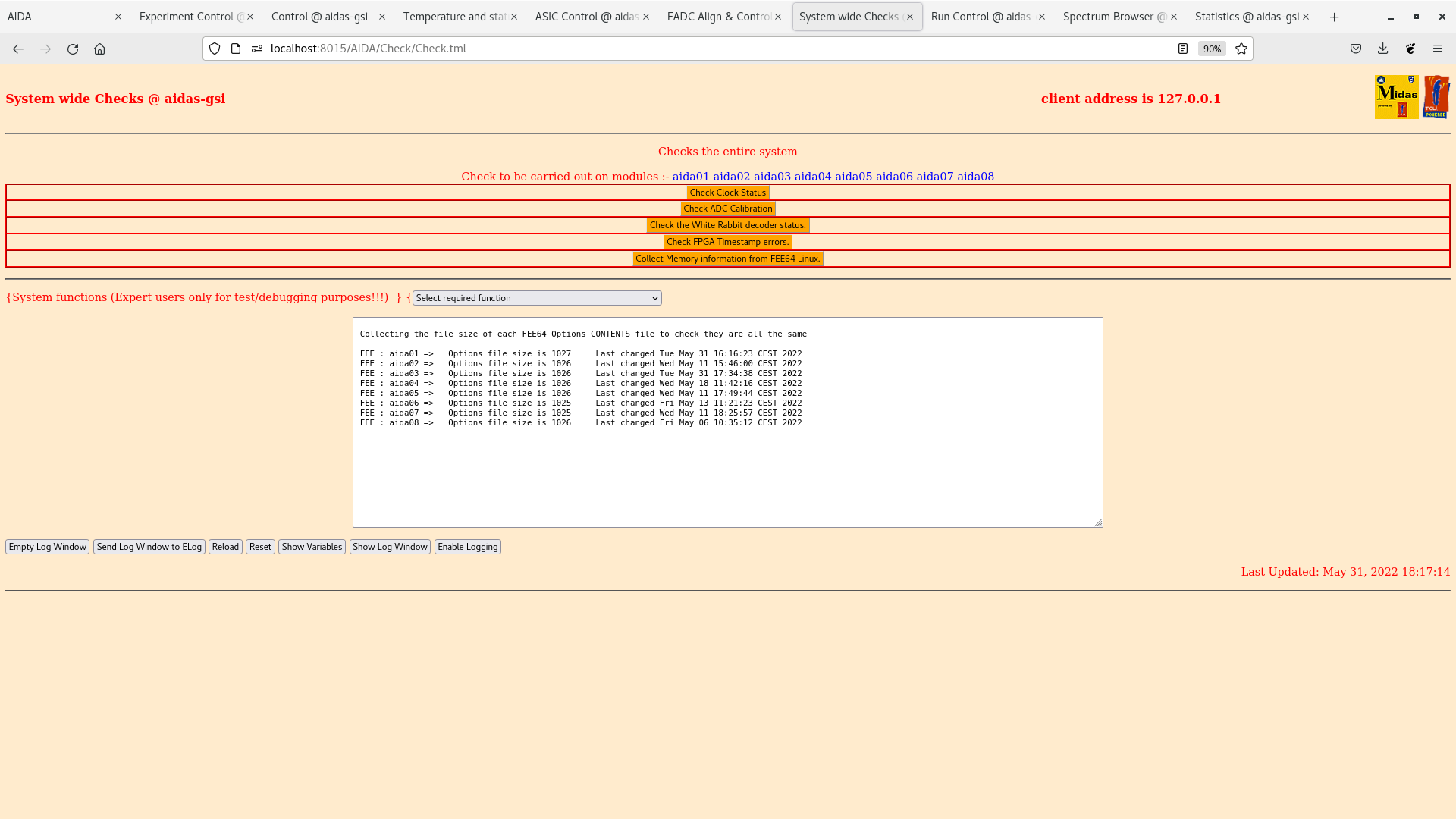

Attachments 4-9 - system wide checks OK *except* aida07 fails ADC calibration

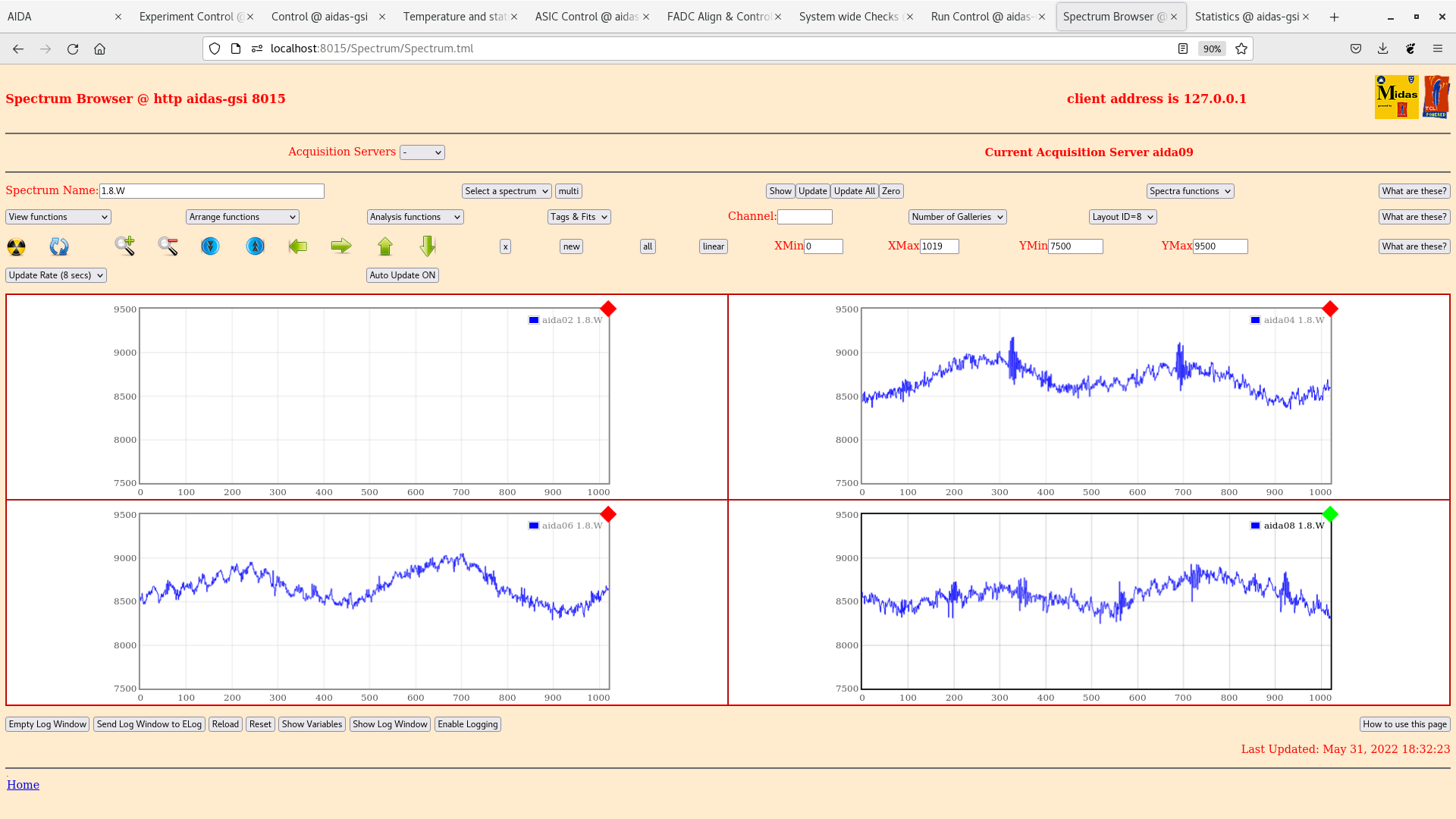

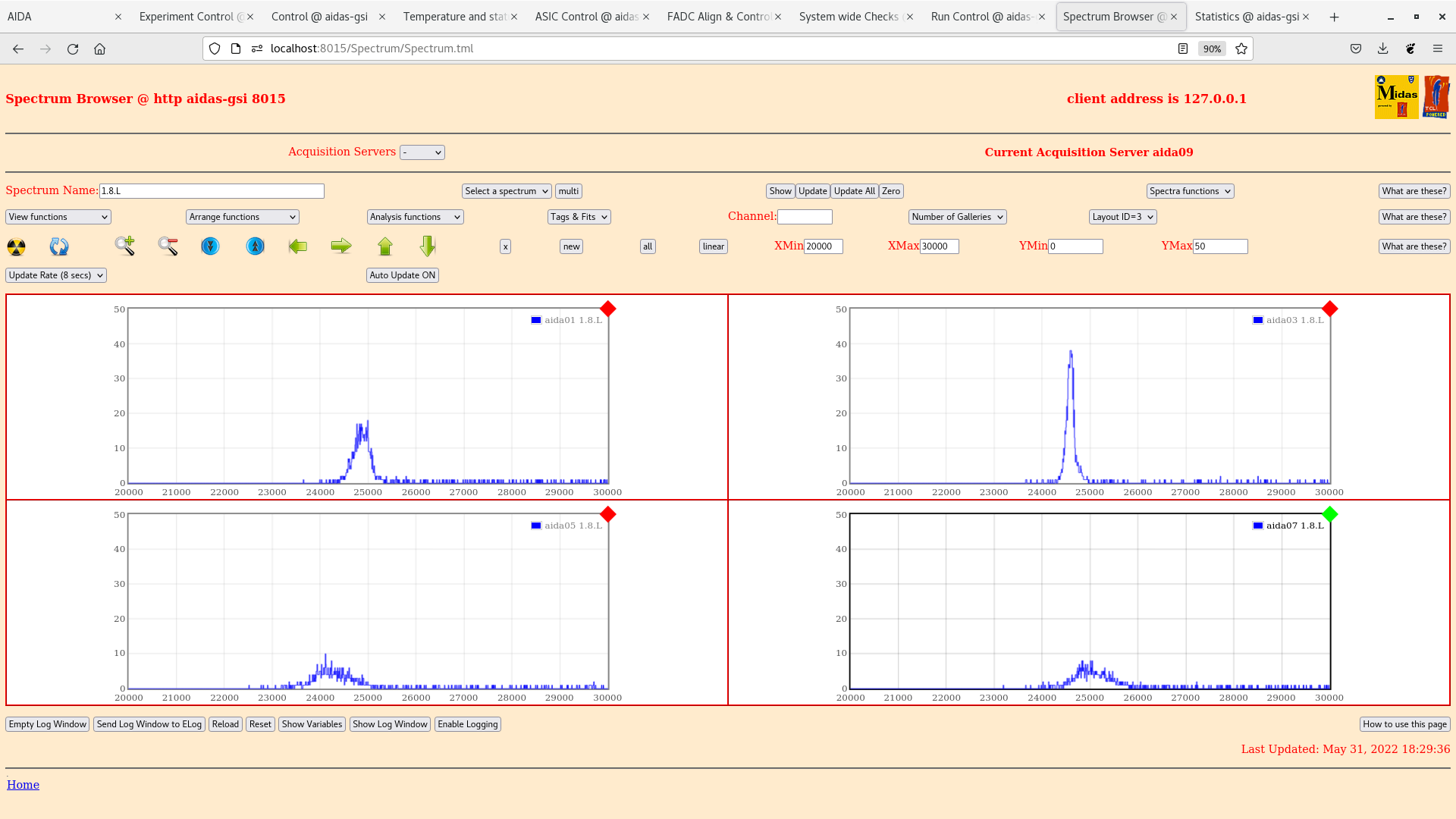

Attachments 10 & 11 - 1.8.W spectra 20us FSR

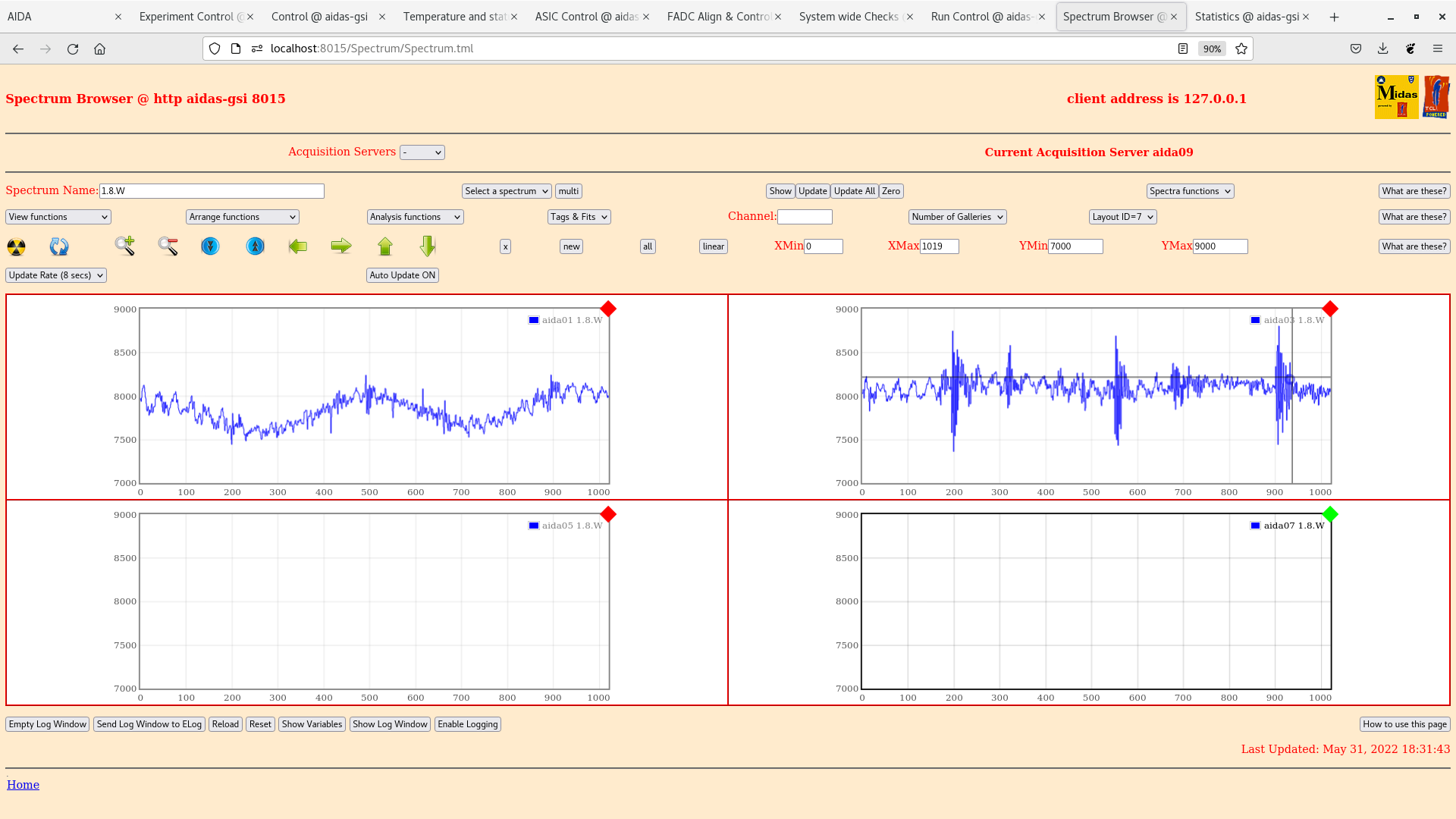

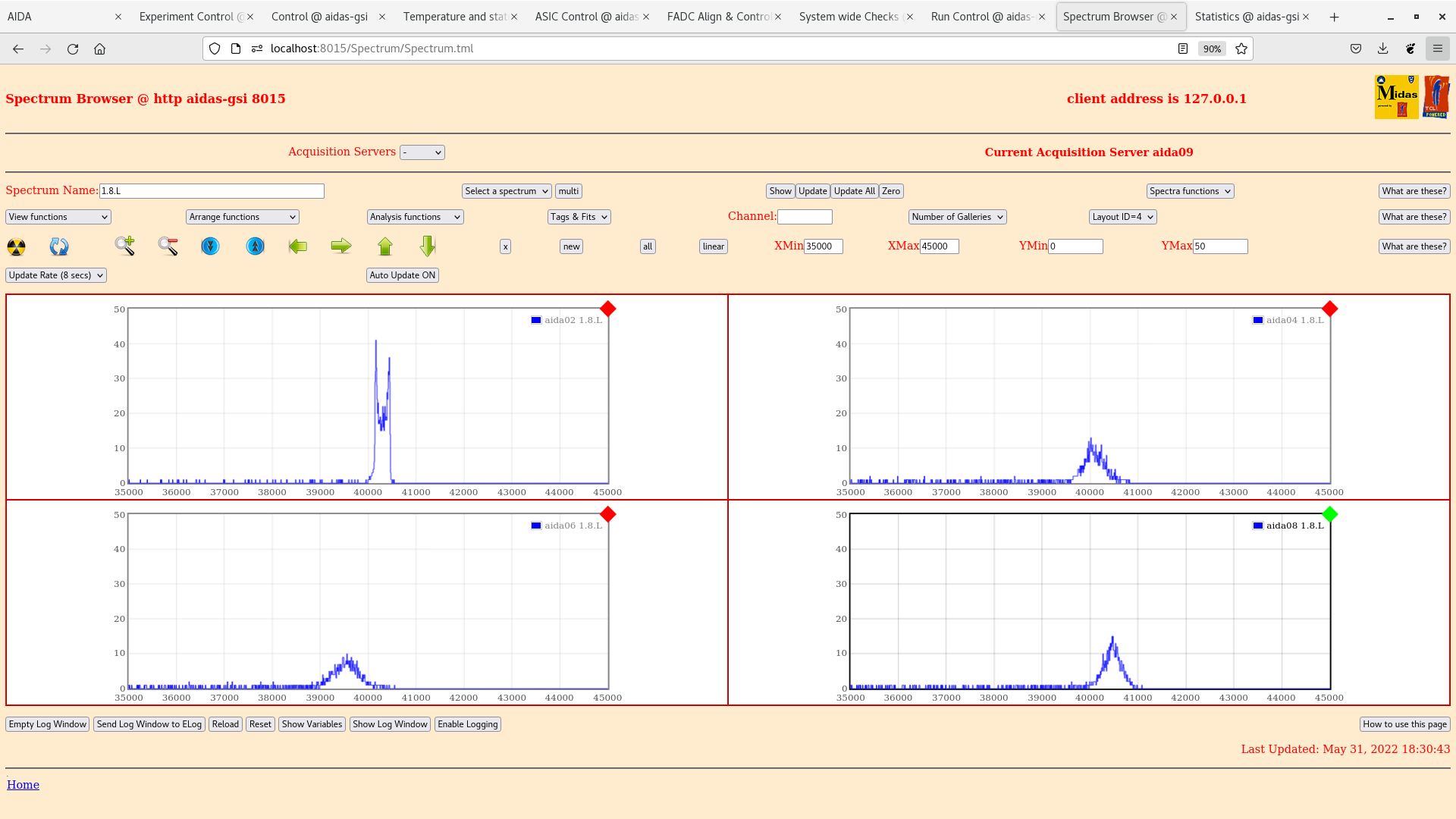

Attachments 12 & 13 - 1.8.L spectra - aida03 pulser peak width 155 ch FWHM

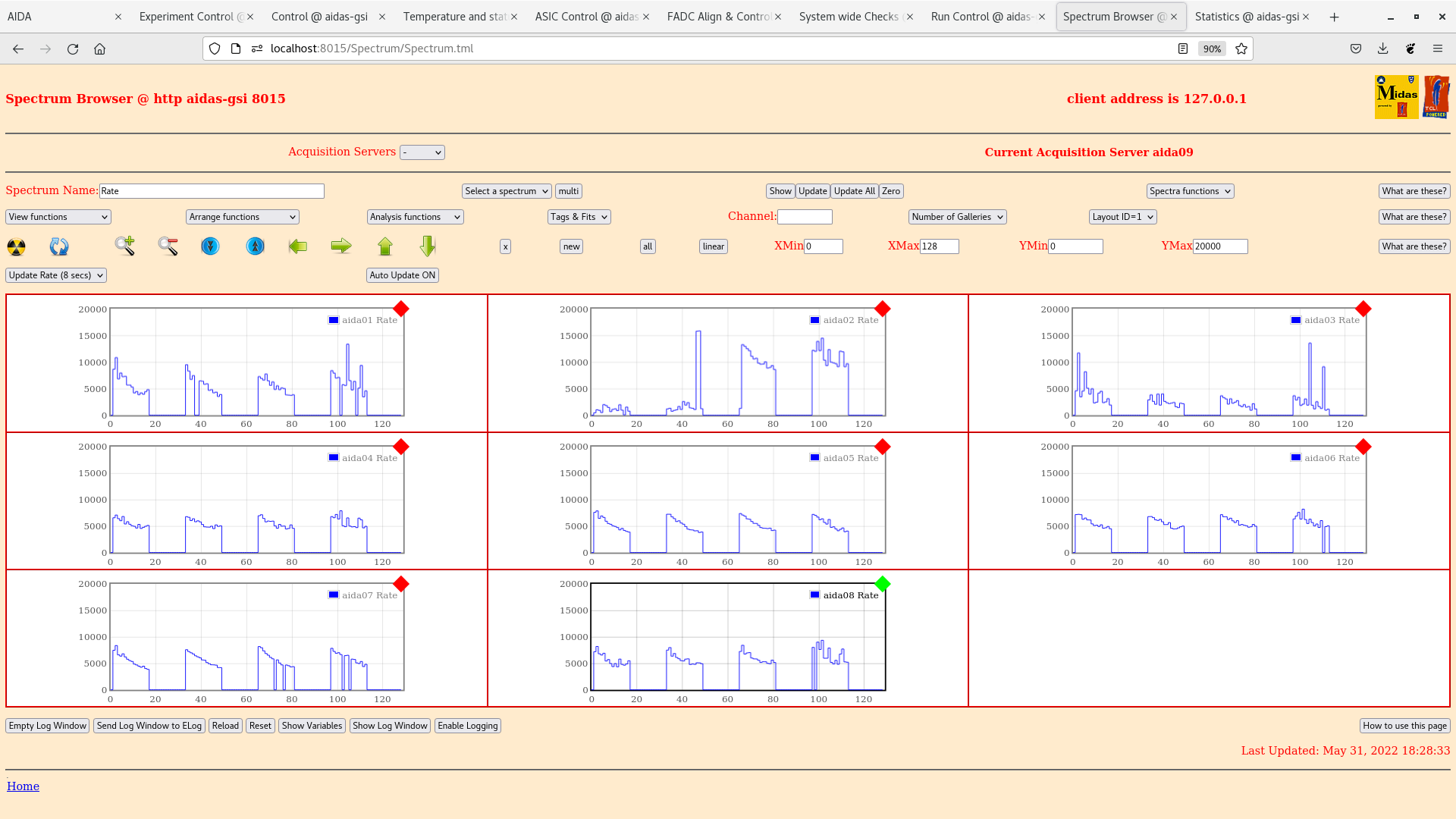

Attachment 14 - per FEE64 rate spectra

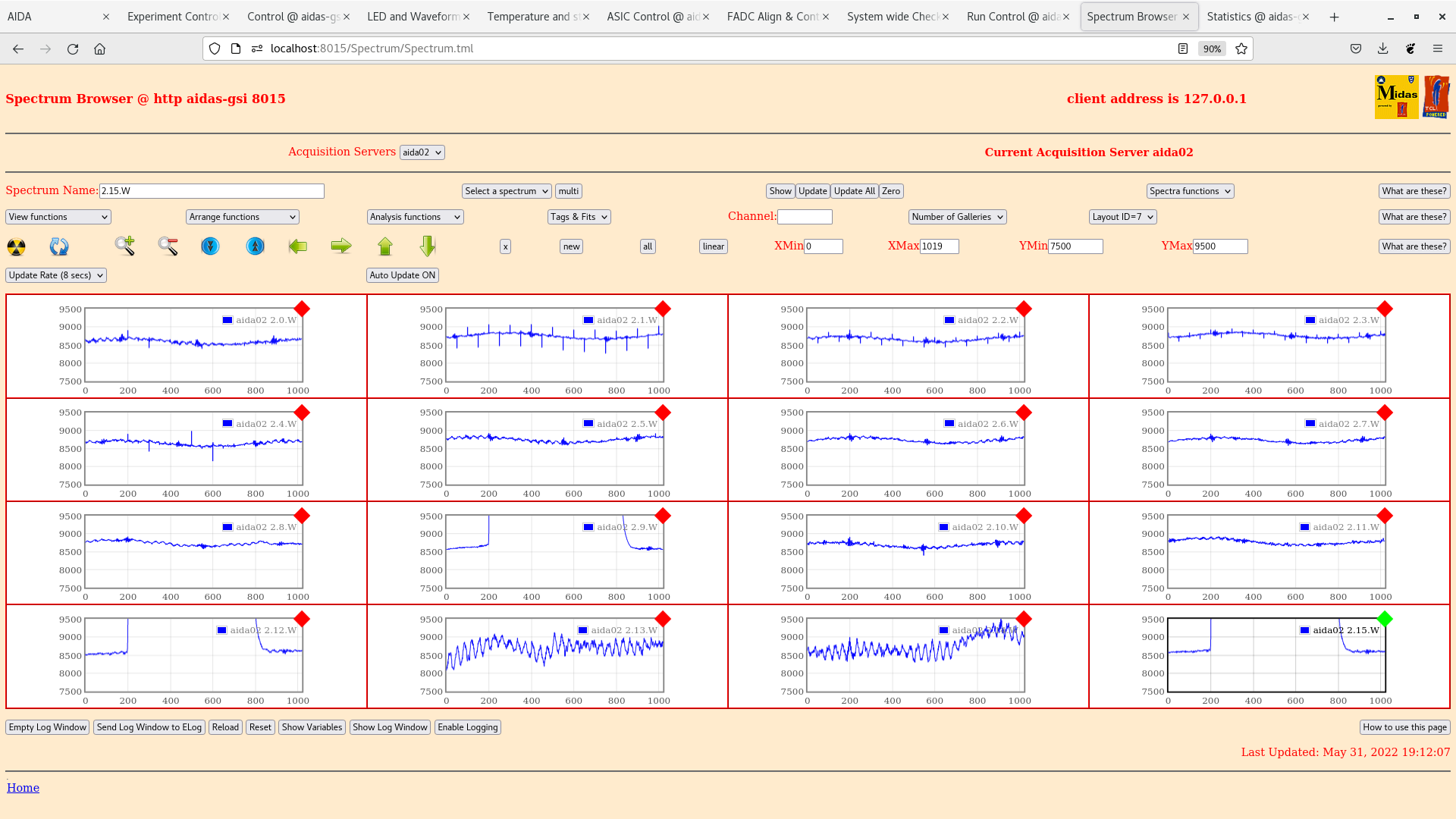

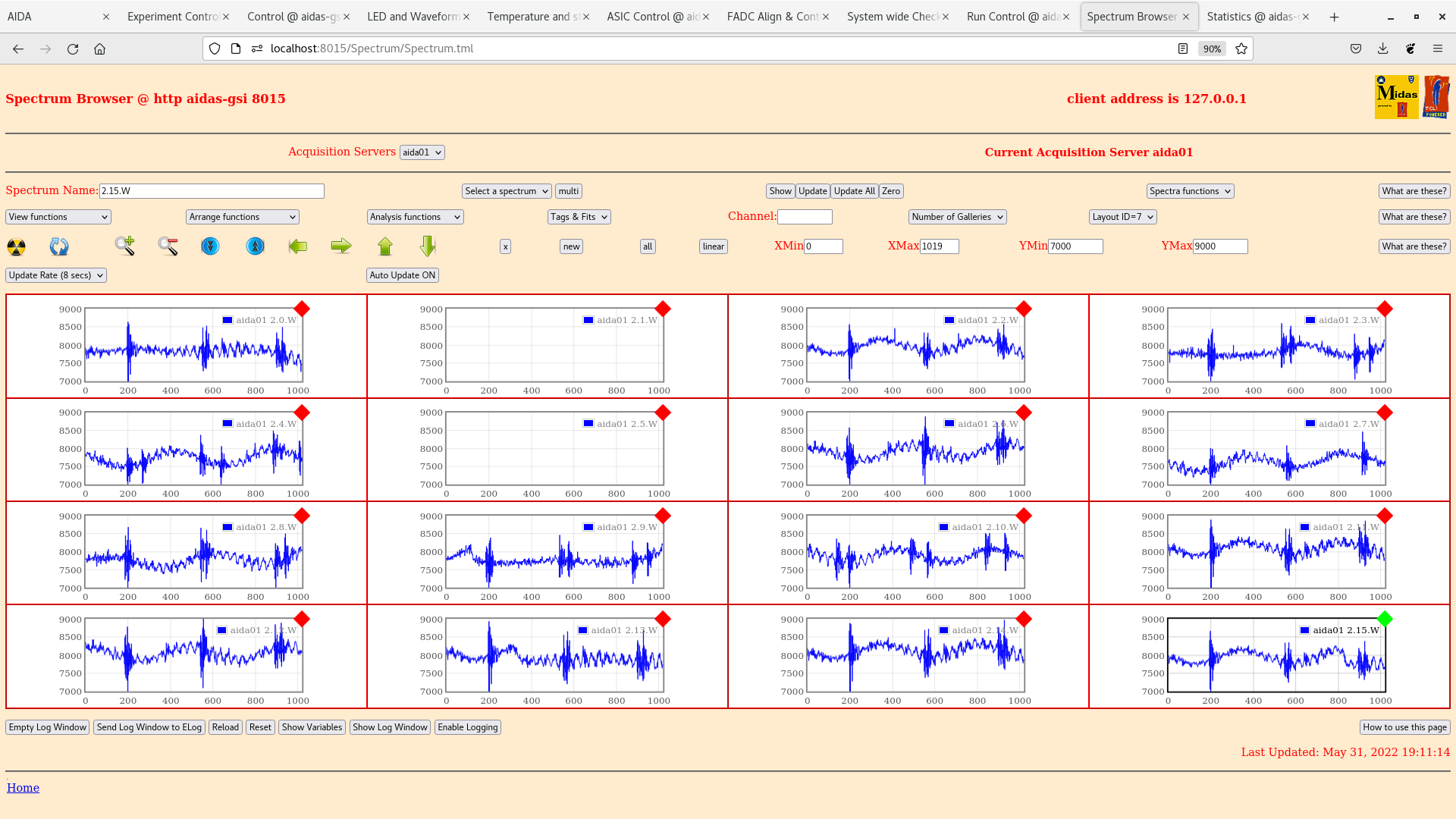

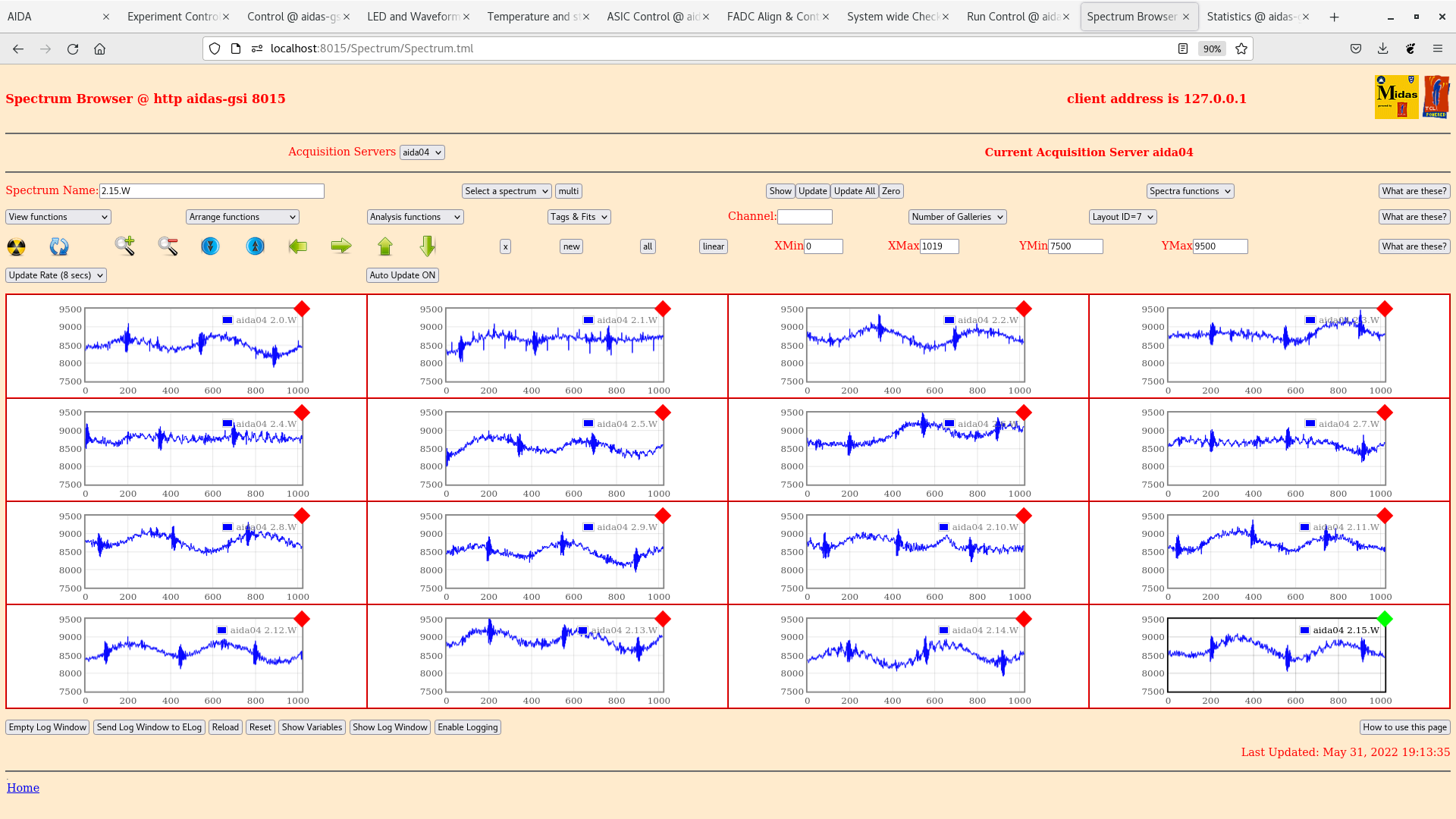

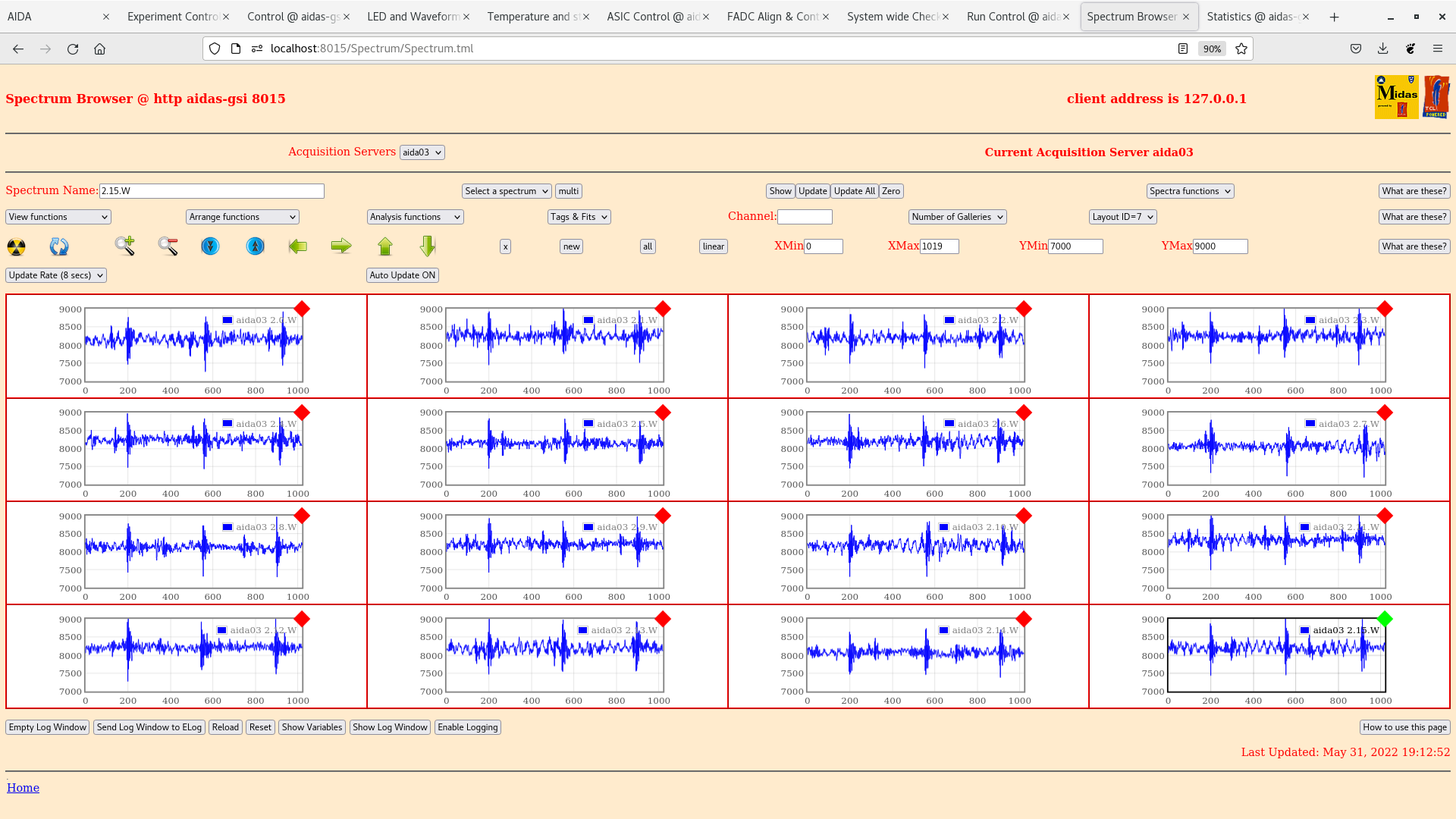

19.15 Attachments 15-18 - 2*W spectra for aida01, 02, 03 &04

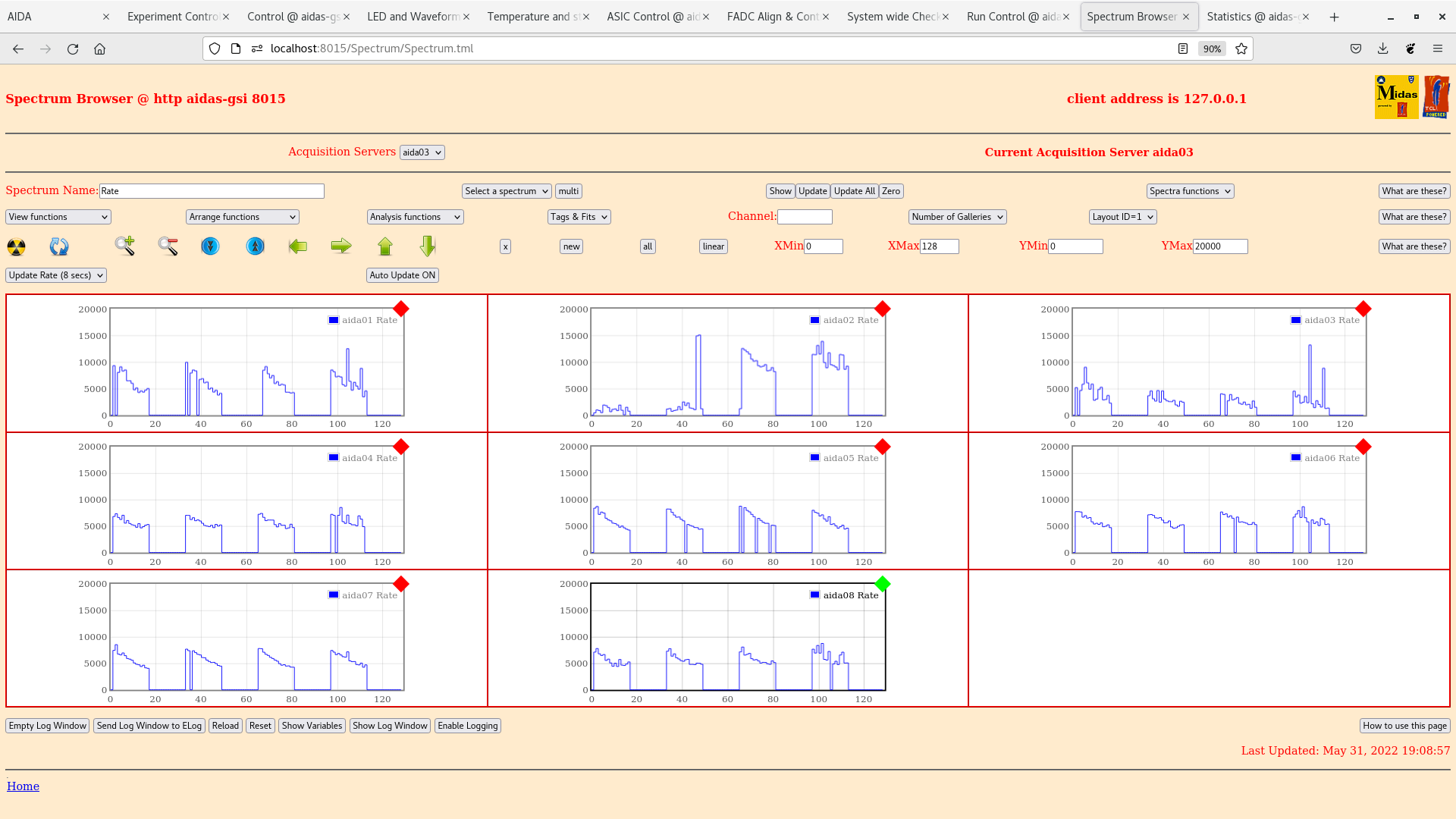

Attachment 19 - per FEE64 rate spectra
Attachment 20 - adc data item stats |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
