| DESPEC |
 |
|
|
|
Message ID: 488
Entry time: Tue Jun 21 23:29:16 2022
|
| Author: |
TD |
| Subject: |
Wednesday 22 June 00:00-08:00 |
|
|
00.28 all histograms & stats zero'd
baseline counters
ASIC settings 2021Apr29-13-16-00
*except* slow comparator 0x64 -> 0xa
BNC PB-5 pulser
to p+n FEE64s only
amplitude 1.0V
attenuator x1
decay time 1ms
polarity +
frequency 2Hz
all AD9252 waveform ADCs disabled
Tape Server -> no storage mode
00.36 check ASIC control all FEE64s all ASICs
all system wide checks OK
00.41 BNC PB-5 pulser rate increased from 2Hz to 22Hz per request by HA/NH - to ensure DTAS correlation checker has sufficient rate of identified pulser events

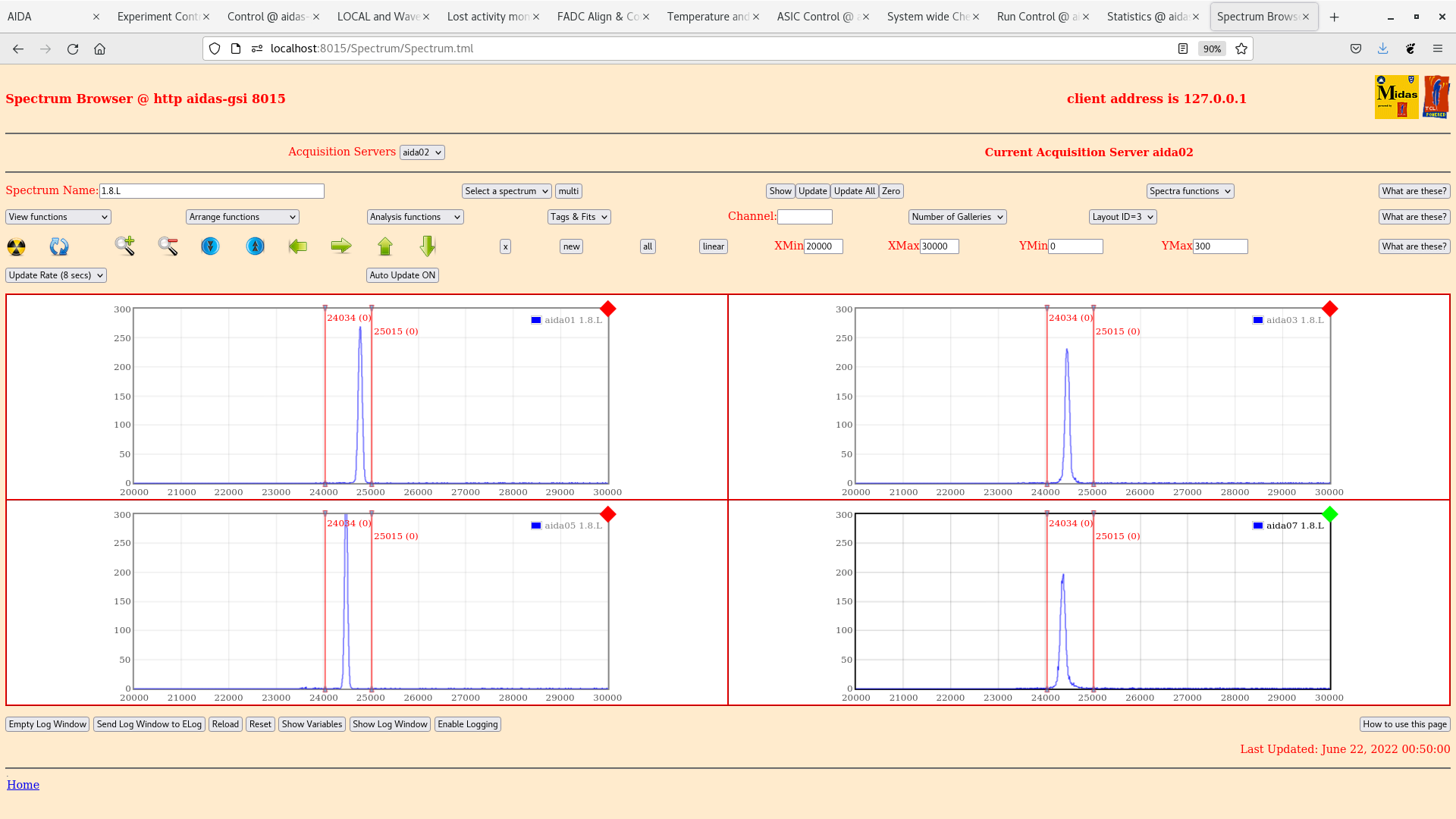

per p+n FEE64 1.8.L spectra - attachment 1
aida01 pulser peak width 88 ch FWHM
per FEE64 rate spectra - attachment 2

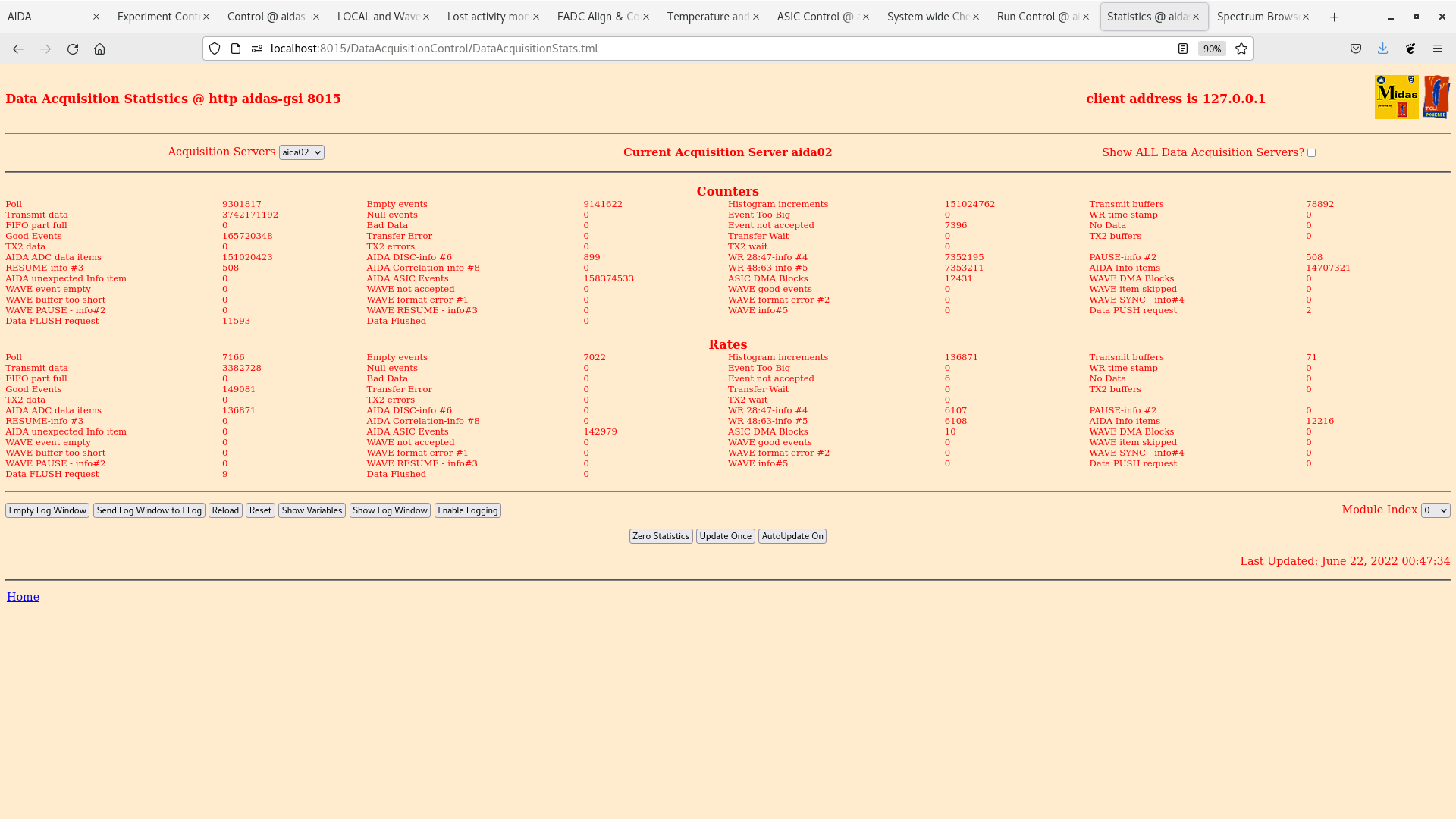

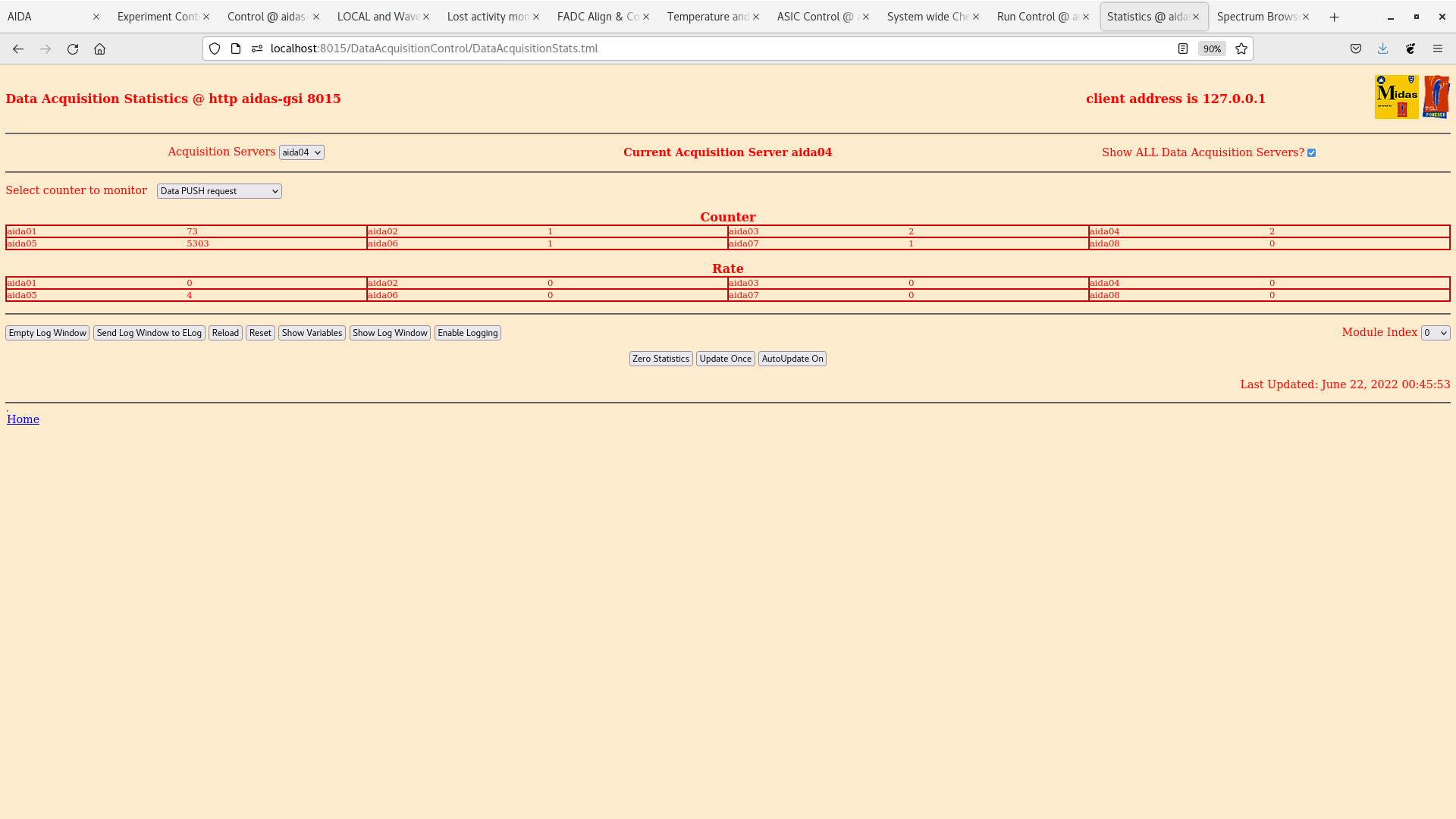

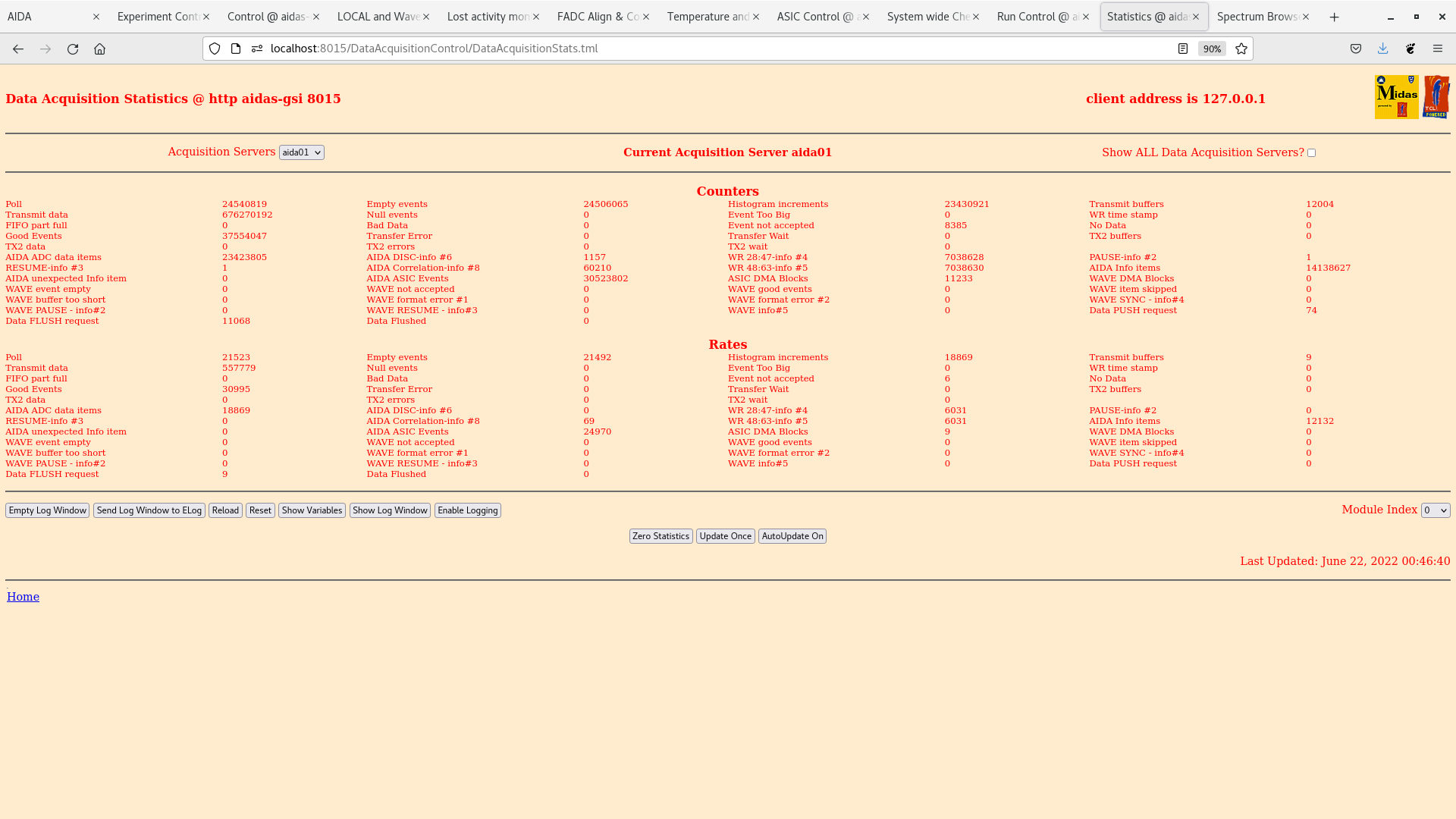

adc, pause and correlation scaler data items - push, aida01 and aida02 stats - attachments 3-8
FEE64 temps OK - attachment 9

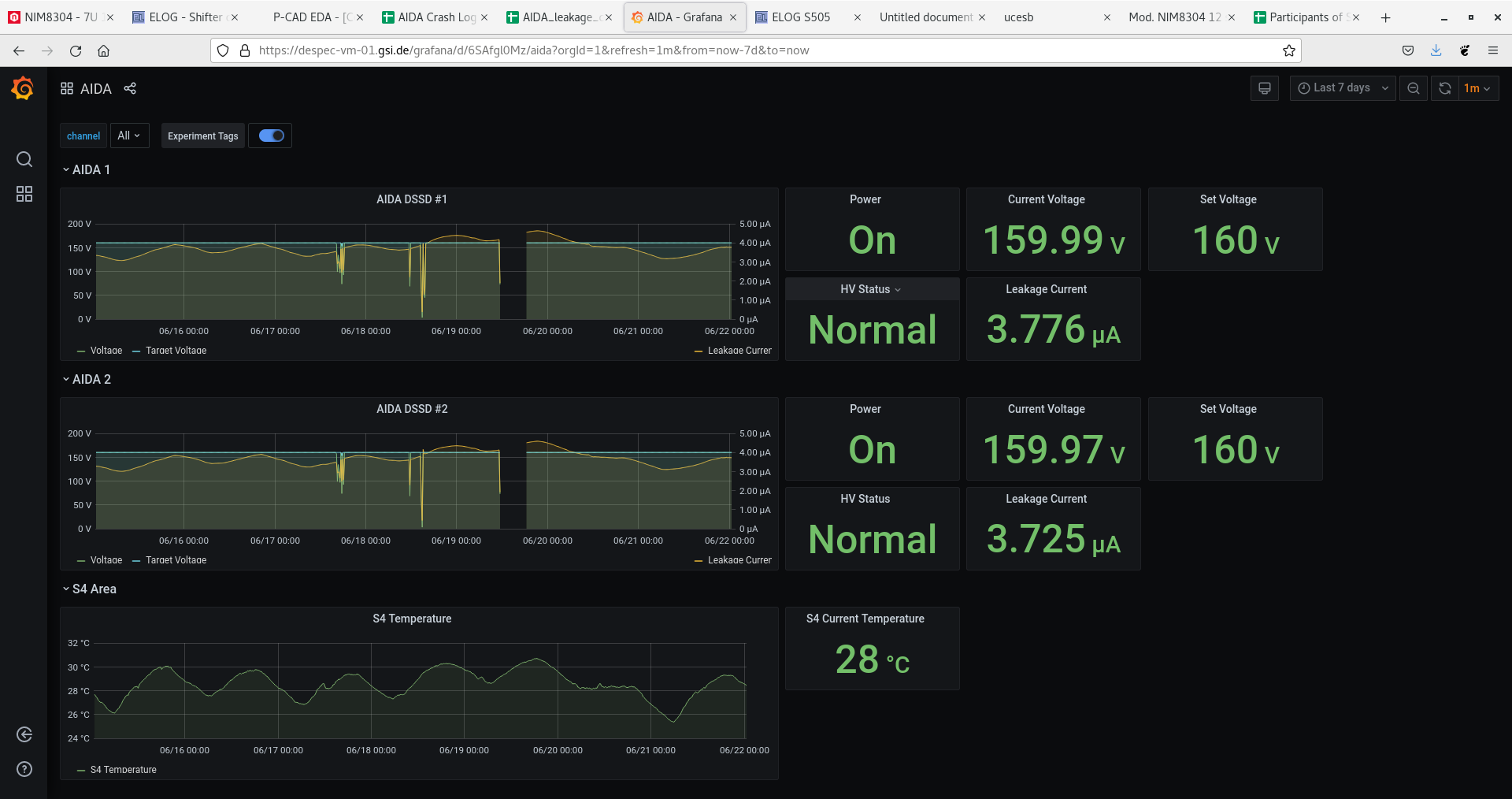

DSSSD bias & leakage current OK - attachments 10 & 11
02.28 aida05 zero adc data items, unable to halt aida05 - all other FEE64s OK
restart NewMerger -> now able to halt aida05
DAQ go OK, merge rate c. 1.4M data items/s

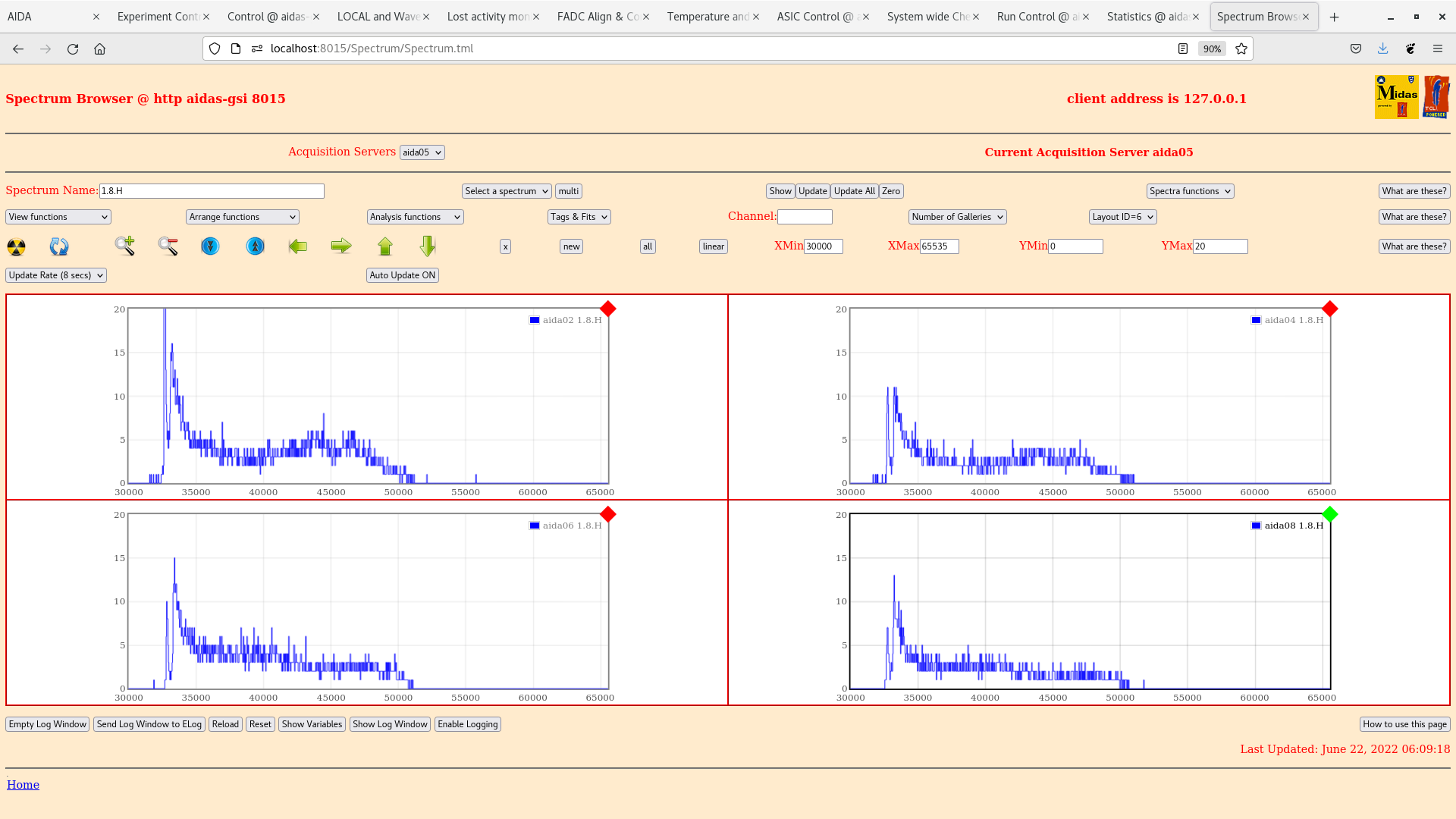

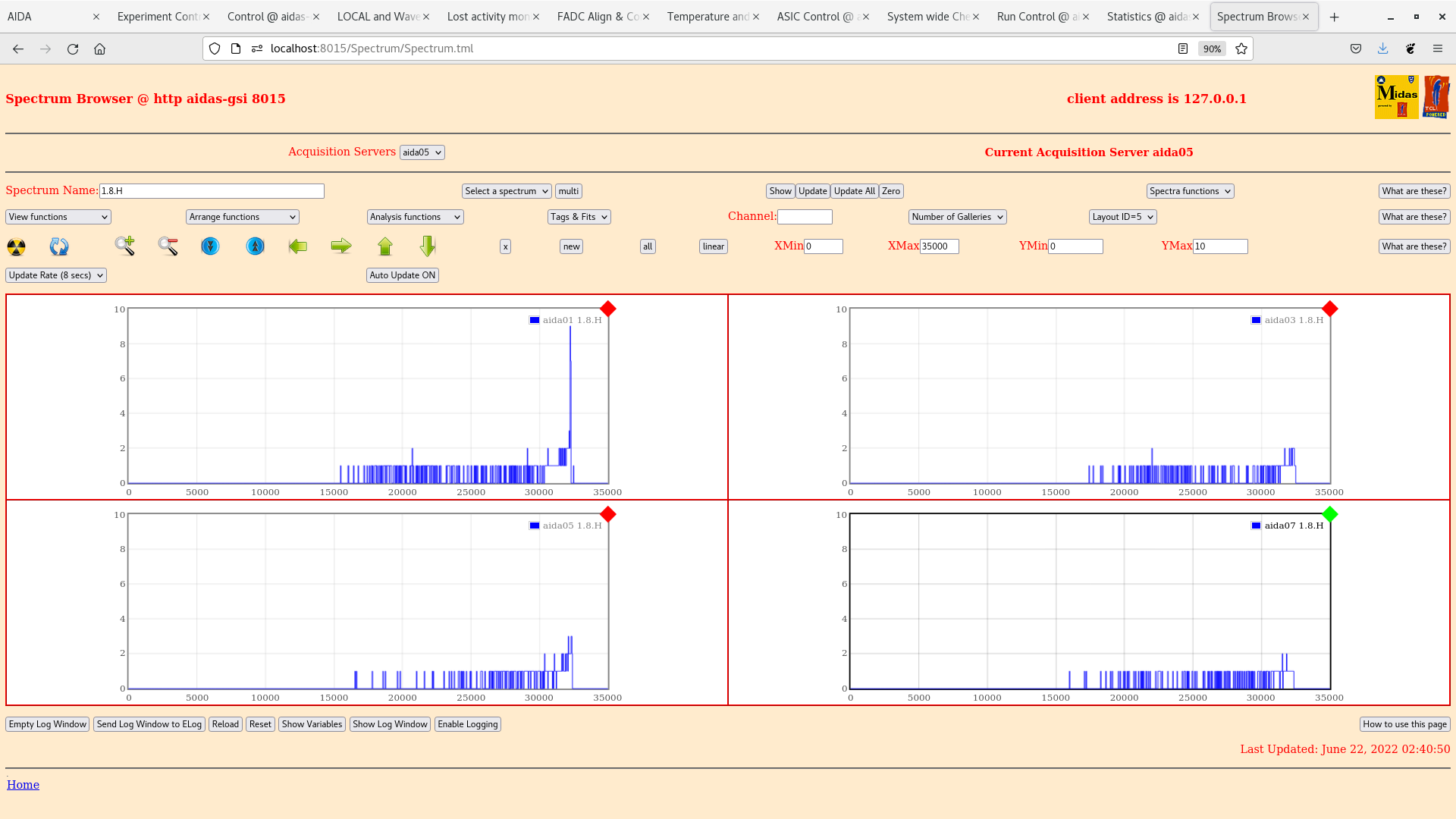

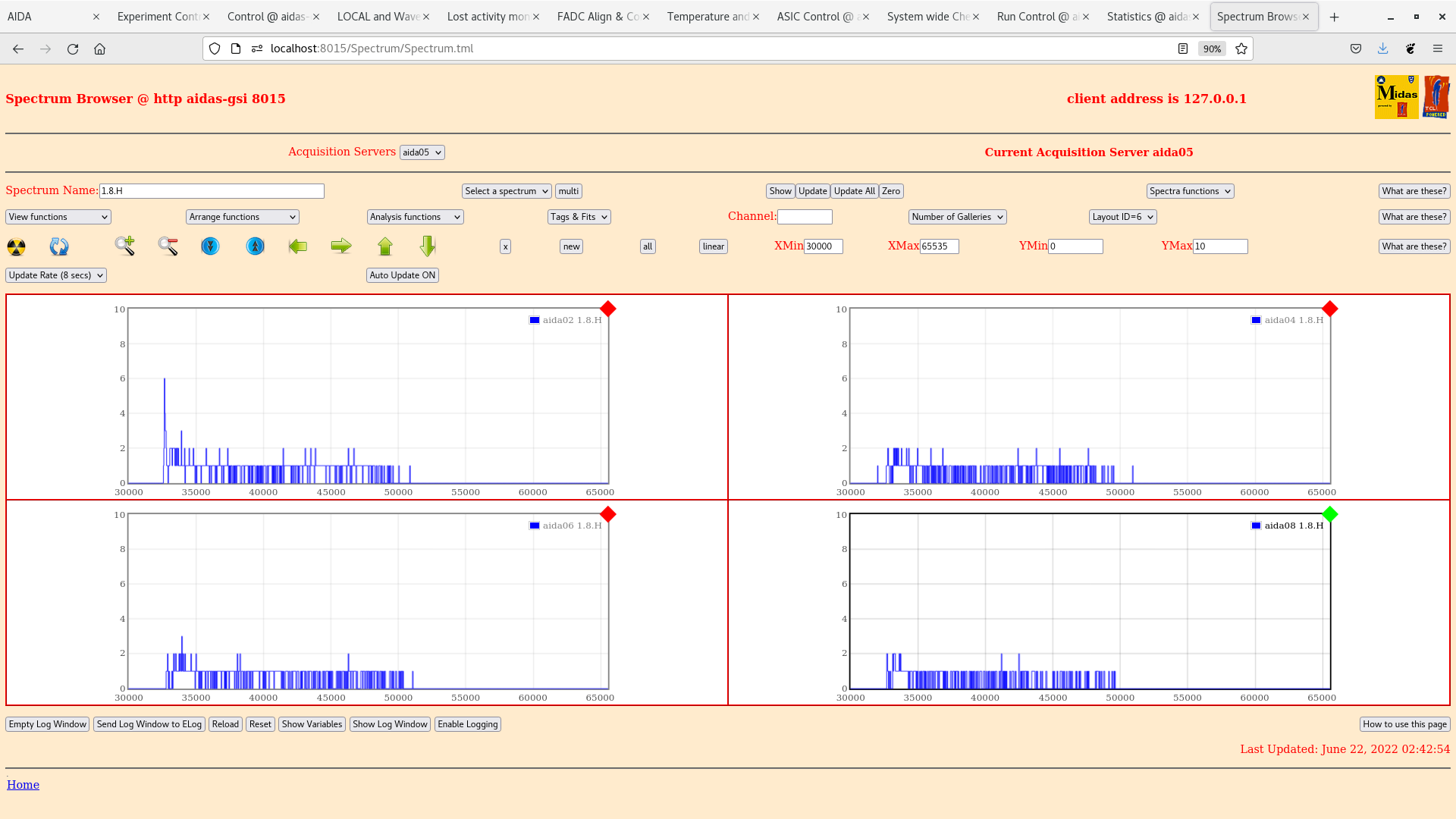

per FEE64 1.8.H spectra - attachments 12 & 13
approx flat distribution to c. 10GeV
adc data items stats OK - attachments 14

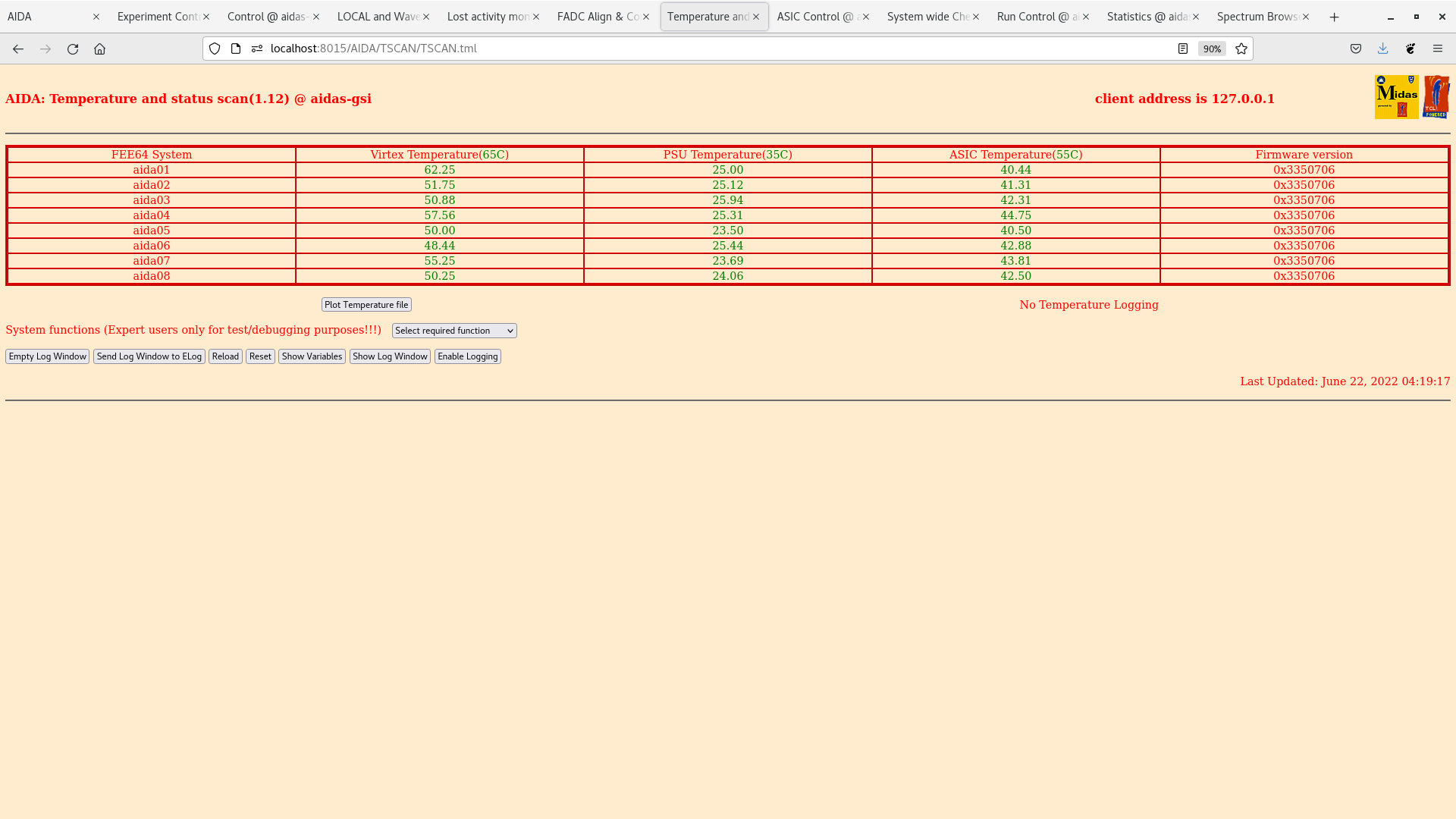

FEE64 temps OK - attachment 15

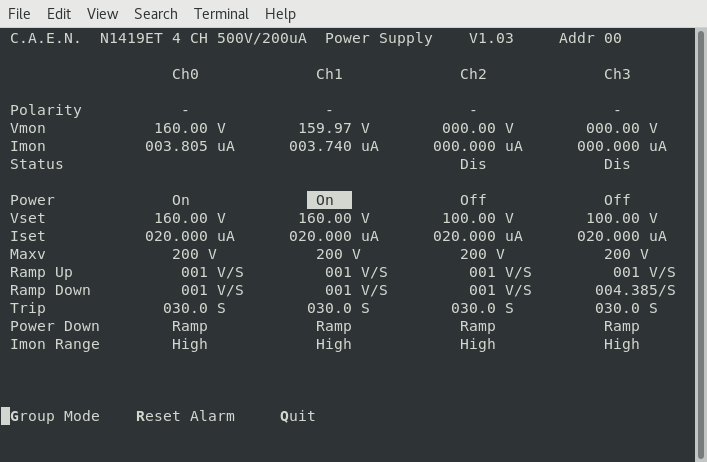

DSSSD bias & leakage current OK - attachments 16 & 17
02.55 Some problems with GO4 data analysis for PID (FRS PID looks OK). 204Pt setting. Will commence writing data to disk file S505/R2_0

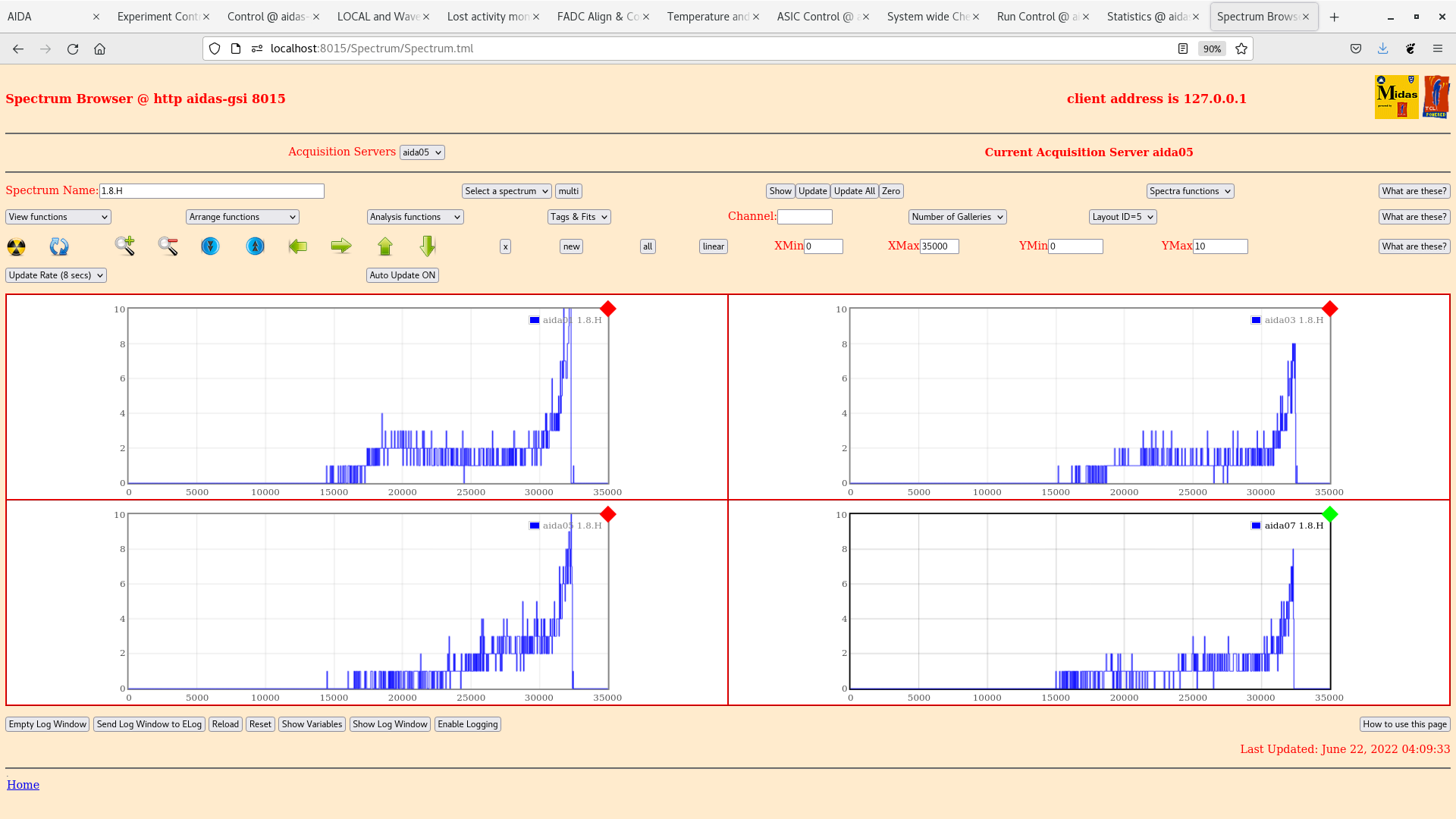

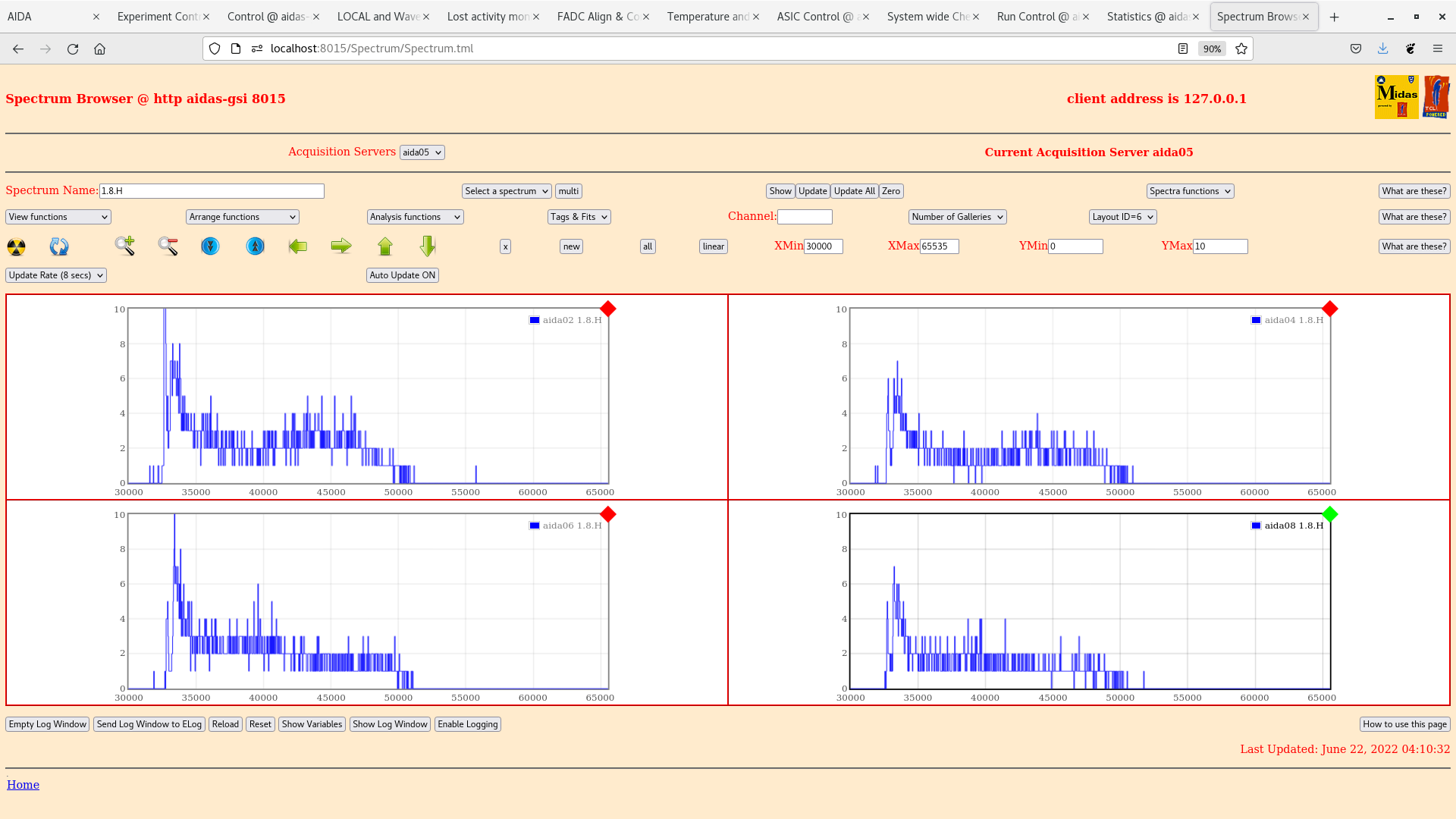

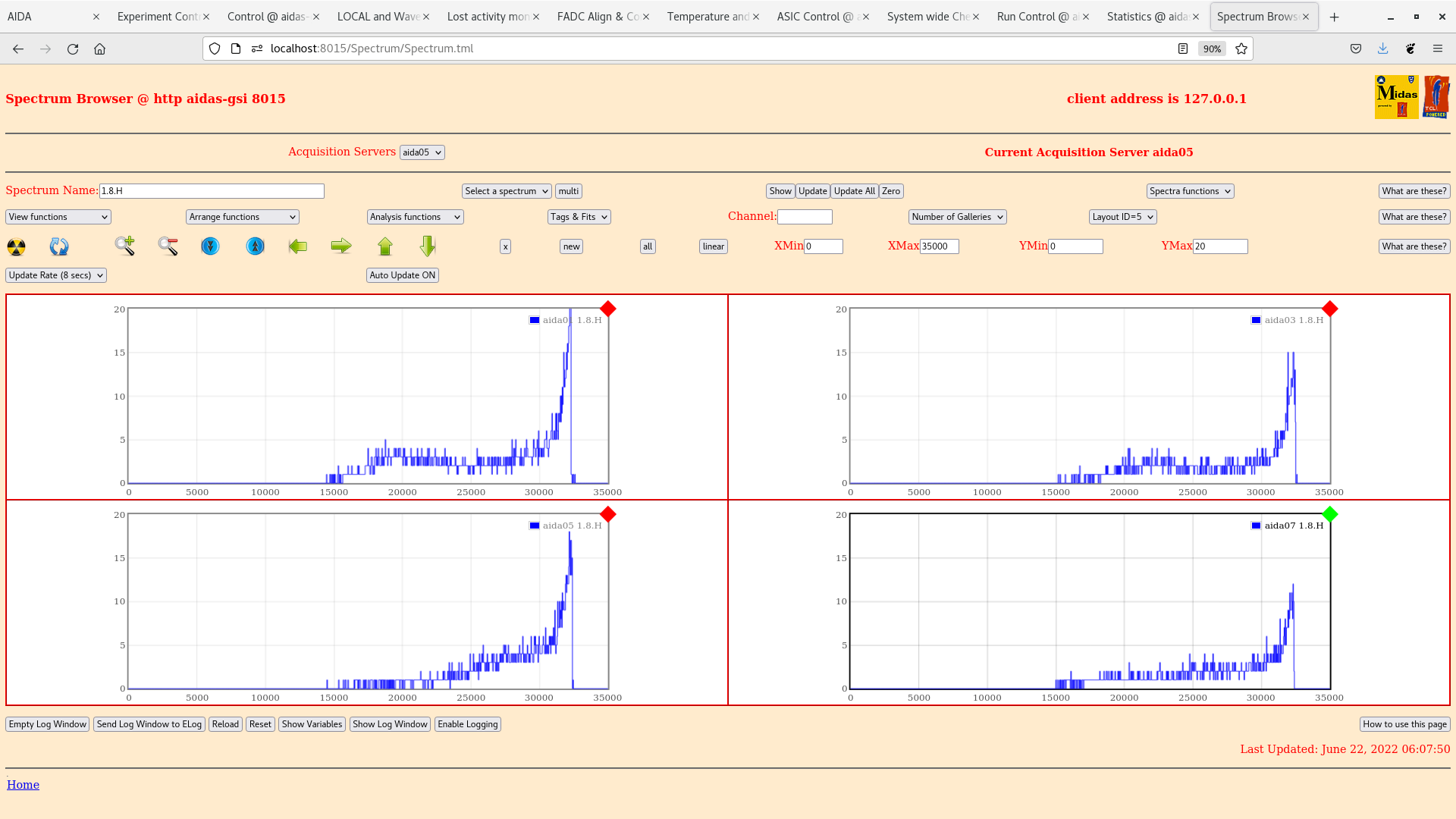

04.12 per FEE64 1.8.H spectra - attachments 18 & 19
c. 9GeV peak in upstream DSSSDs (aida01, 2, 3 & 4) indicating (high energy) heavy fragments are stopping
Low energy events near c. 200MeV lower mass, high energy, low energy loss - fission fragments?

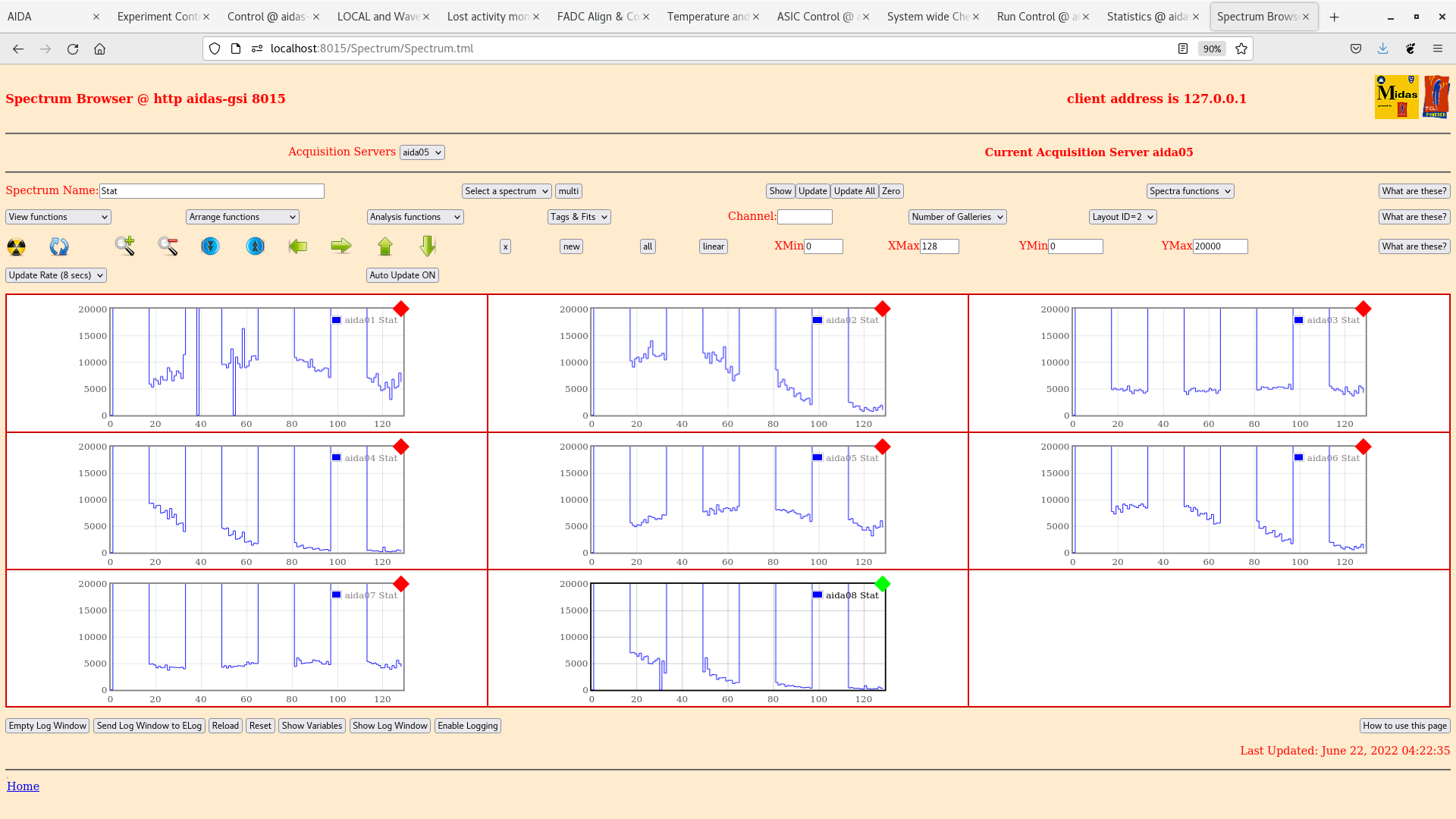

04.20 per FEE64 stats spectra - attachment 20
indicates implant x-y distribution - off centre (more significantly in x than in y) but DSSSDs appear to see most of distribution
remember raw distro will have significant fraction of fission fragments - may be misleading - need to gate on high energy events to see x-y distro of ions of
interest
adc data items stats OK - attachments 21
FEE64 temps OK - attachment 22
DSSSD bias & leakage current OK - attachments 23

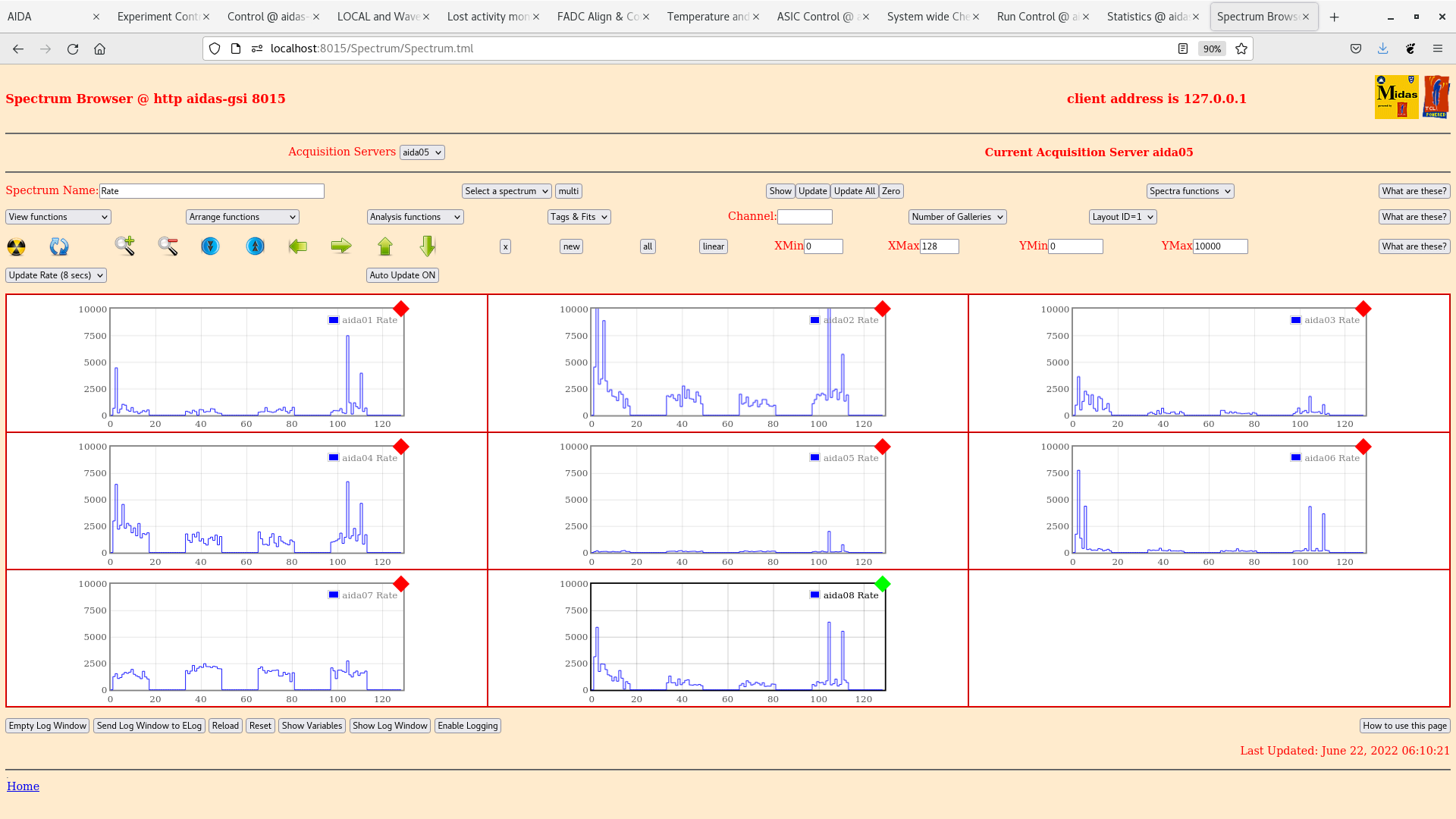

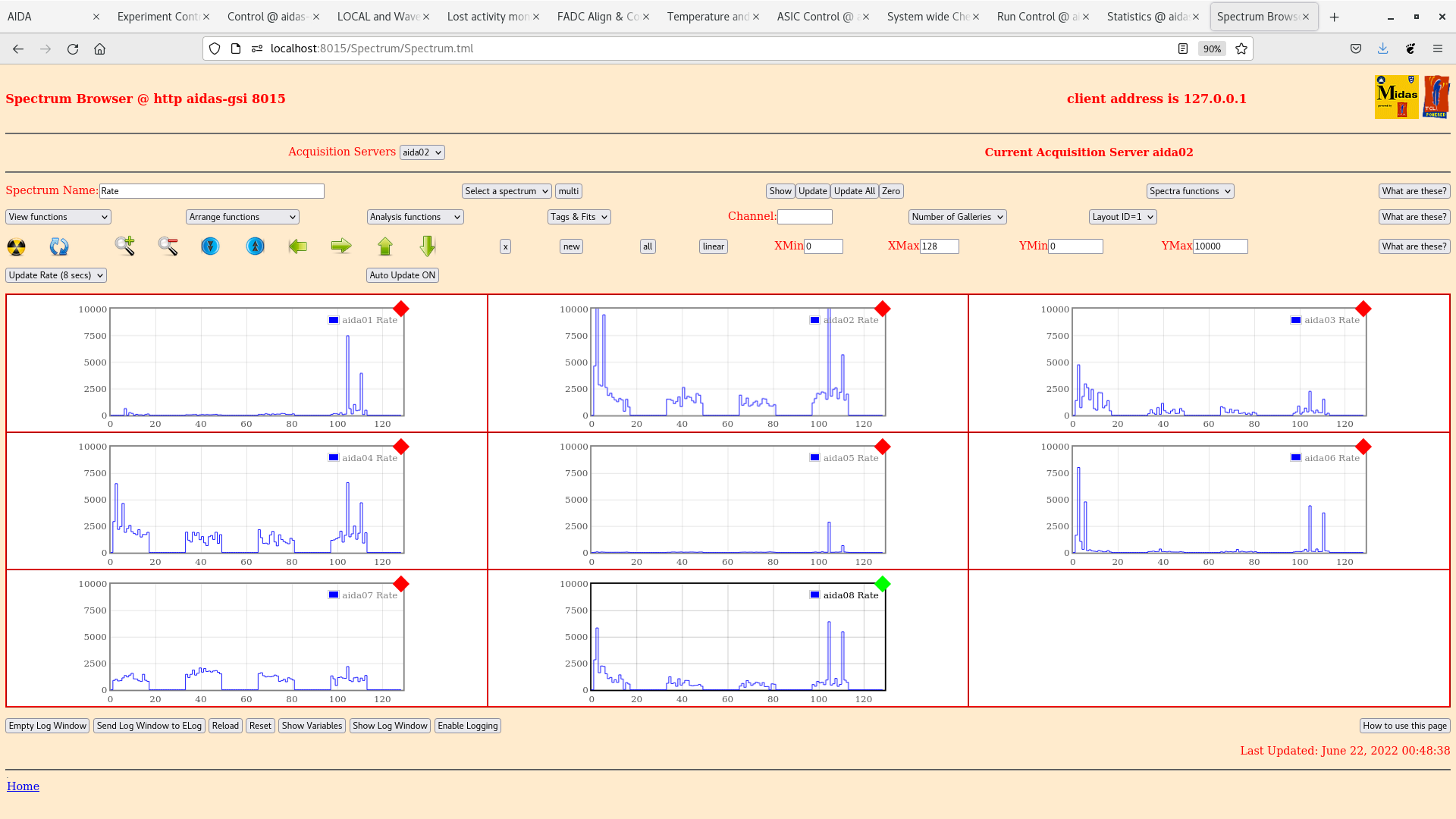

06.10 per FEE64 rate spectra - attachment 24
per FEE64 1.8.H spectra - attachments 25 & 26

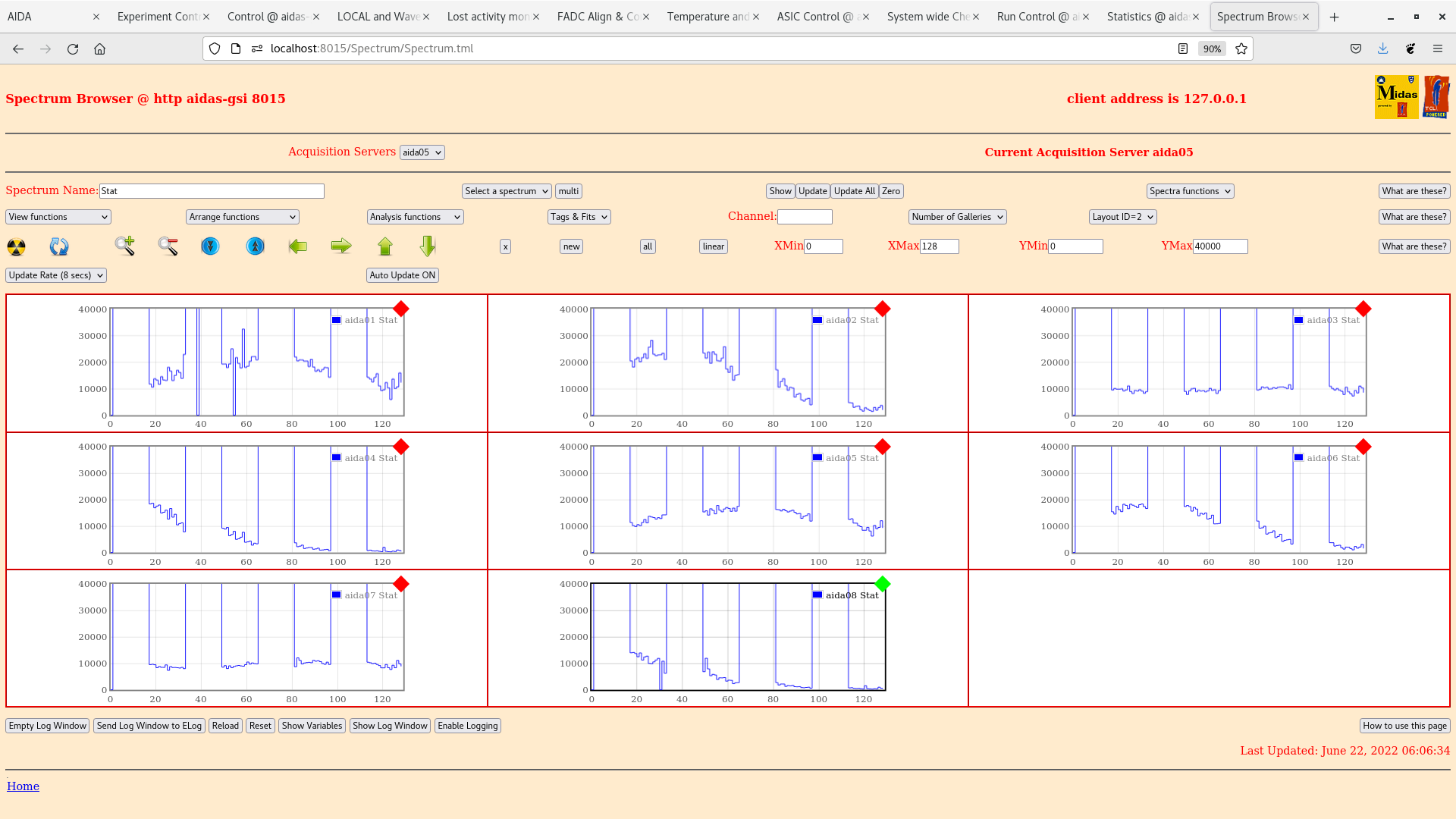

per FEE64 stats spectra - attachment 27
adc data items stats OK - attachments 28
FEE64 temps OK - attachment 29

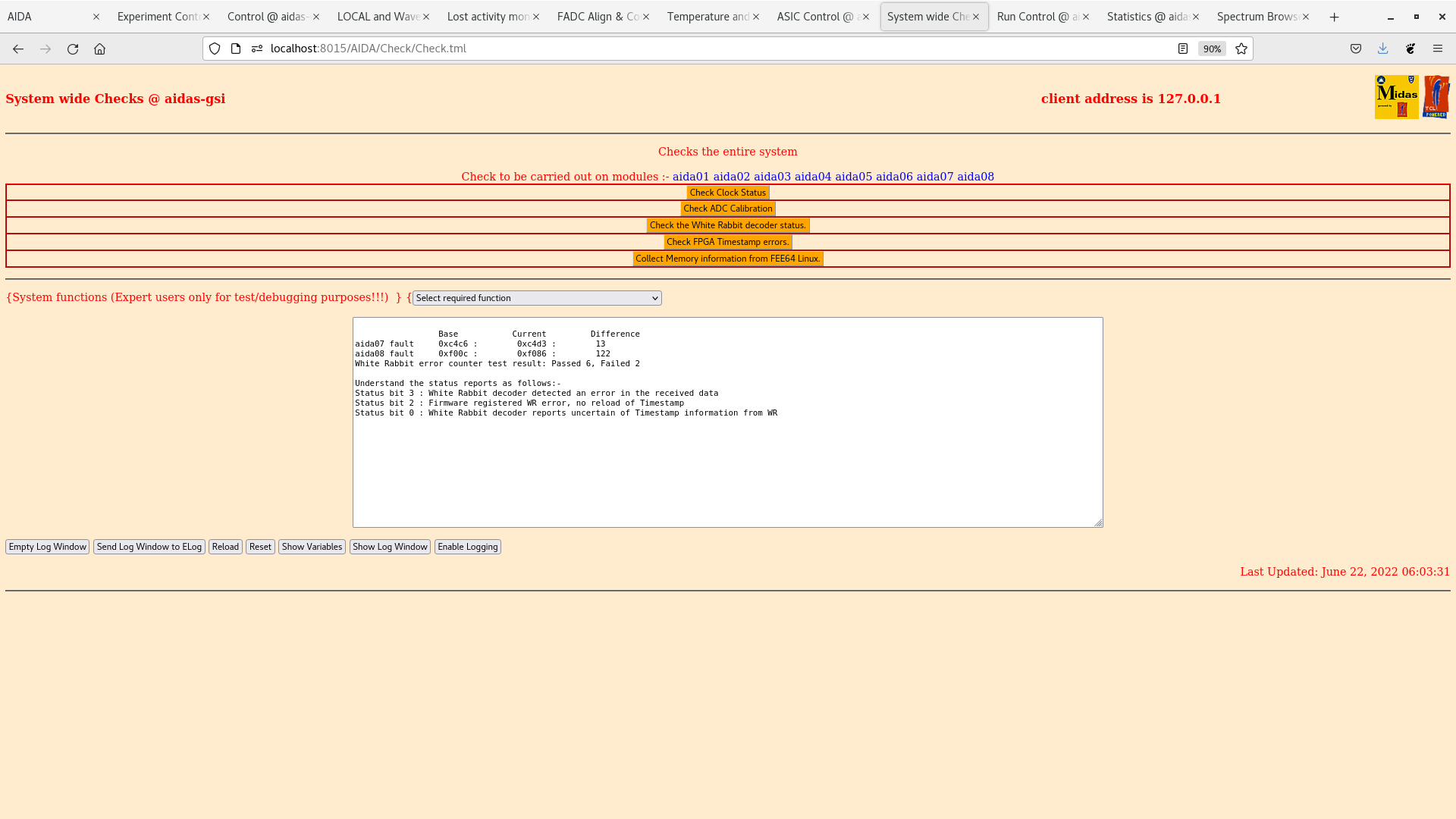

system wide checks OK *except* WR & FPGA errors - see attachments 30 & 31

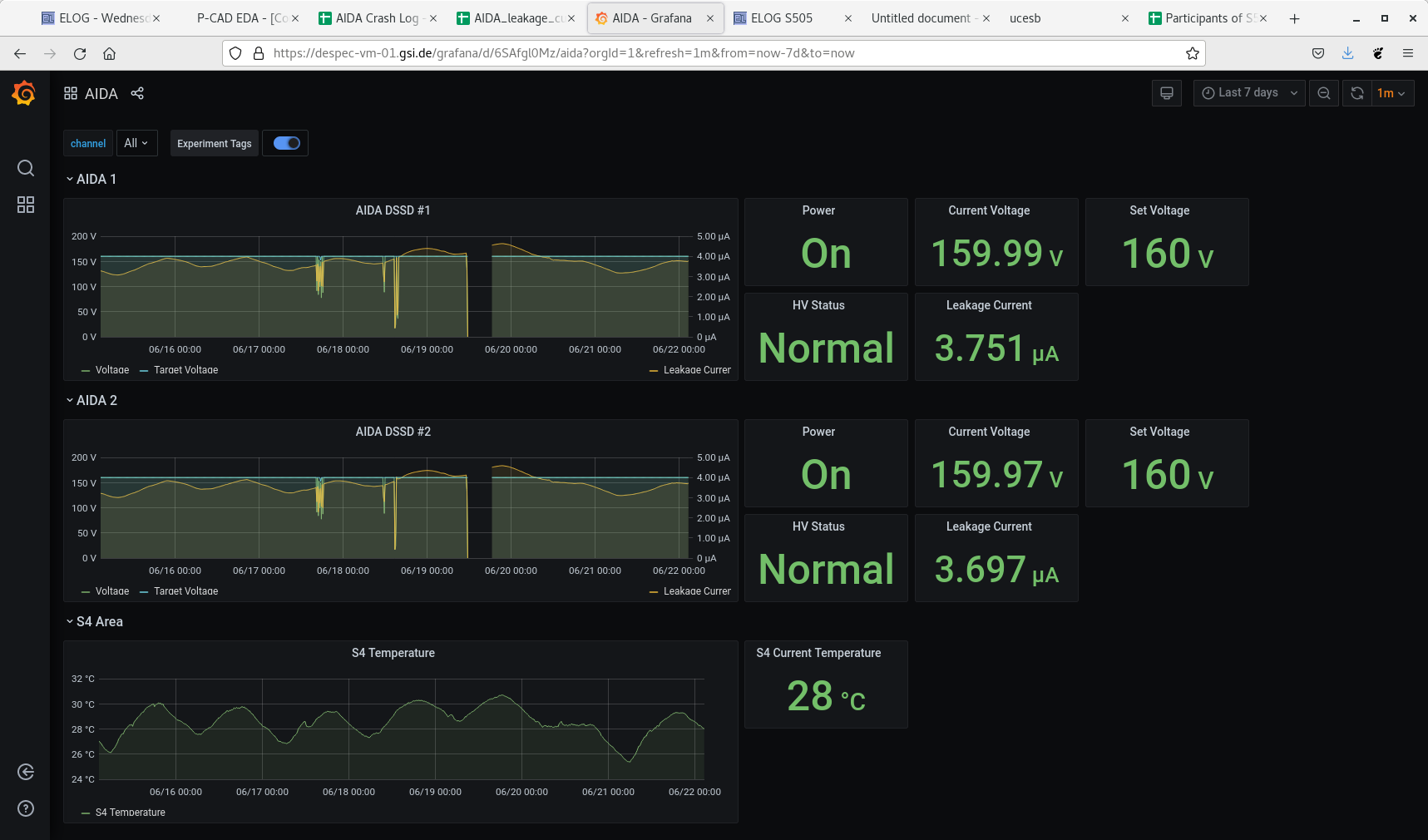

DSSSD bias & leakage current OK - attachments 32
07.52 analysis of file S505/R2_47 - attachment 33
all FEE64 dead times < 1% *except* aida02 c. 7% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 259428432 ( 714533.4 Hz)
Other data format: 2491568 ( 6862.4 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 881 ( 2.4 Hz)
RESUME: 880 ( 2.4 Hz)
SYNC100: 33352 ( 91.9 Hz)
WR48-63: 33352 ( 91.9 Hz)
FEE64 disc: 1422279 ( 3917.3 Hz)
MBS info: 1000824 ( 2756.5 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 416179 ( 1146.3 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 363.074 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.857 0.000
1 26.452 0.000
2 0.132 0.000
3 1.570 0.000
4 0.002 46.041
5 0.661 0.000
6 0.312 0.000
7 0.027 0.000
8 0.000 0.000
9 0.000 0.000
10 0.000 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 0.000 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 25701314 249377 0 0 56 56 3411 3411 217219 25224 0 83012
1 63351849 247459 0 0 567 566 8361 8361 229604 0 0 62244
2 23166597 387869 0 0 37 37 3010 3010 134065 247710 0 48973
3 48876539 363237 0 0 105 105 6171 6171 104940 245745 0 28921
4 8006429 267186 0 0 3 3 1045 1045 265090 0 0 68788
5 22095663 170195 0 0 36 36 2789 2789 164545 0 0 52757
6 40483353 472437 0 0 66 66 5106 5106 227985 234108 0 48544
7 27746688 333808 0 0 11 11 3459 3459 78831 248037 0 22940
8 0 0 0 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 35.072s ( 912.402 blocks/s, 57.025 Mb/s)
|
