Entry time: Thu Jun 23 06:56:02 2022
|
| Author: |
OH |
| Subject: |
Thursday 23 June 08:00-16:00 |
|
|
07:56 Taken over from AM
Current White Rabbit Error status:
Base Current Difference
aida07 fault 0xc4fe : 0xc51a : 28
aida08 fault 0xf0e9 : 0xf132 : 73
White Rabbit error counter test result: Passed 6, Failed 2
FPGA error status:
Base Current Difference
aida07 fault 0x11 : 0x18 : 7
aida08 fault 0x1a : 0x20 : 6
FPGA Timestamp error counter test result: Passed 6, Failed 2
Likely that at some point AIDA08 will drop out again. I think this occurs if there is a sudden burst of WR errors which causes the merger to drop the link

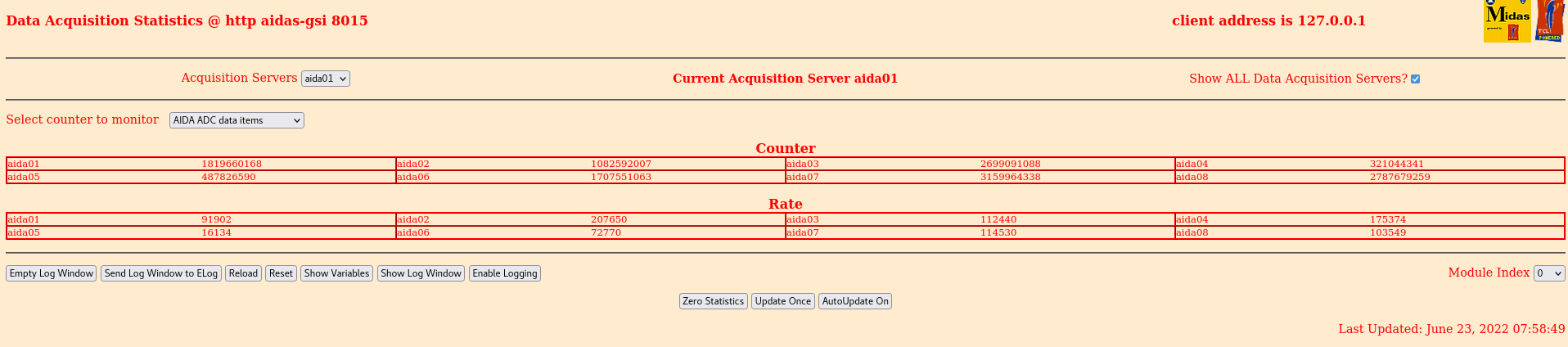

Statistics ok - attachment 1

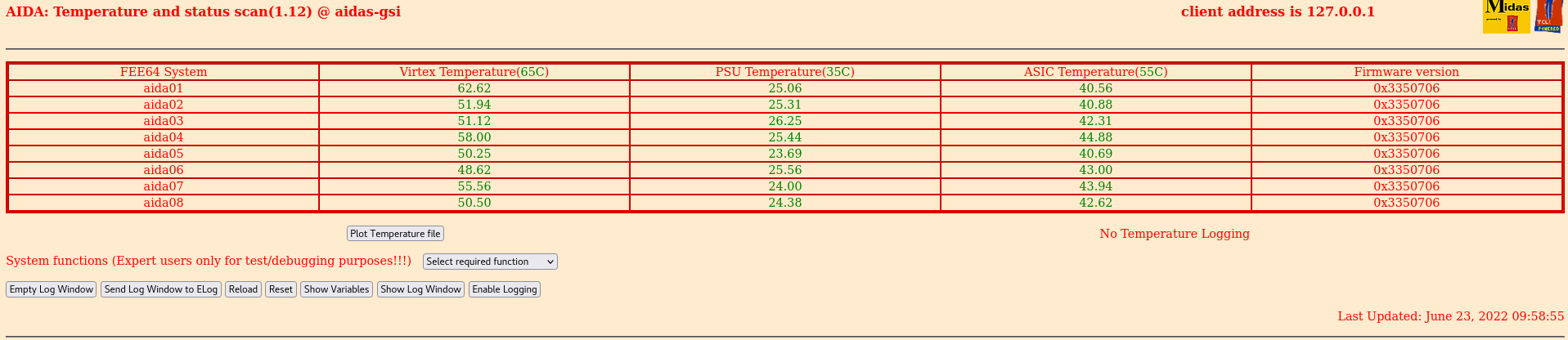

FEE temperatures ok - attachment 2

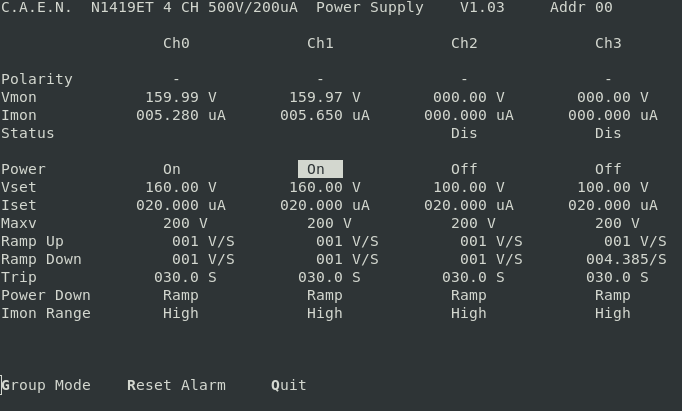

Bias and leakage currents ok - attachment 3
Analysis of file R3_93 - attachment 4
Still deadtime in aida02 of ~15%
Patrick has said he will look into whether we are still sending info code 4 and 5 for every ADC event which could be contributing to the deadtime.
Currently 2.2 TB of space on /media/SecondDrive
Current data rate of 6.23MB/s
At current data rate this should last 4 days
08:27 Currently no beam
Problem with Alvarez 3 now
Tomorrow will have a 1 hour break due to changing of the source
09:36 Beam back
09:59 System wide checks
Base Current Difference
aida07 fault 0xc4fe : 0xc51b : 29
aida08 fault 0xf0e9 : 0xf138 : 79
White Rabbit error counter test result: Passed 6, Failed 2
Base Current Difference
aida07 fault 0x11 : 0x18 : 7
aida08 fault 0x1a : 0x20 : 6
Stats ok - attachment 5
Temperatures ok - attachment 6
Bias and leakage currents ok - attachment 7
11:14 FRS group is changing from Hg setting back to Pt
11:36 Back on Pt R3_129

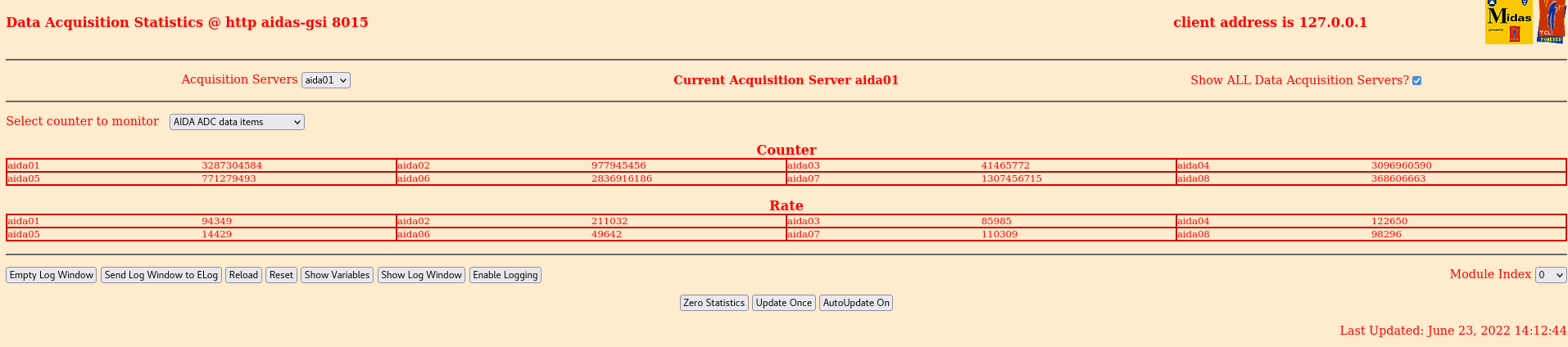

14:14 Stats ok - attachment 8

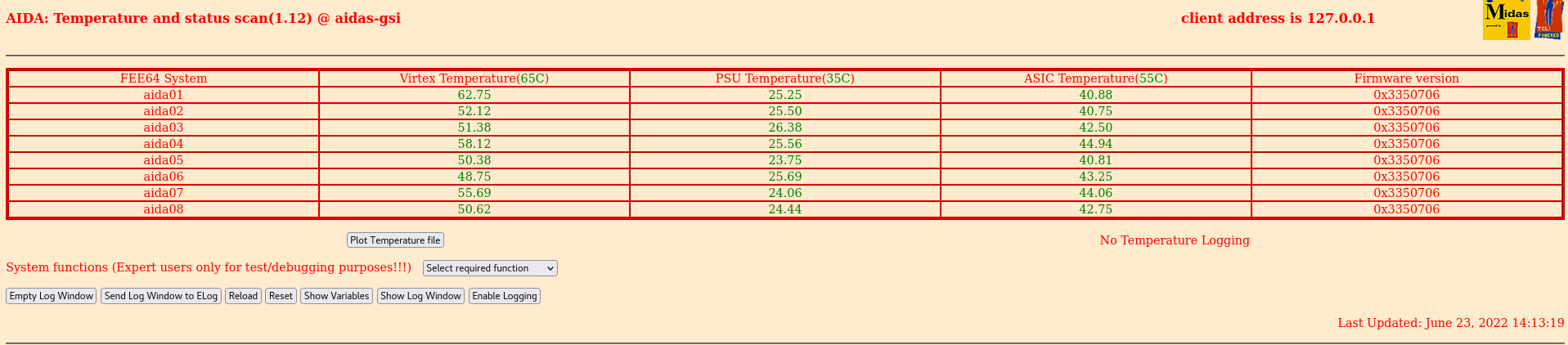

Temperature ok - attachment 9

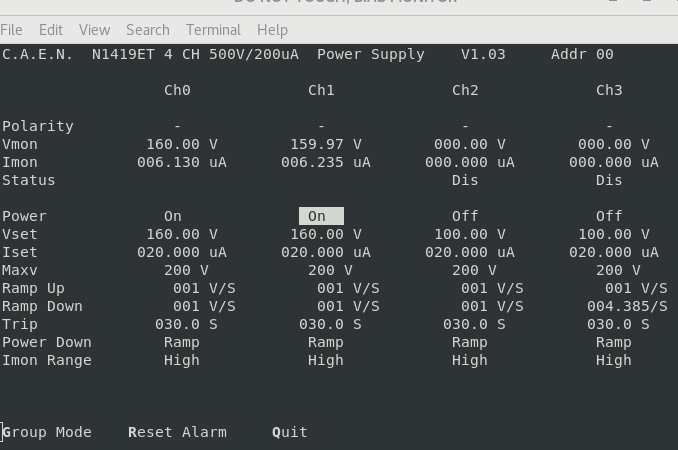

Bias and leakage currents ok - attachment 10
System wide checks:
WR:
Base Current Difference
aida07 fault 0xc4fe : 0xc523 : 37
aida08 fault 0xf0e9 : 0xf156 : 109
White Rabbit error counter test result: Passed 6, Failed 2
FPGA
Base Current Difference
aida07 fault 0x11 : 0x1b : 10
aida08 fault 0x1a : 0x20 : 6
Analysis of R3_156 - attachment 11 |
|
|
|
|
|
|
|
