16:05 - Last checked was at 15:30. (see previous entry. All running smoothly.

Next wide check will be in about an hour.

17:00

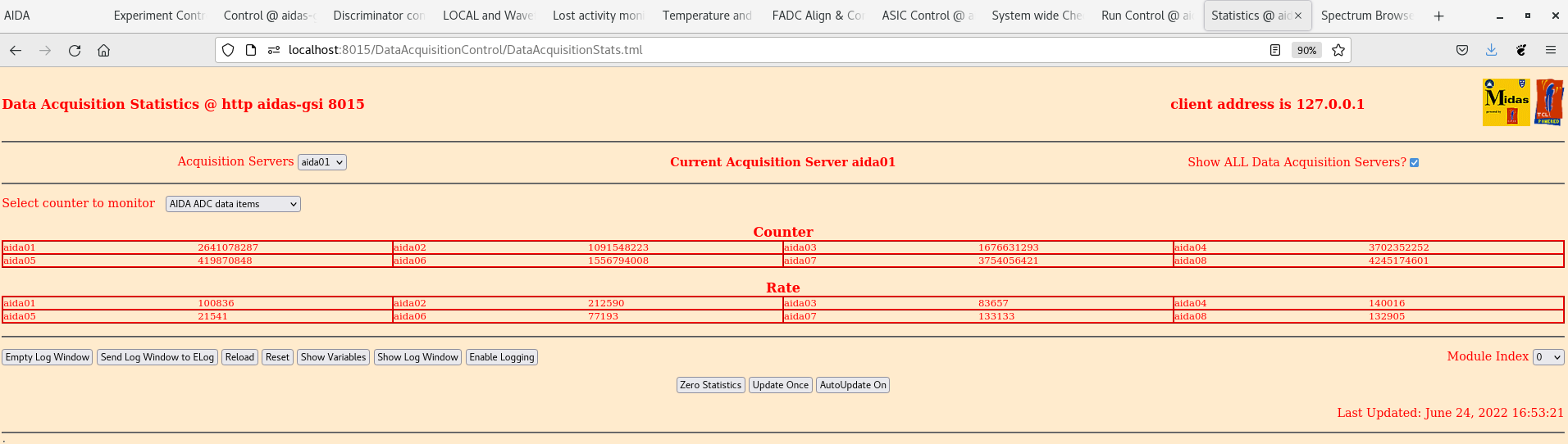

Stats -ok - attachment 1

Temperatures ok - attachement 2

Leakage current ok but - attachment 3

ucesb screen-shot - attachment 4

Wide check completed. Nothing different.

WR status decoder status:
         Base         Current     Difference
aida07 fault      0xc53d :      0xc547 :      10
aida08 fault      0xf1be :      0xf1e9 :      43
White Rabbit error counter test result: Passed 6, Failed 2

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

FPGA timestamp::
             Base         Current         Difference
aida07 fault      0x2a :      0x2c :      2
FPGA Timestamp error counter test result: Passed 7, Failed 1
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

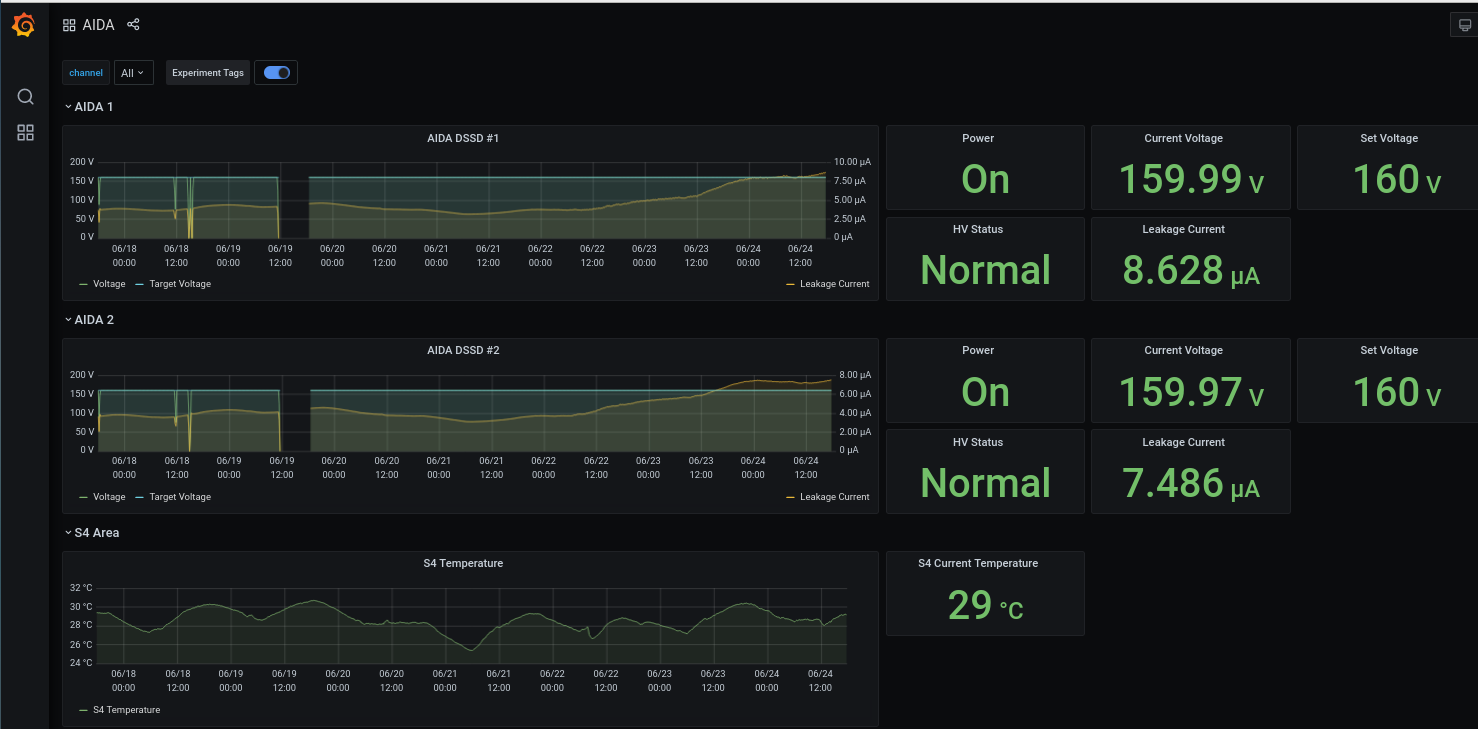

Note that the leakage current is ok but has increased since yesterday , See graphana - attachement 5 - Prossibly due to higher beam intensity.

19:20 -

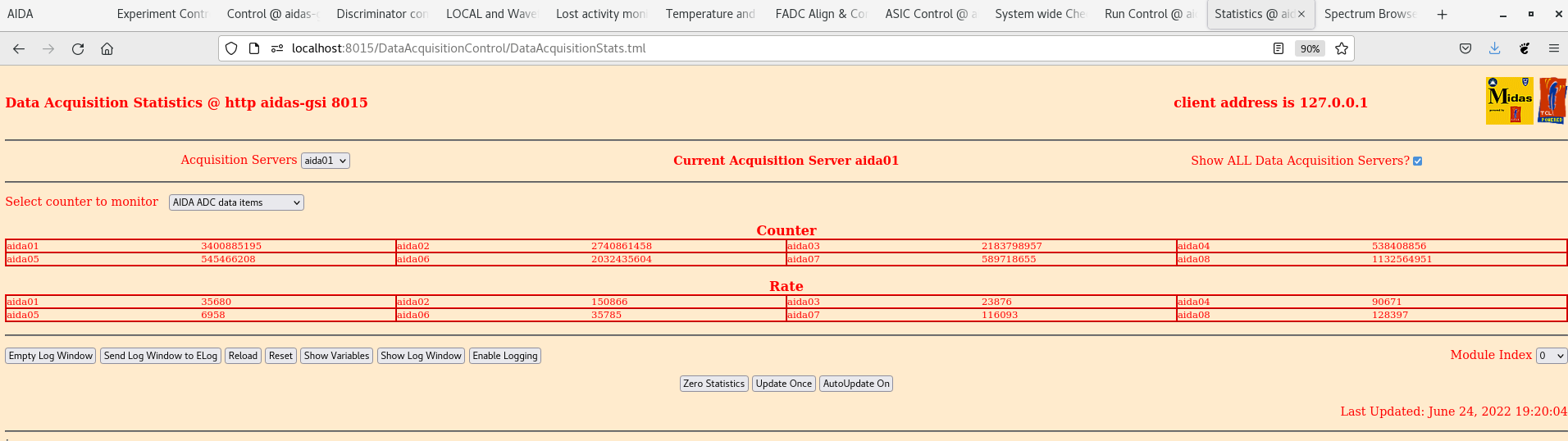

Stats  ok - attachment 6

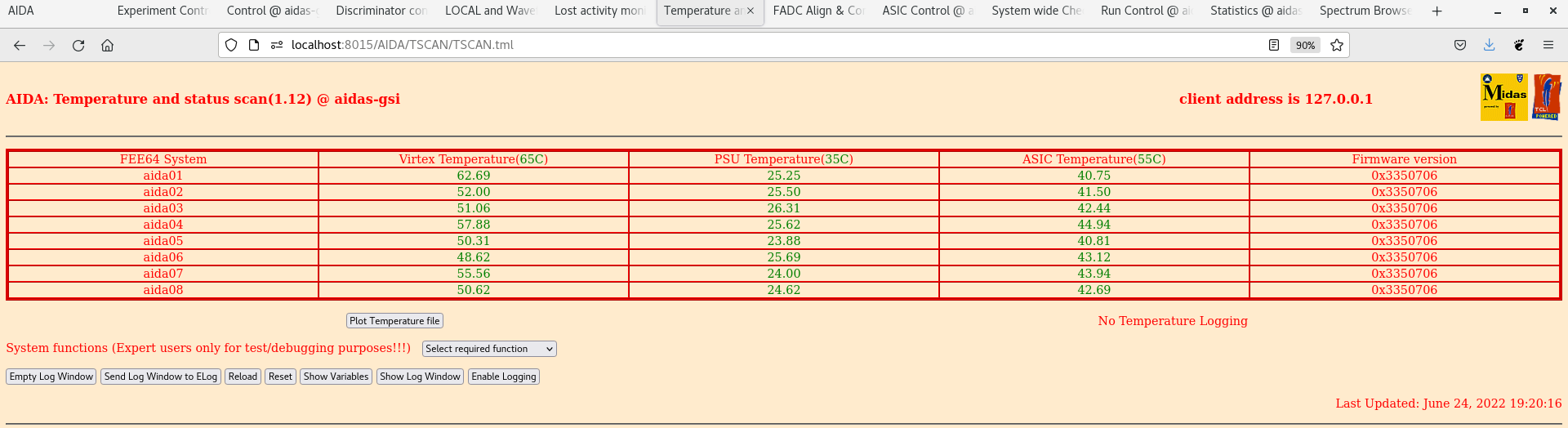

Temp ok - attachment 7

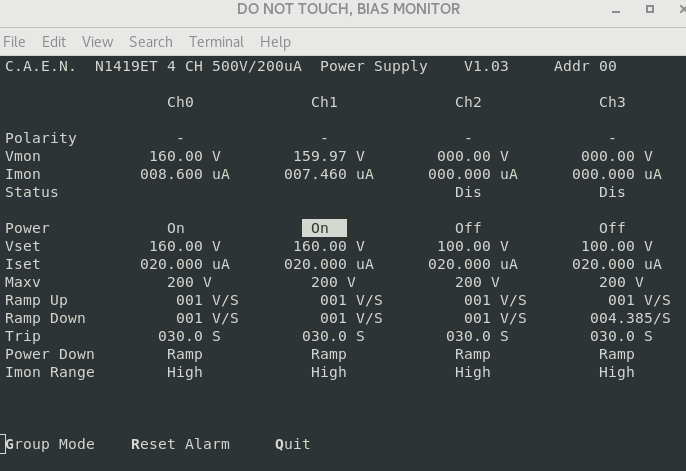

Leakage current  ok - attachement 8

Wide check completed and same output as above.

22:00

Stats  ok - attachment 9

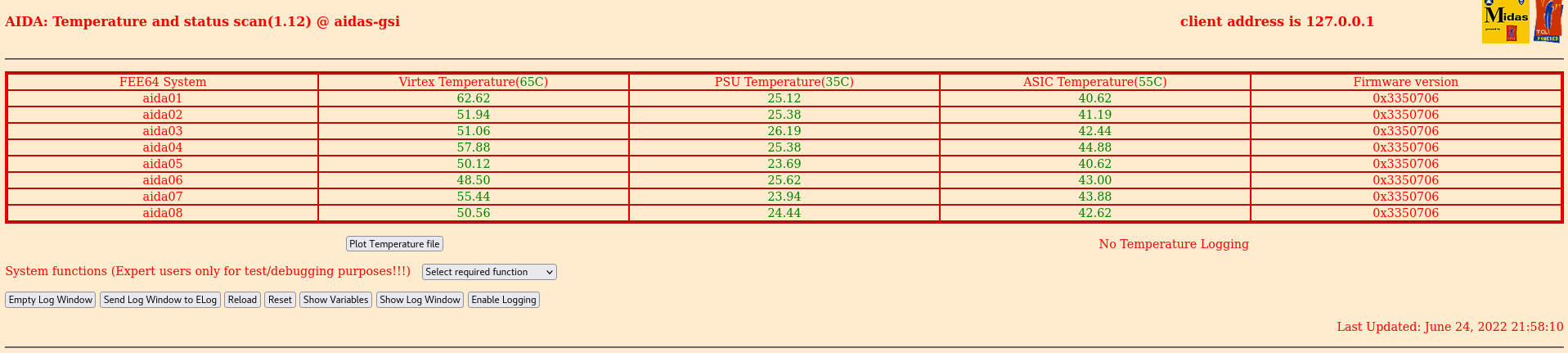

Temp ok - attachment 10

Leakage current  ok - attachement 11

Wide check completed and same output as above.
