09:51 Taken over from Tom following the night shift
Experiment is still running smoothly
Compression of the files is complete up to the start of R5.
Have started compression of files in R5 which should run up to R5_499
Currently on R5_528
Statistics ok - attachment 1
Temperatures ok - attachment 2

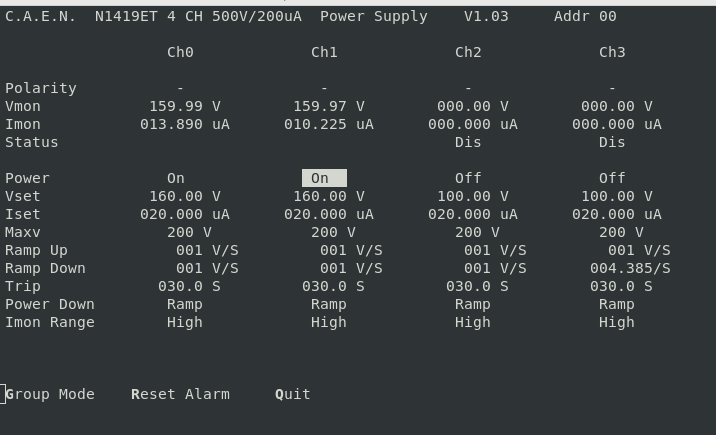

Bias and leakage currents ok - attachment 3
System wide checks:
Base Current Difference
aida07 fault 0xc53d : 0xc594 : 87
aida08 fault 0xf1be : 0xf271 : 179
White Rabbit error counter test result: Passed 6, Failed 2
Base Current Difference
aida07 fault 0x2a : 0x3b : 17
FPGA Timestamp error counter test result: Passed 7, Failed 1
Current merger rate is 2E6-4E6 events per second
Current tapeserver rate is 5800 kB/s
Free HDD space is 1.1 TB
At current rates will last 54 hours which should see out the experiment
Experiment currently scheduled to finish at 6am on Tuesday morning (May get until 8am)
Analysis of R5_528 - attachment 4
Deadtime of AIDA02 currently around 15%
11:56 Statistics ok - attachment 5

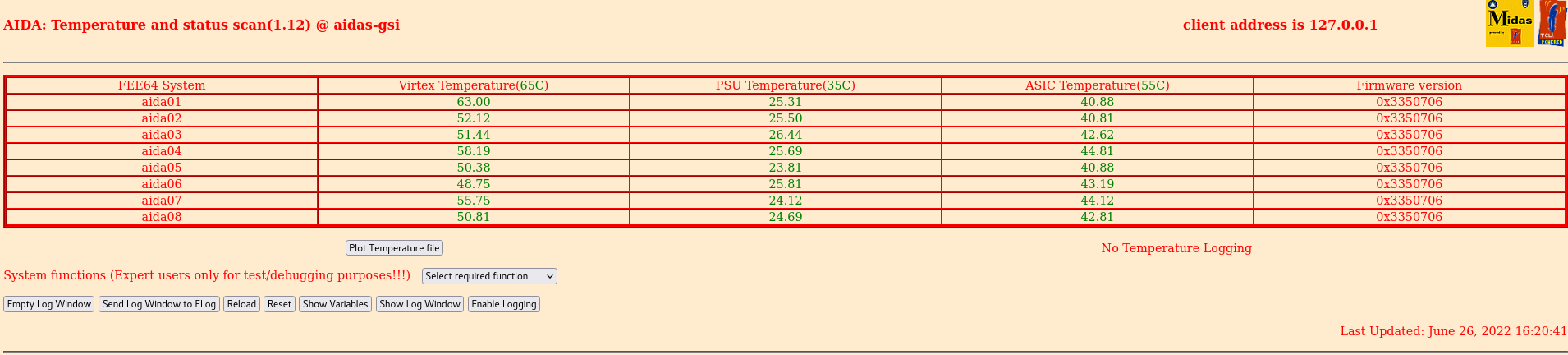

Temps ok - attachment 6

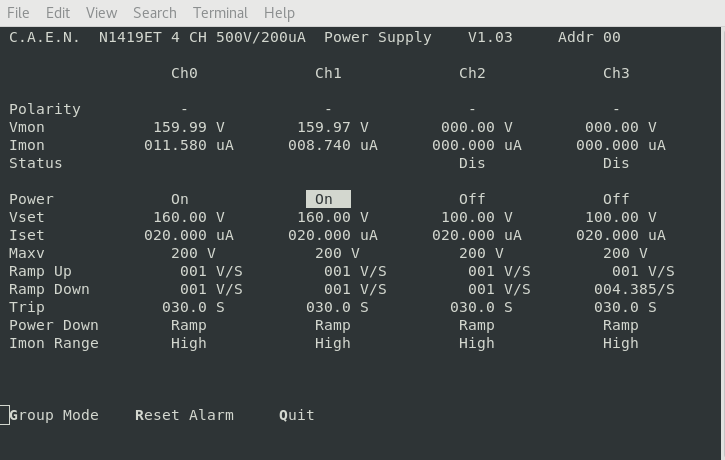

Bias and leakage currents ok - attachment 7
System wide checks:
Clocks all ok
Base Current Difference
aida07 fault 0xc53d : 0xc59c : 95
aida08 fault 0xf1be : 0xf27a : 188
White Rabbit error counter test result: Passed 6, Failed 2
Base Current Difference
aida07 fault 0x2a : 0x3b : 17
FPGA Timestamp error counter test result: Passed 7, Failed 1
Analysis of file R5_458 - attachment 8
Deadtime in AIDA02 only 11.5% in this file
TapeServer rate still 5.5 MB/s
14:36 Has been no beam for the last while or so.
With no beam AIDA02 has 0.25% deadtime so the deadtime is almost entirely due to the spill on time
Stats- attachment 9
Temp - attachment 10

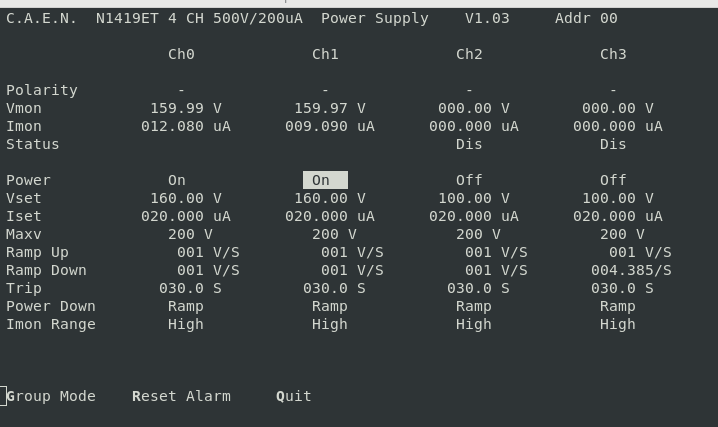

Bias and leakage currents ok - attachment 11
System wide checks:
Clock ok
Base Current Difference
aida07 fault 0xc53d : 0xc59d : 96
aida08 fault 0xf1be : 0xf27c : 190
White Rabbit error counter test result: Passed 6, Failed 2
Base Current Difference
aida07 fault 0x2a : 0x3c : 18
FPGA Timestamp error counter test result: Passed 7, Failed 1
13:30 Beam taken to change an ion source
14:57 Beam back
16:21 Statistics ok - attachment 12
Temperatures ok - attachment 13

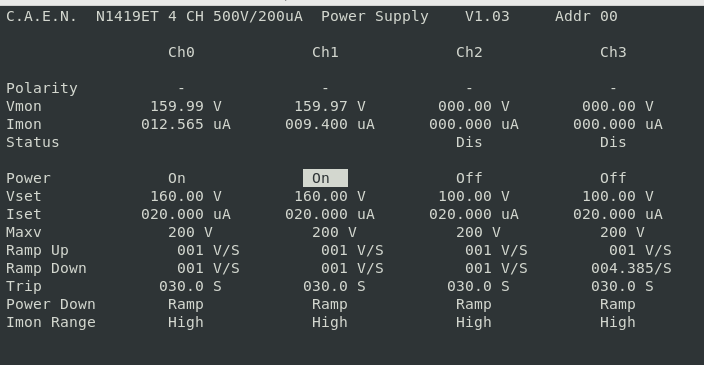

Bias and leakage currents ok - attachment 14
System wide checks - ASIC clocks ok
Base Current Difference
aida07 fault 0xc53d : 0xc5a3 : 102
aida08 fault 0xf1be : 0xf285 : 199
White Rabbit error counter test result: Passed 6, Failed 2
Base Current Difference
aida07 fault 0x2a : 0x3e : 20
FPGA Timestamp error counter test result: Passed 7, Failed 1
Currently on file R5_592
Analysis of R5_591 - Attachment 15
Deadtime of AIDA02 sitting at 17%
[NH taking over for OH so he can get home]
18:53 - FRS DAQ problems mean we weren't taking DESPEC data for the past hour or so... now all back
Statitics ok - attachement 16
Temps ok - attachement 17
Bias & leakage ok - attachement 18
System wide checks -
Clocks OK
ADC Calibration N/A
WR Decoder -
Base Current Difference
aida07 fault 0xc53d : 0xc5ac : 111
aida08 fault 0xf1be : 0xf28c : 206
White Rabbit error counter test result: Passed 6, Failed 2
FPGA -
Base Current Difference
aida07 fault 0x2a : 0x3f : 21
PLL OK
Currently on file R5_621
Analysis of R5_620 - Attachement 19
aida02 deadtime only 5%, all others negligible

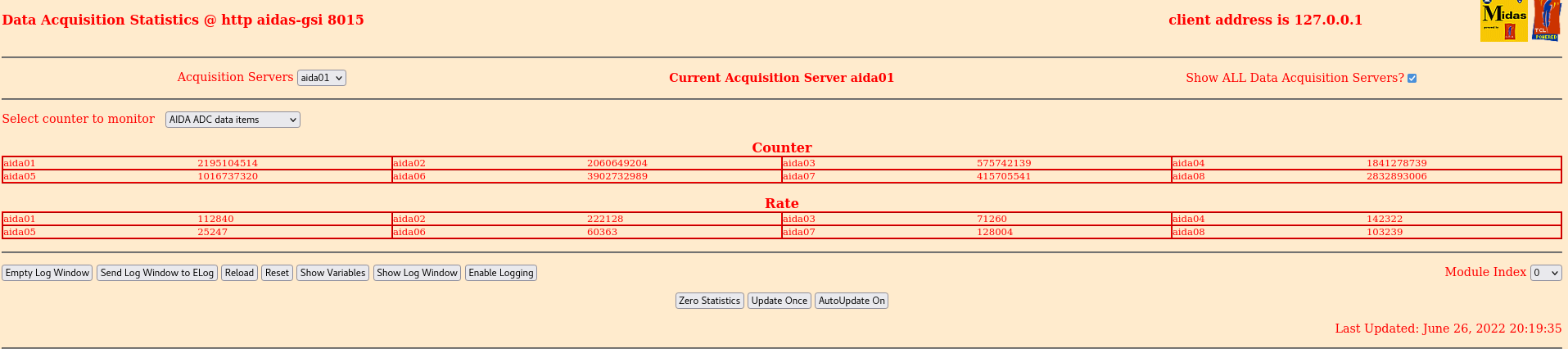

20:20 Stats ok - attachment 20

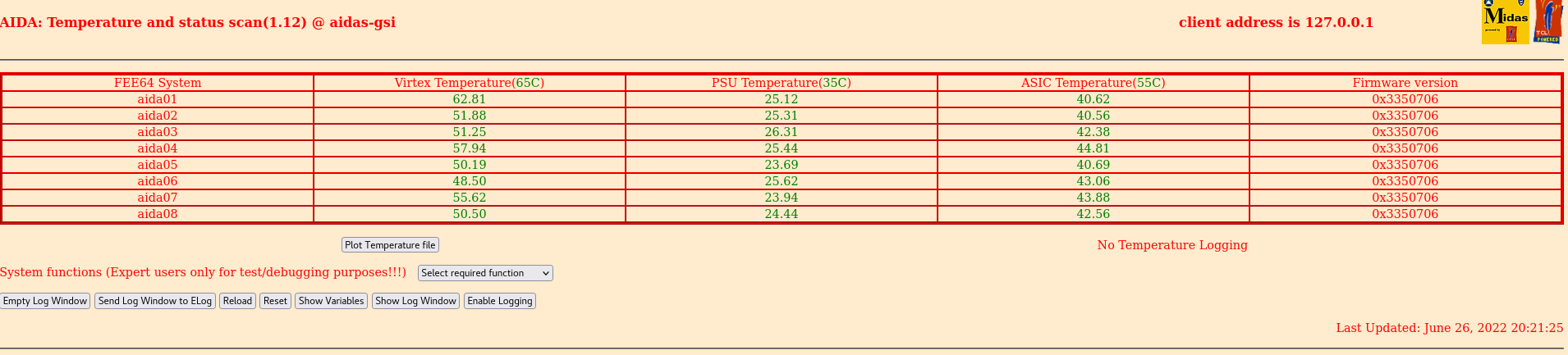

Temps ok - attachment 21
Bias and leakage currents ok - attachment 22
System wide checks:
Clock ok
Base Current Difference
aida07 fault 0xc53d : 0xc5ad : 112
aida08 fault 0xf1be : 0xf293 : 213
White Rabbit error counter test result: Passed 6, Failed 2
Base Current Difference
aida07 fault 0x2a : 0x3f : 21
FPGA Timestamp error counter test result: Passed 7, Failed 1
Analysis of R6_637 - attachment 23
22:13 Statistics ok - attachment 24
Temperatures ok - attachment 25

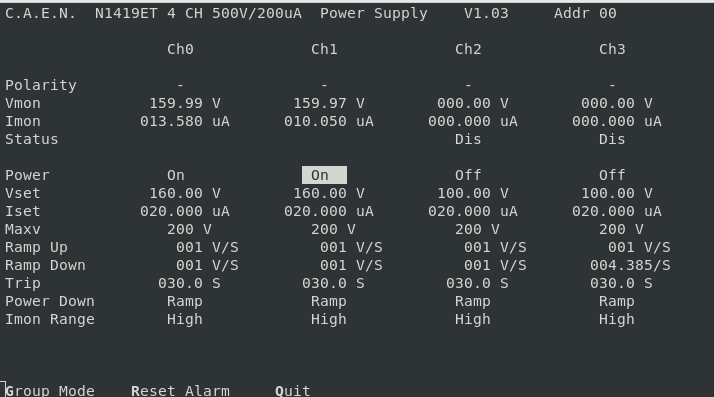

Bias and leakage currents ok - attachment 26
ASIC clock check ok
Base Current Difference
aida07 fault 0xc53d : 0xc5ba : 125
aida08 fault 0xf1be : 0xf2a2 : 228
White Rabbit error counter test result: Passed 6, Failed 2
Base Current Difference
aida07 fault 0x2a : 0x40 : 22
FPGA Timestamp error counter test result: Passed 7, Failed 1
Analysis of R5_658 - attachment 27 |
|
|
|
|
|
|
|
