Message ID: 532 Entry time: Sun Mar 10 17:08:12 2024

Author:	NH
Subject:	AIDA FEE Layout + Cabling Plan for S100

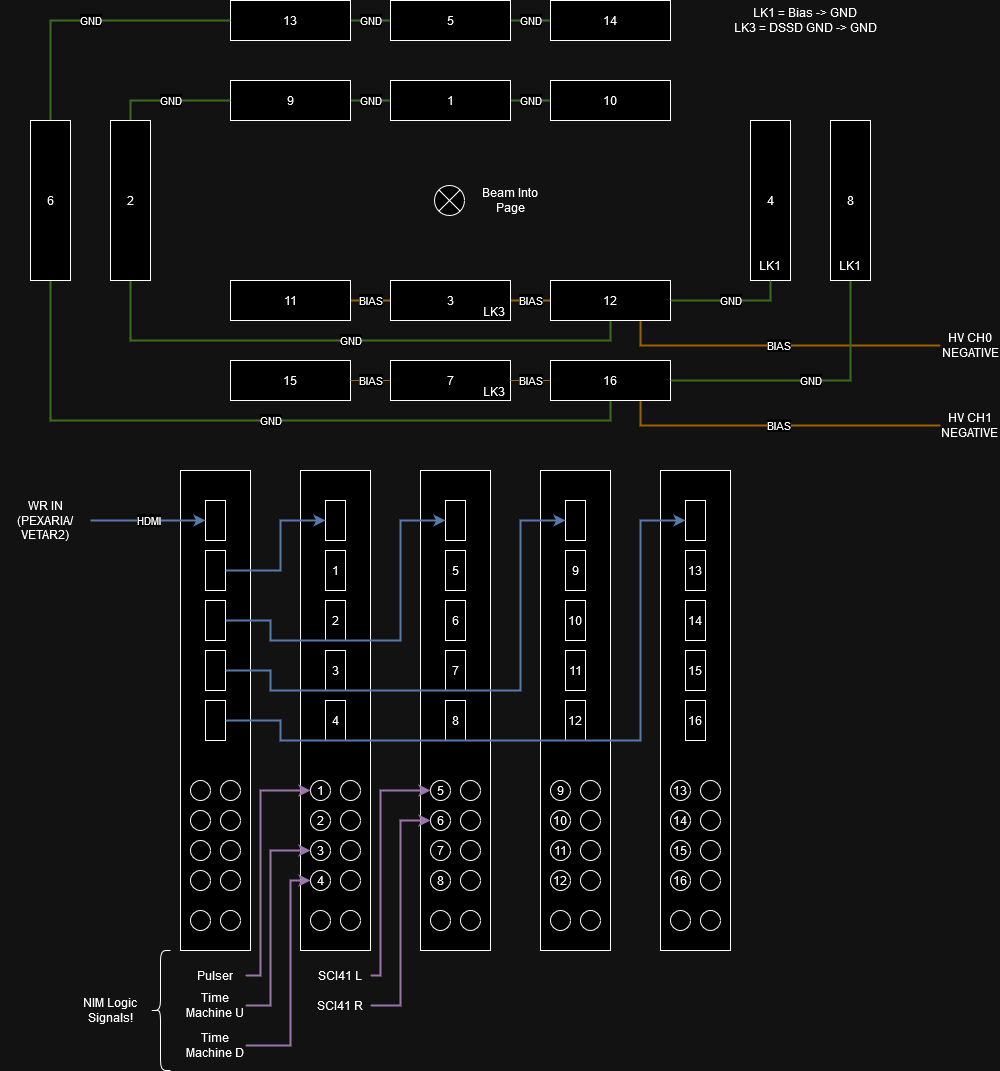

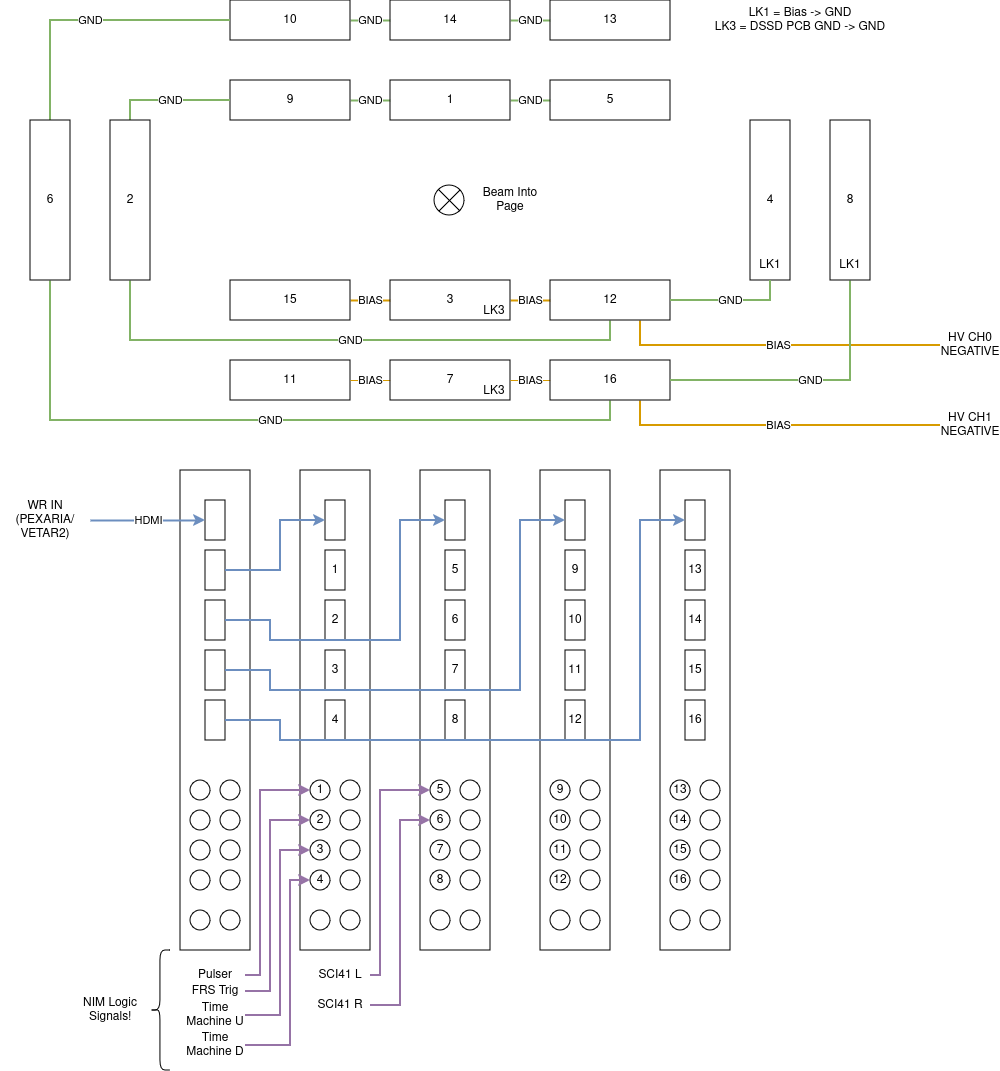

Proposed FEE numbering and wiring plan for upcoming experiment S100 (2x Wide DSSSDs)

Image designed in draw.io, source attached

FEE numbering is as S450, minimises cable movement from S505/Narrow AIDA
But means merger is not working with 1 DSSD (until all FEEs installed)

Wiring of adapter boards as from noise tests and what should work for DSSD bias
LK3 on middle bottom adapter to ground DSSD
LK1 on one n+n adapter to ground n+n side bias
p+n has -ve voltage (w.r.t. ground) bias applied via lower adapter boards
ground loop grounds all adapter boards, except 2 p+n adapter boards which are grounded by the bias lemo shield instead

MACB layout also included, with expected NIM logic signals for the aida scalers:

1: Pulser/Sync clock (send to all subsystems, "trigger 3")0

3/4: Time Machine
5/6: SC41L/R

All other FEEs have their scaler available
(Scaler should be in left LEMO on MACB, right is output (AIDA->NIM/unused), bottom 4 are triggers from AIDA (unused)

Test circuit will not be used in experiment due to noise, but can be temporarily set up for pulser walkthrough

Revision 2 correct as of 27 March 2023

Attachment 1:

AIDA_S100_WiringPlan.drawio.png 139 kB | Hide | Hide all

Attachment 2:

AIDA_S100_WiringPlan.drawio 41 kB | Hide | Hide all

<mxfile host="app.diagrams.net" modified="2024-03-09T18:35:12.515Z" agent="Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:123.0) Gecko/20100101 Firefox/123.0" etag="cLcX_EiphkJQIDoz3Eud" version="24.0.2" type="device">
  <diagram name="Page-1" id="rdp9_B-ufofv8BSNokWG">
    <mxGraphModel dx="1562" dy="846" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="1920" pageHeight="1200" math="0" shadow="0">
      <root>
        <mxCell id="0" />
        <mxCell id="1" parent="0" />
        <mxCell id="Lok4d1QbW70blzeSAxq8-34" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-2" target="Lok4d1QbW70blzeSAxq8-3">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-2" value="9" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="280" y="200" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-35" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-3" target="Lok4d1QbW70blzeSAxq8-4">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-3" value="1" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="440" y="200" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-4" value="10" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="600" y="200" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-42" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-5" target="Lok4d1QbW70blzeSAxq8-6">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-5" value="13" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="280" y="120" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-43" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-6" target="Lok4d1QbW70blzeSAxq8-7">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-6" value="5" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="440" y="120" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-7" value="14" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="600" y="120" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-8" value="15" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="280" y="480" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-57" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0;exitY=0.5;exitDx=0;exitDy=0;entryX=1;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-9" target="Lok4d1QbW70blzeSAxq8-8">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-9" value="7" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="440" y="480" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-40" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=0.5;entryY=1;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-10" target="Lok4d1QbW70blzeSAxq8-15">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-54" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.75;exitY=1;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-10" target="Lok4d1QbW70blzeSAxq8-51">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-56" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0;exitY=0.5;exitDx=0;exitDy=0;entryX=1;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-10" target="Lok4d1QbW70blzeSAxq8-9">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-10" value="16" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="600" y="480" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-44" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-11" target="Lok4d1QbW70blzeSAxq8-12">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-11" value="11" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="280" y="400" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-47" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-12" target="Lok4d1QbW70blzeSAxq8-13">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-12" value="3" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="440" y="400" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-32" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=0.5;entryY=1;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-13" target="Lok4d1QbW70blzeSAxq8-14">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-55" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.75;exitY=1;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-13" target="Lok4d1QbW70blzeSAxq8-49">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-13" value="12" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="600" y="400" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-61" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=0;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-14" target="Lok4d1QbW70blzeSAxq8-2">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-14" value="2" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="160" y="240" width="40" height="160" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-41" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=0;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-15" target="Lok4d1QbW70blzeSAxq8-5">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-15" value="6" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="80" y="240" width="40" height="160" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-37" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=1;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-16" target="Lok4d1QbW70blzeSAxq8-10">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-16" value="8" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="880" y="240" width="40" height="160" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-17" value="4" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="1">
          <mxGeometry x="800" y="240" width="40" height="160" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-18" value="LK3" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
          <mxGeometry x="514" y="416" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-21" value="LK3" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
          <mxGeometry x="514" y="496" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-36" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=1;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" edge="1" parent="1" source="Lok4d1QbW70blzeSAxq8-22" target="Lok4d1QbW70blzeSAxq8-13">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-22" value="&lt;div&gt;LK1&lt;/div&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
          <mxGeometry x="790" y="370" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-23" value="LK1" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
          <mxGeometry x="870" y="370" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-49" value="&lt;div&gt;HV CH0&lt;br&gt;NEGATIVE&lt;/div&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
          <mxGeometry x="990" y="450" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-51" value="&lt;div&gt;HV CH1&lt;br&gt;NEGATIVE&lt;br&gt;&lt;/div&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
          <mxGeometry x="990" y="530" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-59" value="" style="shape=sumEllipse;perimeter=ellipsePerimeter;whiteSpace=wrap;html=1;backgroundOutline=1;" vertex="1" parent="1">
          <mxGeometry x="484" y="305" width="30" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-60" value="Beam Into Page" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
          <mxGeometry x="530" y="305" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-62" value="LK1 = Bias -&amp;gt; GND&lt;br&gt;LK3 = DSSD GND -&amp;gt; GND" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" vertex="1" parent="1">
          <mxGeometry x="770" y="125" width="170" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-89" value="" style="group" vertex="1" connectable="0" parent="1">
          <mxGeometry x="230" y="590" width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-65" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-66" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="25" y="30" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-67" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="25" y="80" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-70" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="25" y="130" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-71" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="25" y="180" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-72" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="25" y="230" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-77" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="10" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-78" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="10" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-79" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="10" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-80" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="10" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-81" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="10" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-84" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="40" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-85" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="40" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-86" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="40" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-87" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="40" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-88" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-89">
          <mxGeometry x="40" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-90" value="" style="group" vertex="1" connectable="0" parent="1">
          <mxGeometry x="350" y="590" width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-91" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-92" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="25" y="30" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-93" value="1" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="25" y="80" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-94" value="2" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="25" y="130" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-95" value="3" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="25" y="180" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-96" value="4" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="25" y="230" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-97" value="1" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="10" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-98" value="2" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="10" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-99" value="3" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="10" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-100" value="4" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="10" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-101" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="10" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-102" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="40" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-103" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="40" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-104" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="40" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-105" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="40" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-106" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-90">
          <mxGeometry x="40" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-107" value="5" style="group" vertex="1" connectable="0" parent="1">
          <mxGeometry x="470" y="590" width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-108" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-109" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="25" y="30" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-110" value="5" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="25" y="80" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-111" value="6" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="25" y="130" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-112" value="7" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="25" y="180" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-113" value="8" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="25" y="230" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-114" value="5" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="10" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-115" value="6" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="10" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-116" value="7" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="10" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-117" value="8" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="10" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-118" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="10" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-119" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="40" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-120" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="40" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-121" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="40" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-122" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="40" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-123" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-107">
          <mxGeometry x="40" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-124" value="" style="group" vertex="1" connectable="0" parent="1">
          <mxGeometry x="590" y="590" width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-125" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-124">
          <mxGeometry width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-126" value="" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-124">
          <mxGeometry x="25" y="30" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-127" value="9" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-124">
          <mxGeometry x="25" y="80" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-128" value="10" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-124">
          <mxGeometry x="25" y="130" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-129" value="11" style="rounded=0;whiteSpace=wrap;html=1;" vertex="1" parent="Lok4d1QbW70blzeSAxq8-124">
          <mxGeometry x="25" y="180" width="20" height="40" as="geometry" />
        </mxCell>

... 196 more lines ...

Attachment 3:

AIDA_S100_WiringPlan(1).drawio 42 kB Uploaded Wed Mar 27 12:12:39 2024 | Hide | Hide all

<mxfile host="app.diagrams.net" modified="2024-03-27T12:12:06.799Z" agent="Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:123.0) Gecko/20100101 Firefox/123.0" etag="0KC3XQLCIUXvtcbPW53b" version="23.1.1" type="device">
  <diagram name="Page-1" id="rdp9_B-ufofv8BSNokWG">
    <mxGraphModel dx="794" dy="1153" grid="1" gridSize="10" guides="1" tooltips="1" connect="1" arrows="1" fold="1" page="1" pageScale="1" pageWidth="1920" pageHeight="1200" math="0" shadow="0">
      <root>
        <mxCell id="0" />
        <mxCell id="1" parent="0" />
        <mxCell id="Lok4d1QbW70blzeSAxq8-34" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-2" target="Lok4d1QbW70blzeSAxq8-3" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-2" value="9" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="280" y="200" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-35" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-3" target="Lok4d1QbW70blzeSAxq8-4" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-3" value="1" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="440" y="200" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-4" value="5" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="600" y="200" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-42" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-5" target="Lok4d1QbW70blzeSAxq8-6" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-5" value="10" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="280" y="120" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-43" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-6" target="Lok4d1QbW70blzeSAxq8-7" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-6" value="14" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="440" y="120" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-7" value="13" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="600" y="120" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-8" value="11" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="280" y="480" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-57" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0;exitY=0.5;exitDx=0;exitDy=0;entryX=1;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;" parent="1" source="Lok4d1QbW70blzeSAxq8-9" target="Lok4d1QbW70blzeSAxq8-8" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-9" value="7" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="440" y="480" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-40" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=0.5;entryY=1;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-10" target="Lok4d1QbW70blzeSAxq8-15" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-54" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.75;exitY=1;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-10" target="Lok4d1QbW70blzeSAxq8-51" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-56" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0;exitY=0.5;exitDx=0;exitDy=0;entryX=1;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;" parent="1" source="Lok4d1QbW70blzeSAxq8-10" target="Lok4d1QbW70blzeSAxq8-9" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-10" value="16" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="600" y="480" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-44" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-11" target="Lok4d1QbW70blzeSAxq8-12" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-11" value="15" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="280" y="400" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-47" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=1;exitY=0.5;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-12" target="Lok4d1QbW70blzeSAxq8-13" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-12" value="3" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="440" y="400" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-32" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=0.5;entryY=1;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-13" target="Lok4d1QbW70blzeSAxq8-14" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-55" value="BIAS" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.75;exitY=1;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#ffe6cc;strokeColor=#d79b00;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-13" target="Lok4d1QbW70blzeSAxq8-49" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-13" value="12" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="600" y="400" width="120" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-61" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=0;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-14" target="Lok4d1QbW70blzeSAxq8-2" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-14" value="2" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="160" y="240" width="40" height="160" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-41" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=0;exitDx=0;exitDy=0;entryX=0;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-15" target="Lok4d1QbW70blzeSAxq8-5" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-15" value="6" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="80" y="240" width="40" height="160" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-37" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=1;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-16" target="Lok4d1QbW70blzeSAxq8-10" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-16" value="8" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="880" y="240" width="40" height="160" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-17" value="4" style="rounded=0;whiteSpace=wrap;html=1;" parent="1" vertex="1">
          <mxGeometry x="800" y="240" width="40" height="160" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-18" value="LK3" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" parent="1" vertex="1">
          <mxGeometry x="514" y="416" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-21" value="LK3" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" parent="1" vertex="1">
          <mxGeometry x="514" y="496" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-36" value="GND" style="edgeStyle=orthogonalEdgeStyle;rounded=0;orthogonalLoop=1;jettySize=auto;html=1;exitX=0.5;exitY=1;exitDx=0;exitDy=0;entryX=1;entryY=0.5;entryDx=0;entryDy=0;fillColor=#d5e8d4;strokeColor=#82b366;endArrow=none;endFill=0;strokeWidth=2;" parent="1" source="Lok4d1QbW70blzeSAxq8-22" target="Lok4d1QbW70blzeSAxq8-13" edge="1">
          <mxGeometry relative="1" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-22" value="&lt;div&gt;LK1&lt;/div&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" parent="1" vertex="1">
          <mxGeometry x="790" y="370" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-23" value="LK1" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" parent="1" vertex="1">
          <mxGeometry x="870" y="370" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-49" value="&lt;div&gt;HV CH0&lt;br&gt;NEGATIVE&lt;/div&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" parent="1" vertex="1">
          <mxGeometry x="990" y="450" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-51" value="&lt;div&gt;HV CH1&lt;br&gt;NEGATIVE&lt;br&gt;&lt;/div&gt;" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" parent="1" vertex="1">
          <mxGeometry x="990" y="530" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-59" value="" style="shape=sumEllipse;perimeter=ellipsePerimeter;whiteSpace=wrap;html=1;backgroundOutline=1;" parent="1" vertex="1">
          <mxGeometry x="484" y="305" width="30" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-60" value="Beam Into Page" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" parent="1" vertex="1">
          <mxGeometry x="530" y="305" width="60" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-62" value="LK1 = Bias -&amp;gt; GND&lt;br&gt;LK3 = DSSD PCB GND -&amp;gt; GND" style="text;html=1;align=center;verticalAlign=middle;whiteSpace=wrap;rounded=0;" parent="1" vertex="1">
          <mxGeometry x="760" y="125" width="180" height="30" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-89" value="" style="group" parent="1" vertex="1" connectable="0">
          <mxGeometry x="230" y="590" width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-65" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-66" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="25" y="30" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-67" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="25" y="80" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-70" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="25" y="130" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-71" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="25" y="180" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-72" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="25" y="230" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-77" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="10" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-78" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="10" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-79" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="10" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-80" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="10" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-81" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="10" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-84" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="40" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-85" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="40" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-86" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="40" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-87" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="40" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-88" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-89" vertex="1">
          <mxGeometry x="40" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-90" value="" style="group" parent="1" vertex="1" connectable="0">
          <mxGeometry x="350" y="590" width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-91" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-92" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="25" y="30" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-93" value="1" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="25" y="80" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-94" value="2" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="25" y="130" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-95" value="3" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="25" y="180" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-96" value="4" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="25" y="230" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-97" value="1" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="10" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-98" value="2" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="10" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-99" value="3" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="10" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-100" value="4" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="10" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-101" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="10" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-102" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="40" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-103" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="40" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-104" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="40" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-105" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="40" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-106" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-90" vertex="1">
          <mxGeometry x="40" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-107" value="5" style="group" parent="1" vertex="1" connectable="0">
          <mxGeometry x="470" y="590" width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-108" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-109" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="25" y="30" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-110" value="5" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="25" y="80" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-111" value="6" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="25" y="130" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-112" value="7" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="25" y="180" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-113" value="8" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="25" y="230" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-114" value="5" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="10" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-115" value="6" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="10" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-116" value="7" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="10" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-117" value="8" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="10" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-118" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="10" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-119" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="40" y="310" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-120" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="40" y="340" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-121" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="40" y="370" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-122" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="40" y="400" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-123" value="" style="ellipse;whiteSpace=wrap;html=1;aspect=fixed;" parent="Lok4d1QbW70blzeSAxq8-107" vertex="1">
          <mxGeometry x="40" y="440" width="20" height="20" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-124" value="" style="group" parent="1" vertex="1" connectable="0">
          <mxGeometry x="590" y="590" width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-125" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-124" vertex="1">
          <mxGeometry width="70" height="480" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-126" value="" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-124" vertex="1">
          <mxGeometry x="25" y="30" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-127" value="9" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-124" vertex="1">
          <mxGeometry x="25" y="80" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-128" value="10" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-124" vertex="1">
          <mxGeometry x="25" y="130" width="20" height="40" as="geometry" />
        </mxCell>
        <mxCell id="Lok4d1QbW70blzeSAxq8-129" value="11" style="rounded=0;whiteSpace=wrap;html=1;" parent="Lok4d1QbW70blzeSAxq8-124" vertex="1">
          <mxGeometry x="25" y="180" width="20" height="40" as="geometry" />
        </mxCell>

... 207 more lines ...

Attachment 4:

AIDA_S100_WiringPlan.drawio.png 160 kB Uploaded Wed Mar 27 12:12:45 2024 | Hide | Hide all

ELOG V3.1.4-unknown
