Message ID: 542     Entry time: Wed Mar 20 12:22:27 2024
Author: NH
Subject: Wed Mar 20

Turn on AIDA for Dry Run demonstrations and so on

All system wide checks, temp, bias OK

Noise situation is dreadful (but has not been optimised). Deterioriation since first mounted, suspect cabling issues with bPlast and BB7.

 Note thresholds at 0x32 (!!!) to not brutalise the DAQs during testing

 aida08 seems OK

Server running to MBS totally fine

18:00

Carole grounded some of the Bplast and this reduced the rates in AIDA, although they are a bit fluctuatey. Due to position constraints she couldn't ground it all
Also AIDA ribbon cables are not grounded yet
The indication is these fixes should make a lot of difference to the situation

AIDA is now powered off for the end of day

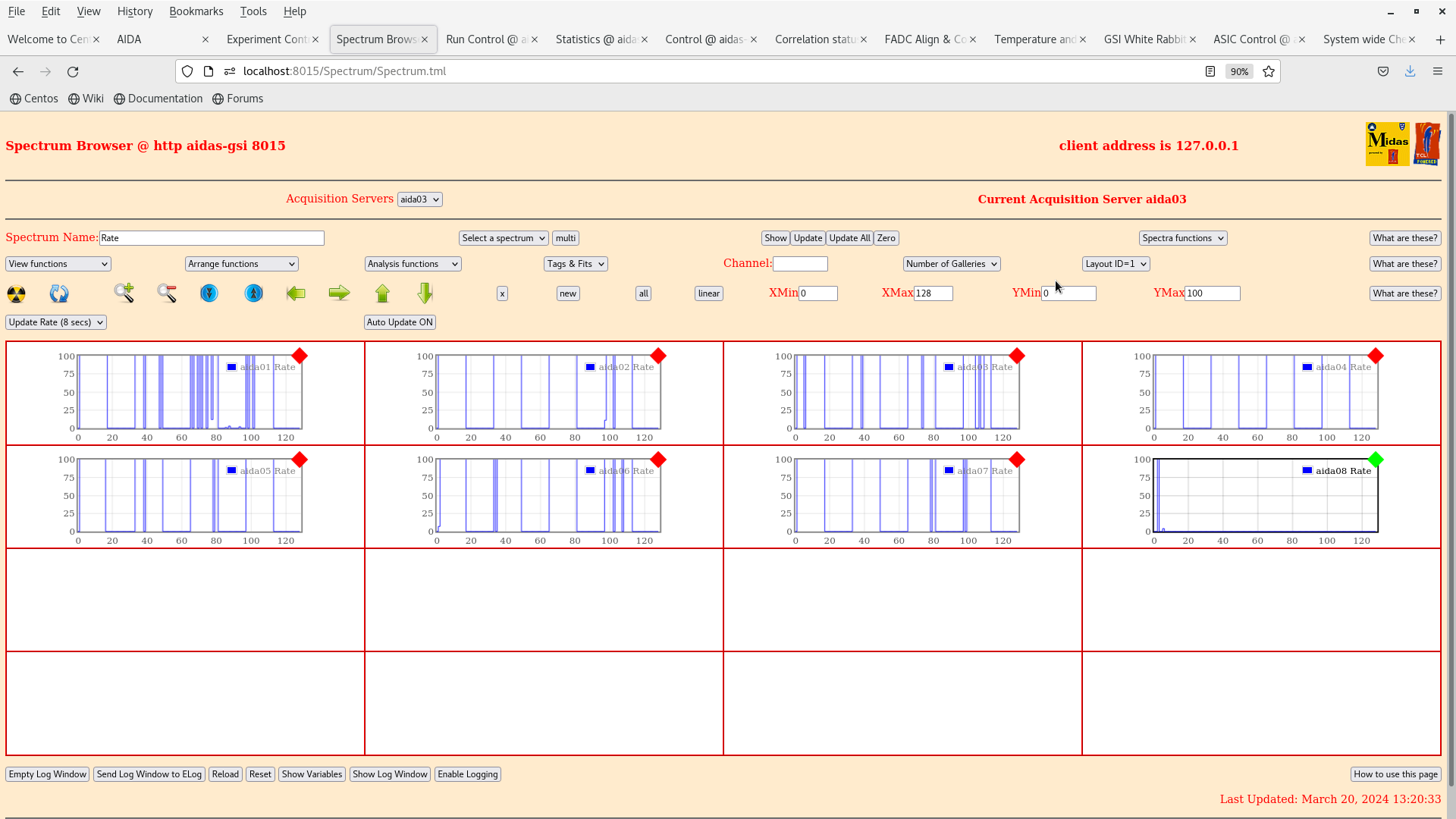

Attachment 1: Screenshot_from_2024-03-20_13-20-43.png  169 kB  | Hide | Hide all

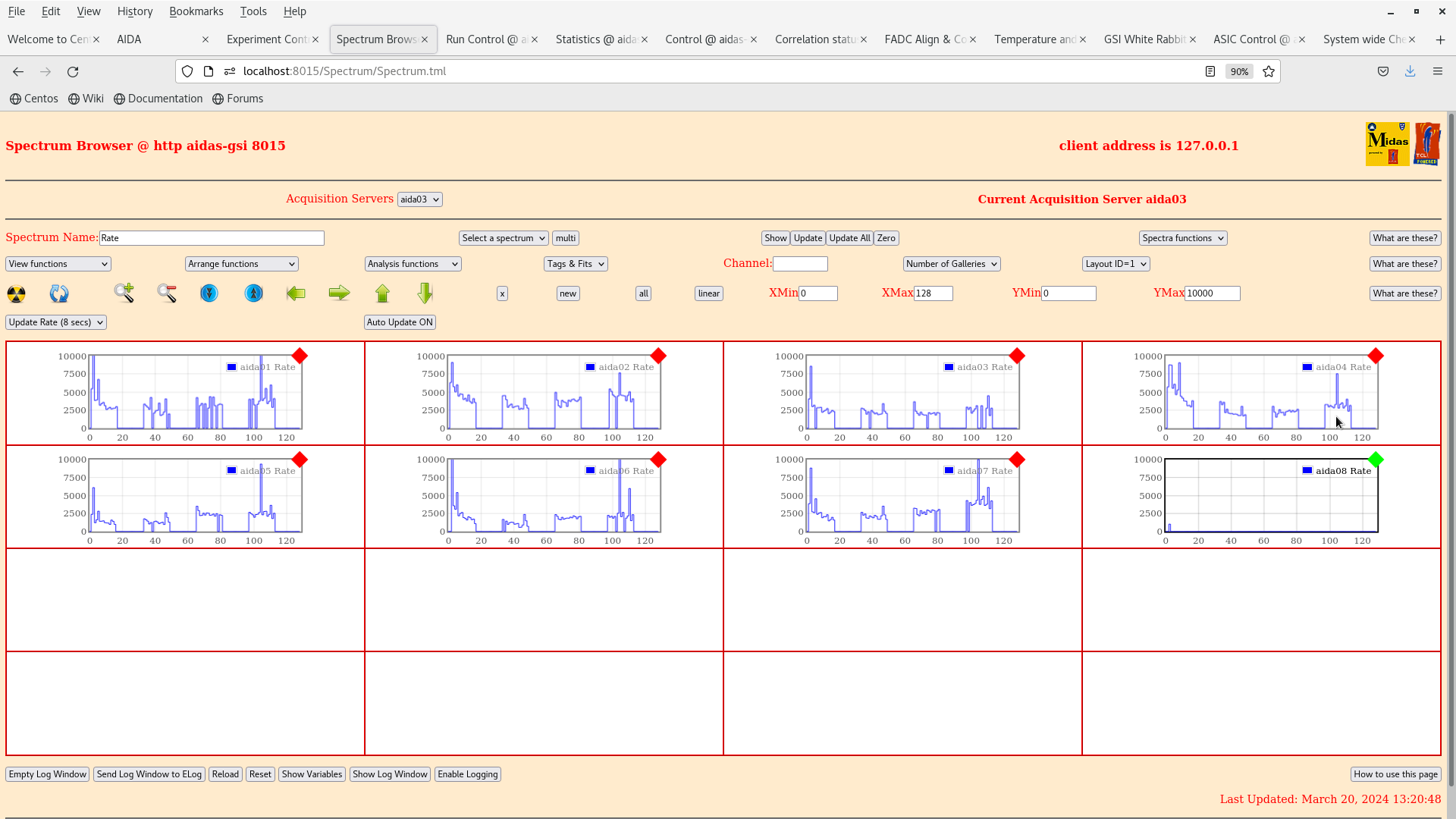

Attachment 2: Screenshot_from_2024-03-20_13-20-54.png  185 kB  | Hide | Hide all

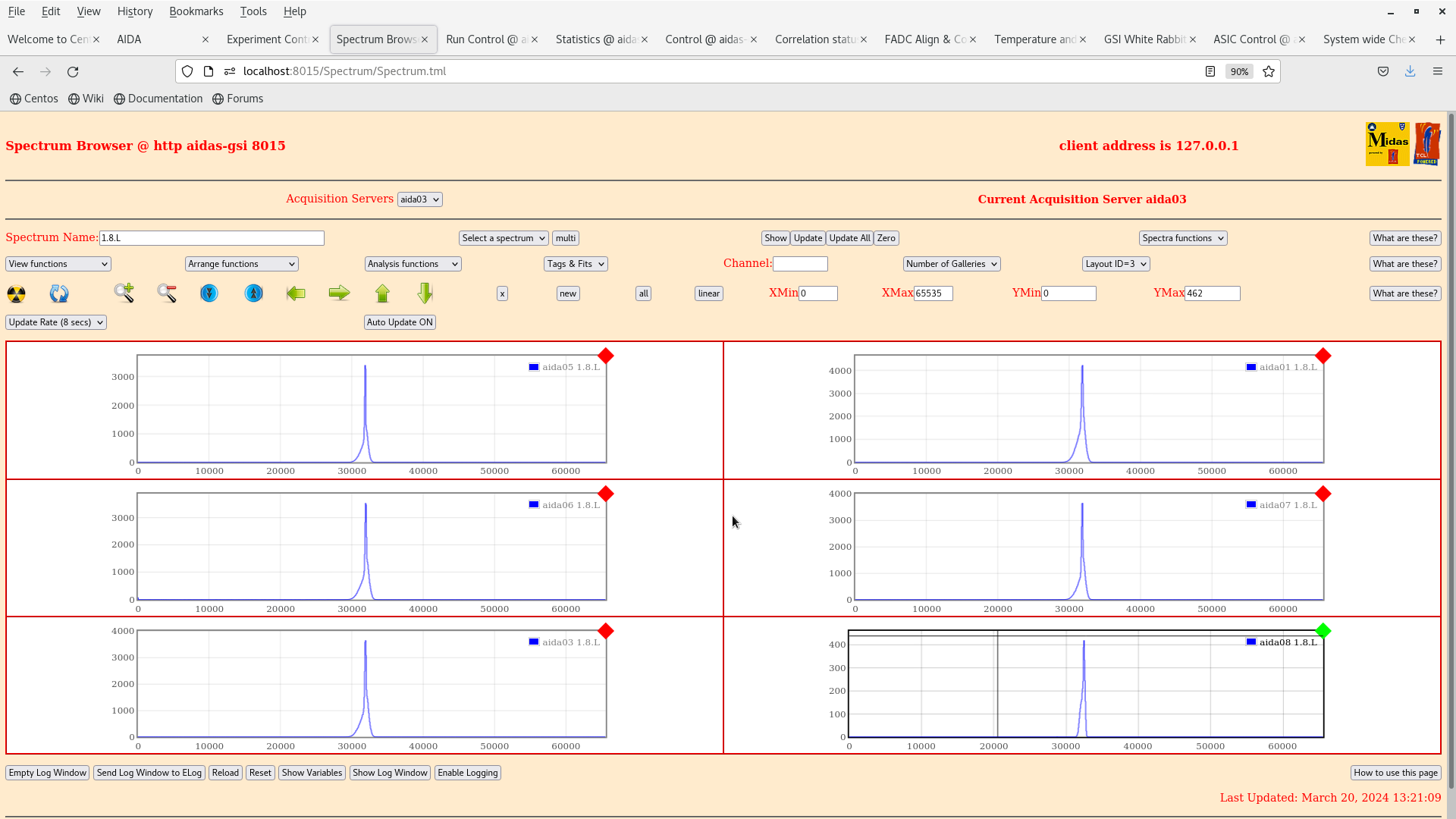

Attachment 3: Screenshot_from_2024-03-20_13-21-18.png  180 kB  | Hide | Hide all

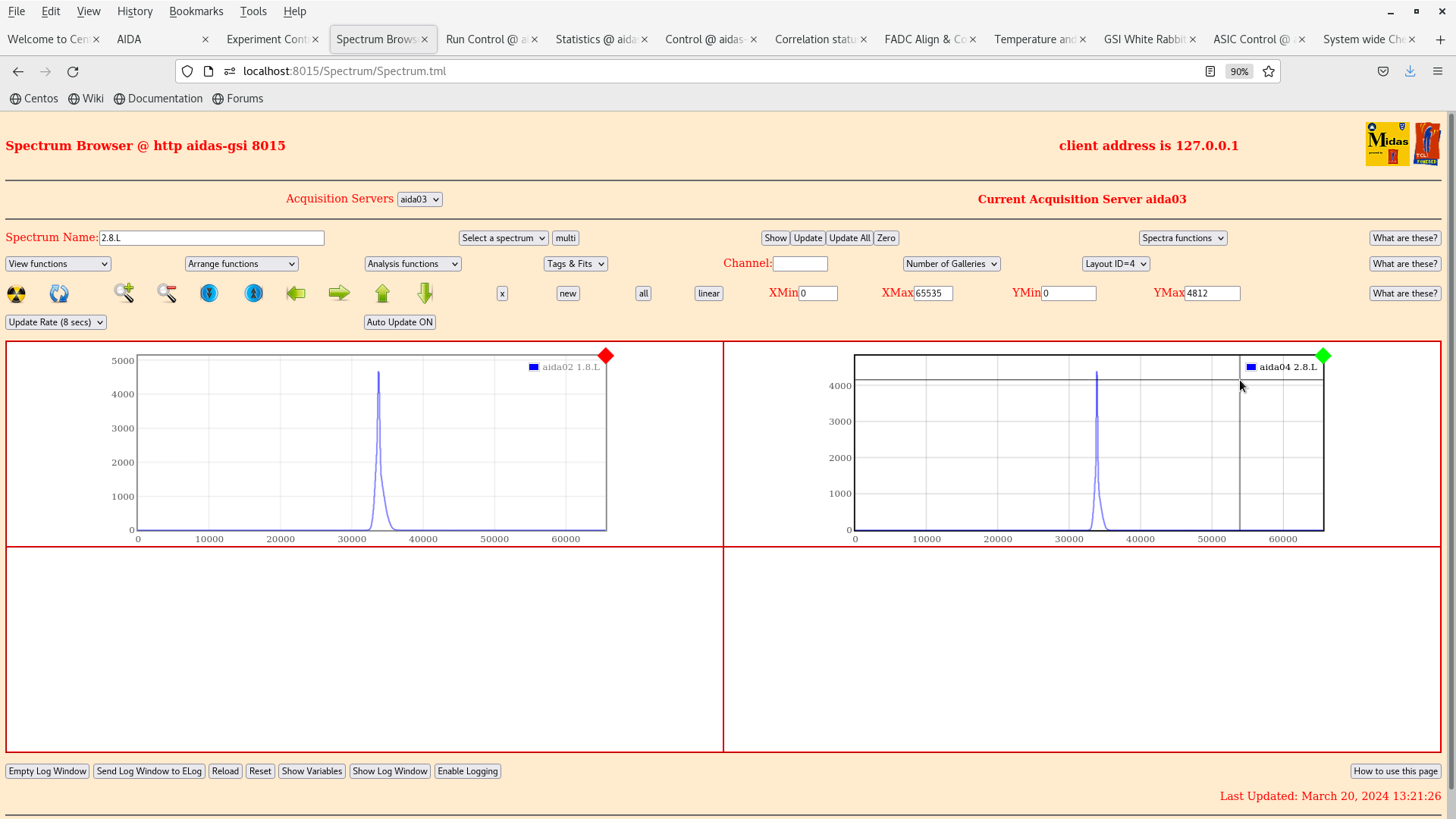

Attachment 4: Screenshot_from_2024-03-20_13-21-38.png  153 kB  | Hide | Hide all

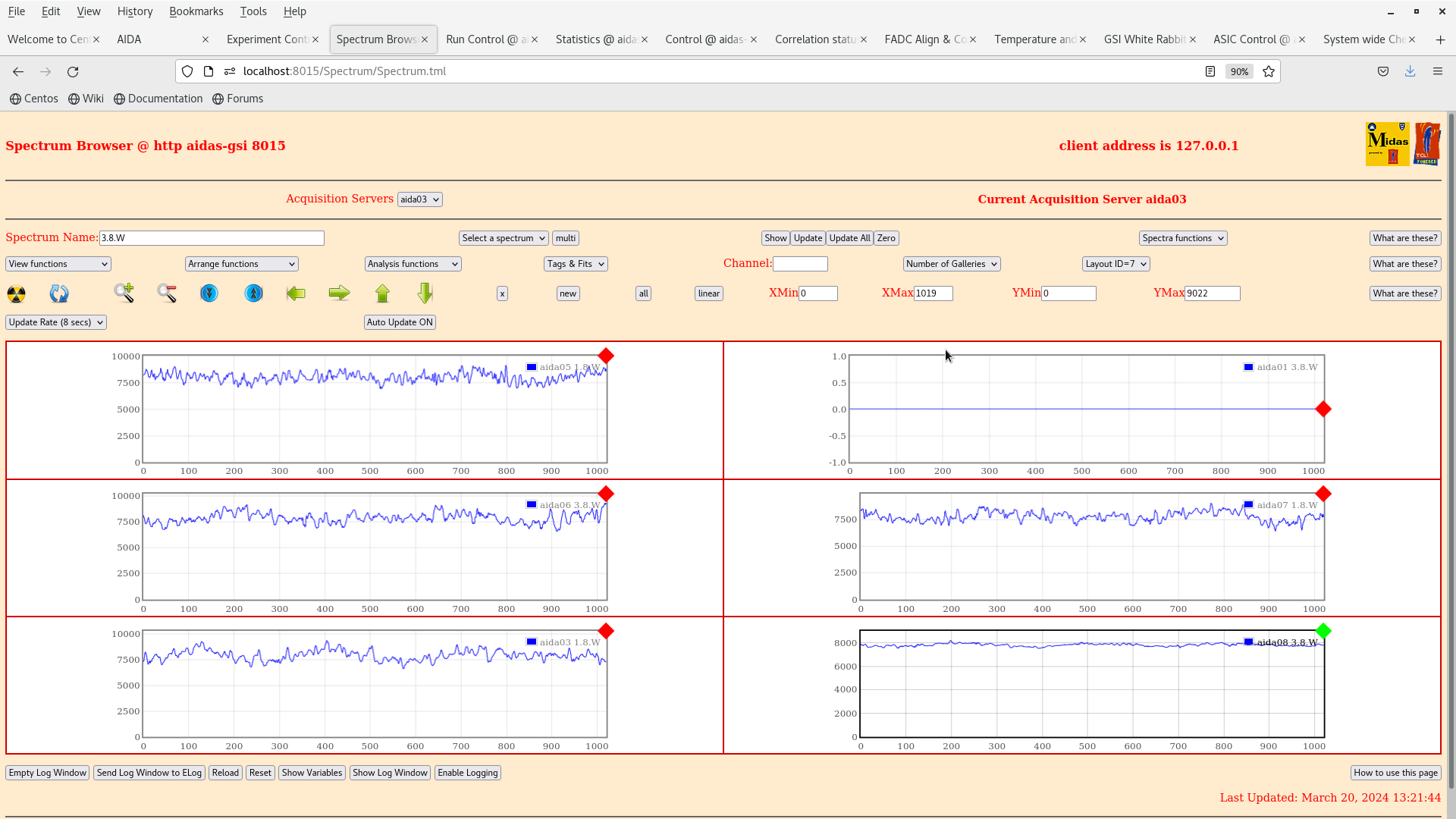

Attachment 5: Screenshot_from_2024-03-20_13-21-57.png  231 kB  | Hide | Hide all

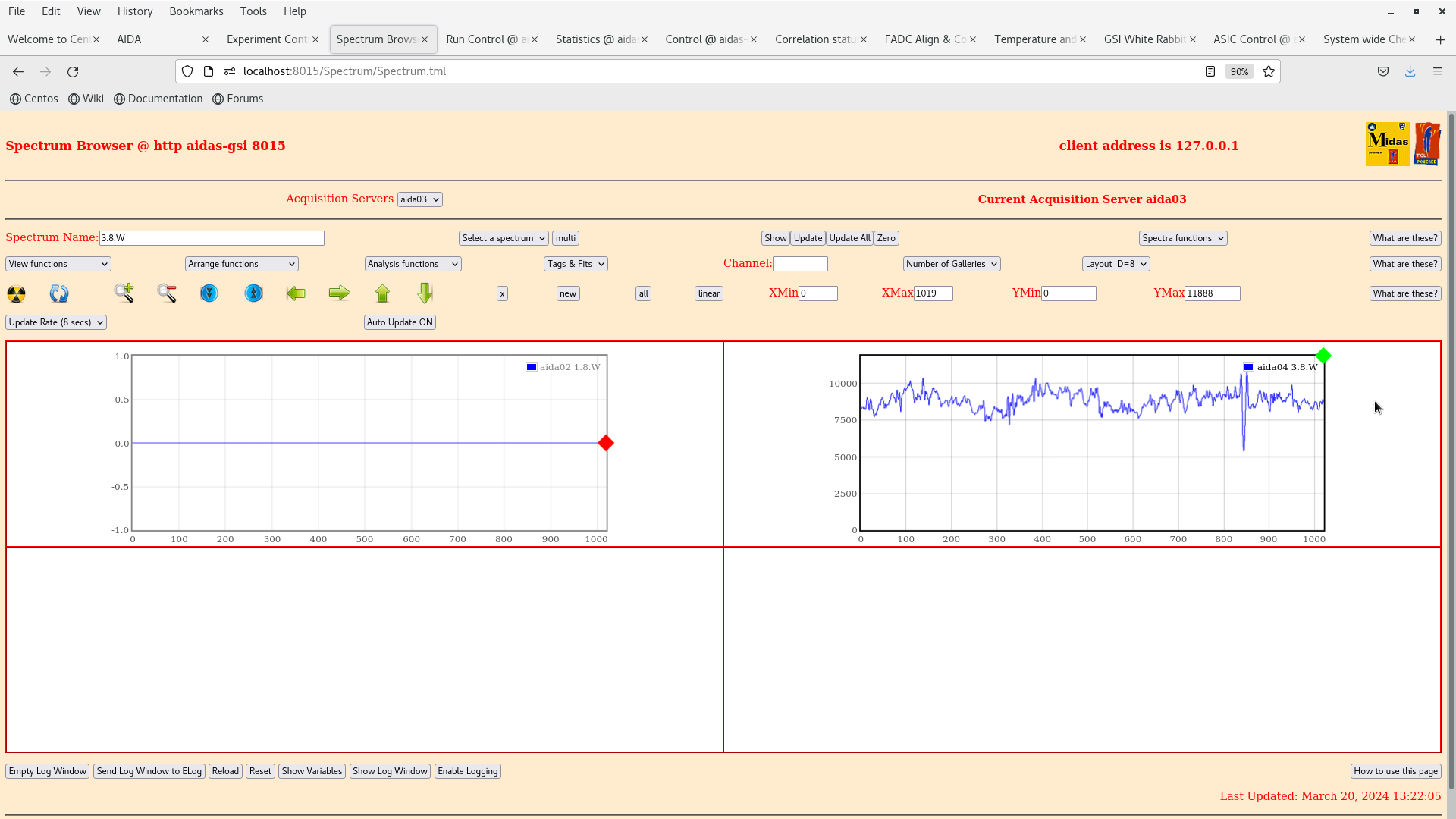

Attachment 6: Screenshot_from_2024-03-20_13-22-12.png  167 kB  | Hide | Hide all

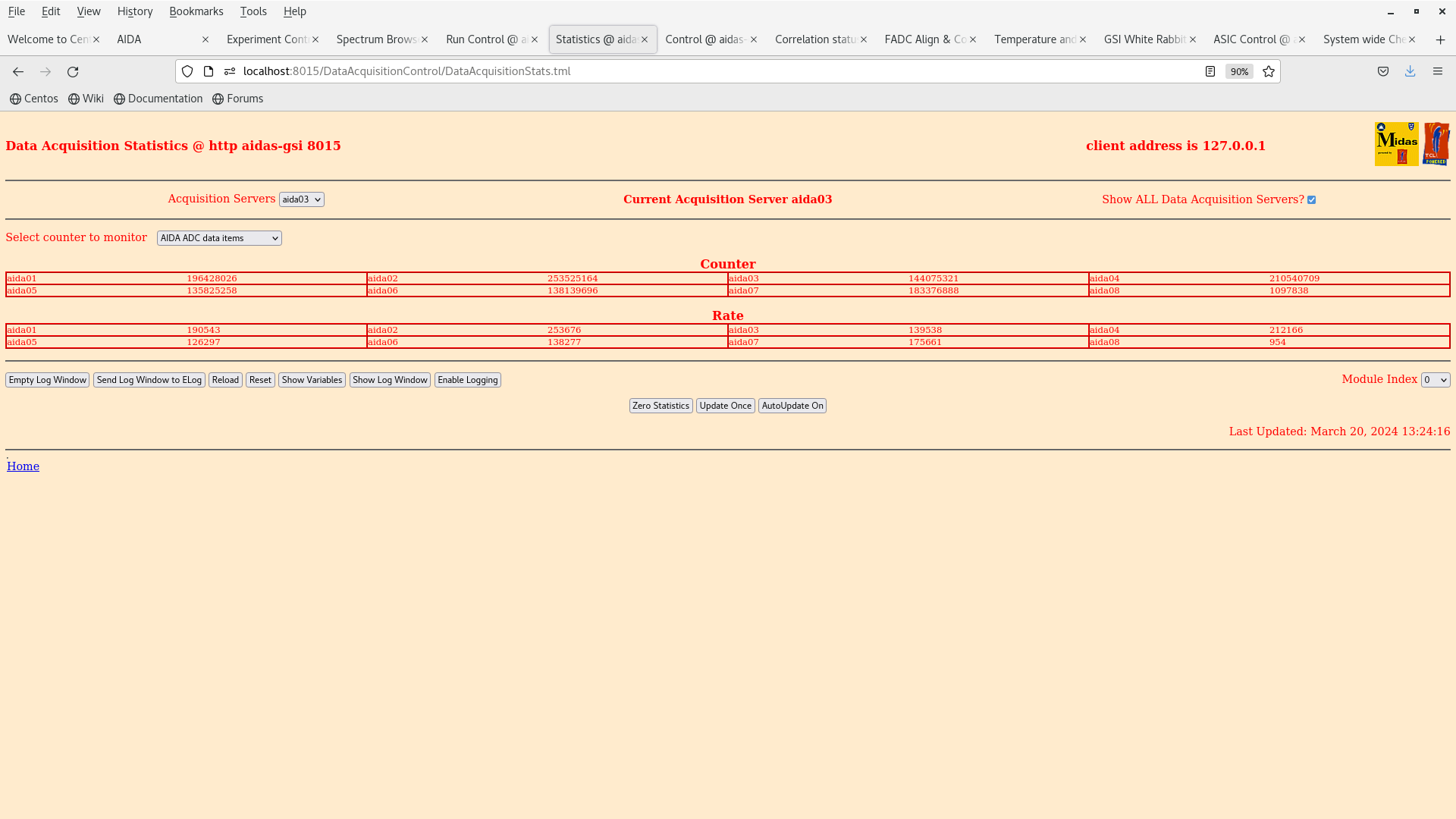

Attachment 7: Screenshot_from_2024-03-20_13-24-21.png  119 kB  | Hide | Hide all

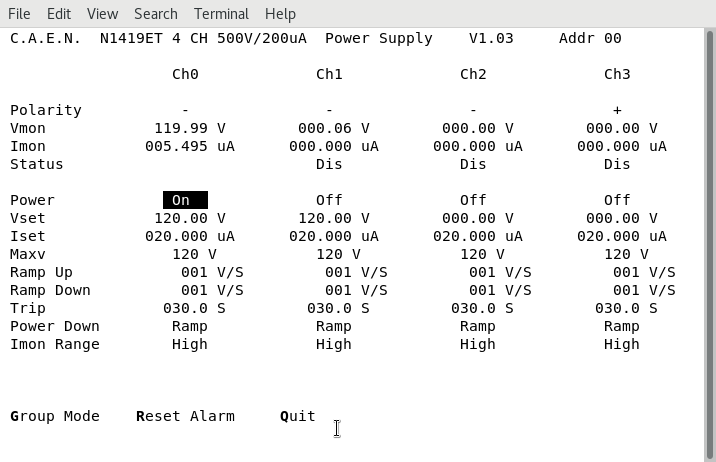

Attachment 8: Screenshot_from_2024-03-20_13-25-02.png  36 kB  | Hide | Hide all

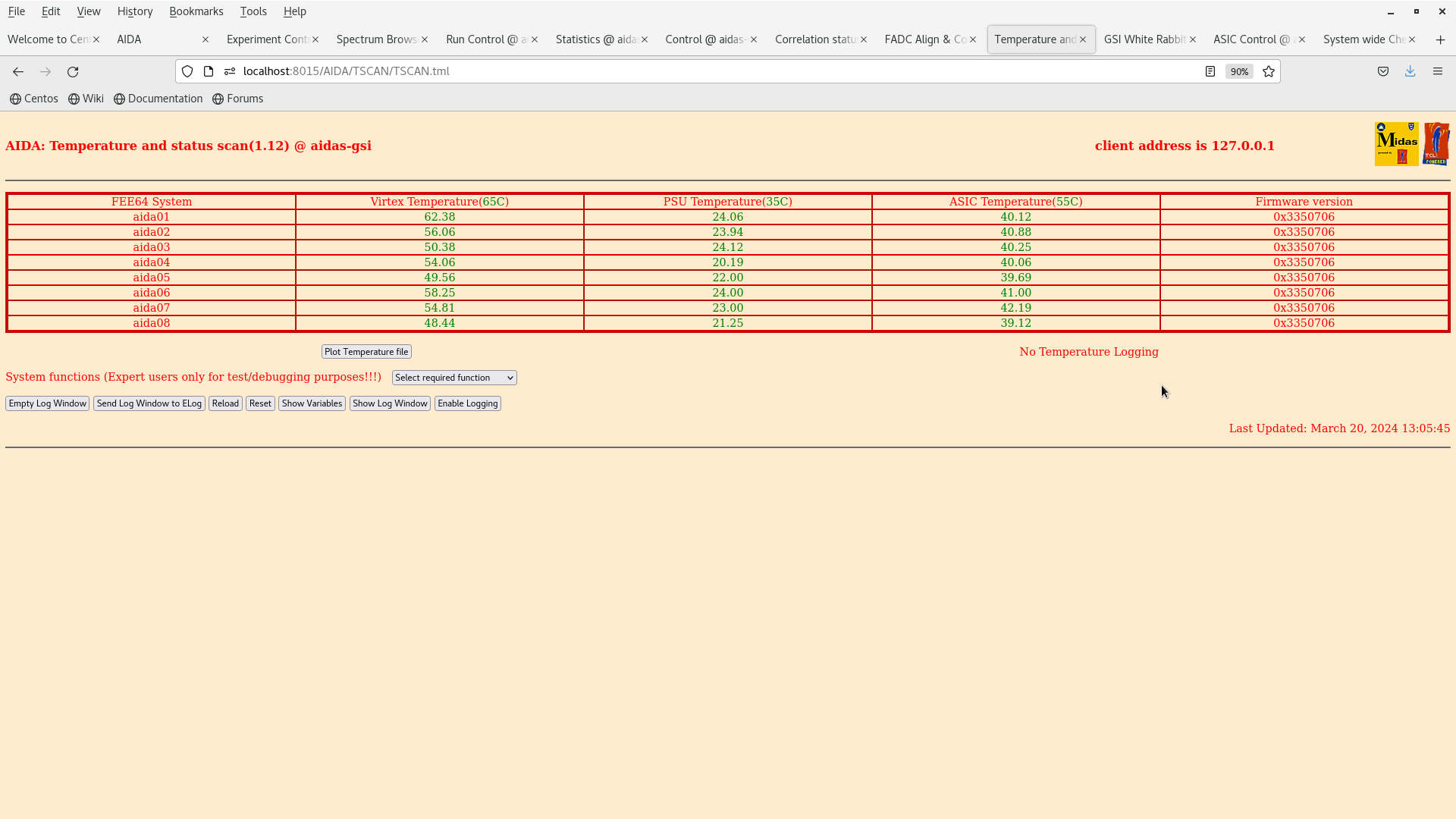

Attachment 9: Screenshot_from_2024-03-20_13-25-13.png  138 kB  | Hide | Hide all
