| DESPEC |
 |
|
|
|
Message ID: 585
Entry time: Sun Apr 21 23:20:45 2024
|
| Author: |
TD |
| Subject: |
Monday 22 April |
|
|
00.15 Data link to MBS was closed by MBS - reason(s) unknown
NH restarted MBS receiver and data transfer restarted

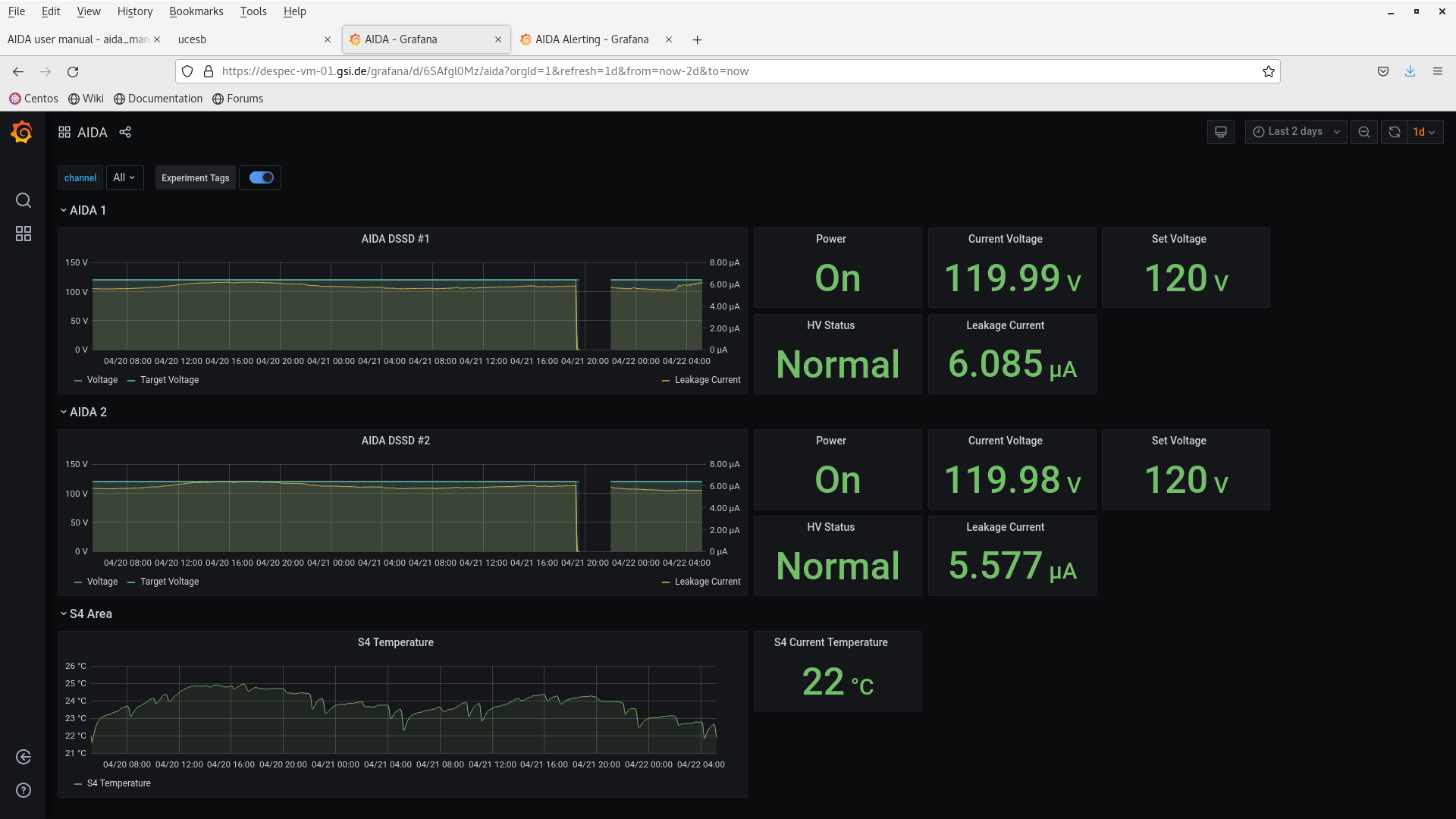

01.34 DSSSD bias & leakage current OK - attachment 1

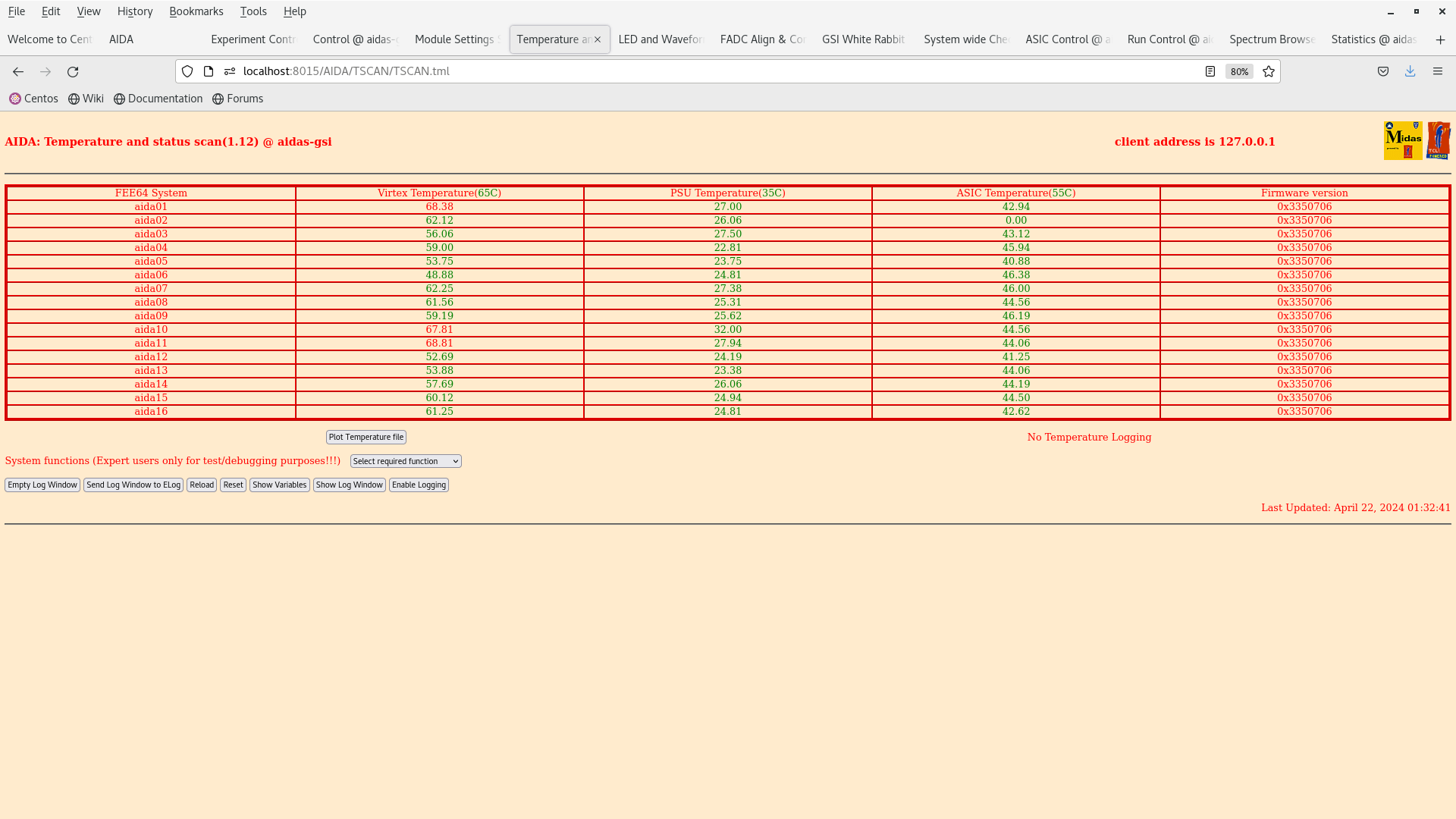

FEE64 temperatures OK - attachment 2

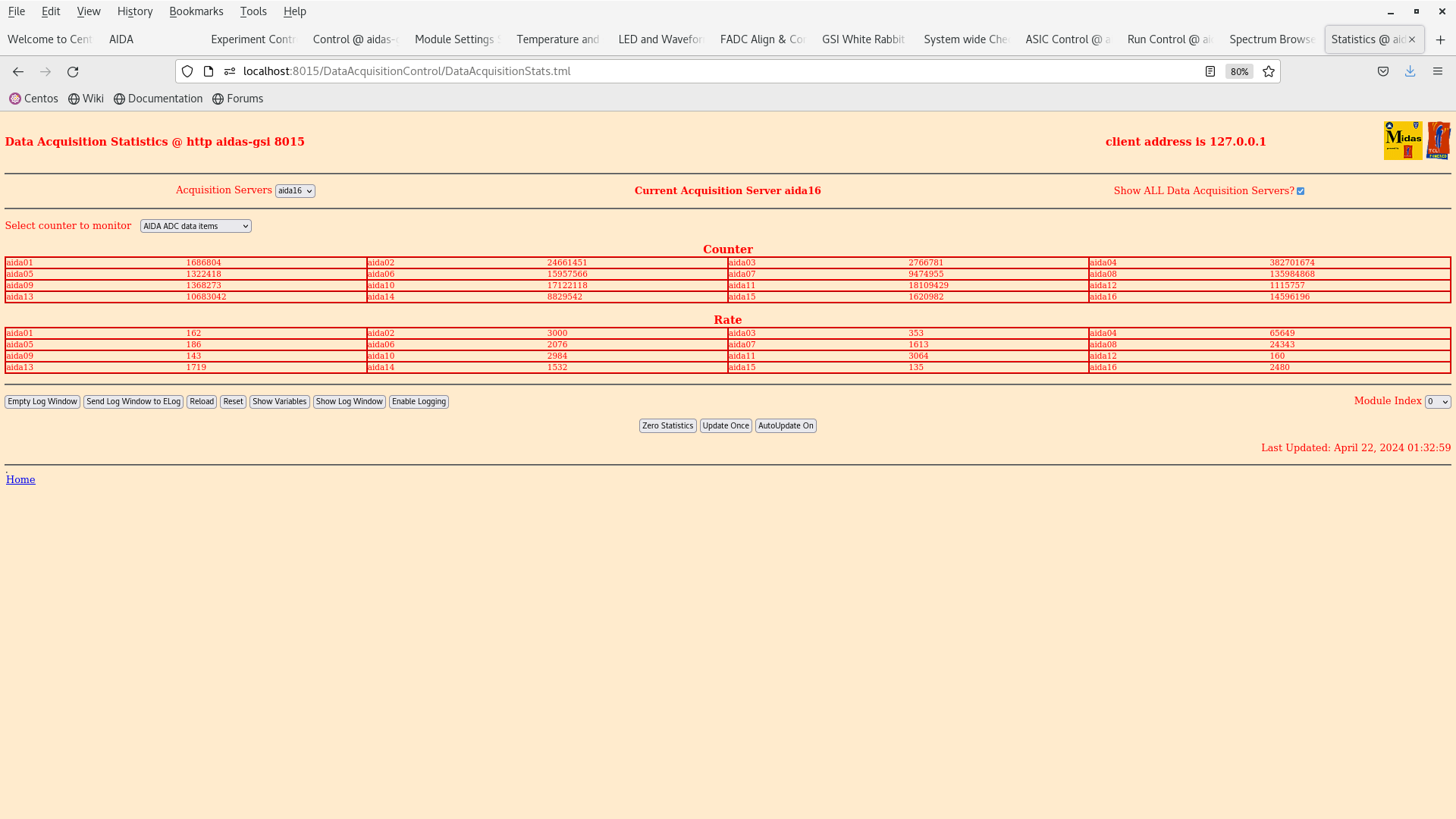

ADC data item stats OK - attachment 3

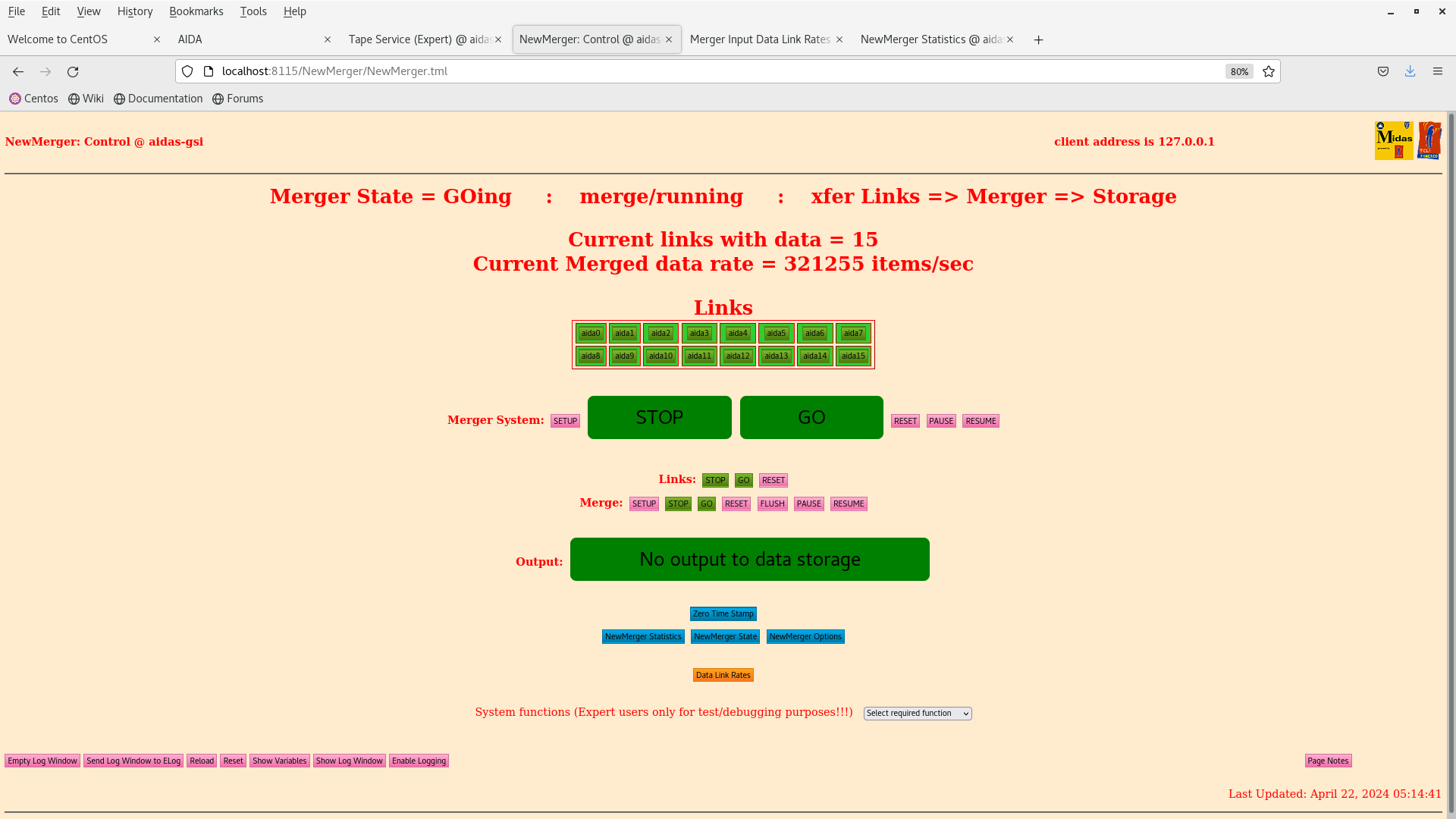

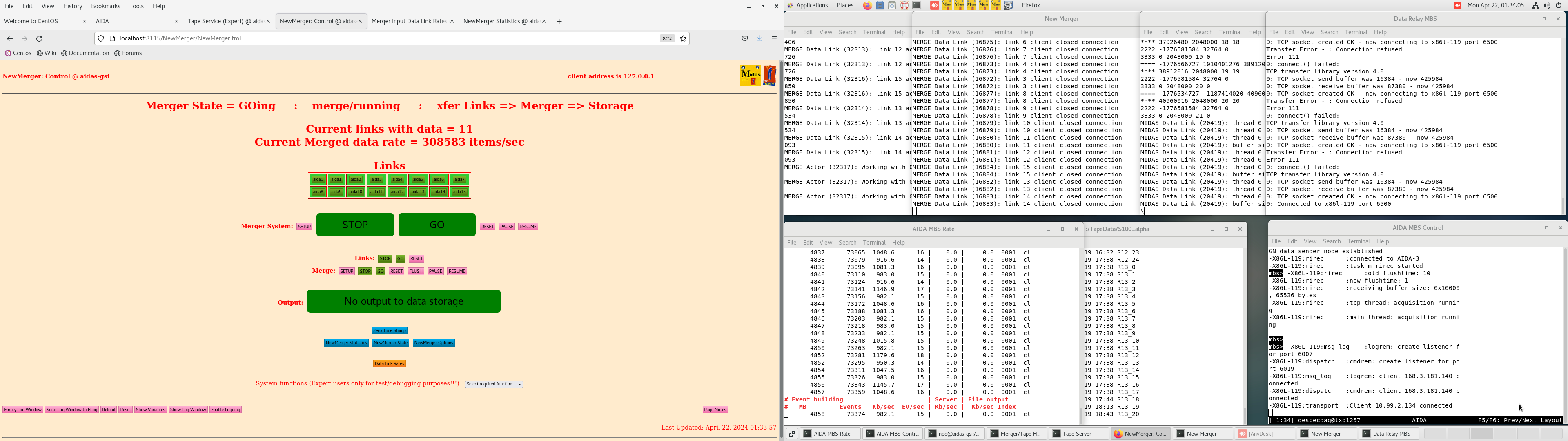

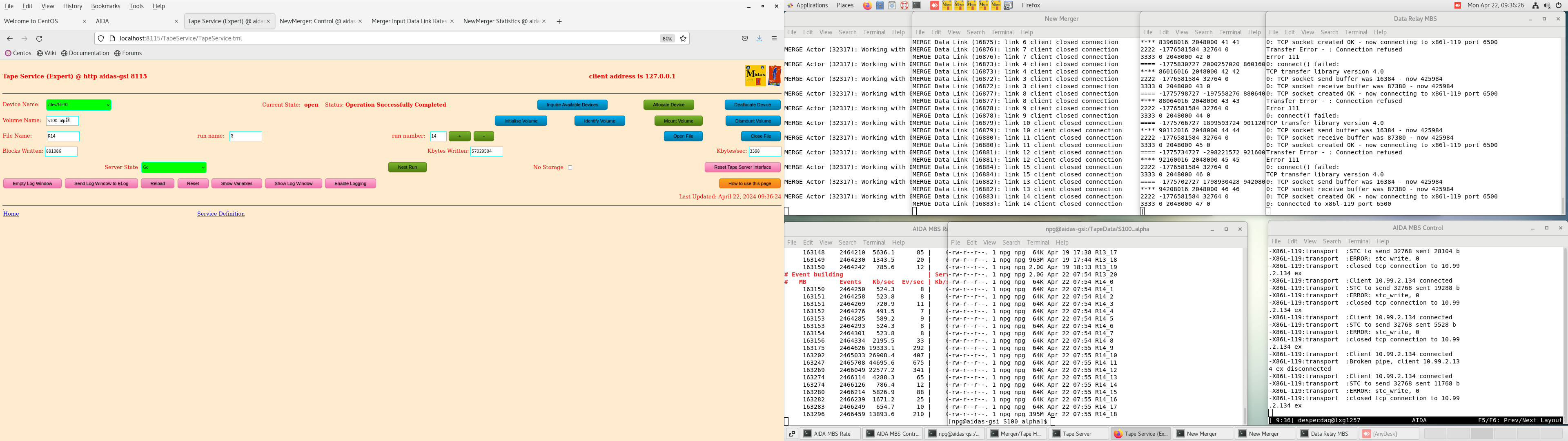

Merger, TapeServer etc - attachment 4
04.36 DSSSD bias & leakage current OK - attachment 5
FEE64 temperatures OK - attachment 6
ADC data item stats OK - attachment 7
Merger, TapeServer etc - attachment 8
07.54 data storage to local disk enabled

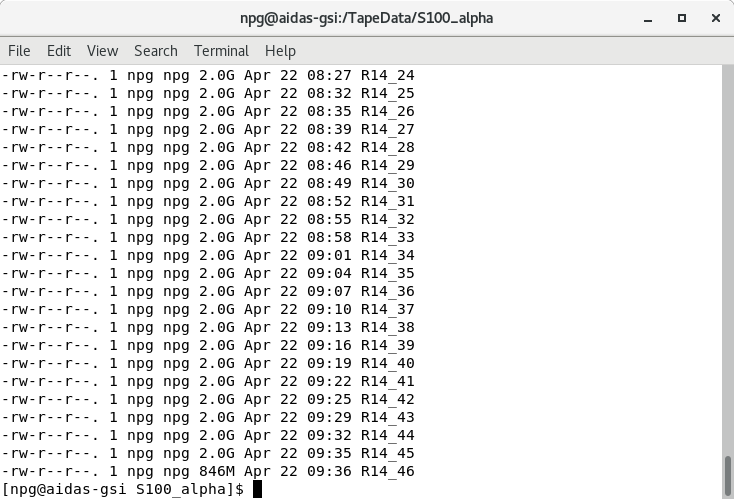

file aida-gsi:/TapeData/S100_alpha/R14_
09.36 DAQ continues, current data file R14_46
168Er setting

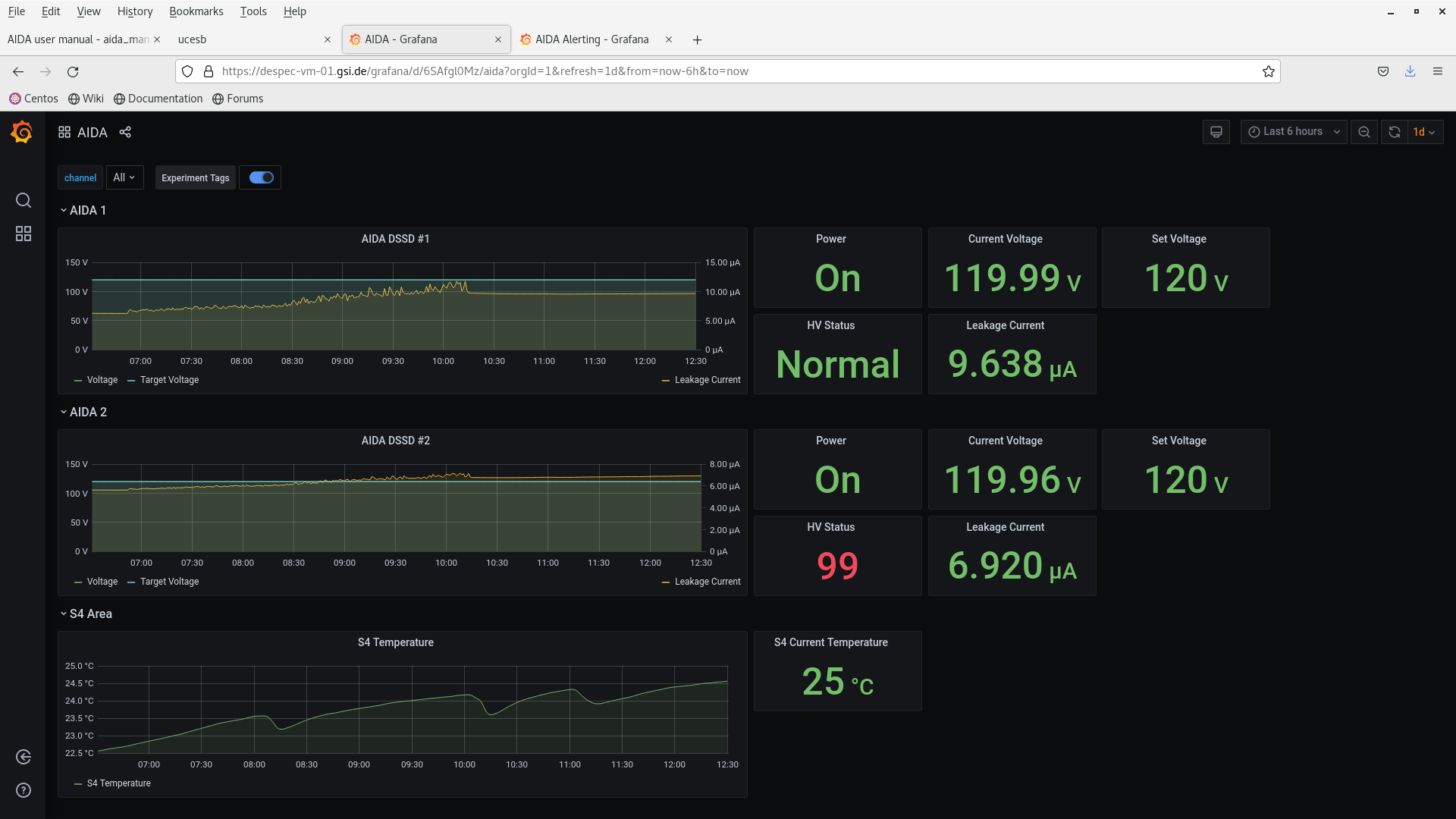

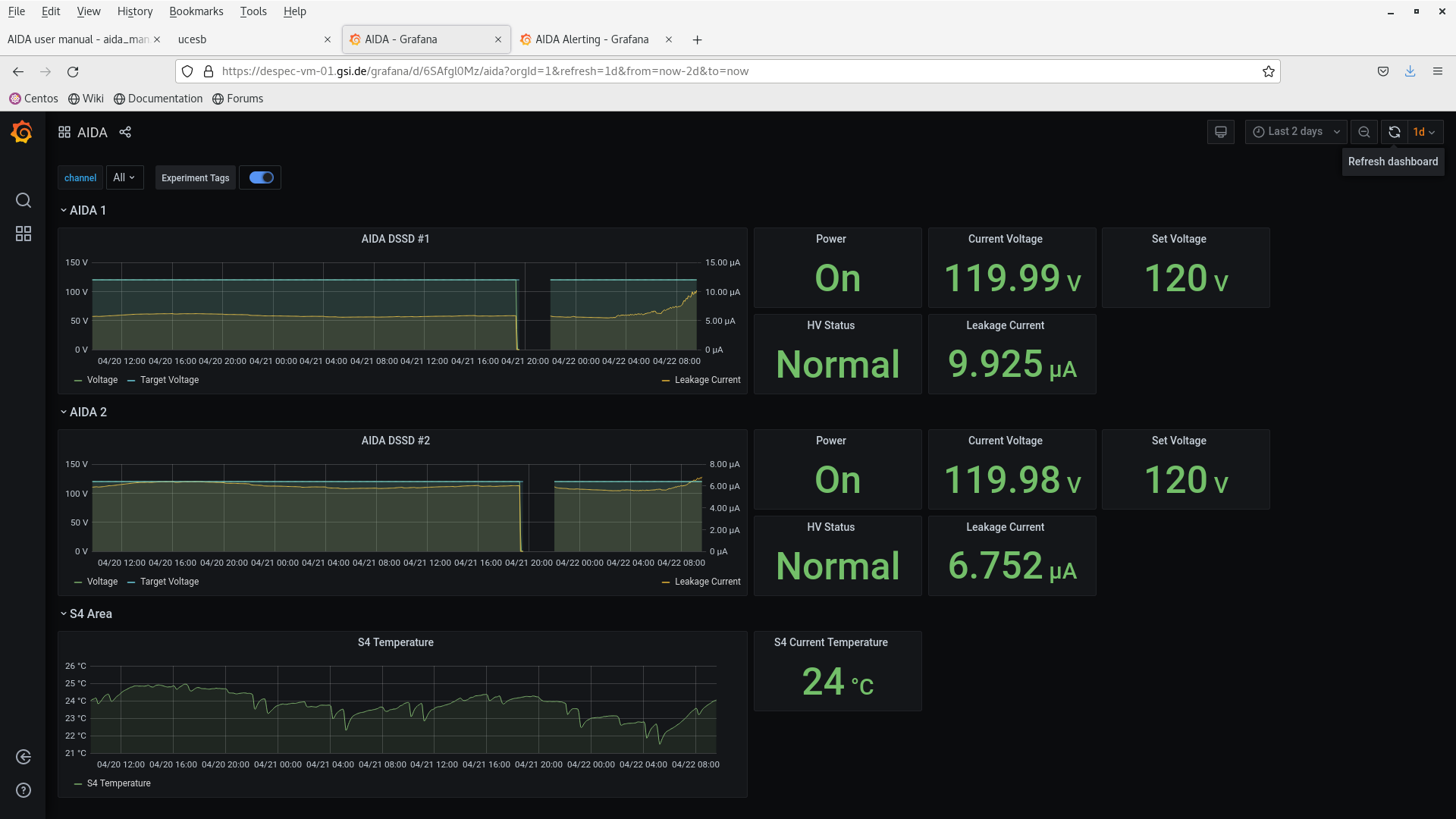

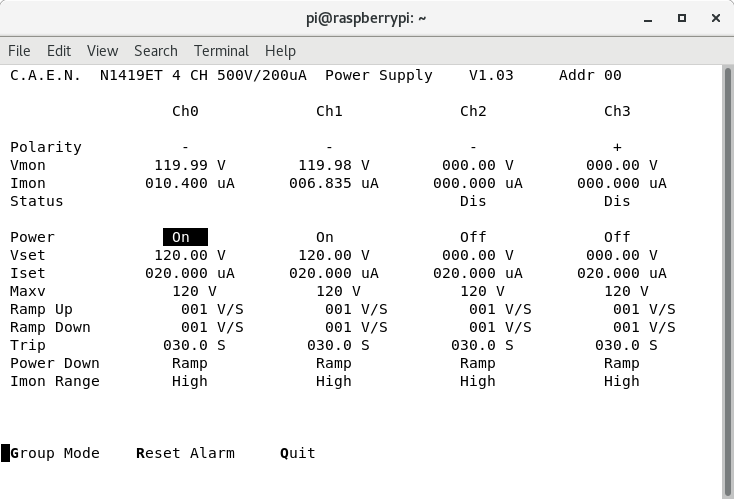

DSSSD bias & leakage current OK - attachments 9 & 10
leakage current DSSSD#1 ramping and cycling with beam spills
FEE64 temperatures OK - attachment 11

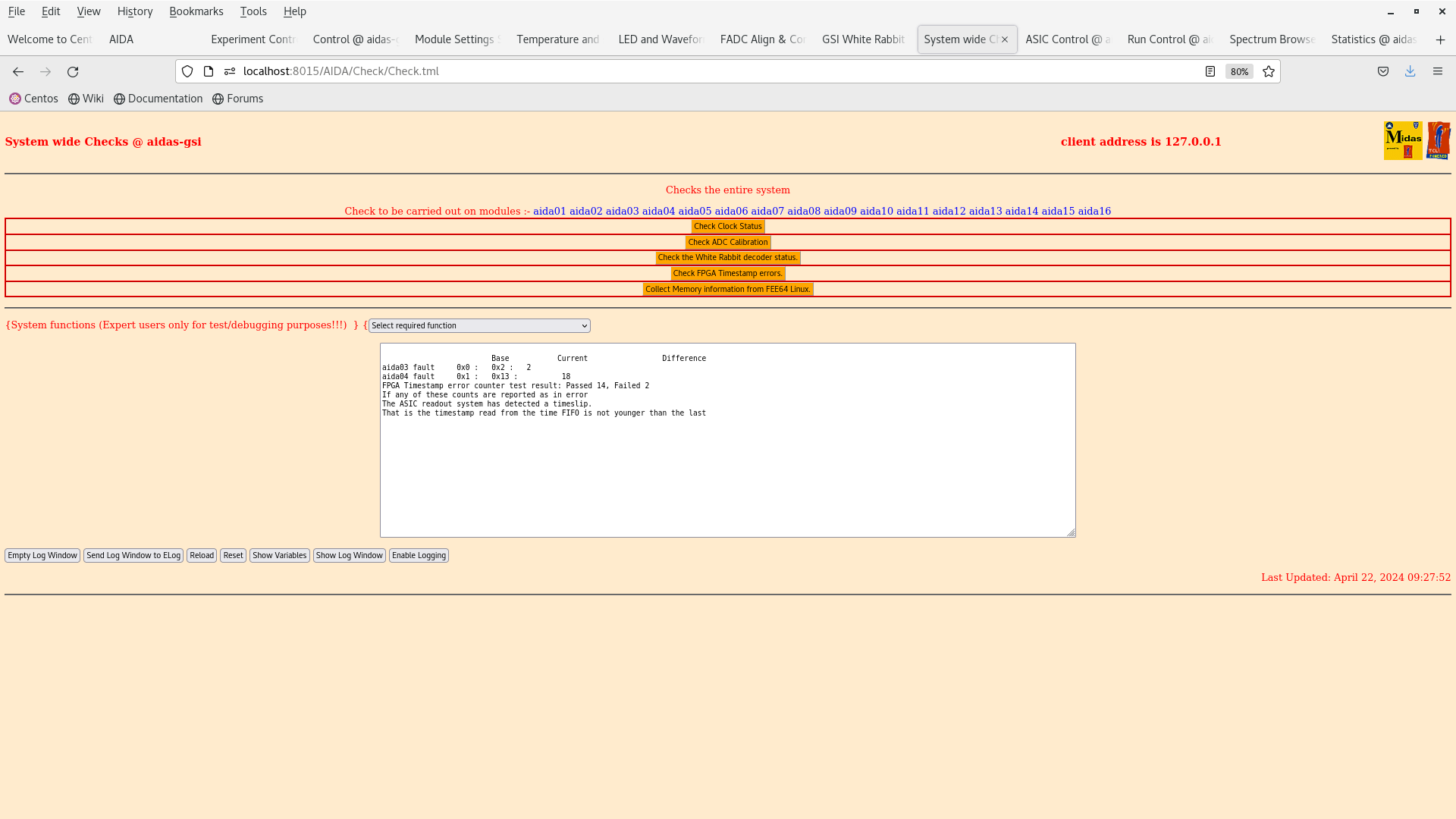

System wide checks OK *except* WR/FPGA errors - attachments 12-13

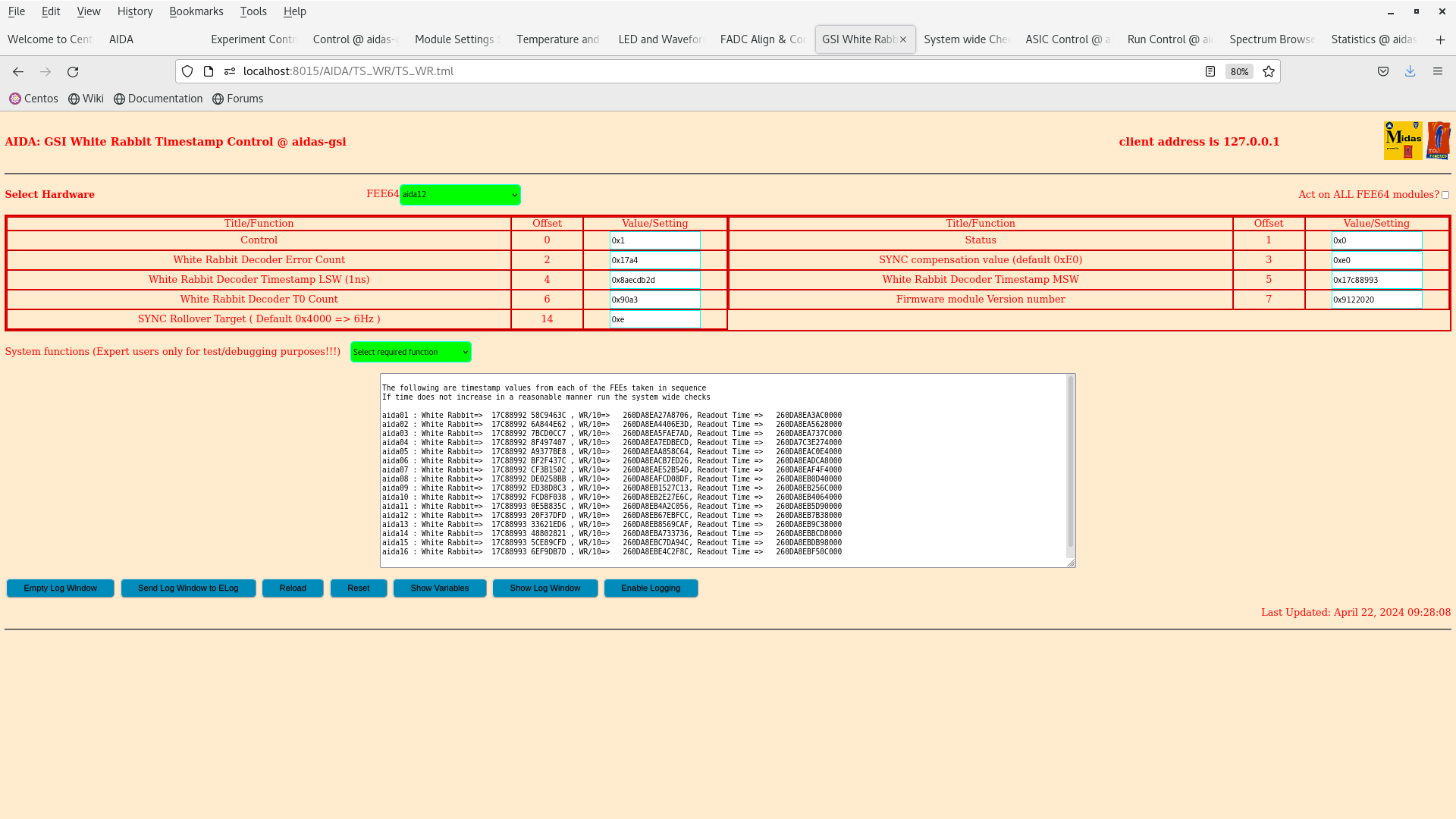

WR timestamps - attachment 14
aida04 out of seq
ADC data item stats - attachment 15
high rates observed all FEE64s beam on, beam off rates OK

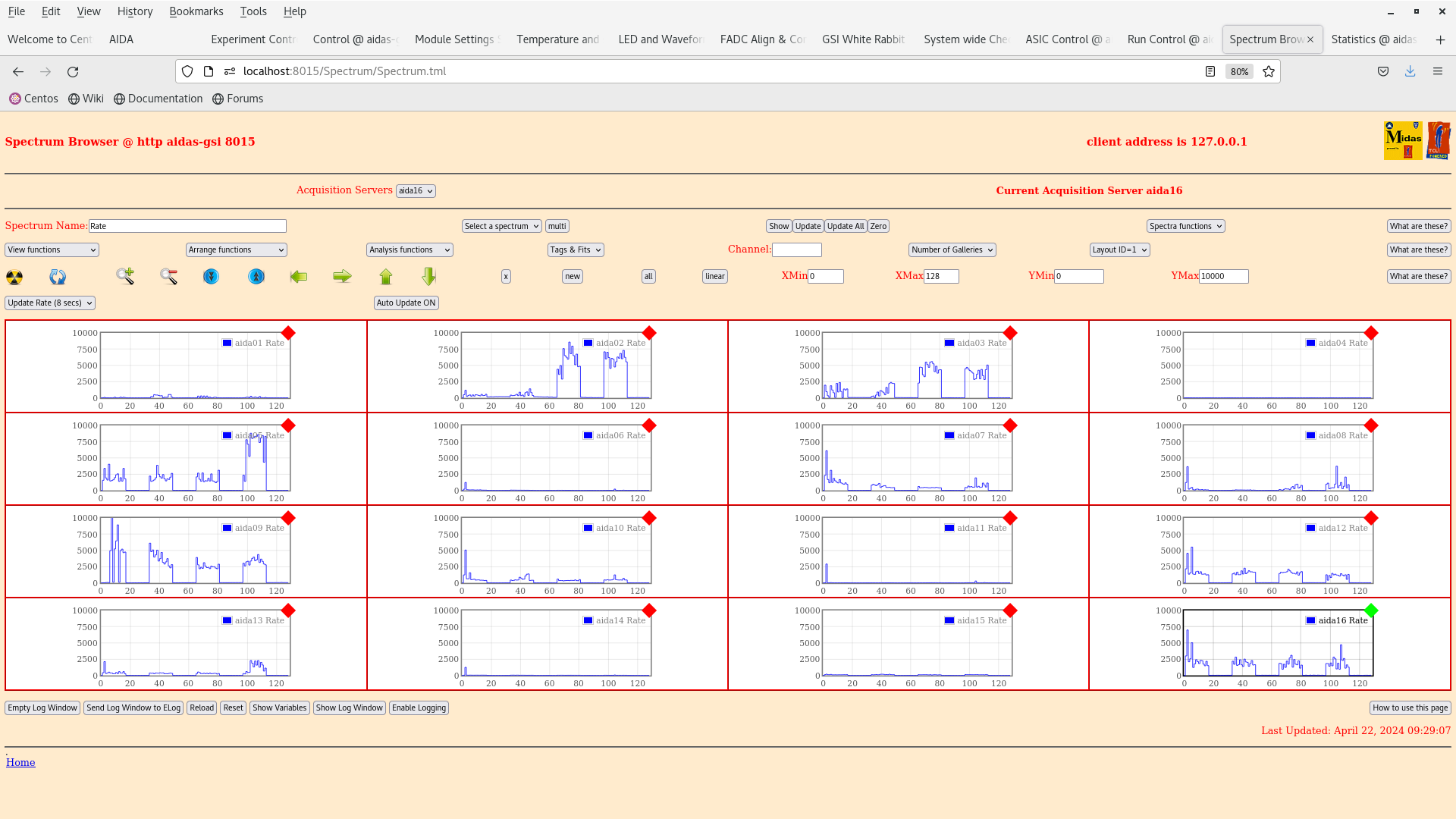

per FEE64 Rate spectra - attachment 16

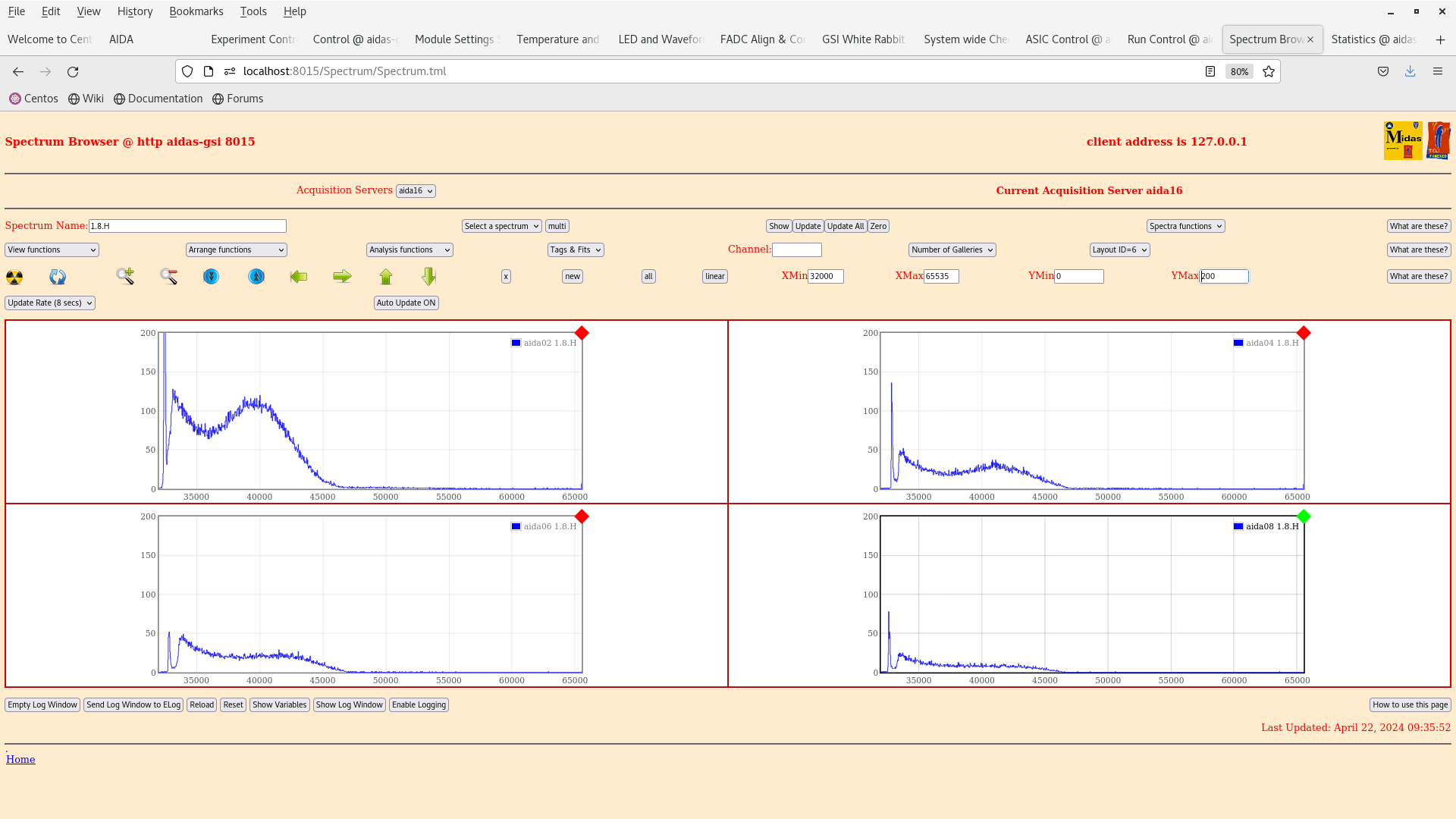

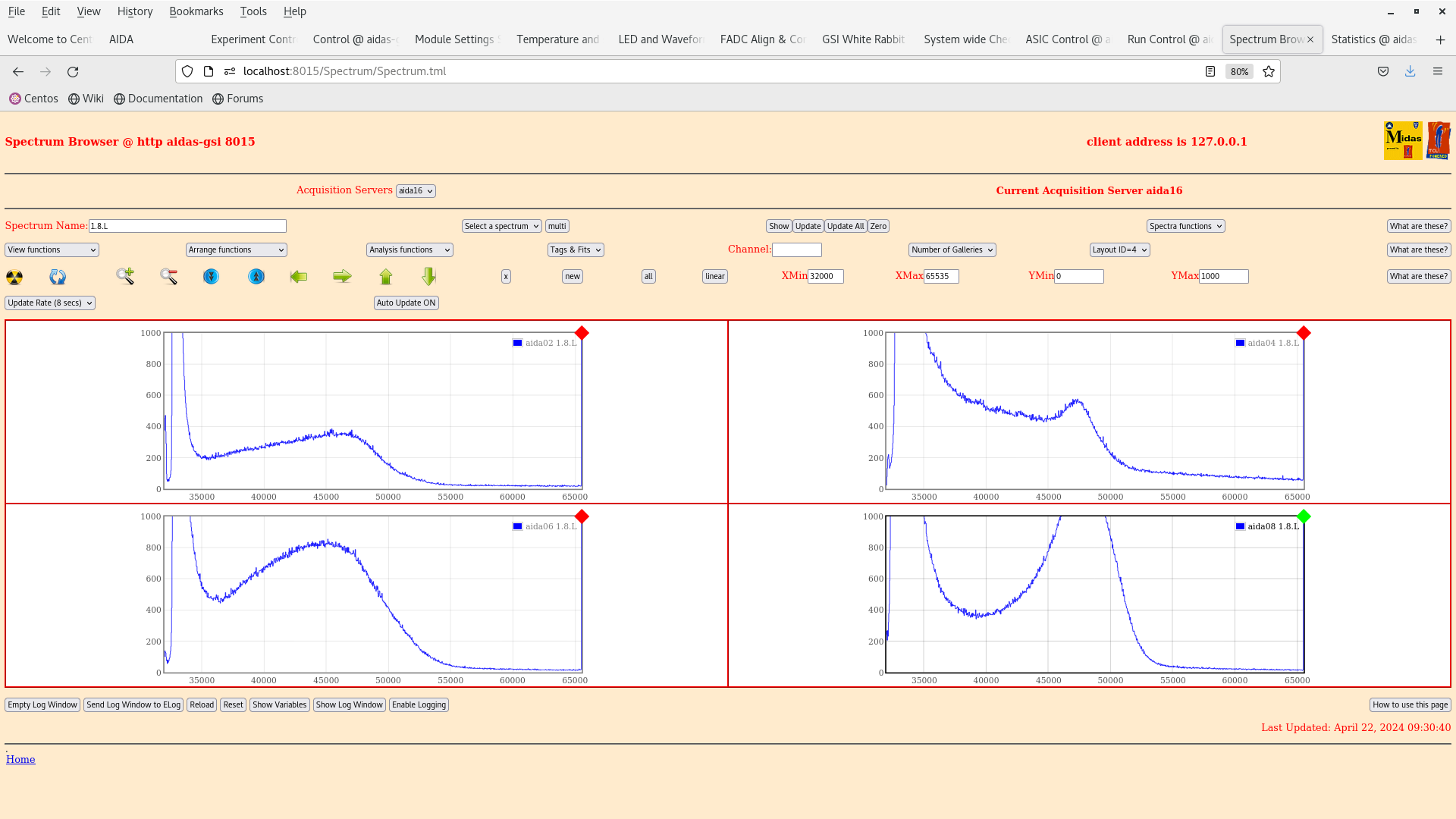

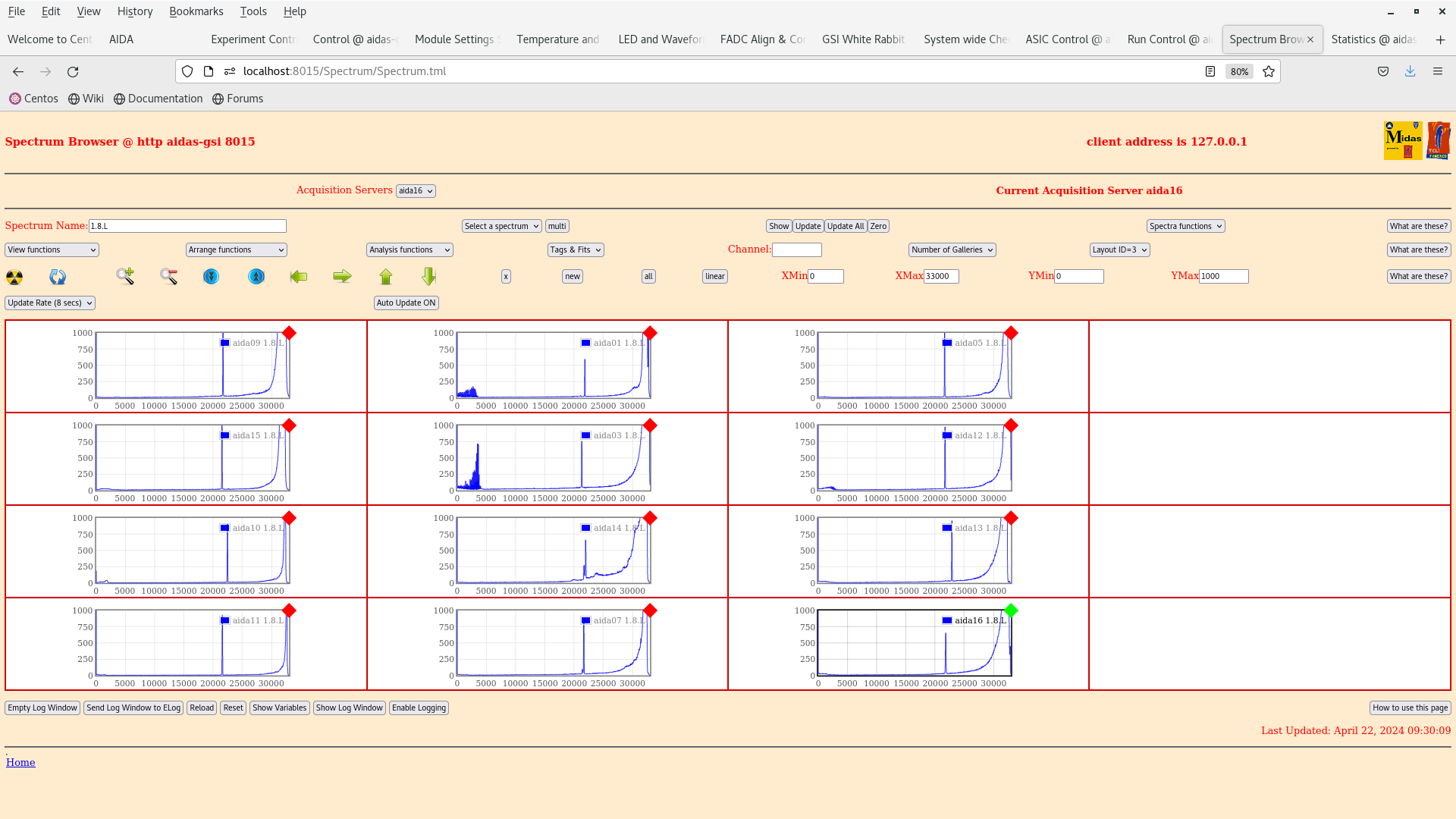

per FEE64 1.8.L spectra - attachments 17-18

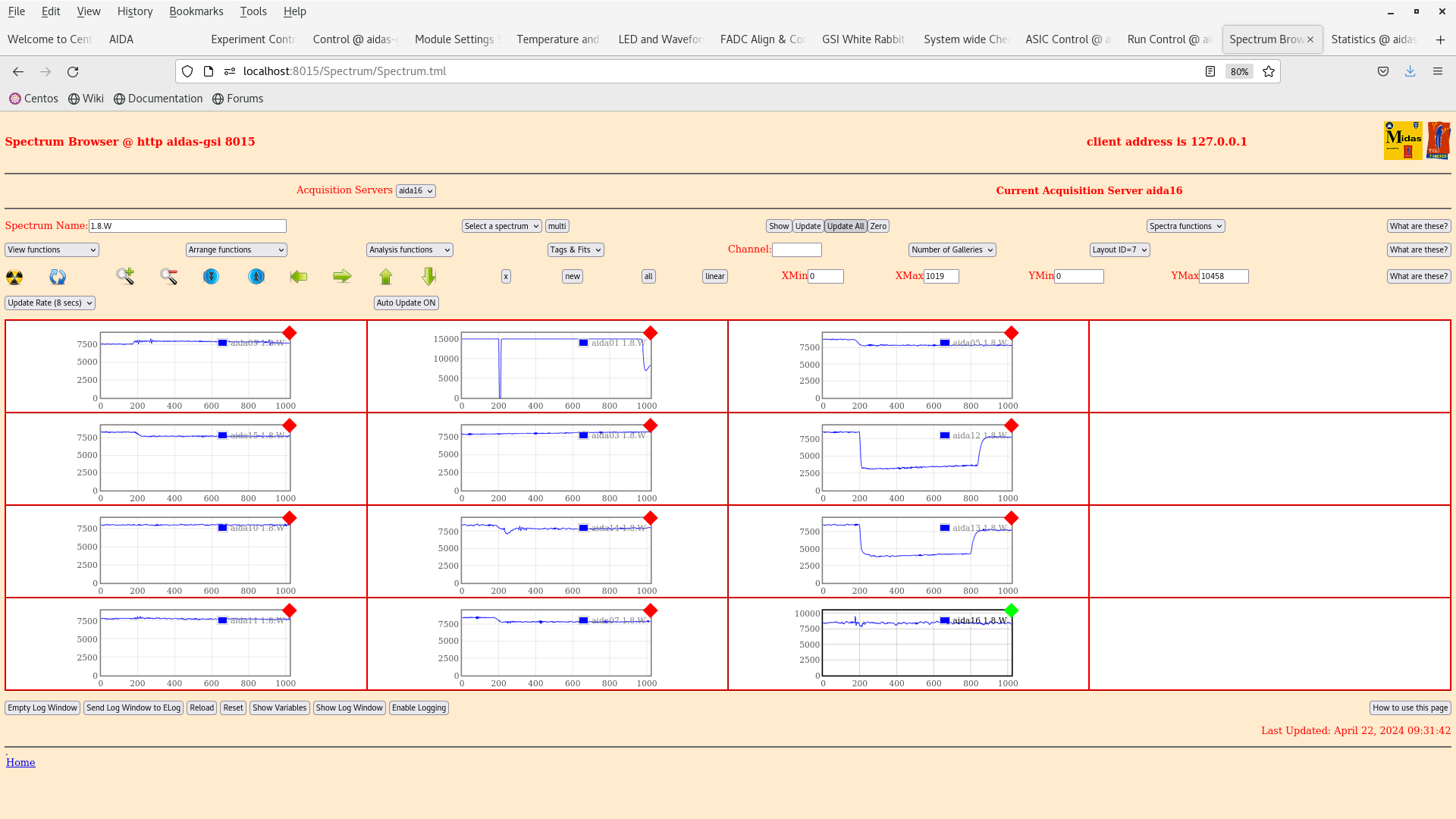

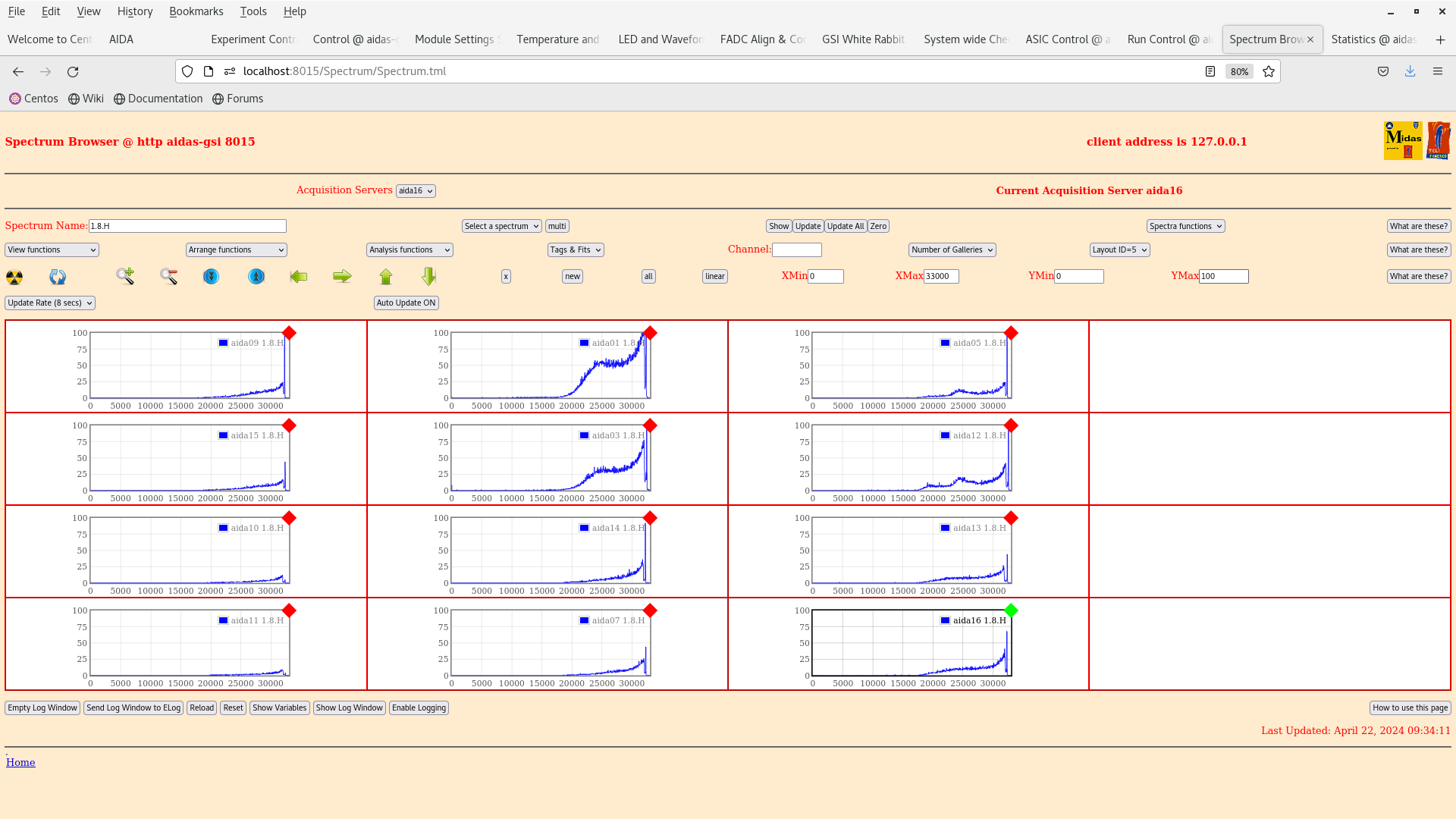

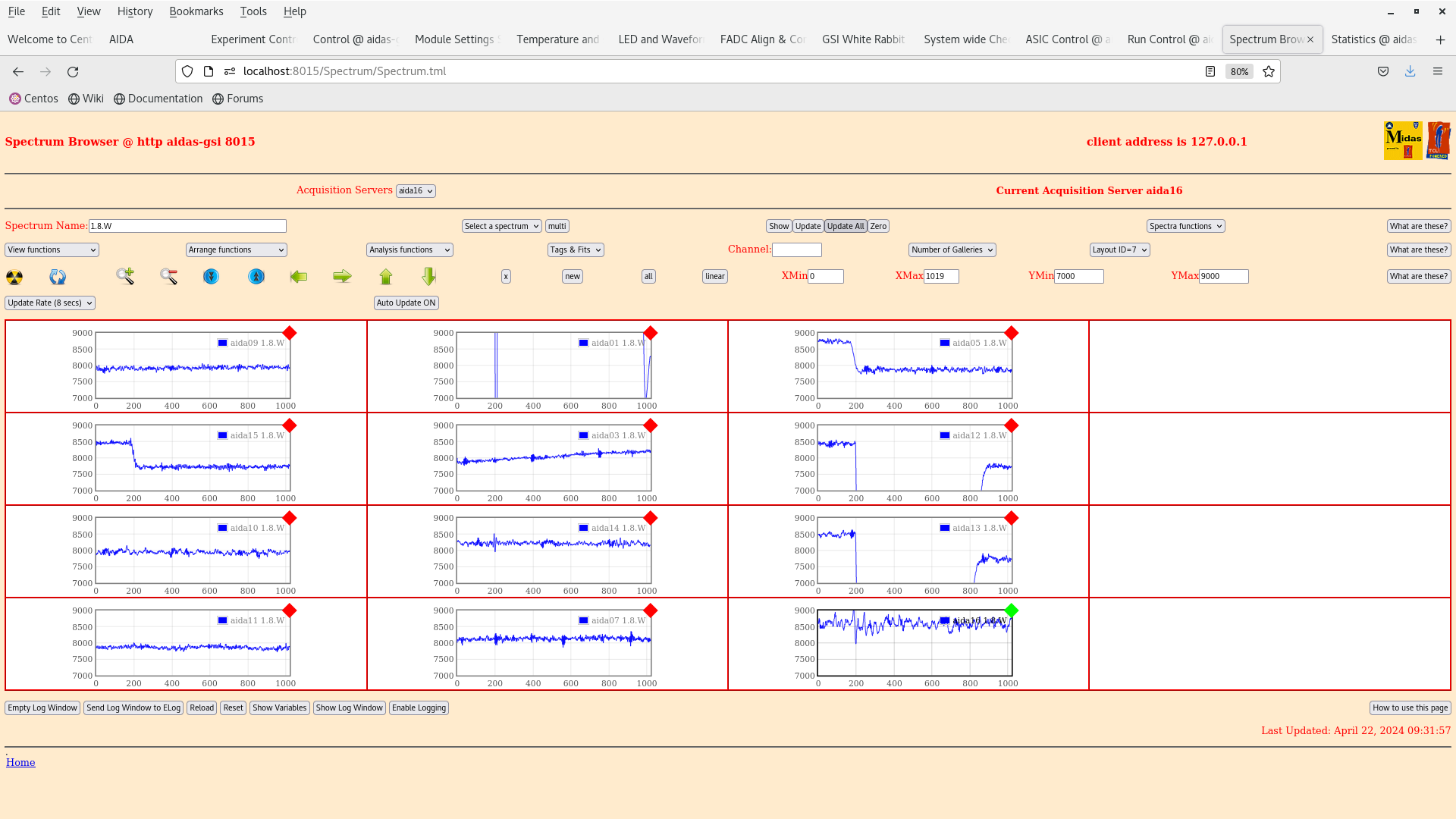

per FEE64 1.8.W spectra - attachments 19-20
per FEE^4 1.8.H spectra - attachments 21-22

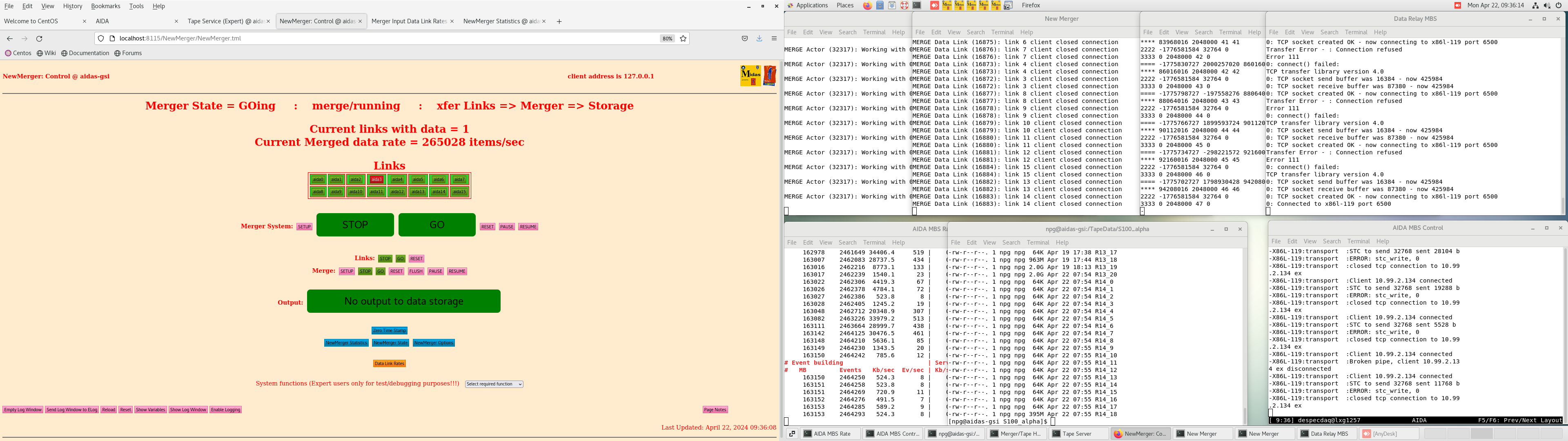

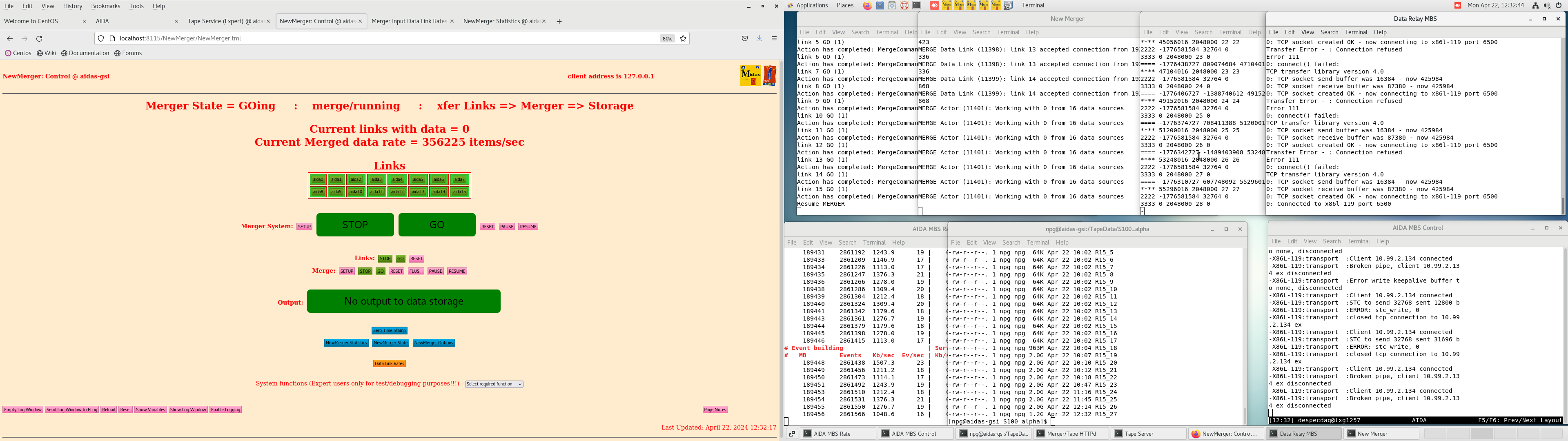

Merger, TapeServer etc - attachments 23-25
data rates to c. 10Mb/s beam on
09.55 aida04 rebooted - https://elog.ph.ed.ac.uk/DESPEC/586
10.01 DAQ restarted
data file R15
ADC data item stats - attachments 26-27
large variation in rates beam off/on
c. 10.30 beam off (for new FRS setting?)
11.25 analysis of data files R14_19 (beam ON) and R15_24 (beam OFF) - attachments 28-29
For beam ON max deadtime c. 11% (aida04), beam OFF max deadtime c. 0.1% (aida04)
Zero timewarps observed
Notice large # of PAUSE/RESUME data items for aida03 & aida04 presumably due to additional overhead of processing the time machine scalers
12.35 Beam off
DSSSD bias & leakage current OK - attachment 30
Can observe beam spill structure in DSSSD leakage currents - now slowly recovering with beam off
FEE64 temperatures OK - attachment 31
ADC data item stats OK - attachment 32
Merger, TapeServer etc - attachment 33
12.55 New ASIC settings 2024Apr22-12.55.38
*all* discs disabled to reduce load on aida04
slow comparator 0x14
BNC PB-5 settings (since yesterday evening)
Amplitude 10.0V
Attenuation x10
tau_d 1ms
Frequency 2Hz
Tail pulse
Polarity +
13.46 all histograms & stats zero'd
13.48 Beam off

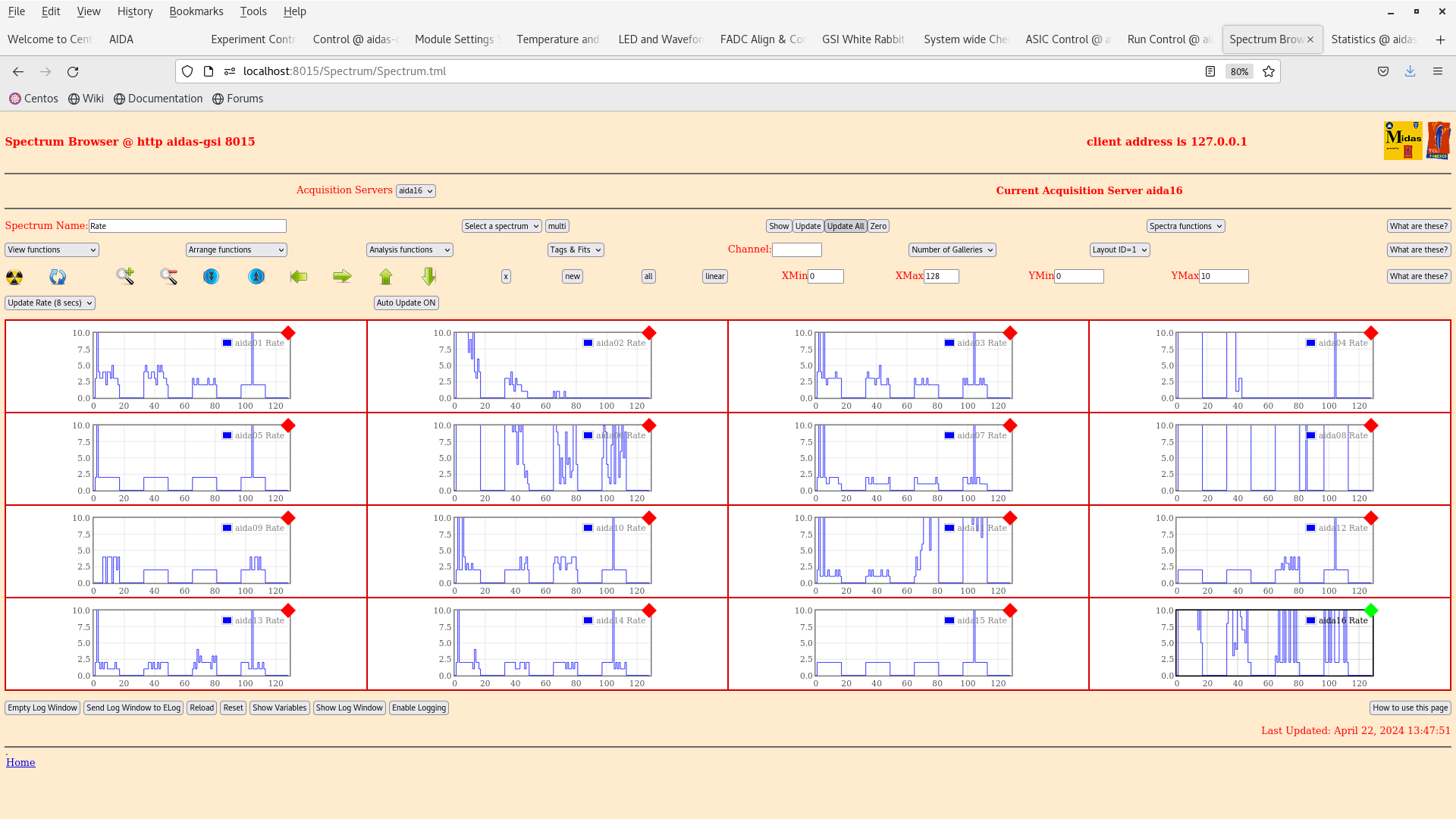

per FEE64 Rate spectra - attachment 34
2Hz pulser to p+n FEE64s

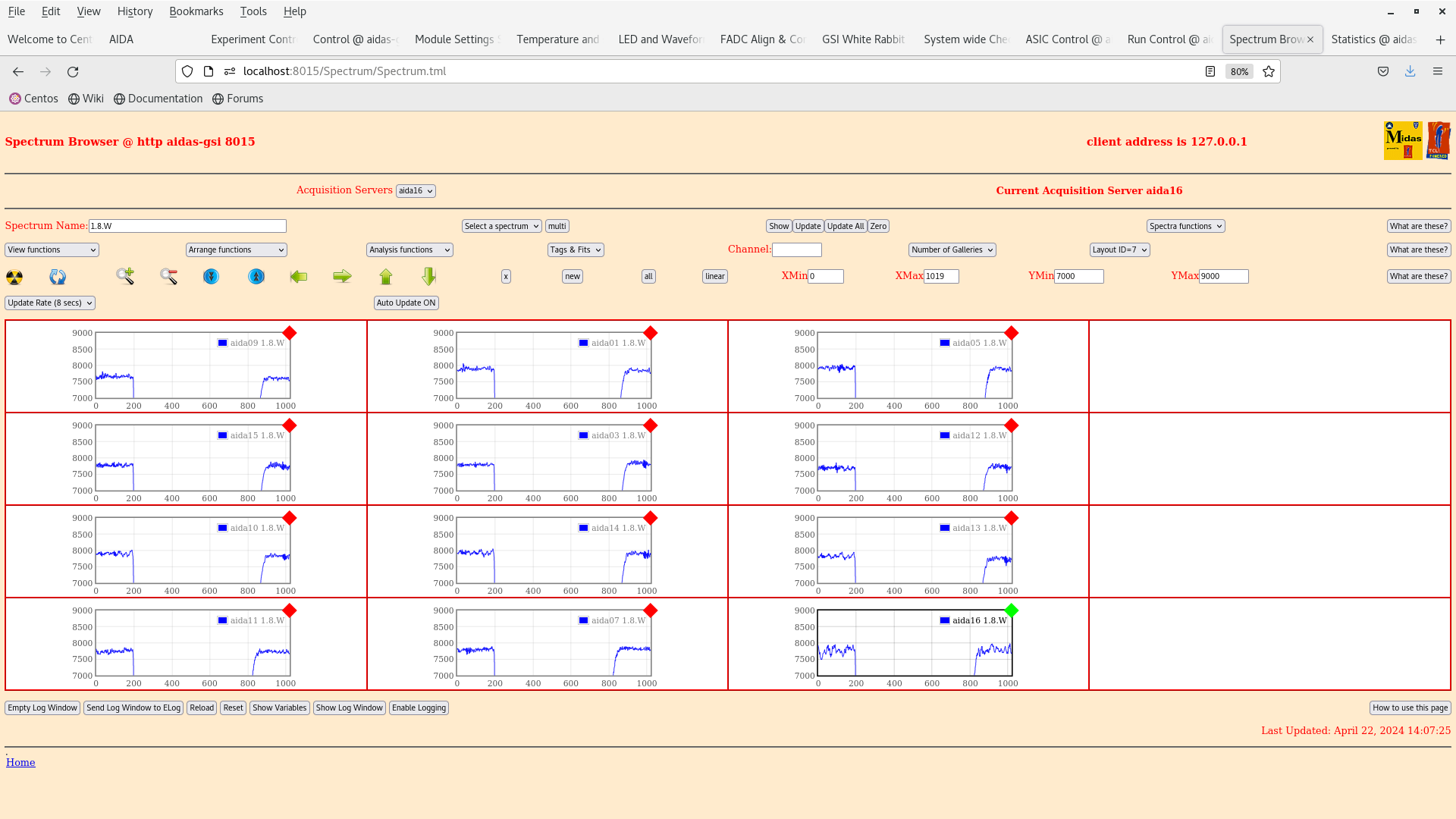

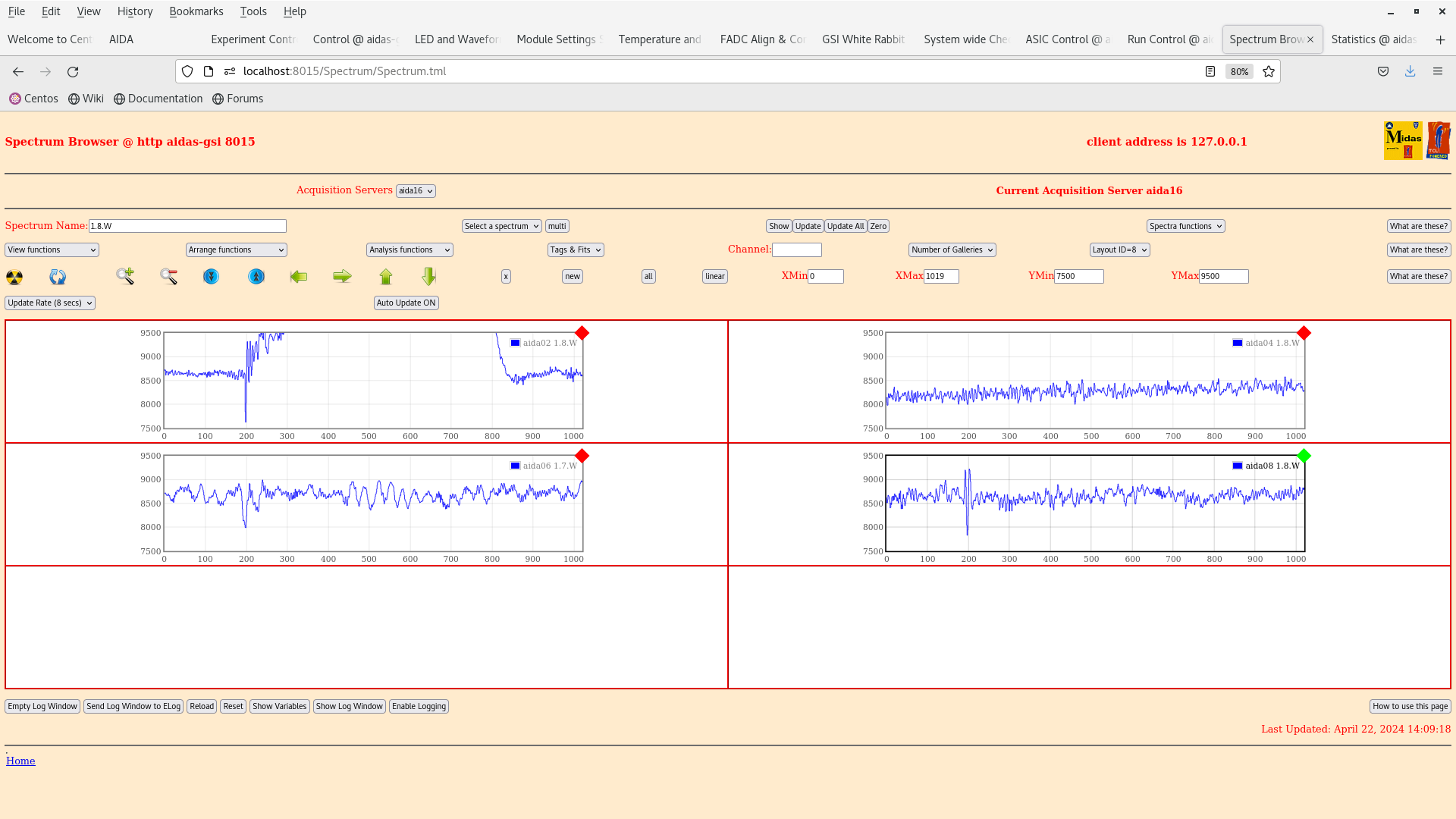

per FEE64 1.8.W spectra - attachments 35-36
p+n FEE64 threshold = 6000 to capture pulser events
n+n FEE64 threshold = 8000 to capture noise

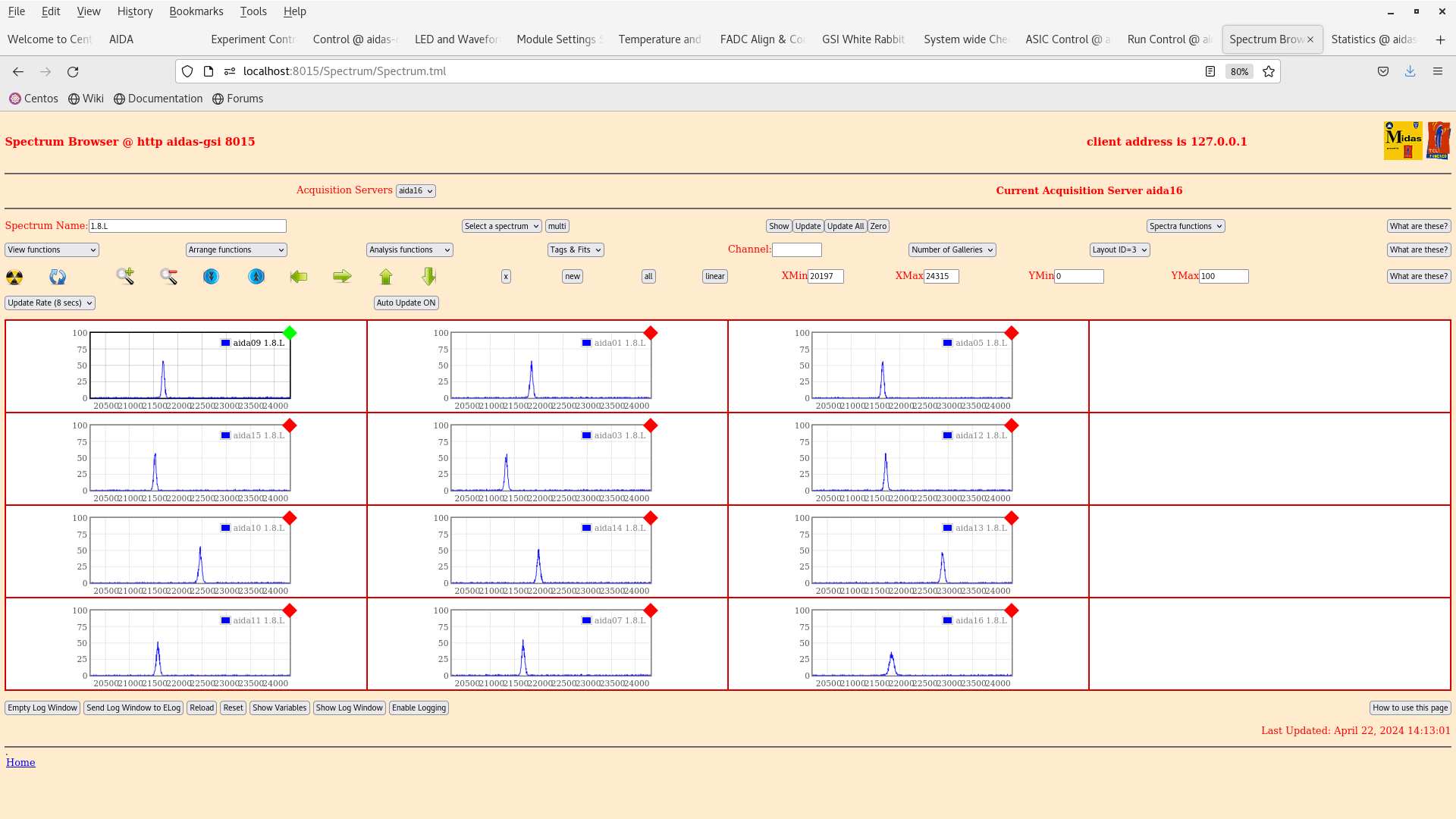

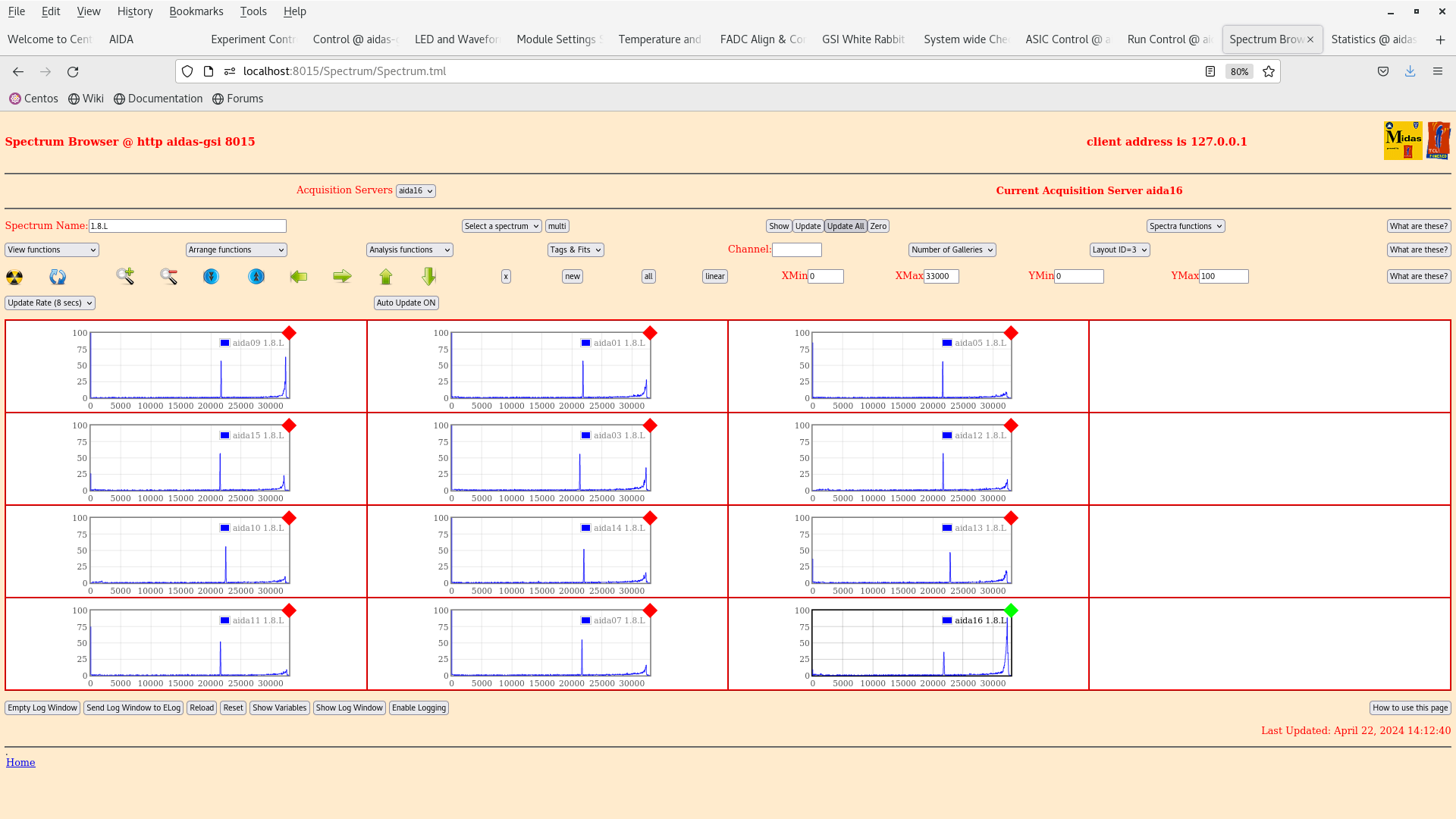

per p+n FEE64 1.8.L spectra - attachments 37-38
common x/y-scale - peak height proxy for peak width
aida09 pulser peak width 57 ch FWHM ~40keV FWHM ( 5 x sigma ~ 85keV )
14.28 168Eu setting (check only - setup still in progress) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 247983505 ( 854821.8 Hz)
Other data format: 13936495 ( 48040.4 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 2020 ( 7.0 Hz)
RESUME: 2018 ( 7.0 Hz)
SYNC100: 33080 ( 114.0 Hz)
WR48-63: 33080 ( 114.0 Hz)
FEE64 disc: 4068663 ( 14025.1 Hz)
MBS info: 9797634 ( 33773.3 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 1220258 ( 4206.3 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 290.100 s
