| DESPEC |
 |
|
|
|
Message ID: 605
Entry time: Thu Apr 25 08:26:50 2024
|
| Author: |
TD |
| Subject: |
08:00-16:00 Thursday 25 April |
|
|
09.56 DAQ continues data file S100_alpha/R18_387
FRS switching settings

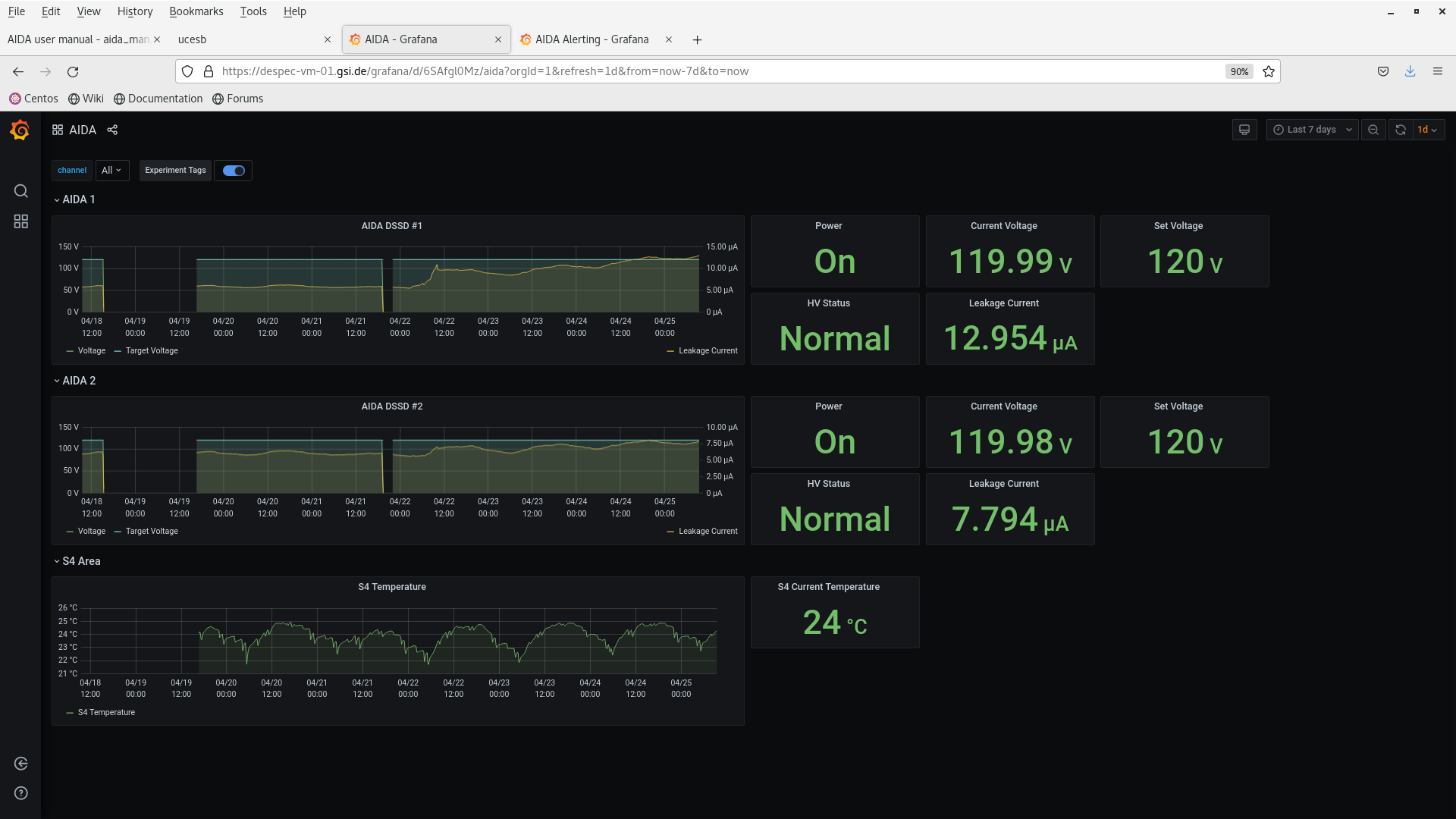

DSSSD bias & leakage current OK - attachments 1

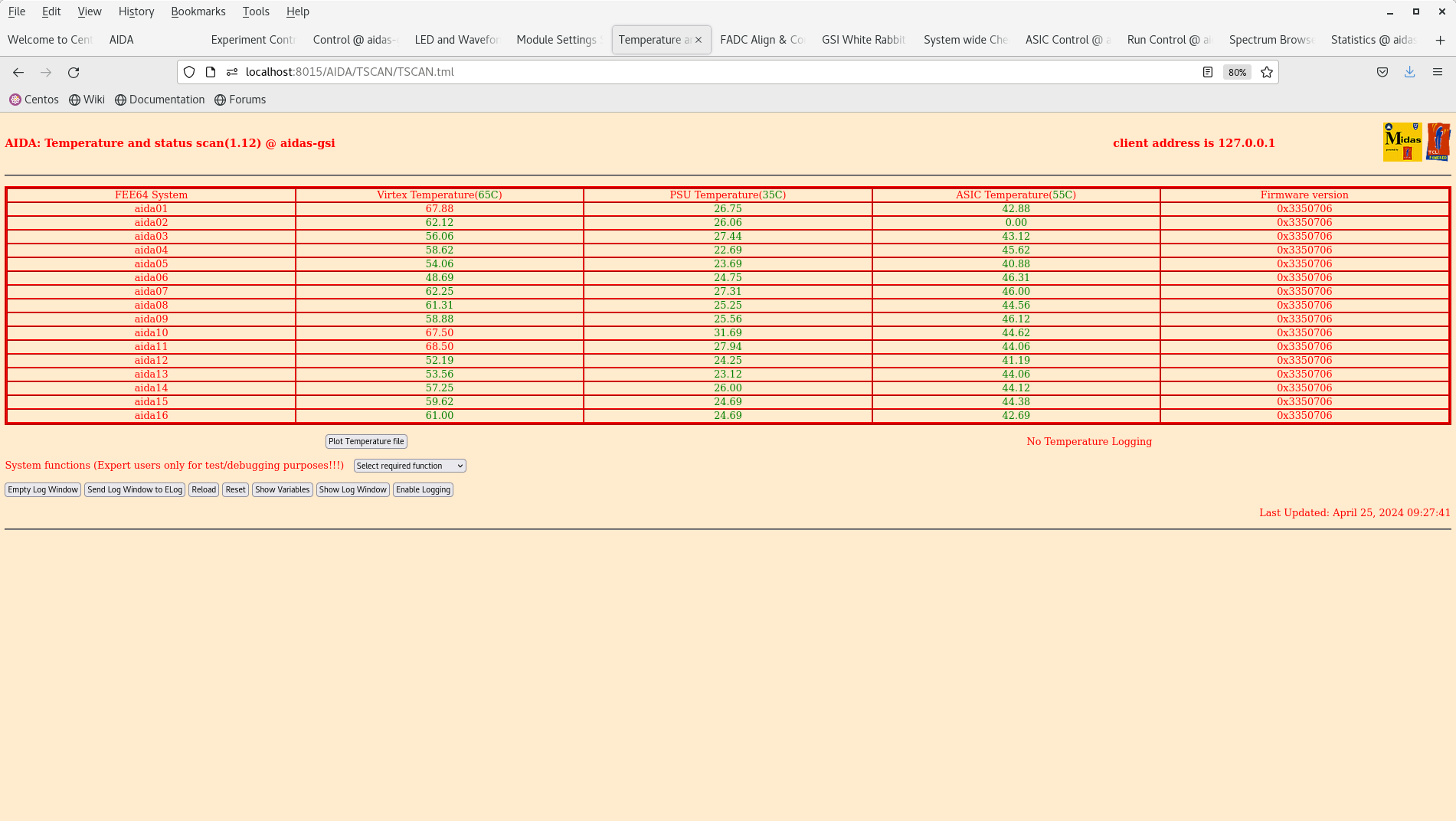

FEE64 temperatures OK - attachment 2
aida02 ASIC temp - known fault

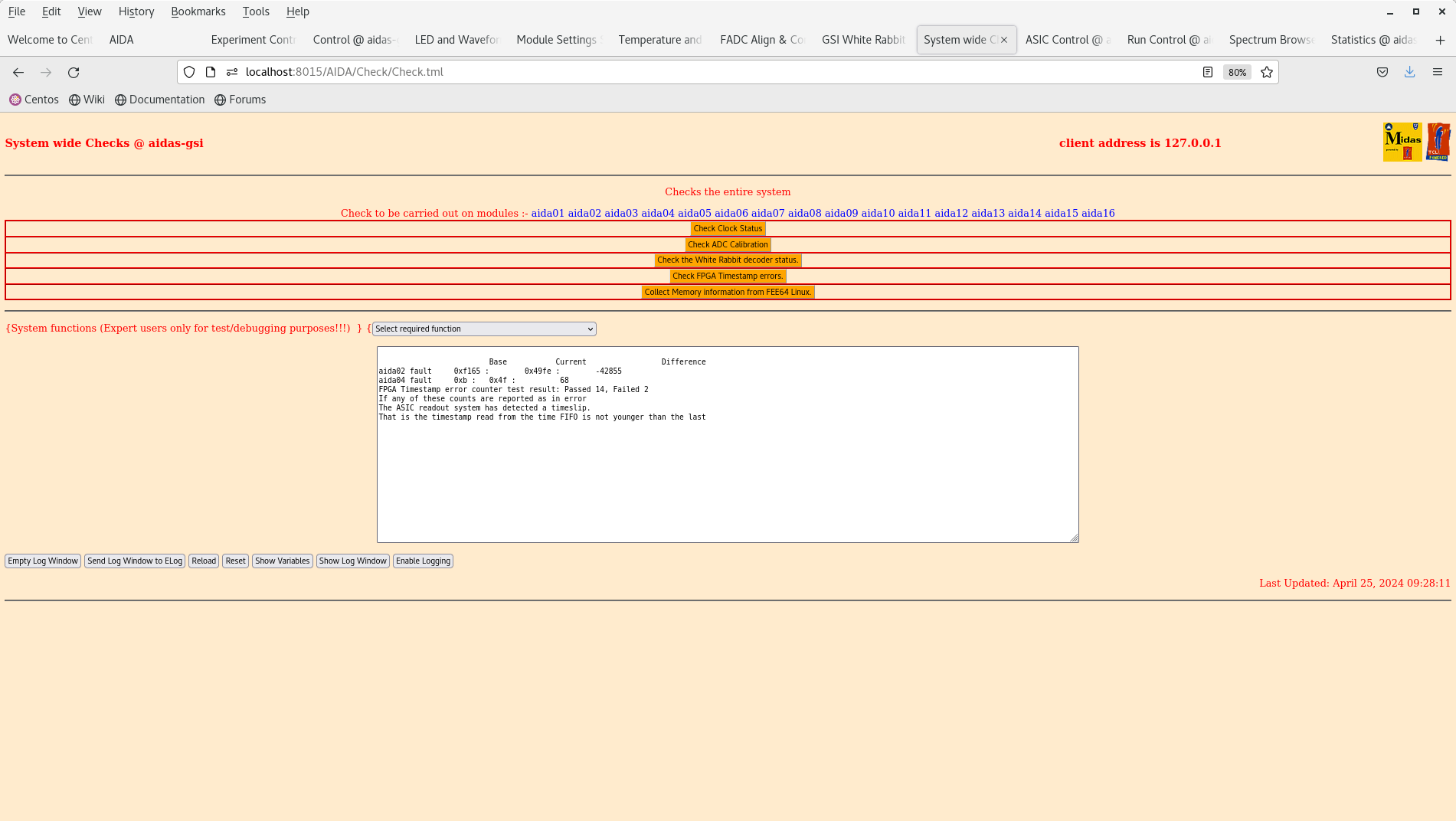

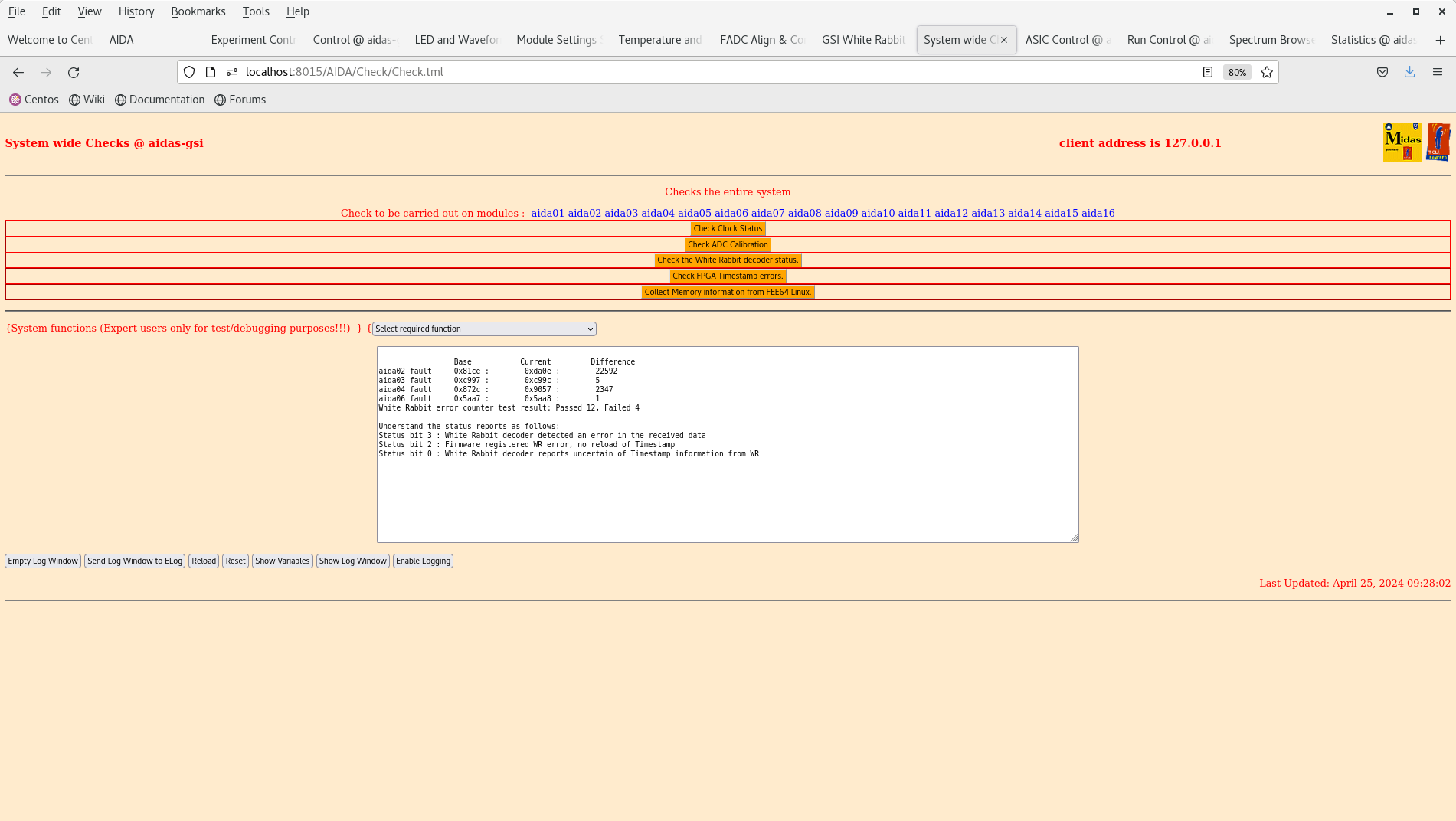

All system wide checks OK *except* as shown - attachments 3-5

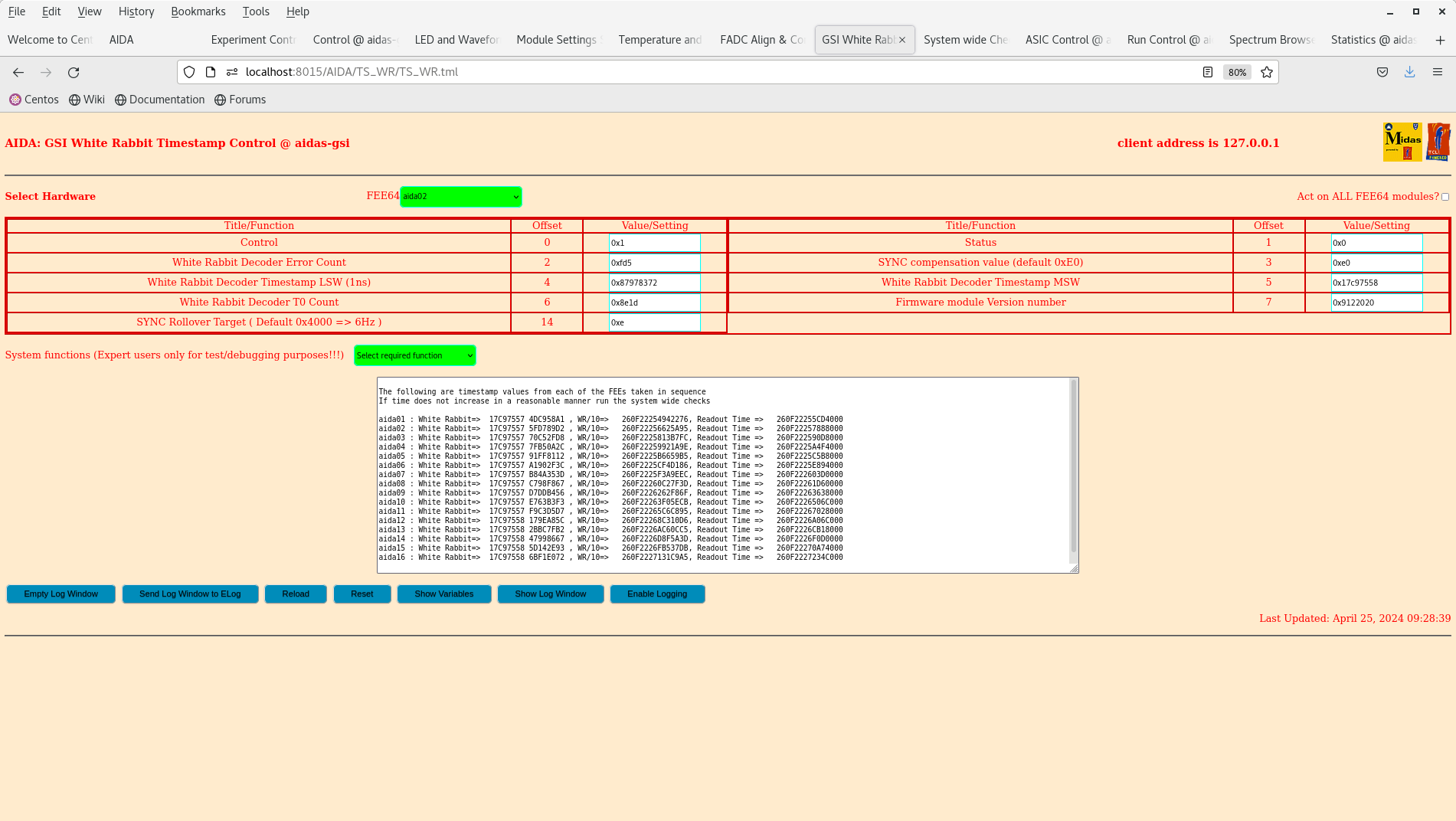

WR timestamps OK - attachment 6

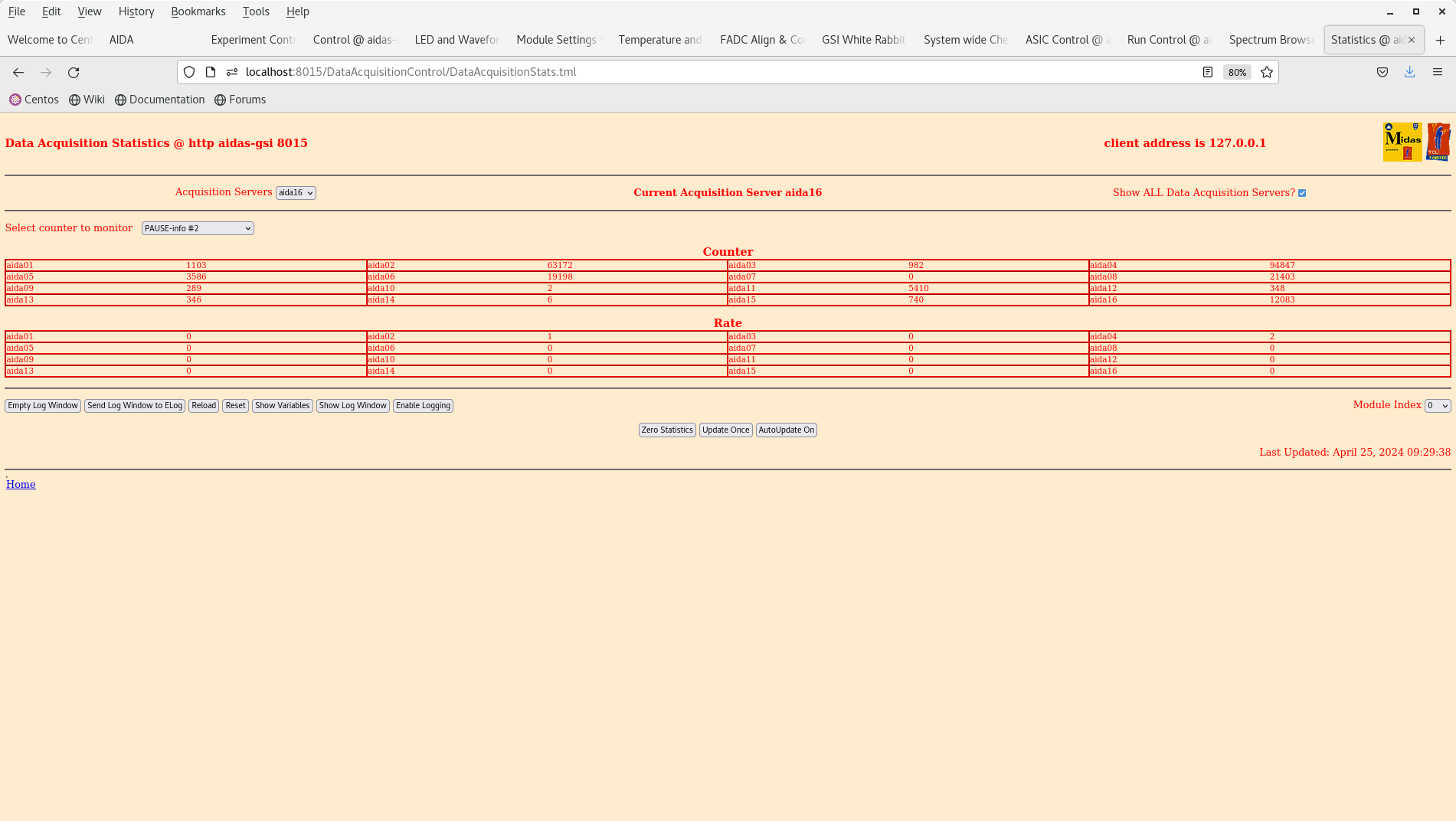

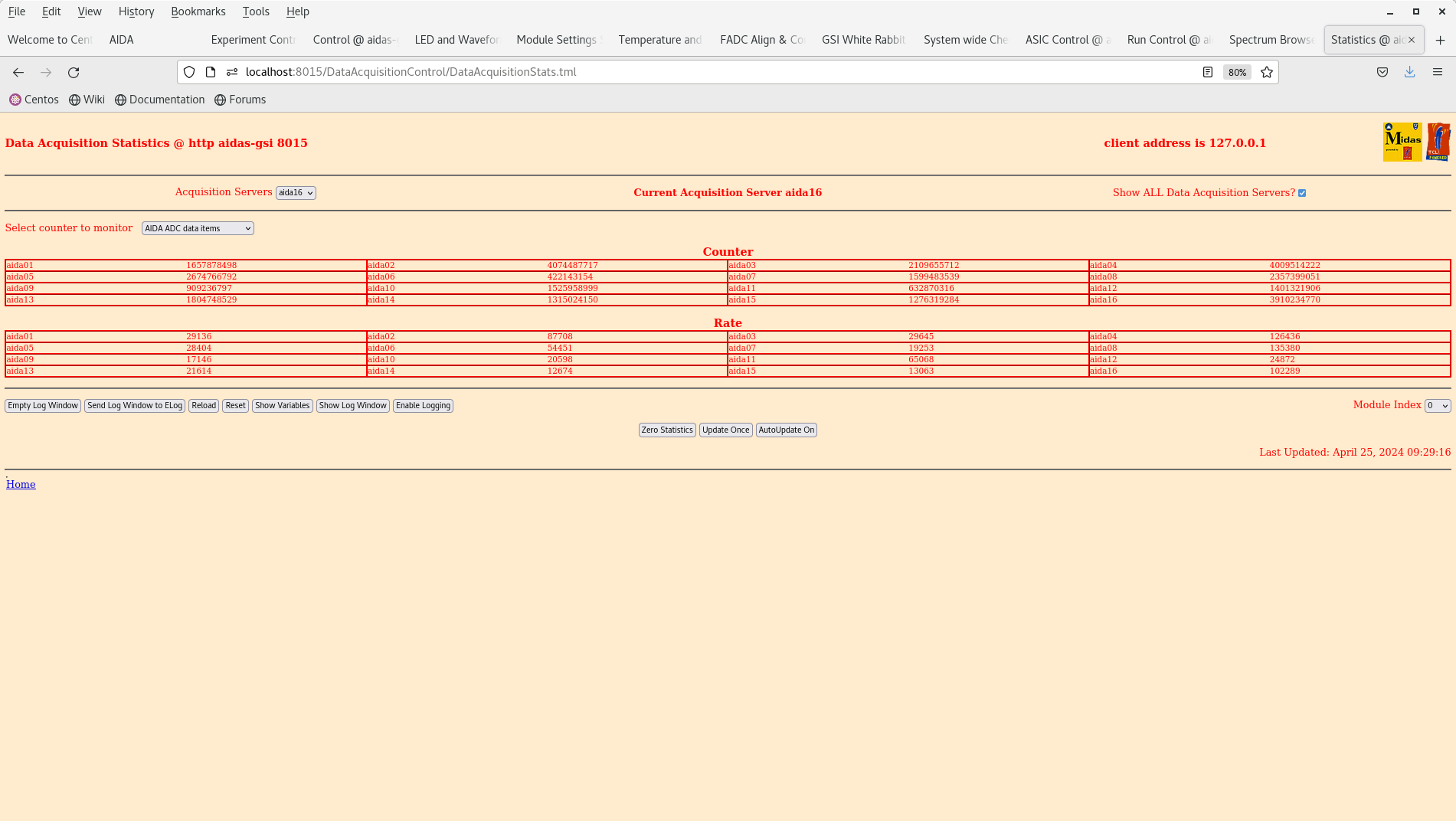

ADC, PAUSE, RESUME & Correlation Scaler data time stats - attachments 7-10

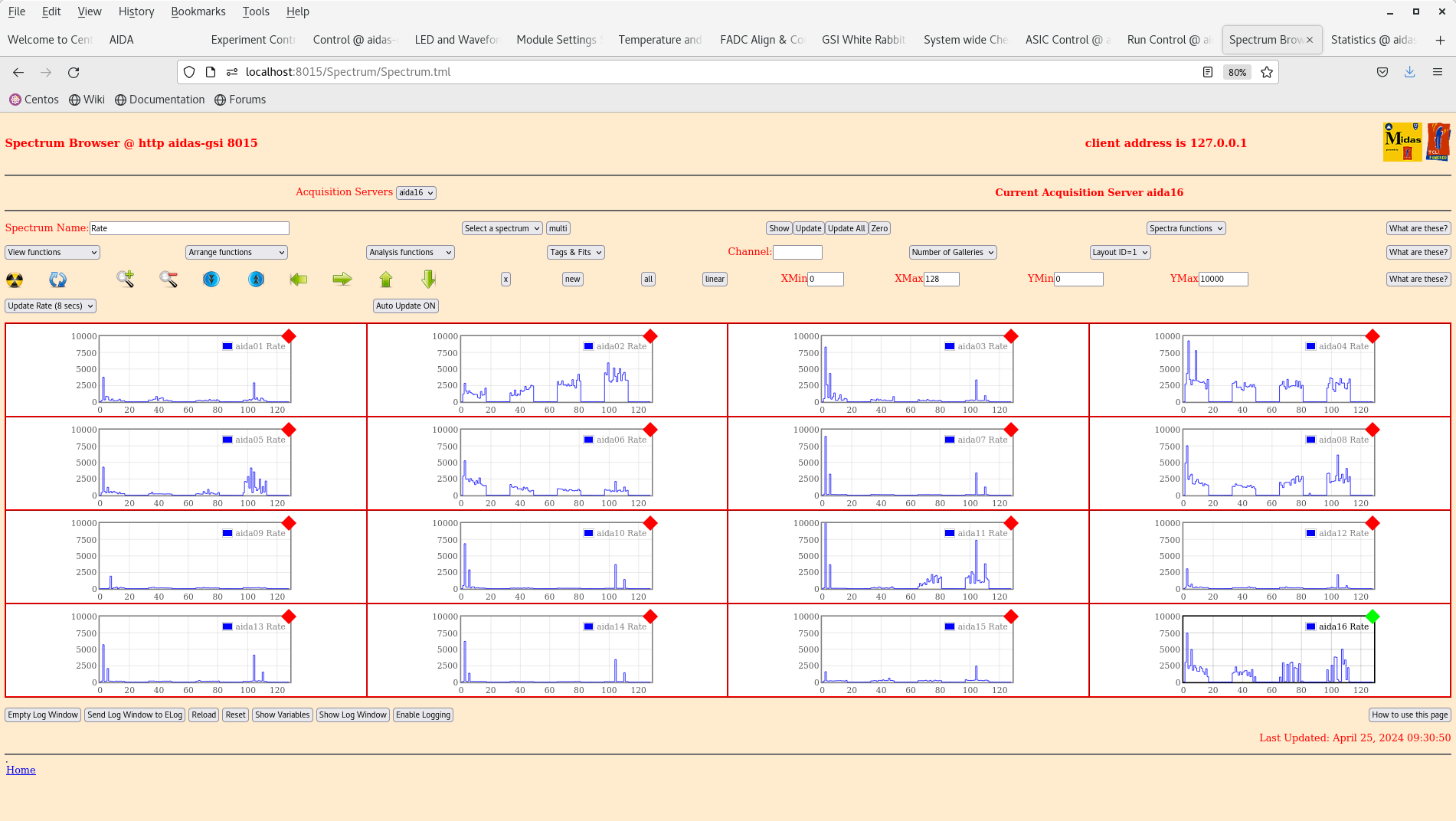

per FEE64 Rate spectra - attachments 11

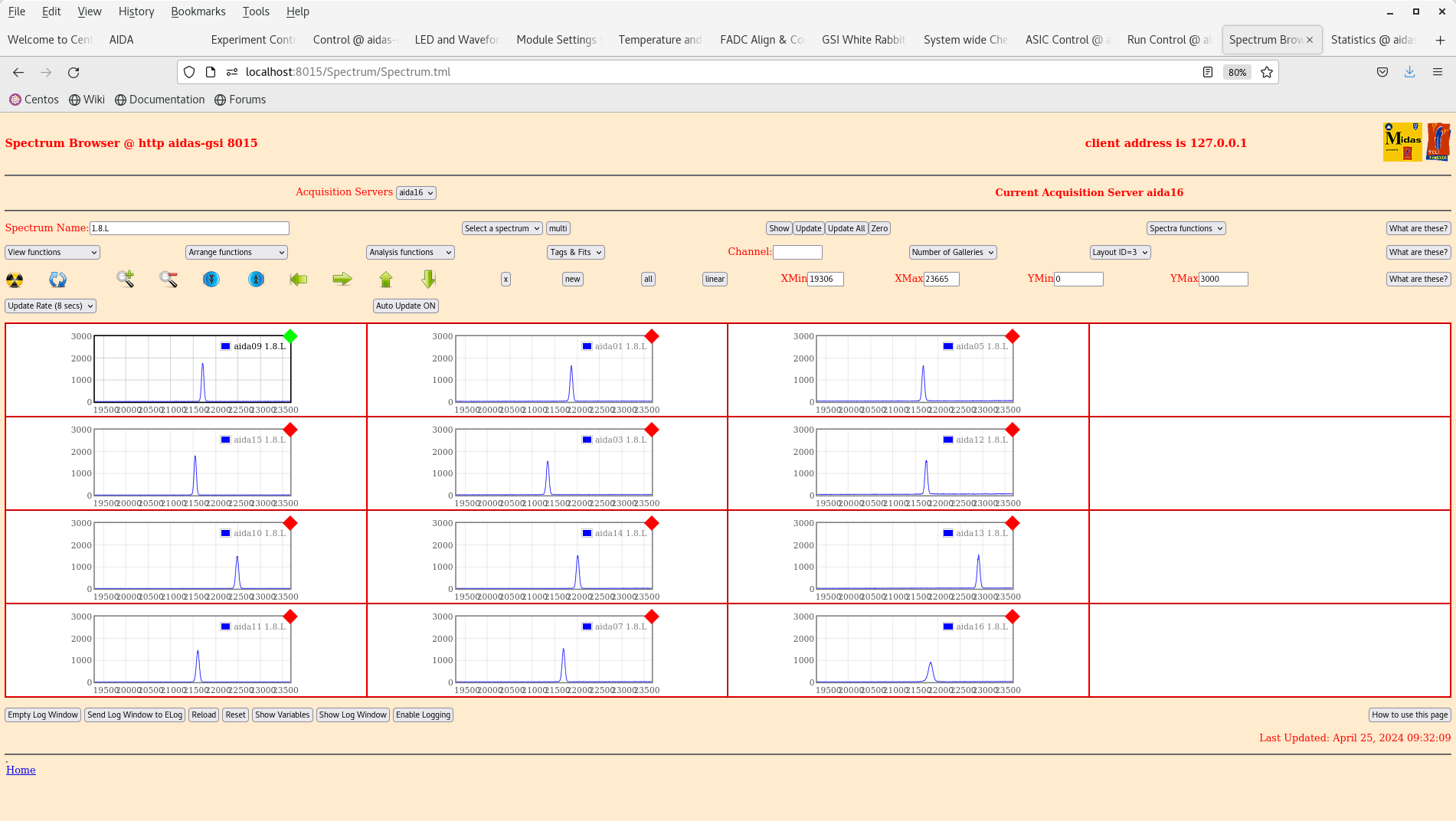

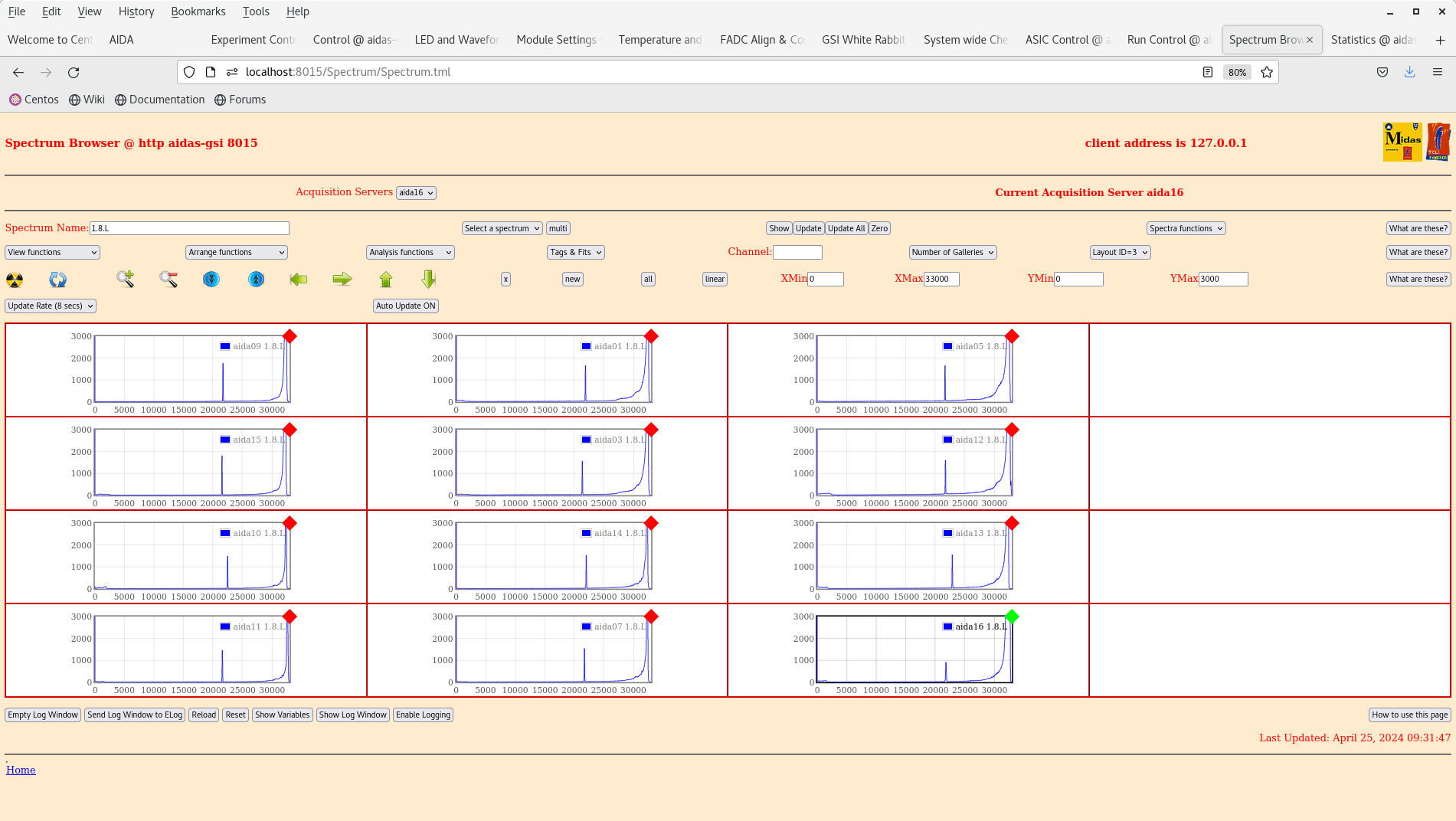

per p+n FEE64 1.8.L spectra - attachments 12-13
aida09 pulser peak width 57 ch FWHM
common x/y scale => peak height proxy for width => all p+n FEE64s similar pulser peak widths

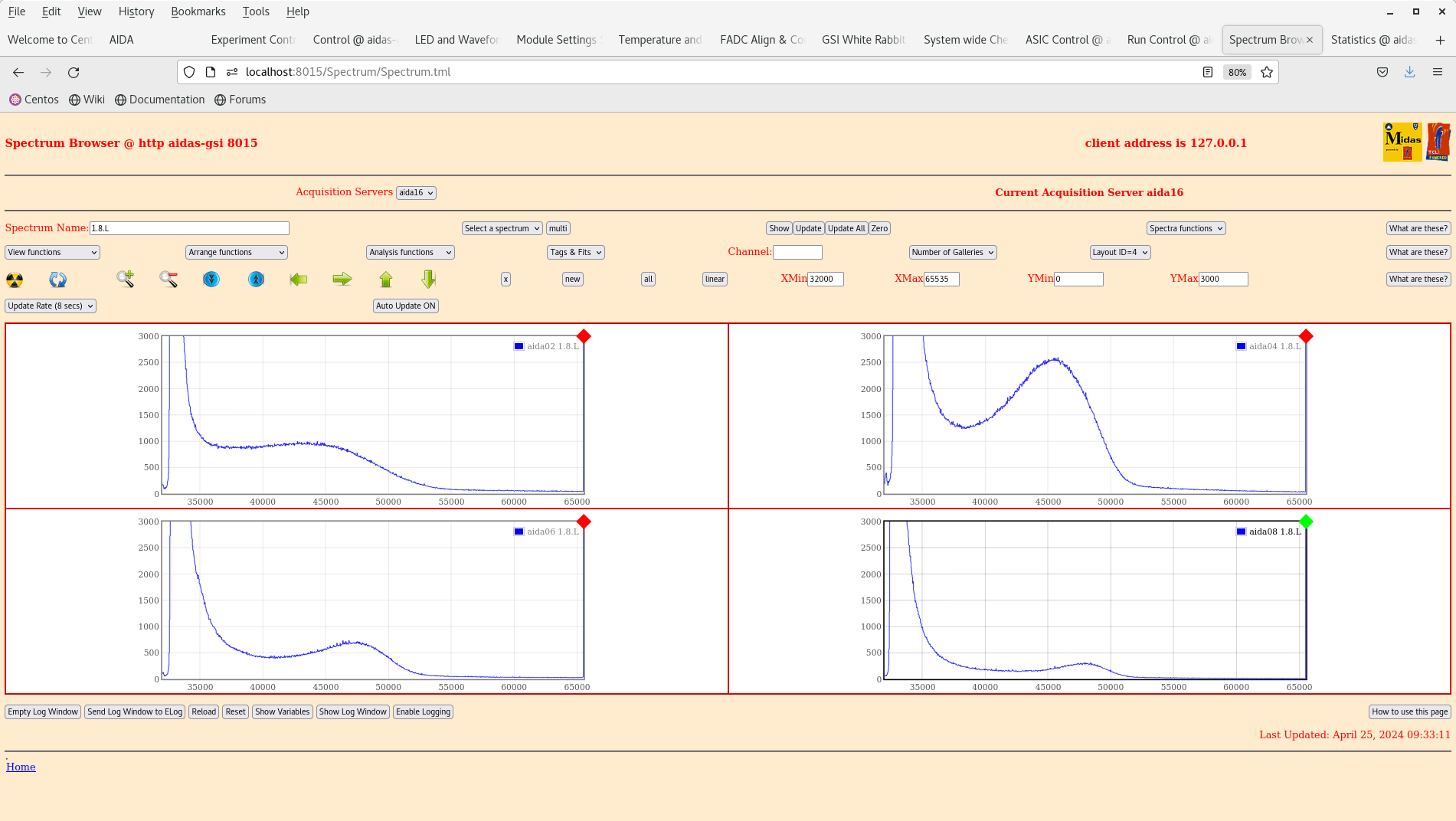

per n+n FEE64 1.8.L spectra - attachment 14

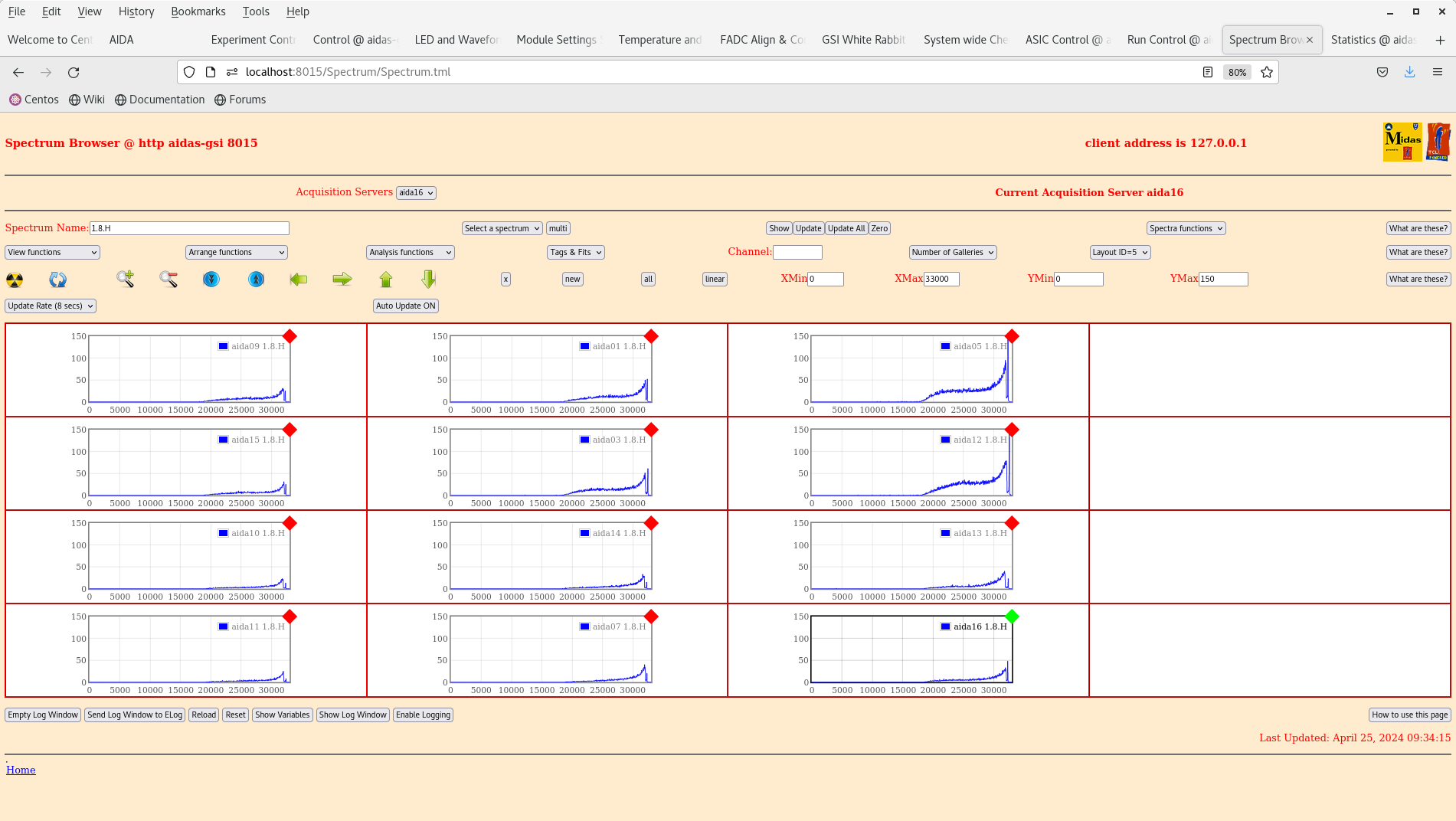

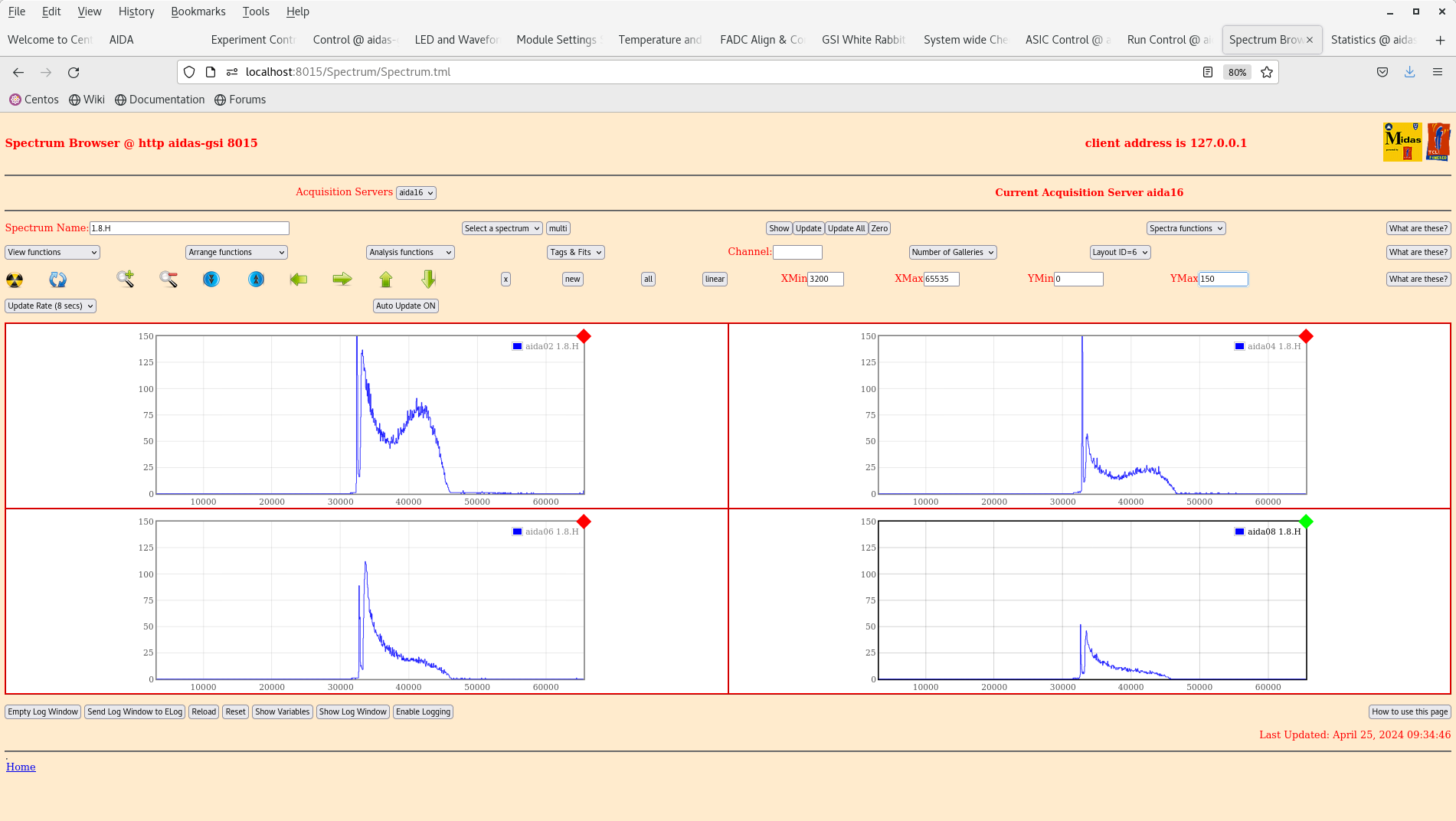

per FEE64 1.8.H spectra - attachments 15-16

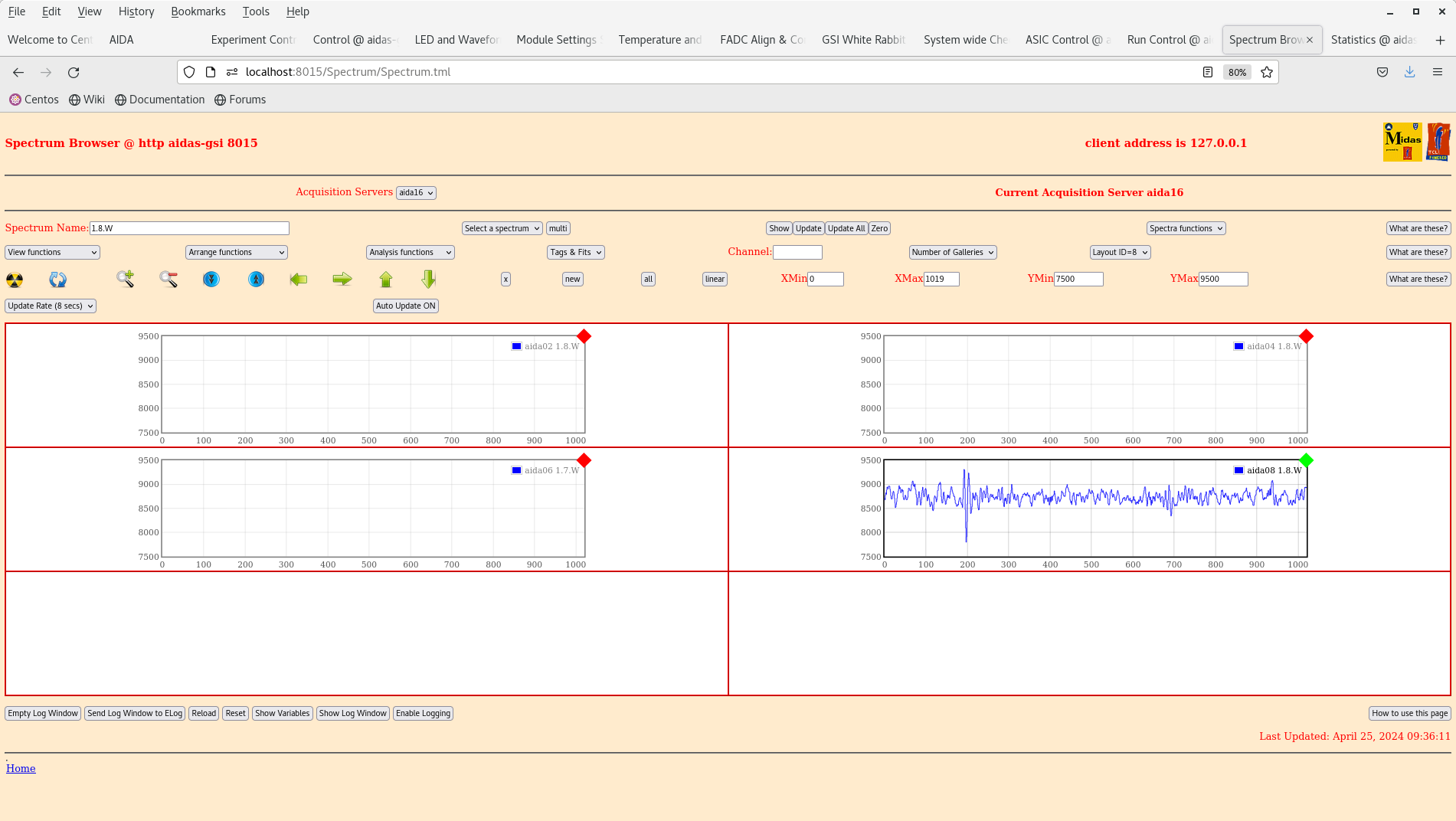

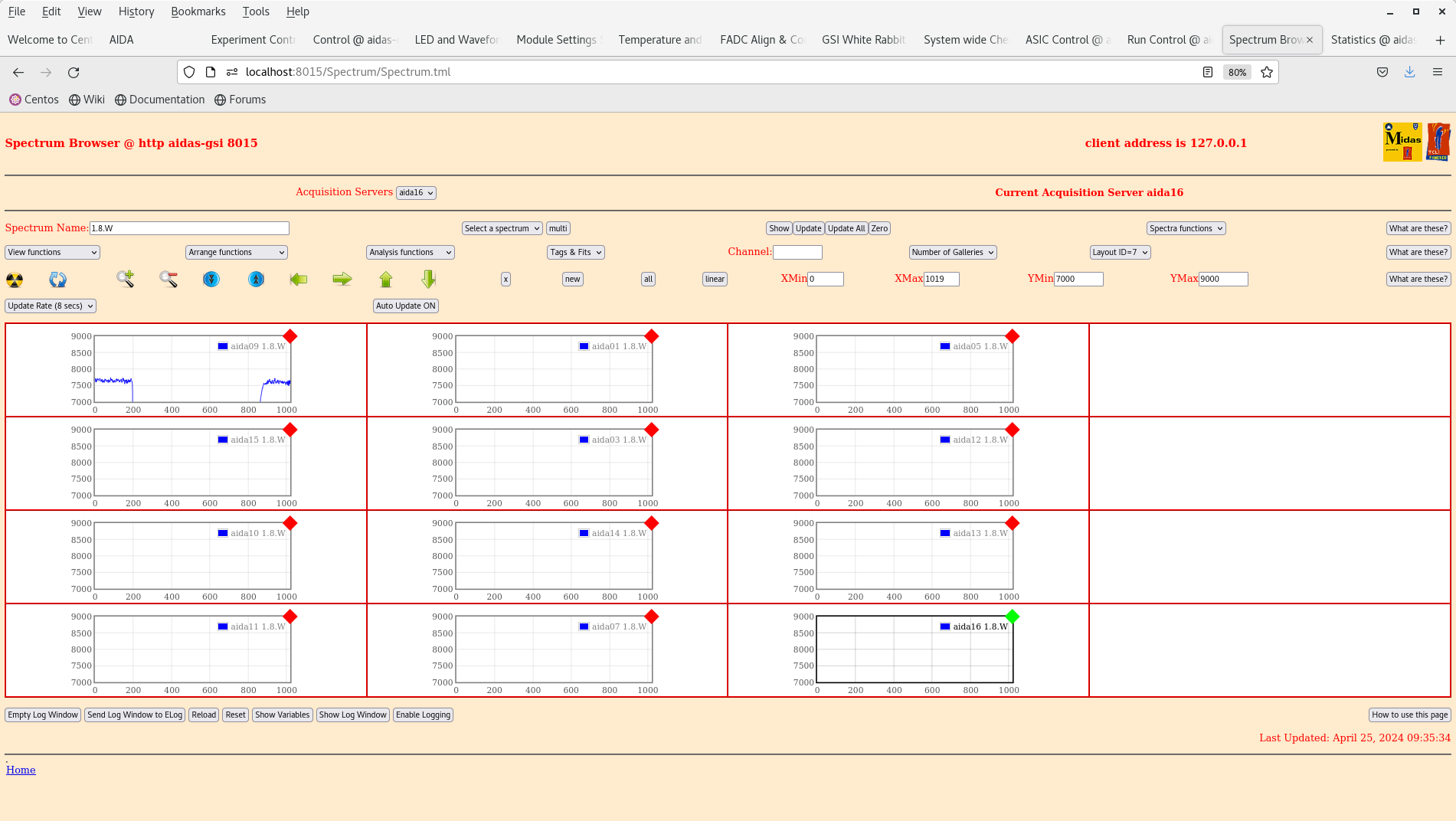

per FEE64 1.8.W spectra - 20us FSR - attachments 17-18
only aida08 & aida09 currently updating - ASIC check load and/or DAQ STOP/GO required?

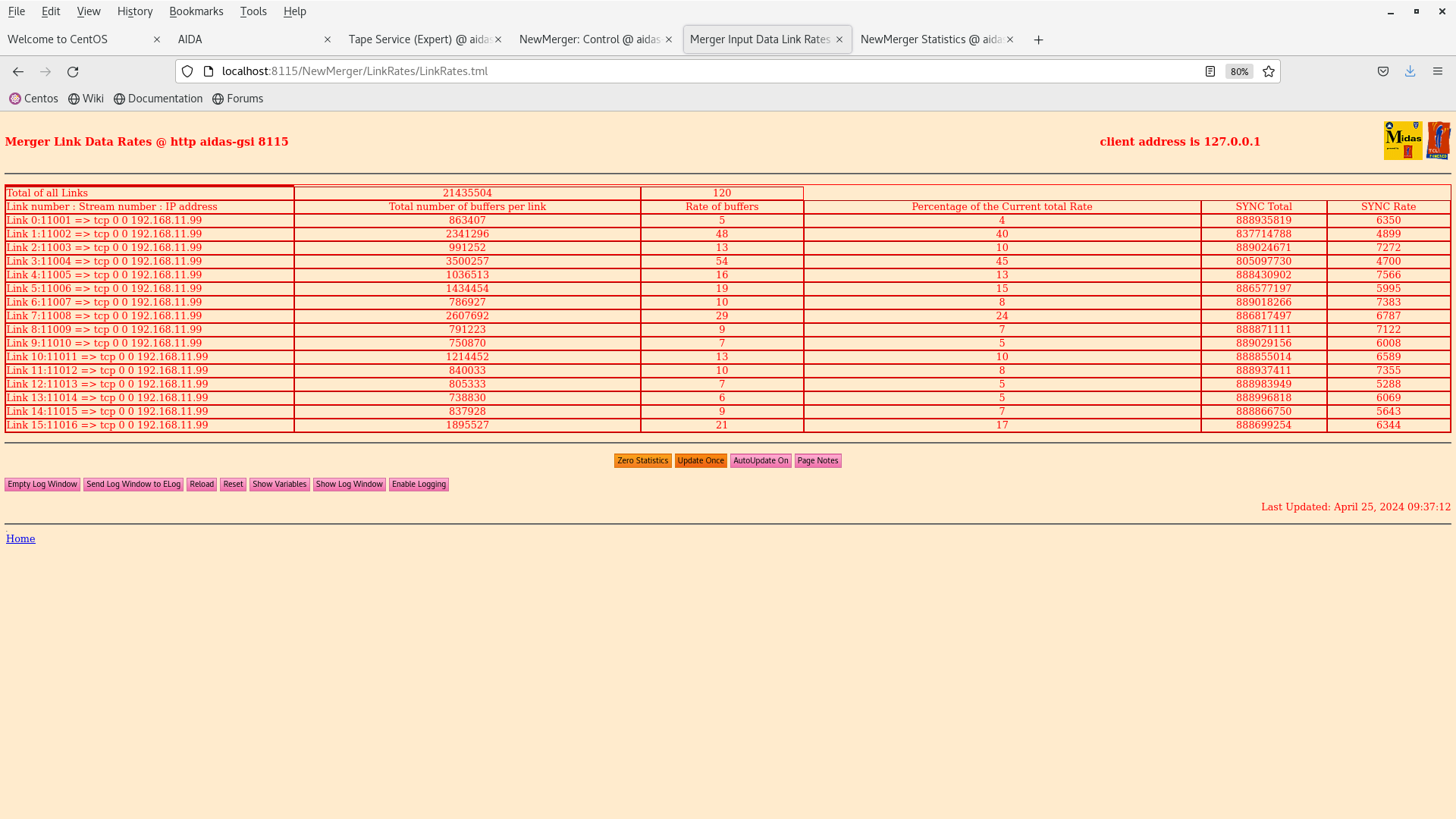

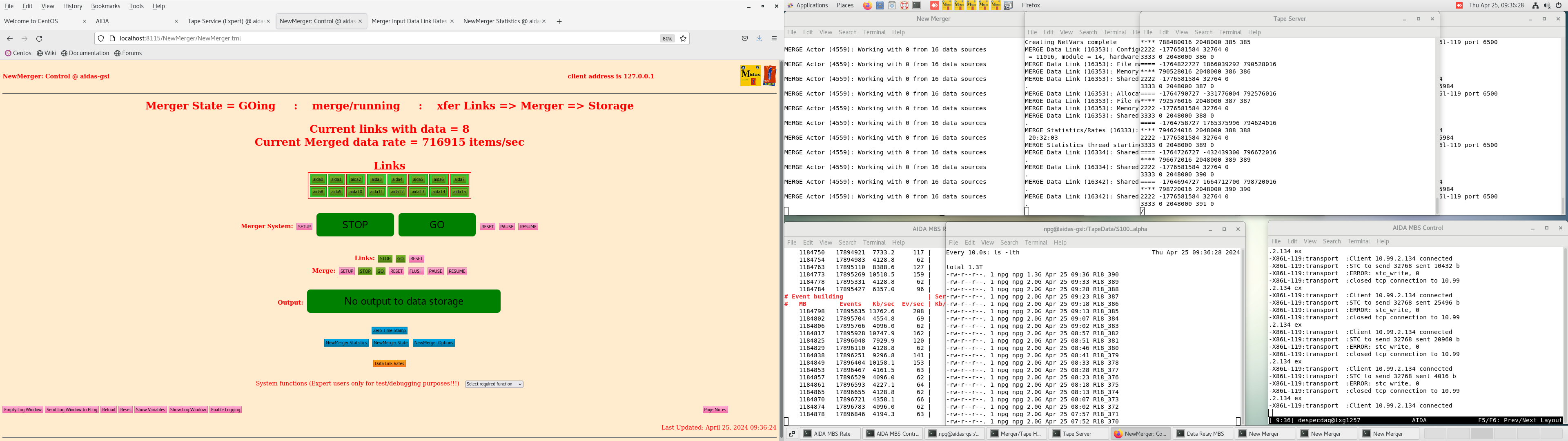

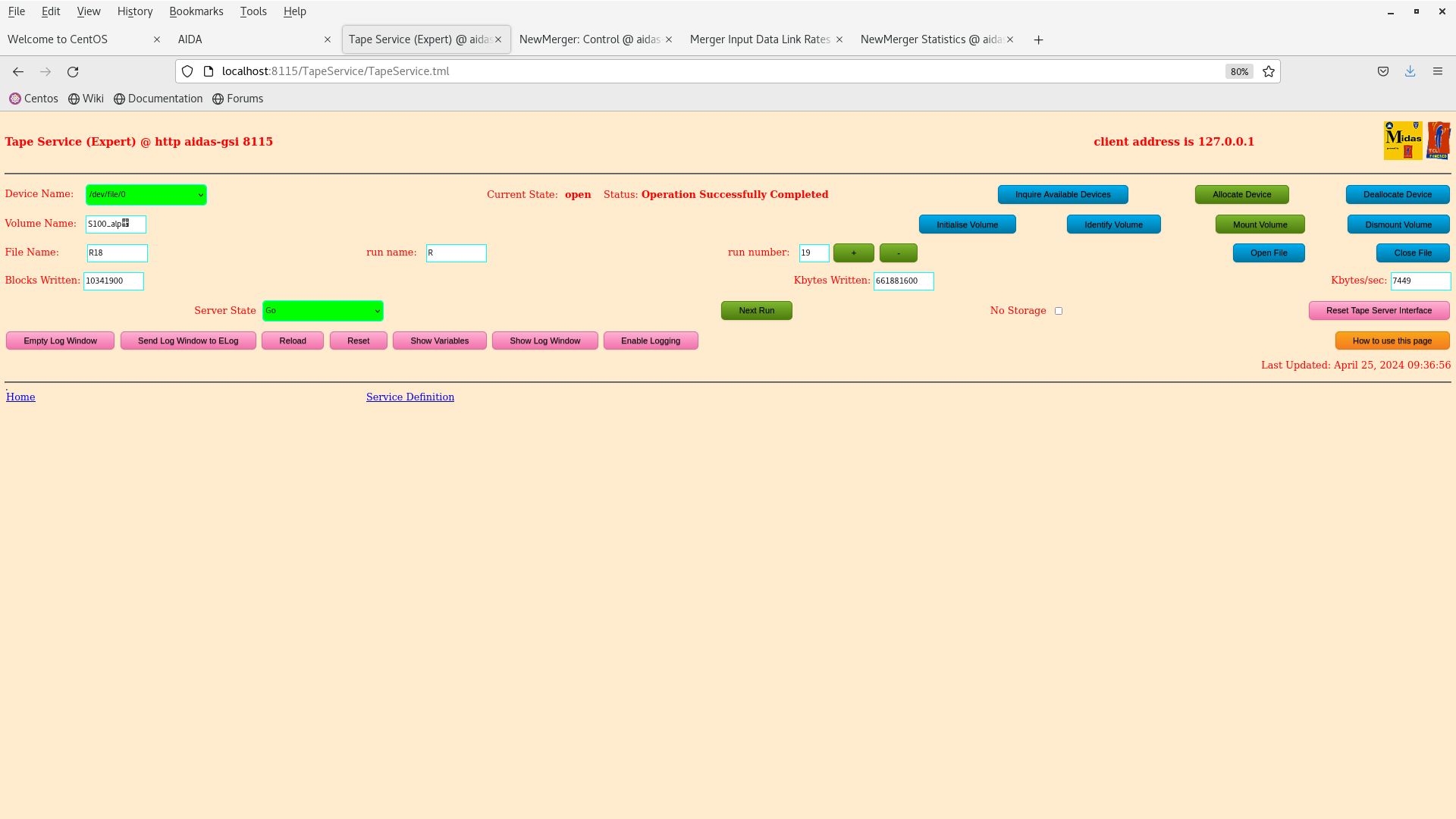

Merger, TapeServer etc - attachments 19-21

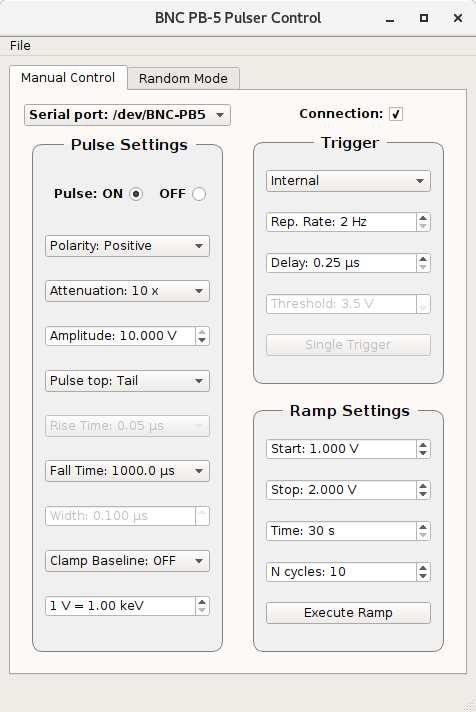

BNC PB-5 settings - attachment 22
10.07 data file S100_alpha/R20
new run for new FRS setting
10.08 all histograms, stats, merger stats and data link stats zero'd
10.10 ADC data item stats (beam OFF) - attachment 23
11/16 < 20k, max 129k (aida08)
10.31 analysis of data file R18_349 (closed 06.00 this morning)
max deadtime 12% (aida04)
no timewarps
HEC data item rate 1.7kHz
11.00 tuning 168dy FRS setting

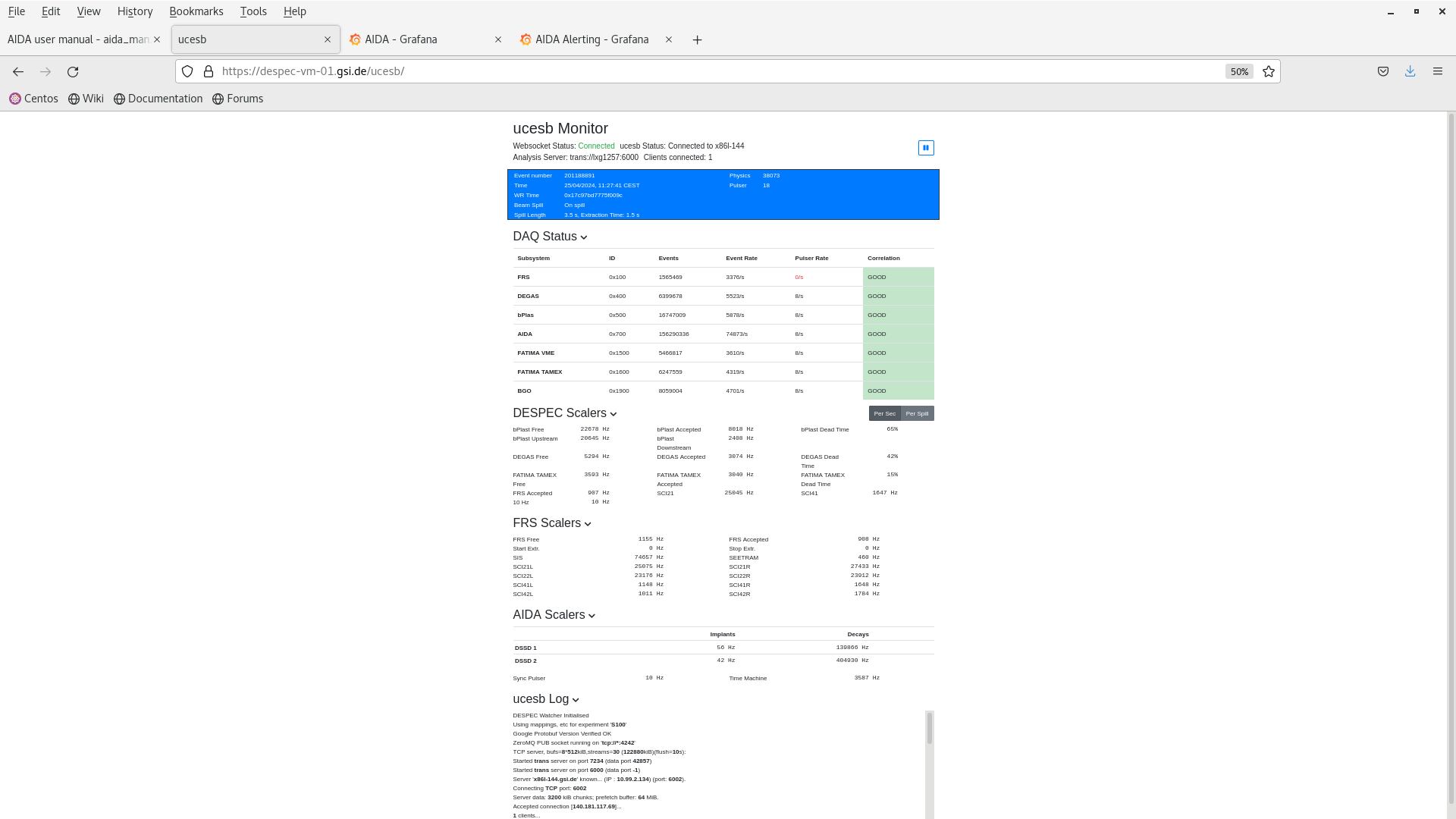

ucesb - attachment 24
spill length 3.5s, extraction time 1.5s
11.30 degraders now set to implant in AIDA DSSSDs
high rates expected

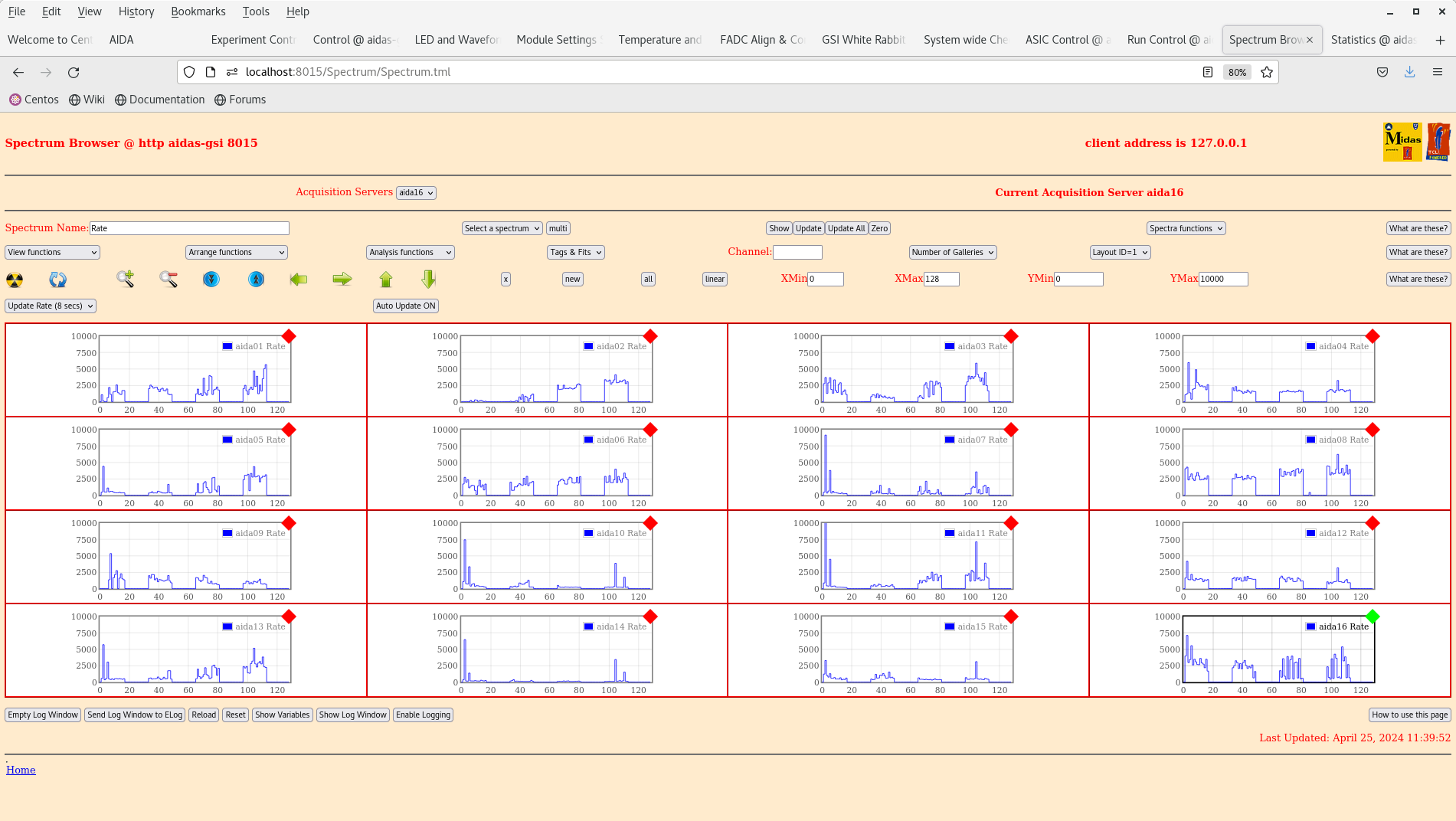

per FEE64 Rate spectra - attachment 25

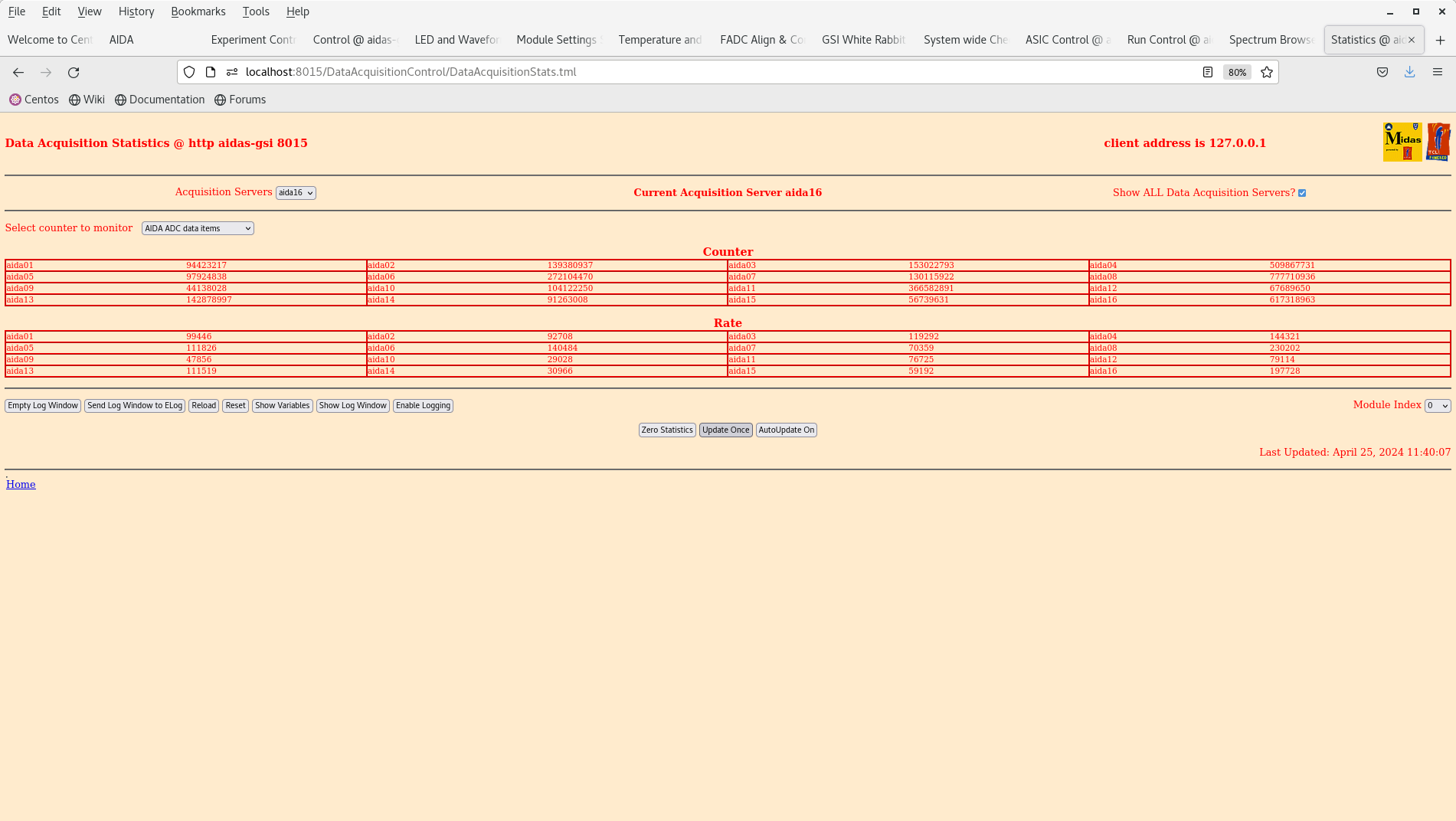

ADC data item stats - attachment 26
Merger etc - attachment 27
in spill rates to MBS up 30+Mb/s, 2.5M data item/s merged

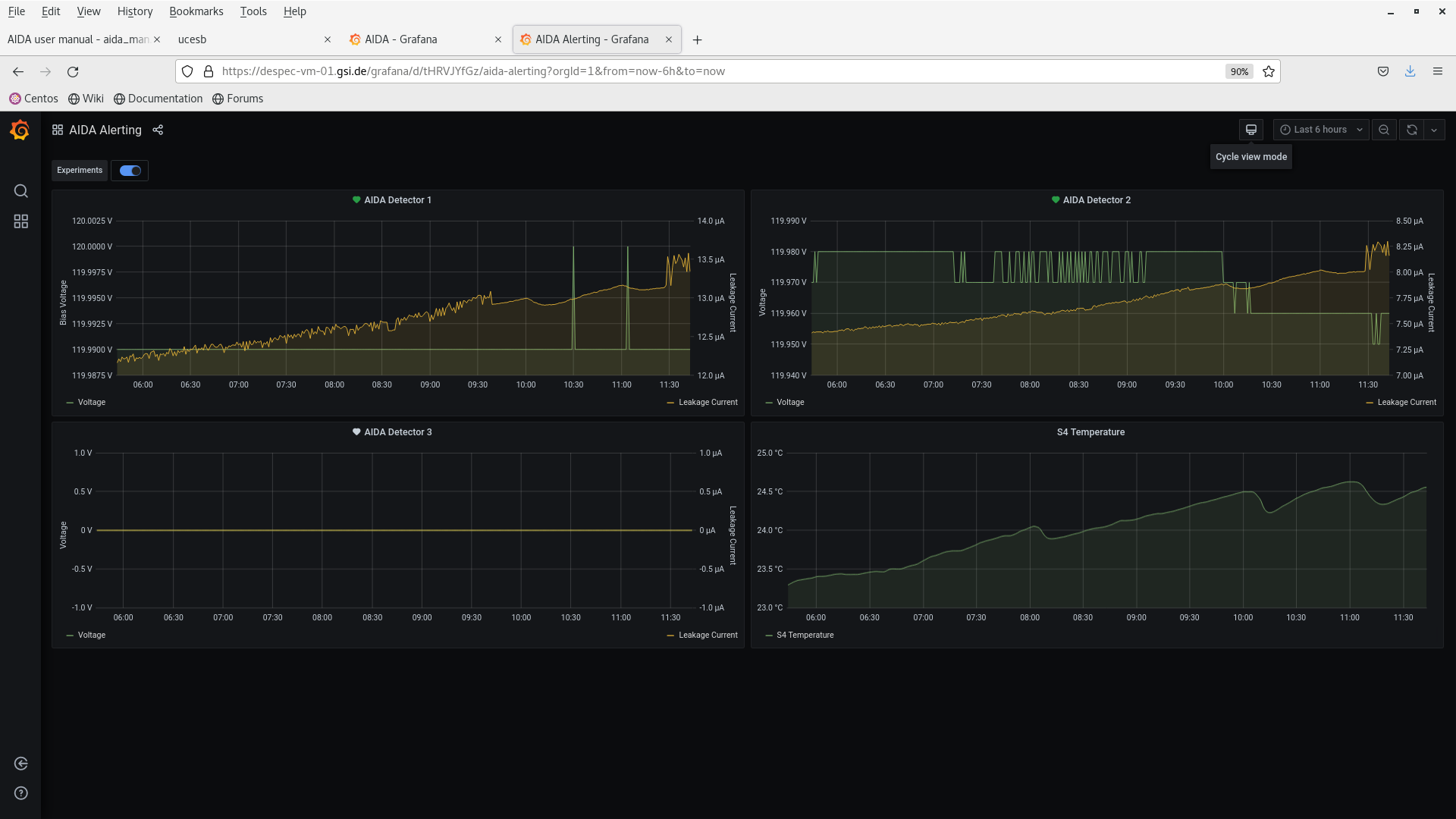

DSSSD bias & leakage current - attachment 28
c. few hundred nA step in leakage current
analysis of data file R20_33 - attachment 29
max deadtime 18% (aida08)
no timewarps
HEC data item rate 4.1kHz (c. 2.4x previous FRS setting)
Correcting for spill cycle => 5.9kHz in spill (online analysis shows no HEC events observed outside spill)
assume typical HEC event multiplicity = 3 => implant rate ~ 2.0kHz in spill or 6800 implants per spill
SC42 L/R currently report c. 4.5kHz
Note that we currently see a higher fraction of events in DSSSD#2 cf. previous setting so multiplicity assumption may be low
If we assume multipicity = 6 => implant rate ~ 1.0kHz in spill or 3200 implants per spill
we are probably somewhere in between

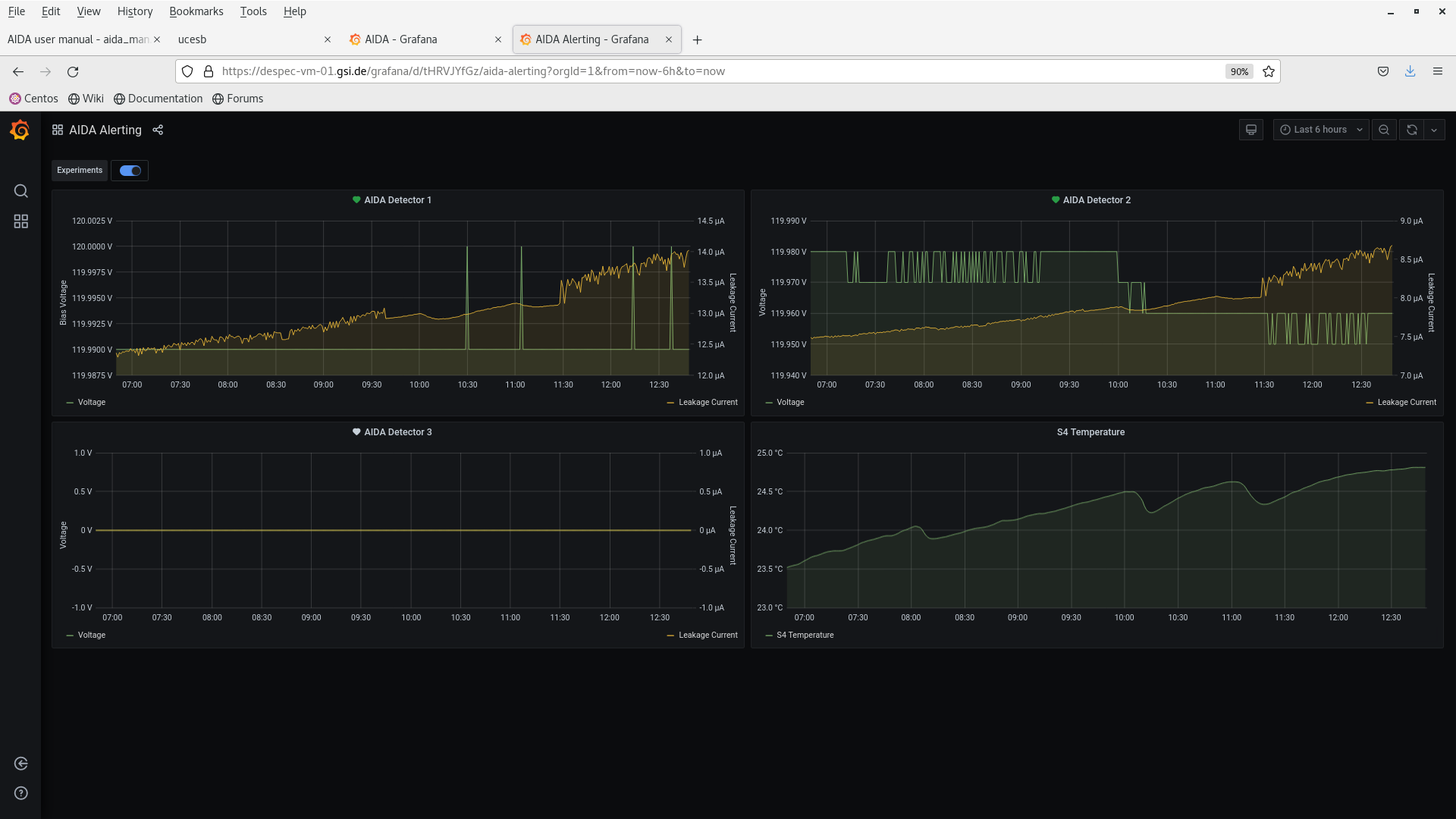

12.50 DSSSD bias & leakage current - Grafana - attachment 30
leakage current ramping, spill micro structure observable
FEE64 temperatures OK - attachment 31
ADC data item stats - attachment 32

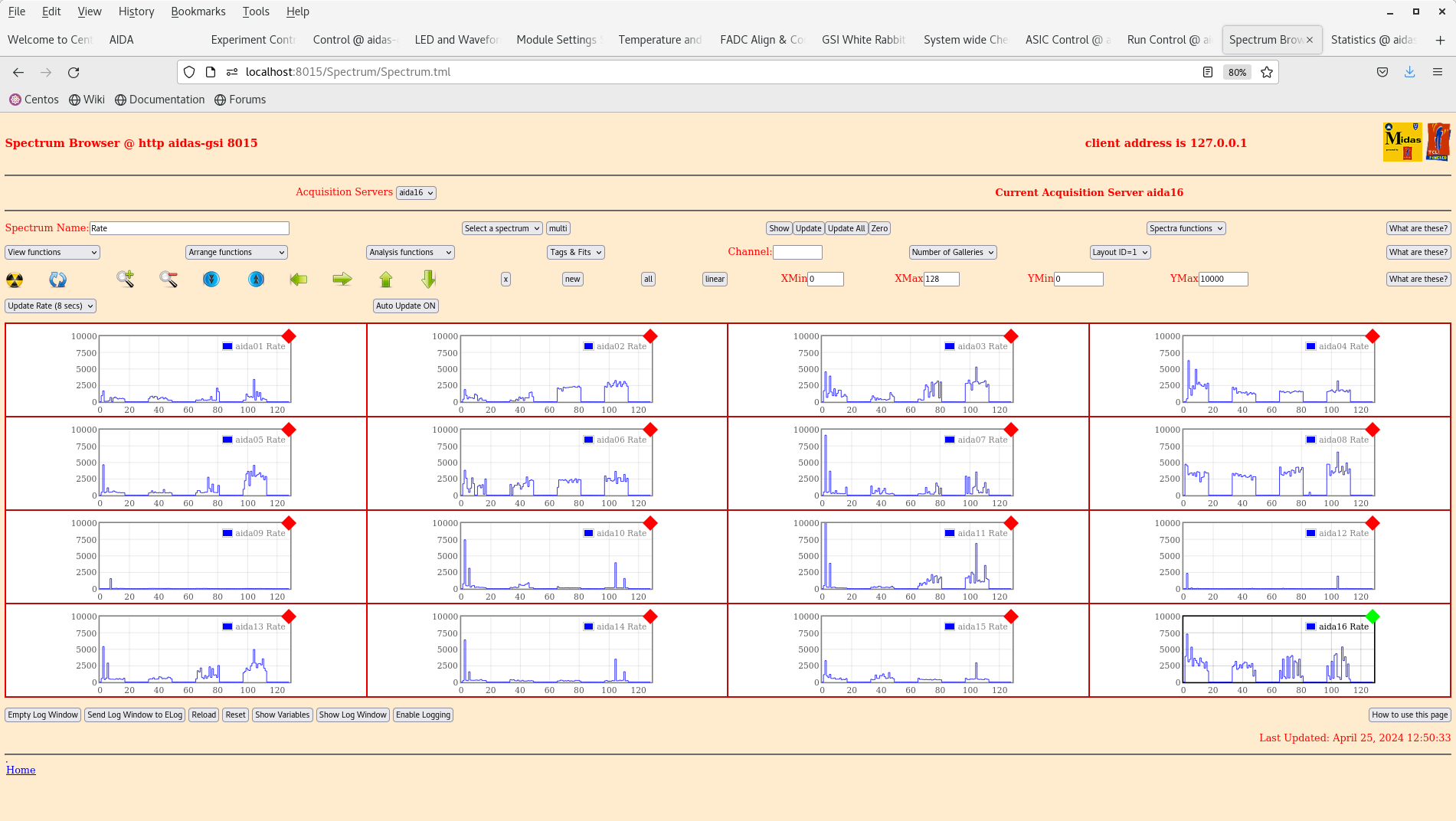

per FEE64 Rate spectra - attachment 33

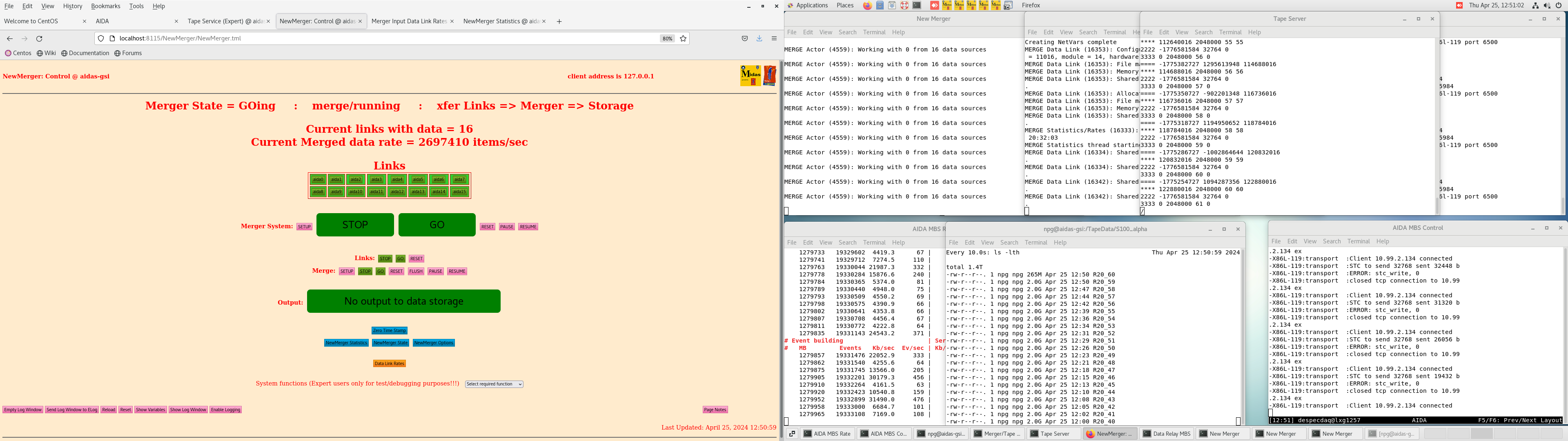

Merger etc - attachment 34
14.56 analysis of data file R20_106 - attachment 35
max deadtime c. 18% (aida04 & aida08), c. 12% (aida03), c. 11% (aida06), c. 9% (aida02 & aida13), c. 6% (aida05), all others <2%
no timewarps
HEC data item rate 4.2kHz

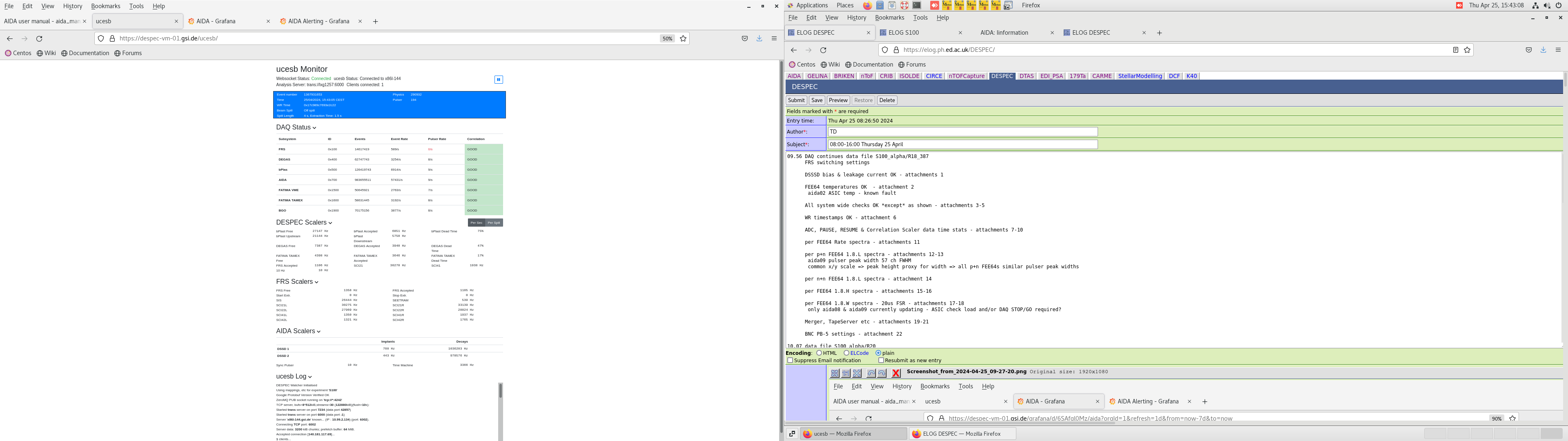

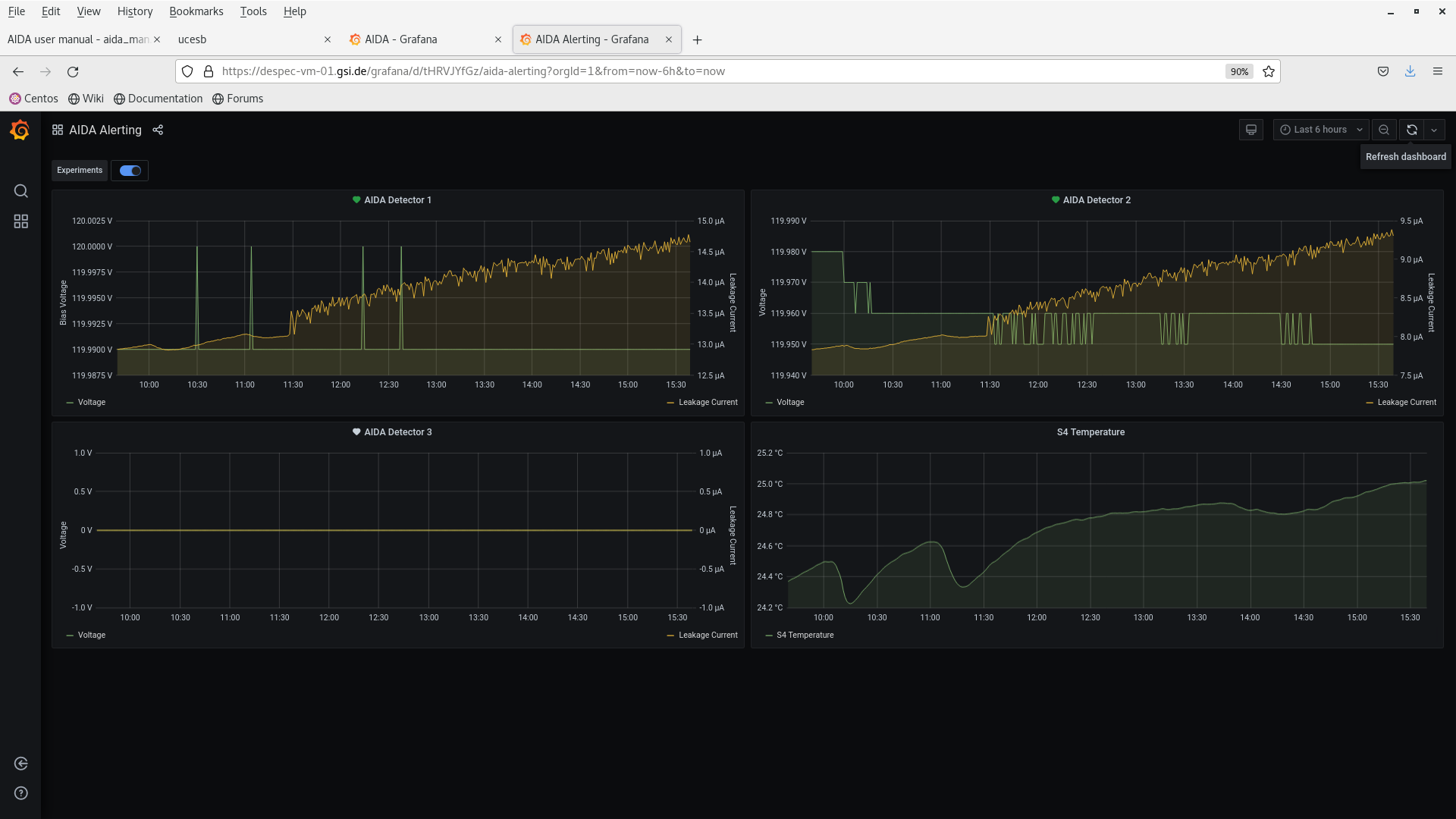

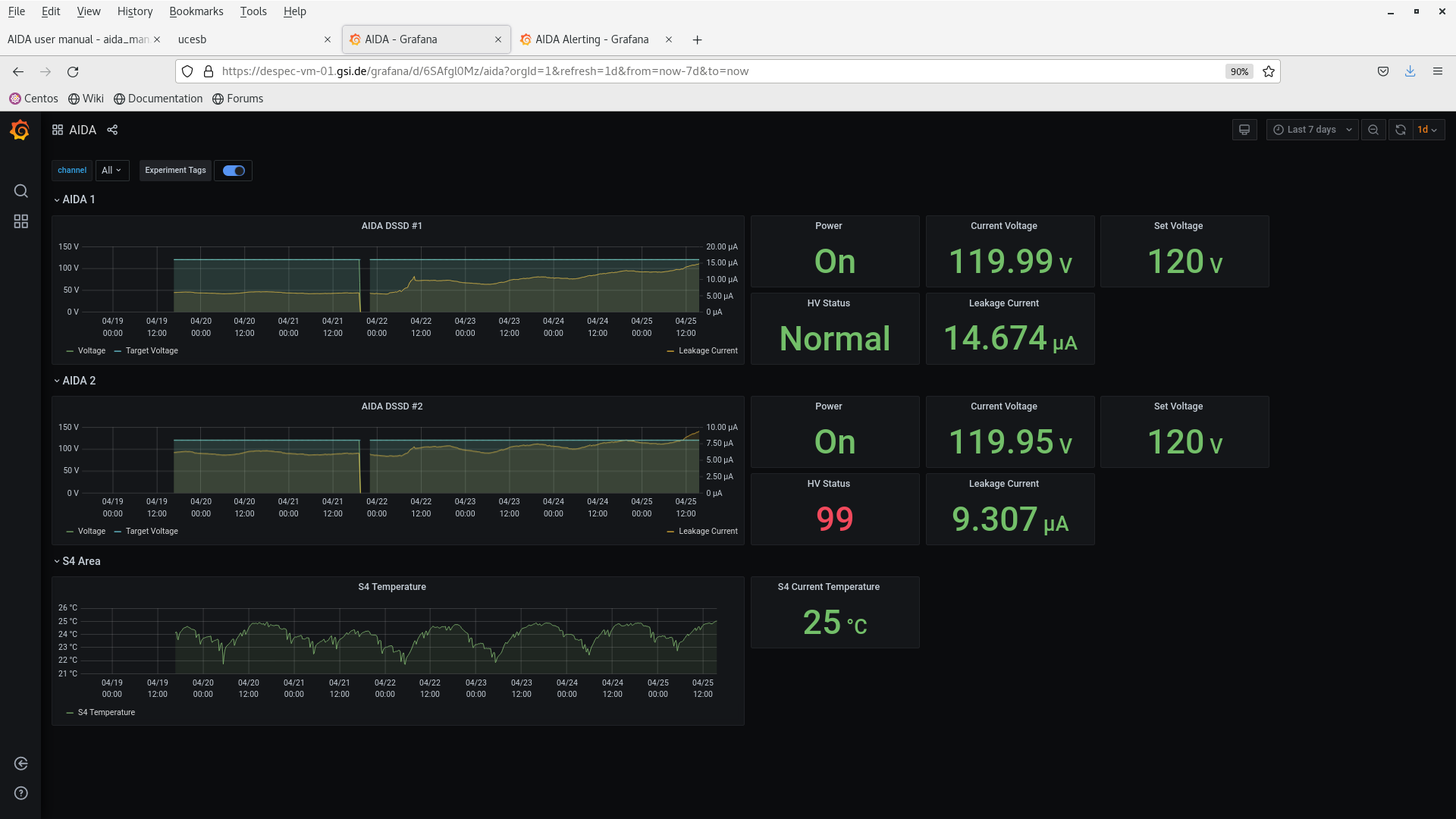

15.40 DSSSD bias & leakage current - Grafana - attachments 36-37
leakage current ramping, spill micro structure observable

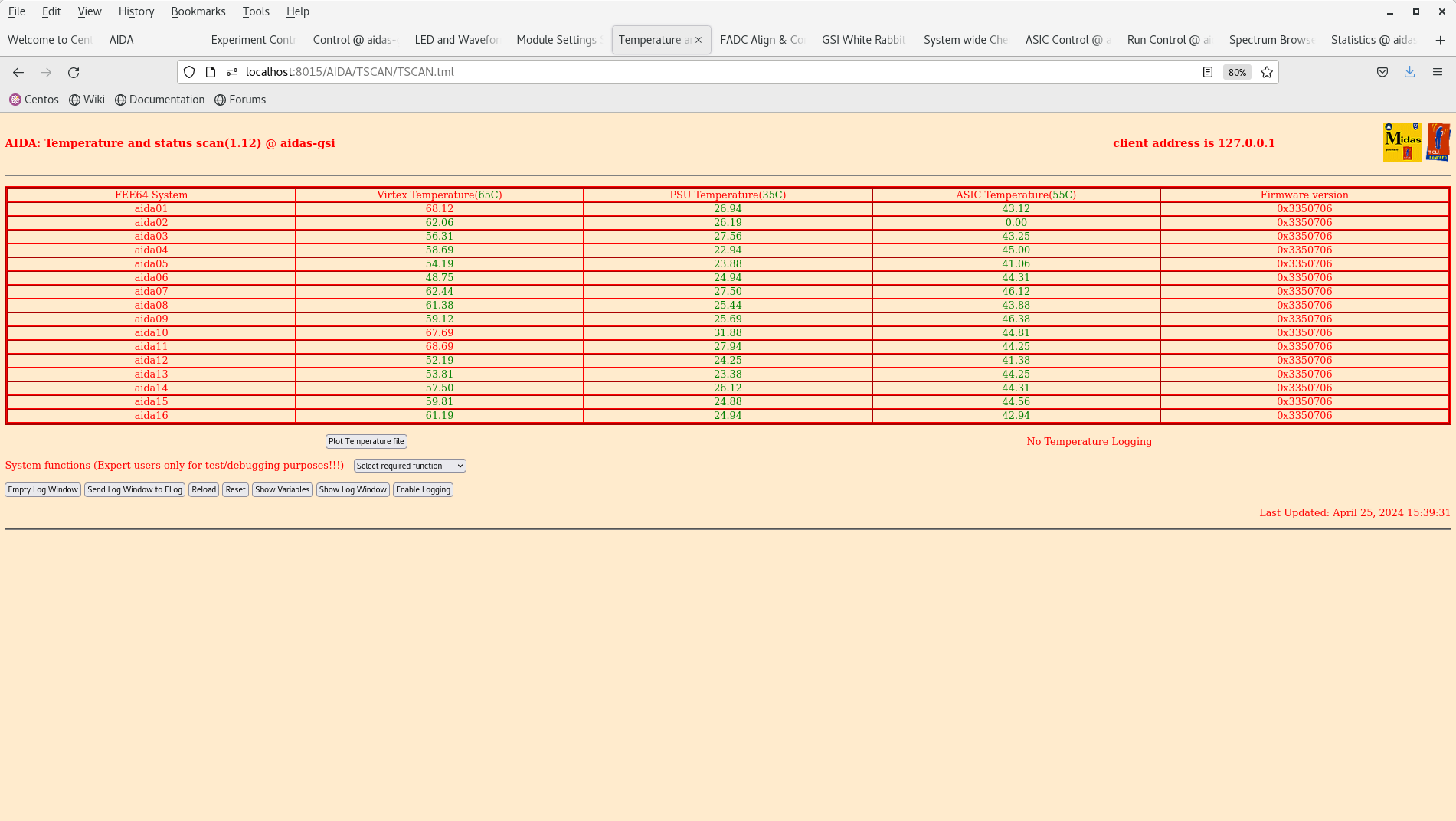

FEE64 temperatures OK - attachment 38
ADC data item stats - attachment 39

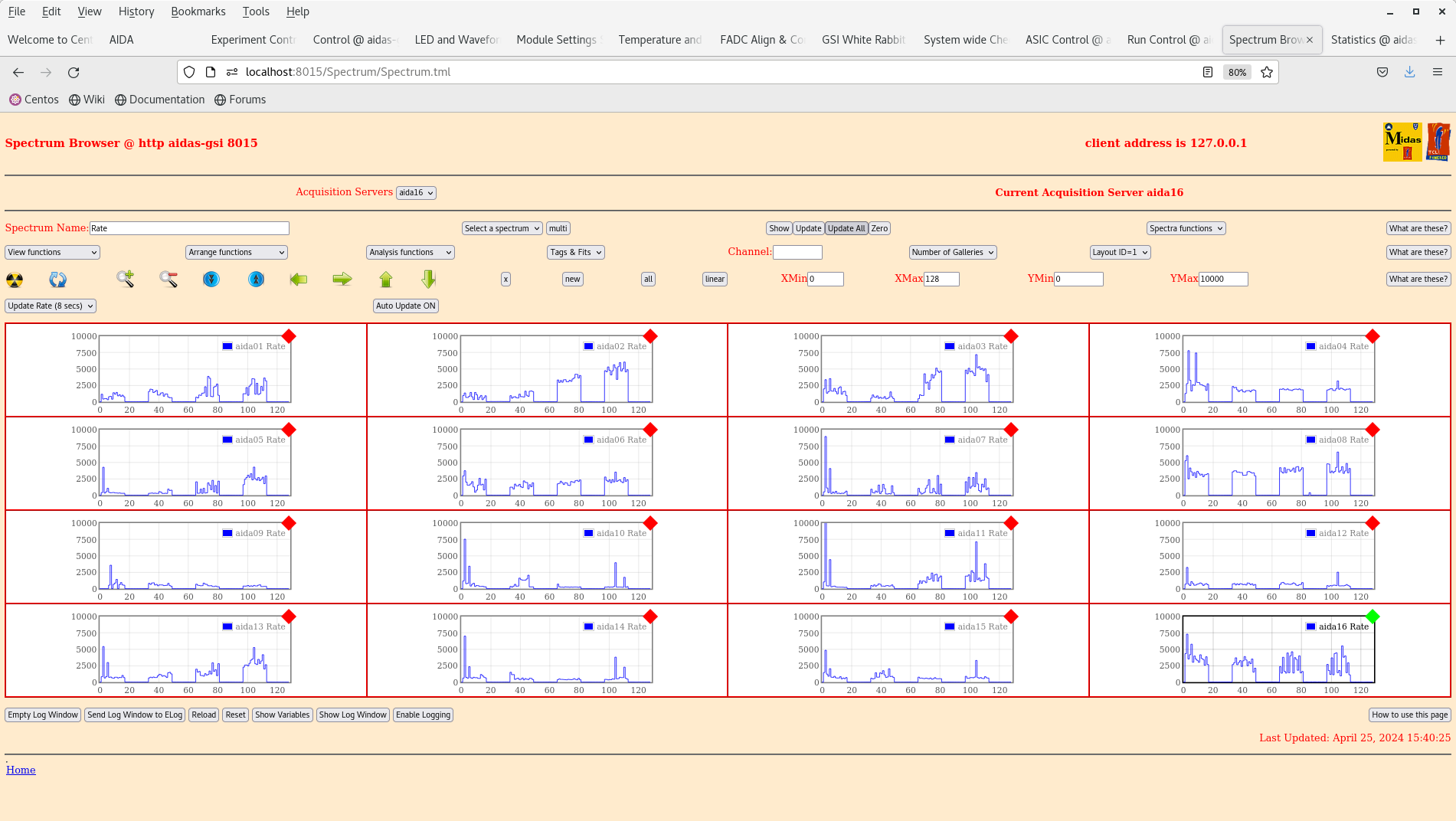

per FEE64 Rate spectra - attachment 40

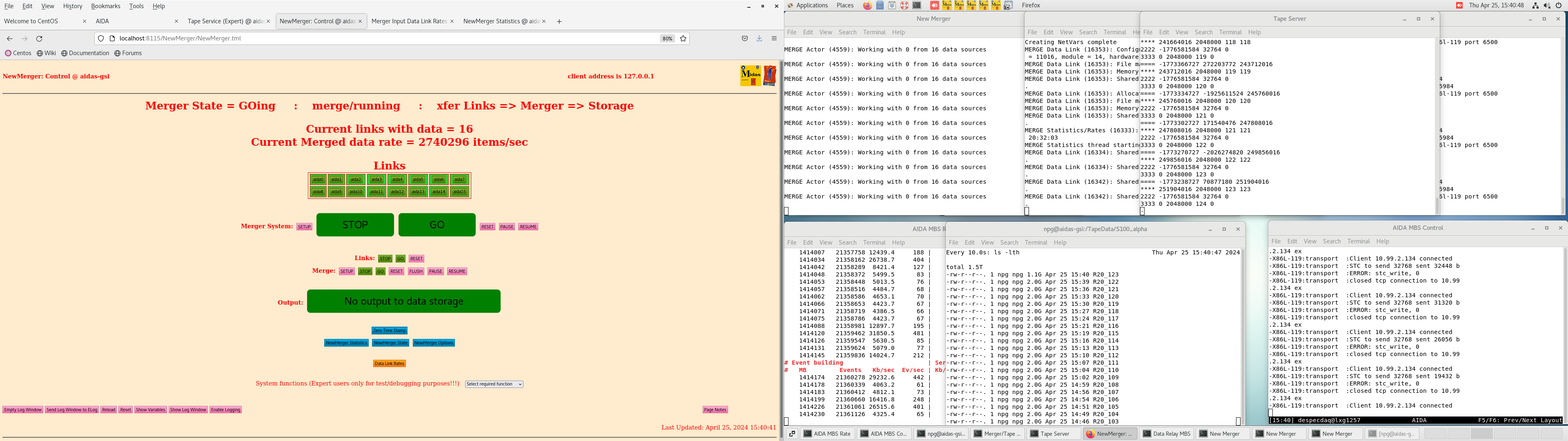

Merger etc - attachment 41
ucesb - attachment 42
15.57 all histograms zero'd
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 254055879 ( 798496.4 Hz)
Other data format: 7864121 ( 24716.9 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 850 ( 2.7 Hz)
RESUME: 851 ( 2.7 Hz)
SYNC100: 33185 ( 104.3 Hz)
WR48-63: 33185 ( 104.3 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 7796050 ( 24502.9 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 547807 ( 1721.8 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 318.168 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.011 0.000
1 15.547 0.000
2 0.026 0.000
3 39.441 0.000
4 0.410 0.000
5 0.954 0.000
6 0.000 0.000
7 0.601 0.000
8 0.003 0.000
9 0.000 0.000
10 0.050 0.000
11 0.014 0.000
12 0.000 0.000
13 0.000 0.000
14 0.017 0.000
15 0.116 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 6649451 11230 0 0 3 3 839 839 0 9546 0 49433
1 33550123 378474 0 0 245 245 4373 4373 0 369238 0 100748
2 7942952 3356106 0 0 5 5 1429 1429 0 3353238 0 35304
3 50066846 2782463 0 0 379 380 6547 6547 0 2768610 0 28219
4 11634489 554162 0 0 19 19 1542 1542 0 551040 0 47658
5 18478696 749338 0 0 77 77 2403 2403 0 744378 0 37331
6 6034652 1500 0 0 0 0 750 750 0 0 0 11345
7 41275133 10854 0 0 71 71 5356 5356 0 0 0 92779
8 3808950 934 0 0 2 2 465 465 0 0 0 19548
9 5816078 1448 0 0 0 0 724 724 0 0 0 8443
10 16595017 4342 0 0 16 16 2155 2155 0 0 0 3675
11 5732285 1360 0 0 2 2 678 678 0 0 0 65221
12 7170732 1770 0 0 0 0 885 885 0 0 0 12515
13 5117877 1350 0 0 0 0 675 675 0 0 0 13502
14 5096608 1234 0 0 2 2 615 615 0 0 0 7339
15 29085990 7556 0 0 29 29 3749 3749 0 0 0 14747
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 31.840s ( 1005.030 blocks/s, 62.814 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 257467881 ( 1603138.0 Hz)
Other data format: 4452119 ( 27721.4 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1792 ( 11.2 Hz)
RESUME: 1788 ( 11.1 Hz)
SYNC100: 32598 ( 203.0 Hz)
WR48-63: 32598 ( 203.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 4383343 ( 27293.1 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 659812 ( 4108.4 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 160.602 s
FEE elapsed dead time(s) elapsed idle time(s)
0 4.032 0.000
1 14.271 0.000
2 17.643 0.000
3 26.583 0.000
4 10.476 0.000
5 15.929 0.000
6 1.815 0.000
7 29.387 0.000
8 0.158 0.000
9 0.036 0.000
10 0.592 0.000
11 0.531 0.000
12 14.310 0.000
13 0.165 0.000
14 0.189 0.000
15 0.995 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 14126134 8441 0 0 70 70 1791 1791 0 4719 0 78615
1 16495785 288035 0 0 163 162 2094 2094 0 283522 0 105734
2 19988207 1651337 0 0 161 161 2732 2732 0 1645551 0 49977
3 24594867 1476087 0 0 215 214 3183 3183 0 1469292 0 26591
4 15580694 468076 0 0 119 119 1941 1941 0 463956 0 27262
5 22750595 522722 0 0 300 299 2910 2910 0 516303 0 62407
6 11629769 3045 0 0 37 36 1486 1486 0 0 0 11991
7 37179788 9710 0 0 273 273 4582 4582 0 0 0 86342
8 7628214 1994 0 0 9 9 988 988 0 0 0 1179
9 5725517 1418 0 0 5 5 704 704 0 0 0 1622
10 13190745 3550 0 0 69 69 1706 1706 0 0 0 70
11 9285908 2326 0 0 29 29 1134 1134 0 0 0 74999
12 16713447 4700 0 0 252 252 2098 2098 0 0 0 21646
13 6115493 1498 0 0 25 25 724 724 0 0 0 35370
14 8494444 2072 0 0 11 11 1025 1025 0 0 0 92
15 27968274 7108 0 0 54 54 3500 3500 0 0 0 75915
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 34.629s ( 924.083 blocks/s, 57.755 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 257522900 ( 1655989.1 Hz)
Other data format: 4397100 ( 28275.3 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1842 ( 11.8 Hz)
RESUME: 1844 ( 11.9 Hz)
SYNC100: 32579 ( 209.5 Hz)
WR48-63: 32579 ( 209.5 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 4328256 ( 27832.6 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 659185 ( 4238.9 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 155.510 s
FEE elapsed dead time(s) elapsed idle time(s)
0 3.085 0.000
1 13.568 0.000
2 18.124 0.000
3 27.697 0.000
4 9.792 0.000
5 16.474 0.000
6 2.671 0.000
7 28.543 0.000
8 0.065 0.000
9 0.015 0.000
10 0.643 0.000
11 0.597 0.000
12 14.389 0.000
13 0.083 0.000
14 0.439 0.000
15 1.481 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 13689199 8238 0 0 65 65 1771 1771 0 4566 0 77953
1 16947527 287988 0 0 165 166 2170 2170 0 283317 0 104868
2 20356284 1630731 0 0 174 175 2797 2797 0 1624788 0 51128
3 23896908 1435934 0 0 213 214 3077 3077 0 1429353 0 26122
4 15647459 464207 0 0 117 117 2008 2008 0 459957 0 27024
5 22696175 532714 0 0 306 305 2914 2914 0 526275 0 64287
6 12236208 3082 0 0 42 42 1499 1499 0 0 0 11994
7 36272075 9624 0 0 259 259 4553 4553 0 0 0 84854
8 7567267 1906 0 0 4 4 949 949 0 0 0 1286
9 5993294 1442 0 0 3 3 718 718 0 0 0 1730
10 13223300 3544 0 0 82 82 1690 1690 0 0 0 53
11 9630981 2436 0 0 36 36 1182 1182 0 0 0 75223
12 16792007 4646 0 0 270 270 2053 2053 0 0 0 21202
13 6155506 1514 0 0 19 19 738 738 0 0 0 35333
14 8544527 2006 0 0 19 19 984 984 0 0 0 68
15 27874183 7088 0 0 68 68 3476 3476 0 0 0 76060
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 30.426s ( 1051.740 blocks/s, 65.734 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
