| DESPEC |
 |
|
|
|
Message ID: 612
Entry time: Sat Apr 27 04:59:31 2024
|
| Author: |
TD |
| Subject: |
08:00-16:00 Saturday 27 April |
|
|
06.00 DAQ continues file S100_alpha/R20_740
FRS setting 162Eu

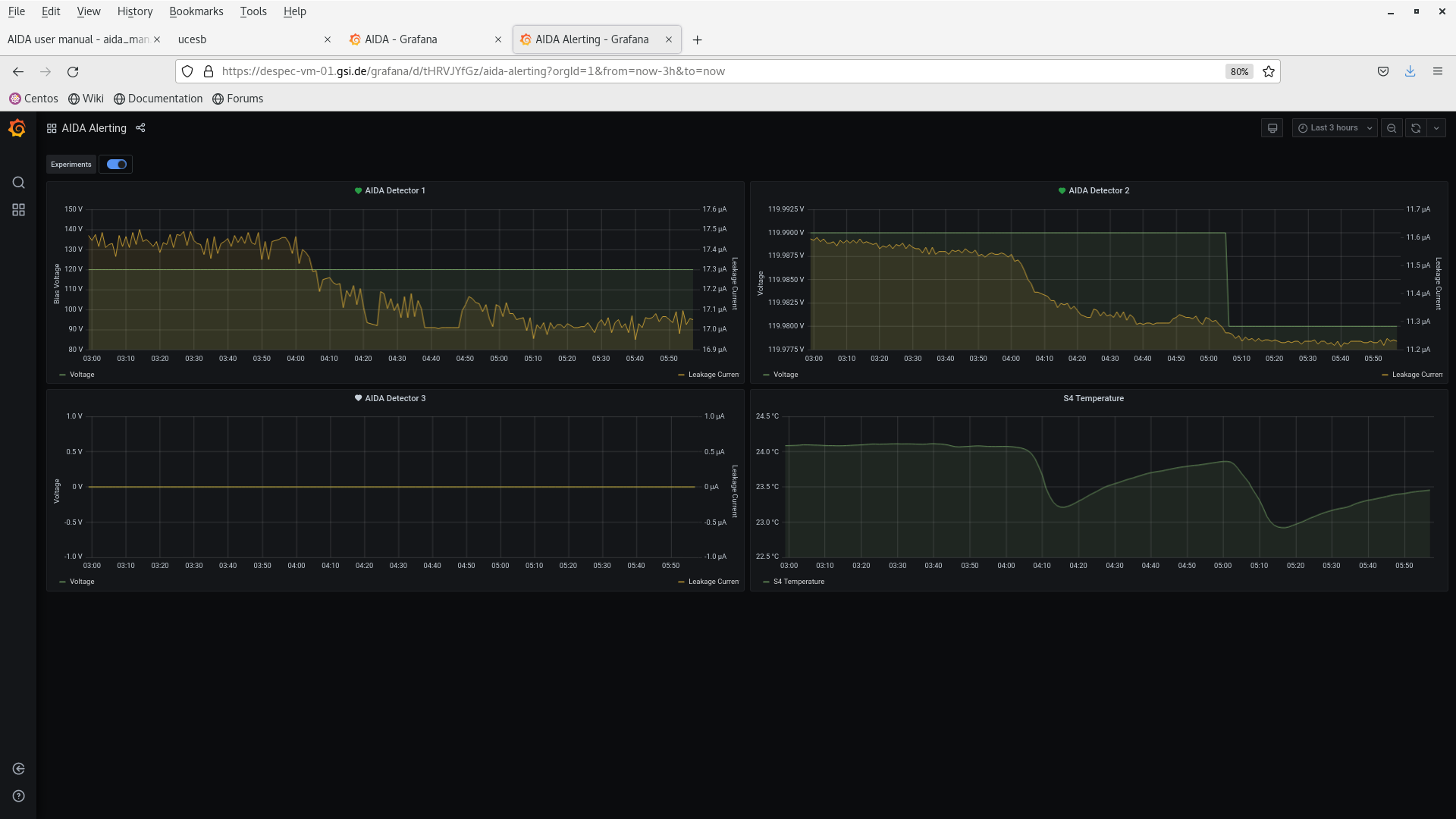

DSSSD bias & leakage current - Grafana - attachments 1-2
leakage currents tracking S4 ambient temperature
FEE64 temperatures OK - attachment 3
All system wide checks OK *except*
as reported - attachments 4-5
*all* ADCs not calibrated (not calibrated post-synchronise ASIC clocks at most recent restart)

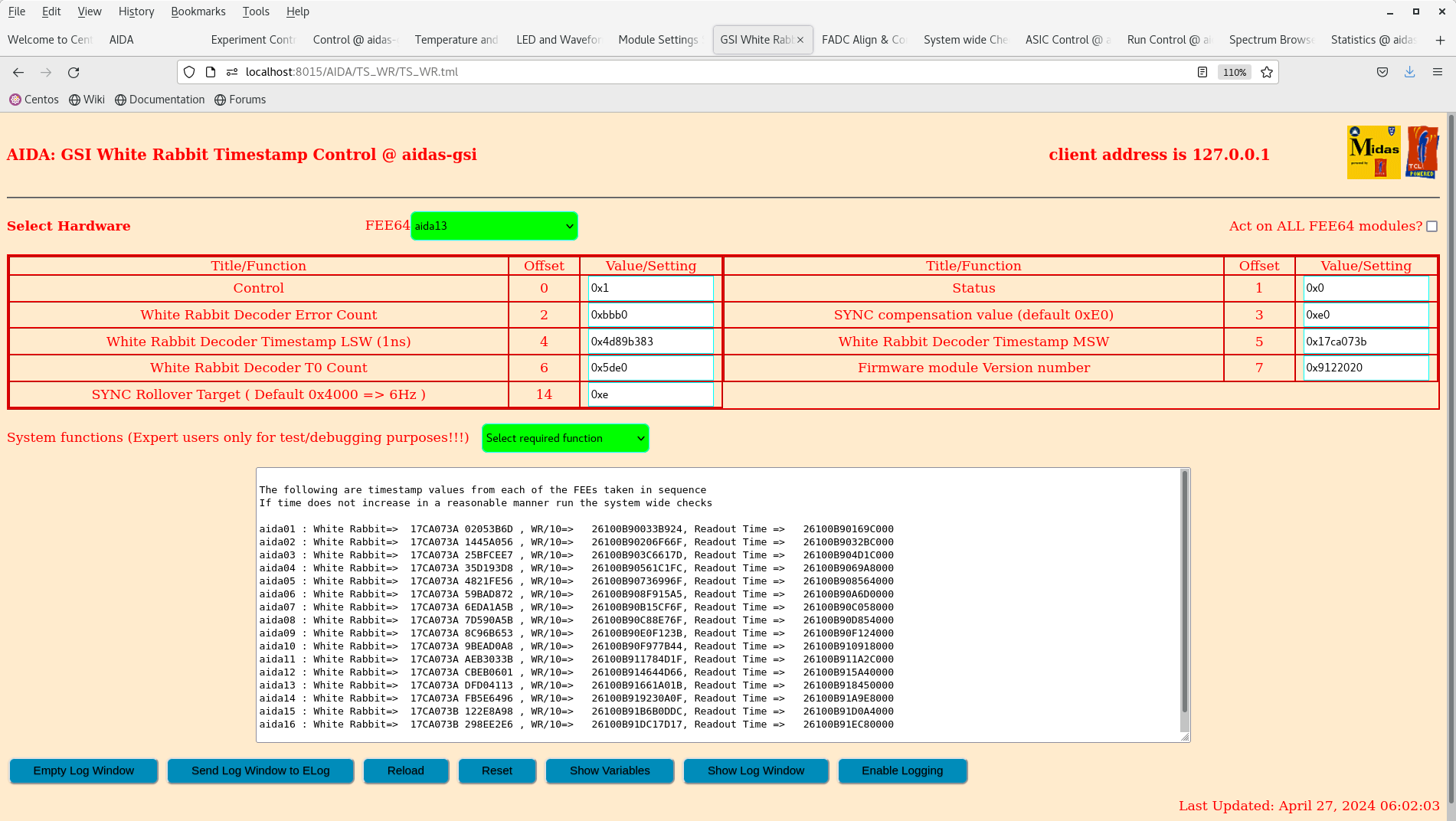

WR timestamps OK - attachment 6

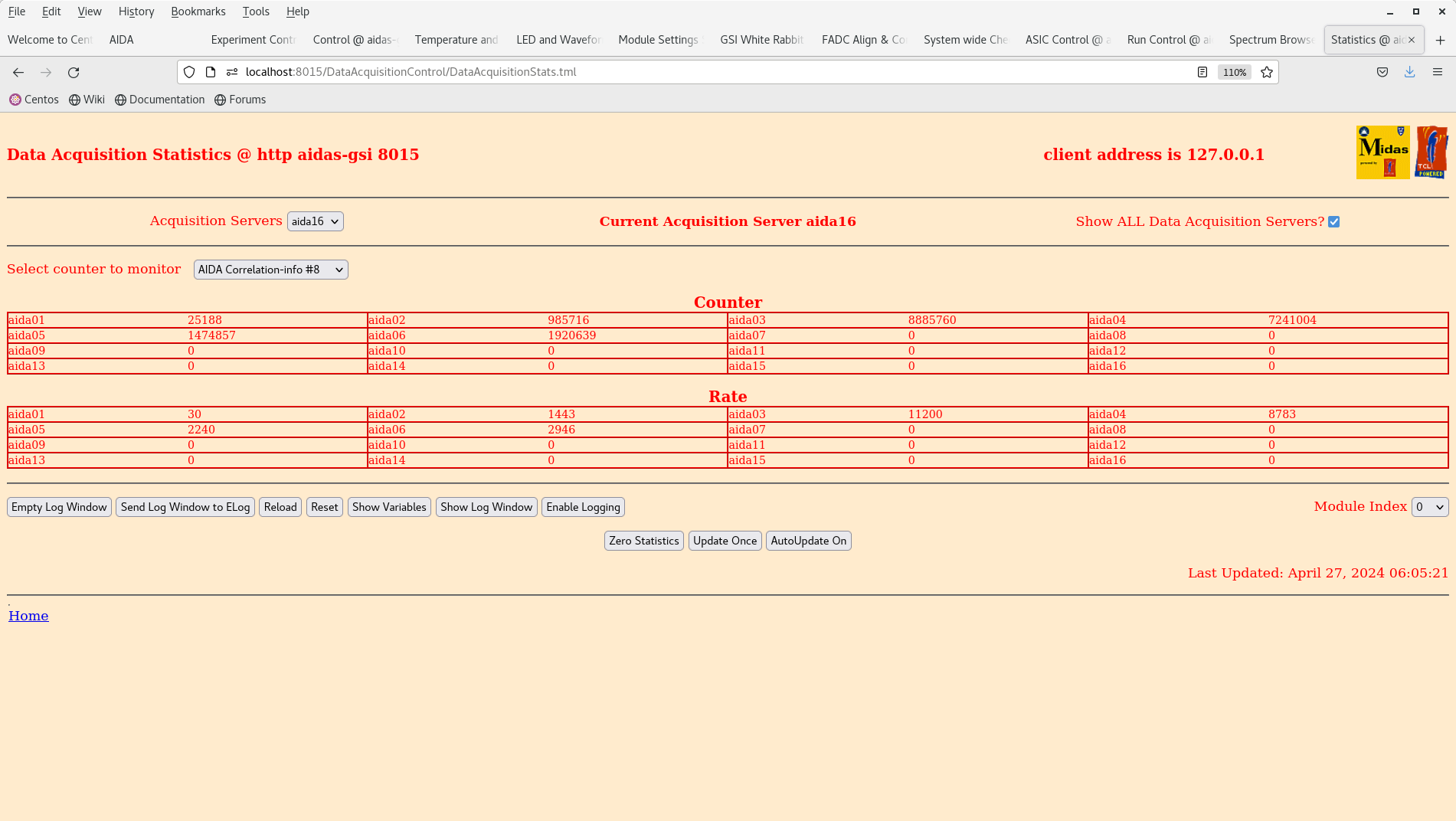

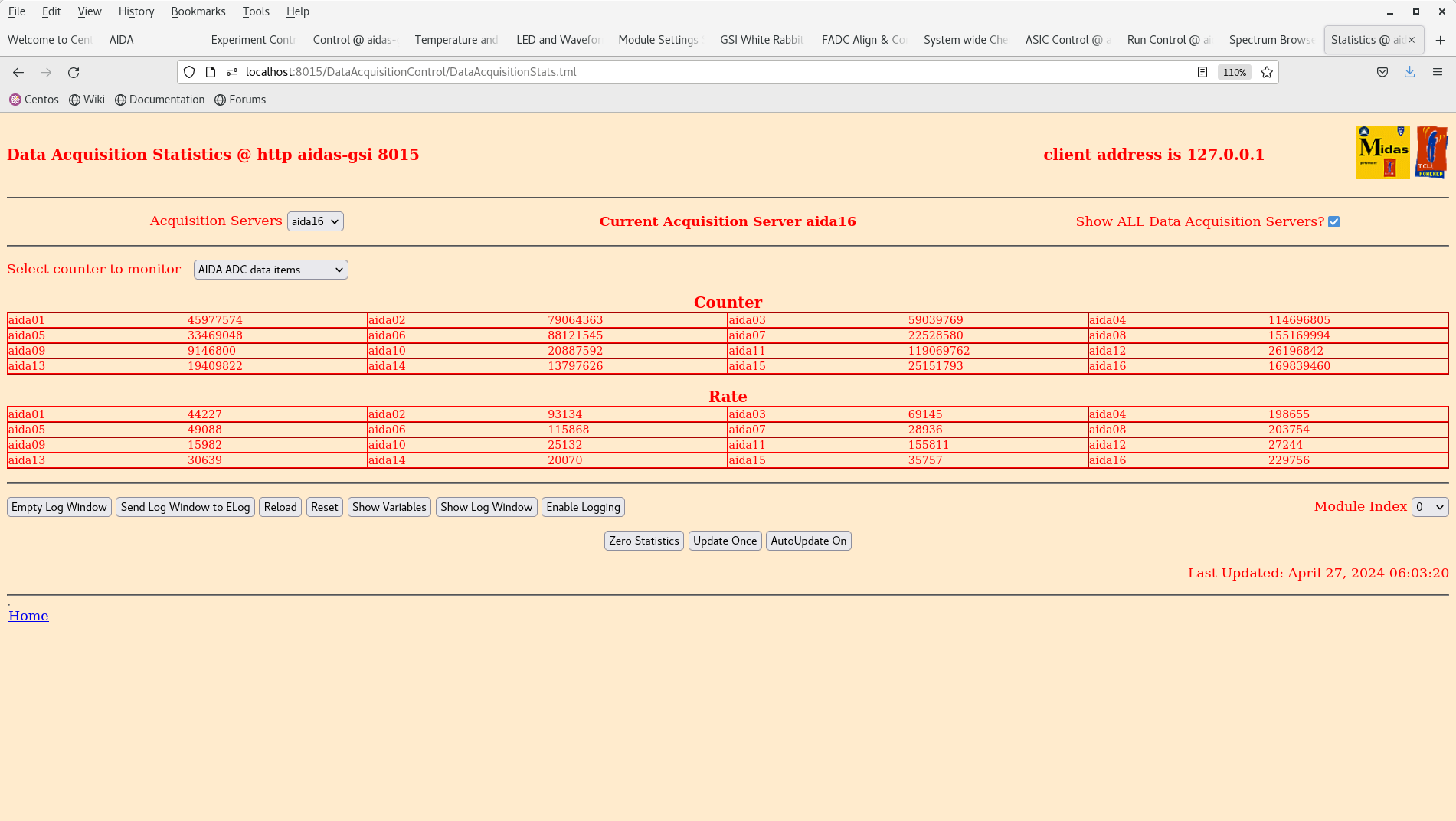

ADC, PAUSE, RESUME, Correlation scaler data item stats OK - attachments 7-10

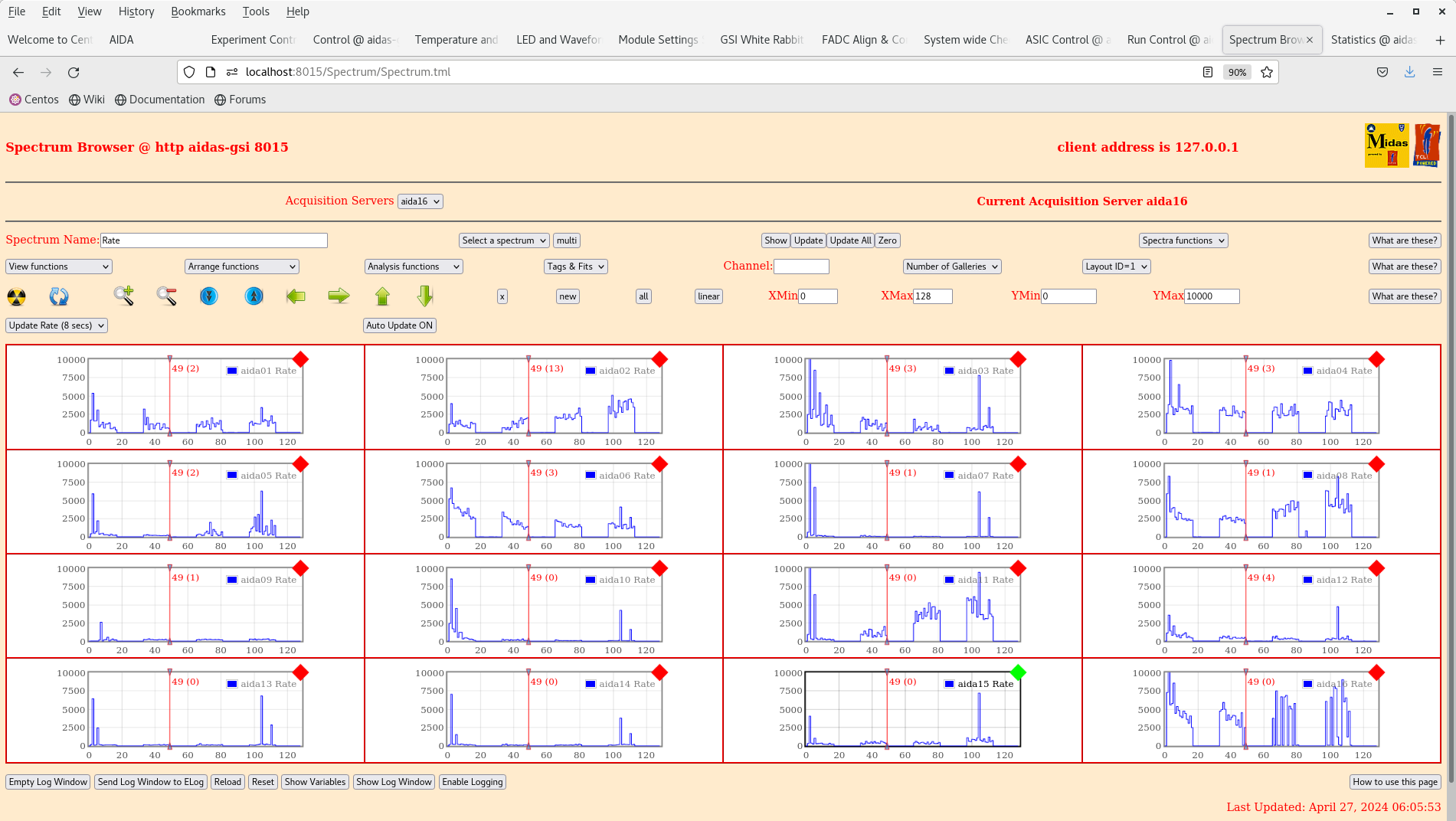

per FEE64 Rate spectra - attachment 11

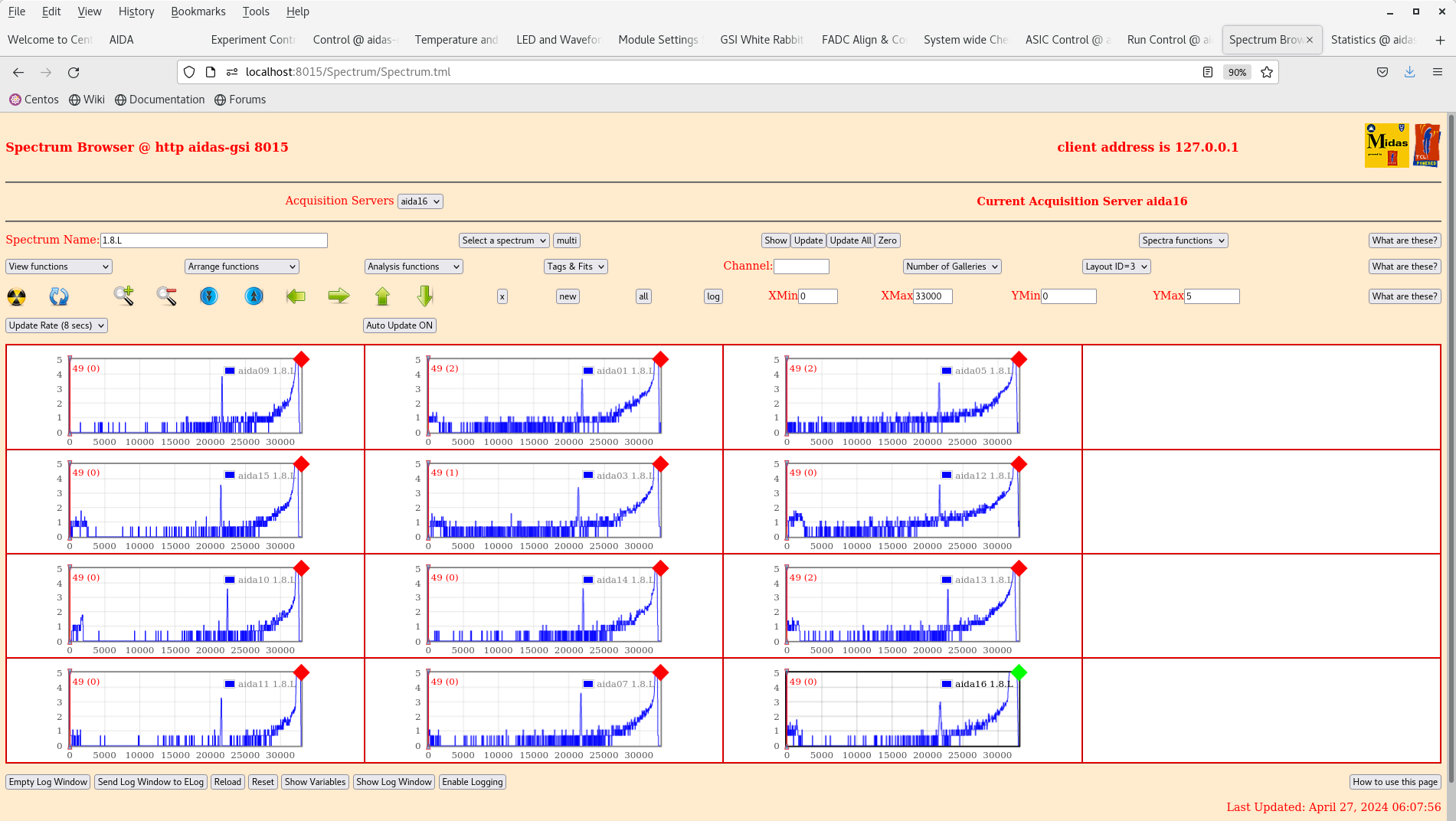

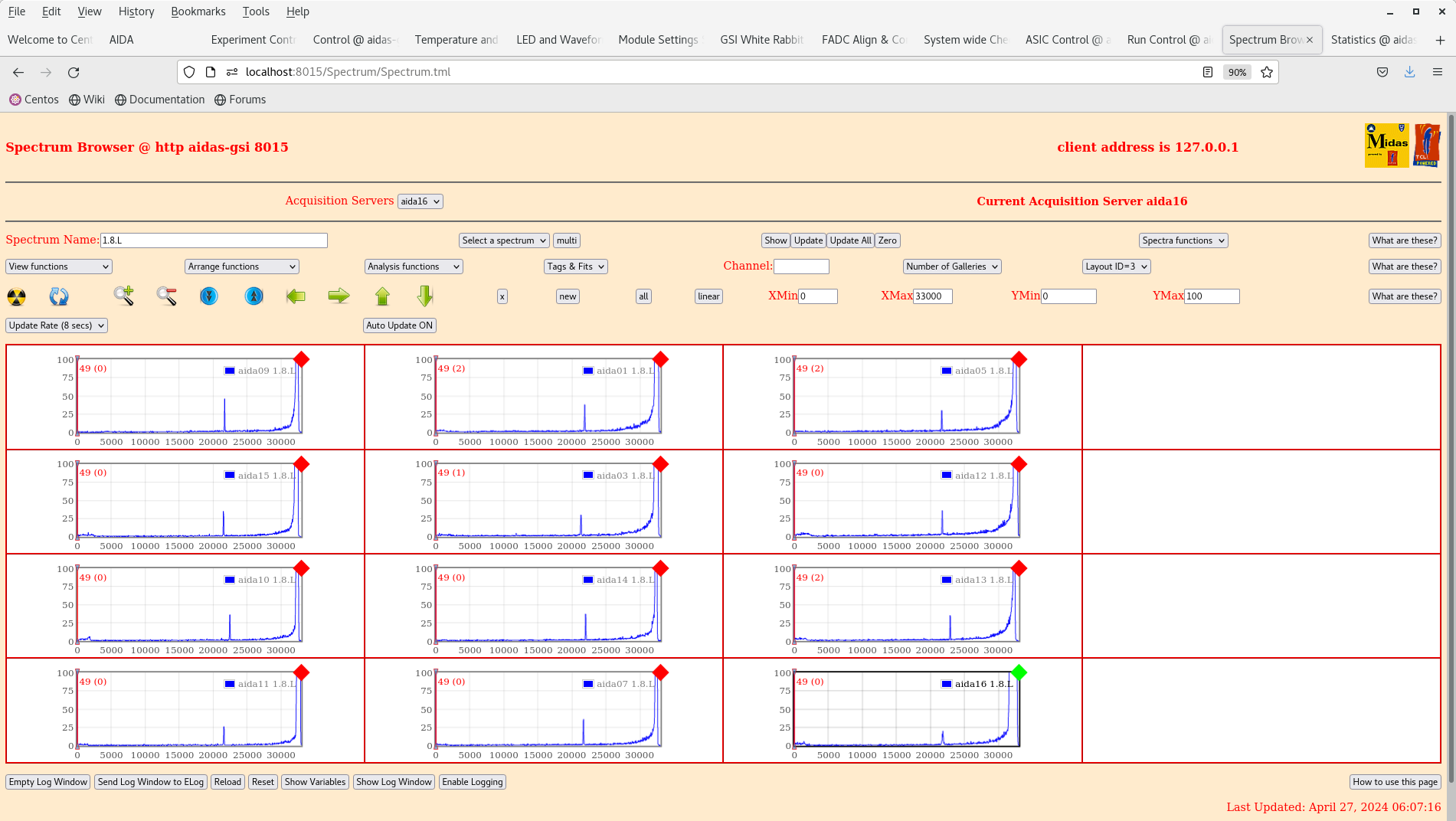

per p+n FEE64 1.8.L specra - attachments 12-13
aida09 pulser peak width 55 ch FWHM (~38keV FWHM)

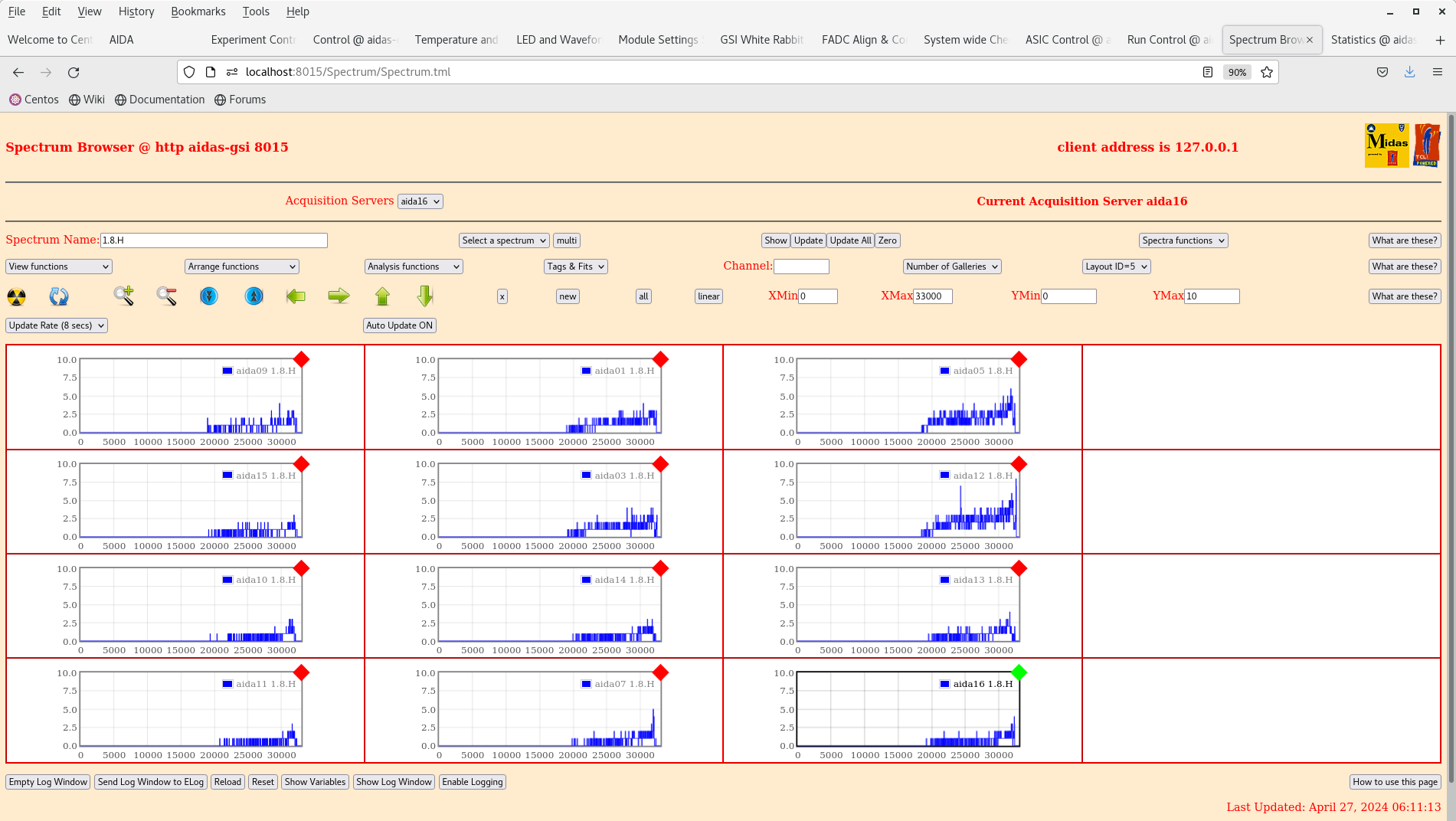

per FEE64 1.8.H spectra - attachments 14-15
Merger, TapeServer etc - attachments 16-17
12Mb/s to disk

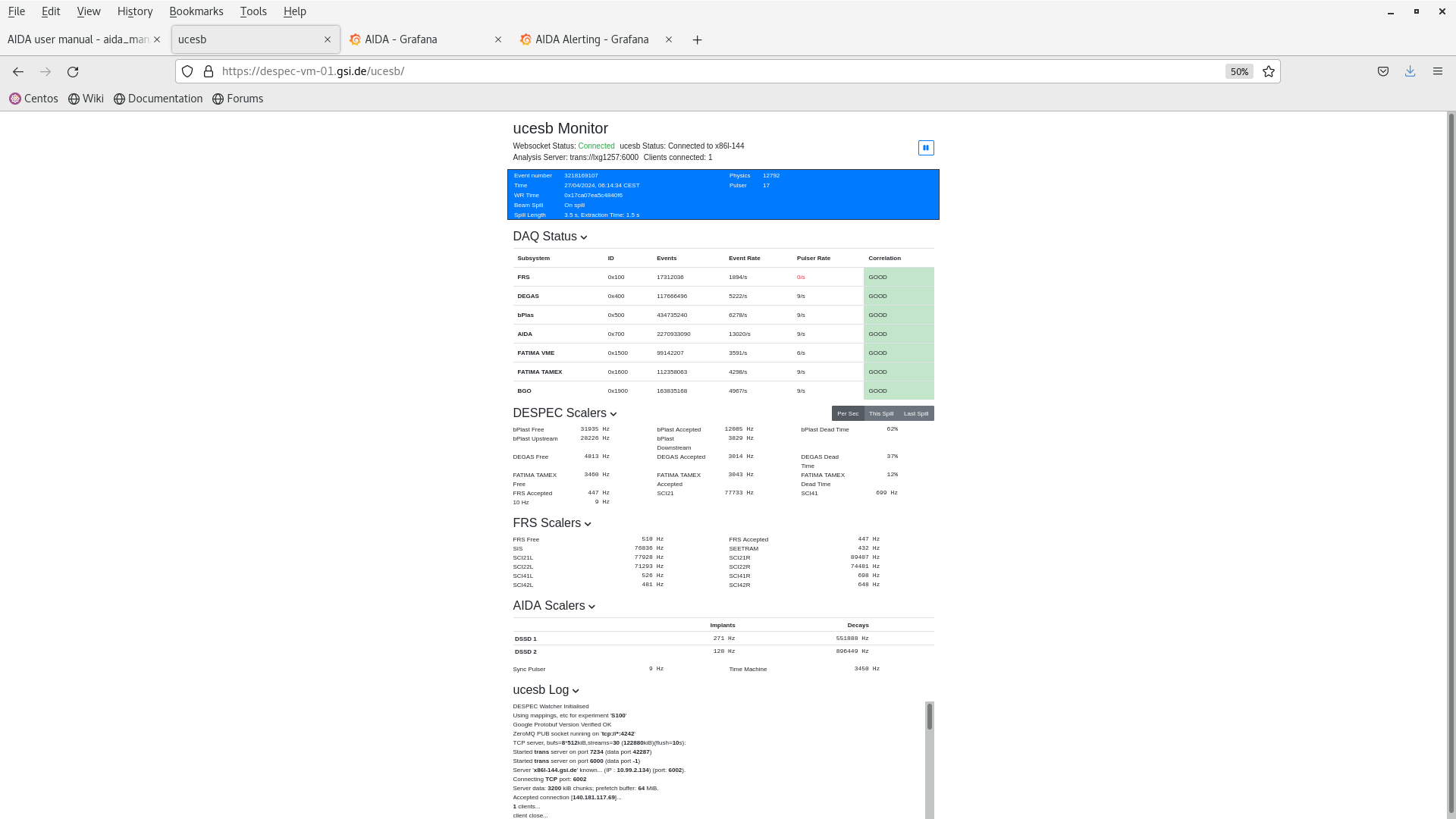

ucesb - attachment 18
spill length 3.5s, extraction 1.5s
06.30 analysis data file R20_748 - attachment 19
max deadtime 12%
no timewarps
HEC data item rate 2.1kHz
06.35 new run file S100_alpha/R21
09.30 DAQ continues - file S100_alpha/R21_83
DSSSD bias & leakage currents - Grafana - attachment 20
FEE64 temperatures OK - attachment 21
ADC data item stats OK - attachments 22

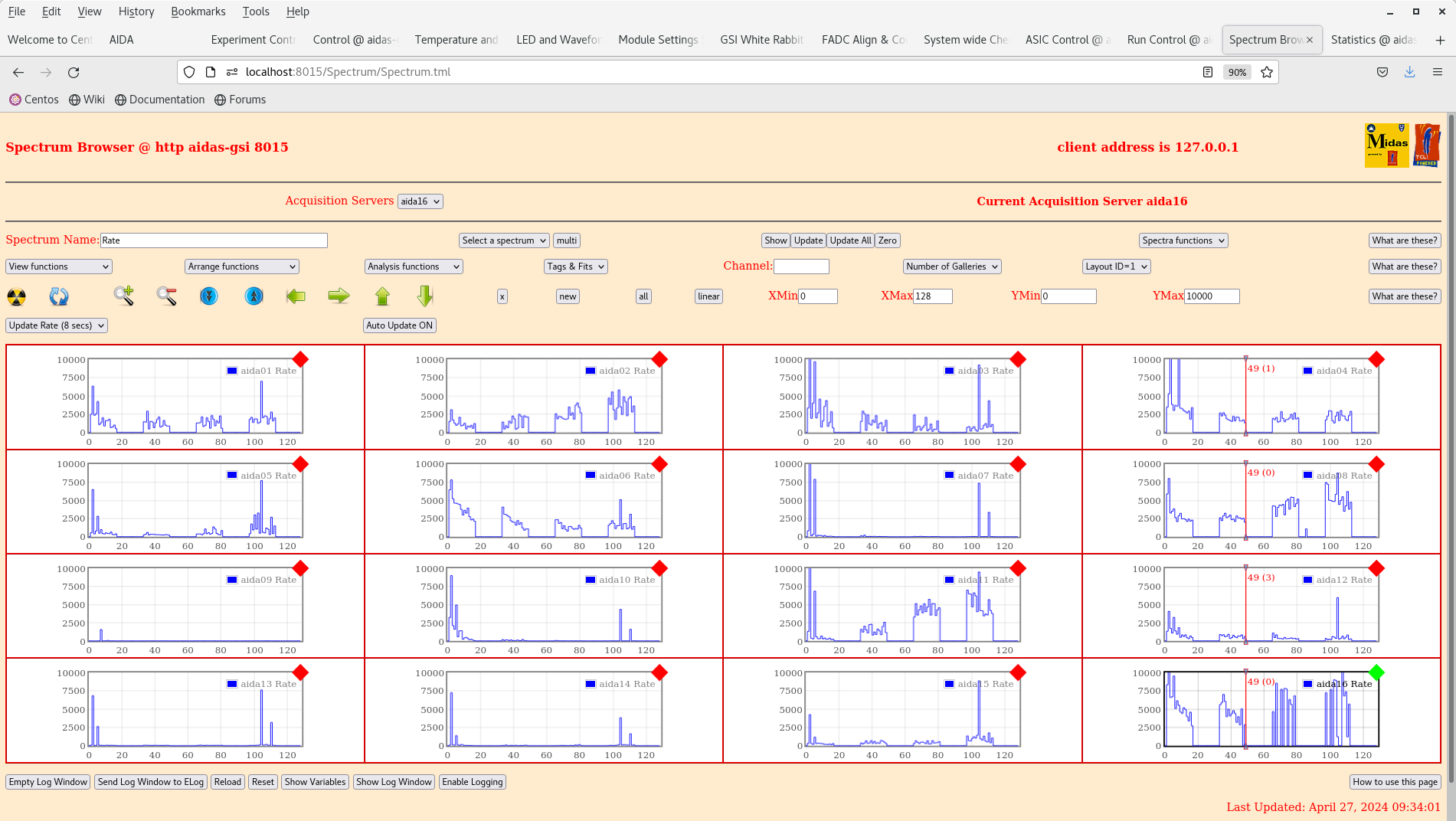

per FEE64 Rate spectra - attachment 23

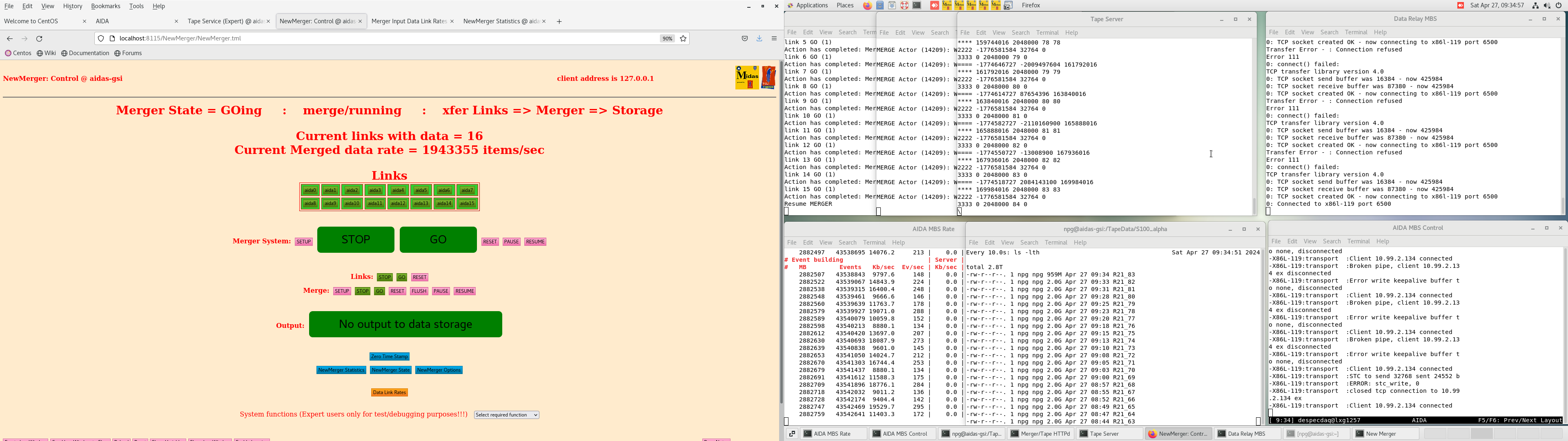

Merger etc - attachments 24
ucesb - attachment 25
spill length 3.5s, extraction 1.5s

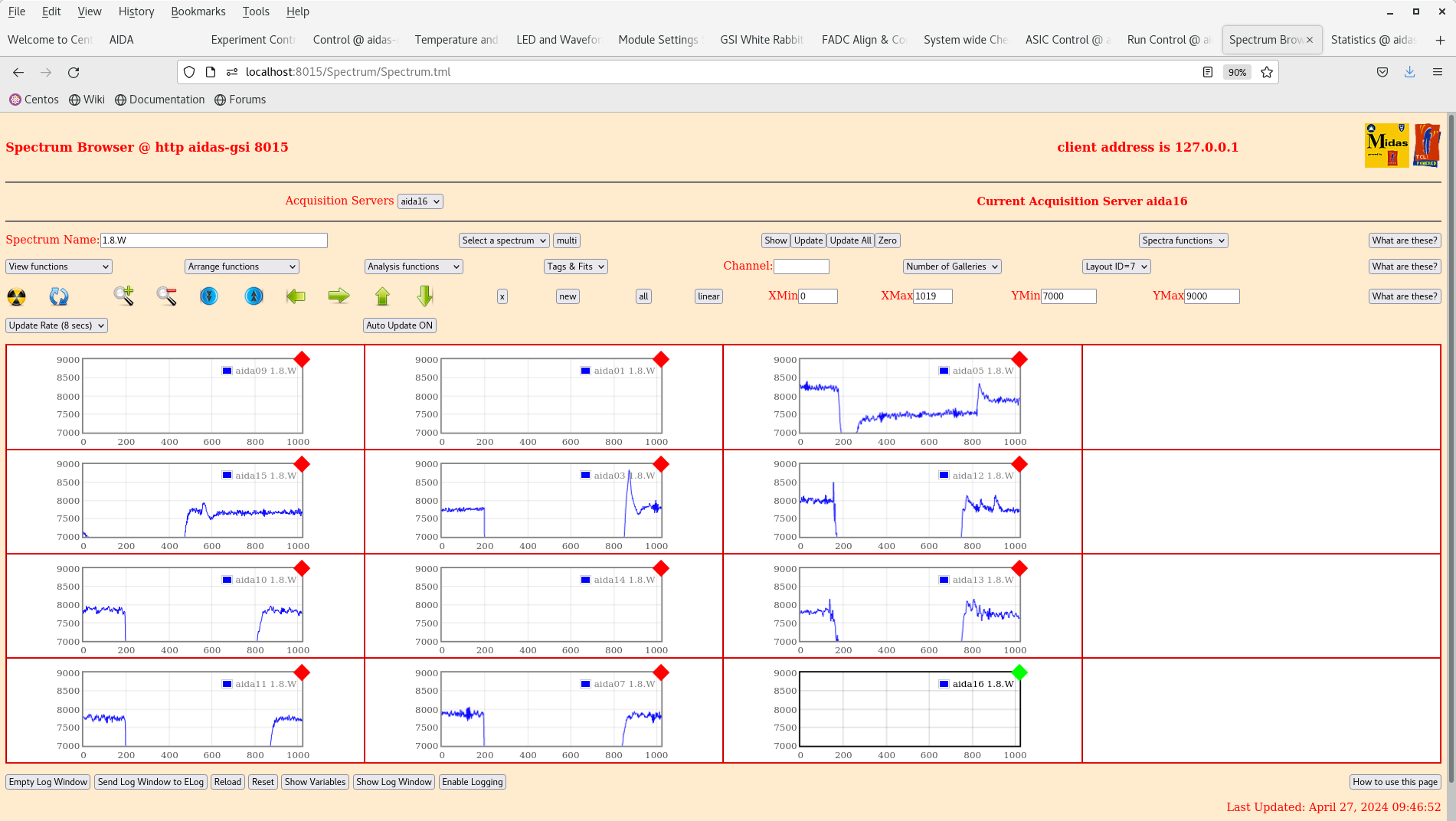

09.50 per FEE64 1.8.W spectra - 20us FSR - attachments 26-27
no significant change in electronic noise cf. start of run
per p+n FEE64 1.8.L spectra - attachment 28
aida09 pulser peak width 62 ch FWHM
common x/y scale - peak heoght proxy for width
13.57 DAQ continues file R21_141
DSSSD bias & leakage current - Grafana - attachments 29-30
FEE64 temperatures OK - attachment 31

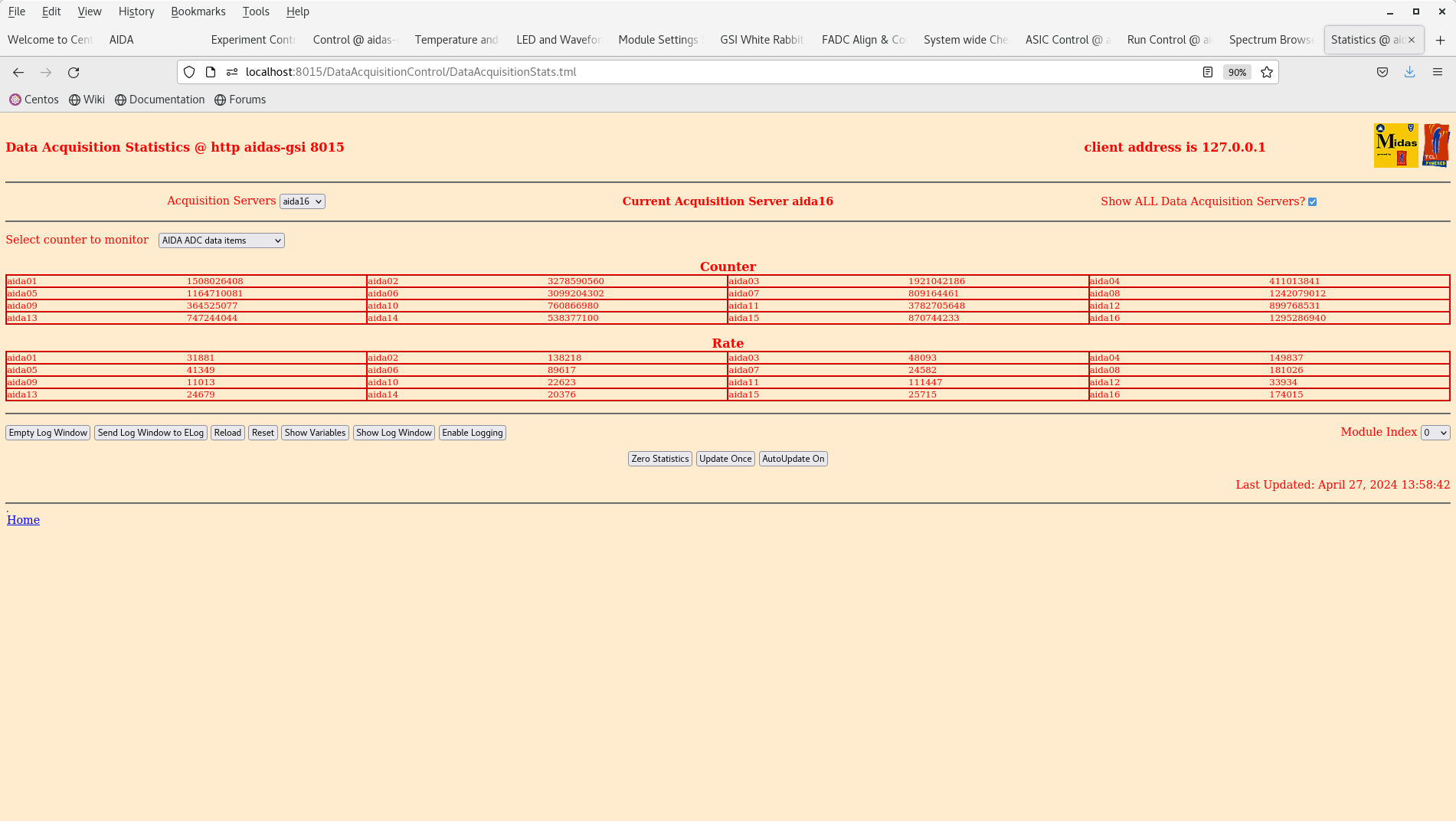

ADC data item stats OK - attachments 32

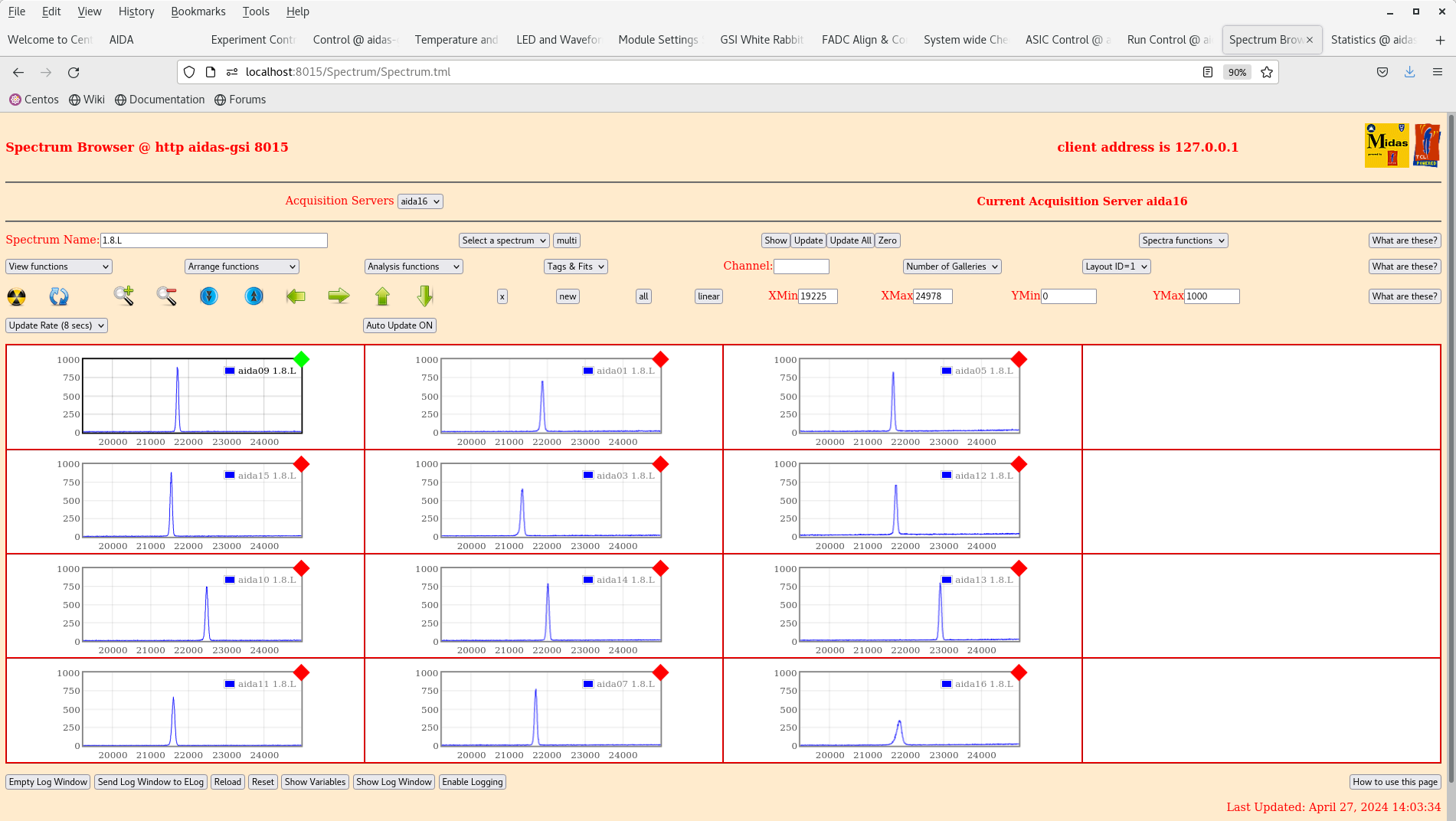

per p+n FEE64 1.8.L spectra - attachment 33
aida09 pulser peak width 55 ch FWHM (~39keV FWHM)
per FEE64 Rate spectra - attachment 34
Merger etc - attachments 35
ucesb - attachment 36
spill length 3.5s, extraction 1.5s
14.15 analysis data file R21_144 - attachment 35
max deadtime 16% (aida04)
no timewarps
HEC data item rate 2.0kHz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 257504742 ( 1406851.0 Hz)
Other data format: 4415258 ( 24122.3 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1610 ( 8.8 Hz)
RESUME: 1611 ( 8.8 Hz)
SYNC100: 32682 ( 178.6 Hz)
WR48-63: 32682 ( 178.6 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 4346673 ( 23747.6 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 386233 ( 2110.1 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 183.036 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.284 0.000
1 10.840 0.000
2 0.188 0.000
3 23.217 0.000
4 0.100 0.000
5 2.070 0.000
6 0.000 0.000
7 2.151 0.000
8 0.000 0.000
9 0.000 0.000
10 8.754 0.000
11 0.009 0.000
12 0.000 0.000
13 0.000 0.000
14 0.015 0.000
15 2.919 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 12463516 8663 0 0 35 35 1556 1556 0 5481 0 27718
1 18658776 198614 0 0 164 164 2390 2390 0 193506 0 51705
2 15562218 1904264 0 0 13 13 2088 2088 0 1900062 0 19441
3 28663274 1575353 0 0 203 204 3714 3714 0 1567518 0 14524
4 7649540 297936 0 0 9 9 969 969 0 295980 0 20940
5 22941092 390586 0 0 220 220 3010 3010 0 384126 0 18537
6 5869094 1360 0 0 0 0 680 680 0 0 0 5932
7 40428040 10412 0 0 122 122 5084 5084 0 0 0 148981
8 2103382 490 0 0 0 0 245 245 0 0 0 10601
9 5530471 1492 0 0 0 0 746 746 0 0 0 4423
10 31486867 9242 0 0 711 711 3910 3910 0 0 0 1813
11 6680681 1722 0 0 2 2 859 859 0 0 0 37346
12 4842246 1236 0 0 0 0 618 618 0 0 0 5812
13 3504495 918 0 0 0 0 459 459 0 0 0 6910
14 6454647 1674 0 0 3 3 834 834 0 0 0 4246
15 44666403 11296 0 0 128 128 5520 5520 0 0 0 7304
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 38.639s ( 828.186 blocks/s, 51.762 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 256251858 ( 1109842.9 Hz)
Other data format: 5668143 ( 24549.1 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1144 ( 5.0 Hz)
RESUME: 1144 ( 5.0 Hz)
SYNC100: 32860 ( 142.3 Hz)
WR48-63: 32860 ( 142.3 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 5600135 ( 24254.5 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 452307 ( 1959.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 230.890 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.168 0.000
1 16.872 0.000
2 0.114 0.000
3 36.051 0.000
4 0.888 0.000
5 2.369 0.000
6 0.000 0.000
7 1.443 0.000
8 0.006 0.000
9 0.000 0.000
10 1.304 0.000
11 0.023 0.000
12 0.000 0.000
13 0.000 0.000
14 0.033 0.000
15 1.208 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 7949000 9111 0 0 19 19 1076 1076 0 6921 0 39332
1 26808065 269780 0 0 235 235 3356 3356 0 262598 0 70729
2 11614466 2448126 0 0 13 13 1817 1817 0 2444466 0 27115
3 37929923 1952070 0 0 294 294 4896 4896 0 1941690 0 19677
4 8915163 414541 0 0 12 12 1163 1163 0 412191 0 27553
5 22729514 538305 0 0 114 114 2904 2904 0 532269 0 25872
6 5822184 1488 0 0 0 0 744 744 0 0 0 8358
7 40443466 10506 0 0 99 99 5154 5154 0 0 0 123022
8 3043811 744 0 0 1 1 371 371 0 0 0 14593
9 5157550 1312 0 0 0 0 656 656 0 0 0 6148
10 26044004 6988 0 0 273 273 3221 3221 0 0 0 2629
11 5888316 1514 0 0 4 4 753 753 0 0 0 52905
12 5831030 1426 0 0 0 0 713 713 0 0 0 8360
13 4114996 986 0 0 0 0 493 493 0 0 0 9929
14 5361222 1380 0 0 5 5 685 685 0 0 0 5844
15 38599148 9866 0 0 75 75 4858 4858 0 0 0 10241
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 33.879s ( 944.541 blocks/s, 59.034 Mb/s)
|
