Message ID: 614     Entry time: Sat Apr 27 23:04:42 2024
Author: Marc
Subject: 00:00-08:00 Sunday 28 April

Encore un matin, un matin pour ..... a shift !!!ramping up again ! S4 temperature not really going down either: 25C

0:40 AIDA04 is down. I informed the DAQ shift crew and attempting to restart AIDA04.

After rebooting AIDA04 all seemed going until I reached the merger check. No data was being merged.

I realise then that AIDA01 data transfer was not active. I did not spot it when I enabled the data transfer for all.

I stopped the daq and rebooted AIDA01 following all the instructions in the ELOG and this worked.

We are now back in business with AIDA back in main DAQ at  01:40

01:45 full checks:

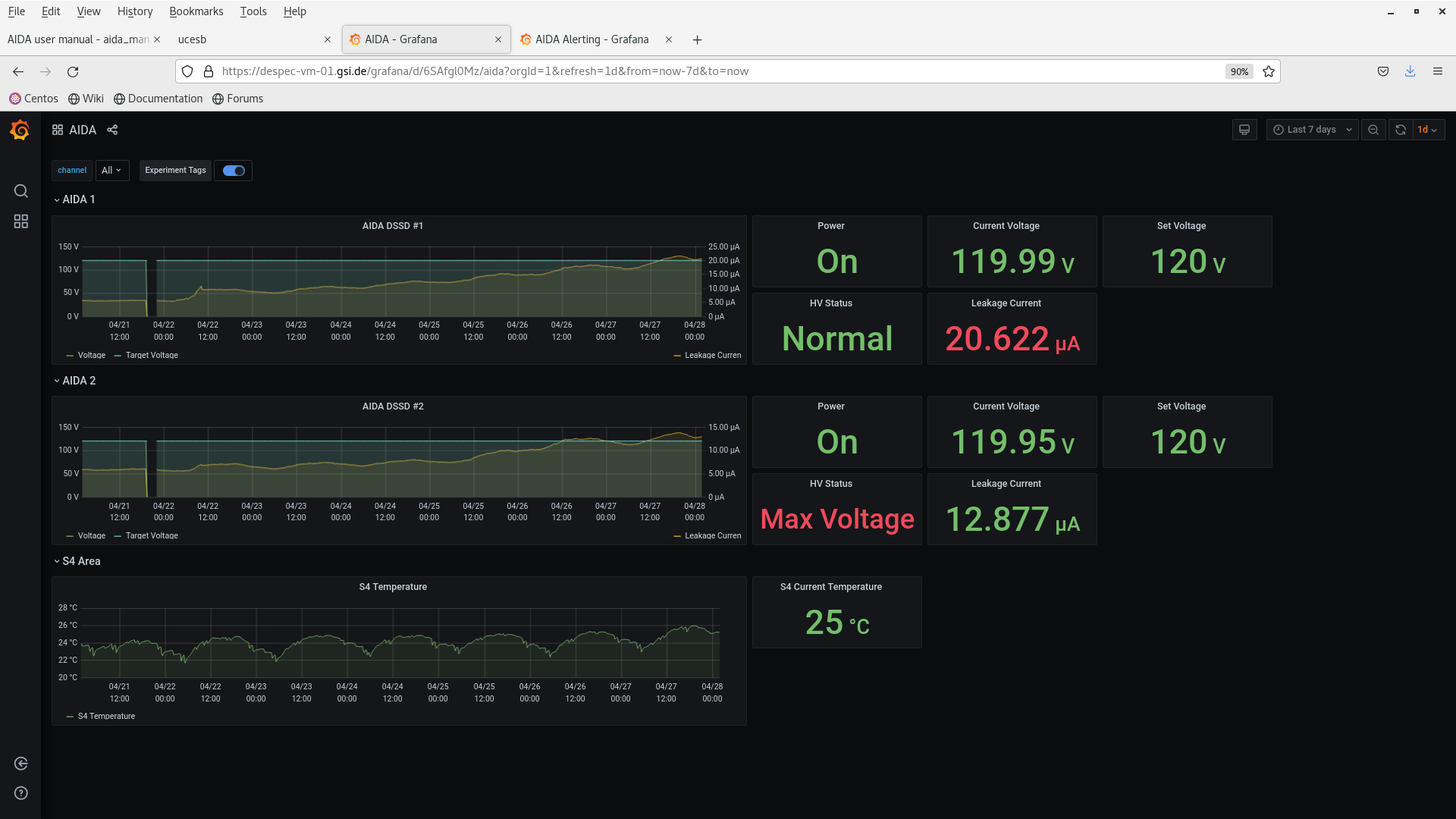

           Bias: AIDA-Graphana - Attachment 1

               Leakage current ramping up again ! S4 temperaturenot really going down either: 25C

      FEE64 temperatures OK - attachment 2

      ADC data item stats - attachment 3

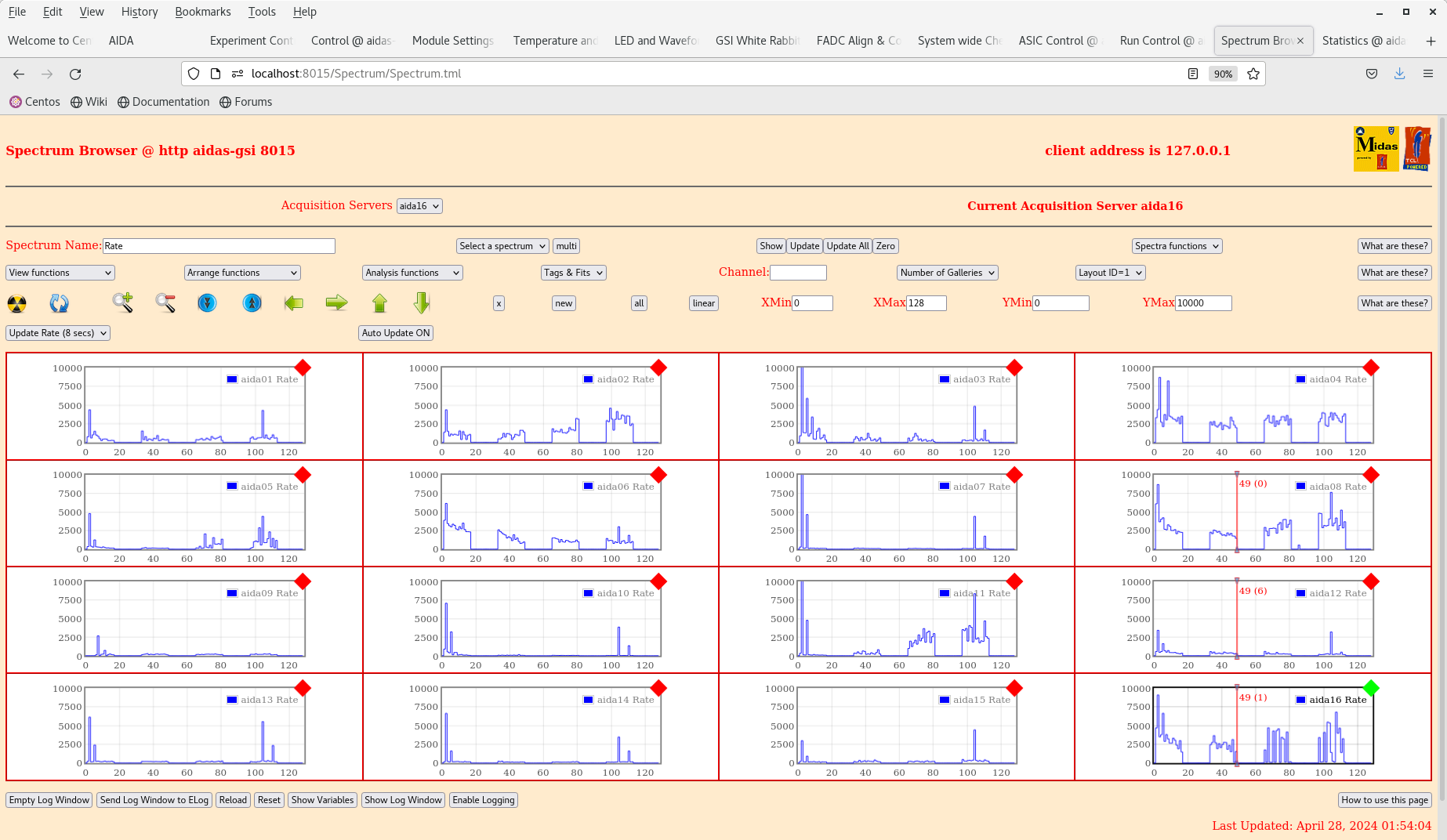

      per FEE64 Rate spectra - attachment 4

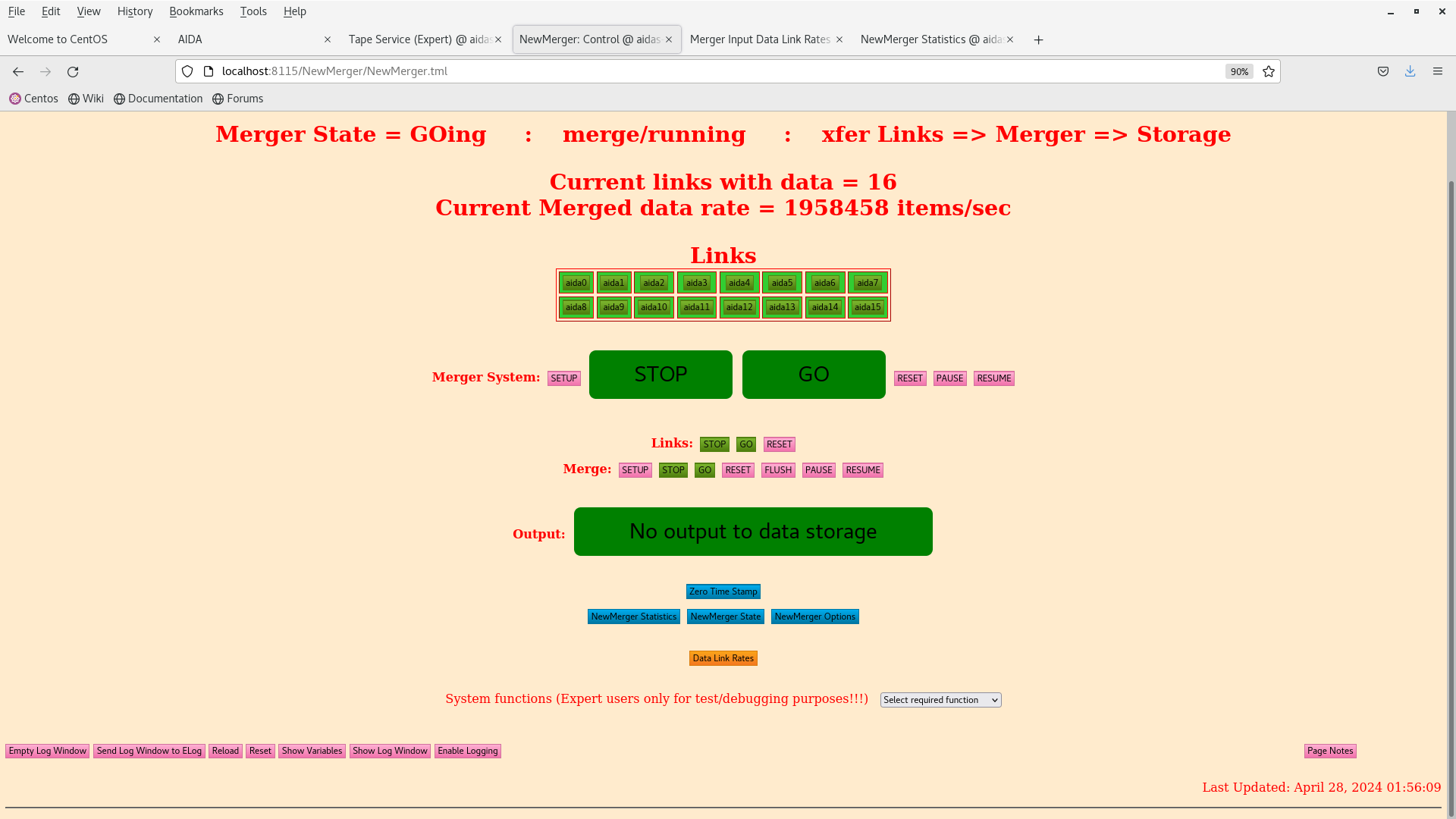

      Merger etc - attachment 5

      ucesb - attachment 6

03:00 full checks

          No change to be highlighted. All pretty much the same as during previous full checks.

05:00 full checks

Expt still running very smoothly.

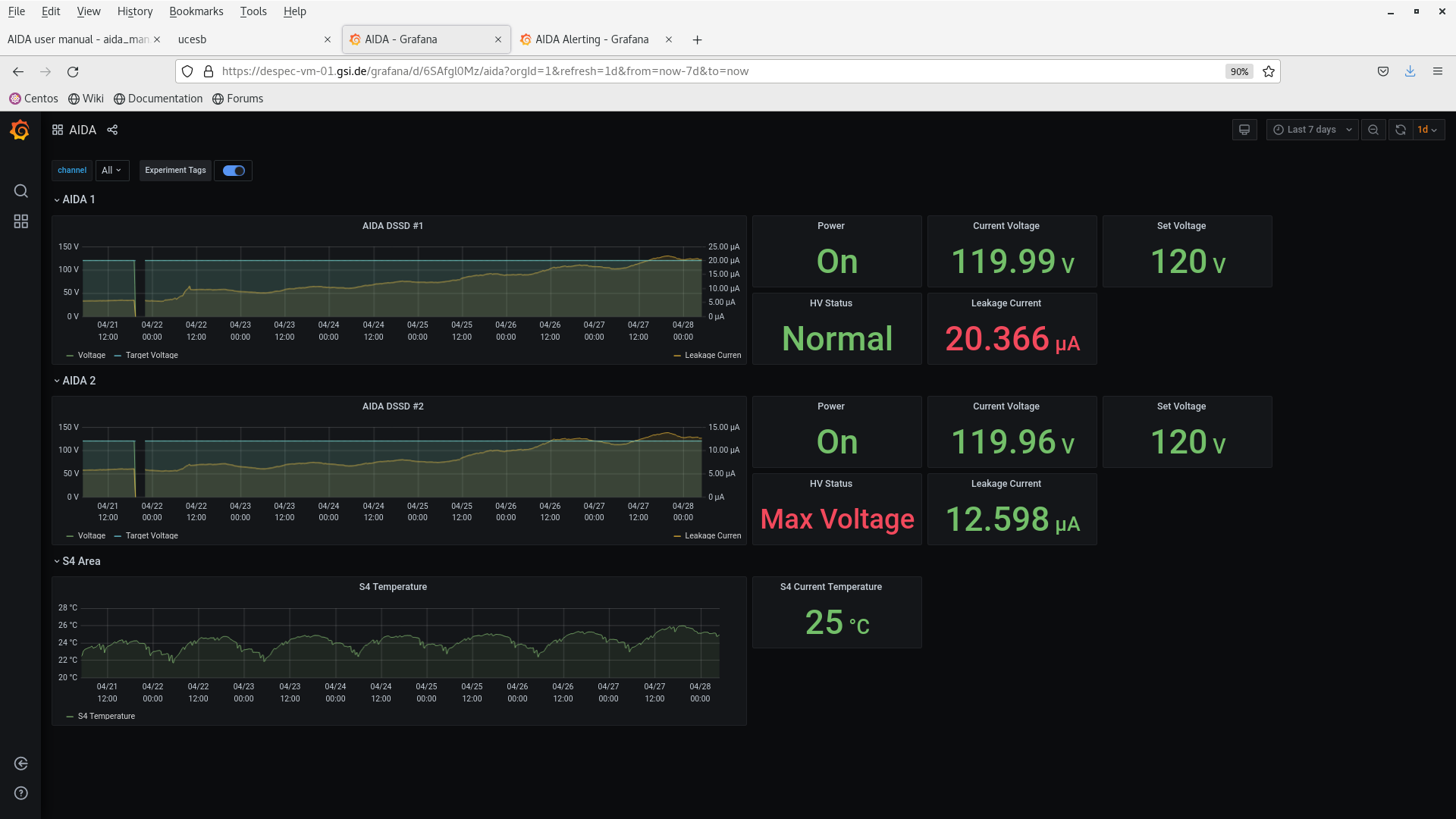

           Bias: AIDA-Graphana - Attachment 7-8

               Leakage current going down slightly

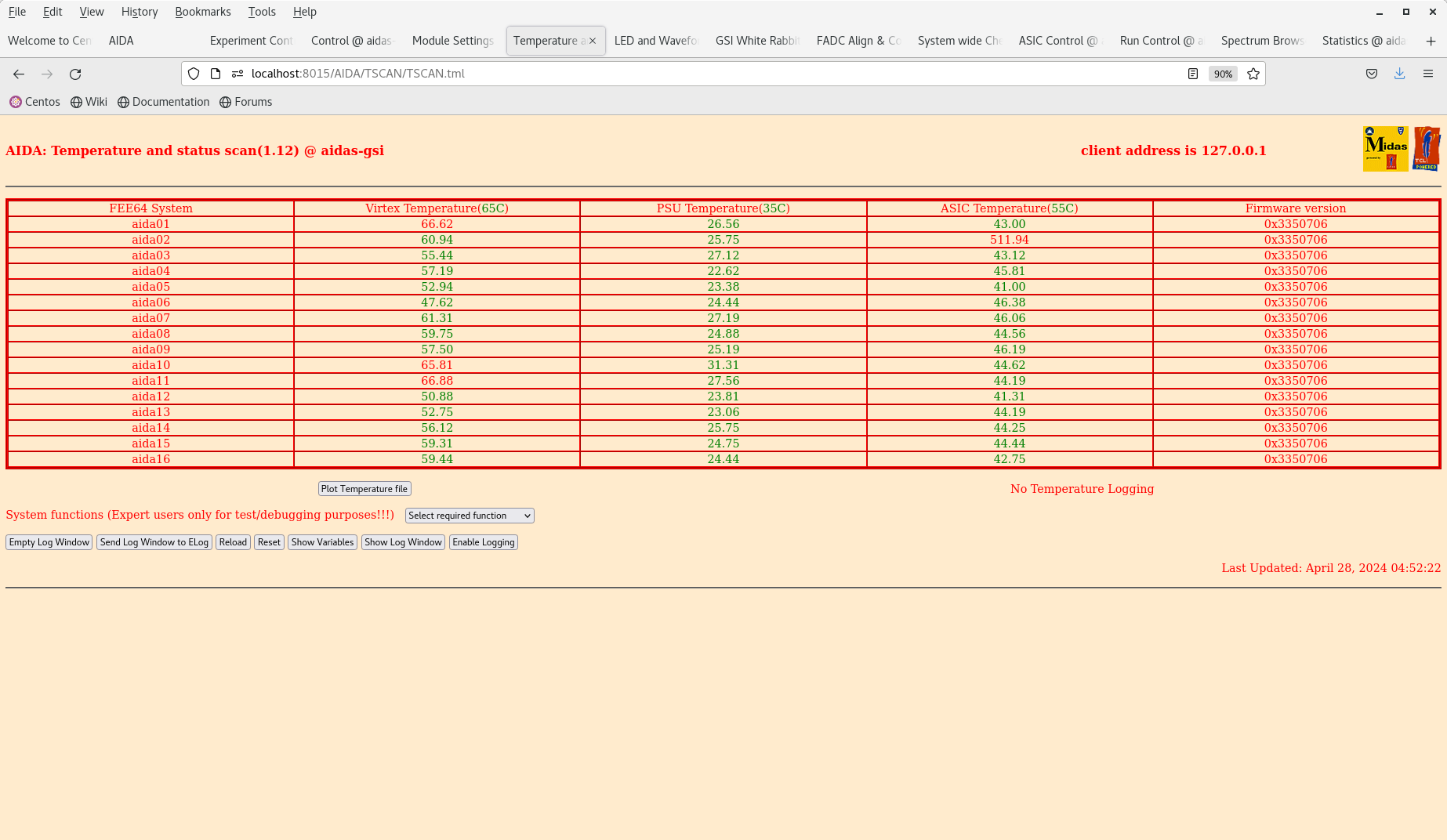

      FEE64 temperatures OK - attachment 9

      ADC data item stats - attachment 10
ramping up again ! S4 temperaturenot really going down either: 25C

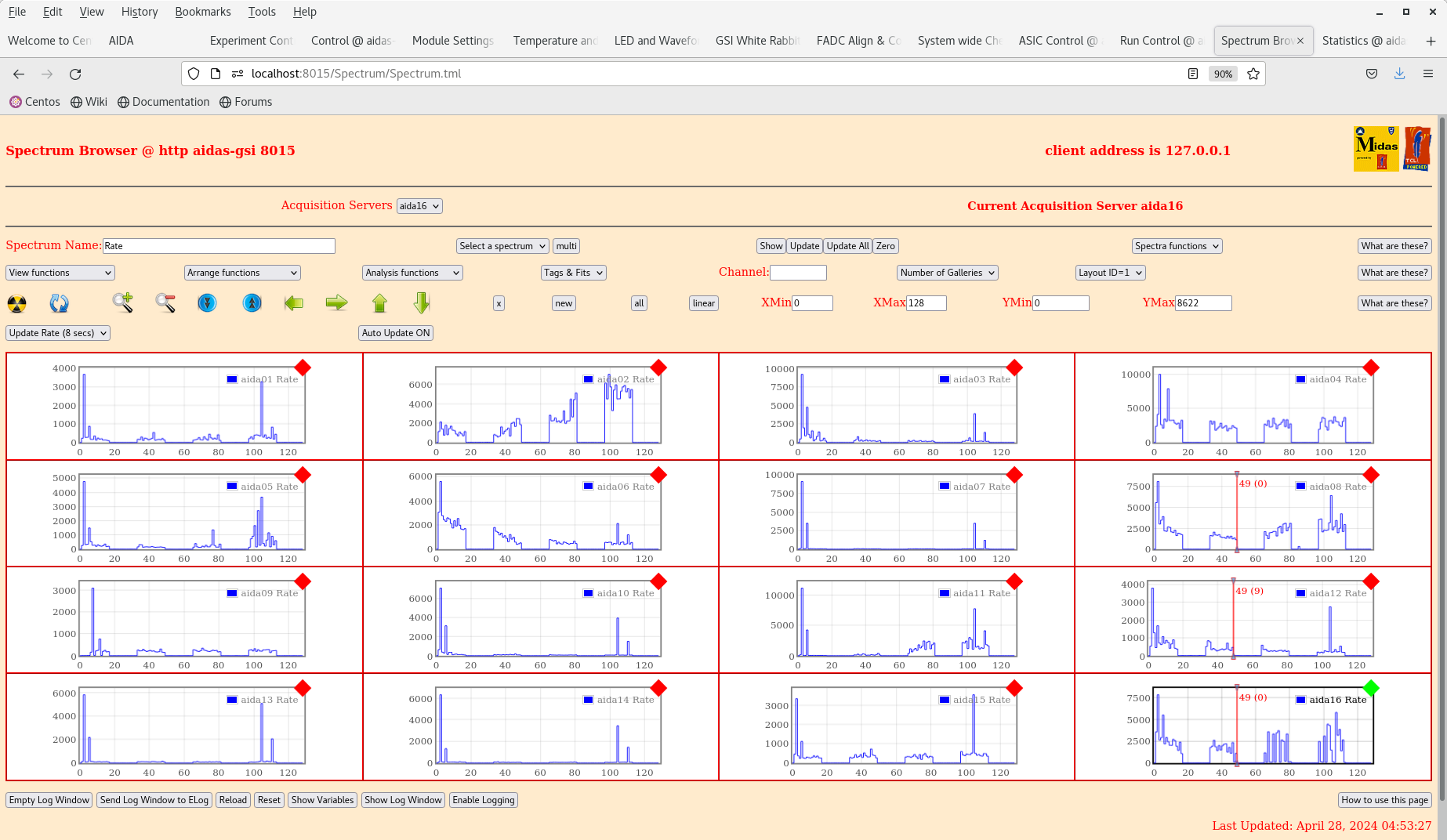

      per FEE64 Rate spectra - attachment 11

      Merger etc - attachment 12

      ucesb - attachment 13

07:15 all running smoothly.

07:20 Spoke too fast AIDA DAQ is down. DAQ shift crew informed.

07:40: AIDA10 was rebooted successfully and AIDA is now back in the main DAQ.



Attachment 1: Screenshot_from_2024-04-28_01-51-37.png  193 kB  Uploaded Sun Apr 28 01:51:47 2024  | Hide | Hide all
Attachment 2: Screenshot_from_2024-04-28_01-53-29.png  225 kB  Uploaded Sun Apr 28 01:54:40 2024  | Hide | Hide all
Attachment 3: Screenshot_from_2024-04-28_01-53-52.png  171 kB  Uploaded Sun Apr 28 01:54:58 2024  | Hide | Hide all
Attachment 4: Screenshot_from_2024-04-28_01-54-16.png  251 kB  Uploaded Sun Apr 28 01:55:11 2024  | Hide | Hide all
Attachment 5: Screenshot_from_2024-04-28_01-56-14.png  134 kB  Uploaded Sun Apr 28 01:56:56 2024  | Hide | Hide all
Attachment 6: Screenshot_from_2024-04-28_04-59-46.png  194 kB  Uploaded Sun Apr 28 05:00:55 2024  | Hide | Hide all
Attachment 7: Screenshot_from_2024-04-28_04-59-51.png  229 kB  Uploaded Sun Apr 28 05:01:13 2024  | Hide | Hide all
Attachment 8: Screenshot_from_2024-04-28_05-00-33.png  170 kB  Uploaded Sun Apr 28 05:01:35 2024  | Hide | Hide all
Attachment 9: Screenshot_from_2024-04-28_05-00-25.png  137 kB  Uploaded Sun Apr 28 05:02:05 2024  | Hide | Hide all
Attachment 10: Screenshot_from_2024-04-28_05-00-38.png  263 kB  Uploaded Sun Apr 28 05:02:25 2024  | Hide | Hide all
Attachment 11: Screenshot_from_2024-04-28_05-02-44.png  628 kB  Uploaded Sun Apr 28 05:03:16 2024  | Hide | Hide all
Attachment 12: Screenshot_from_2024-04-28_05-00-03.png  139 kB  Uploaded Sun Apr 28 05:03:41 2024  | Hide | Hide all
