Took over the shift from Marc.

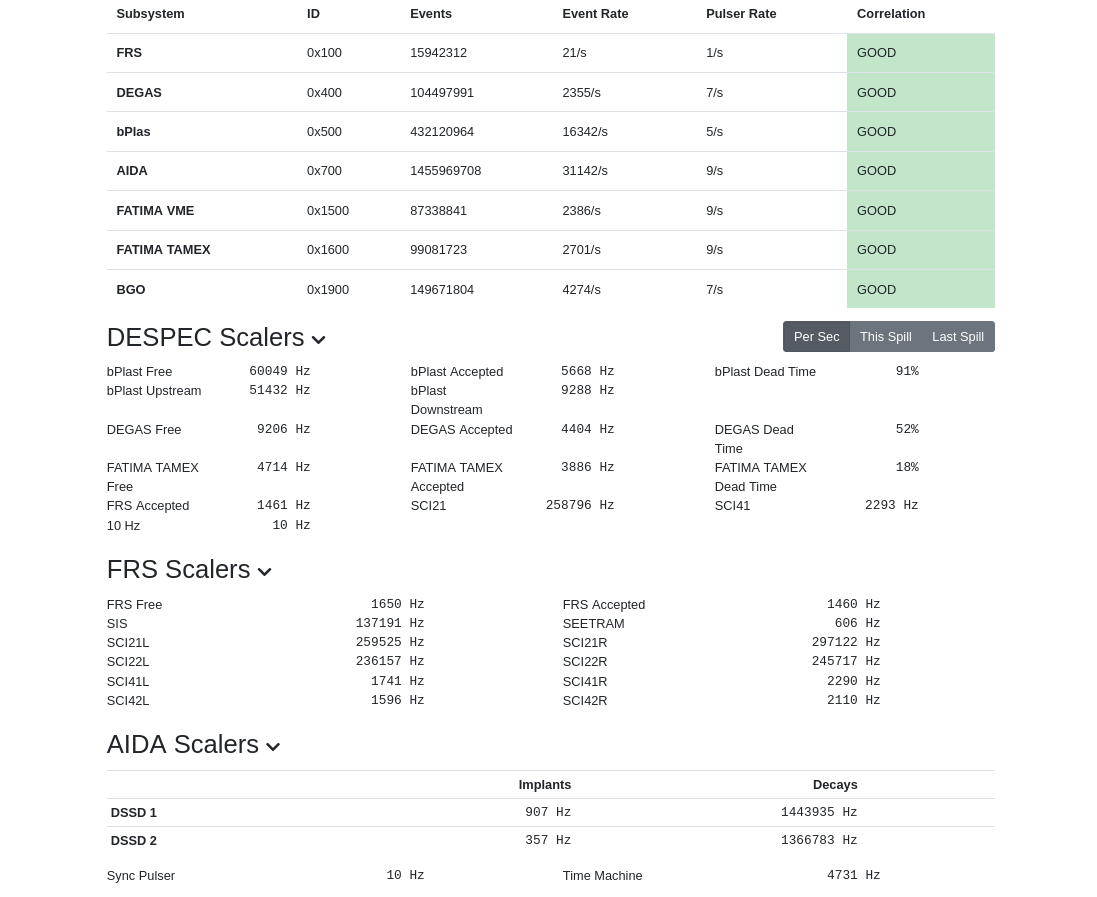

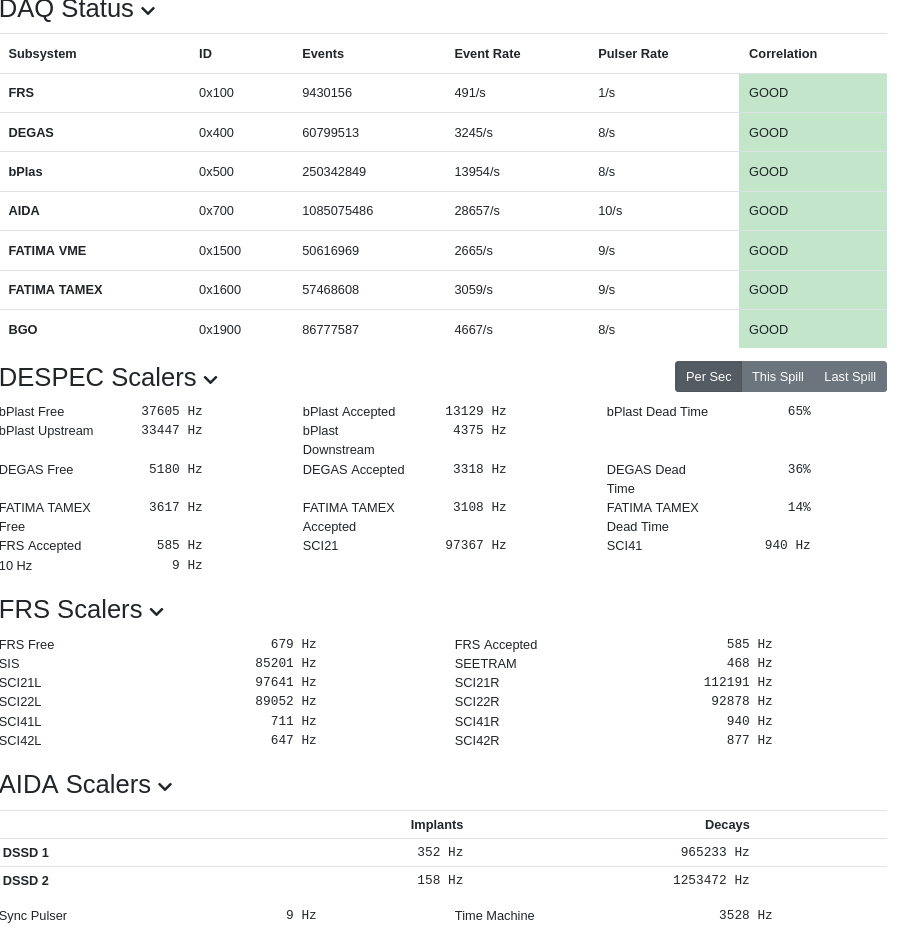

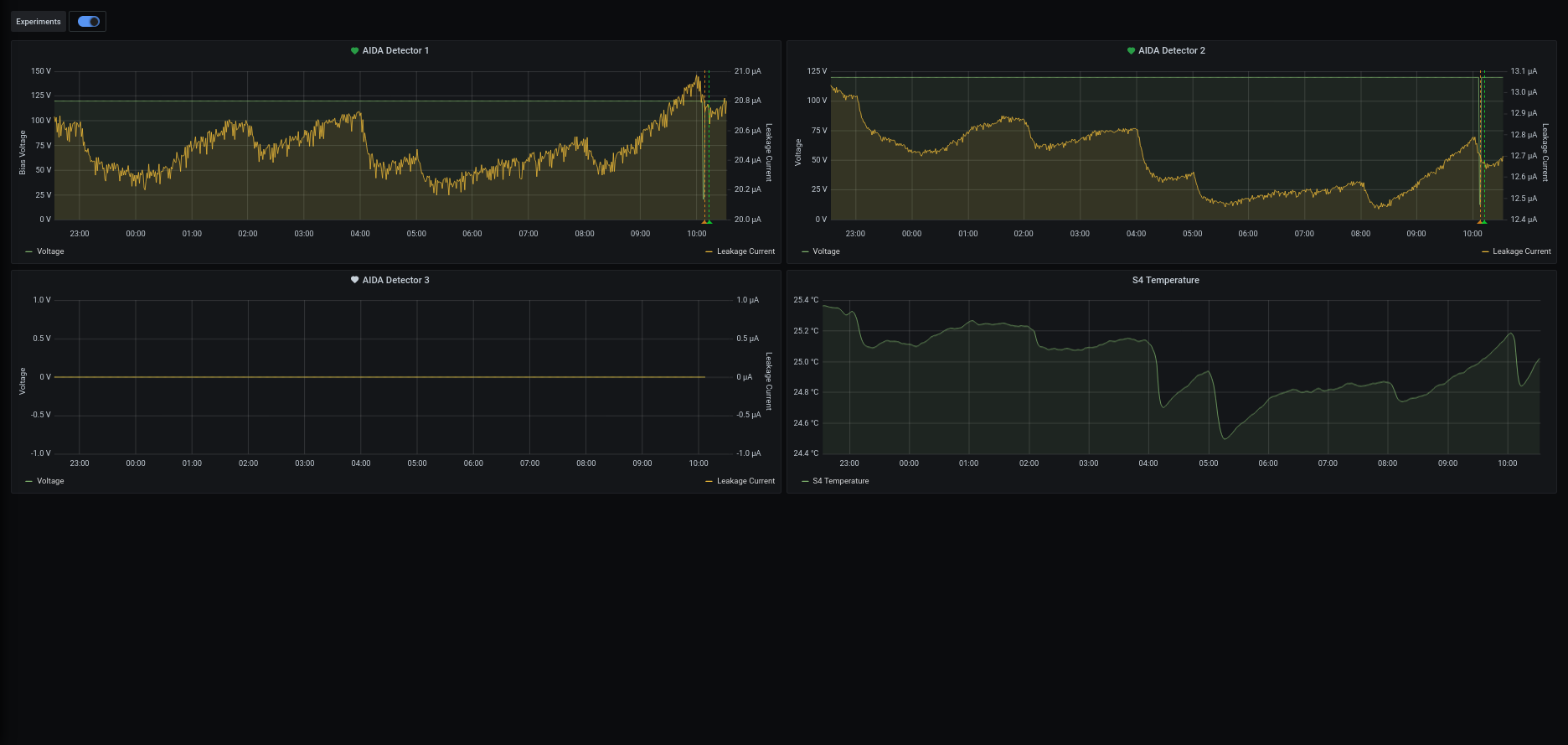

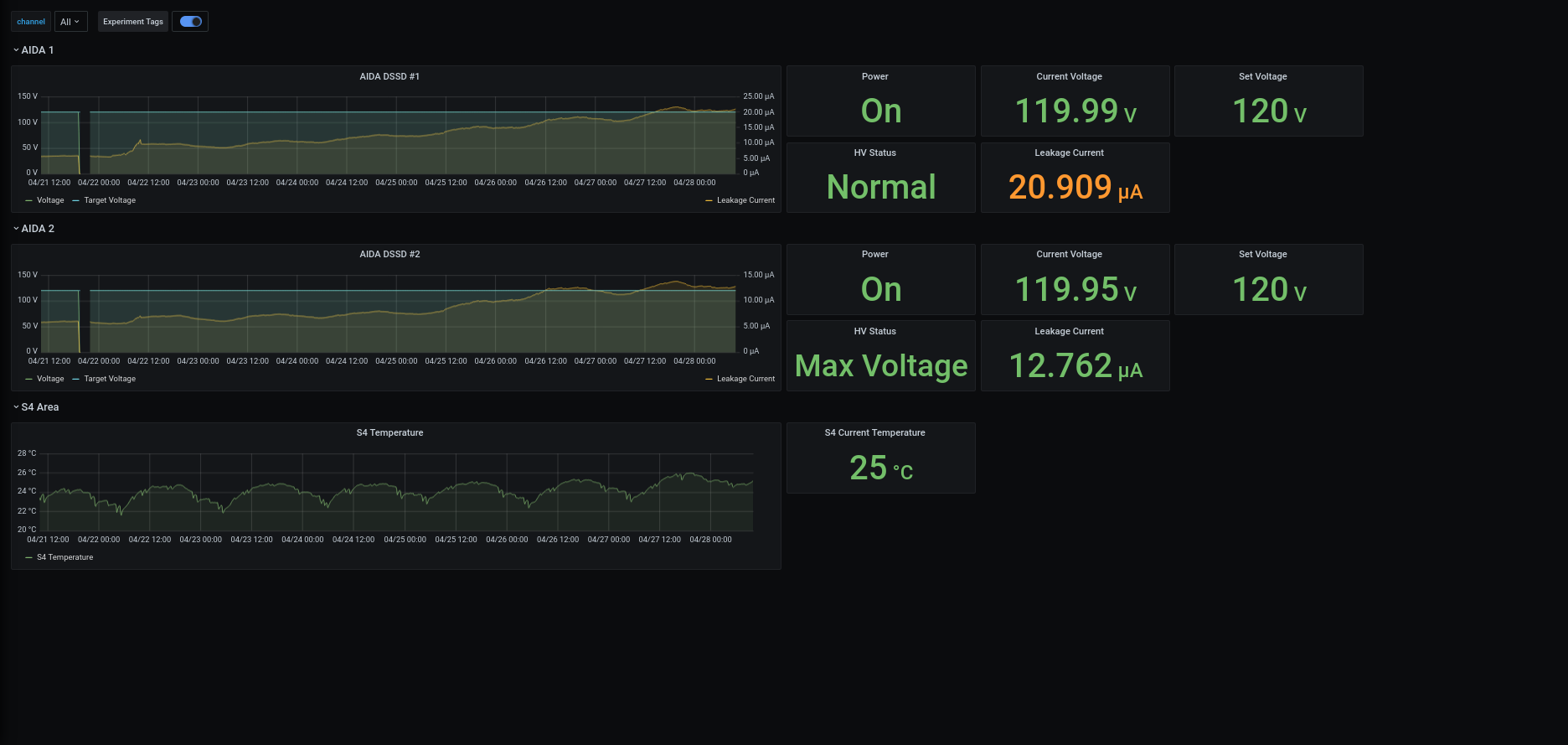

10.51 Added screenshots to illustrate erroneous data from Grafana (AIDA) - attachments 18-19
Compare to the CAEN HV control terminal (attachment 15) which shows the expected values. Have email'd Nic & Helena. TD

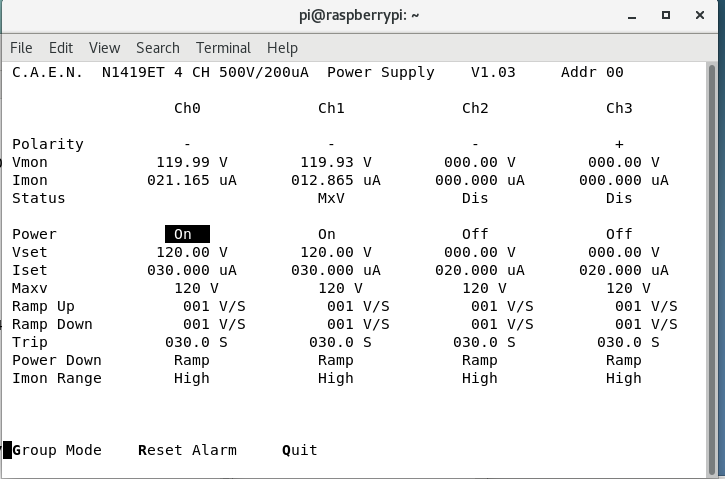

10.55 Noticed that the CAEN HV control terminal is showing the corerct data but on the wrong line of the display (attachment 15). Enter commands q (quit) and d (display) to restart display - the correct data now appears on the correct line (attachment 20).

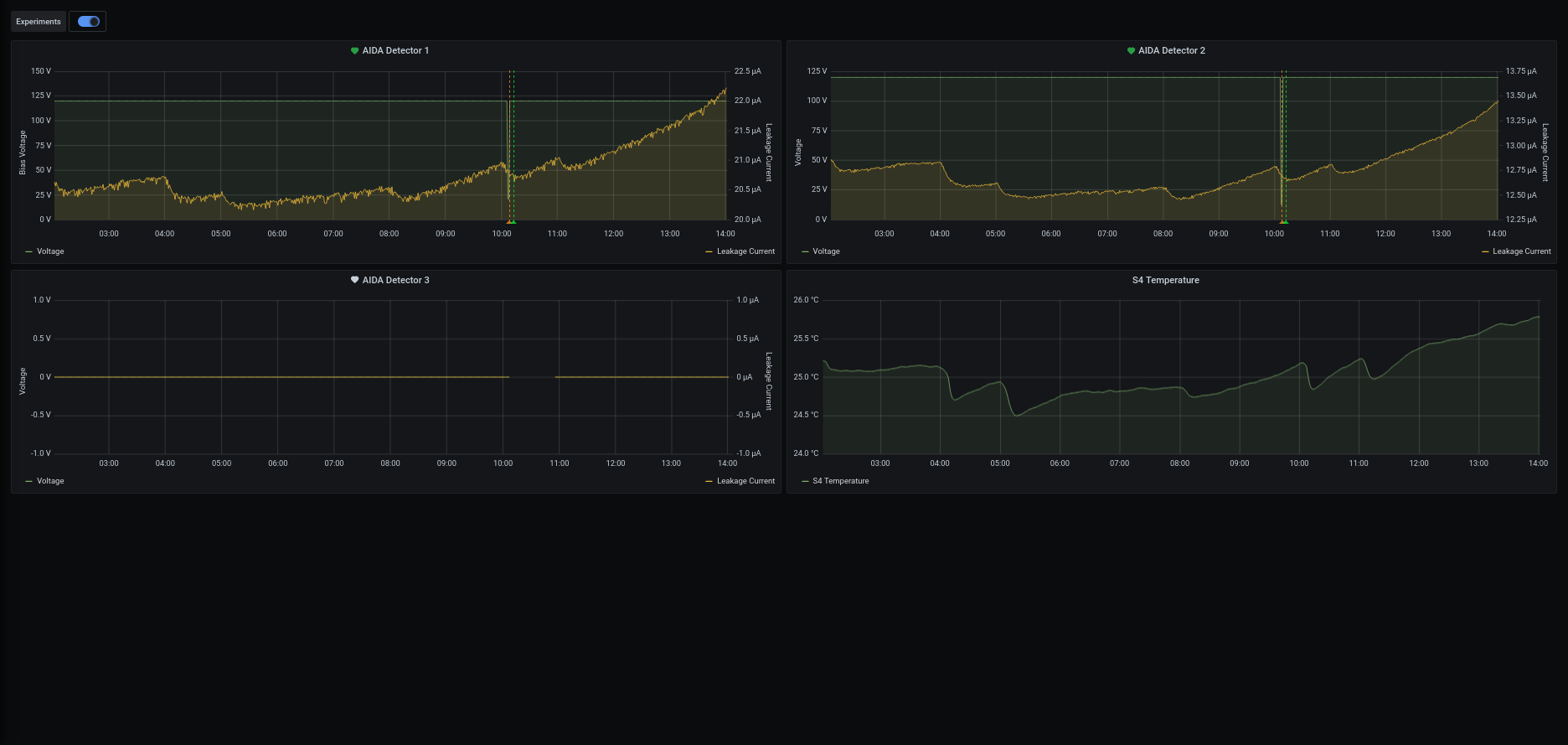

Grafana (AIDA) is now reporting data correctly too (attachment 21).
Summary - CAEN HV terminal display issue ( c. 10.05 - 10.55 )
Note the correct data/values continued to be shown. Leakage current shown correctly by both Grafana and CAEN HV control throughout.
Conclude this was a display issue - not a change in the operating parameters of the CAEN N1419ET.. Data should be OK.

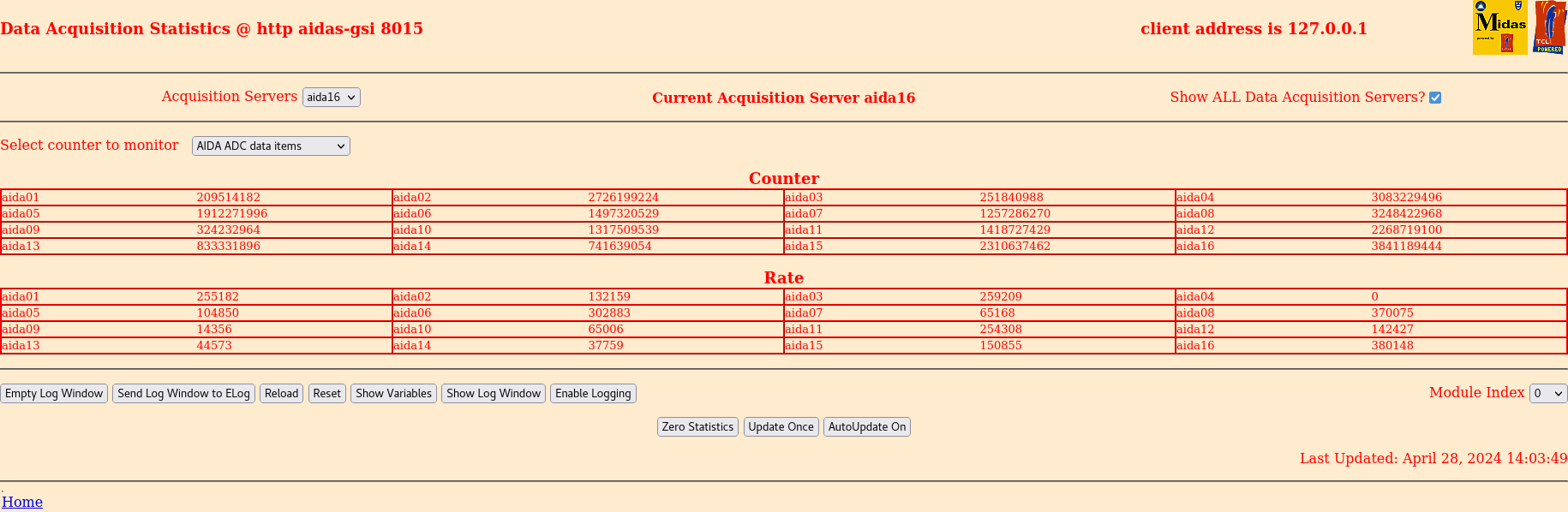

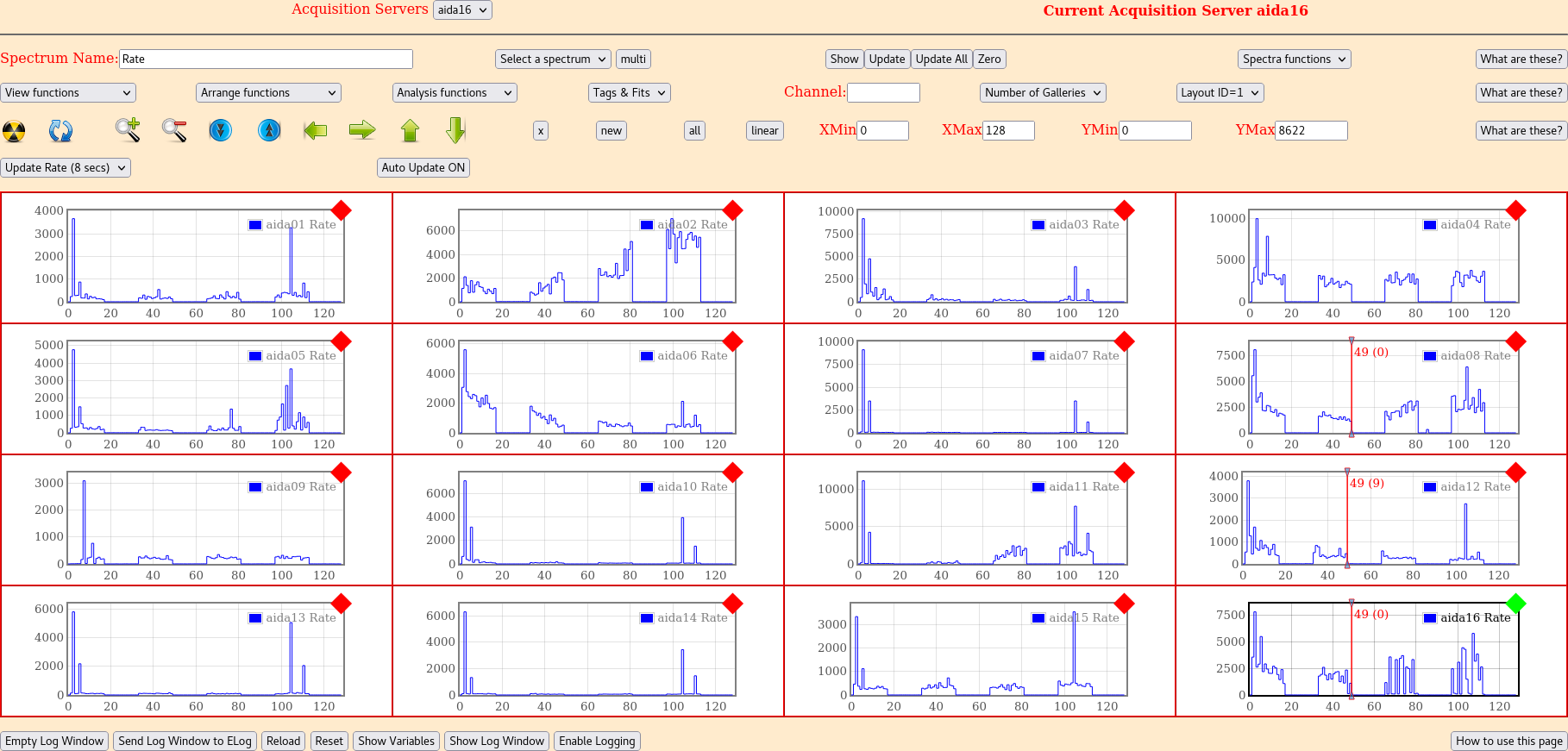

14.45 analysis data file R21_500 - attachment 36
max deadtime 22% (aida11), 16% (aida04), 7% (aida02), 6% (aida08), 6% (aida06) , all others < 1%
no timewarps
HEC data item rate 2.7kHz
*** TDR format 3.3.0 analyser - TD - May 2021 *** ERROR: READ I/O error: 5002 blocks: 32000 ADC data format: 259329603 ( 2382071.3 Hz) Other data format: 2590397 ( 23794.1 Hz) Sample trace data format: 0 ( 0.0 Hz) Undefined format: 0 ( 0.0 Hz) Other data format type: PAUSE: 1783 ( 16.4 Hz) RESUME: 1783 ( 16.4 Hz) SYNC100: 32405 ( 297.7 Hz) WR48-63: 32405 ( 297.7 Hz) FEE64 disc: 0 ( 0.0 Hz) MBS info: 2522021 ( 23166.0 Hz) Other info: 0 ( 0.0 Hz) ADC data range bit set: 289080 ( 2655.3 Hz) Timewarps: ADC: 0 ( 0.0 Hz) PAUSE: 0 ( 0.0 Hz) RESUME: 0 ( 0.0 Hz) SYNC100: 0 ( 0.0 Hz) WR48-63: 0 ( 0.0 Hz) FEE64 disc: 0 ( 0.0 Hz) MBS info: 0 ( 0.0 Hz) Undefined: 0 ( 0.0 Hz) Sample trace: 0 ( 0.0 Hz) *** Timestamp elapsed time: 108.867 s FEE elapsed dead time(s) elapsed idle time(s) 0 1.124 0.000 1 7.512 0.000 2 0.941 0.000 3 17.003 0.000 4 0.495 0.000 5 6.767 0.000 6 0.004 0.000 7 7.595 0.000 8 0.000 0.000 9 0.006 0.000 10 24.536 0.000 11 0.145 0.000 12 0.001 0.000 13 0.000 0.000 14 0.322 0.000 15 8.584 0.000 16 0.000 0.000 17 0.000 0.000 18 0.000 0.000 19 0.000 0.000 20 0.000 0.000 21 0.000 0.000 22 0.000 0.000 23 0.000 0.000 24 0.000 0.000 25 0.000 0.000 26 0.000 0.000 27 0.000 0.000 28 0.000 0.000 29 0.000 0.000 30 0.000 0.000 31 0.000 0.000 32 0.000 0.000 *** Statistics FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data 0 22169110 8971 0 0 57 57 2822 2822 0 3213 0 16255 1 12639517 112315 0 0 99 99 1612 1612 0 108893 0 29028 2 22281064 1127033 0 0 37 37 2985 2985 0 1120989 0 11197 3 20798124 911187 0 0 135 135 2715 2715 0 905487 0 8456 4 9363935 176936 0 0 14 14 1205 1205 0 174498 0 11991 5 27019969 216459 0 0 325 325 3434 3434 0 208941 0 9910 6 6076361 1558 0 0 2 2 777 777 0 0 0 3470 7 35565405 8998 0 0 189 189 4310 4310 0 0 0 153479 8 1477425 362 0 0 0 0 181 181 0 0 0 6096 9 6250272 1506 0 0 2 2 751 751 0 0 0 2572 10 27290515 8024 0 0 662 662 3350 3350 0 0 0 840 11 10865846 2620 0 0 16 16 1294 1294 0 0 0 22001 12 3883231 948 0 0 2 2 472 472 0 0 0 3485 13 3455565 826 0 0 0 0 413 413 0 0 0 4071 14 11216035 2794 0 0 51 51 1346 1346 0 0 0 2348 15 38977229 9860 0 0 192 192 4738 4738 0 0 0 3881 16 0 0 0 0 0 0 0 0 0 0 0 0 17 0 0 0 0 0 0 0 0 0 0 0 0 18 0 0 0 0 0 0 0 0 0 0 0 0 19 0 0 0 0 0 0 0 0 0 0 0 0 20 0 0 0 0 0 0 0 0 0 0 0 0 21 0 0 0 0 0 0 0 0 0 0 0 0 22 0 0 0 0 0 0 0 0 0 0 0 0 23 0 0 0 0 0 0 0 0 0 0 0 0 24 0 0 0 0 0 0 0 0 0 0 0 0 25 0 0 0 0 0 0 0 0 0 0 0 0 26 0 0 0 0 0 0 0 0 0 0 0 0 27 0 0 0 0 0 0 0 0 0 0 0 0 28 0 0 0 0 0 0 0 0 0 0 0 0 29 0 0 0 0 0 0 0 0 0 0 0 0 30 0 0 0 0 0 0 0 0 0 0 0 0 31 0 0 0 0 0 0 0 0 0 0 0 0 32 0 0 0 0 0 0 0 0 0 0 0 0 *** Timewarps FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 2 0 0 0 0 0 0 0 0 0 3 0 0 0 0 0 0 0 0 0 4 0 0 0 0 0 0 0 0 0 5 0 0 0 0 0 0 0 0 0 6 0 0 0 0 0 0 0 0 0 7 0 0 0 0 0 0 0 0 0 8 0 0 0 0 0 0 0 0 0 9 0 0 0 0 0 0 0 0 0 10 0 0 0 0 0 0 0 0 0 11 0 0 0 0 0 0 0 0 0 12 0 0 0 0 0 0 0 0 0 13 0 0 0 0 0 0 0 0 0 14 0 0 0 0 0 0 0 0 0 15 0 0 0 0 0 0 0 0 0 16 0 0 0 0 0 0 0 0 0 17 0 0 0 0 0 0 0 0 0 18 0 0 0 0 0 0 0 0 0 19 0 0 0 0 0 0 0 0 0 20 0 0 0 0 0 0 0 0 0 21 0 0 0 0 0 0 0 0 0 22 0 0 0 0 0 0 0 0 0 23 0 0 0 0 0 0 0 0 0 24 0 0 0 0 0 0 0 0 0 25 0 0 0 0 0 0 0 0 0 26 0 0 0 0 0 0 0 0 0 27 0 0 0 0 0 0 0 0 0 28 0 0 0 0 0 0 0 0 0 29 0 0 0 0 0 0 0 0 0 30 0 0 0 0 0 0 0 0 0 31 0 0 0 0 0 0 0 0 0 32 0 0 0 0 0 0 0 0 0 *** Program elapsed time: 38.605s ( 828.898 blocks/s, 51.806 Mb/s)
