| DESPEC |
 |
|
|
|
Message ID: 622
Entry time: Mon Apr 29 08:11:16 2024
|
| Author: |
TD |
| Subject: |
Monday 29 April |
|
|
08.52 Beam off
09.11 New data file R22
Monitor accumulated implanted activity in bPlas and DSSSDs
ASIC settings 2024Apr26-01.29.53

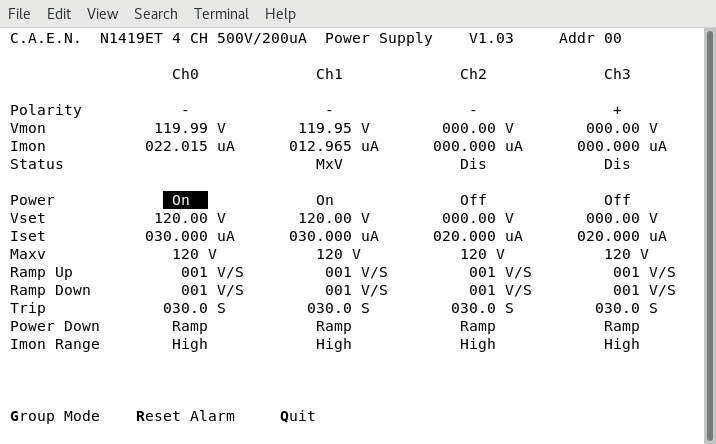

DSSSD bias & leakage current OK - attachments 1-3
FEE64 temperatures OK - attachment 4

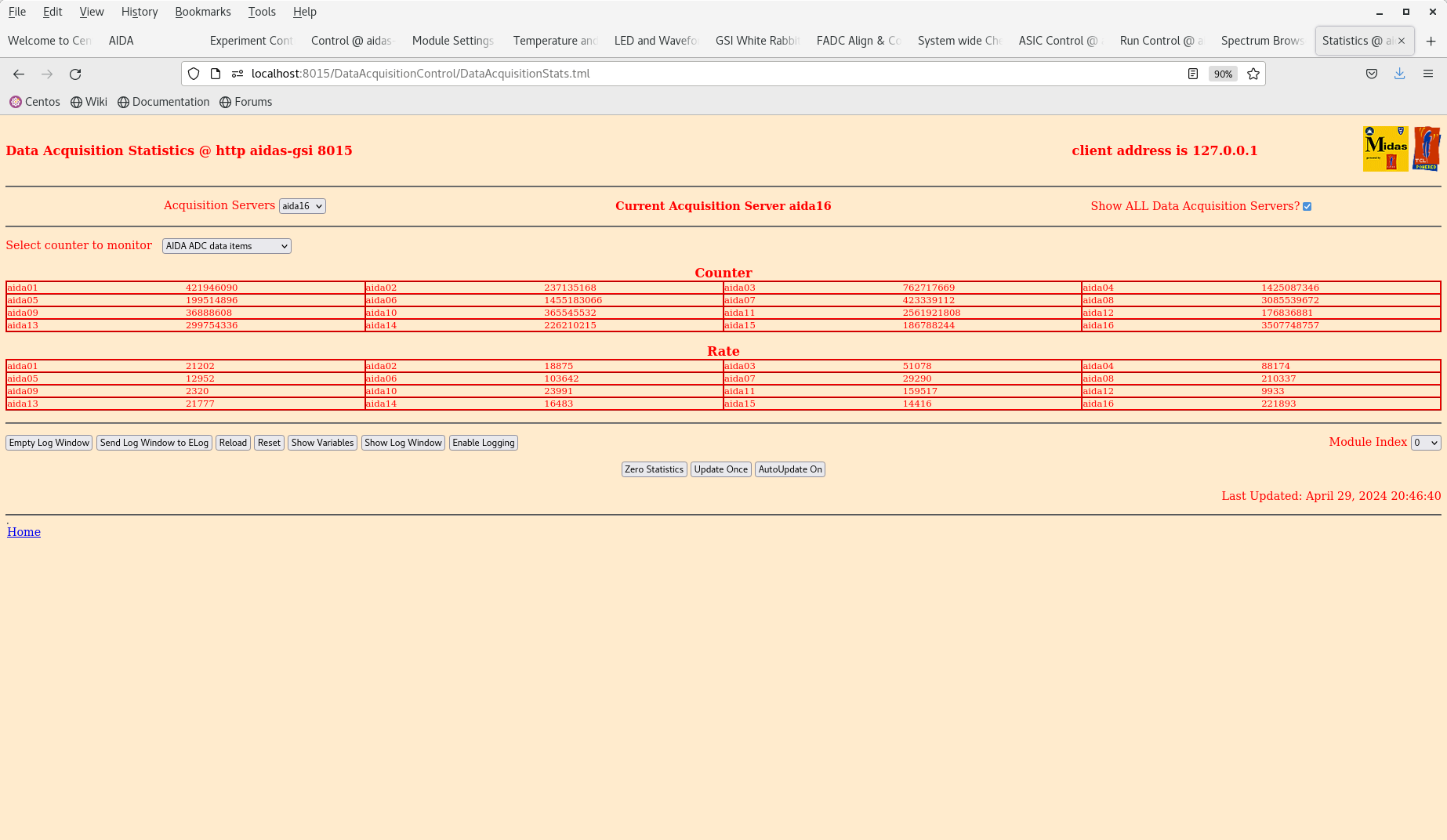

ADC data item stats - attachment 5
per FEE64 Rate spectra - attachment 6

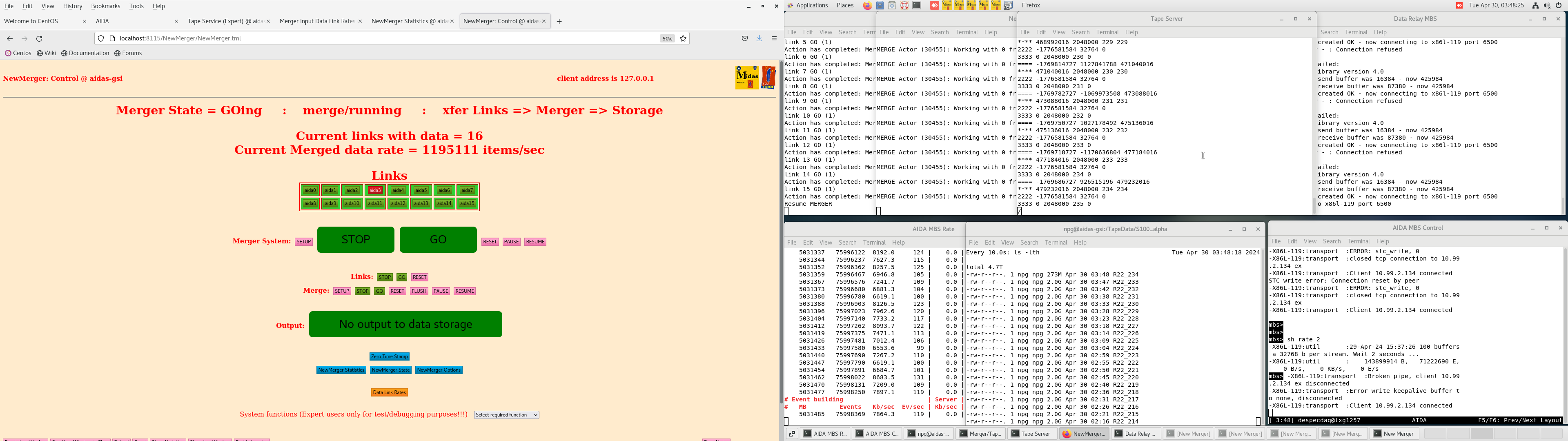

Merger etc - attachment 7
analysis data file R22_19 - attachment 8
all deadtimes 0.3%, or less
no timewarps
HEC data item rate 390Hz
10.00 all histograms & stats zero'd

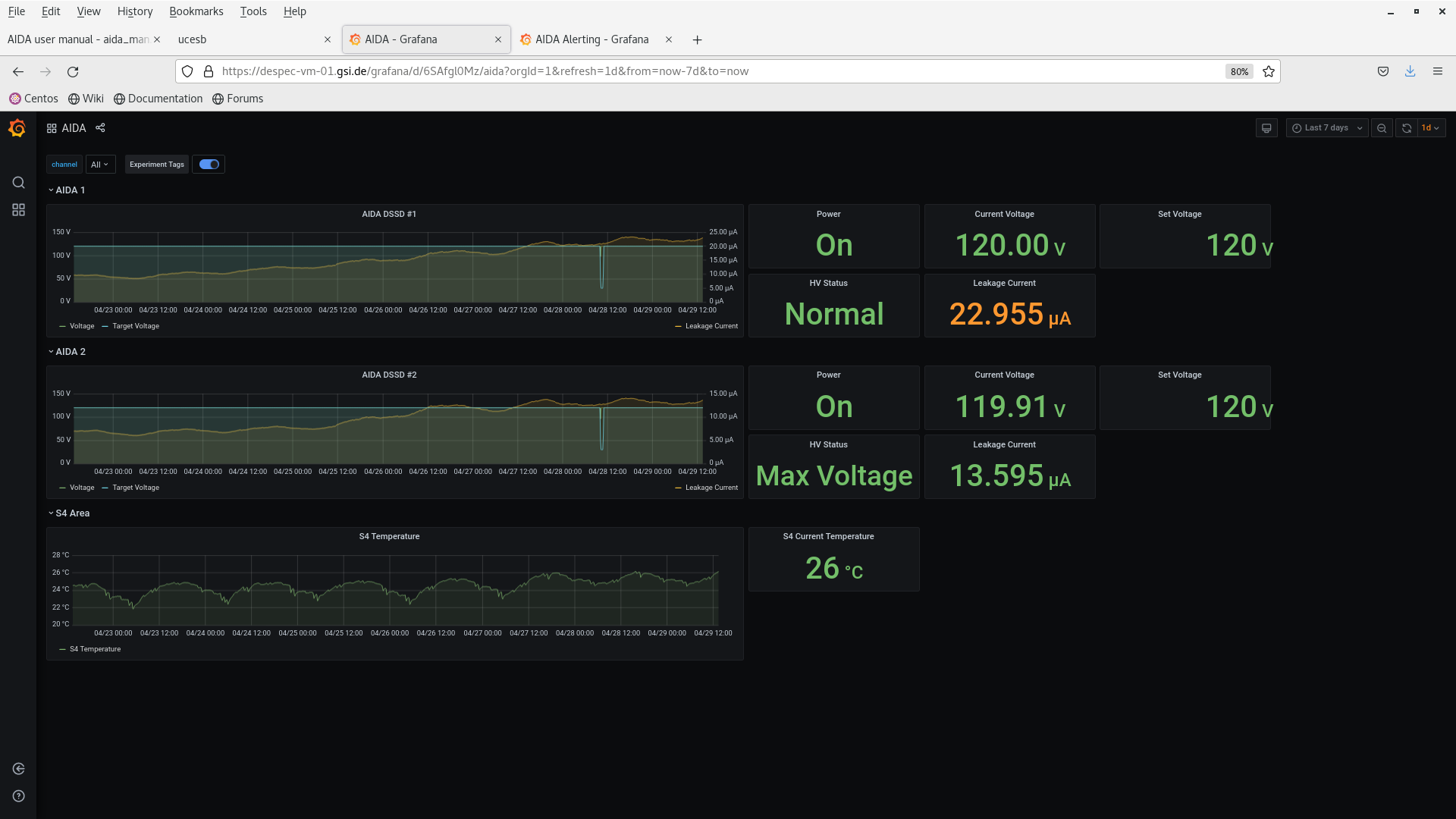

13.24 DSSSD bias & leakage current OK - attachments 9-10

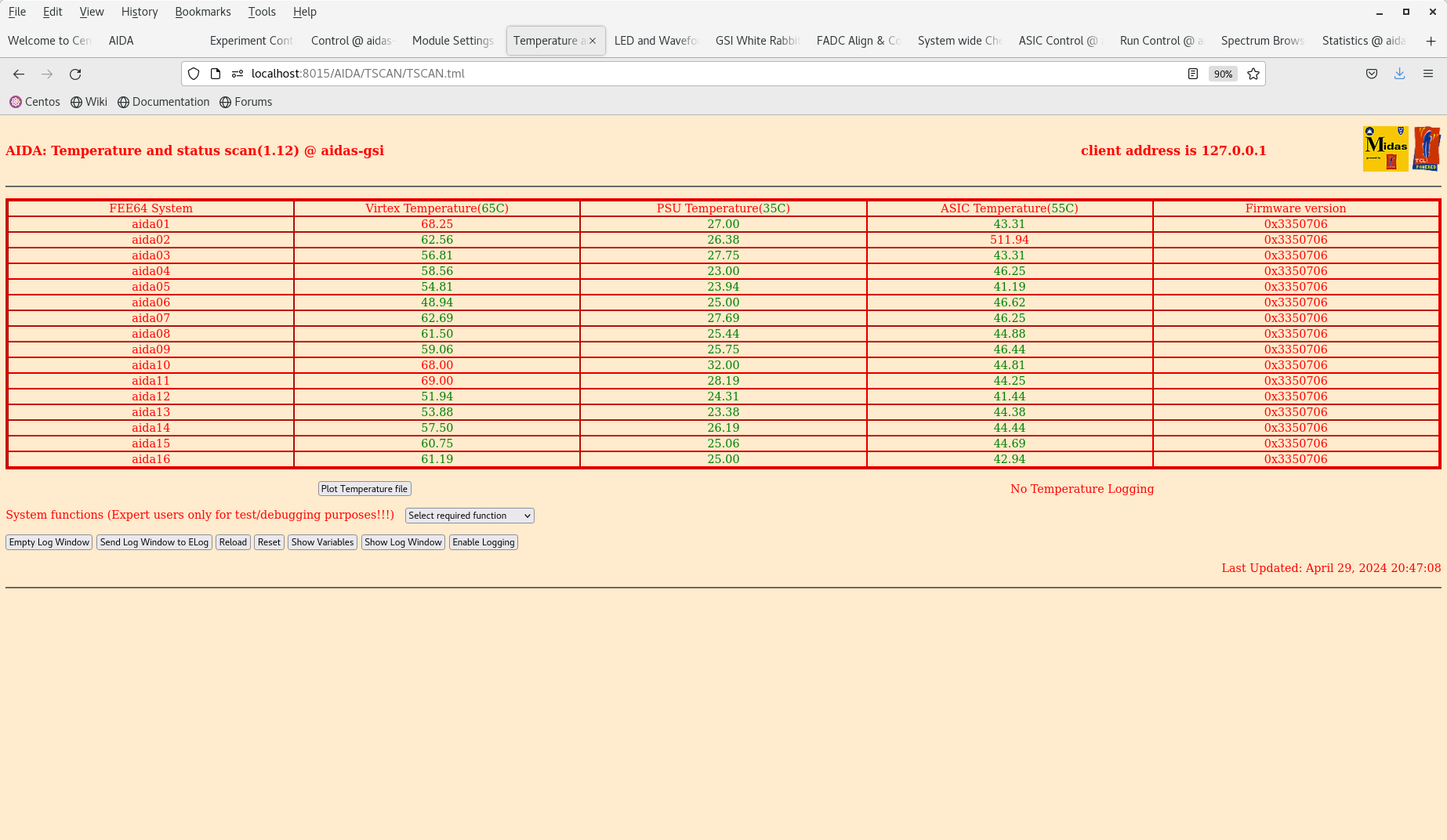

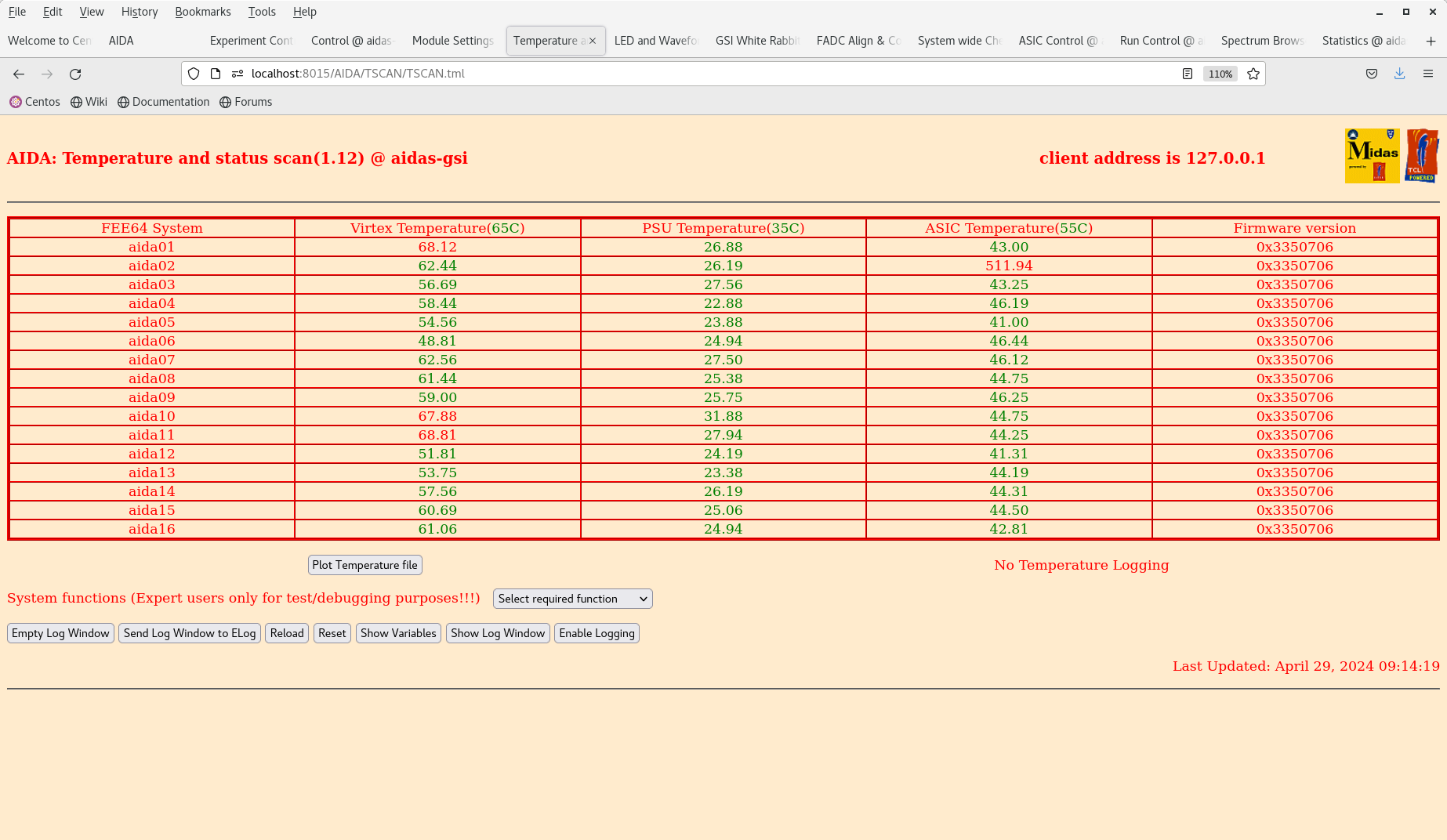

FEE64 temperatures OK - attachment 11
ADC data item stats - attachment 12
per FEE64 Rate spectra - attachment 13

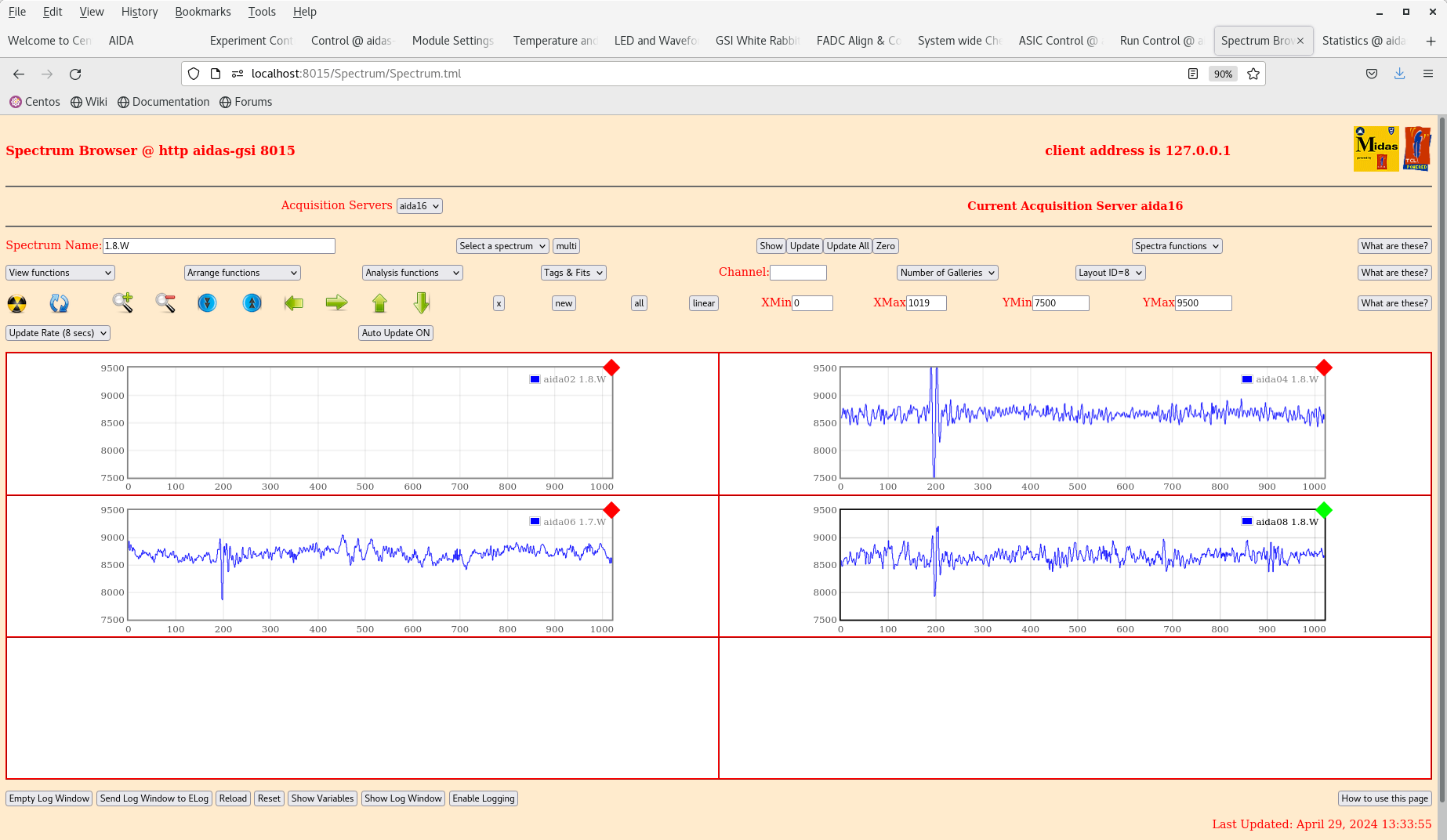

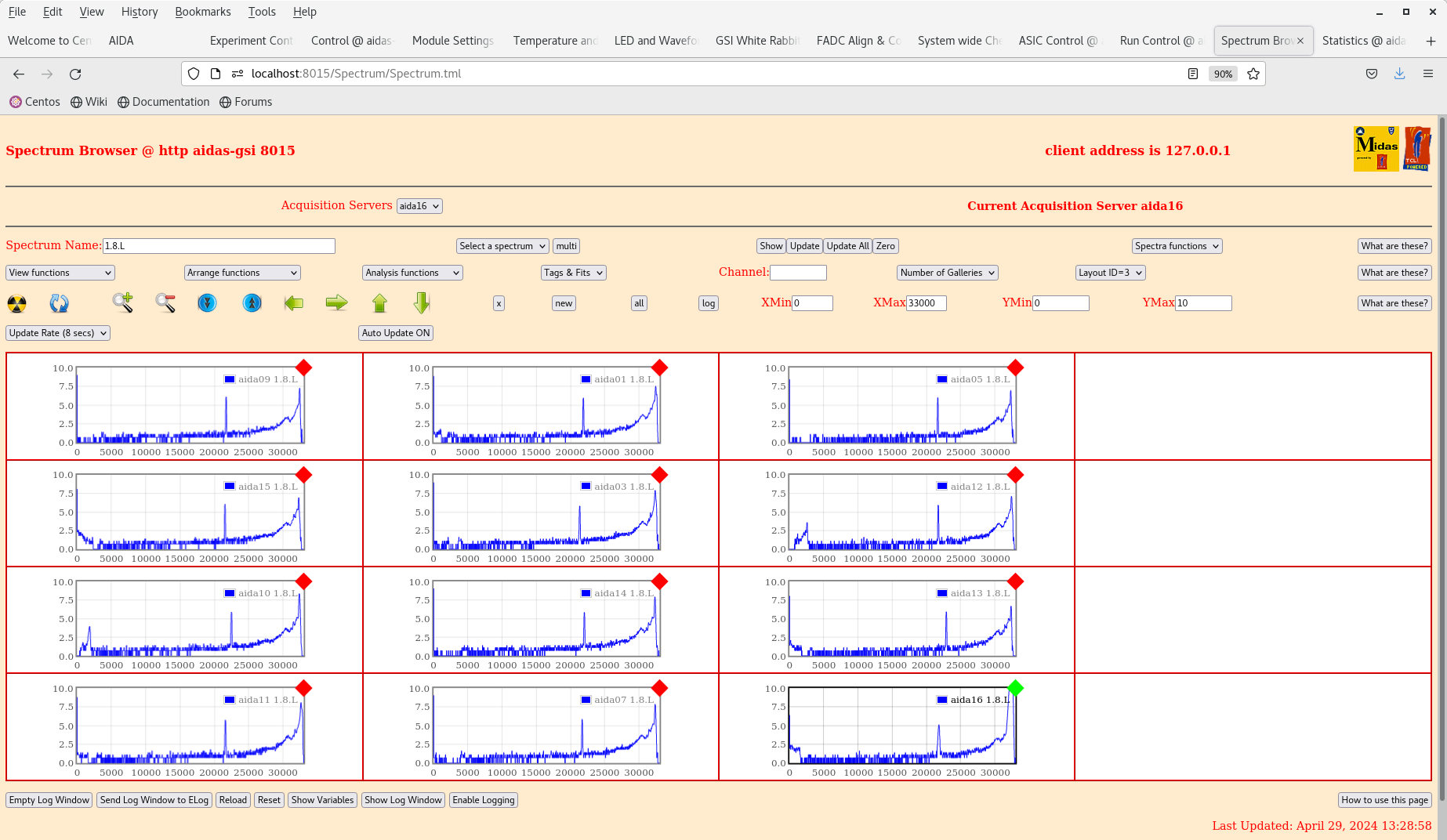

per p+n FEE64 1.8.L spectra - attachments 14-16
common x/y axes - peak height proxy for width
aida09 pulser peak width 58 ch FWHM (~41keV FWHM) cf. https://elog.ph.ed.ac.uk/DESPEC/585 attachment 38
electronic noise today very similar to electronic noise Monday 22 April

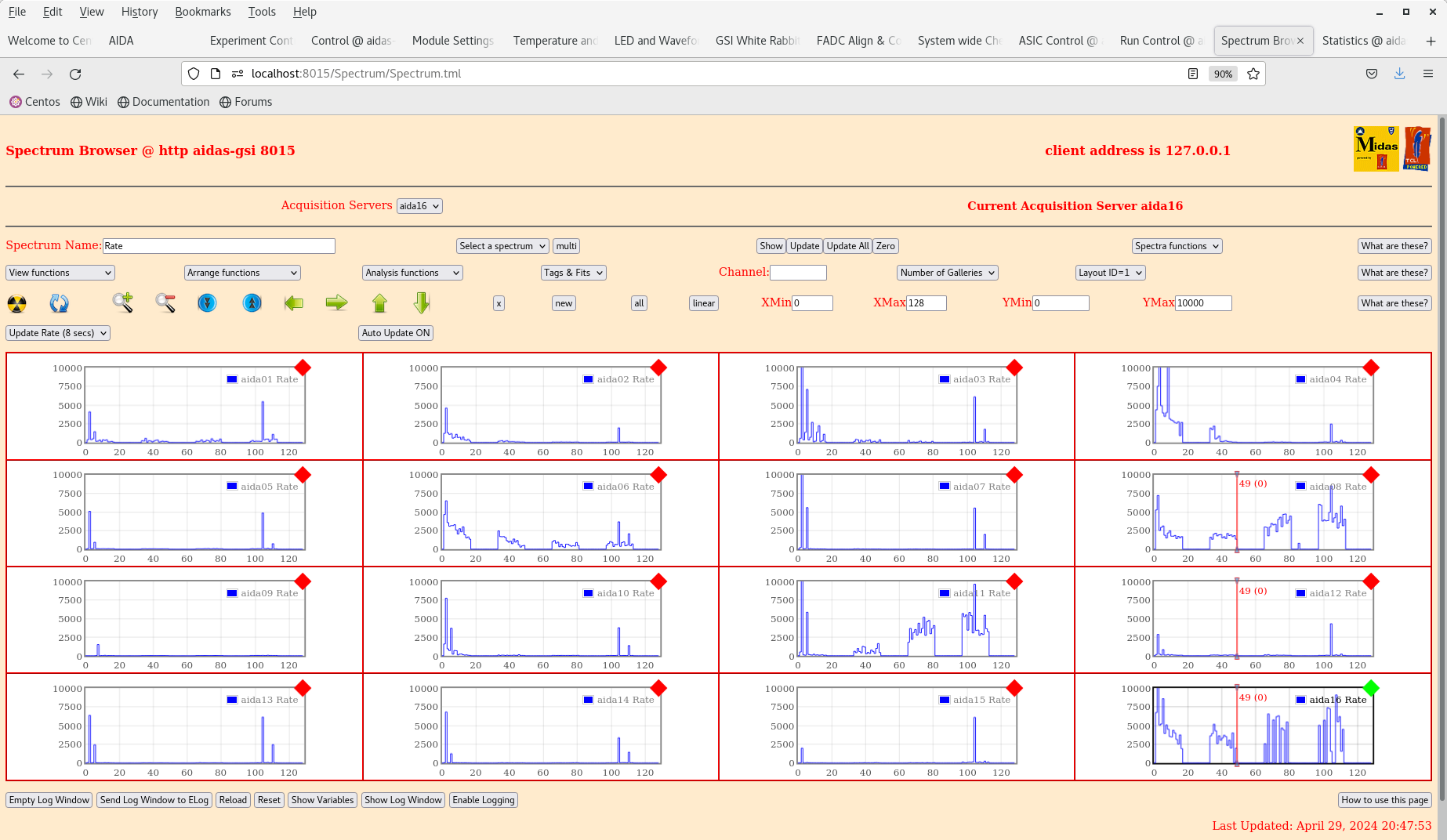

per FEE64 1.8.W spectra - 20us FSR - attachments 17-19
Merger etc - attachment 20
analysis data file R22_60 - attachment 21
max deadtime 1.7% (aida11), all others <1%
no timewarps
HEC data item rate 710Hz
14.13 ucesb - attachment 22
14.15 aida04 not producing data
14.33 DAQ reset per Elog 618 https://elog.ph.ed.ac.uk/DESPEC/618
15.27 *all* FEE64s stop producing data - reason unknown
16.15 DAQ reset per Elog 618 https://elog.ph.ed.ac.uk/DESPEC/618
16.29 DSSSD bias & leakage current OK - attachments 23-24

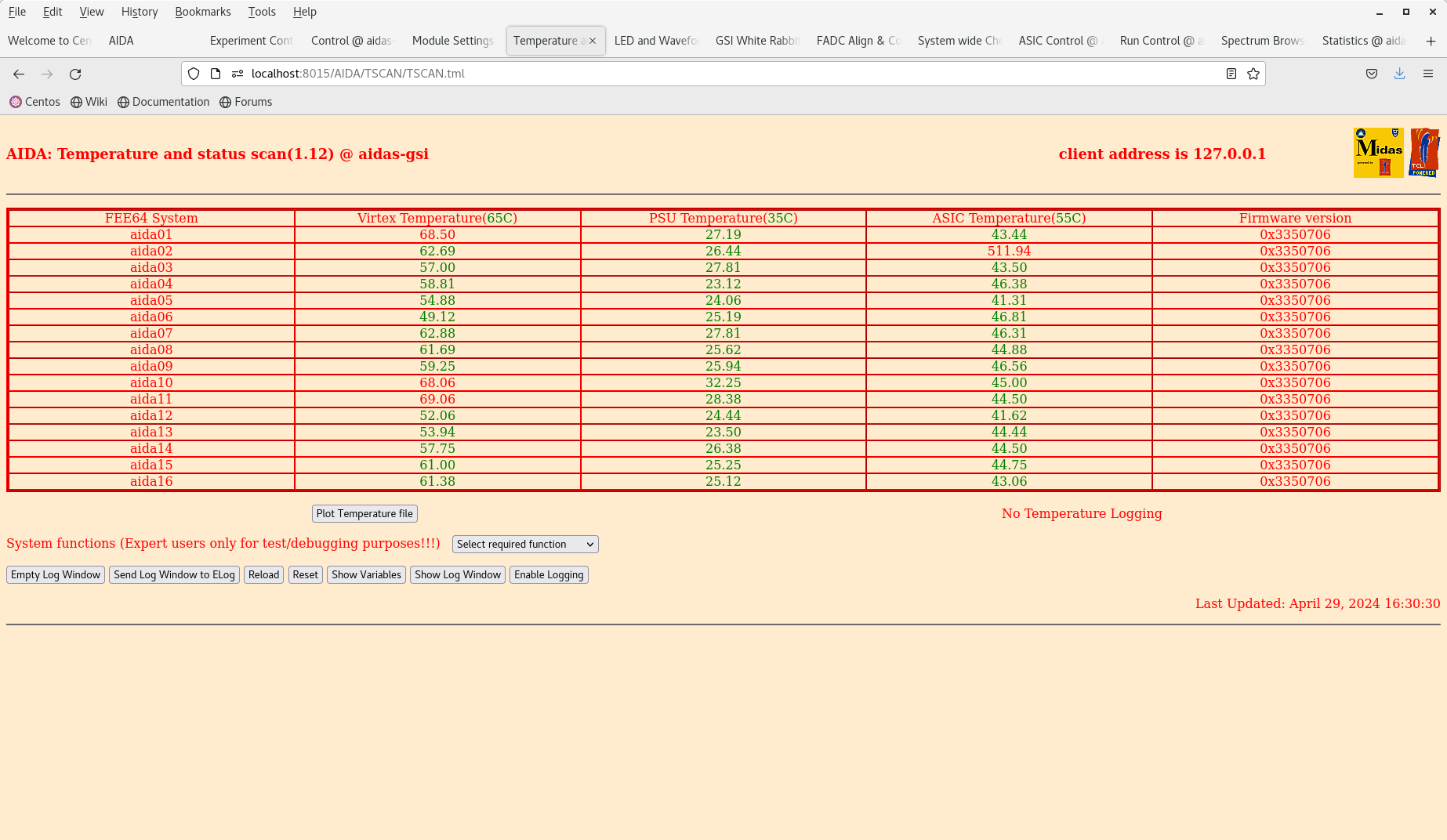

FEE64 temperatures OK - attachment 25

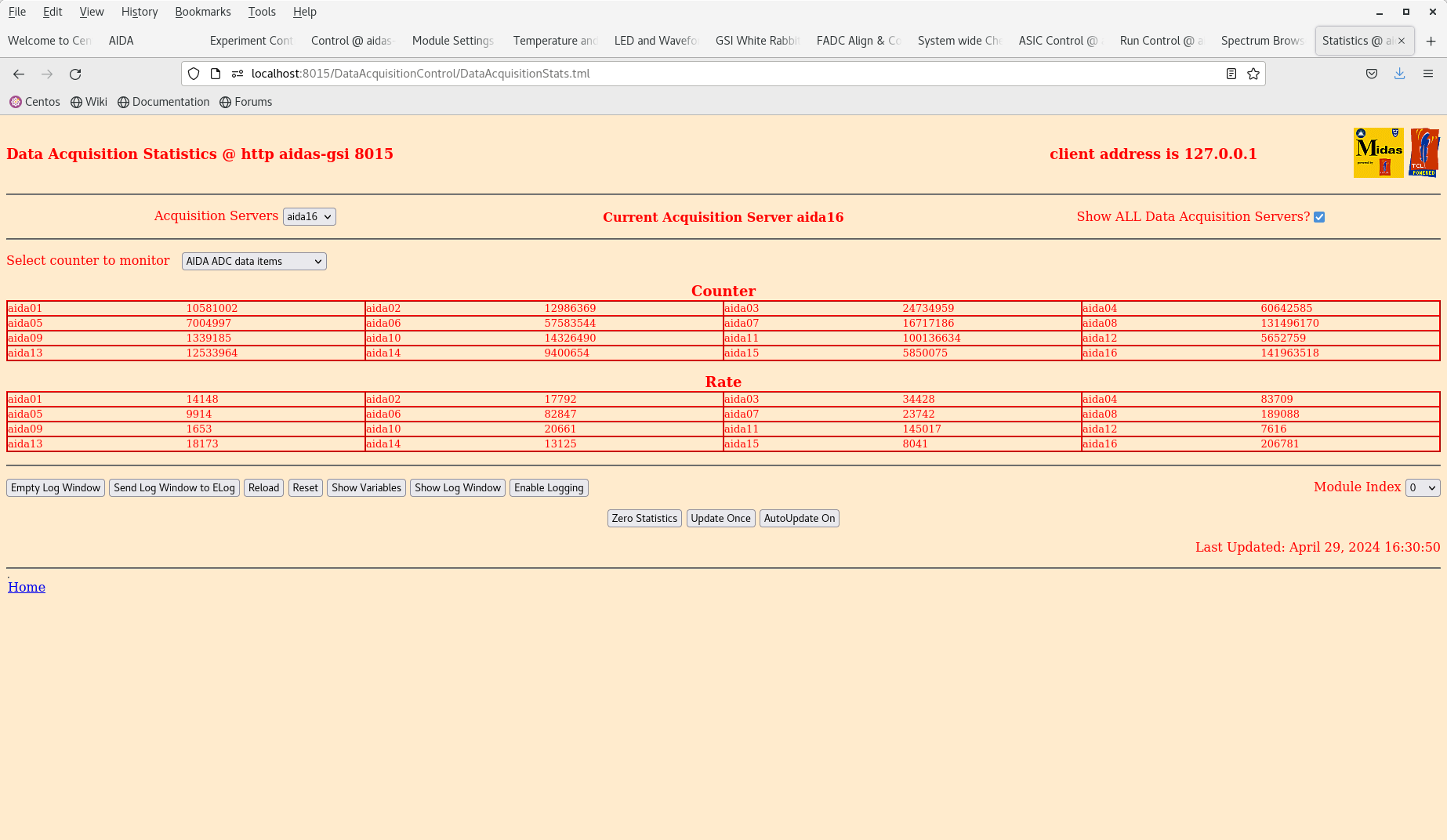

ADC data item stats - attachment 26
per FEE64 Rate spectra - attachment 27

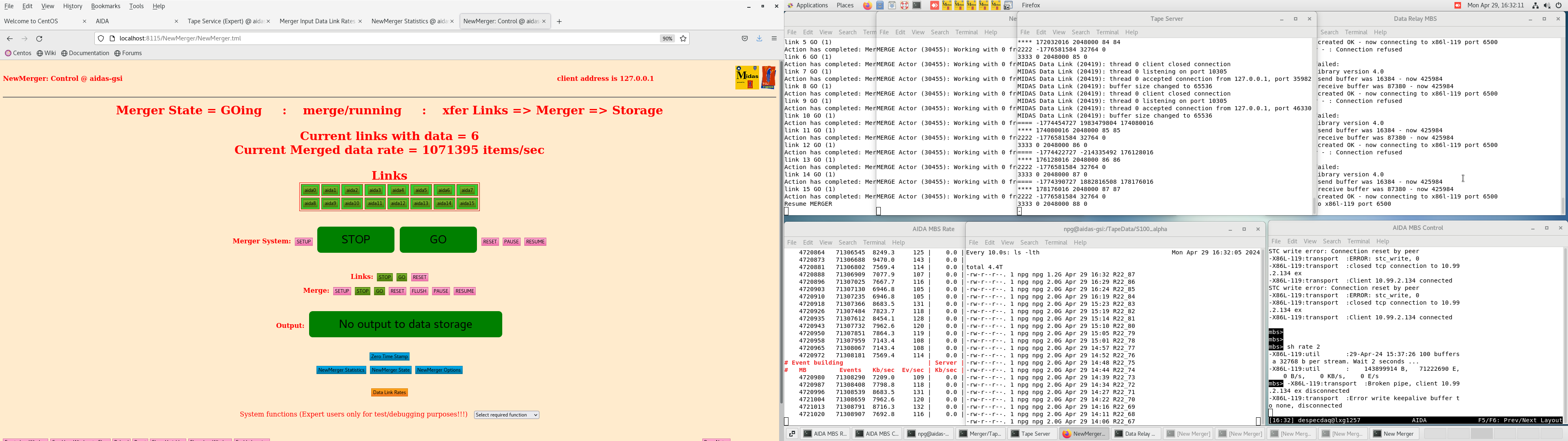

Merger etc - attachment 28

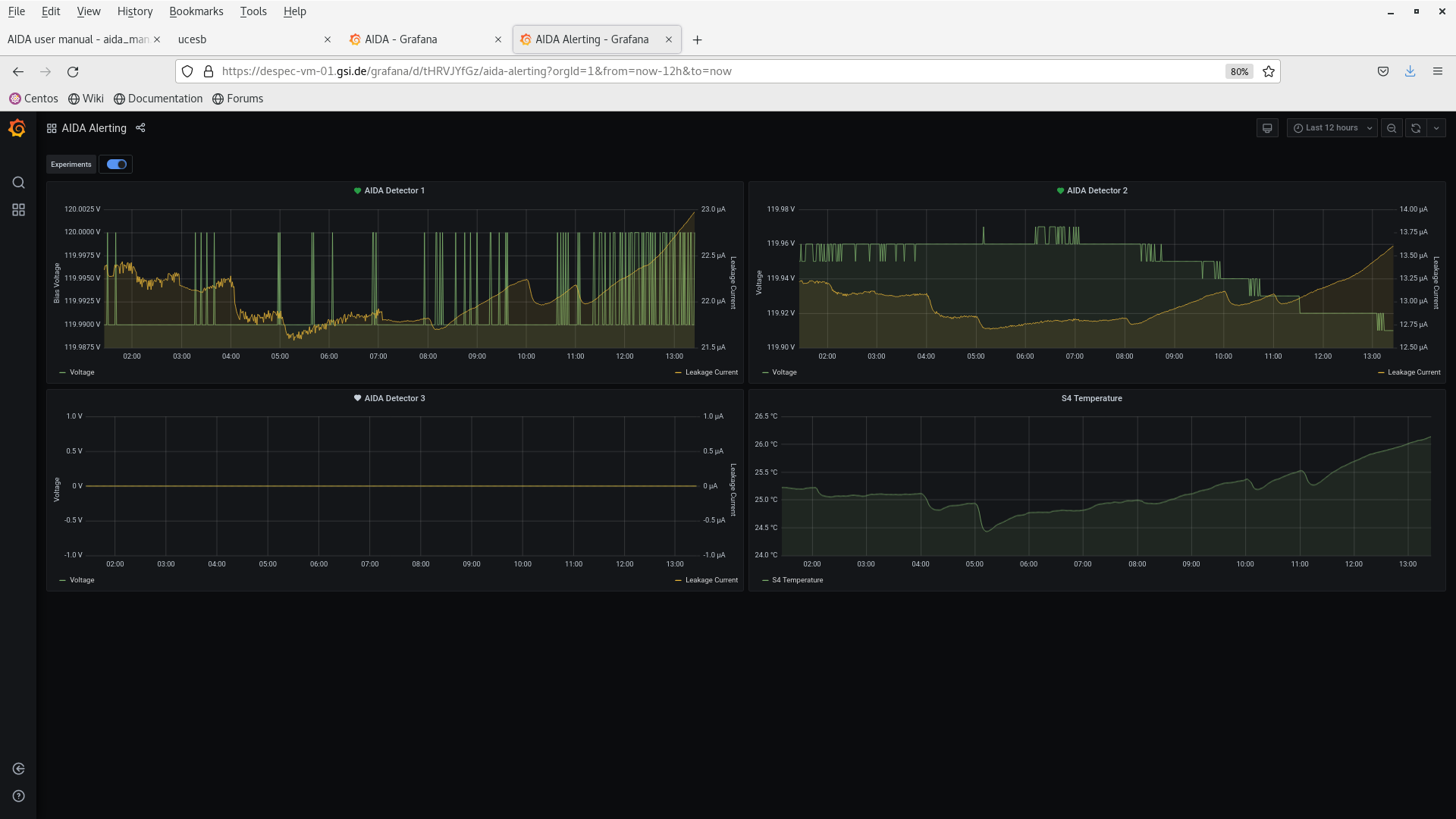

20.45 DSSSD bias & leakage current OK - attachments 29-30
FEE64 temperatures OK - attachment 32
ADC data item stats - attachment 31
per FEE64 Rate spectra - attachment 33
Merger etc - attachment 34
20.54 analysis data file R22_145 - attachment 35
max deadtime 1.5% (aida11), all others <1%
no timewarps
HEC data item rate 775Hz

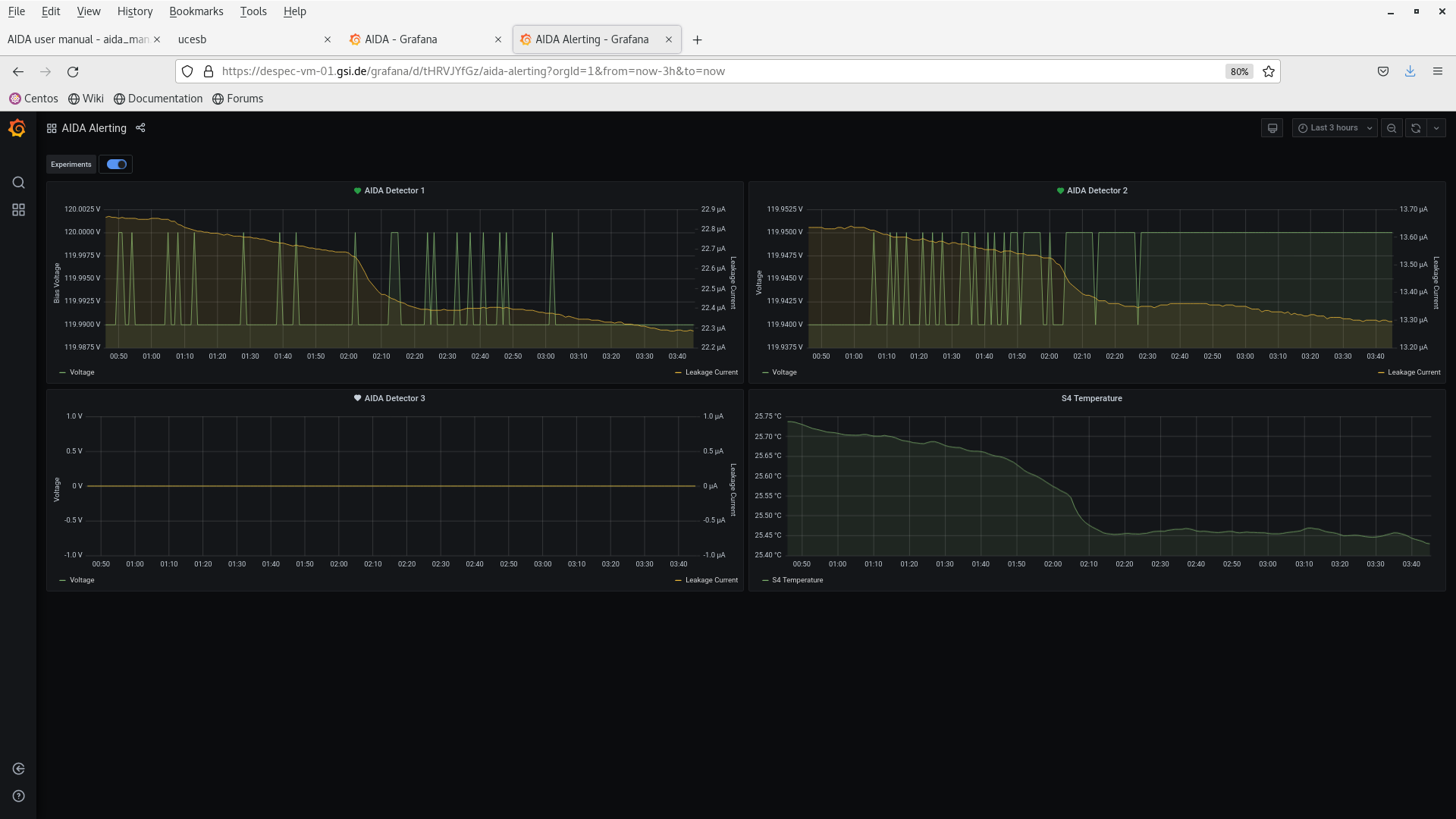

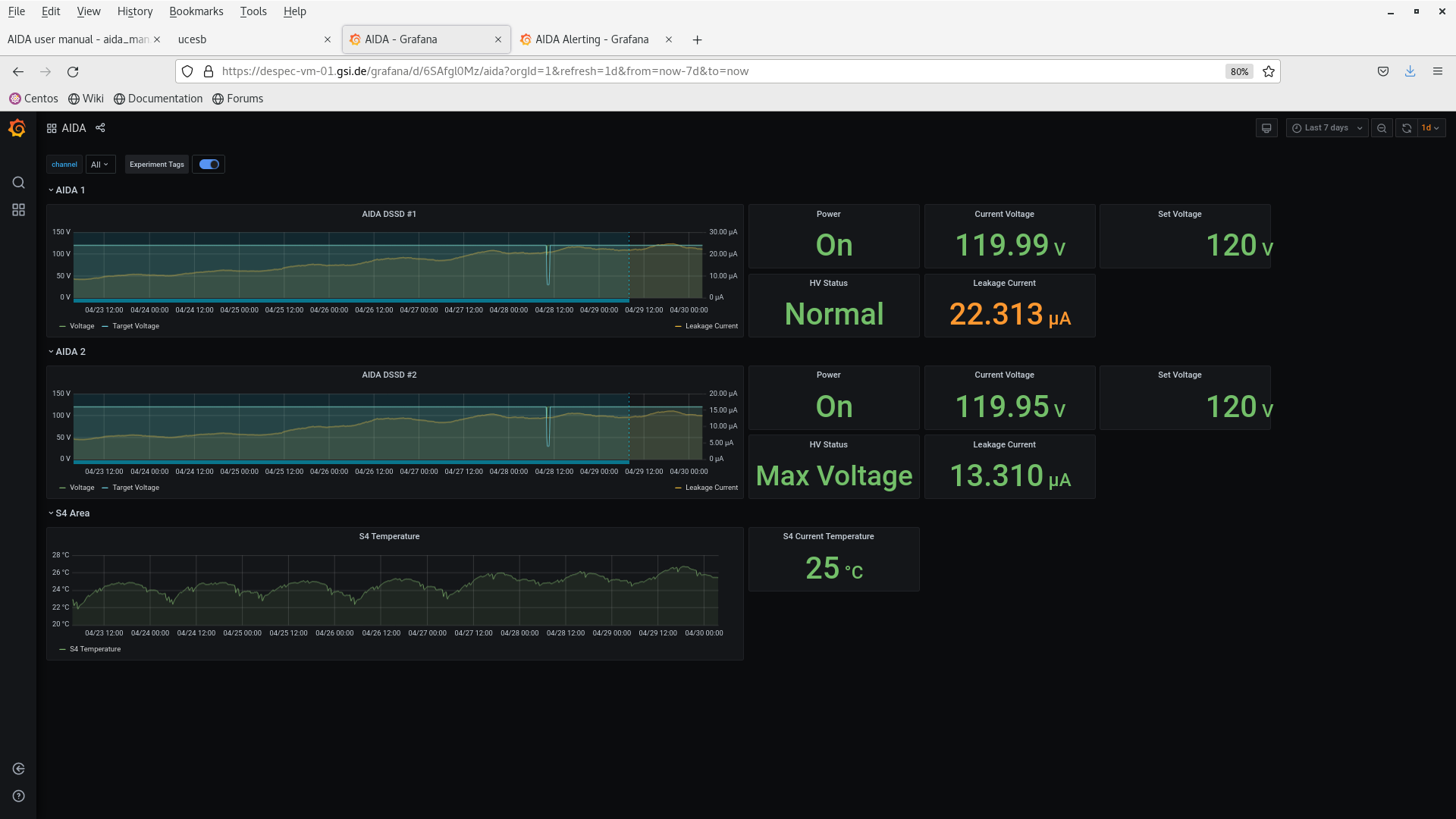

03.45 DSSSD bias & leakage current OK - attachments 36-37
FEE64 temperatures OK - attachment 38
ADC data item stats - attachment 39
per FEE64 Rate spectra - attachment 40
Merger etc - attachment 41 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
