| DESPEC |
 |
|
|
|
Message ID: 623
Entry time: Tue Apr 30 09:06:45 2024
|
| Author: |
TD, NH |
| Subject: |
Tuesday 30 April |
|
|

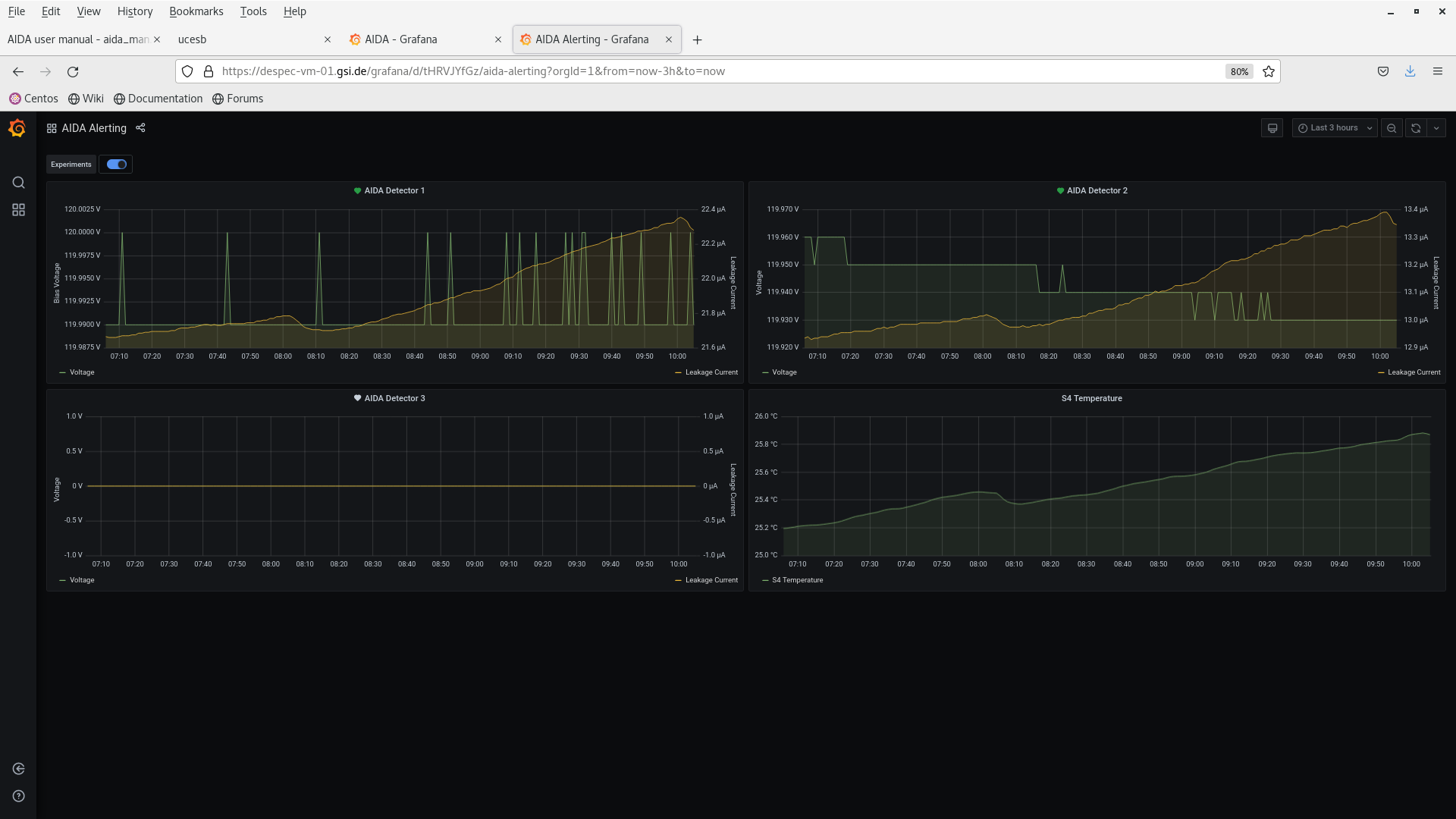

10.00 DSSSD bias & leakasge current - Grafana - attachments 1-2

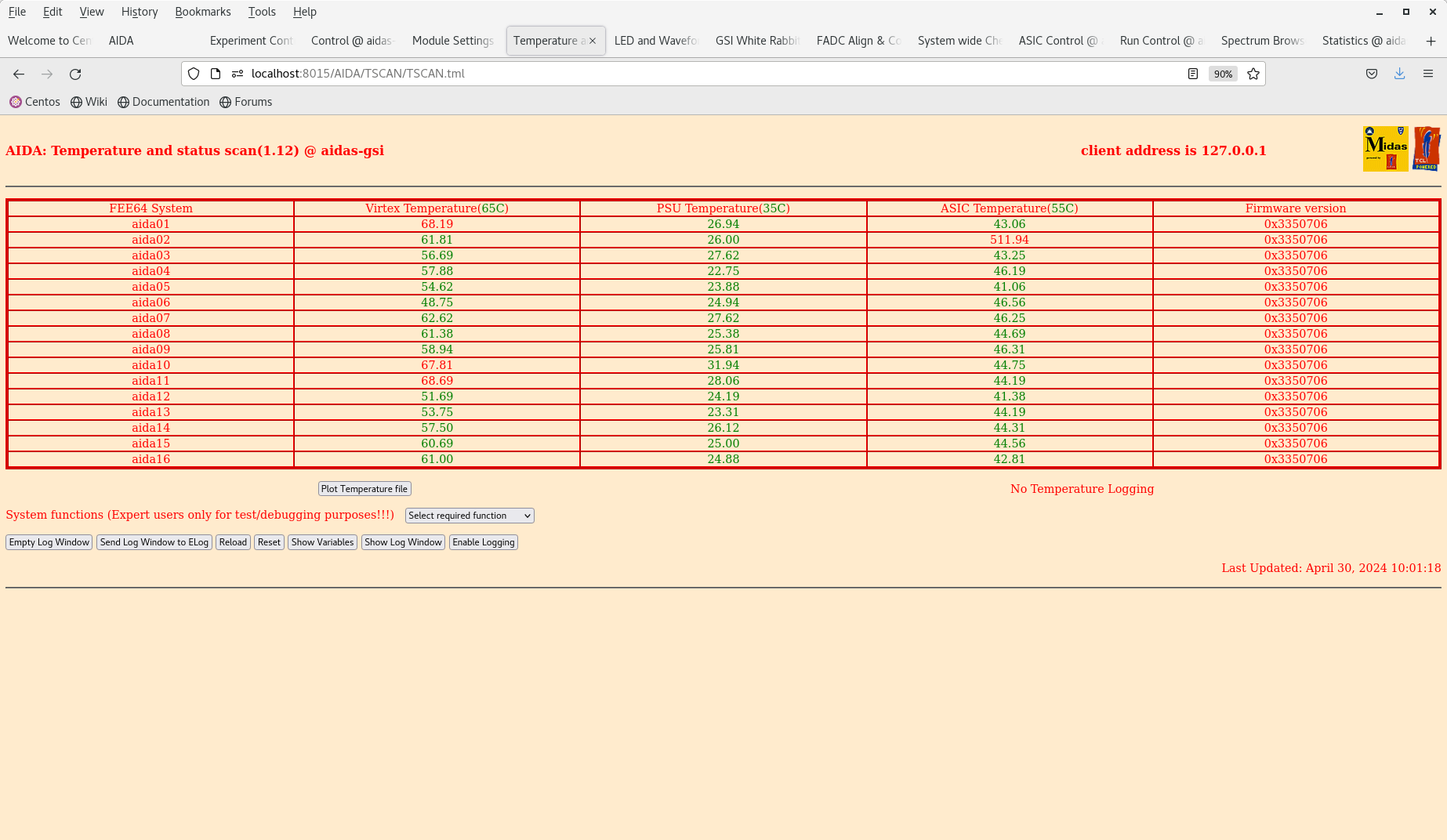

FEE64 temperatures OK - attachment 3

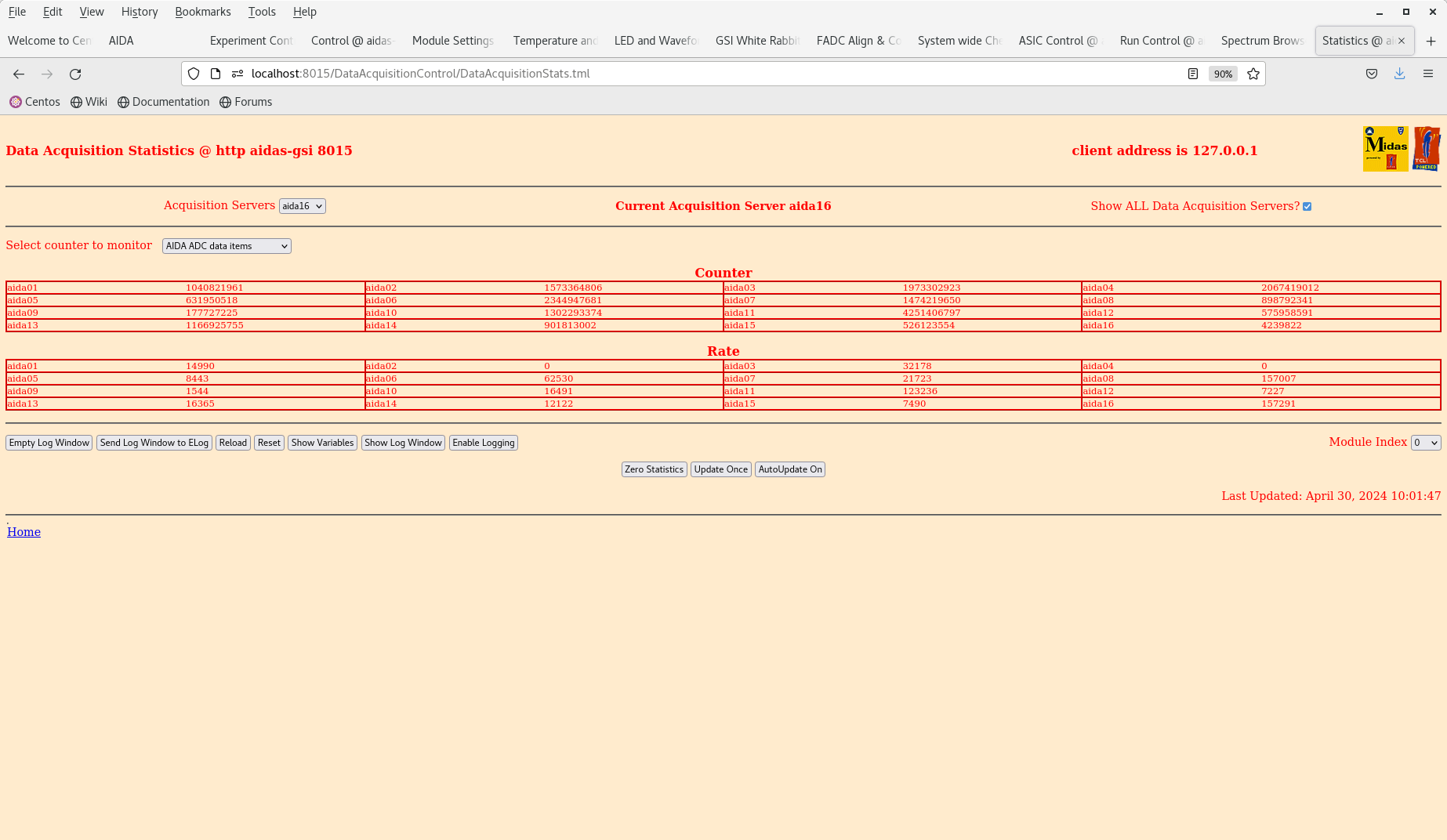

ADC data item stats - attachment 4
9/16 FEE64s < 20k
per FEE64 Rate spectra - attachment 5

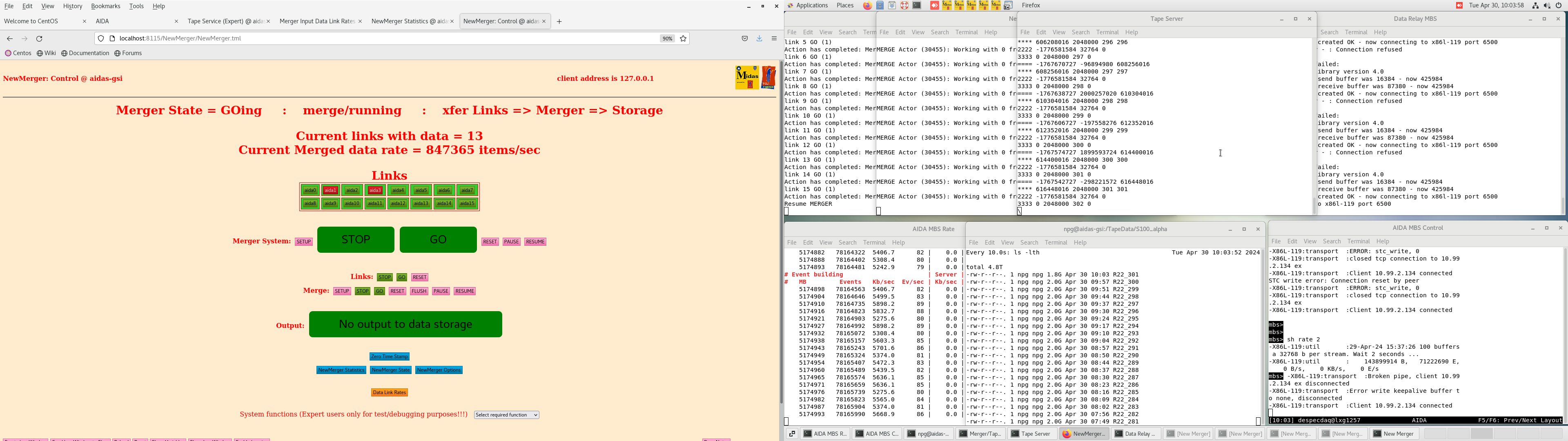

Merger etc - attachments 6-7
aida02, aida04 inactive
11.20 DAQ restarted
aida02 and aida04 now producing data
11.30 analysis data file R22_313
all deadtimes <1%
no timewarps
HEC data item rate 560Hz (all from one channel of aida08 asic #3)
aida03 & aida04 MBS rates c. 24kHz
14.32 FEE64 temperatures OK
ADC data item stats OK
all FEE64s producing data
14.43 all histograms & stats zero'd
[NH checks here]
21.26 aida04 stopped forwarding to merger
the "quick fix" (stop merger, rerun) worked
MBS is having huge issues on DESPEC side, AIDA not included
Decide to stop taking data to disk for now (no storage mode on)
Keeping running (incl. to AIDA FDR MBS) just to get an idea of stability
System Wide Checks
clocks PASSED
ADC IGNORED
WR:
Base Current Difference
aida02 fault 0xe4d8 : 0x65c0 : -32536
aida03 fault 0x2371 : 0x2380 : 15
aida04 fault 0xa210 : 0xaf58 : 3400
aida06 fault 0x3624 : 0x3626 : 2
White Rabbit error counter test result: Passed 12, Failed 4
FPGA:
Base Current Difference
aida02 fault 0xaa3b : 0xc455 : 6682
aida04 fault 0x5a4 : 0x6ba : 278
aida06 fault 0x0 : 0x1 : 1
FPGA Timestamp error counter test result: Passed 13, Failed 3
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last
Module aida04 LMK PLL channel 1 lock transition counter has incremented
Module aida04 LMK PLL channel 2 lock transition counter has incremented
PLL lock counter test result: Passed 15, Failed 1
Baselines reset
22.50 FEE64 temps ok
merger ok
all links active
ADC data item stats ok |
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 246802750 ( 787077.4 Hz)
Other data format: 15117251 ( 48210.3 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 802 ( 2.6 Hz)
RESUME: 802 ( 2.6 Hz)
SYNC100: 33168 ( 105.8 Hz)
WR48-63: 33168 ( 105.8 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 15049311 ( 47993.7 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 182597 ( 582.3 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 313.569 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.000 0.000
1 0.000 0.000
2 0.000 0.000
3 0.410 0.000
4 0.000 0.000
5 0.208 0.000
6 0.000 0.000
7 1.577 0.000
8 0.000 0.000
9 0.000 0.000
10 1.890 0.000
11 0.000 0.000
12 0.000 0.000
13 0.000 0.000
14 0.000 0.000
15 1.784 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 4403022 10517 0 0 0 0 556 556 0 9405 0 0
1 4797622 11663 0 0 0 0 607 607 0 10449 0 0
2 9960742 7551016 0 0 0 0 2246 2246 0 7546524 0 0
3 26989916 7491649 0 0 64 64 4294 4294 0 7482933 0 0
4 2737535 758 0 0 0 0 379 379 0 0 0 0
5 21805196 5662 0 0 70 70 2761 2761 0 0 0 0
6 6978804 1886 0 0 0 0 943 943 0 0 0 0
7 53329550 13820 0 0 126 126 6784 6784 0 0 0 182597
8 479454 122 0 0 0 0 61 61 0 0 0 0
9 5592721 1538 0 0 0 0 769 769 0 0 0 0
10 39929583 11138 0 0 441 441 5128 5128 0 0 0 0
11 2351324 636 0 0 0 0 318 318 0 0 0 0
12 5309169 1226 0 0 0 0 613 613 0 0 0 0
13 3913898 1006 0 0 0 0 503 503 0 0 0 0
14 2364855 578 0 0 0 0 289 289 0 0 0 0
15 55859359 14036 0 0 101 101 6917 6917 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 32.668s ( 979.553 blocks/s, 61.222 Mb/s)
|
