| DESPEC |
 |
|
|
|
Message ID: 651
Entry time: Tue Jun 11 15:01:07 2024
|
| Author: |
PP TD |
| Subject: |
16:00-00:00 shift Tuesday 11/06/24 |
|
|
All seems OK

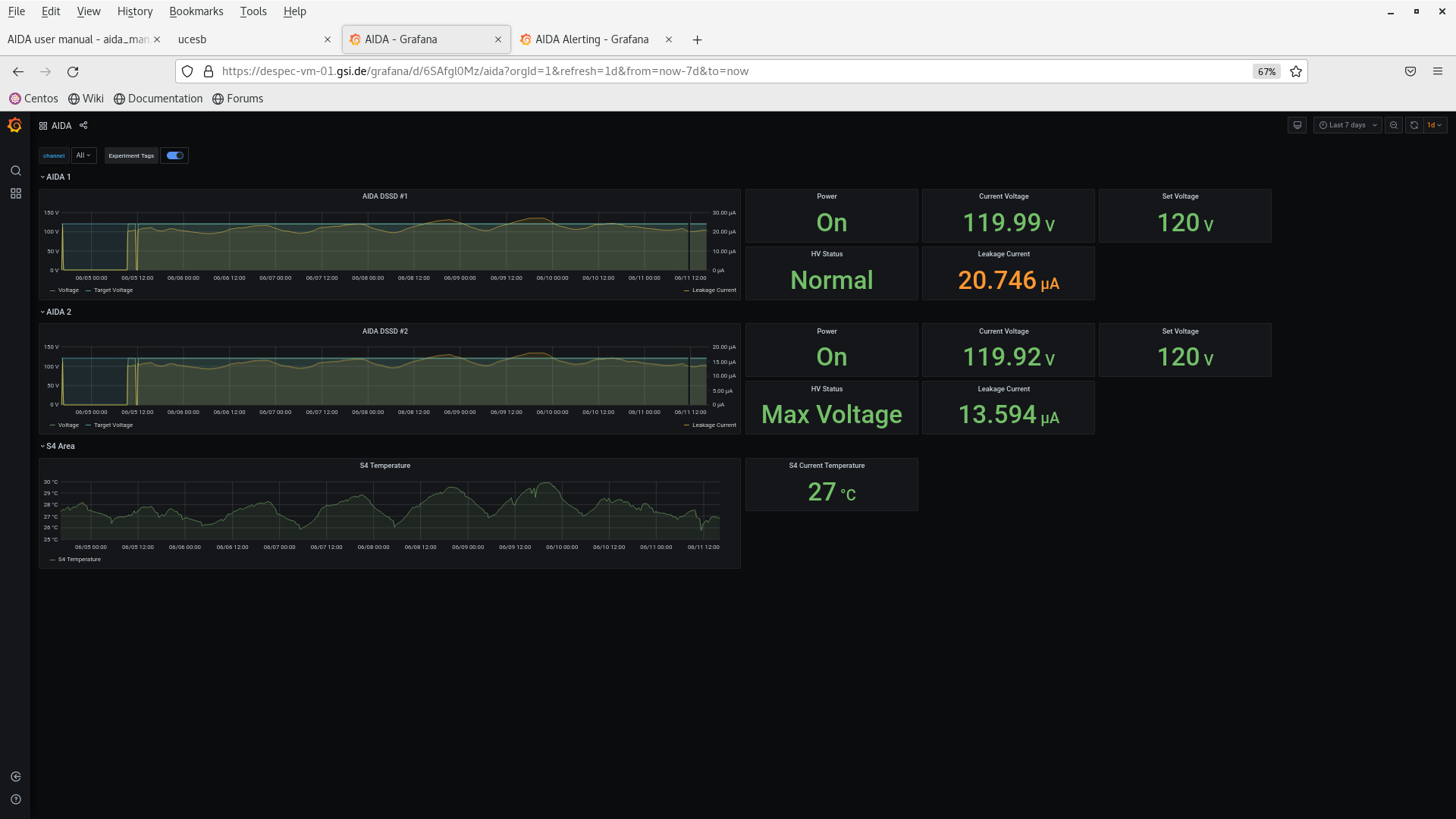

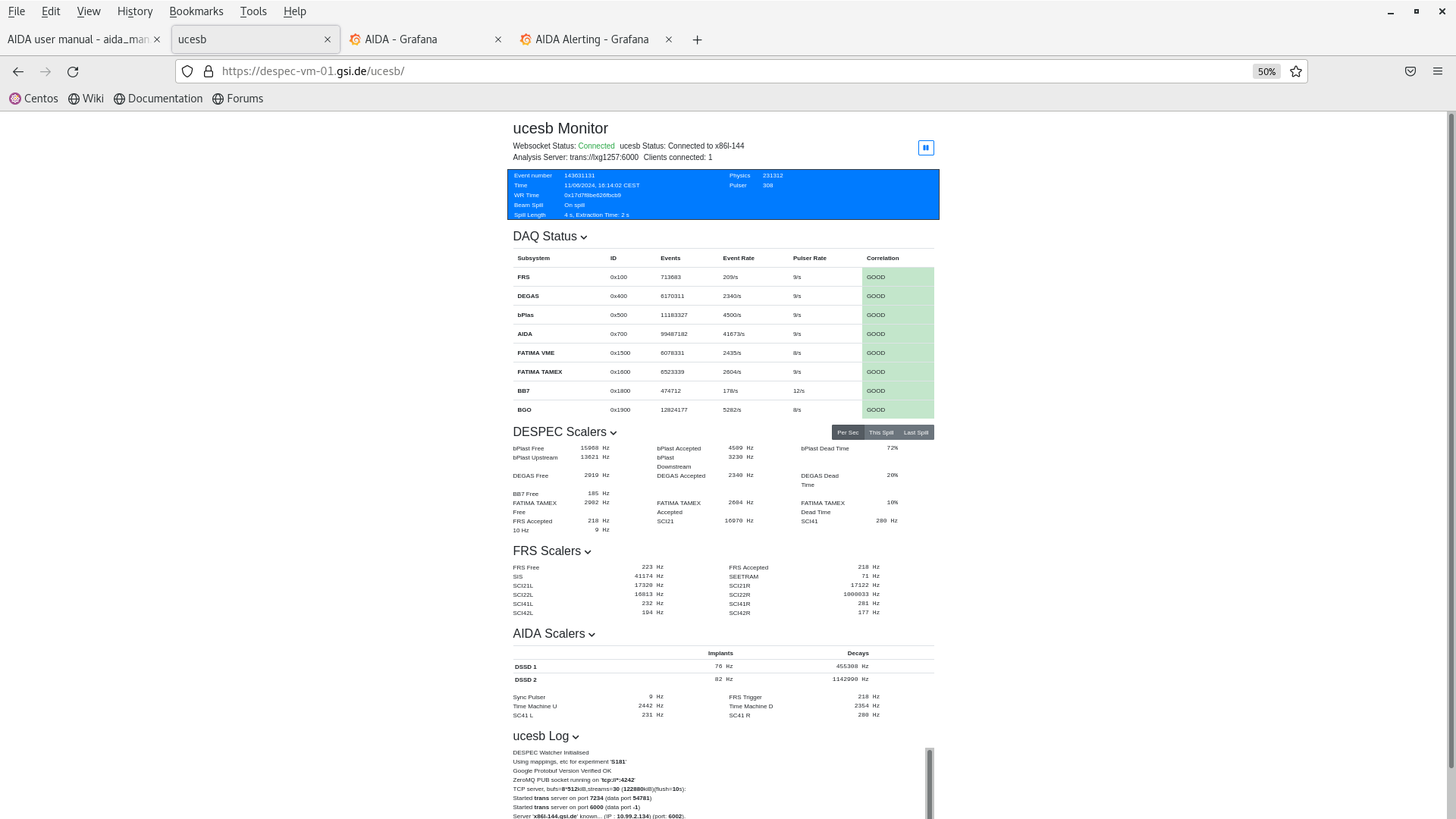

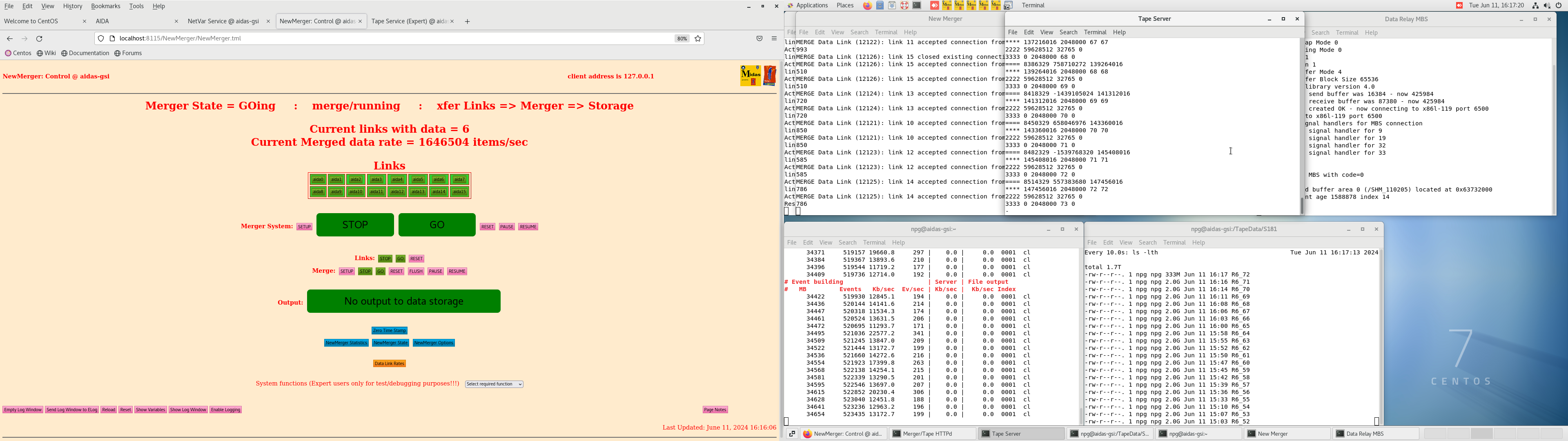

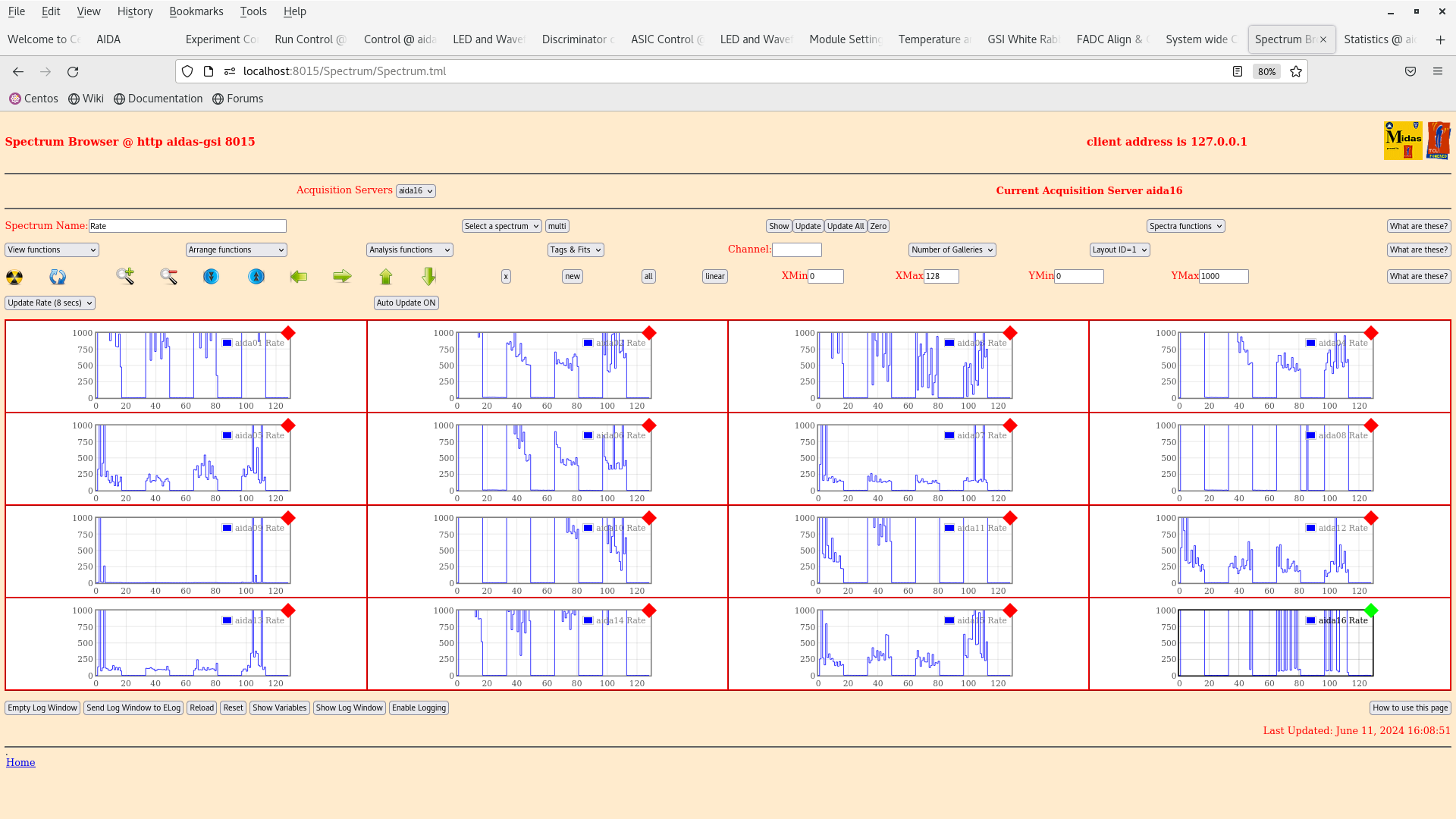

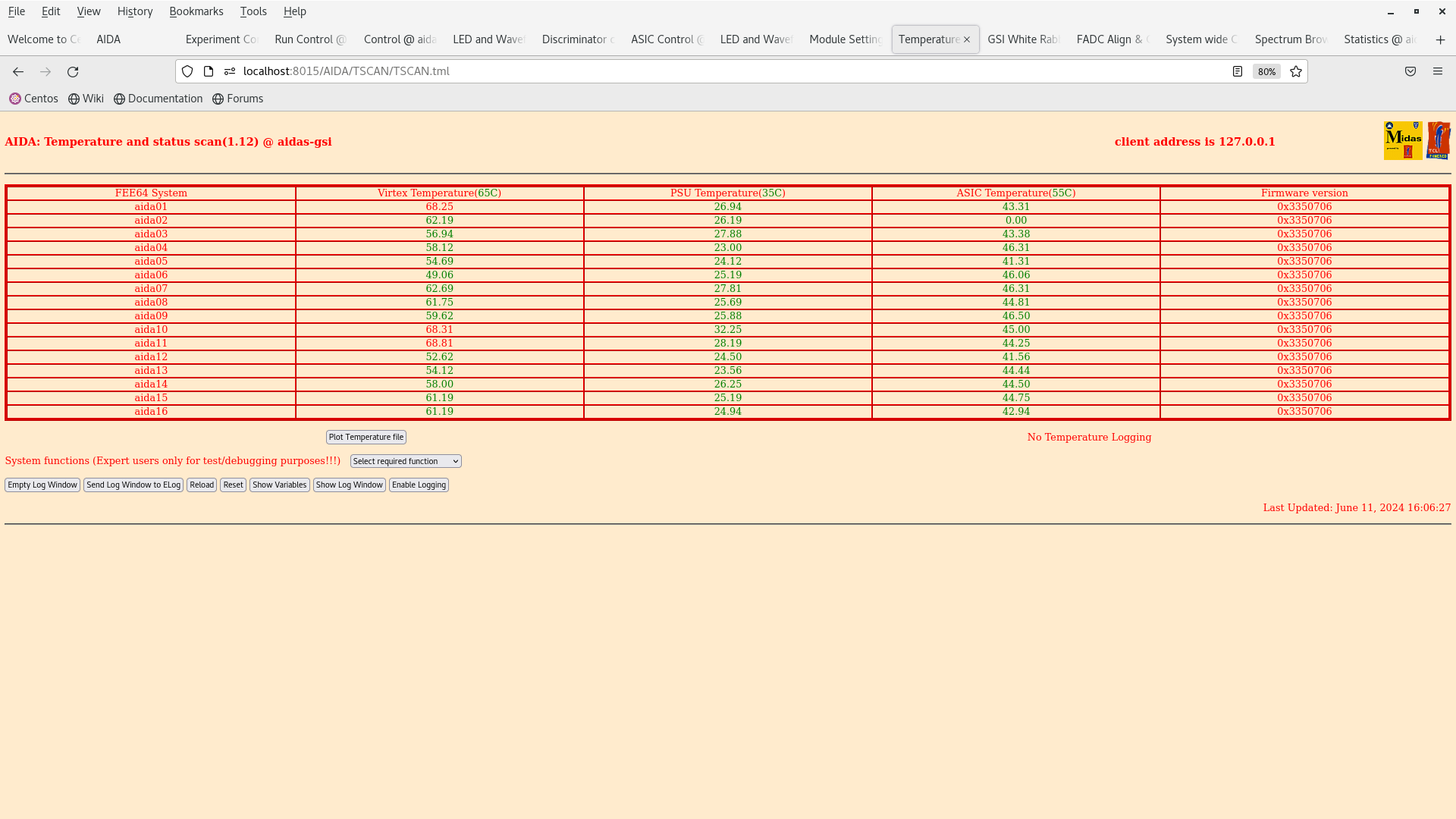

Screenshots attached.

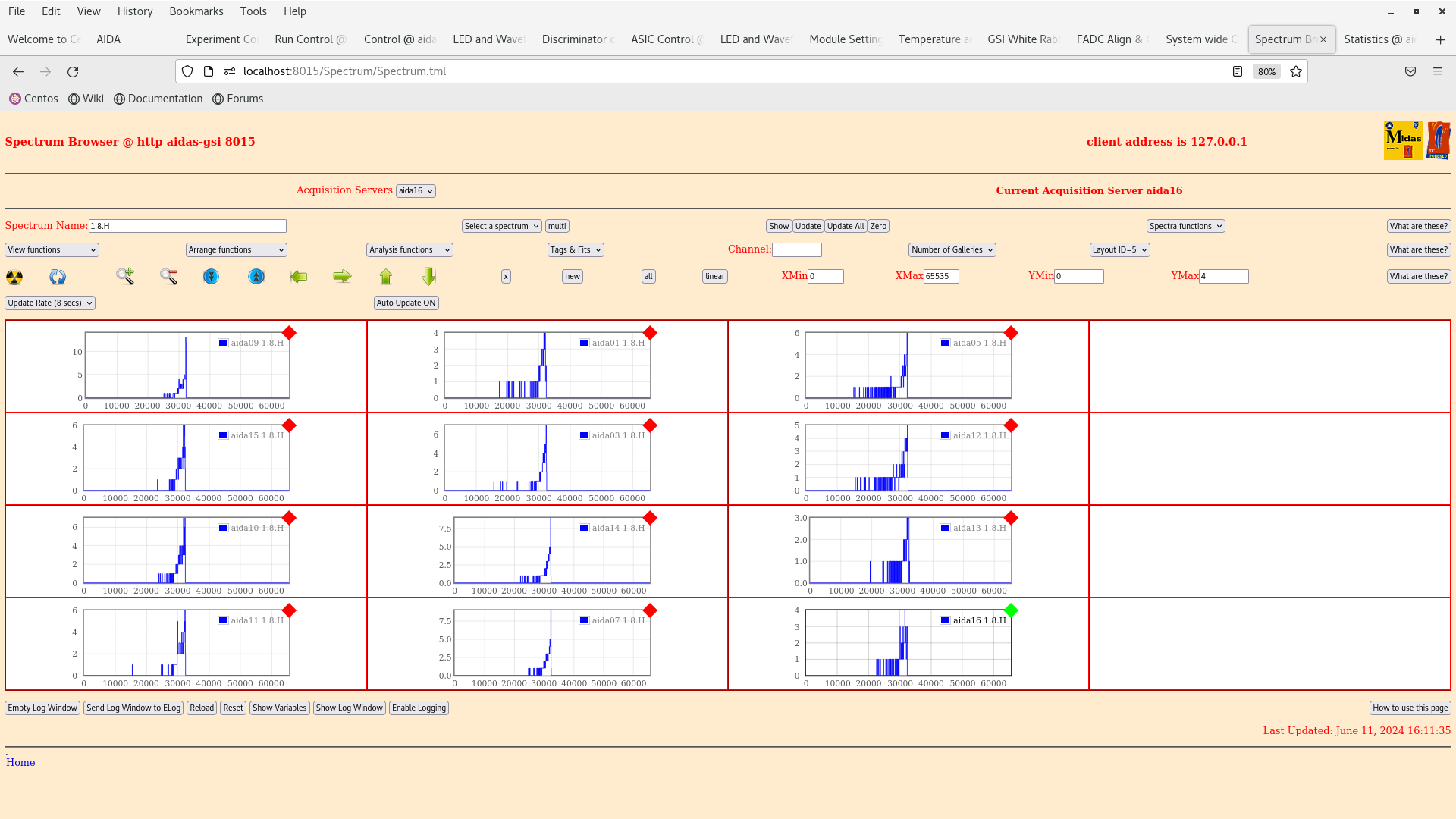

17.33 per FEE64 1.8.W spectra - attachments 8-9

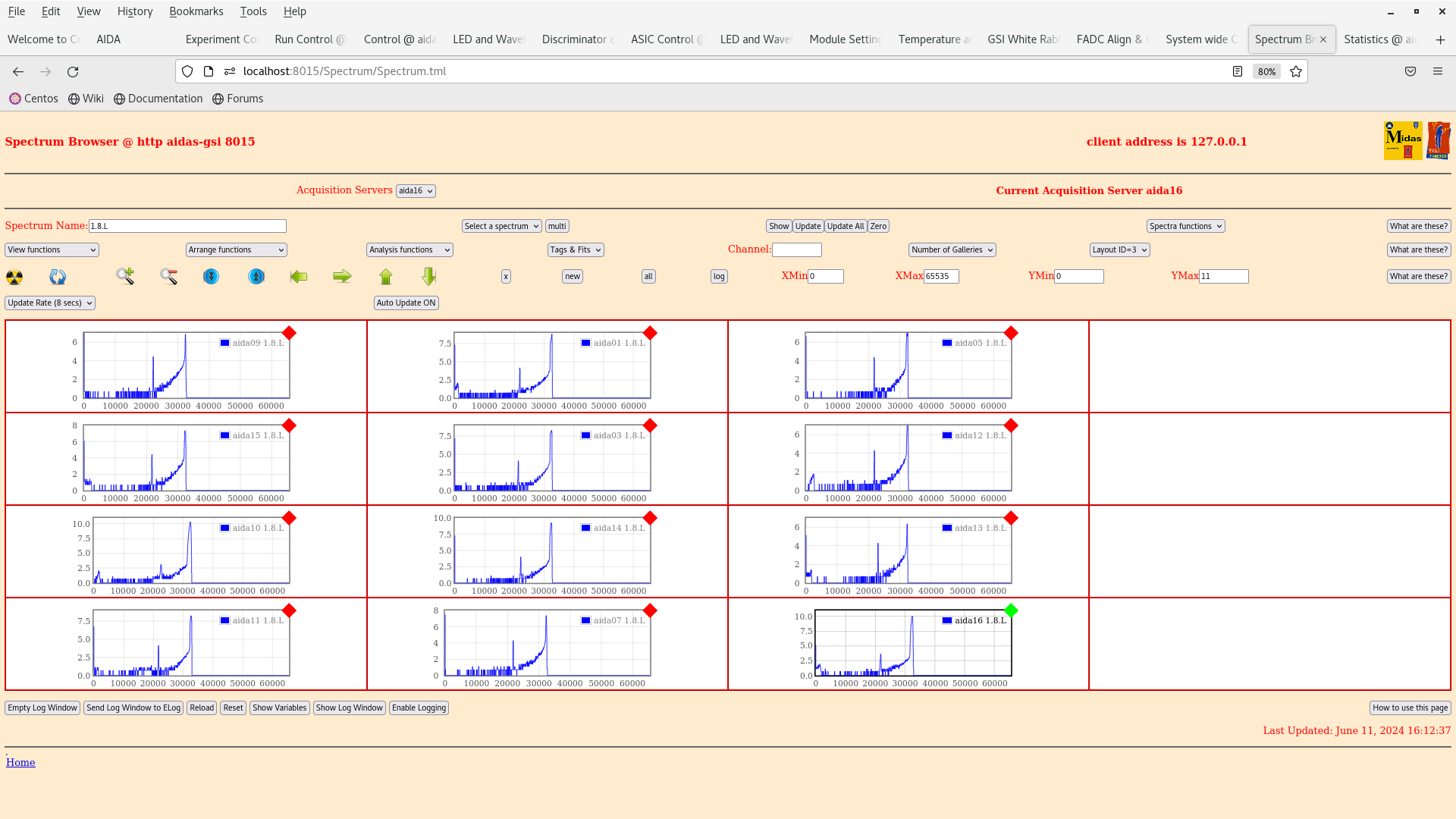

per p+n FEE64 1.8.L spectra - attachment 10
aida09 pulser peak width 66 ch FWHM
cf
c. 11:00 today 57 ch FWHM https://elog.ph.ed.ac.uk/DESPEC/650
cf
c. 00:10 today 53 ch FWHM https://elog.ph.ed.ac.uk/DESPEC/649

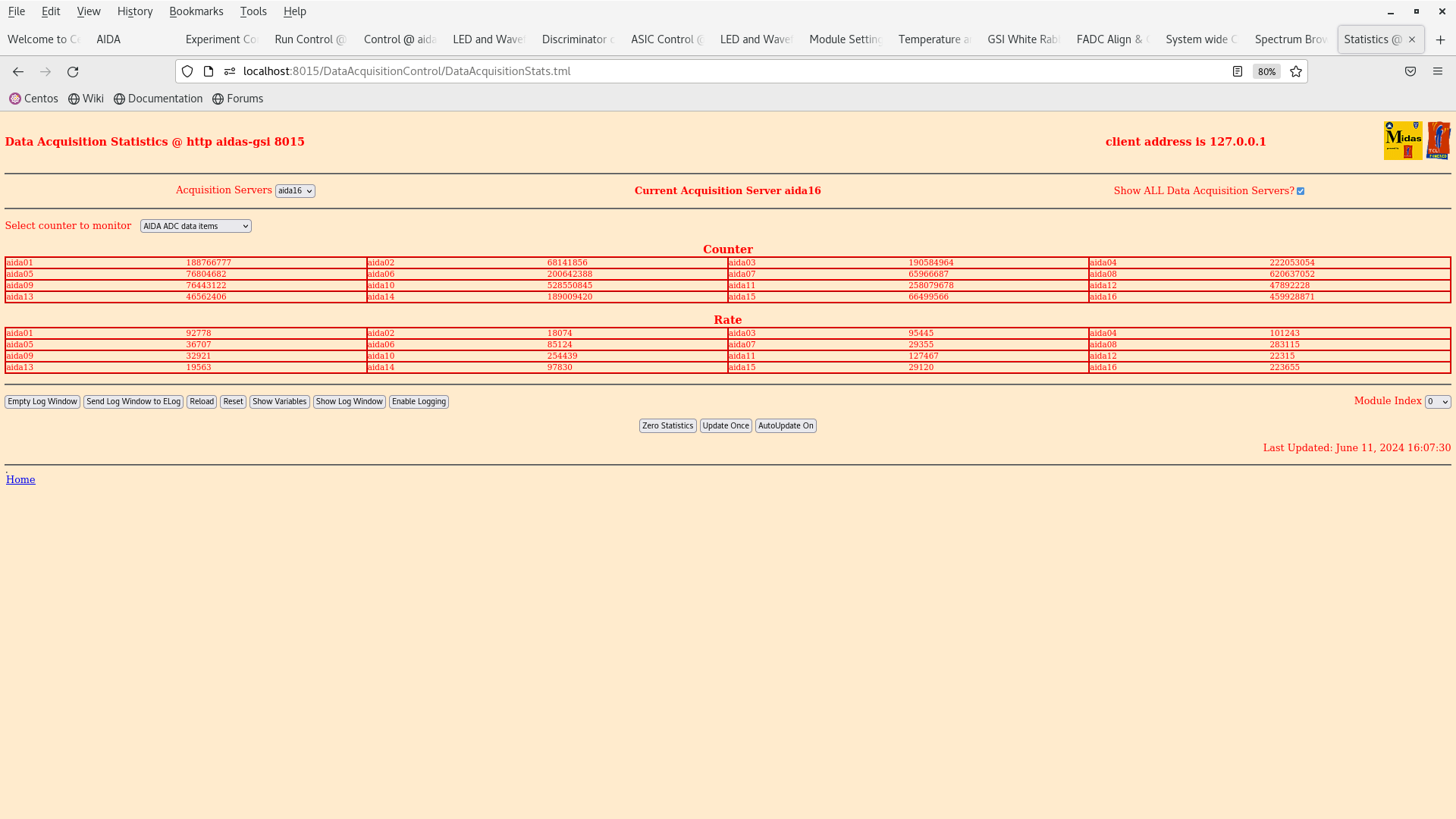

17.48 ADC data item stats - attachment 11
All histograms zero'd
17.51 Analysis data file S181/R6_96 - attachment 12
max deadtime 5% (aida08)
HEC Data items 3.7kHz, LEC data items 1.8MHz
cf.
c. 12.29 today 1.1MHz https://elog.ph.ed.ac.uk/DESPEC/650
c. 00.09 today 1.1MHz https://elog.ph.ed.ac.uk/DESPEC/649 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 258260025 ( 1785474.1 Hz)
Other data format: 3659975 ( 25303.1 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 939 ( 6.5 Hz)
RESUME: 938 ( 6.5 Hz)
SYNC100: 32538 ( 225.0 Hz)
WR48-63: 32538 ( 225.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 3593022 ( 24840.3 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 539819 ( 3732.0 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 144.645 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.468 0.000
1 0.015 0.000
2 0.040 0.000
3 0.872 0.000
4 0.007 0.000
5 0.312 0.000
6 0.000 0.000
7 7.299 0.000
8 0.001 0.000
9 3.731 0.000
10 2.112 0.000
11 0.008 0.000
12 0.000 0.000
13 0.367 0.000
14 0.001 0.000
15 1.636 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 15794317 8531 0 0 49 49 2058 2058 0 4317 0 10696
1 7121332 1752 0 0 3 3 873 873 0 0 0 24880
2 15560192 1259782 0 0 6 6 2078 2078 0 1255614 0 14645
3 17271150 4664 0 0 134 134 2198 2198 0 0 0 19004
4 6664272 367237 0 0 2 2 840 840 0 365553 0 5226
5 16529211 4220 0 0 48 48 2062 2062 0 0 0 23130
6 5459932 300460 0 0 0 0 680 680 0 299100 0 14450
7 45345978 11675 0 0 200 199 5638 5638 0 0 0 336191
8 6229388 1534 0 0 1 1 766 766 0 0 0 16825
9 38606423 1232596 0 0 155 155 5043 5043 0 1222200 0 15969
10 19820101 5140 0 0 195 195 2375 2375 0 0 0 9560
11 4555885 447544 0 0 2 2 651 651 0 446238 0 14419
12 4015114 976 0 0 0 0 488 488 0 0 0 3706
13 15417116 3872 0 0 46 46 1890 1890 0 0 0 14088
14 5845488 1420 0 0 1 1 709 709 0 0 0 10117
15 34024126 8572 0 0 97 97 4189 4189 0 0 0 6913
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 36.520s ( 876.243 blocks/s, 54.765 Mb/s)
|
