| DESPEC |
 |
|
|
|
Message ID: 655
Entry time: Wed Jun 12 06:17:23 2024
|
| Author: |
TD |
| Subject: |
08:00-16:00 Wednesday 12 June |
|
|

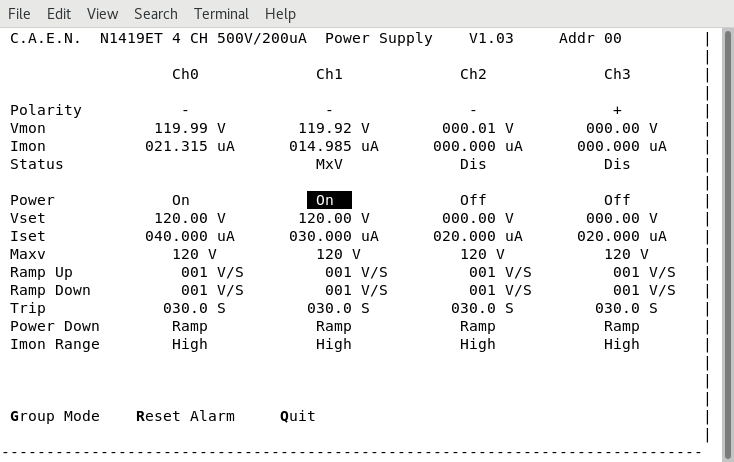

07:10 DSSSD bias & leakage current OK - attachment 1
FEE64 temperatures OK - attachment 2
ADC data items stats OK - attachment 3

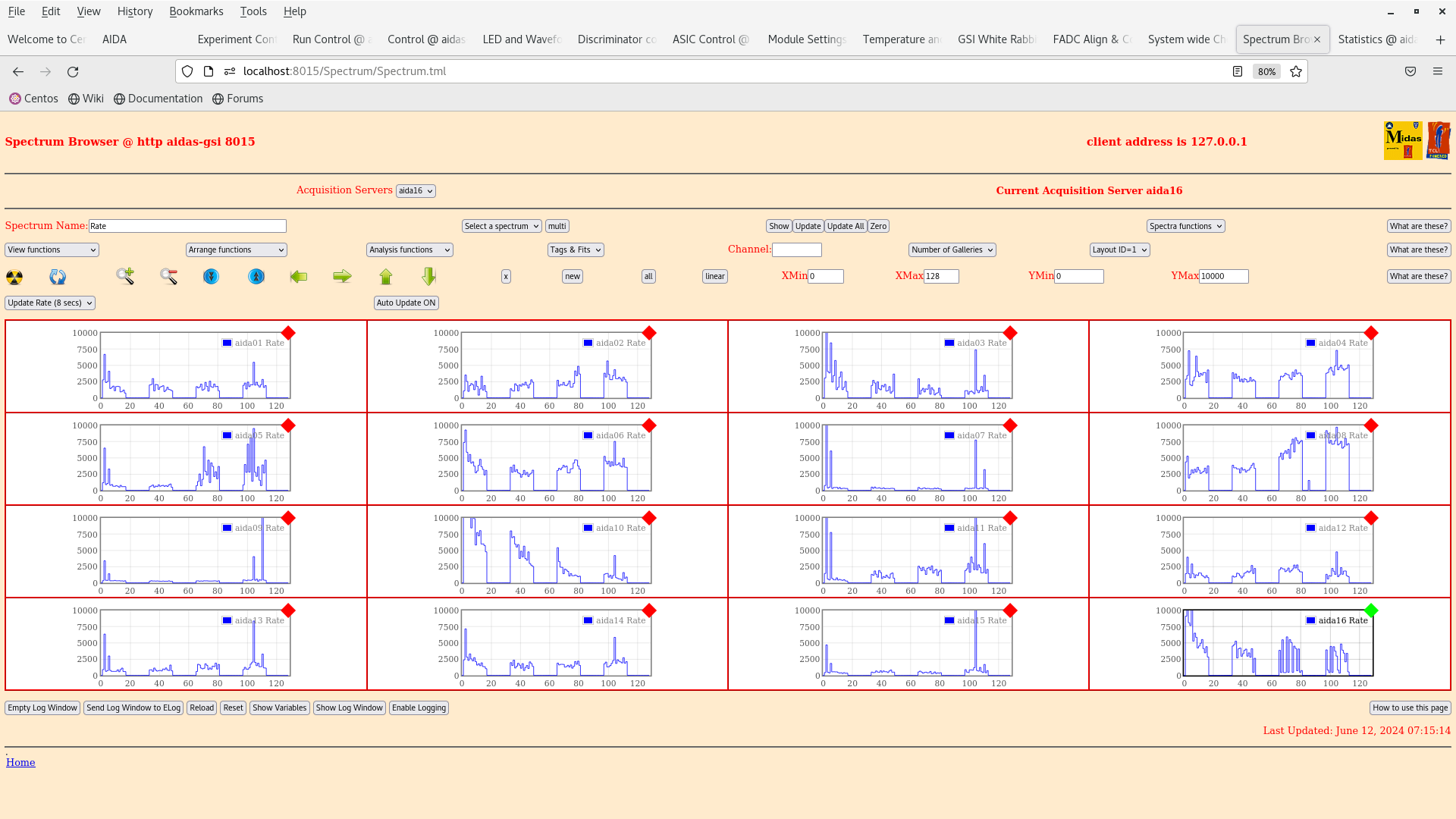

per FEE64 Rate spectra - attachment 4
Merger, TapeServer etc - attachment 5
per p+n FEE64 1.8.L spectra - attachment 6

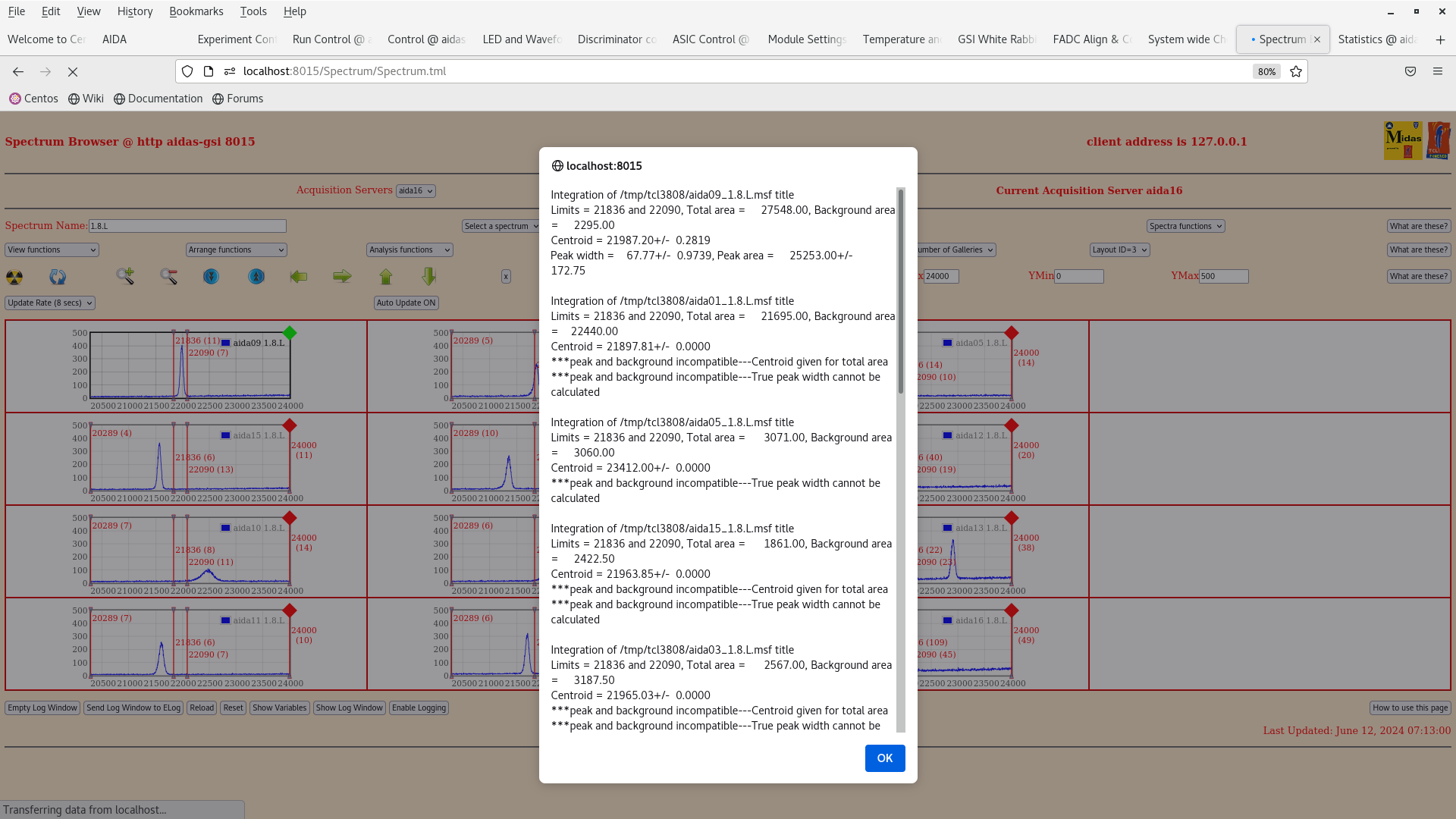

aida09 pulser peak width 68 ch FWHM
07.13 peak area 25253 total area 27548 in 221mins => 1.9-2.1Hz => deadtime < 5% or less which is consistent with data file analysis below
analysis data file S181/R6_274 - attachment
max FEE64 deadtime 24% aida08
HEC data rate 4.5kHz, LEC data rate 2.284M
14.00 DAQ crashed by accident
FEE64s power cycled
DAQ restarted
data file S181/R7

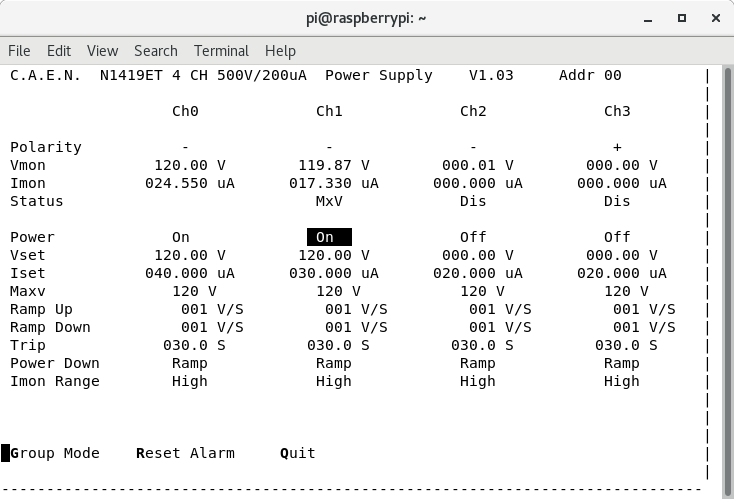

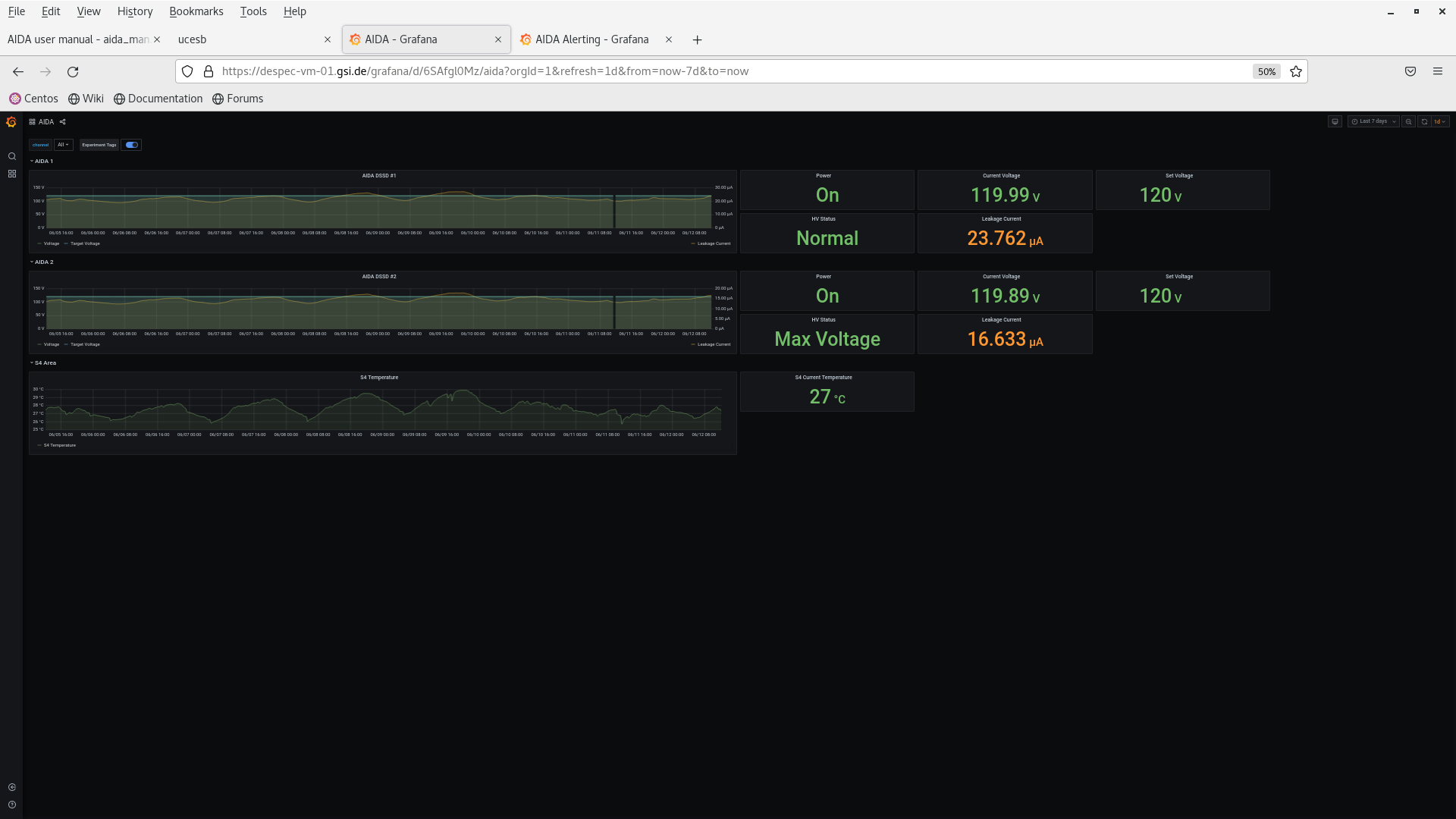

DSSSD bias & leakage current OK - attachments 8-9

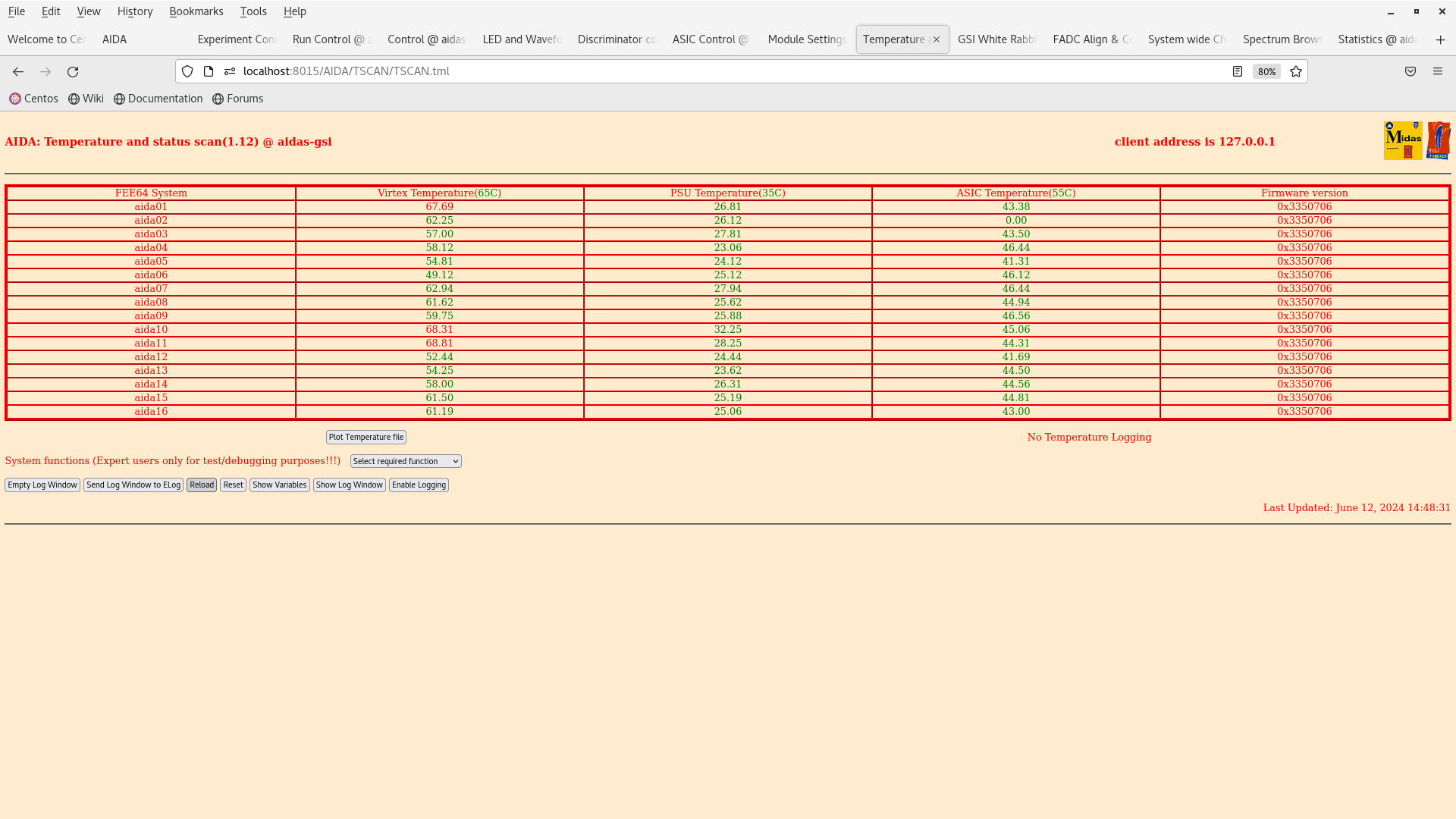

FEE64 temperatures OK - attachment 10

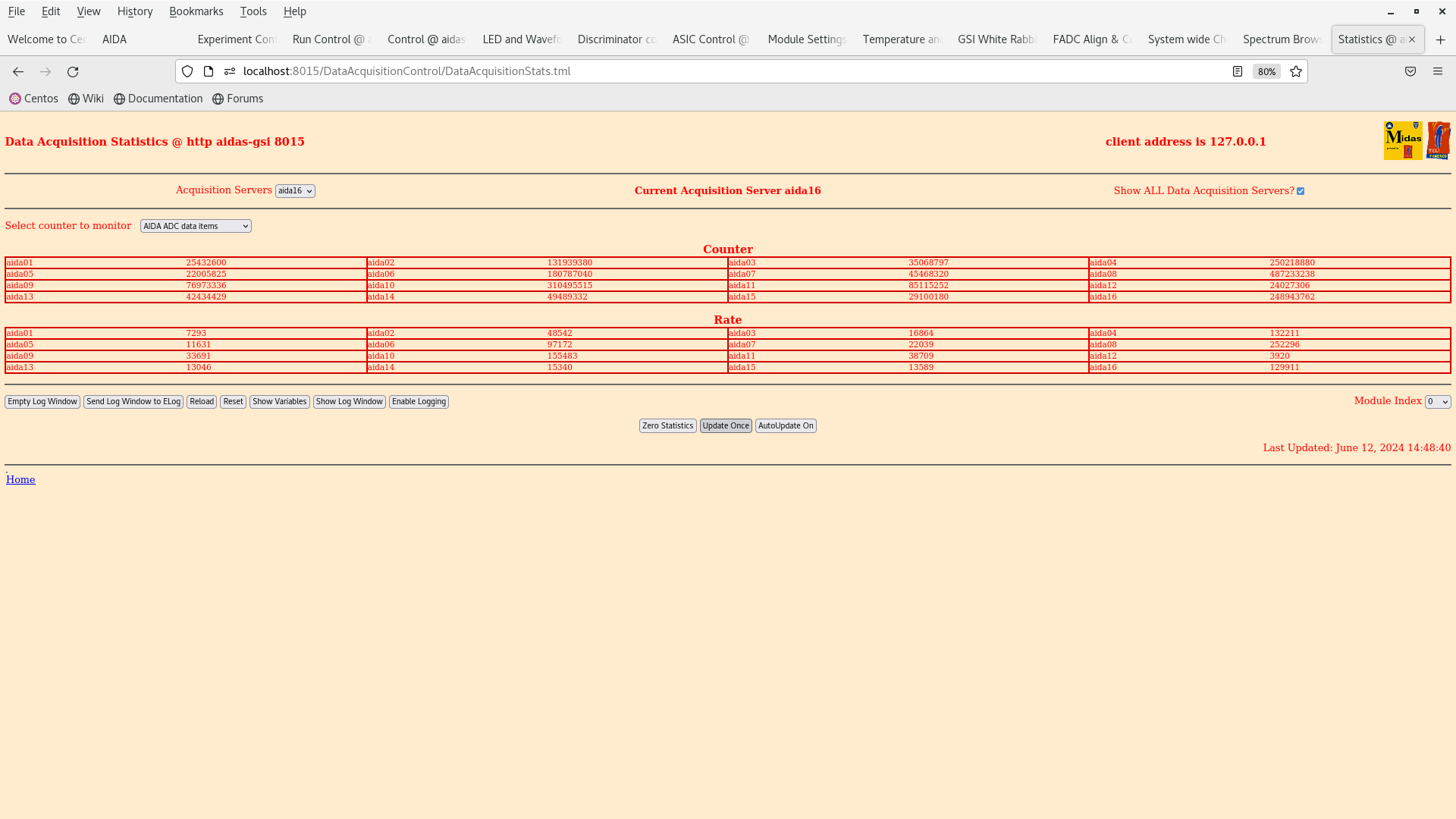

ADC data item stats - attachment 11
WR timestamps OK - attachment 12

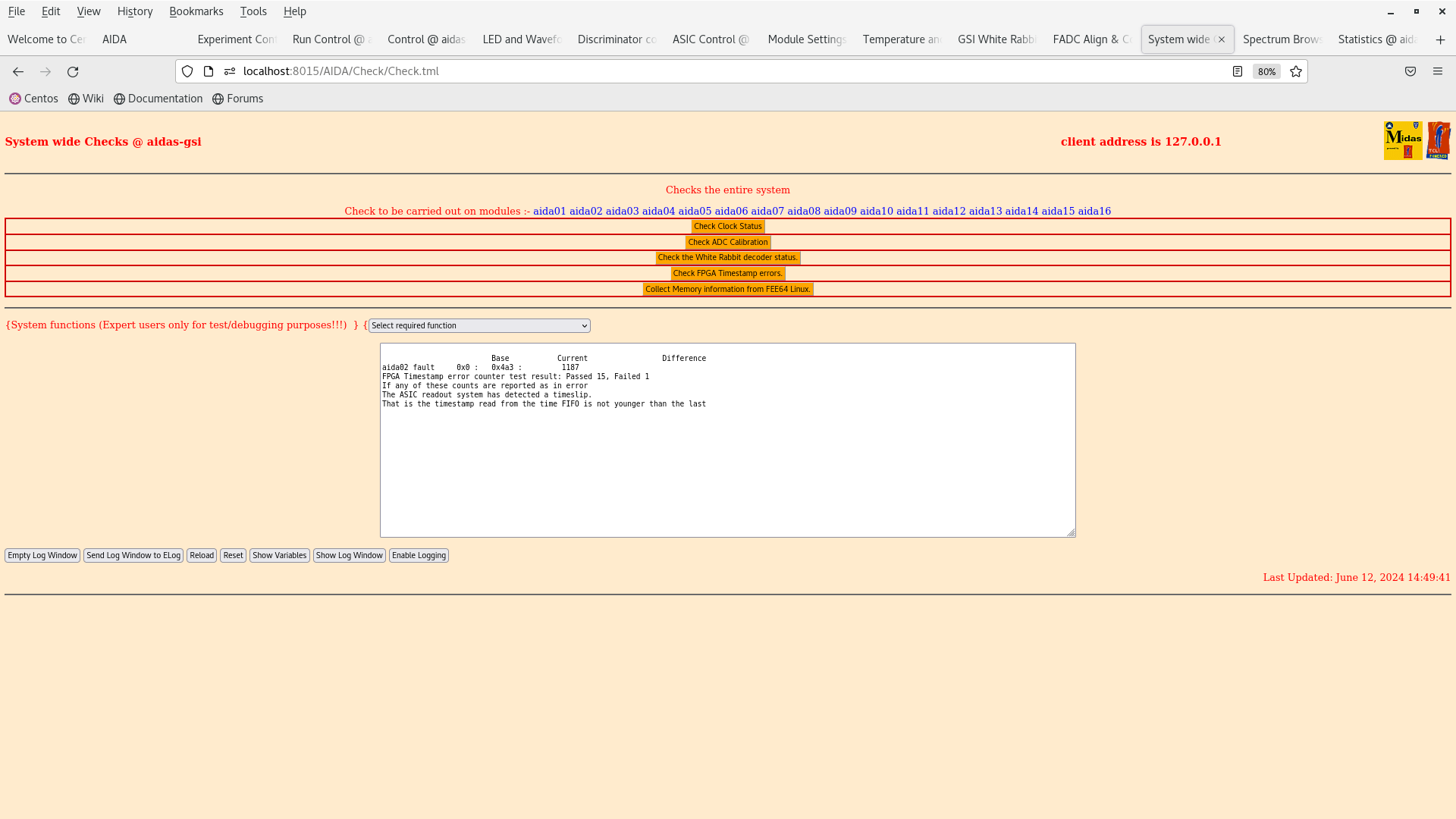

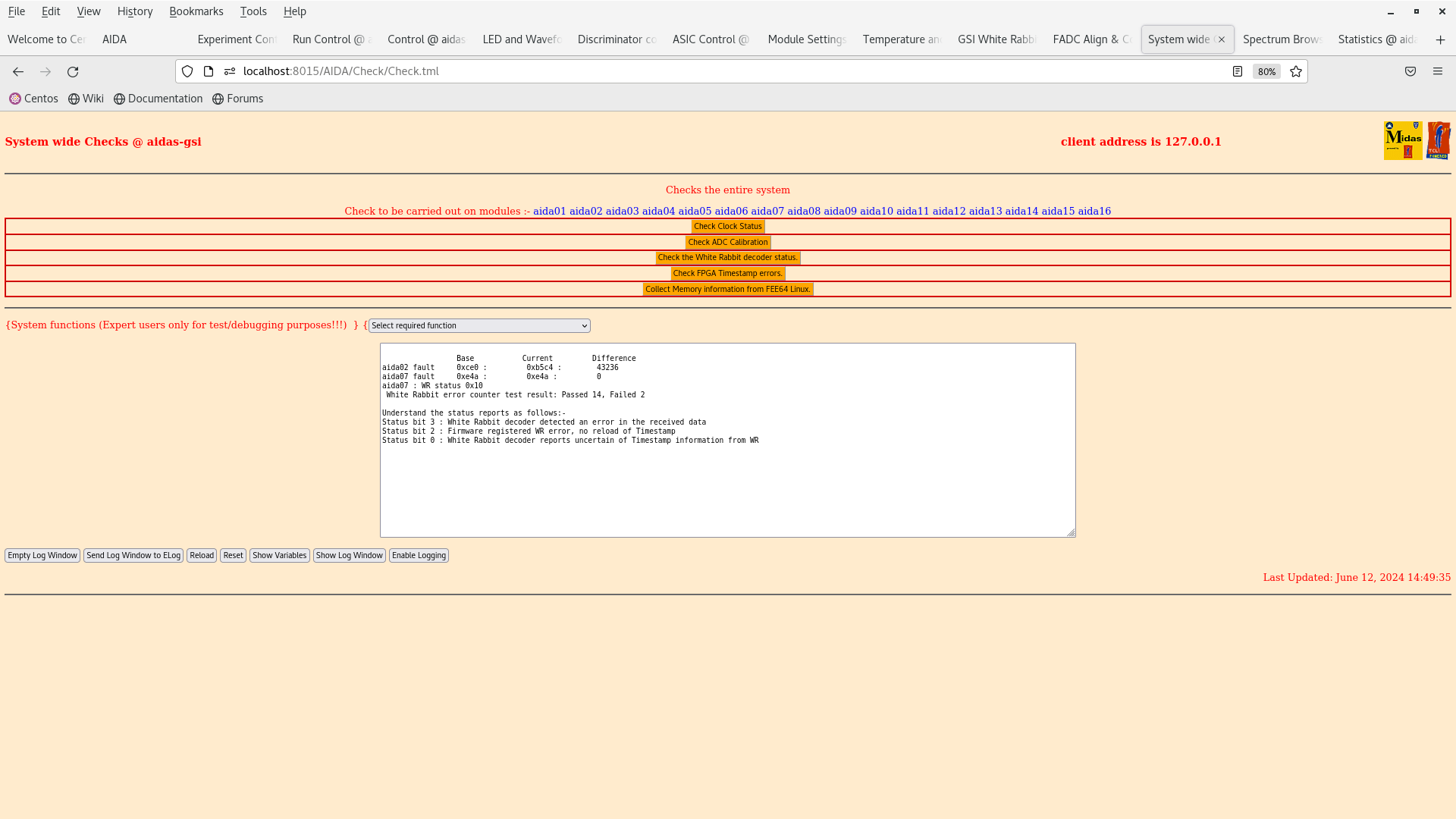

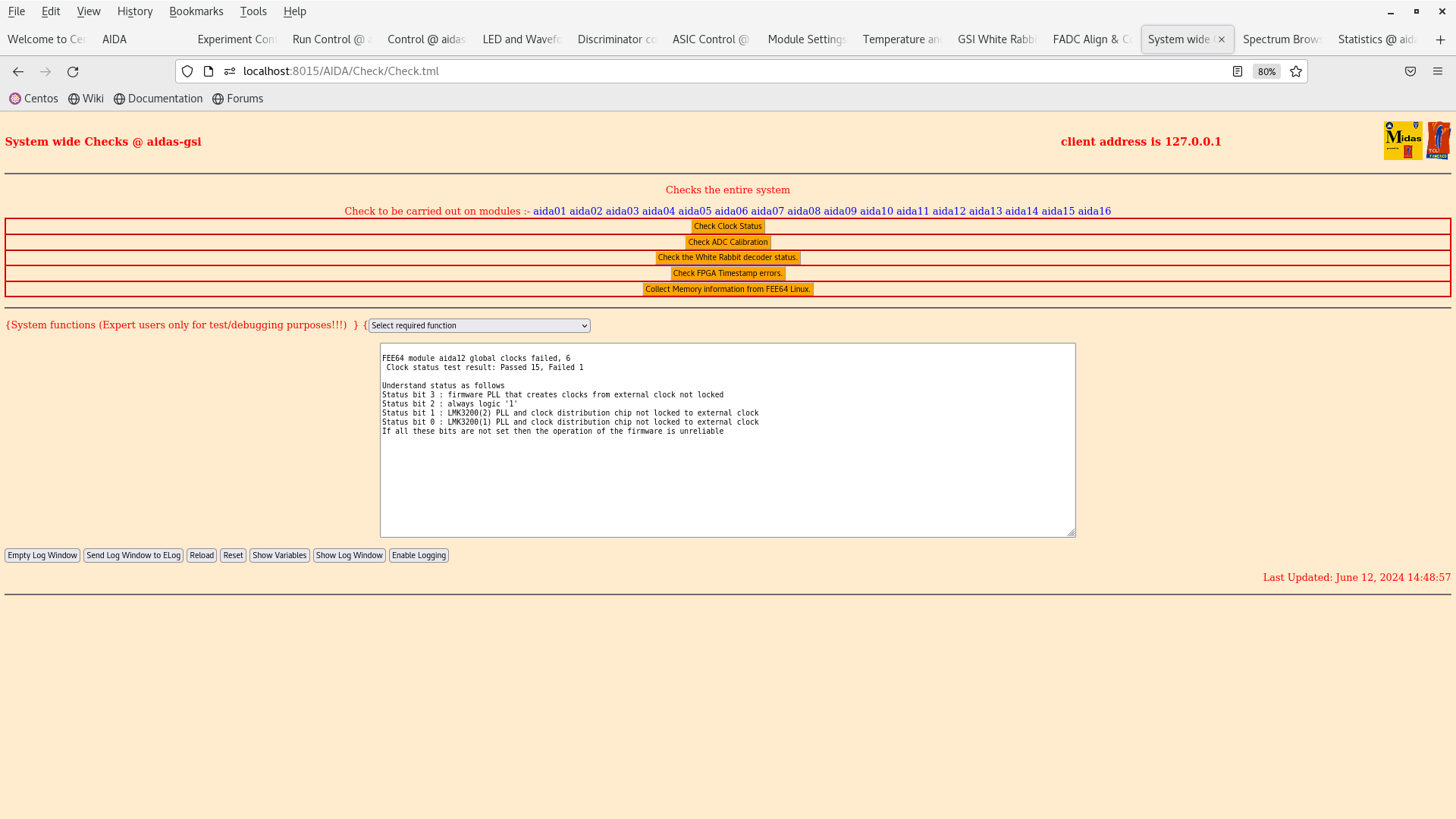

All system wide checks *except* as reported attachments 13-15

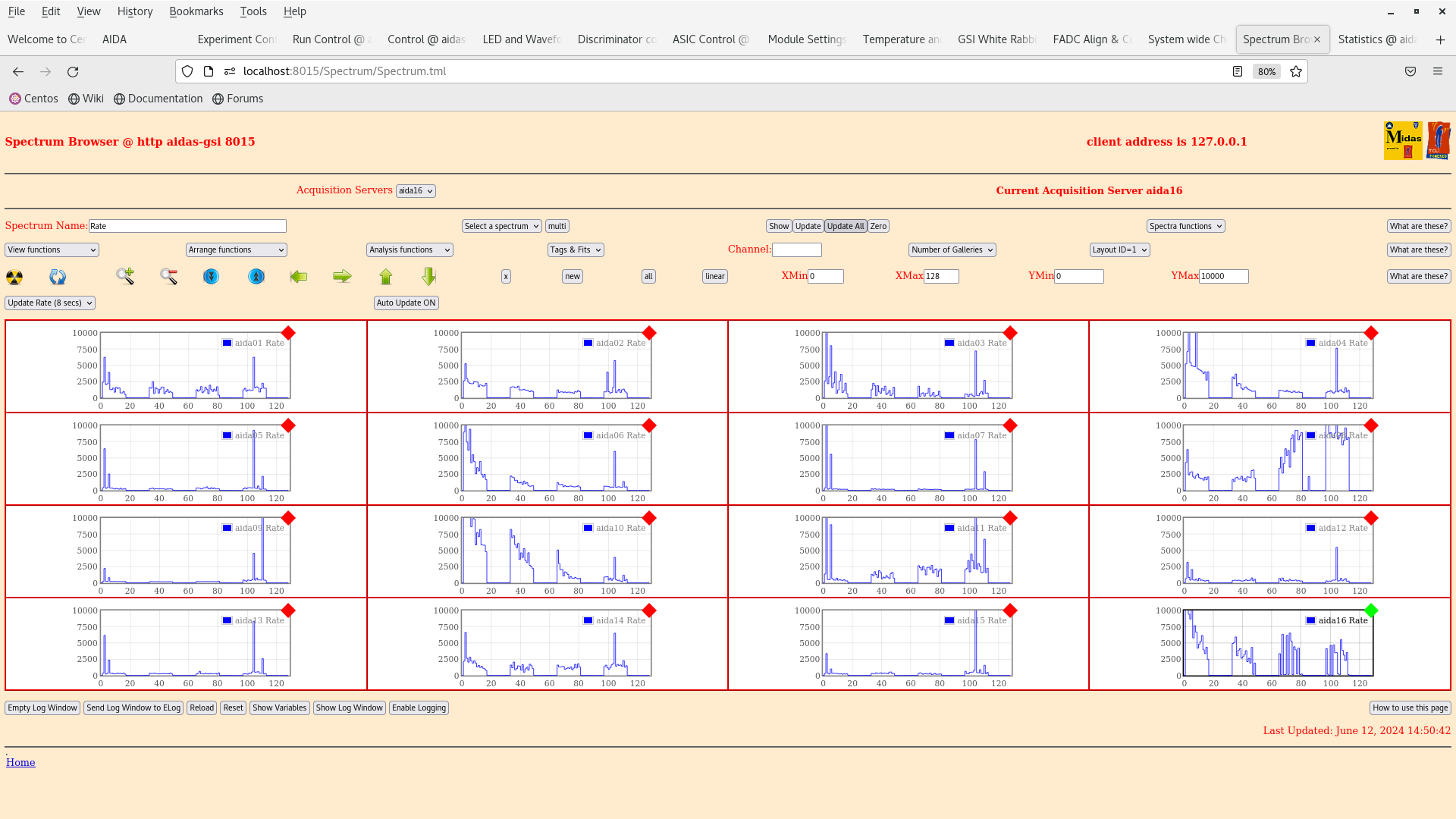

per FEE64 Rate spectra - attachment 16

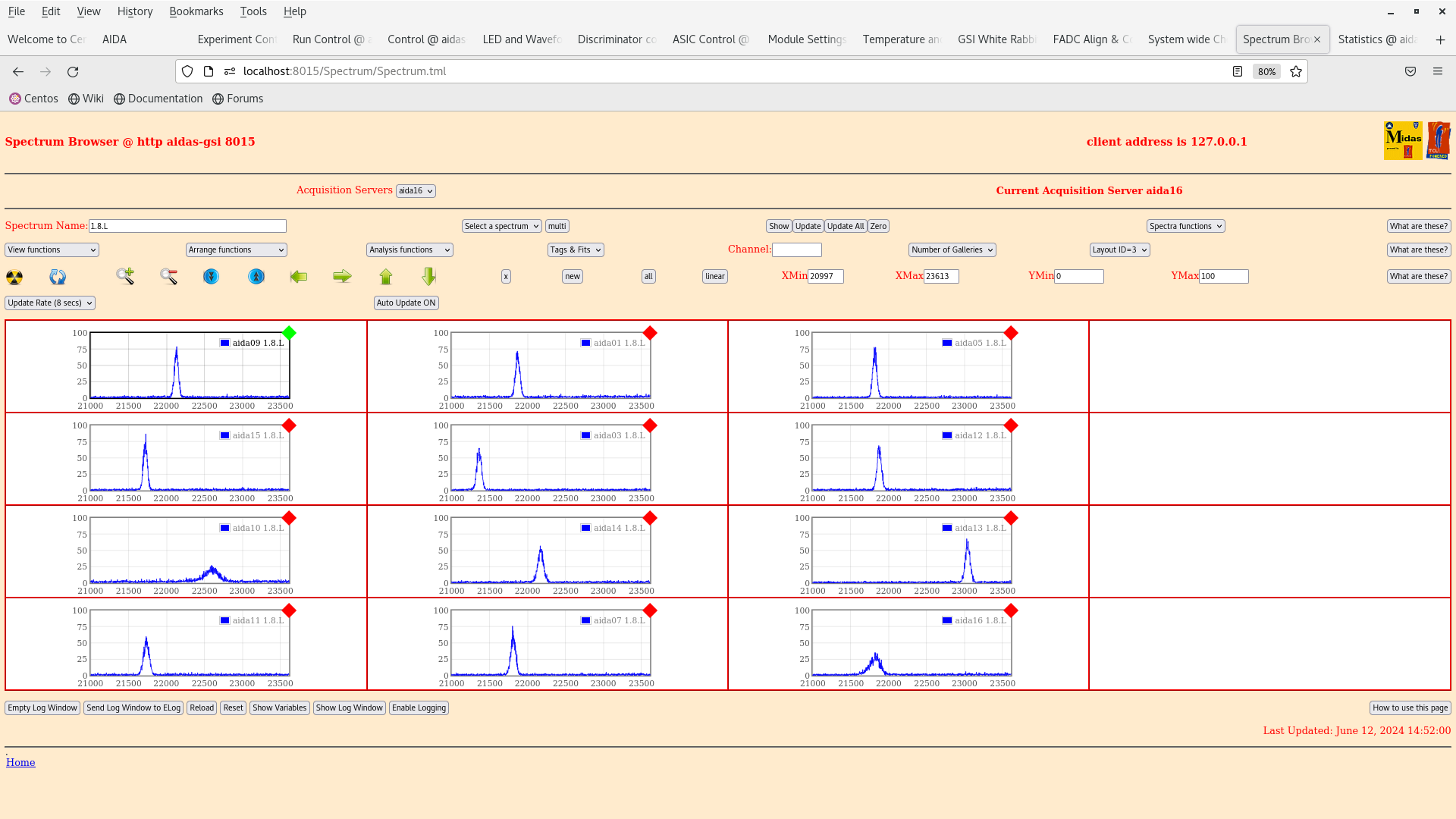

per p+n FEE64 1.8.L spectra - attachment 17
aida09 pulser peak width 66 ch FWHM

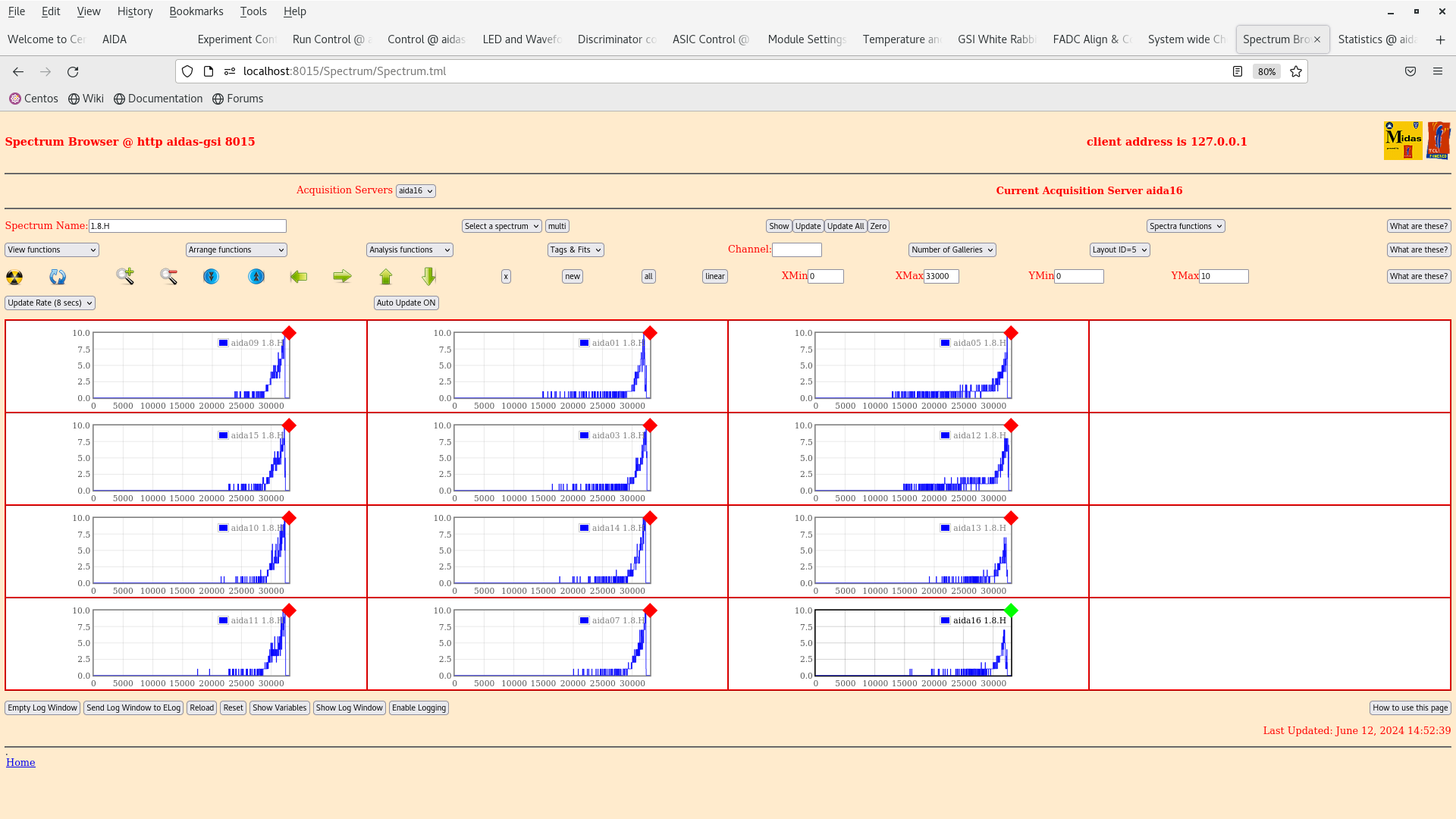

per FEE64 1.8.H spectra - attachments 18-19

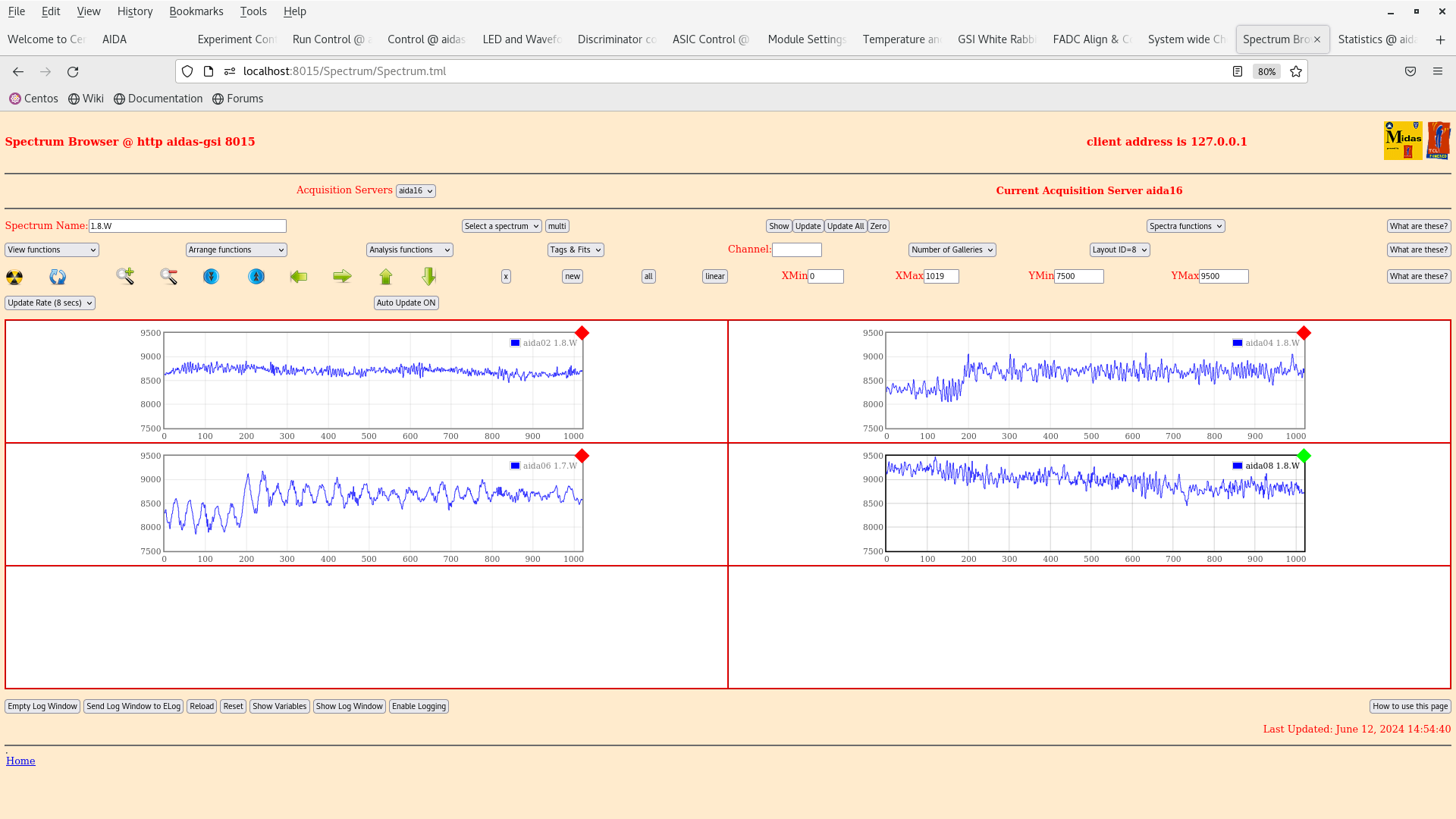

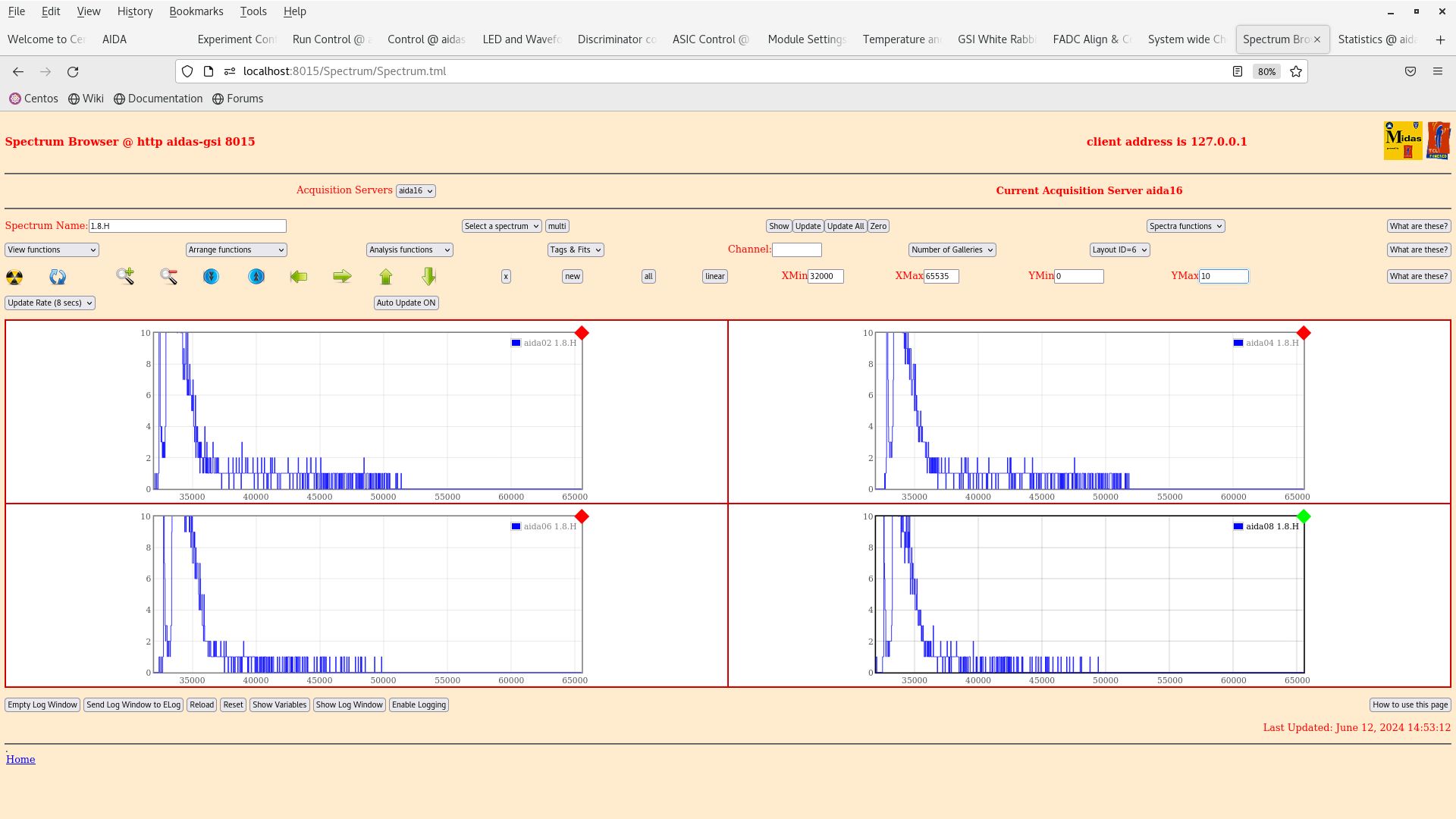

per FEE64 1.8.W spectra - 20us FSR - attachment 20-21

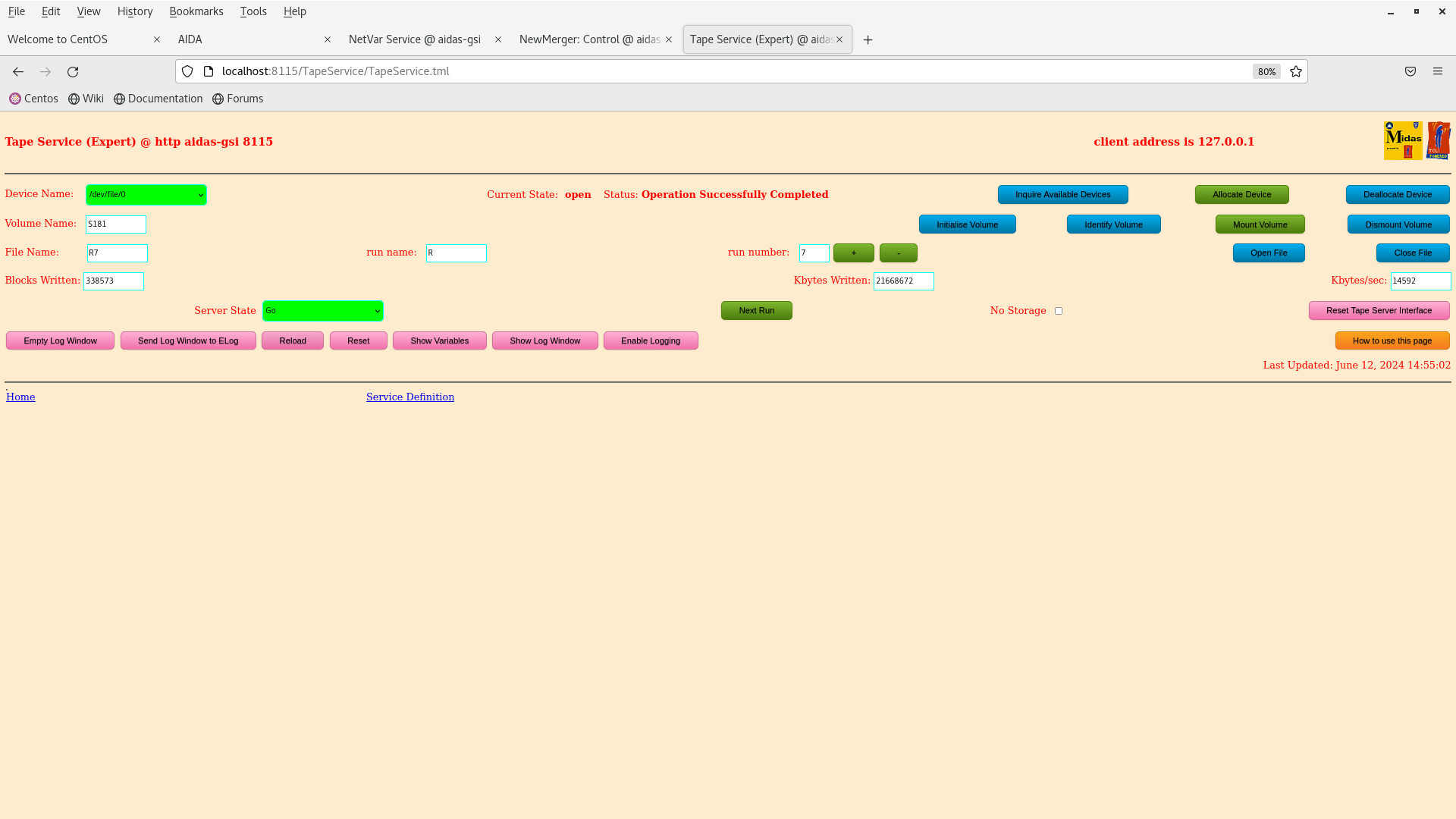

Merger, TapeServer etc - attachments 22-23
data file S181/R7_16
analysis data file S181/R7_16
max deadtime 7.3% aida08, all other FEE64s < 2%
LEC data rate 1.877M HEC data rate 4.7k |
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 258515762 ( 2284450.0 Hz)
Other data format: 3404238 ( 30082.5 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 1713 ( 15.1 Hz)
RESUME: 1713 ( 15.1 Hz)
SYNC100: 32421 ( 286.5 Hz)
WR48-63: 32421 ( 286.5 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 3335970 ( 29479.3 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 510832 ( 4514.1 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 113.163 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.702 0.000
1 9.626 0.000
2 0.301 0.000
3 21.630 0.000
4 2.306 0.000
5 22.211 0.000
6 0.011 0.000
7 26.657 0.000
8 0.007 0.000
9 3.393 0.000
10 2.227 0.000
11 0.257 0.000
12 1.375 0.000
13 0.345 0.000
14 0.006 0.000
15 1.380 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 13756770 7112 0 0 62 62 1805 1805 0 3378 0 31438
1 16571054 4544 0 0 118 118 2154 2154 0 0 0 40517
2 12913225 1100195 0 0 22 22 1734 1734 0 1096683 0 15005
3 22509949 6366 0 0 388 388 2795 2795 0 0 0 25941
4 11433492 382287 0 0 38 38 1426 1426 0 379359 0 11107
5 23747115 6330 0 0 227 227 2938 2938 0 0 0 25861
6 5606649 311005 0 0 2 2 708 708 0 309585 0 13358
7 37077077 9680 0 0 293 293 4547 4547 0 0 0 194815
8 5480756 1296 0 0 1 1 647 647 0 0 0 14388
9 29391154 1072320 0 0 141 141 3828 3828 0 1064382 0 12206
10 15104540 4112 0 0 210 210 1846 1846 0 0 0 7729
11 8762807 484875 0 0 23 23 1123 1123 0 482583 0 43011
12 10240819 2646 0 0 83 83 1240 1240 0 0 0 10084
13 13149998 3348 0 0 39 39 1635 1635 0 0 0 22309
14 4835687 1232 0 0 1 1 615 615 0 0 0 8794
15 27934670 6890 0 0 65 65 3380 3380 0 0 0 34269
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 36.514s ( 876.384 blocks/s, 54.774 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 257426271 ( 1876729.6 Hz)
Other data format: 4493729 ( 32760.9 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 958 ( 7.0 Hz)
RESUME: 958 ( 7.0 Hz)
SYNC100: 32511 ( 237.0 Hz)
WR48-63: 32511 ( 237.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 4426791 ( 32272.9 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 640590 ( 4670.1 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 137.167 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.216 0.000
1 0.956 0.000
2 0.109 0.000
3 1.065 0.000
4 0.003 0.000
5 1.328 0.000
6 0.000 0.000
7 10.048 0.000
8 0.006 0.000
9 2.496 0.000
10 1.879 0.000
11 0.000 0.000
12 0.000 0.000
13 0.358 0.000
14 0.002 0.000
15 1.716 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 13230081 7571 0 0 32 32 1703 1703 0 4101 0 17508
1 13090516 3490 0 0 40 40 1705 1705 0 0 0 37780
2 13947474 1365581 0 0 17 17 1952 1952 0 1361643 0 23114
3 19918409 5228 0 0 54 54 2560 2560 0 0 0 29816
4 5368632 580346 0 0 2 2 689 689 0 578964 0 9807
5 18843779 4956 0 0 116 116 2362 2362 0 0 0 35331
6 5796835 443912 0 0 1 1 735 735 0 442440 0 22936
7 45421367 11632 0 0 240 240 5576 5576 0 0 0 316545
8 6655009 1606 0 0 2 2 801 801 0 0 0 26785
9 36628182 1346978 0 0 117 117 4723 4723 0 1337298 0 25590
10 18208001 4832 0 0 188 188 2228 2228 0 0 0 15146
11 4458699 703685 0 0 0 0 670 670 0 702345 0 24257
12 4535451 1002 0 0 0 0 501 501 0 0 0 5991
13 13425648 3478 0 0 54 54 1685 1685 0 0 0 22832
14 5214701 1310 0 0 1 1 654 654 0 0 0 16212
15 32683487 8122 0 0 94 94 3967 3967 0 0 0 10940
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 42.707s ( 749.291 blocks/s, 46.831 Mb/s)
|
