| DESPEC |
 |
|
|
|
Message ID: 664
Entry time: Sat Jun 15 00:28:01 2024
|
| Author: |
TD |
| Subject: |
Saturday 15 June |
|
|
Beam lost due to septum failure c. 18.15 Friday 14 June
Cooling of recirculating water failed c. 19.00 - water temperature increased from the normal 17-18deg C to 25-26 deg C
FEE64 temperatures increased and FEE64s powered off and on-call engineer requested.
Cooling of recirculating water restored and AIDA restarted
NH started background run 23.37 - data file S181/R9
01.21 DSSSD bias & leakage current OK - attachment 1

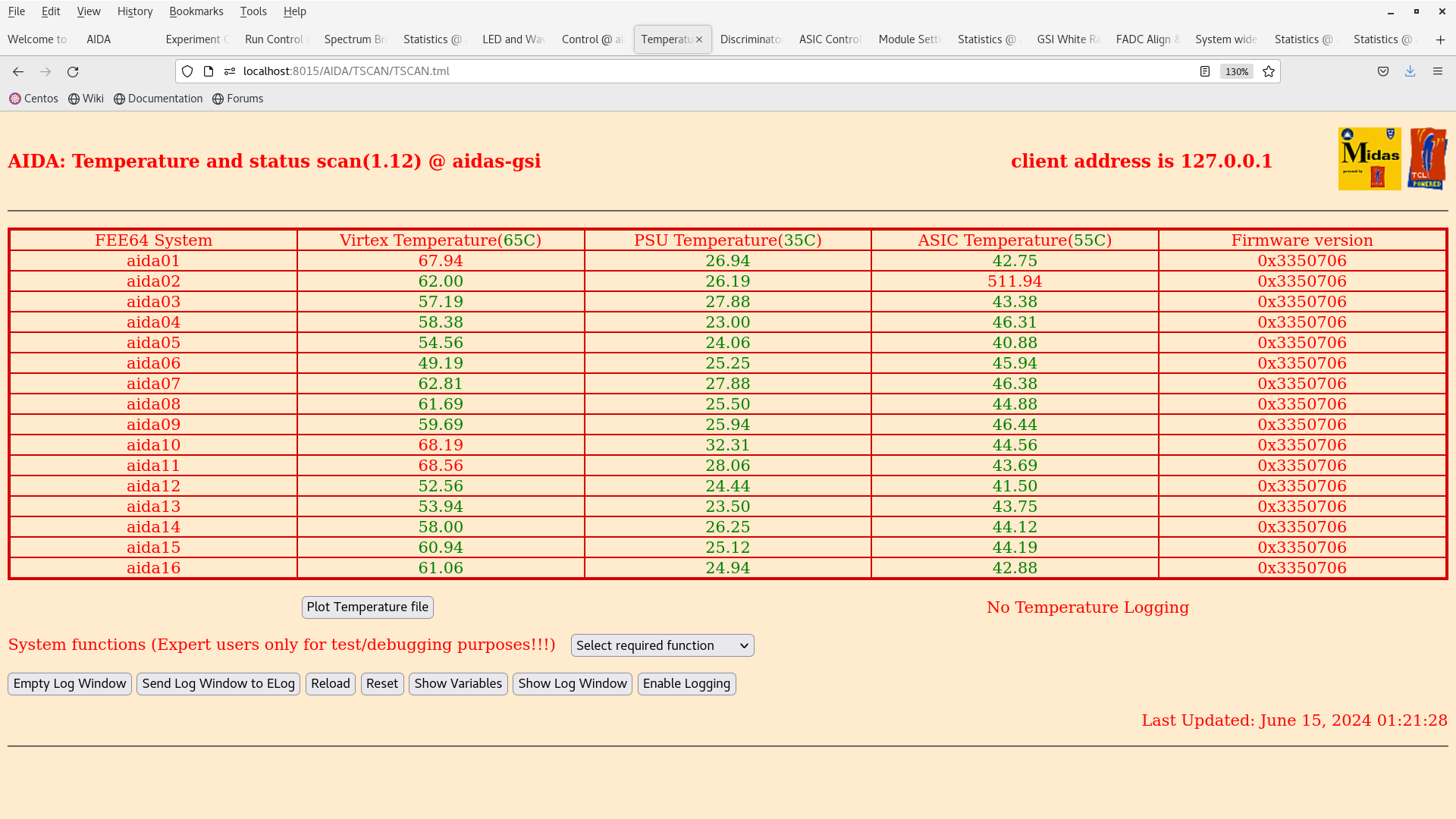

FEE64 temperatures OK - attachment 2

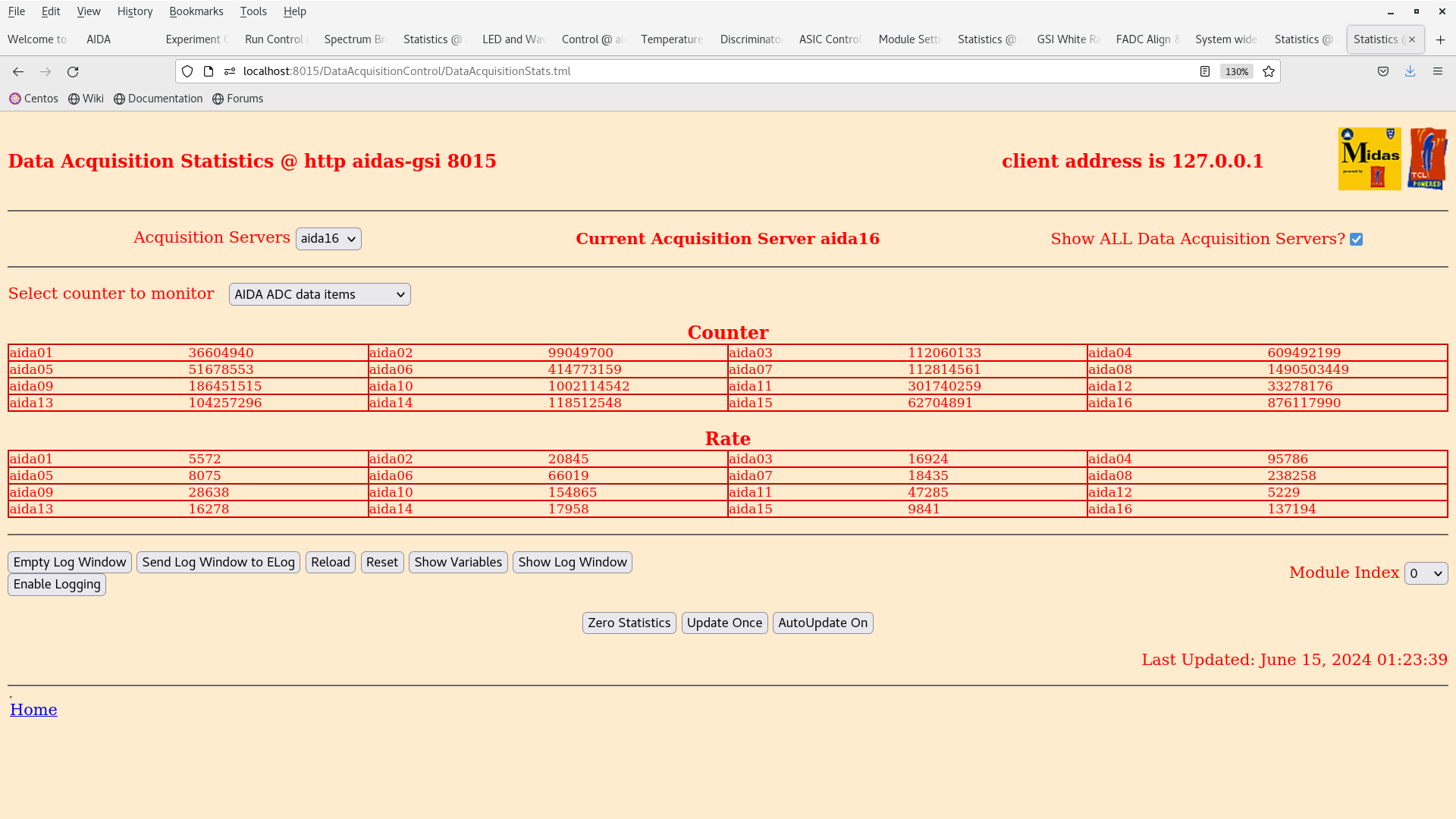

ADC data item stats OK - attachment 3
8x < 20k, max 238k aida08

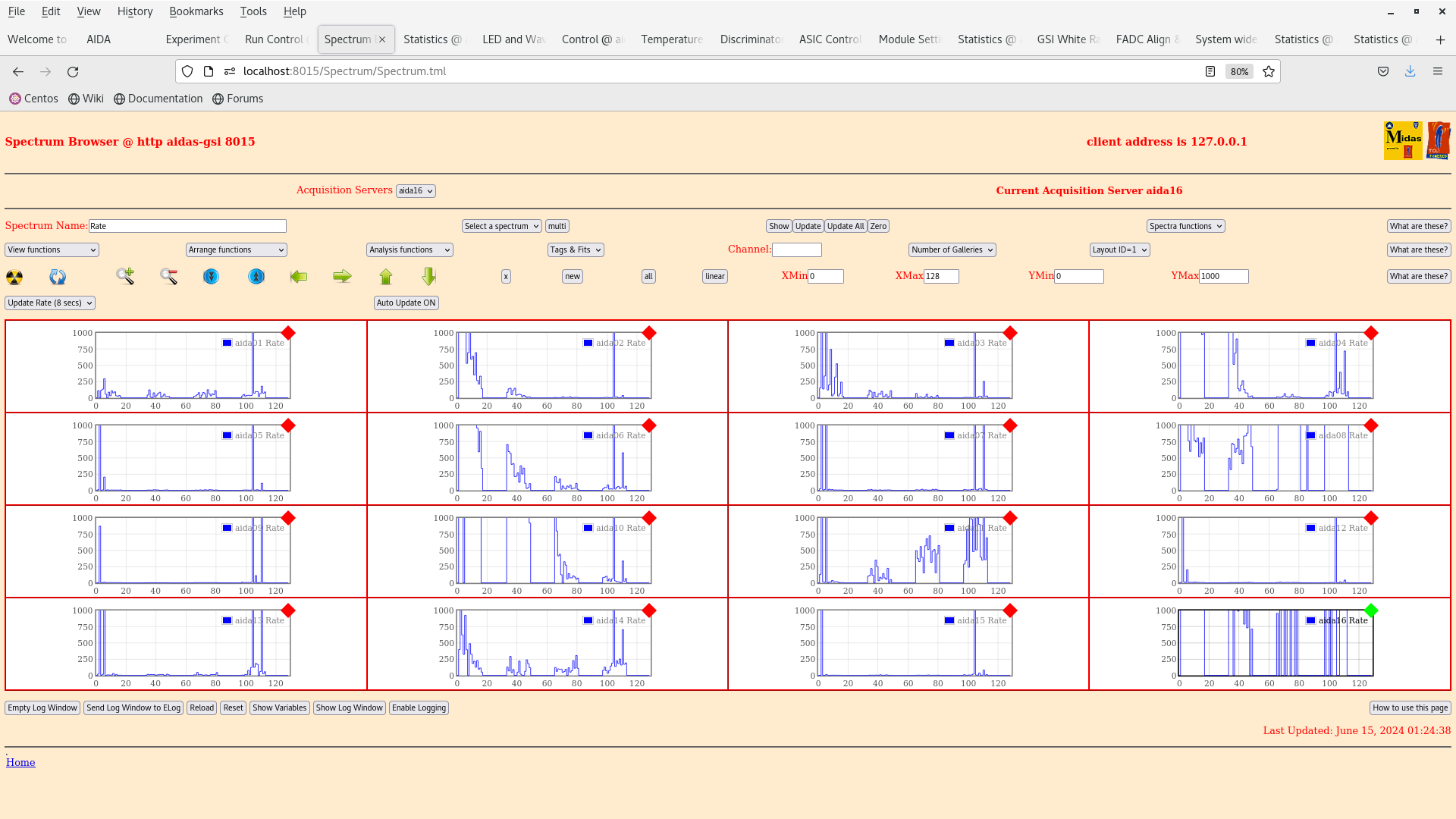

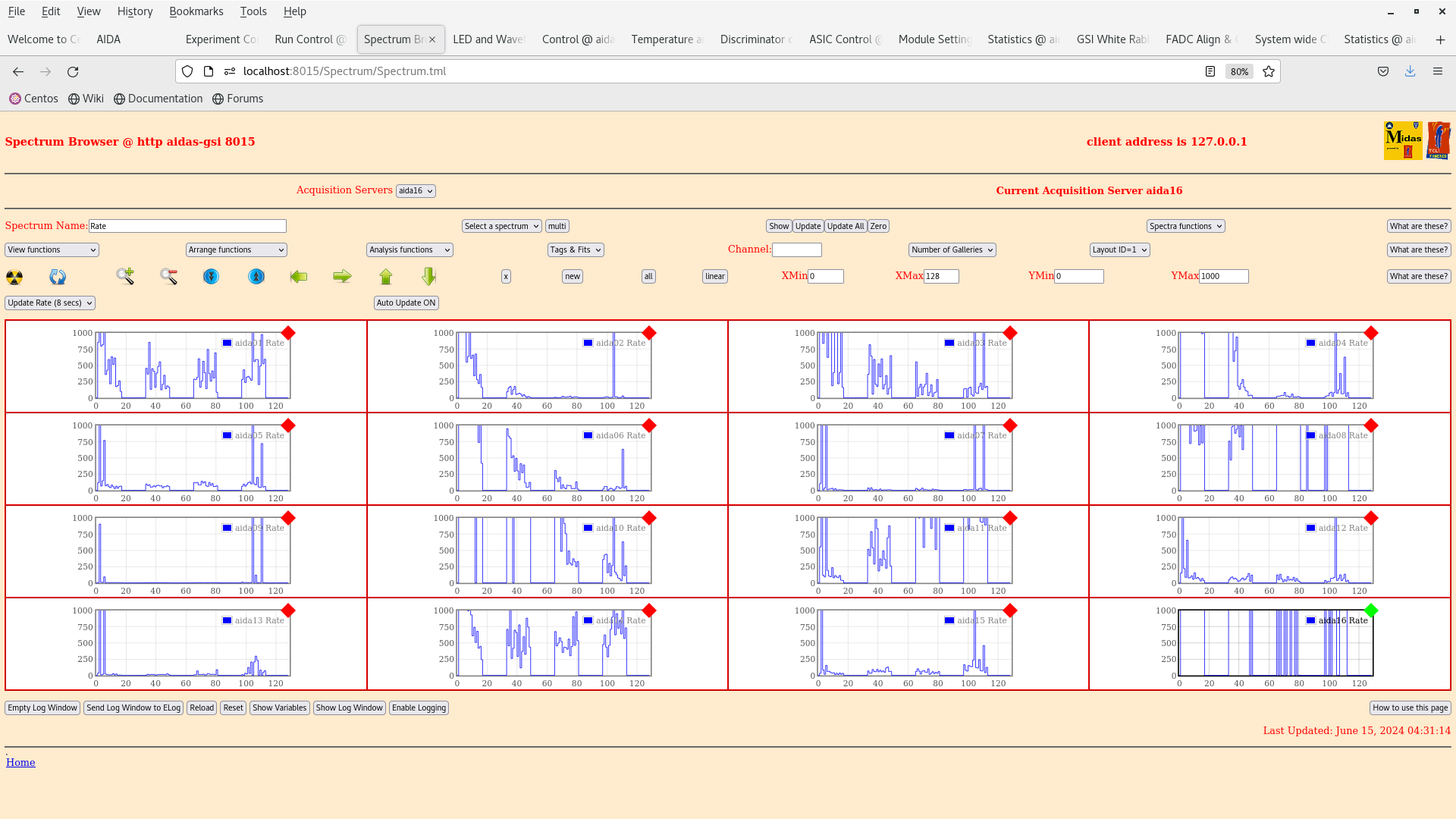

per FEE64 Rate spectra - attachment 4
2x Check ASIC load

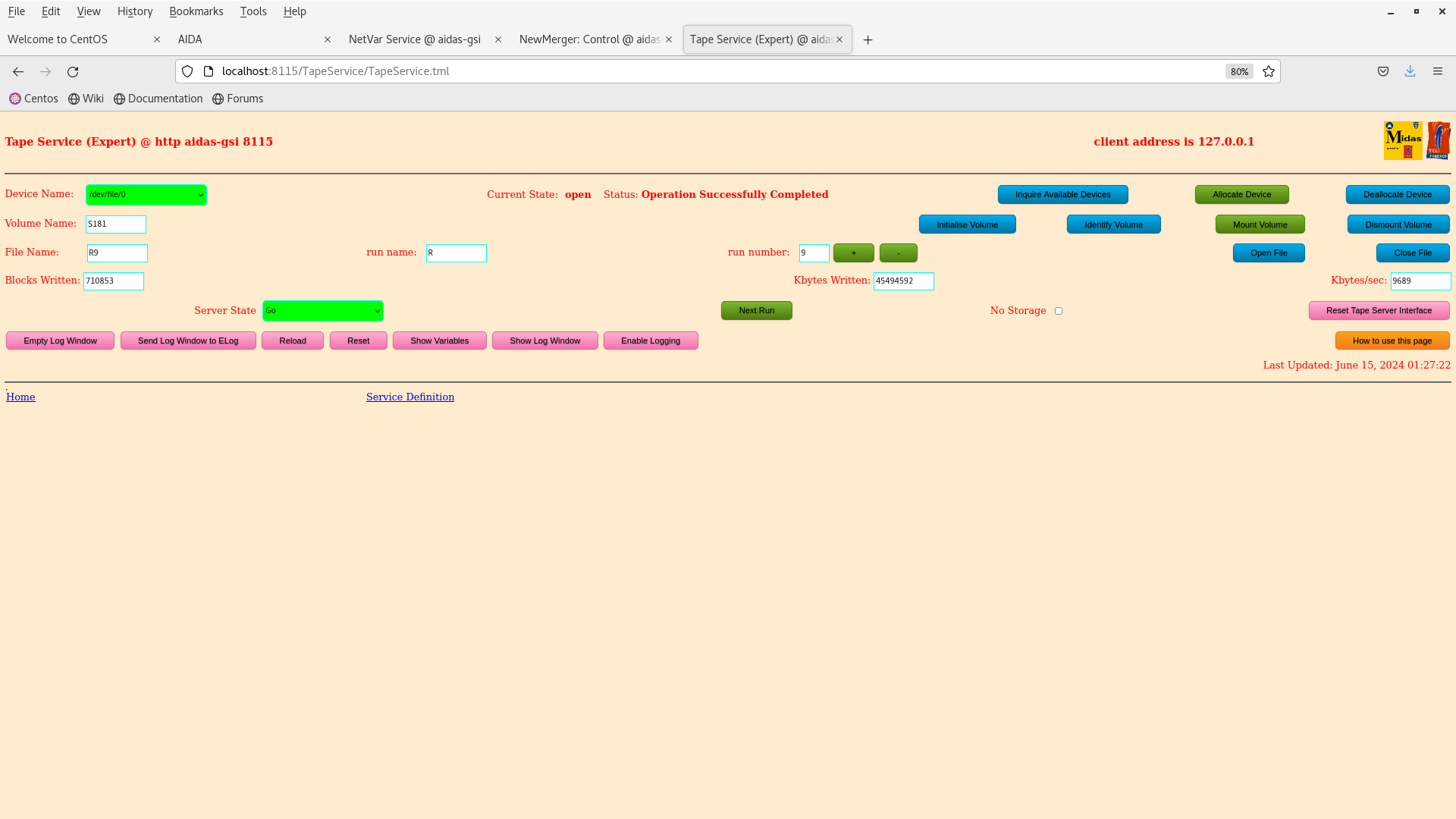

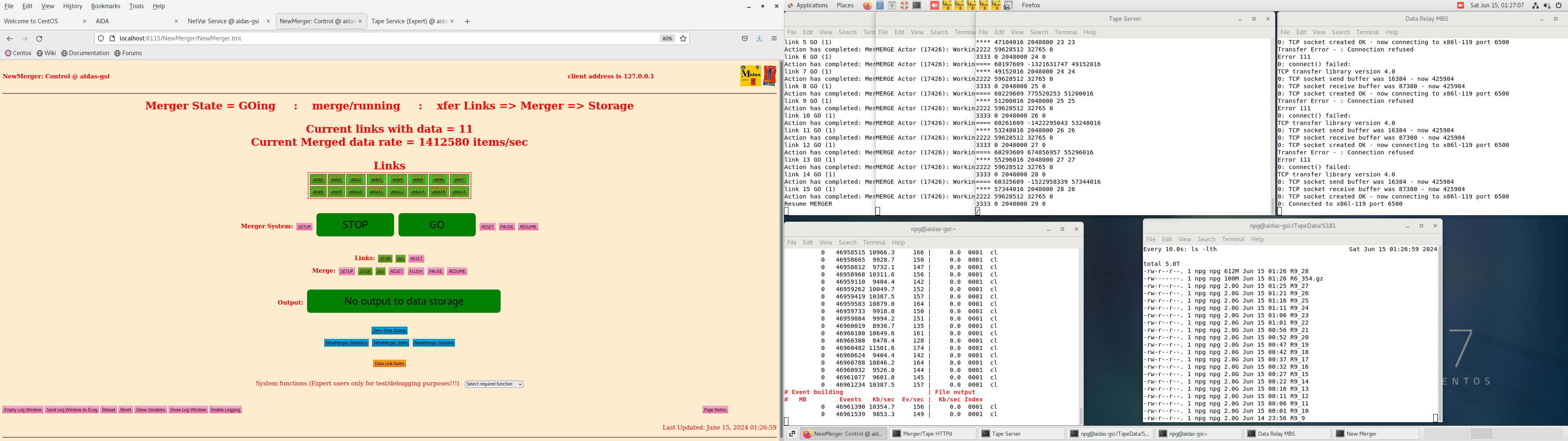

Merger, TapeServer etc - attachments 5-6
analysis data file R9_27 - attachment 7
max deadtime 1.9%, all other FEE64s < 1%
ADC data rate 951k, HEC data rate 1.6kHz
04.28 DSSSD bias & leakage current OK - attachment 8

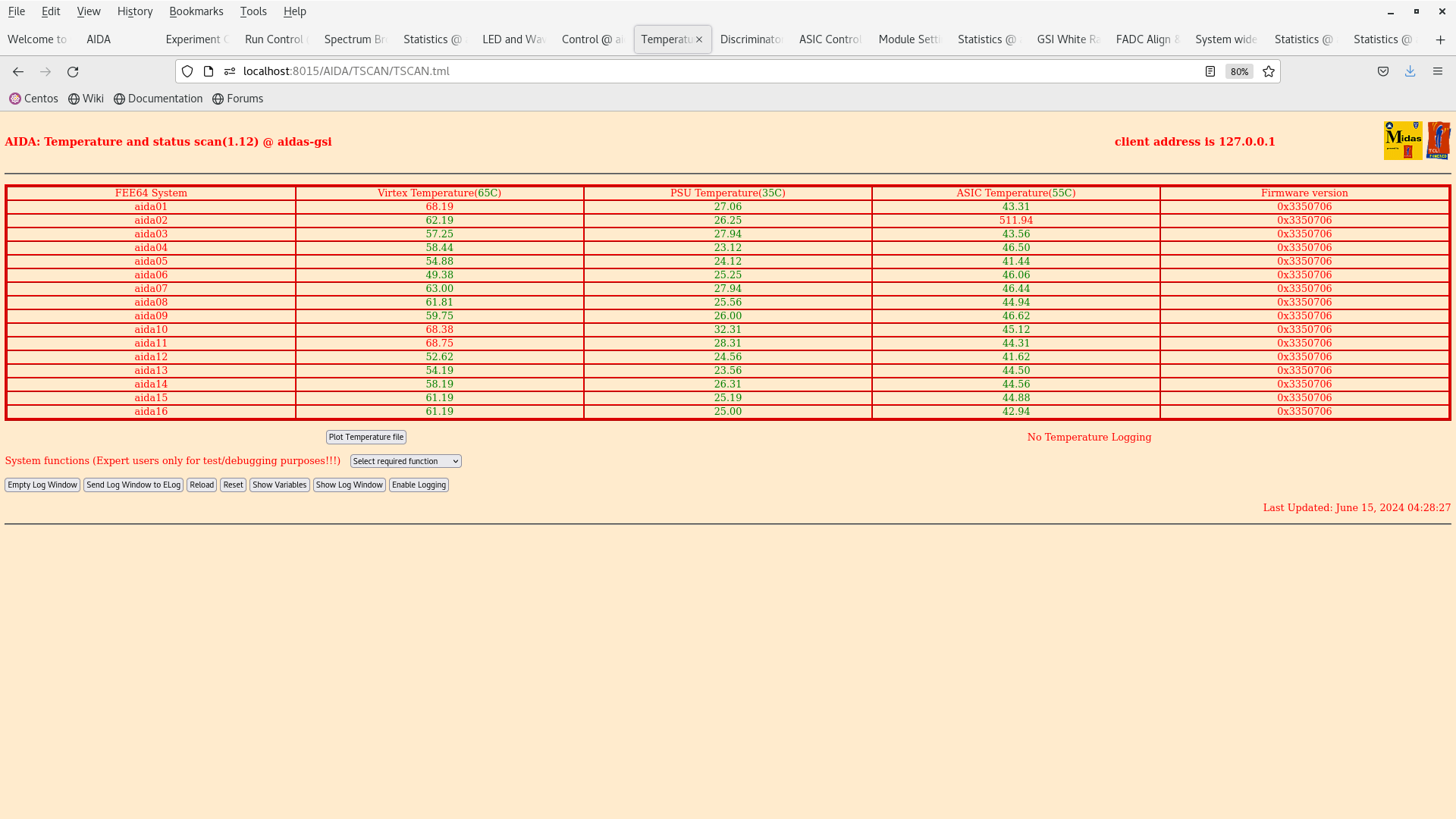

FEE64 temperatures OK - attachment 9
ADC data item stats OK - attachment 10
8x < 20k, max 261k aida08
per FEE64 Rate spectra - attachment 11

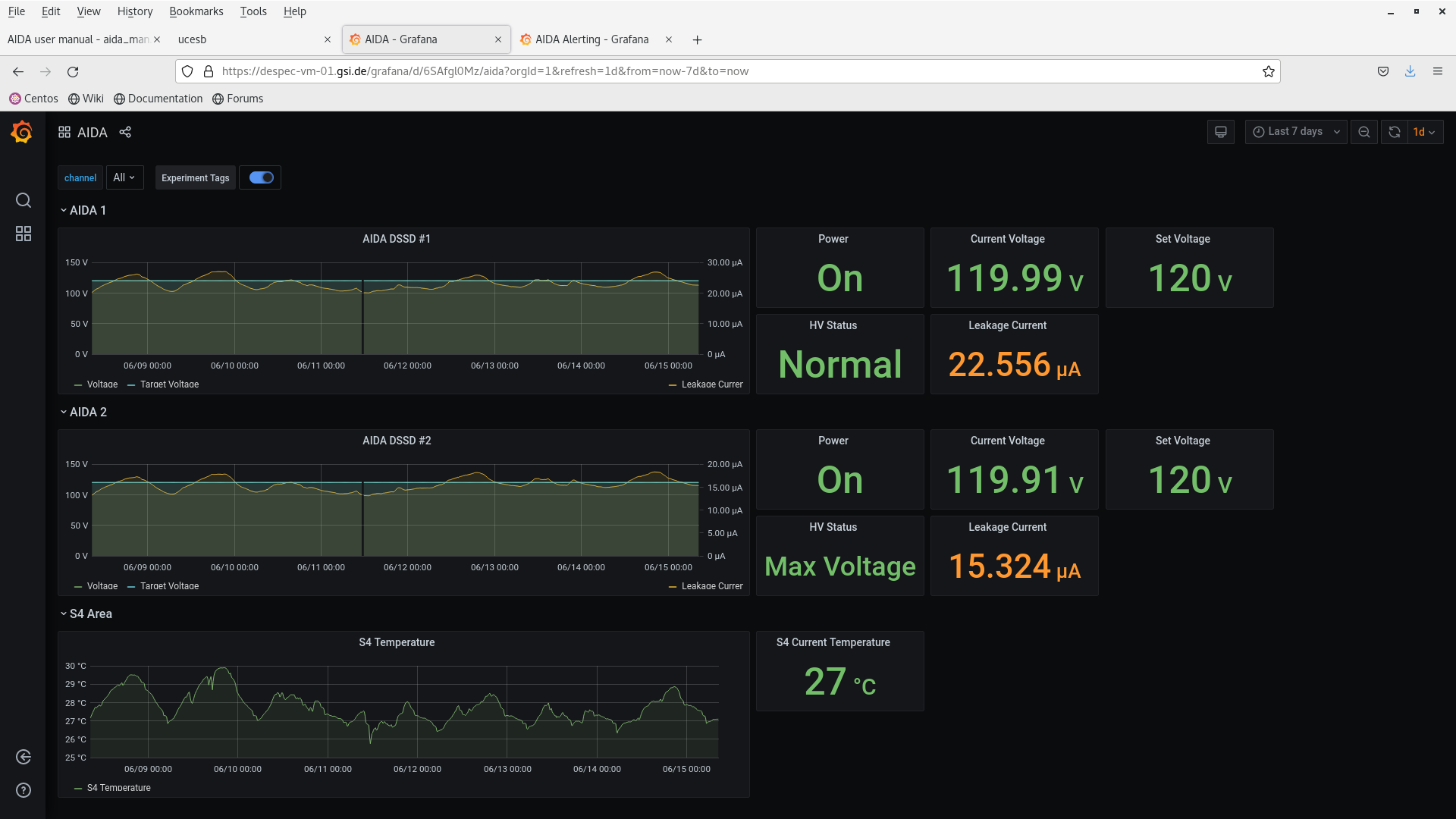

08.30 DSSSD bias & leakage current OK - attachments 12-13
FEE64 temperatures OK - attachment 14
ADC data item stats OK - attachment 15
all rates increased - gamma source in use?
per FEE64 Rate spectra - attachments 16-17
note aida08 asic #3 hot HEC channel

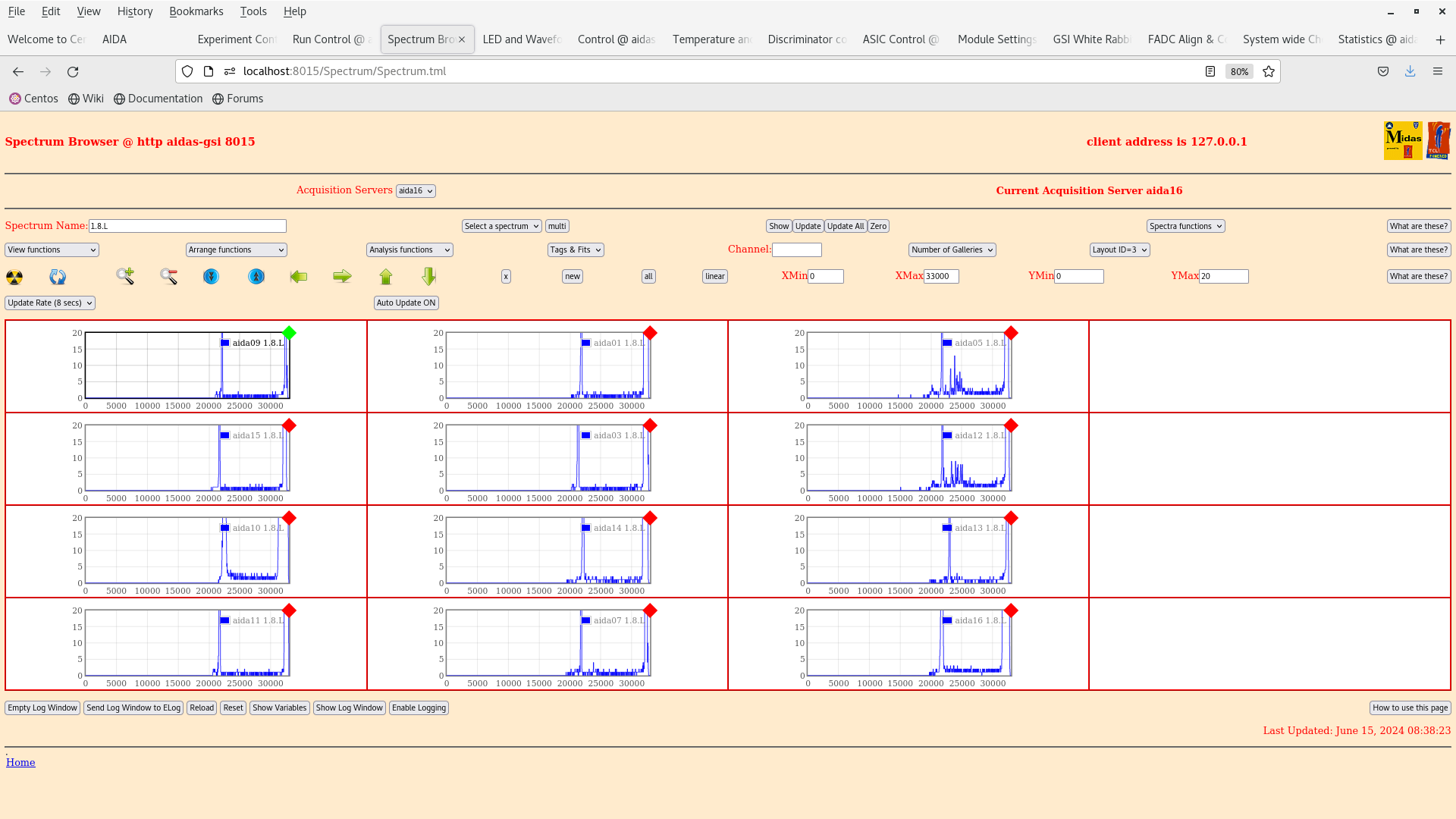

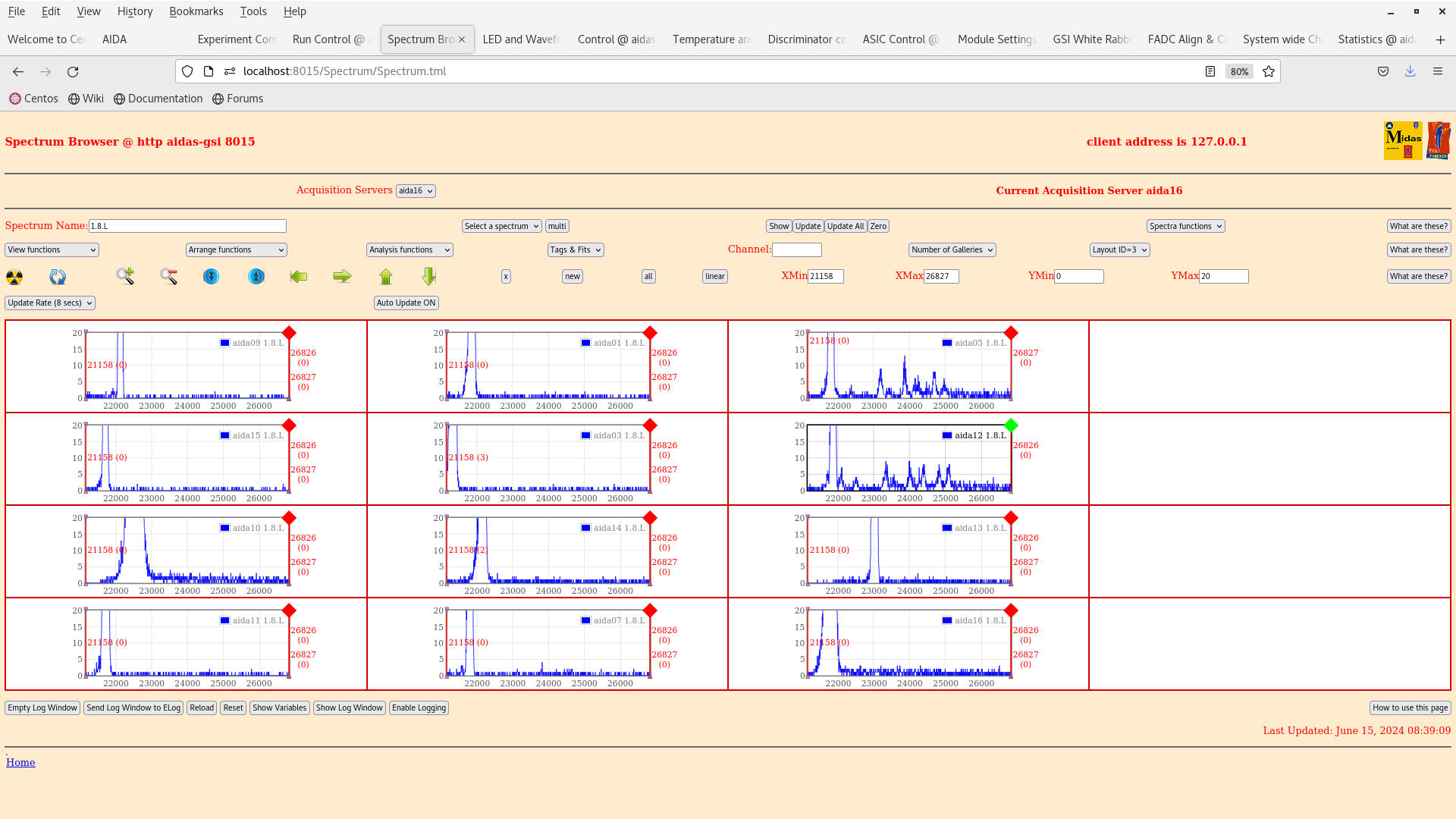

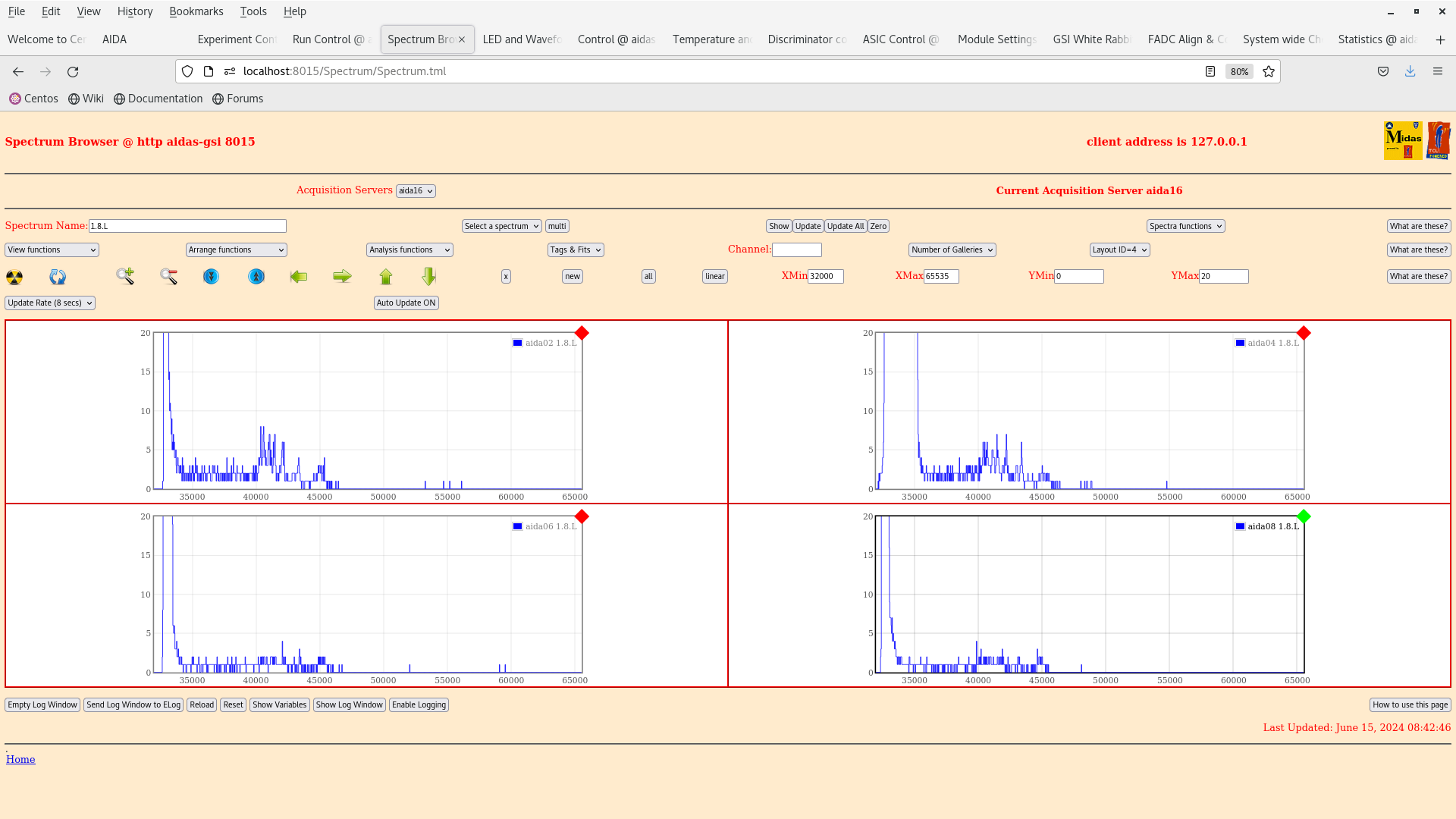

per FEE64 1.8.L spectra - attachments 18-20
aida09 pulser peak width 59 ch FWHM
decay alphas aida05, aida12, aida02, aida04

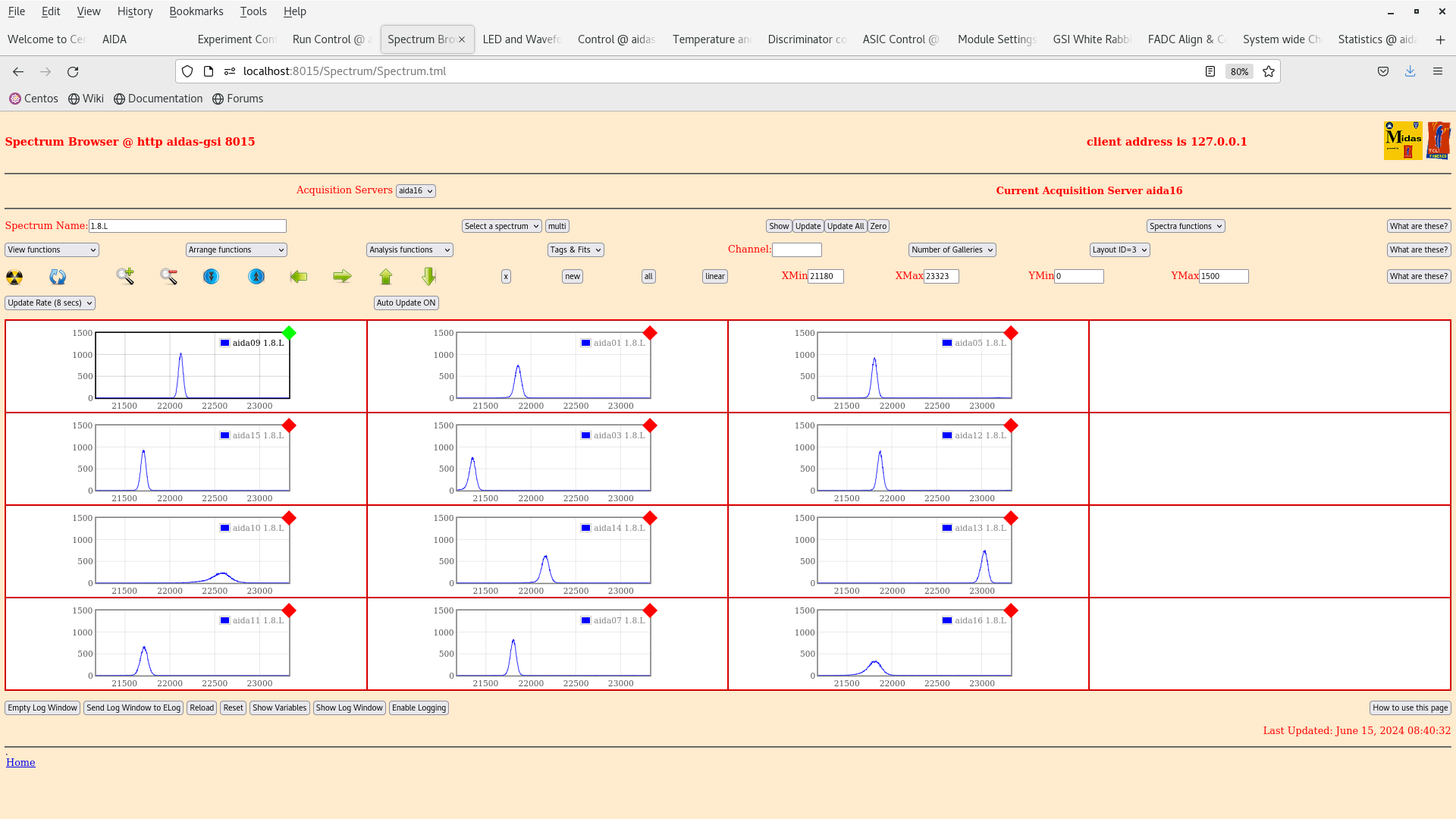

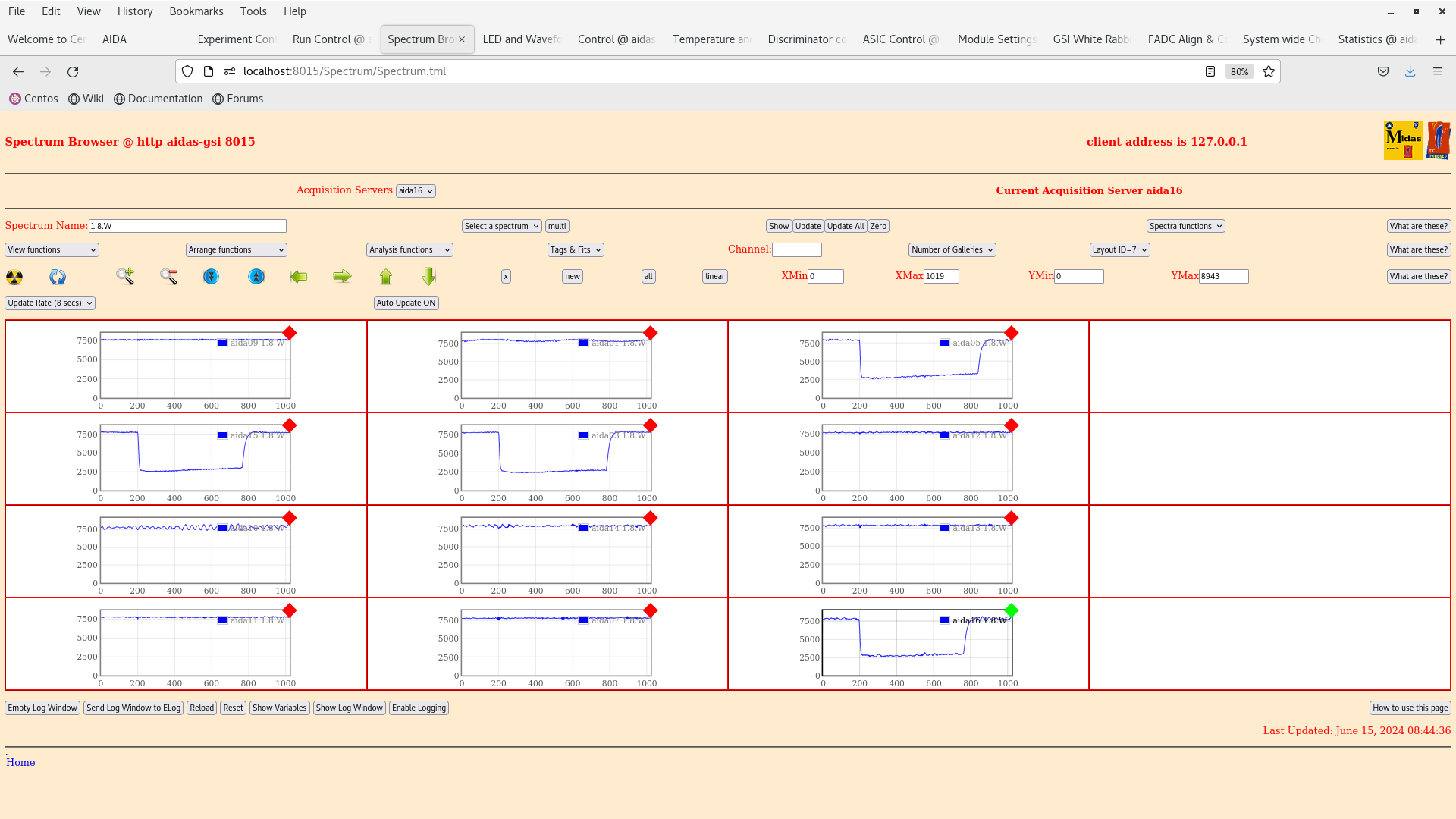

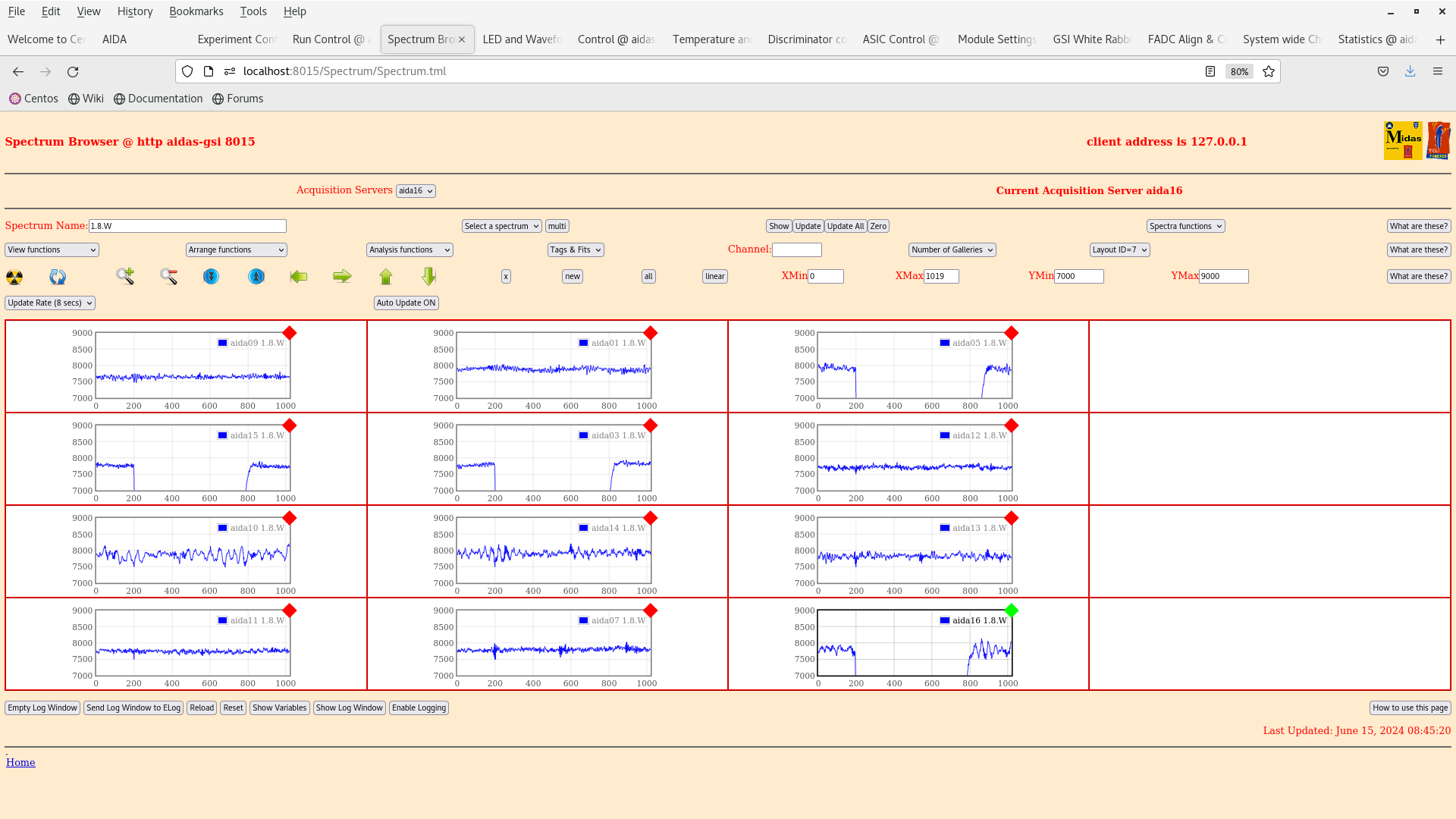

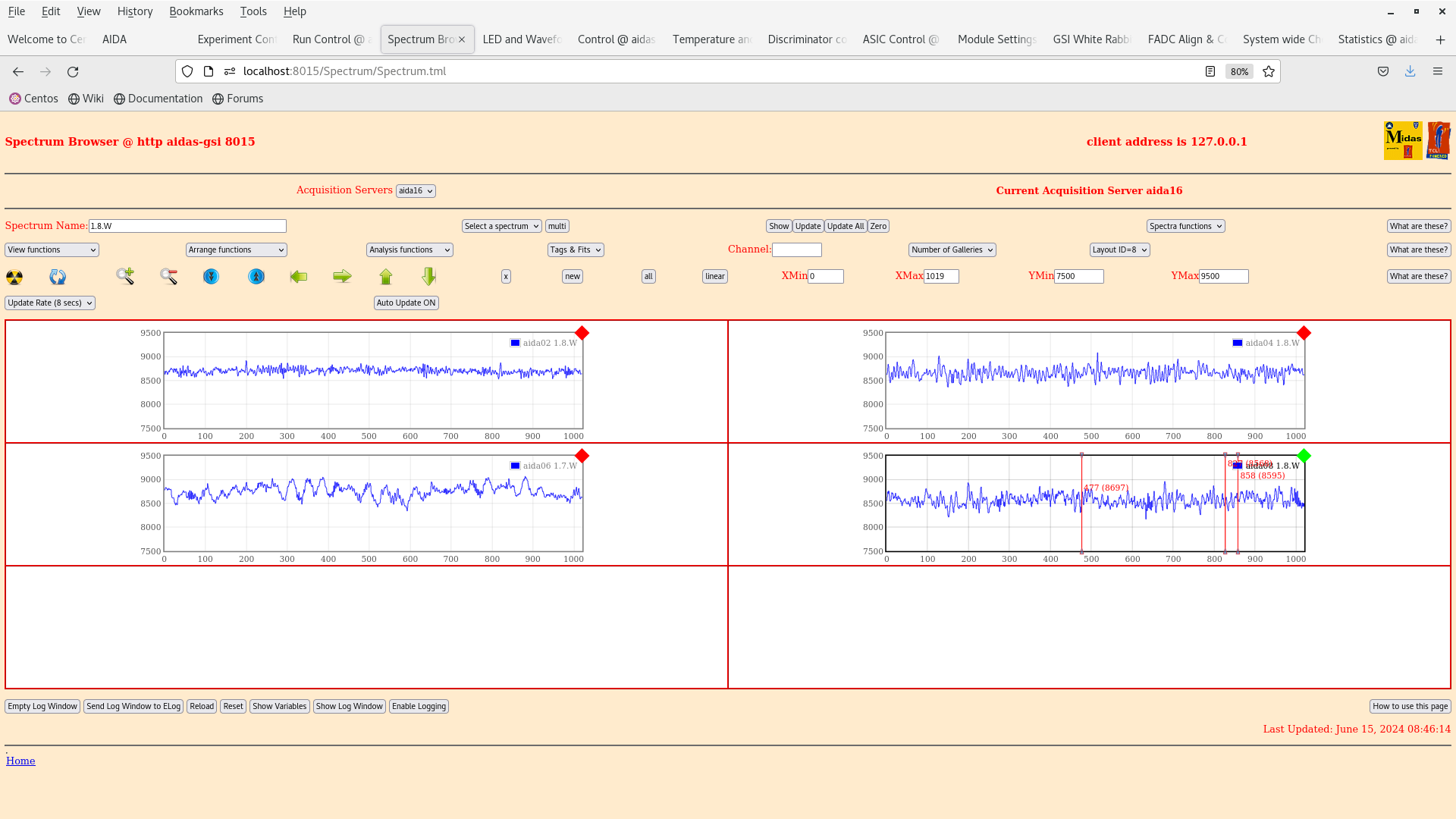

per FEE64 1.8.W spectra - 20us FSR - attachments 21-23

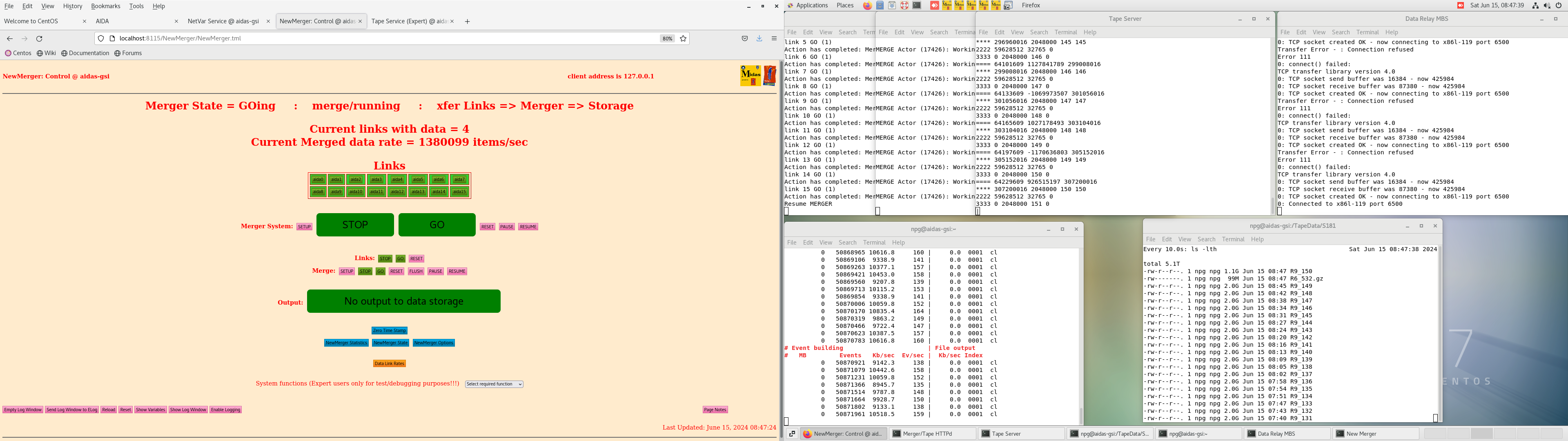

Merger, TapeServer etc - attachments 25-25
analysis data file R9_152 - attachment 26
max deadtime 2.4%, all other FEE64s < 1%
ADC data rate 1.215M, HEC data rate 2.1kHz
12.22 DSSSD bias & leakage current OK - attachment 27
FEE64 temperatures OK - attachment 28

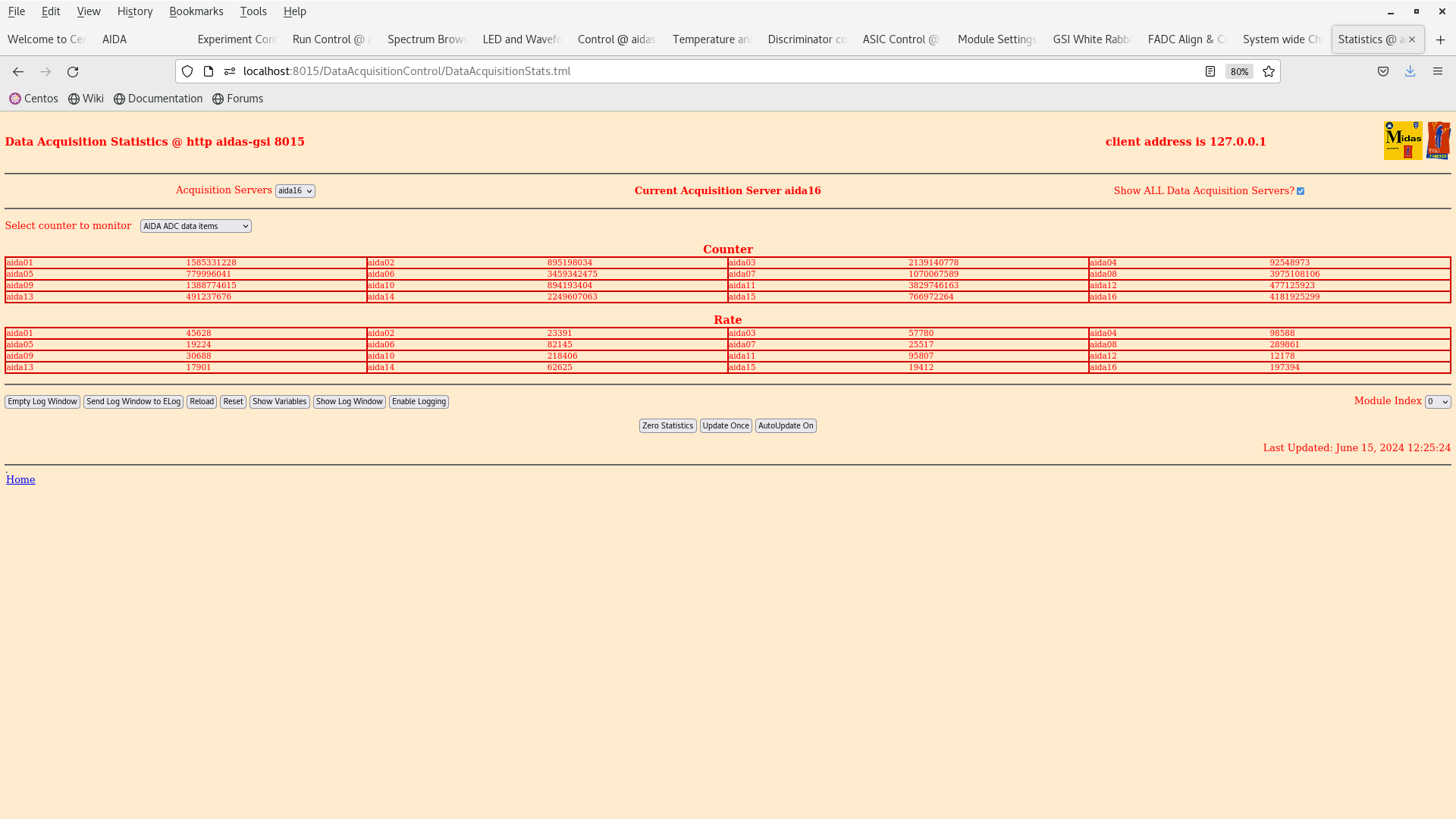

ADC data item stats OK - attachment 29
per FEE64 Rate spectra - attachment 30

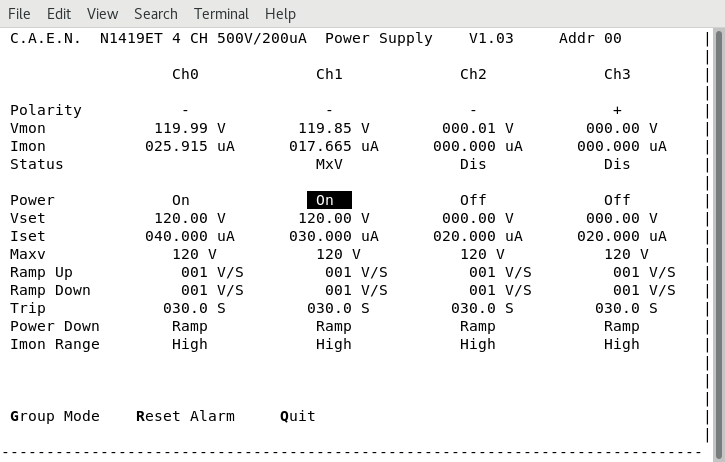

15.27 DSSSD bias & leakage current OK - attachment 31
FEE64 temperatures OK - attachment 32
ADC data item stats OK - attachment 33
all rates increased - 370kBq 152Eu in use
per FEE64 Rate spectra - attachments 34

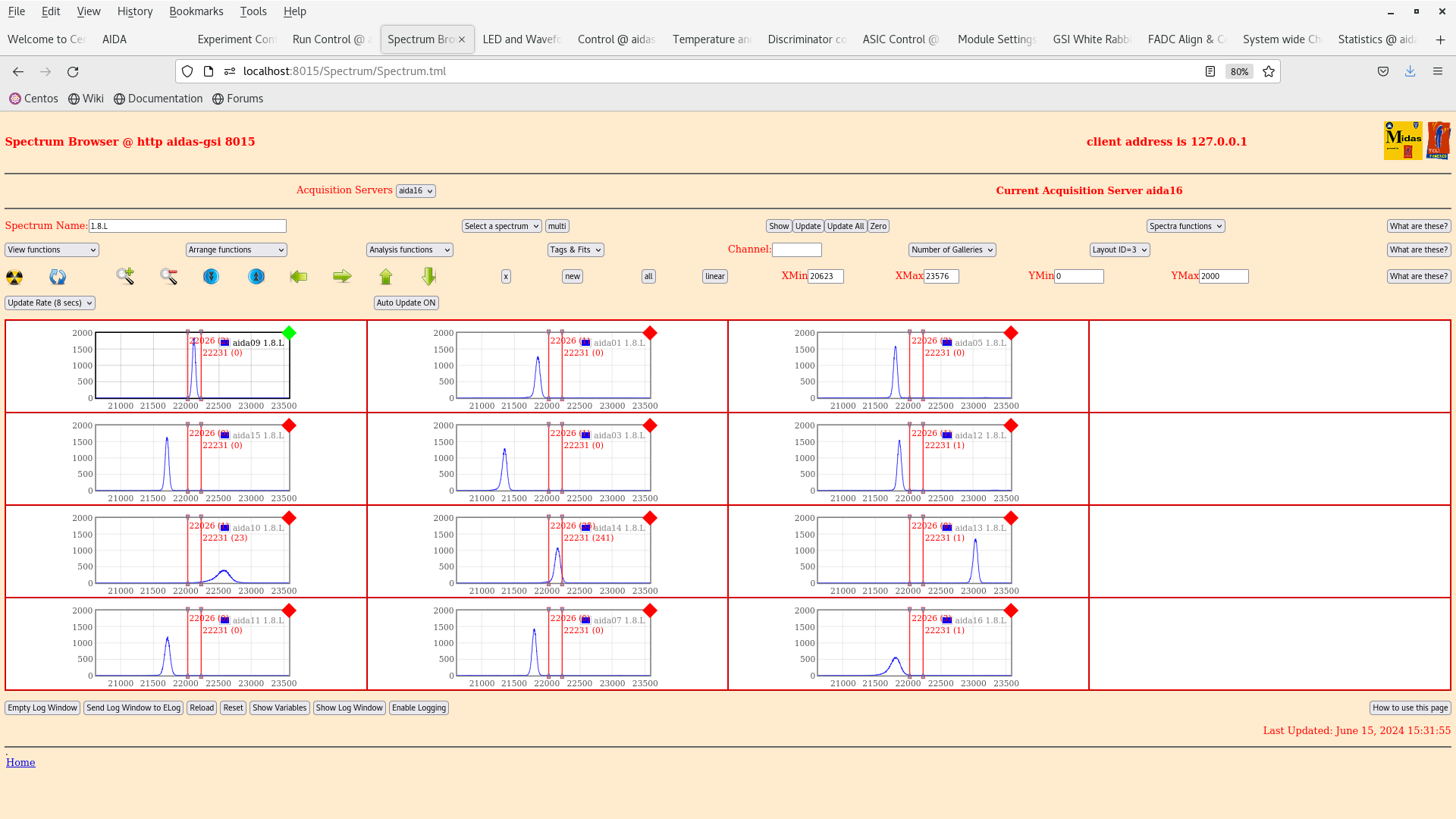

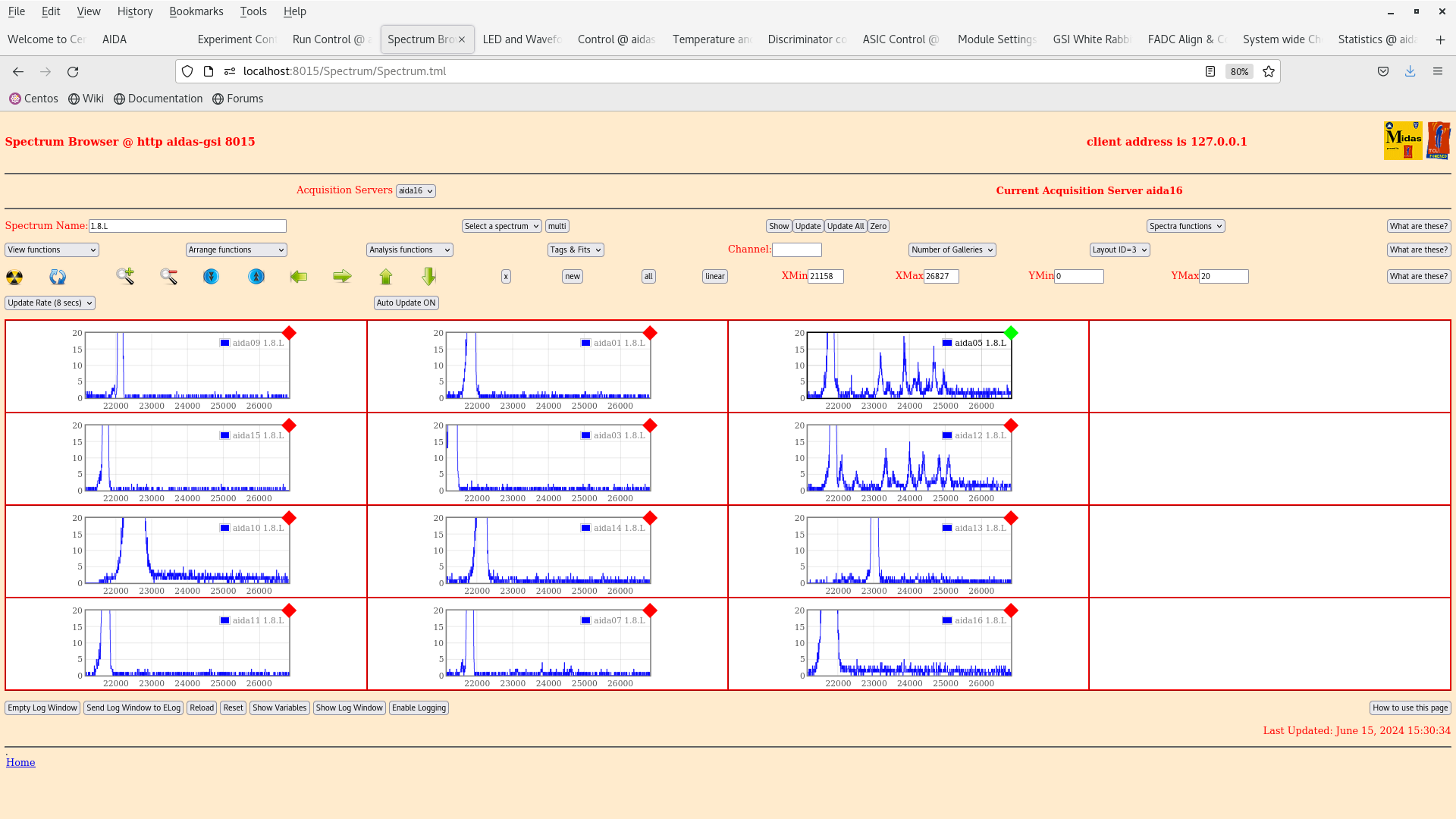

per FEE64 1.8.L spectra - attachments 35-36
aida09 pulser peak width 59 ch FWHM
decay alphas aida05, aida12, aida02, aida04
analysis data file R9_275 - attachment 37
max deadtime 4.4%, all other FEE64s < 2%
ADC data rate 1.520M, HEC data rate 2.3kHz
18.52 DSSSD bias & leakage current OK - attachment 38

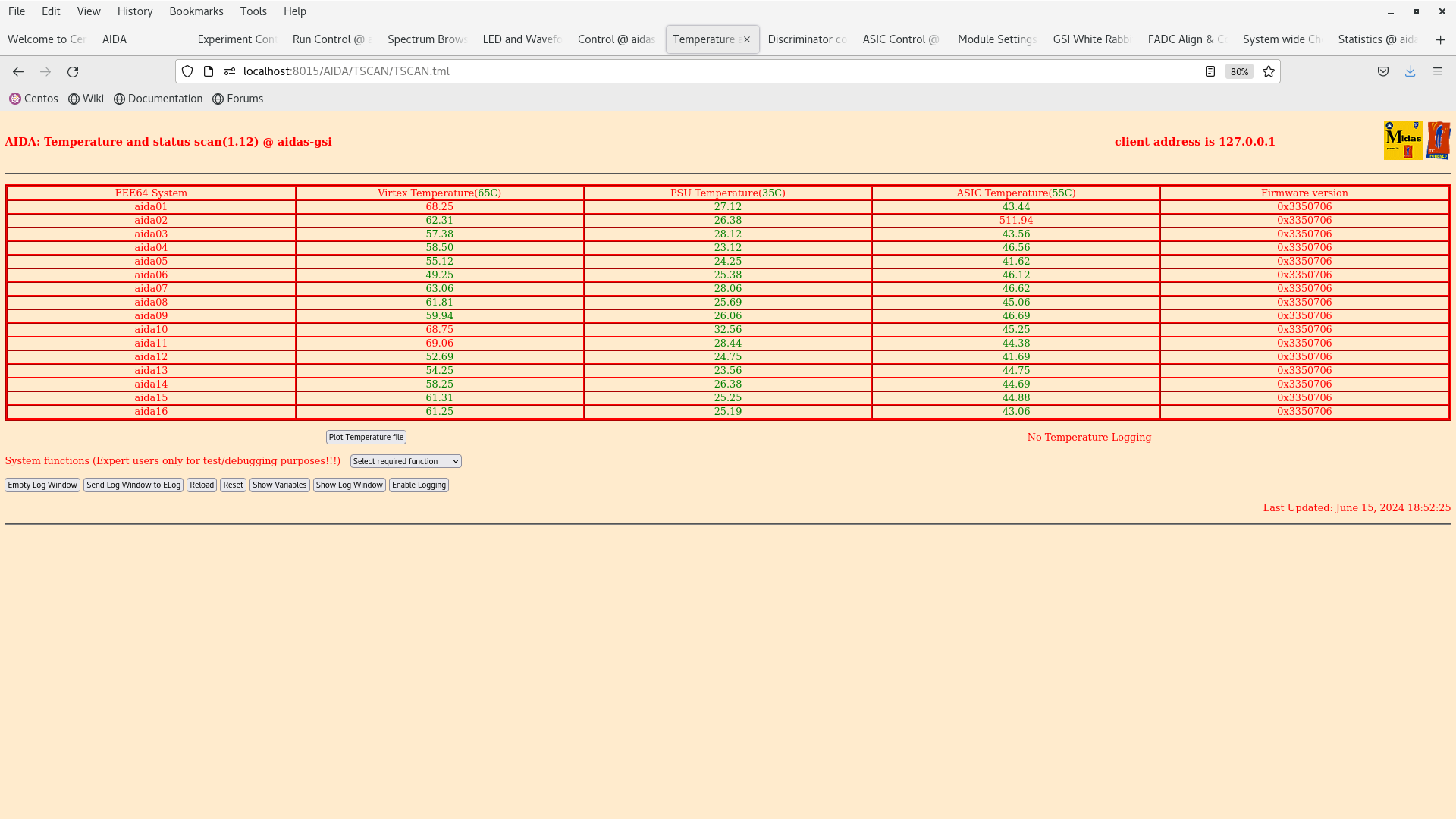

FEE64 temperatures OK - attachment 39
ADC data item stats OK - attachment 40
per FEE64 Rate spectra - attachment 41
22.50 DSSSD bias & leakage current OK - attachment 42
FEE64 temperatures OK - attachment 43
ADC data item stats OK - attachment 44

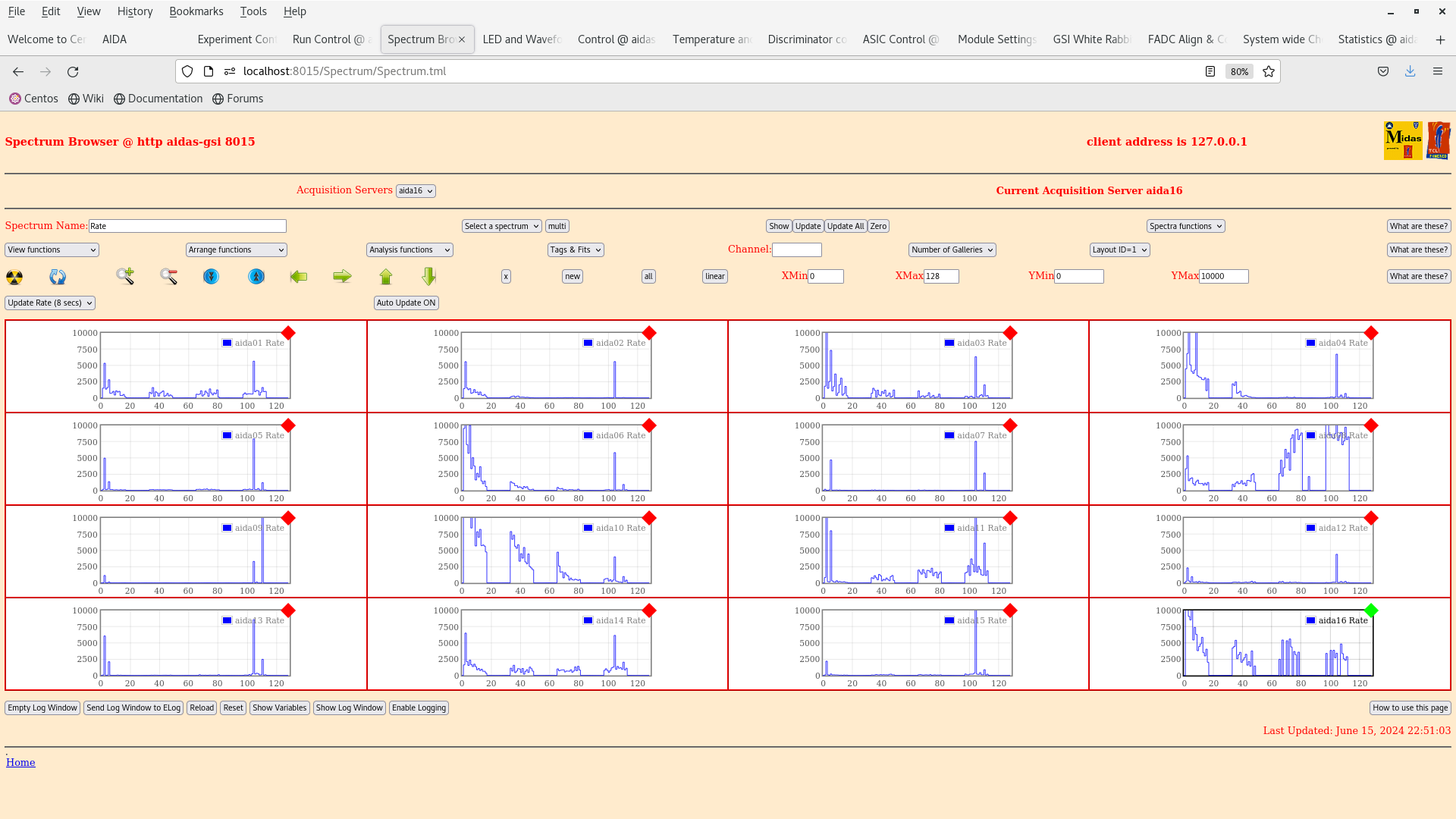

per FEE64 Rate spectra - attachment 45 |
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 258219194 ( 950585.8 Hz)
Other data format: 3700806 ( 13623.8 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 516 ( 1.9 Hz)
RESUME: 516 ( 1.9 Hz)
SYNC100: 33012 ( 121.5 Hz)
WR48-63: 33012 ( 121.5 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 3633750 ( 13377.0 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 437157 ( 1609.3 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 271.642 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.523 0.000
1 0.000 0.000
2 0.959 0.000
3 0.770 0.000
4 0.002 0.000
5 0.768 0.000
6 0.000 0.000
7 5.278 0.000
8 0.000 0.000
9 2.951 0.000
10 0.780 0.000
11 0.000 0.000
12 0.030 0.000
13 0.033 0.000
14 0.000 0.000
15 2.166 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 3263639 8999 0 0 7 7 426 426 0 8133 0 129
1 5814210 1456 0 0 0 0 728 728 0 0 0 128
2 6330359 1813504 0 0 6 6 1067 1067 0 1811358 0 79
3 25849187 6768 0 0 50 50 3334 3334 0 0 0 112
4 2729875 722 0 0 1 1 360 360 0 0 0 127
5 18600203 4844 0 0 37 37 2385 2385 0 0 0 94
6 5217587 17698 0 0 0 0 698 698 0 16302 0 124
7 65848180 17052 0 0 196 196 8330 8330 0 0 0 435453
8 7897456 2060 0 0 0 0 1030 1030 0 0 0 128
9 45422925 1809941 0 0 107 107 5885 5885 0 1797957 0 64
10 15079549 3854 0 0 29 29 1898 1898 0 0 0 111
11 1722257 384 0 0 0 0 192 192 0 0 0 128
12 4556679 1158 0 0 1 1 578 578 0 0 0 141
13 6725939 1702 0 0 2 2 849 849 0 0 0 130
14 3055032 760 0 0 0 0 380 380 0 0 0 128
15 40106117 9904 0 0 80 80 4872 4872 0 0 0 81
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 39.733s ( 805.368 blocks/s, 50.335 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 259017680 ( 1215243.3 Hz)
Other data format: 2902320 ( 13616.9 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 515 ( 2.4 Hz)
RESUME: 515 ( 2.4 Hz)
SYNC100: 32794 ( 153.9 Hz)
WR48-63: 32794 ( 153.9 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 2835702 ( 13304.4 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 441097 ( 2069.5 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 213.141 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.001 0.000
1 0.000 0.000
2 0.002 0.000
3 0.140 0.000
4 0.000 0.000
5 0.047 0.000
6 0.000 0.000
7 5.152 0.000
8 0.000 0.000
9 2.136 0.000
10 0.186 0.000
11 0.000 0.000
12 0.000 0.000
13 0.032 0.000
14 0.000 0.000
15 1.354 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 8157992 8515 0 0 4 4 1057 1057 0 6393 0 0
1 4152307 1016 0 0 0 0 508 508 0 0 0 0
2 10764259 1418465 0 0 2 2 1556 1556 0 1415349 0 0
3 20158462 5380 0 0 30 30 2660 2660 0 0 0 0
4 3884729 1032 0 0 0 0 516 516 0 0 0 0
5 16603608 4178 0 0 21 21 2068 2068 0 0 0 0
6 5112596 13950 0 0 0 0 582 582 0 12786 0 0
7 59646516 15586 0 0 217 217 7576 7576 0 0 0 441097
8 6438302 1678 0 0 0 0 839 839 0 0 0 0
9 45360093 1412938 0 0 126 126 5756 5756 0 1401174 0 0
10 18847436 4734 0 0 36 36 2331 2331 0 0 0 0
11 2364016 648 0 0 0 0 324 324 0 0 0 0
12 1869299 460 0 0 0 0 230 230 0 0 0 0
13 11268040 2624 0 0 8 8 1304 1304 0 0 0 0
14 3774625 934 0 0 0 0 467 467 0 0 0 0
15 40615400 10182 0 0 71 71 5020 5020 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 41.906s ( 763.609 blocks/s, 47.726 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*** TDR format 3.3.0 analyser - TD - May 2021
*** ERROR: READ I/O error: 5002
blocks: 32000
ADC data format: 259129992 ( 1519853.9 Hz)
Other data format: 2790008 ( 16364.0 Hz)
Sample trace data format: 0 ( 0.0 Hz)
Undefined format: 0 ( 0.0 Hz)
Other data format type: PAUSE: 665 ( 3.9 Hz)
RESUME: 665 ( 3.9 Hz)
SYNC100: 32636 ( 191.4 Hz)
WR48-63: 32636 ( 191.4 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 2723406 ( 15973.4 Hz)
Other info: 0 ( 0.0 Hz)
ADC data range bit set: 395024 ( 2316.9 Hz)
Timewarps: ADC: 0 ( 0.0 Hz)
PAUSE: 0 ( 0.0 Hz)
RESUME: 0 ( 0.0 Hz)
SYNC100: 0 ( 0.0 Hz)
WR48-63: 0 ( 0.0 Hz)
FEE64 disc: 0 ( 0.0 Hz)
MBS info: 0 ( 0.0 Hz)
Undefined: 0 ( 0.0 Hz)
Sample trace: 0 ( 0.0 Hz)
*** Timestamp elapsed time: 170.497 s
FEE elapsed dead time(s) elapsed idle time(s)
0 0.249 0.000
1 0.000 0.000
2 0.356 0.000
3 0.136 0.000
4 0.337 0.000
5 0.141 0.000
6 0.019 0.000
7 7.476 0.000
8 0.165 0.000
9 3.059 0.000
10 0.581 0.000
11 0.000 0.000
12 0.320 0.000
13 0.705 0.000
14 0.045 0.000
15 1.921 0.000
16 0.000 0.000
17 0.000 0.000
18 0.000 0.000
19 0.000 0.000
20 0.000 0.000
21 0.000 0.000
22 0.000 0.000
23 0.000 0.000
24 0.000 0.000
25 0.000 0.000
26 0.000 0.000
27 0.000 0.000
28 0.000 0.000
29 0.000 0.000
30 0.000 0.000
31 0.000 0.000
32 0.000 0.000
*** Statistics
FEE ADC Data Other Data Sample Undefined Pause Resume SYNC100 WR48-63 Disc MBS Other HEC Data
0 12819722 8373 0 0 35 35 1597 1597 0 5109 0 0
1 4488999 1128 0 0 0 0 564 564 0 0 0 0
2 13809452 1368881 0 0 15 15 1975 1975 0 1364901 0 0
3 17302926 4370 0 0 25 25 2160 2160 0 0 0 0
4 4688002 1104 0 0 11 11 541 541 0 0 0 0
5 15844696 4176 0 0 32 32 2056 2056 0 0 0 0
6 5051819 11648 0 0 1 1 708 708 0 10230 0 0
7 52726699 13824 0 0 233 233 6679 6679 0 0 0 395024
8 5506218 1384 0 0 2 2 690 690 0 0 0 0
9 42499600 1354256 0 0 142 142 5403 5403 0 1343166 0 0
10 20647689 5006 0 0 43 43 2460 2460 0 0 0 0
11 2780744 604 0 0 0 0 302 302 0 0 0 0
12 3628914 944 0 0 9 9 463 463 0 0 0 0
13 14531072 3696 0 0 25 25 1823 1823 0 0 0 0
14 4089821 1130 0 0 3 3 562 562 0 0 0 0
15 38713619 9484 0 0 89 89 4653 4653 0 0 0 0
16 0 0 0 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0 0 0 0
*** Timewarps
FEE ADC Pause Resume SYNC100 WR48-63 Disc MBS Undefined Samples
0 0 0 0 0 0 0 0 0 0
1 0 0 0 0 0 0 0 0 0
2 0 0 0 0 0 0 0 0 0
3 0 0 0 0 0 0 0 0 0
4 0 0 0 0 0 0 0 0 0
5 0 0 0 0 0 0 0 0 0
6 0 0 0 0 0 0 0 0 0
7 0 0 0 0 0 0 0 0 0
8 0 0 0 0 0 0 0 0 0
9 0 0 0 0 0 0 0 0 0
10 0 0 0 0 0 0 0 0 0
11 0 0 0 0 0 0 0 0 0
12 0 0 0 0 0 0 0 0 0
13 0 0 0 0 0 0 0 0 0
14 0 0 0 0 0 0 0 0 0
15 0 0 0 0 0 0 0 0 0
16 0 0 0 0 0 0 0 0 0
17 0 0 0 0 0 0 0 0 0
18 0 0 0 0 0 0 0 0 0
19 0 0 0 0 0 0 0 0 0
20 0 0 0 0 0 0 0 0 0
21 0 0 0 0 0 0 0 0 0
22 0 0 0 0 0 0 0 0 0
23 0 0 0 0 0 0 0 0 0
24 0 0 0 0 0 0 0 0 0
25 0 0 0 0 0 0 0 0 0
26 0 0 0 0 0 0 0 0 0
27 0 0 0 0 0 0 0 0 0
28 0 0 0 0 0 0 0 0 0
29 0 0 0 0 0 0 0 0 0
30 0 0 0 0 0 0 0 0 0
31 0 0 0 0 0 0 0 0 0
32 0 0 0 0 0 0 0 0 0
*** Program elapsed time: 49.219s ( 650.159 blocks/s, 40.635 Mb/s)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
