Message ID: 743     Entry time: Fri Nov 7 12:30:30 2025
Author: JB, GB, MP
Subject: Pulser walkthrough for source tests.
13:30 We are going to do the pulser walkthrough for the the source tests.

We are wrapping the snout in some copper first to further establish a better connection with the ground.

2025Nov07-13.55.01 is a setting with 100 keV threshold across all FEEs.

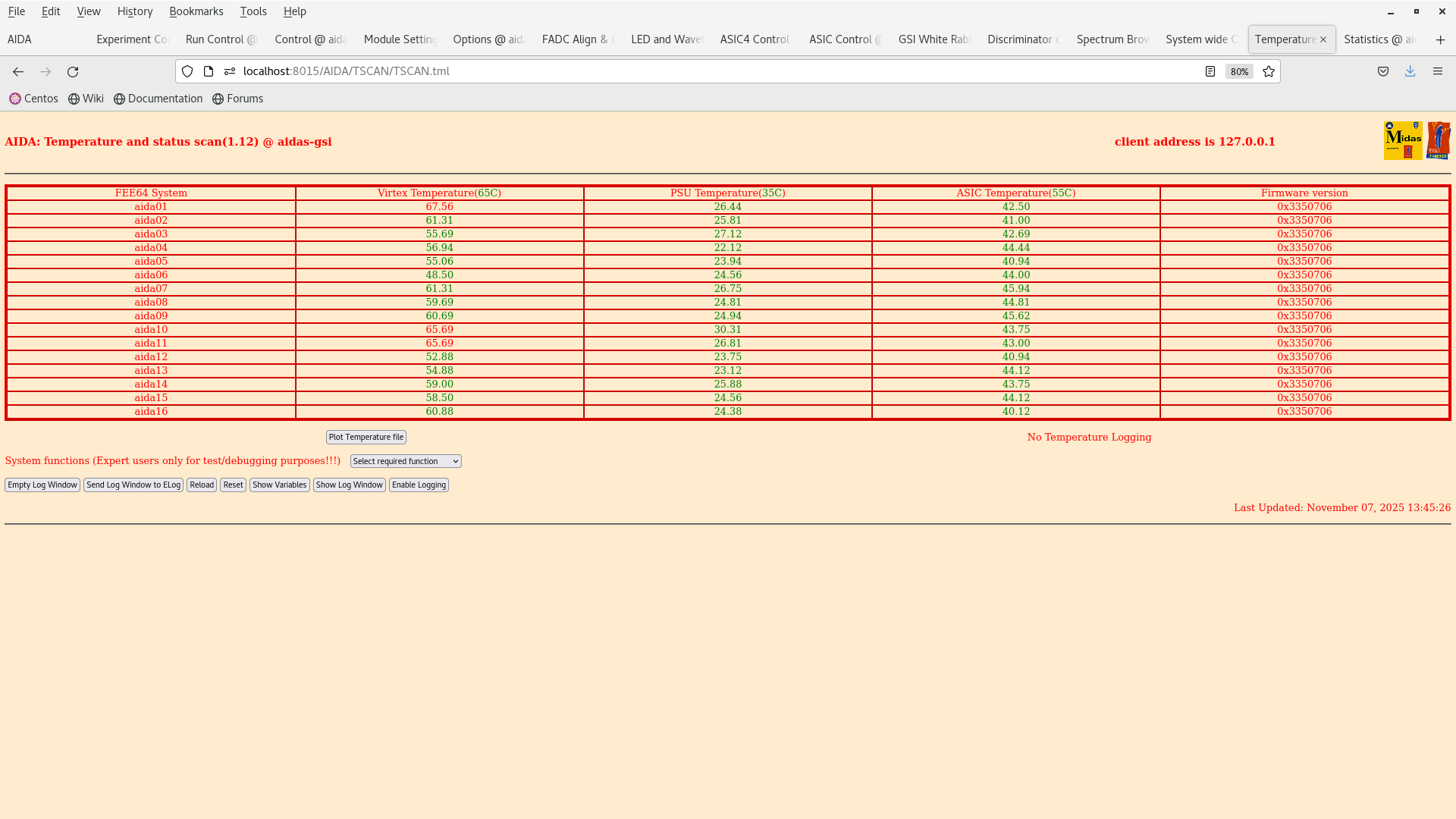

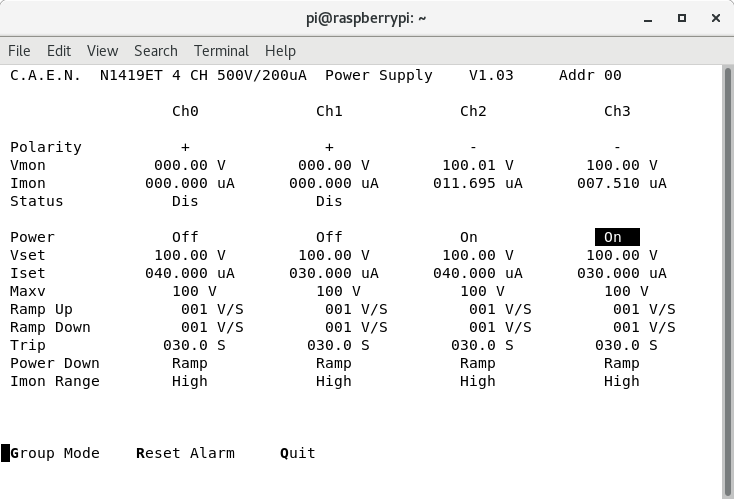

We got the DAQ running, TEMPS ok and biased OK. We execute the pulser walkthrough as follow:

10x attenuation - 10V -> 1V in steps of 1 V

/lustre/despec/aida_sourcetest_2025/raw/

pulser_wt_10V - 10V

pulser_wt_9V - 9V

pulser_wt_8V - 8V

pulser_wt_7V - 7V

pulser wt_6V - 6V

pulser_wt_5V - 5V

pulser_wt_4V - 4V

pulser_wt_3V - 3V

pulser_wt_2V - 2V

pulser_wt_1V - 1V

Data taking stopped and we turn off the system to a safe state.

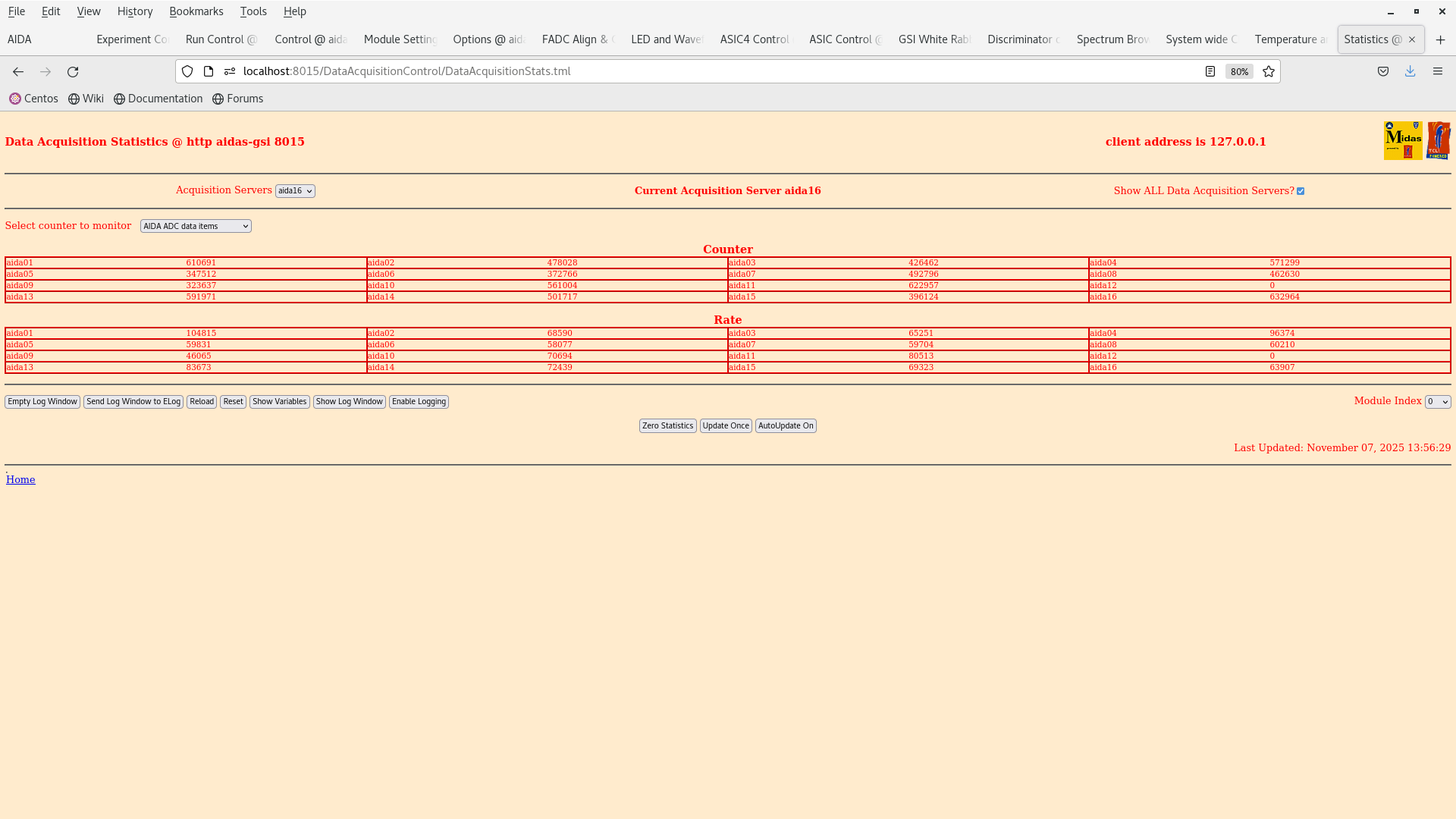

Attachment 1: Screenshot_from_2025-11-07_13-56-34.png  126 kB  Uploaded Fri Nov 7 13:37:38 2025  | Hide | Hide all
Attachment 2: Screenshot_from_2025-11-07_13-45-30.png  160 kB  Uploaded Fri Nov 7 13:37:38 2025  | Hide | Hide all
Attachment 3: Screenshot_from_2025-11-07_13-43-50.png  39 kB  Uploaded Fri Nov 7 13:37:38 2025  | Hide | Hide all
