Message ID: 74     Entry time: Tue Oct 11 15:47:45 2016
Author: N Brewer, S Go et al
Subject: CLOVER

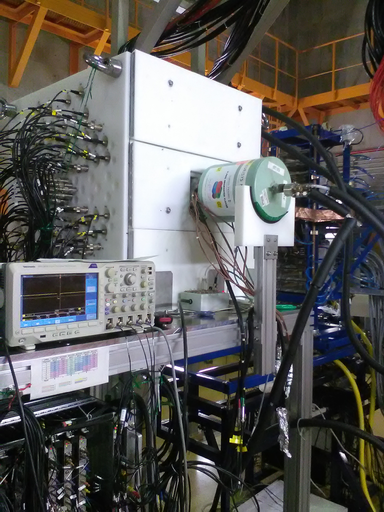

Both COVER detectors are installed in place.
See photos.

Detector D4: left of the beam
Crystal distribution:
BLUE-BLACK
RED -GREEN

Detector G7: right of the beam
Crystal distribution:
BLUE-BLACK
RED -GREEN

Cables connected. Some work on noise minimization.
Resolution improved for D4-Black which was poor
on July. Otherwise similar behaviour.

See spectra with 137Cs and 60Co sources ta the center.
File:161011_1805_CLOVER_CsCo.root
We are using the calibration from July which
works surprisingly well for all except G7Red
(explains double peak in spectrum)

More checks to be done.
Attachment 1: IMG_20161011_182318.jpg  1.676 MB  Uploaded Wed Oct 12 06:23:37 2016  | Hide | Hide all
Attachment 2: IMG_20161011_182258.jpg  1.673 MB  Uploaded Wed Oct 12 06:24:40 2016  | Hide | Hide all
Attachment 3: D4-1st.pdf  24 kB  Uploaded Wed Oct 12 06:41:35 2016  | Hide | Hide all
D4-1st.pdf
Attachment 4: G7-1st.pdf  24 kB  Uploaded Wed Oct 12 06:41:52 2016  | Hide | Hide all
G7-1st.pdf
