Message ID: 47     Entry time: Tue Aug 31 11:55:11 2021
Author: CB RSS
Subject: Last preparations for CARME lift
Found strut bolts in the bag with
spherical washers. Mounted the struts and
the washers. See attach 1.

Vented CARME in preparation for lift.

Turbo off
Pressure starts increasing without
introducing leaks. Up to 10-4 mbar. IE 514
off.

Removed plastic cap from leak valve.
Pressure rate increases. Leaky valve?

Turbo motor speed reaches 0 Hz in 1h

Opened leak valve. Scroll off. Pressure to
10 mbar. Not increasing anymore. Turbo
leak aperture likely to small to vent
CARME volume.

Disconnected scroll. Carefully let air in
by tweaking flexible hose connection. Not
recommended again, but should be safe
given turbo fully stop and chamber nearly
vented.

Reached atmosphere in 10 minutes.

Now waiting for lifting support to mount
feet.
Attachment 1: 16304077162843806956479048661374.jpg  2.951 MB  Uploaded Tue Aug 31 13:02:37 2021  | Hide | Hide all

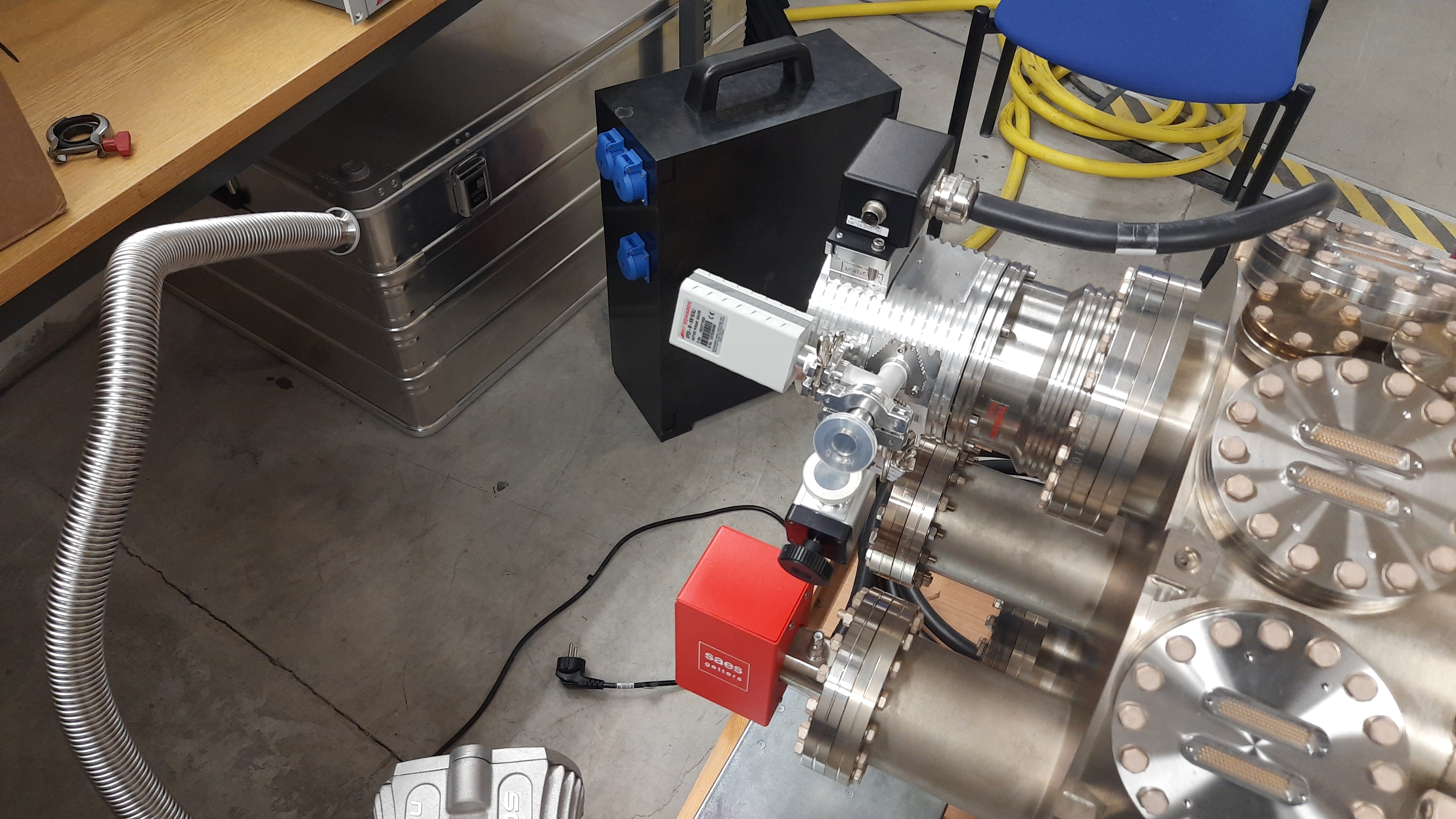

Attachment 2: 16304077904321905824276870110392.jpg  2.920 MB  Uploaded Tue Aug 31 13:03:39 2021  | Hide | Hide all
