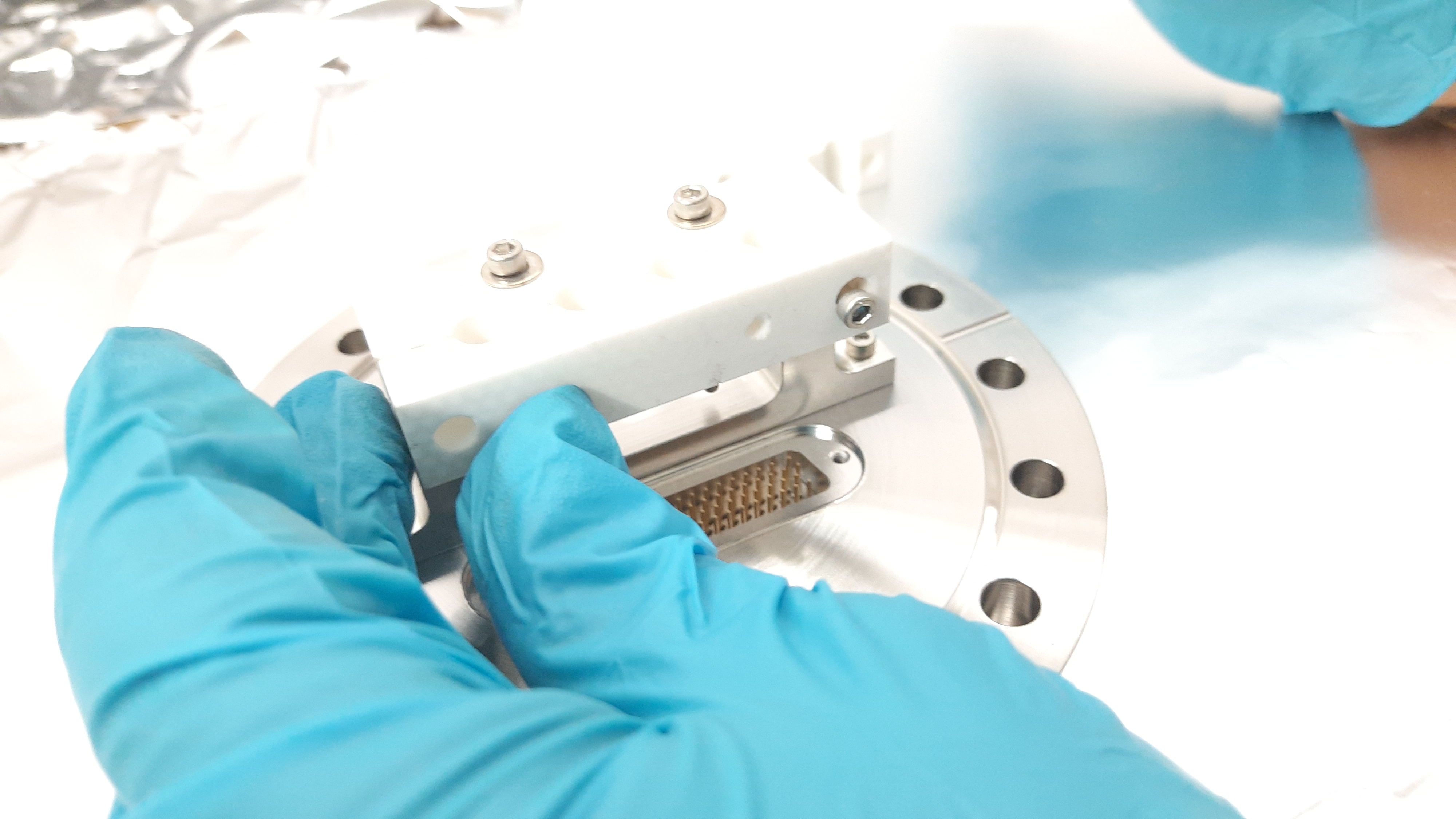

Assembled feedthrough flange with re-cut
SS support bracket. M3 vented on the
sides, M3x30 partly threaded on top. Top
screws don't touch the
Macor (by design? See first attachment).

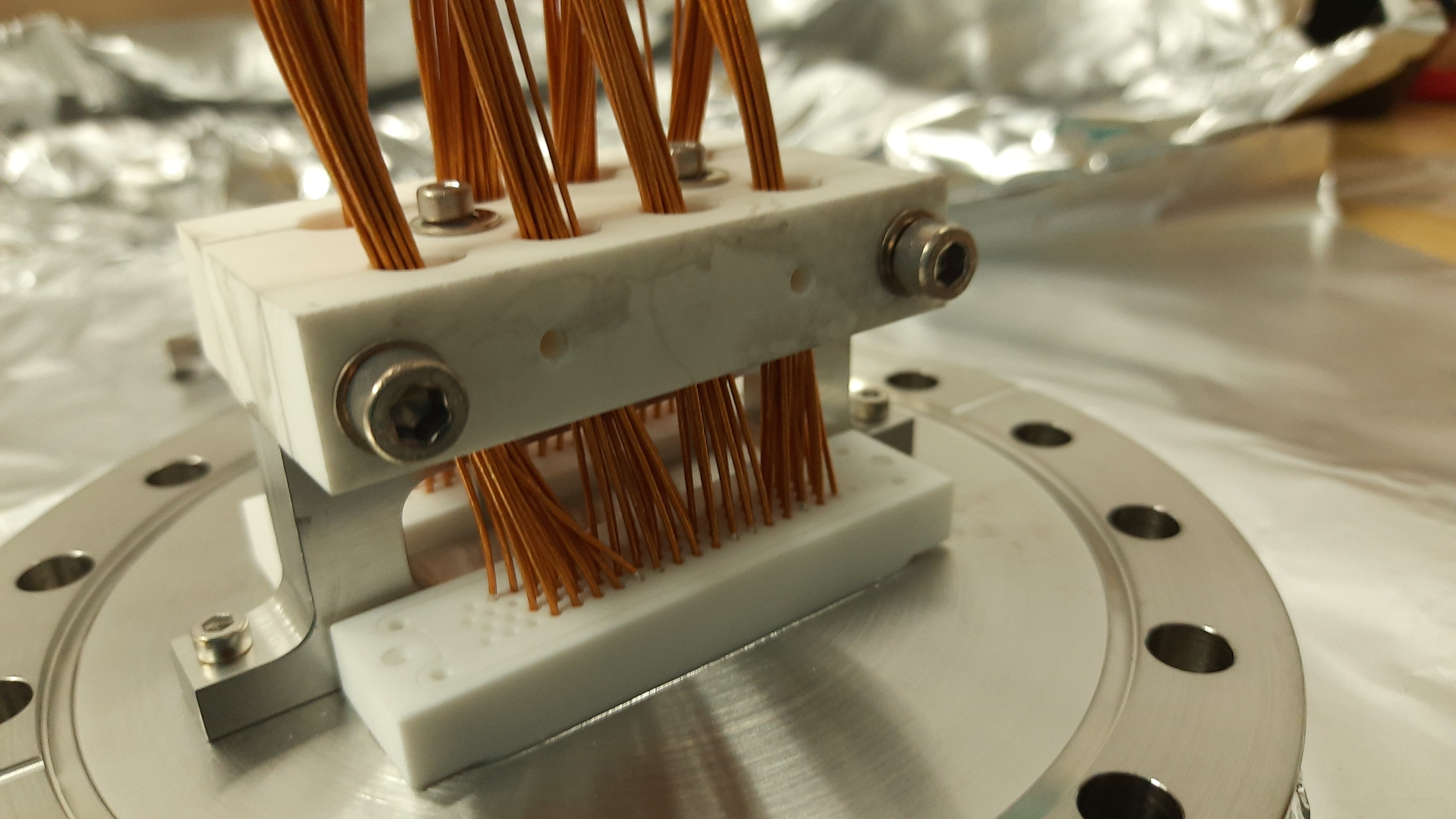

Macor affixed but has
some play - good for thermal dilation.

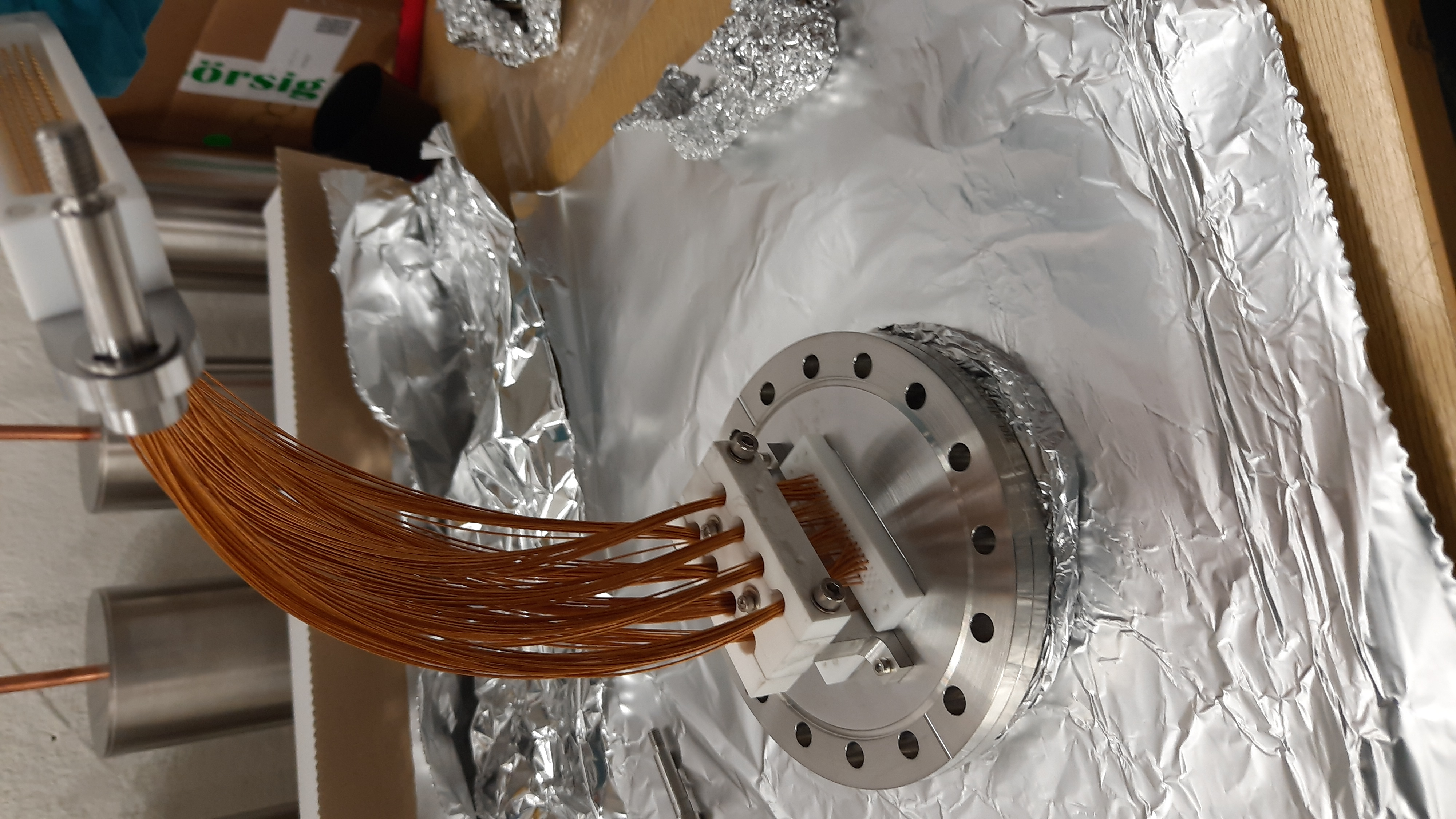

Mounted long wire harness (side flange) on
top. Unable to get one of the two
connectors fully in. Unable to get it out
as well. See last attach, it's a small gap.
Tested few pins with multimeter - all ok.
Decided to mount.

No issues mounting. Slowly and carefully
threaded wires harness in CARME taking
care not to hit negs.

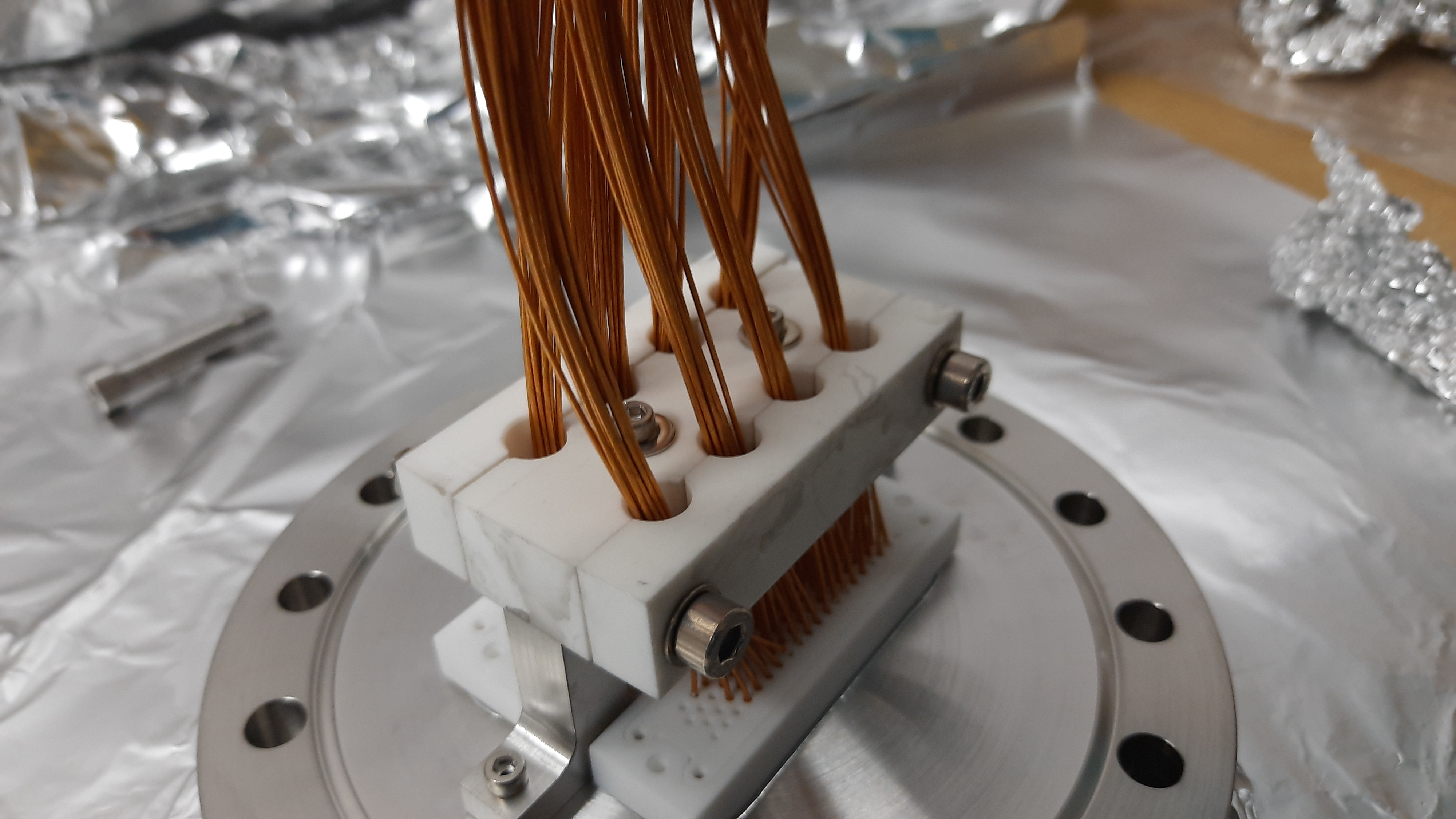

Slightly concerned about weight of Macor
connector on wires, but no obvious
alternative.

Please have a look at attachments and
comment. Will keep mounting in the
afternoon.
