Message ID: 662     Entry time: Sat Apr 5 16:13:32 2025
Author: TD
Subject: Saturday 5 April
12.00 CARME IE514 ion gauge 4.2e-11 mbar
      CARME IE514 OFF

13.57 DSSSD bias & leakage current - attachment 1
       leakage currents high (especially DSSSD#1 and DSSSD#3) cf. most recent values from June 2024 values https://elog.ph.ed.ac.uk/CARME/654
       another ion gauge on with line of sight to DSSSDs?

      FEE64 power ON

      FEE64 temps OK - attachment 2

      All system wide checks OK - attachments 3-6

      WR timestamps OK - attachment 7


18.00 DSSSD bias OFF
      FEE64 power OFF

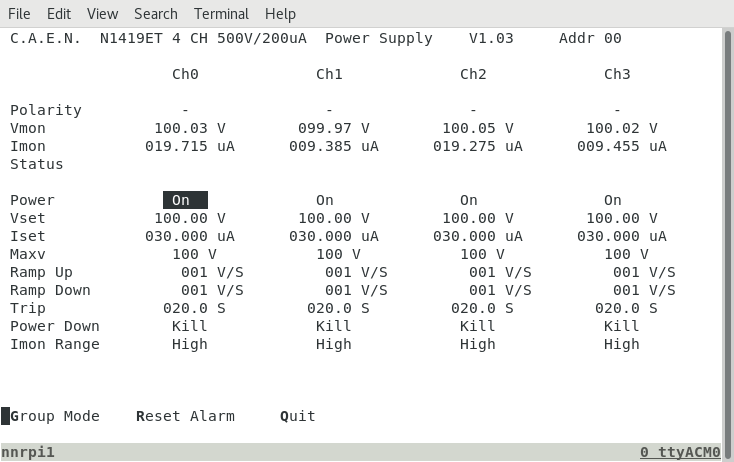

Attachment 1: Screenshot_from_2025-04-05_13-57-06.png  39 kB  Uploaded Sat Apr 5 17:14:26 2025  | Hide | Hide all

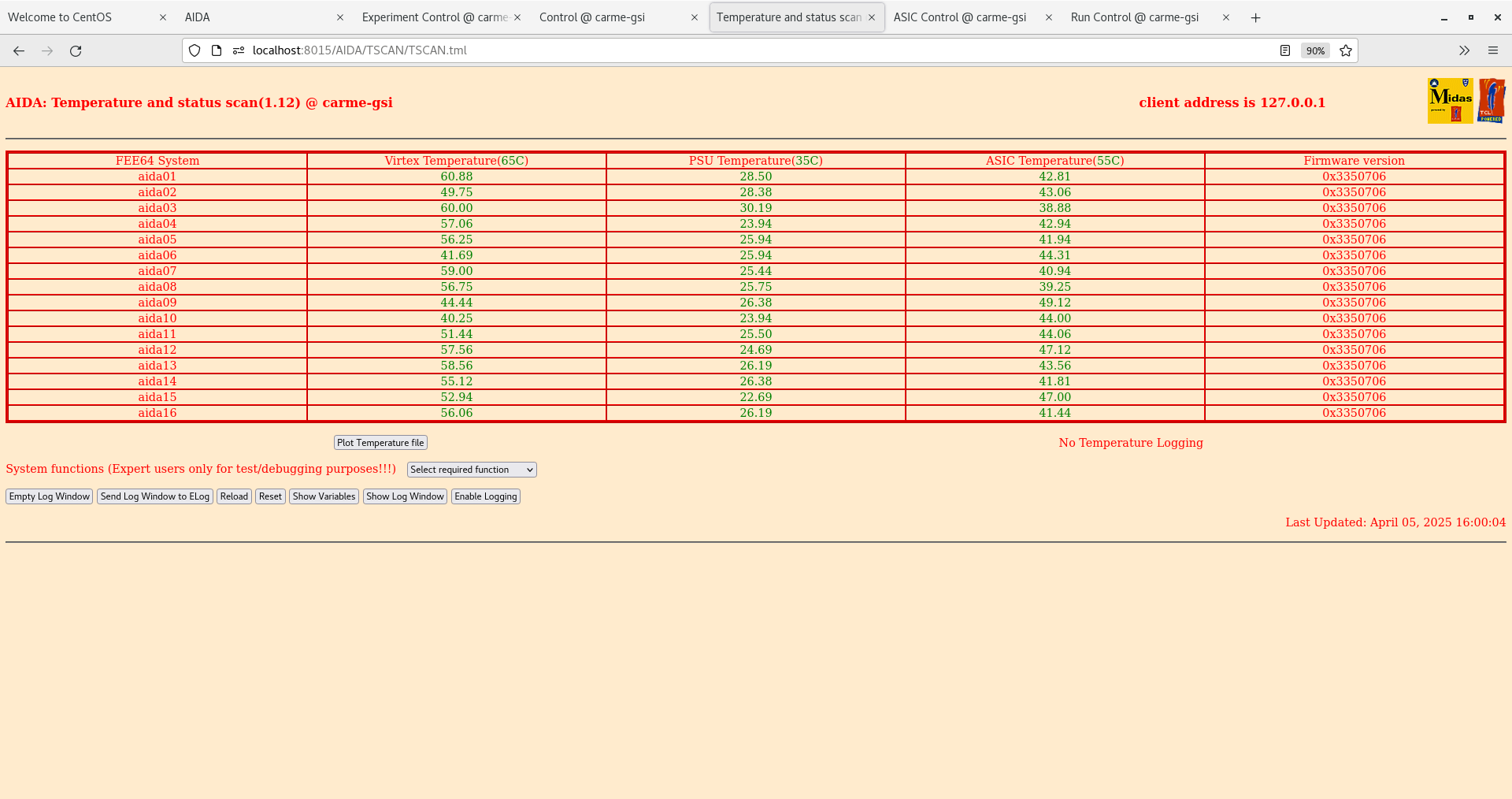

Attachment 2: Screenshot_from_2025-04-05_16-00-19.png  156 kB  Uploaded Sat Apr 5 17:14:38 2025  | Hide | Hide all

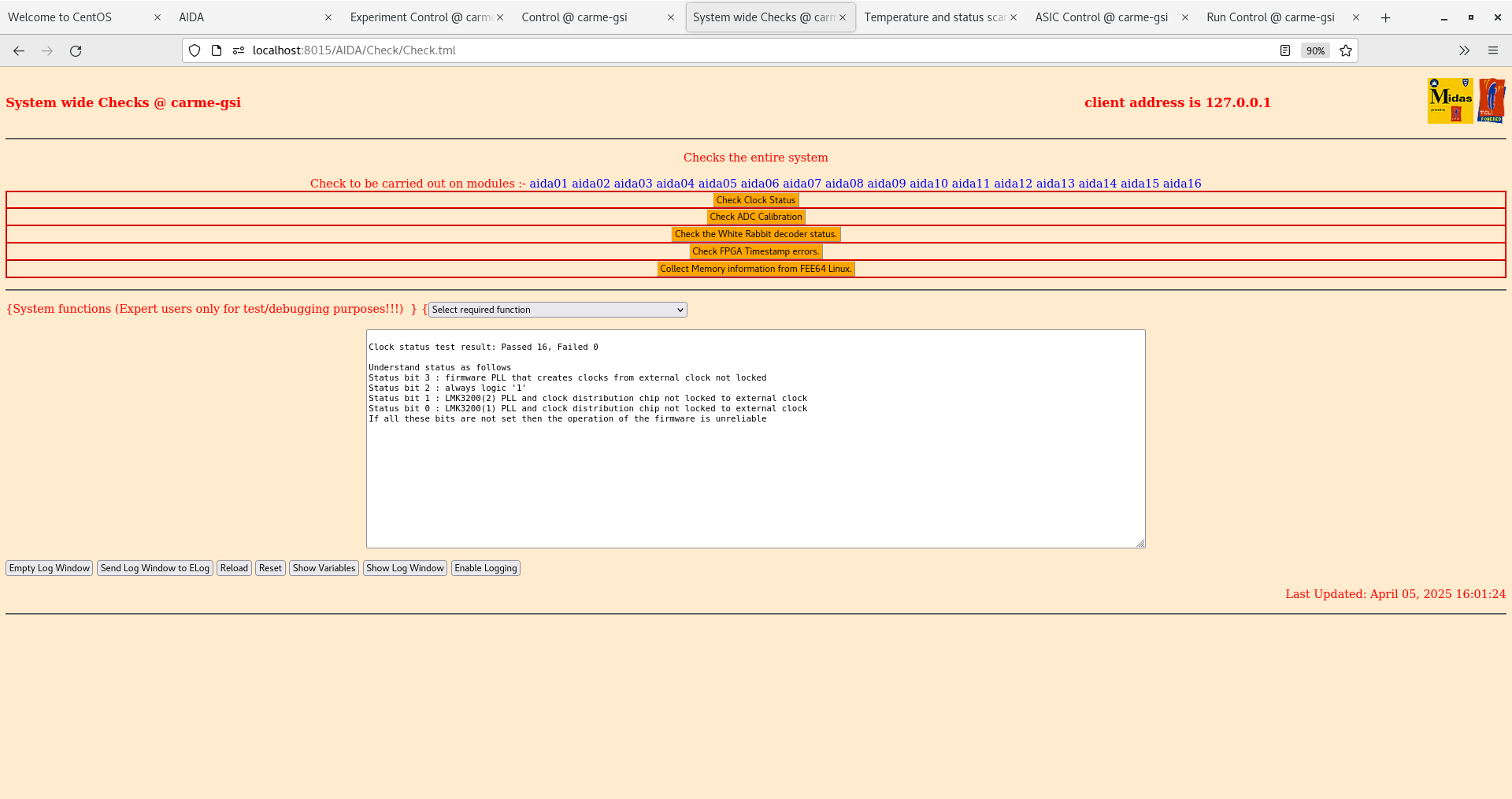

Attachment 3: Screenshot_from_2025-04-05_16-01-31.png  121 kB  Uploaded Sat Apr 5 17:14:38 2025  | Hide | Hide all

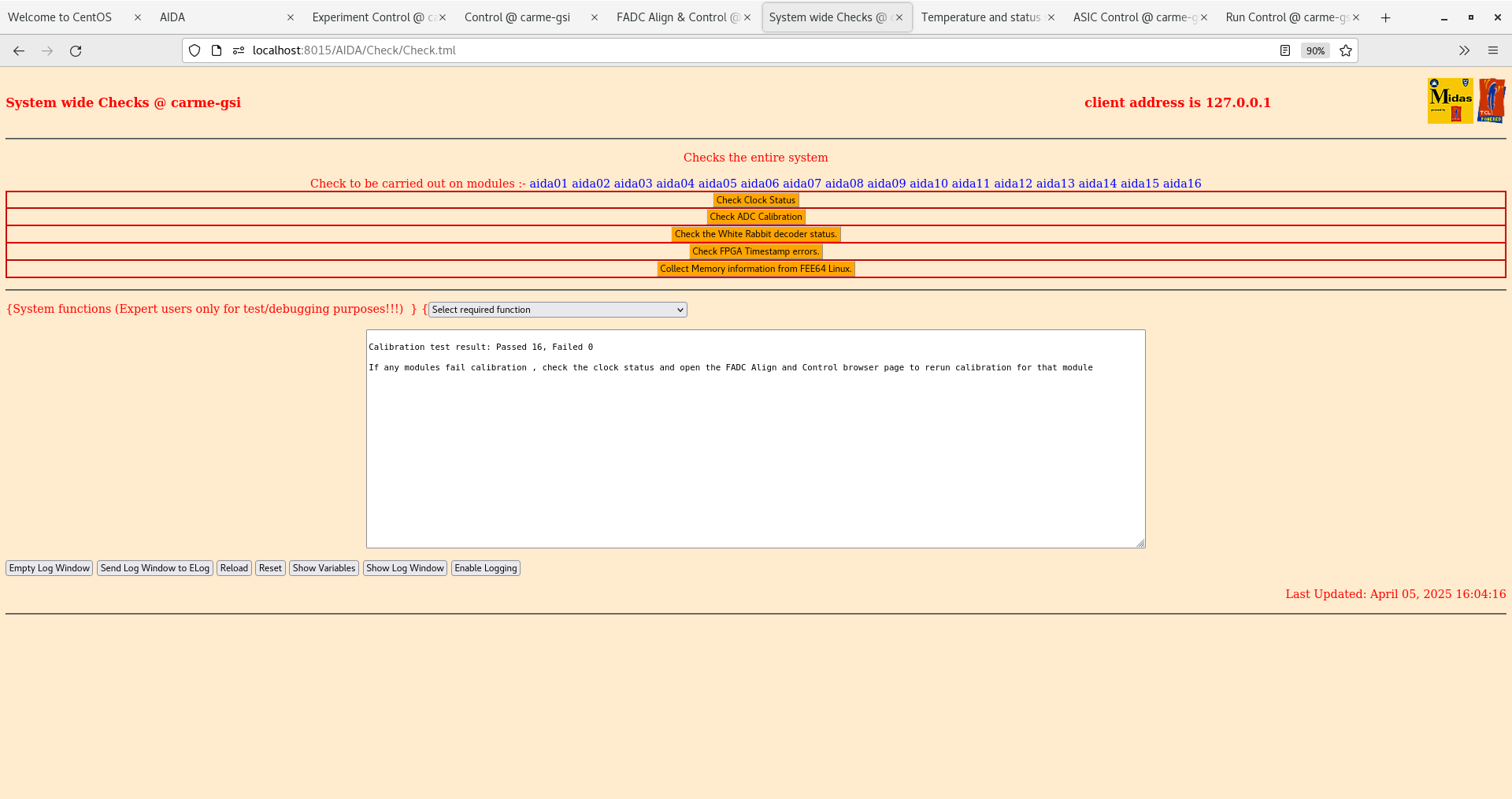

Attachment 4: Screenshot_from_2025-04-05_16-04-22.png  106 kB  Uploaded Sat Apr 5 17:14:38 2025  | Hide | Hide all
Attachment 5: Screenshot_from_2025-04-05_16-04-36.png  114 kB  Uploaded Sat Apr 5 17:14:38 2025  | Hide | Hide all
Attachment 6: Screenshot_from_2025-04-05_16-04-47.png  110 kB  Uploaded Sat Apr 5 17:14:38 2025  | Hide | Hide all

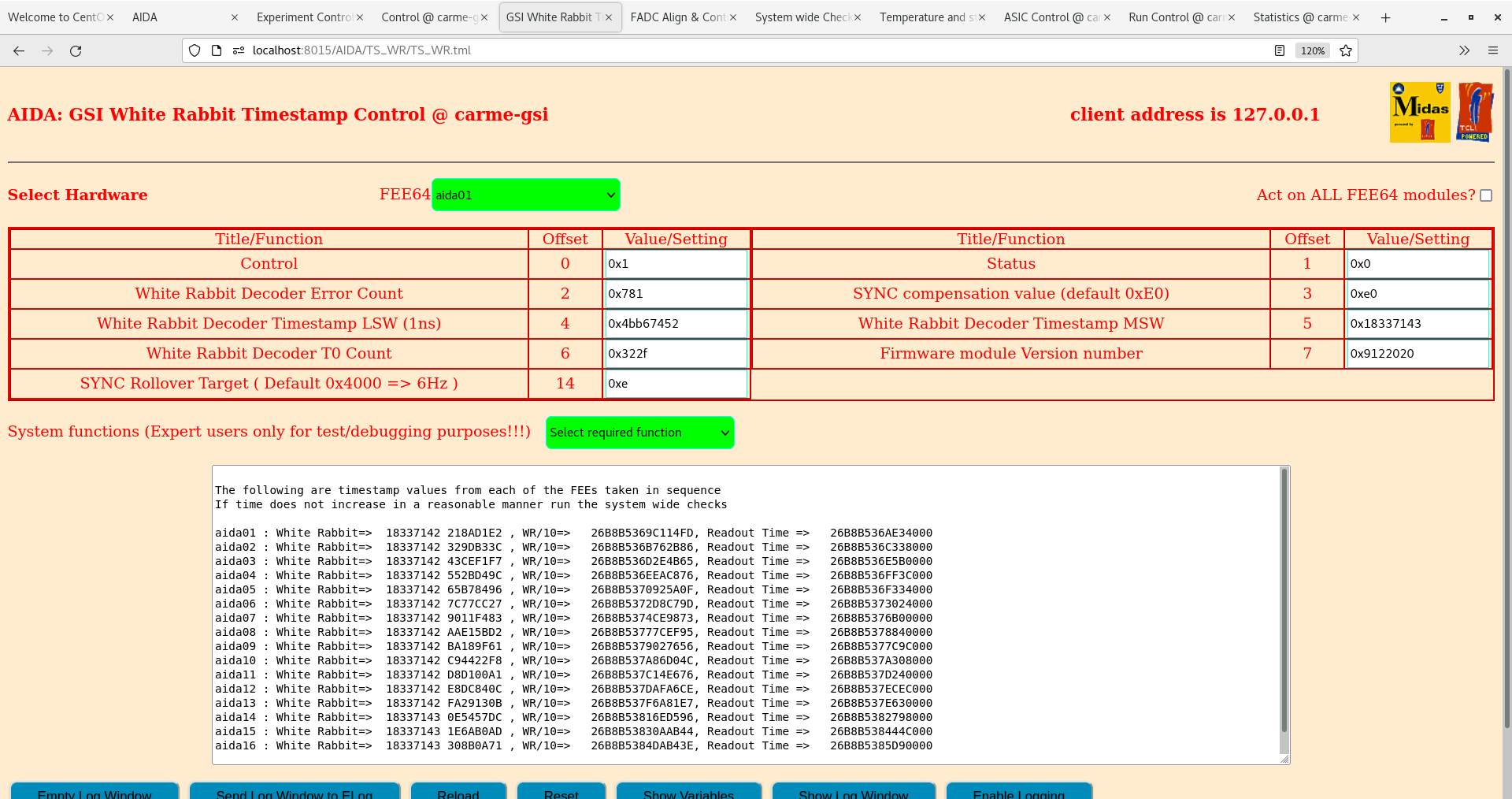

Attachment 7: Screenshot_from_2025-04-05_16-06-41.png  331 kB  Uploaded Sat Apr 5 17:14:38 2025  | Hide | Hide all
