114
|
Sat Oct 9 09:44:36 2021 |
CB RSS | Heaters removed + motors tests | Removed thermocouples, heaters, RE72 modules
and leftover baking tent. Support octagon
removed except topmost part which requires |
|
|
|
113
|
Fri Oct 8 17:56:35 2021 |
CB RSS | Motors test | Attempted first motor test in XHV. Wired
and connected limit switches and string potentiometer.
Set up raspberry pi to control |
|
|
|
112
|
Thu Oct 7 08:40:09 2021 |
CB RSS | CARME in XHV | CARME reached 9E-12 this morning
Ion pumps on
|
|
|
|
111
|
Wed Oct 6 15:36:14 2021 |

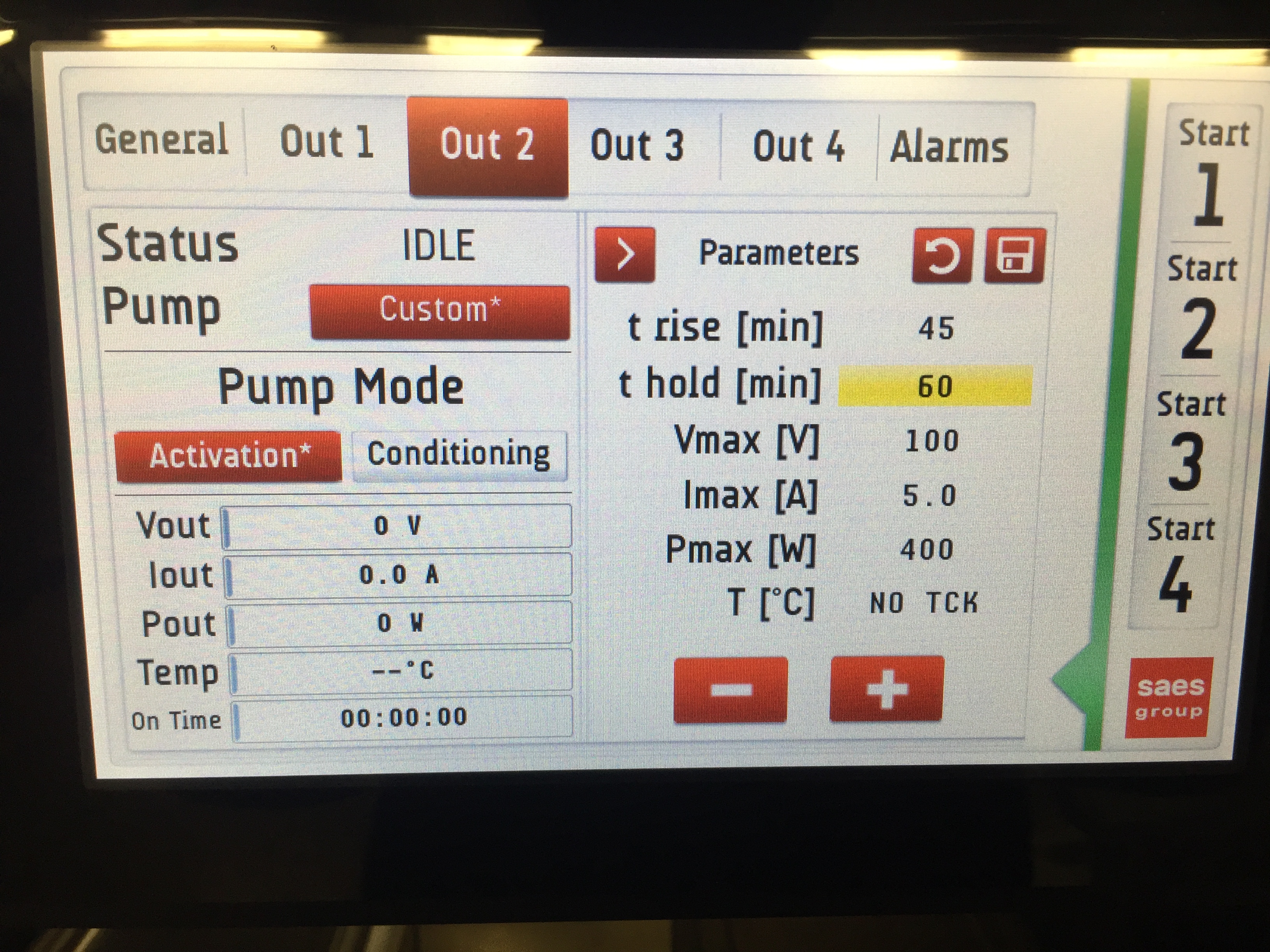

CB RSS | Neg activation tests -3 | Attempted to activate 2xUHV1400 connected
to bottom C4, channel #2 using P 200 W, t
rise 30 min, t hold 90 min.
|
|
|
|
110
|
Wed Oct 6 09:47:30 2021 |
CB RSS | Neg activation tests -2 | Attempted activating 2xUHV1400 connected to
top C4, channel #3 with P 300 W (450 C?),
t rise 30 min, t hold 90
|
|
|
|
109
|
Wed Oct 6 09:39:59 2021 |
PB CB | Original dirty assembly of CARME internals | PB found pictures of the original dirty assembly,
before screws and components were shipped
to DL.
|
7x |
|
|
108
|
Tue Oct 5 17:30:01 2021 |

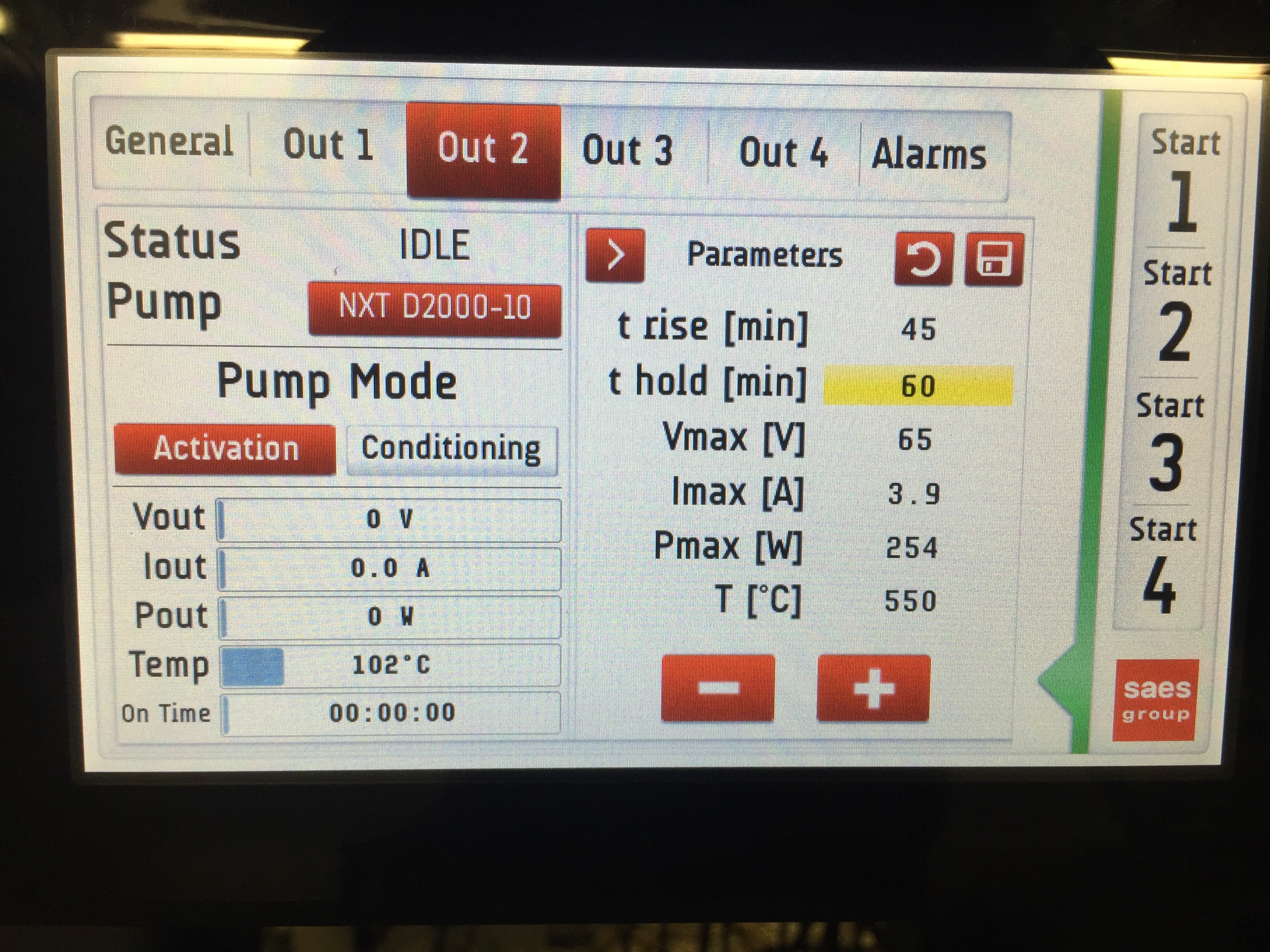

CB RSS | NEG activation tests | Found D2000 #1 activated and at 250C (25W)
to prevent getting dirty when other NEGs |
|
|
|
107
|
Tue Oct 5 11:44:11 2021 |
CB, TD | SAES manuals & cable drawings | NEG power
SIP power
UHV1400 operating instructions |
8x |
|
|
106
|
Mon Oct 4 20:30:46 2021 |
RSS JM CB (remotely) | CARME baking status -21 |
Current temperature ~95 C (on manual
mode)

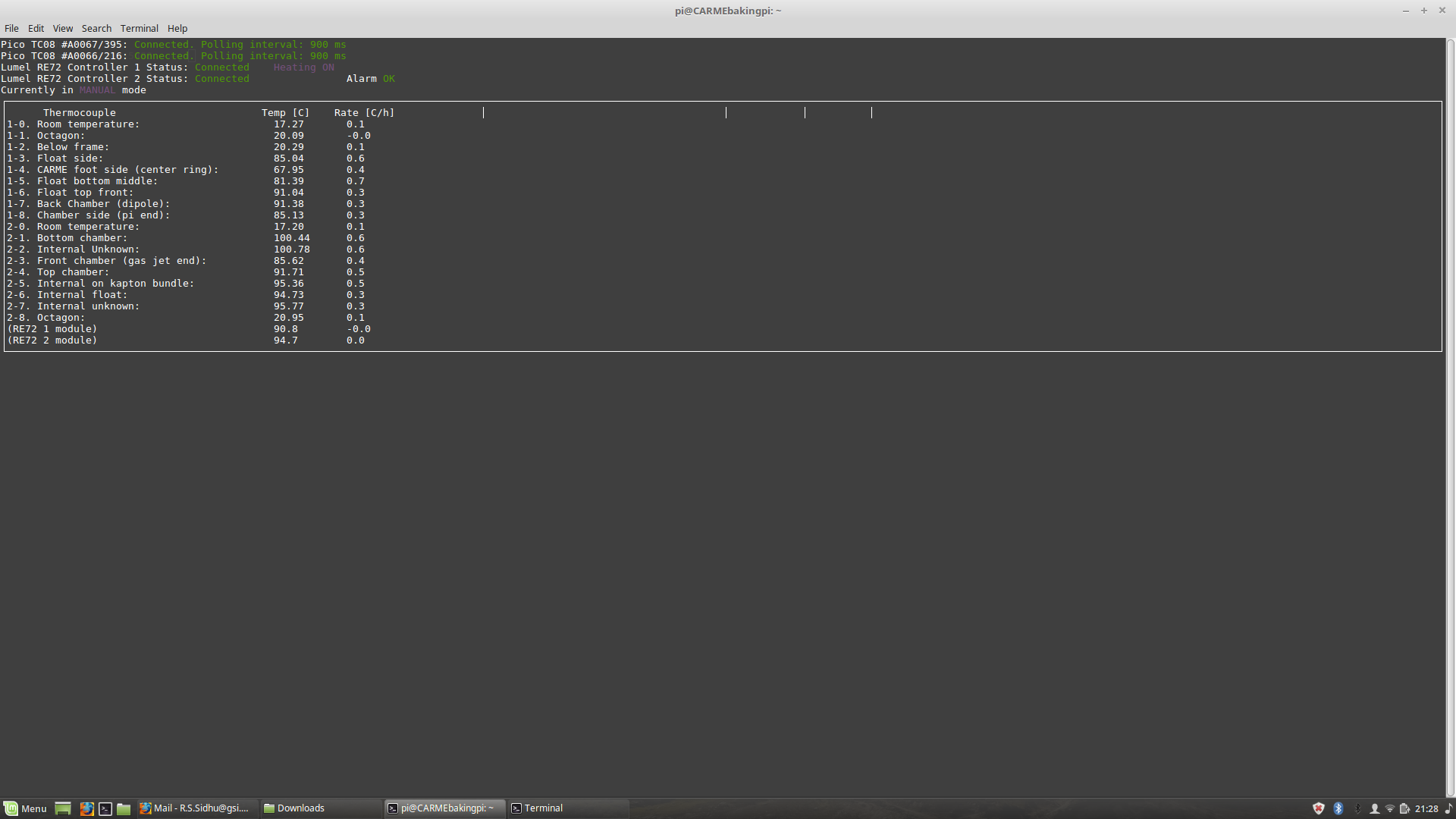

See plot and screen attached.
Current
pressure 2.86E-10
See
https://uoe-my.sharepoint.com/:x:/g/personal/cbruno2_ed_ac_uk/EVbsVOubNHRLj0PKiFIvd00BClMJ6WSJ1UDAyLA2F3R4jA?rtime=OK4kVZKB2Ug
|
|
|
|
105
|
Mon Oct 4 09:19:11 2021 |
JM RSS | Activation of NEG elements | 9:30
Ion pumps de-gassed by switching
on and off multiple times. Large pressure |
|
|
|
104
|
Mon Oct 4 06:34:58 2021 |
RSS JM CB (remotely) | CARME baking status -20 |
Current temperature ~110 C (on manual
mode)
See plot and screen attached.
Current
pressure 3.20E-8
See
https://uoe-my.sharepoint.com/:x:/g/personal/cbruno2_ed_ac_uk/EVbsVOubNHRLj0PKiFIvd00BClMJ6WSJ1UDAyLA2F3R4jA?rtime=OK4kVZKB2Ug
|
|
|
|
103
|
Sun Oct 3 08:36:01 2021 |
RSS JM CB (remotely) | CARME baking status -19 |
08:36
Current temperature ~132 C (on
manual mode RE72-1: 132 C, RE72-2: 130 C)
See
plot and screen attached.
Current pressure |
|
|
|
102
|
Sat Oct 2 22:14:14 2021 |
RSS JM CB (remotely) | CARME baking status -18 |
Current temperature ~132 C (on manual
mode RE72-1: 132 C, RE72-2: 130 C)

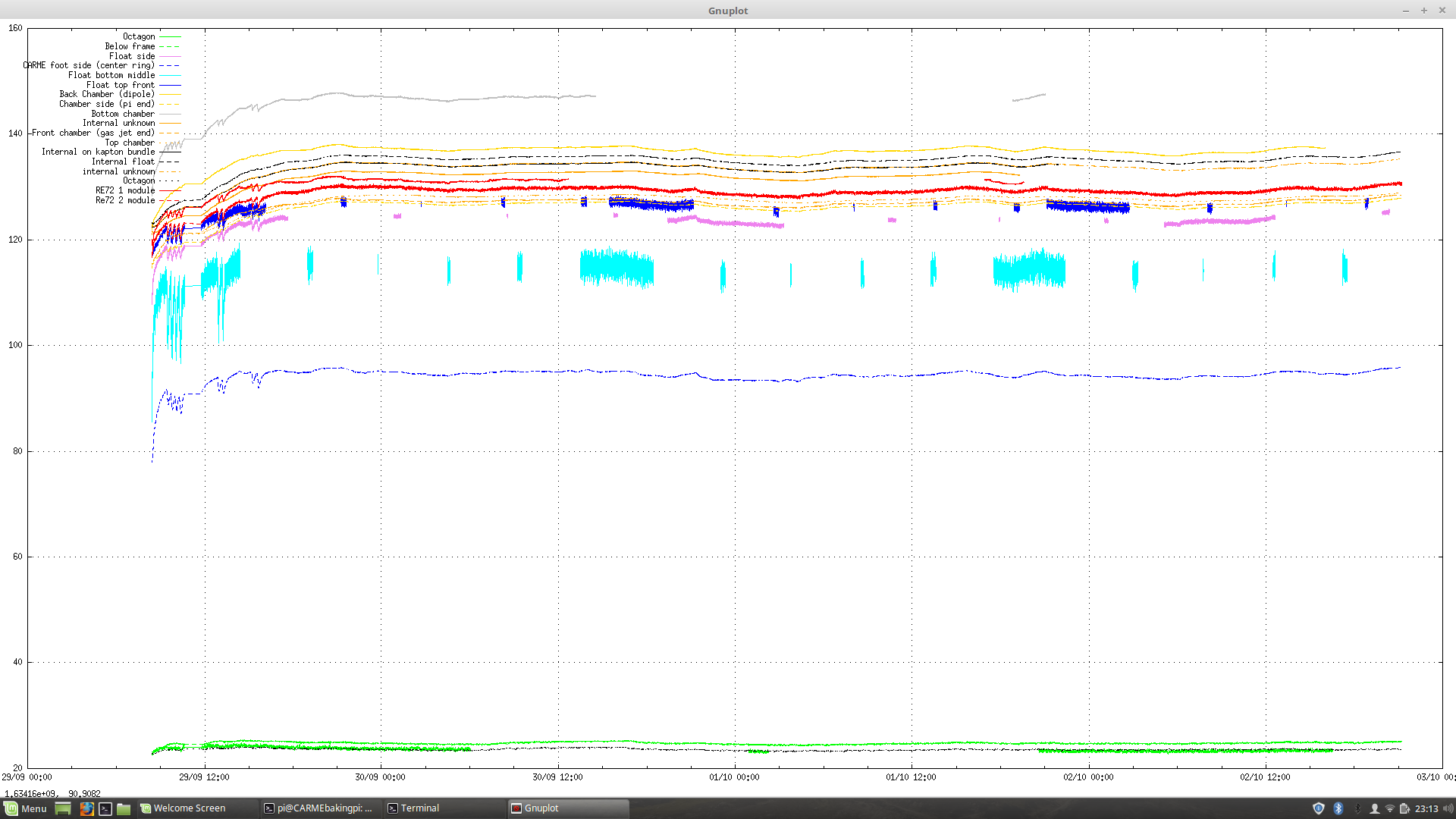

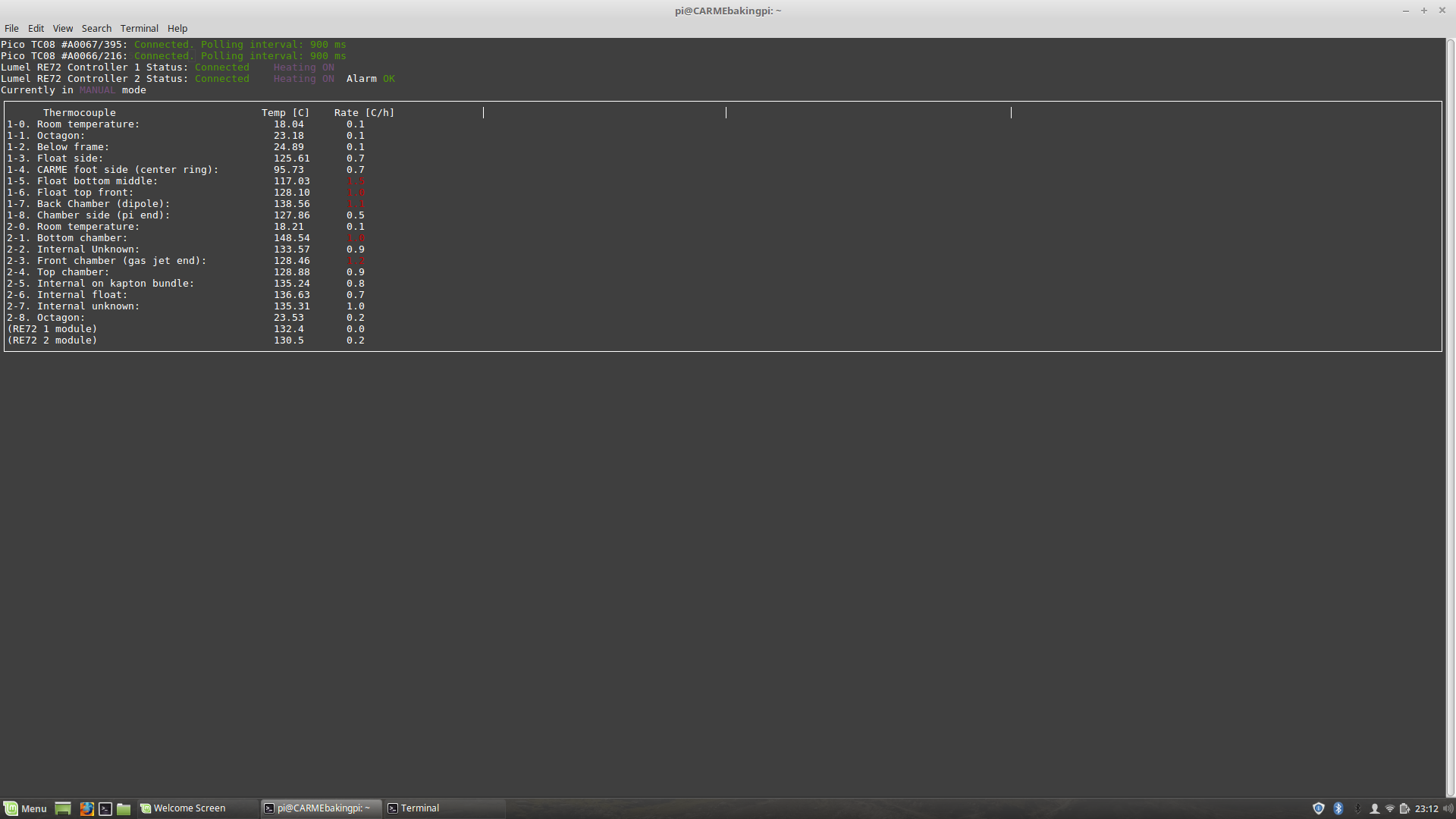

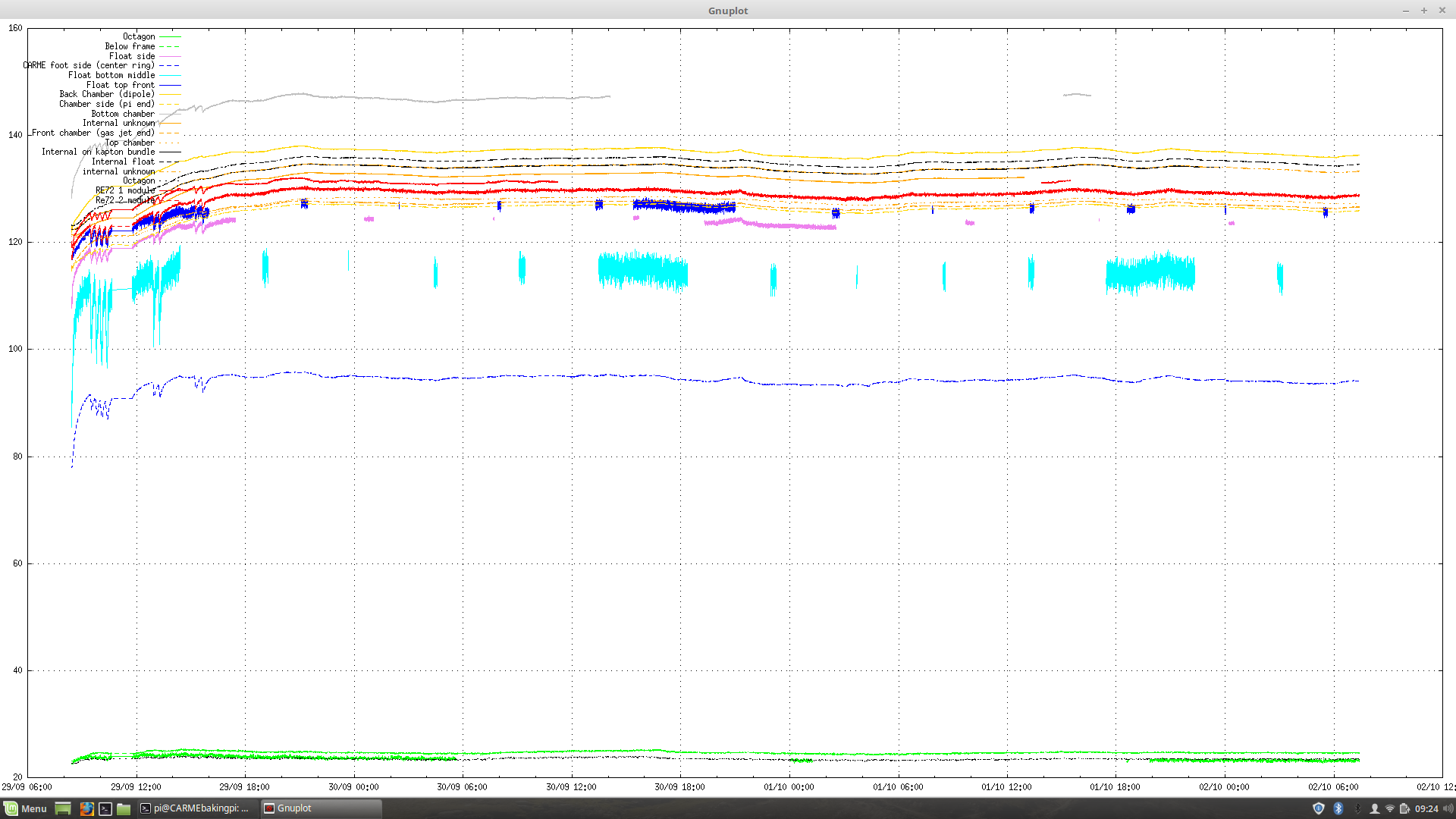

See plot
and screen attached.
Current pressure |
|
|
|
101
|
Sat Oct 2 08:26:49 2021 |
RSS JM CB (remotely) | CARME baking status -17 |
Current temperature ~132 C (on manual
mode RE72-1: 132 C, RE72-2: 130 C)
See plot
and screen attached.
Current pressure |
|
|
|
100
|
Fri Oct 1 21:47:51 2021 |
CB (remotely) | CARME baking status -16 | Current temperature ~132 C (on manual mode
RE72-1: 132 C, RE72-2: 130 C)

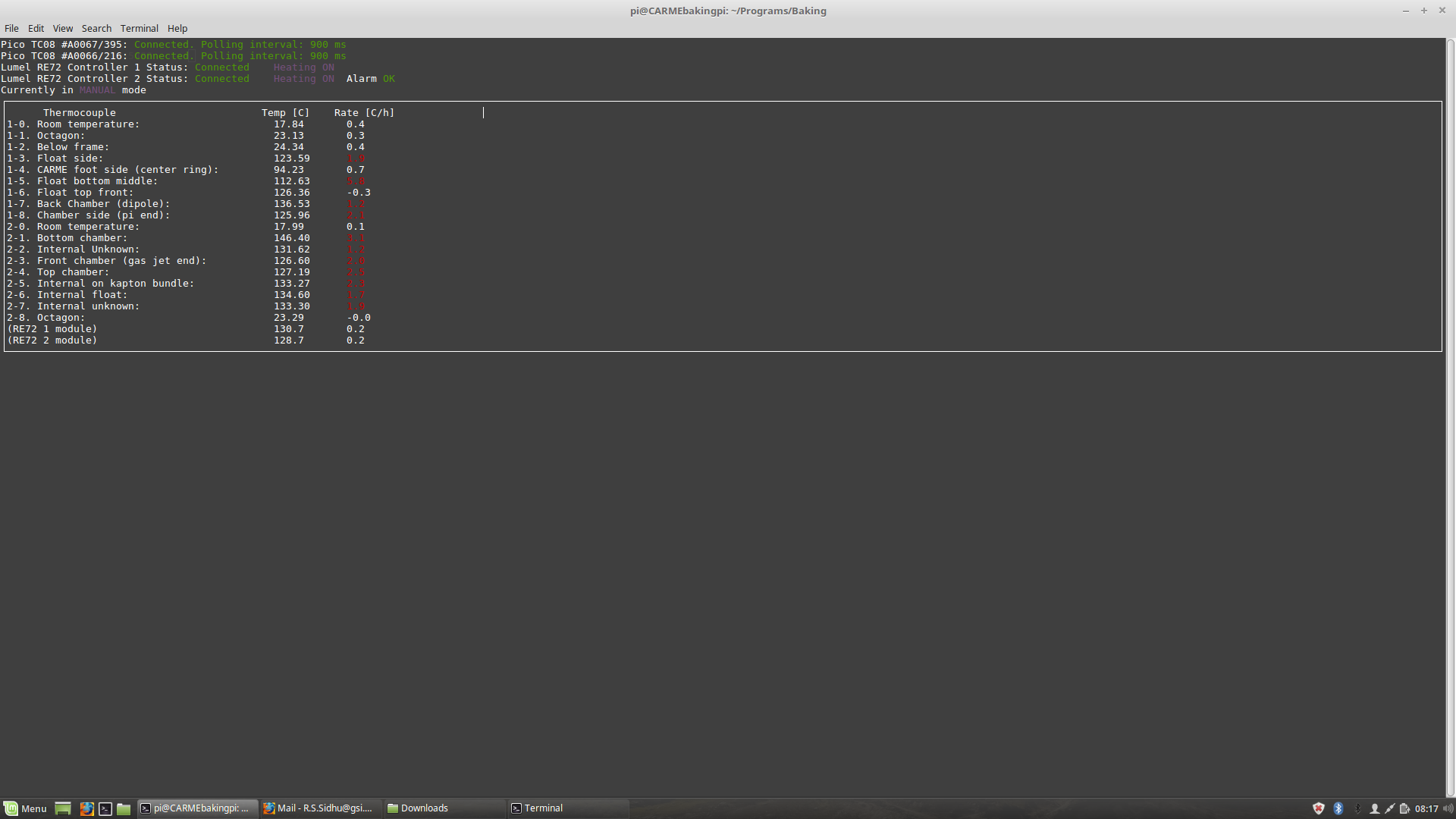

See plot and screen attached.
|
|
|
|
99
|
Fri Oct 1 07:17:46 2021 |
RSS JM | CARME baking status -15 |
Current temperature ~132 C (on manual
mode RE72-1: 132 C, RE72-2: 130 C)
See plot
and screen attached.
Current pressure |
|
|
|
98
|
Thu Sep 30 18:16:52 2021 |
RSS JM | CARME baking status -14 |
Current temperature ~132 C (on manual
mode RE72-1: 132 C, RE72-2: 130 C)

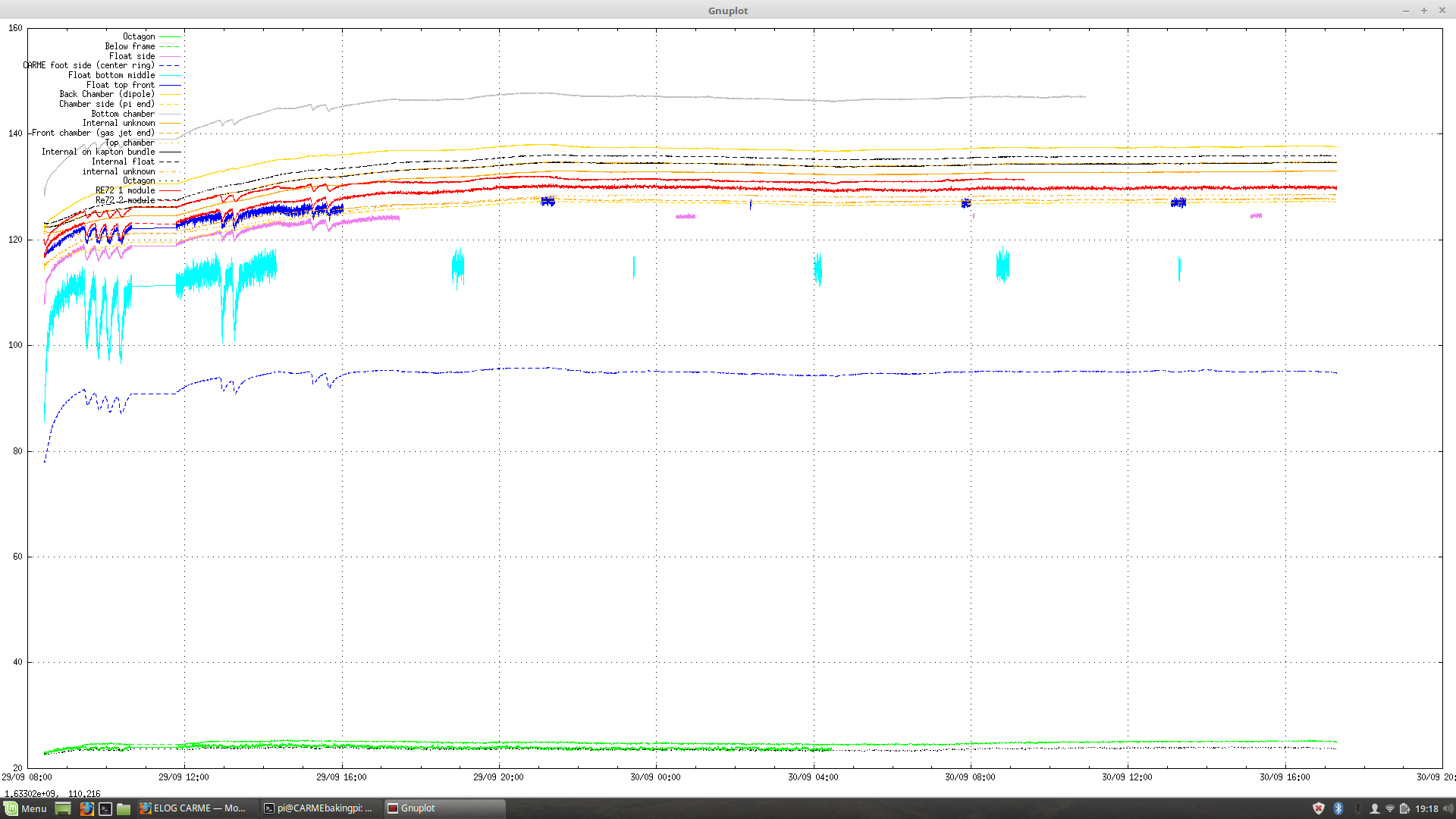

See plot
and screen attached.
Current pressure |
|
|
|
97
|
Thu Sep 30 06:29:39 2021 |
RSS JM | CARME baking status -13 |
Current temperature ~130 C (on manual
mode)

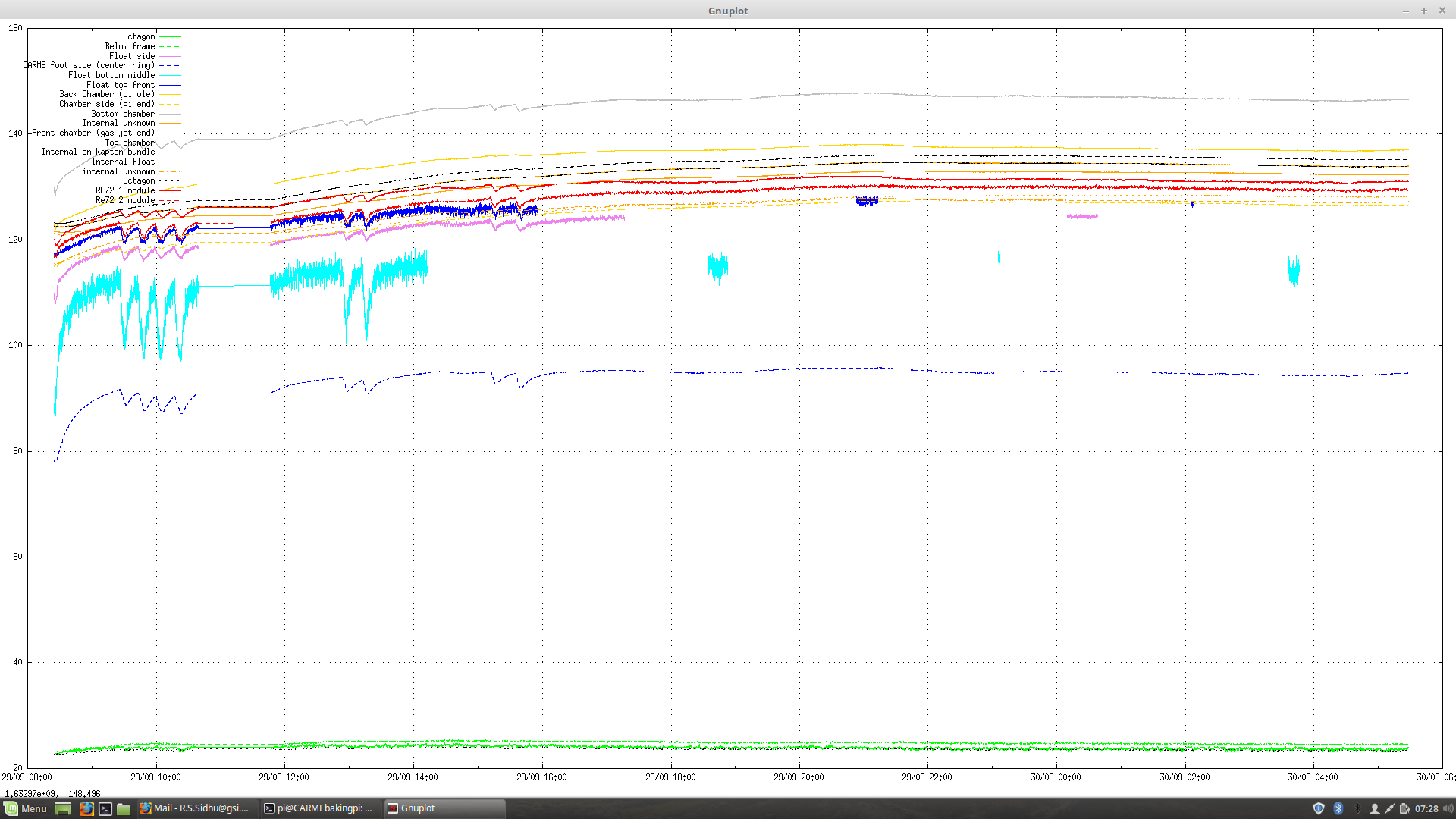

See plot and screen attached.
Current
pressure ~4.07E-7 mbar
See
https://uoe-my.sharepoint.com/:x:/g/personal/cbruno2_ed_ac_uk/EVbsVOubNHRLj0PKiFIvd00BClMJ6WSJ1UDAyLA2F3R4jA?rtime=OK4kVZKB2Ug
|
|
|
|
96
|
Wed Sep 29 15:34:07 2021 |
RSS JM | CARME baking status -12 |
Current temperature ~130 C (on manual
mode)

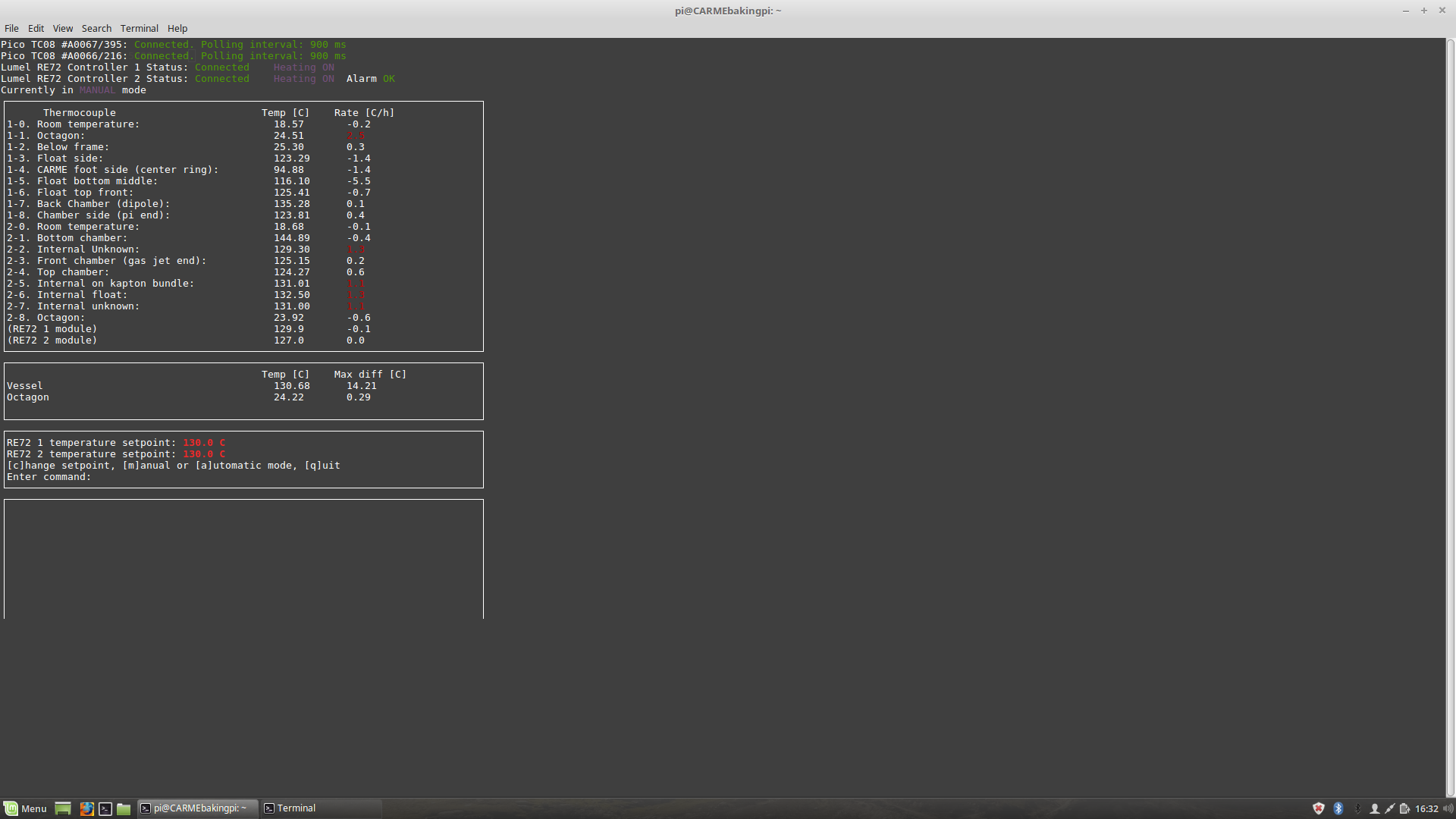

See plot and screen attached.
Current
pressure ~4.51E-7 mbar
See
https://uoe-my.sharepoint.com/:x:/g/personal/cbruno2_ed_ac_uk/EVbsVOubNHRLj0PKiFIvd00BClMJ6WSJ1UDAyLA2F3R4jA?rtime=OK4kVZKB2Ug
|
|
|
|
95
|
Wed Sep 29 13:13:51 2021 |

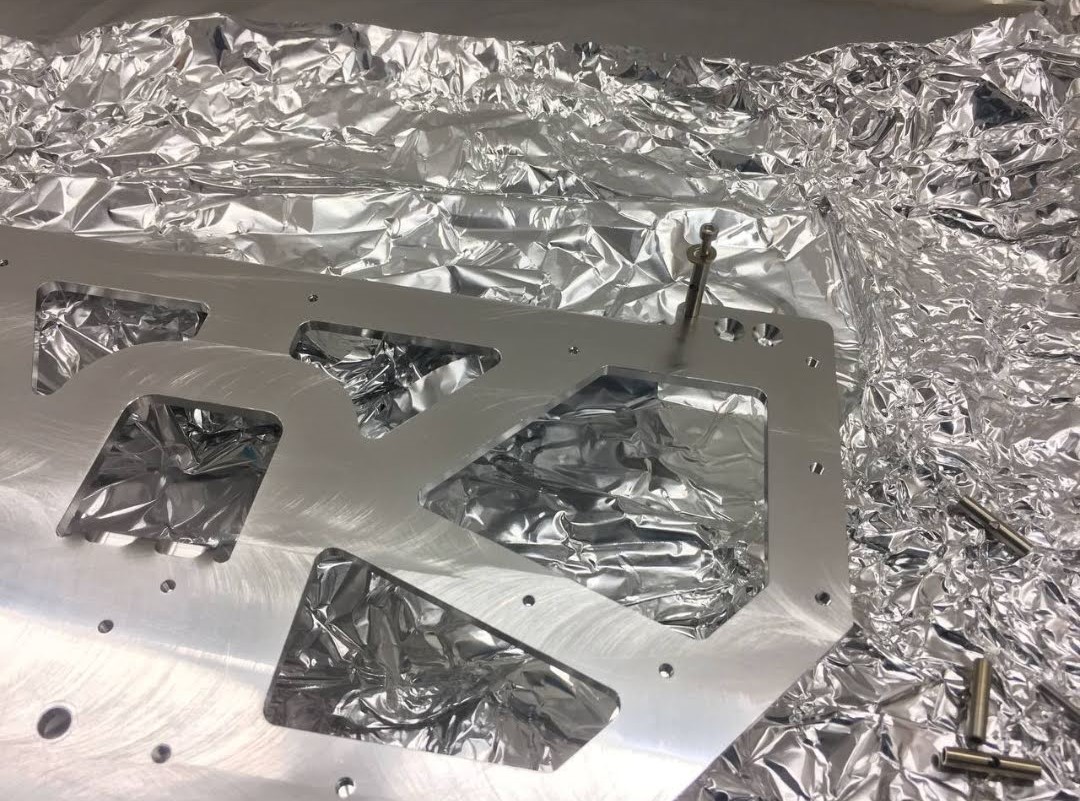

JM RSS PB(remotely) | Detector frame assembley | 29/9/21
We have opened the cleaned parts
for assembley of the moving detector frames. |
|
