Message ID: 214     Entry time: Sat Apr 10 12:15:54 2021
Author: OH, TD
Subject: Saturday 10 April

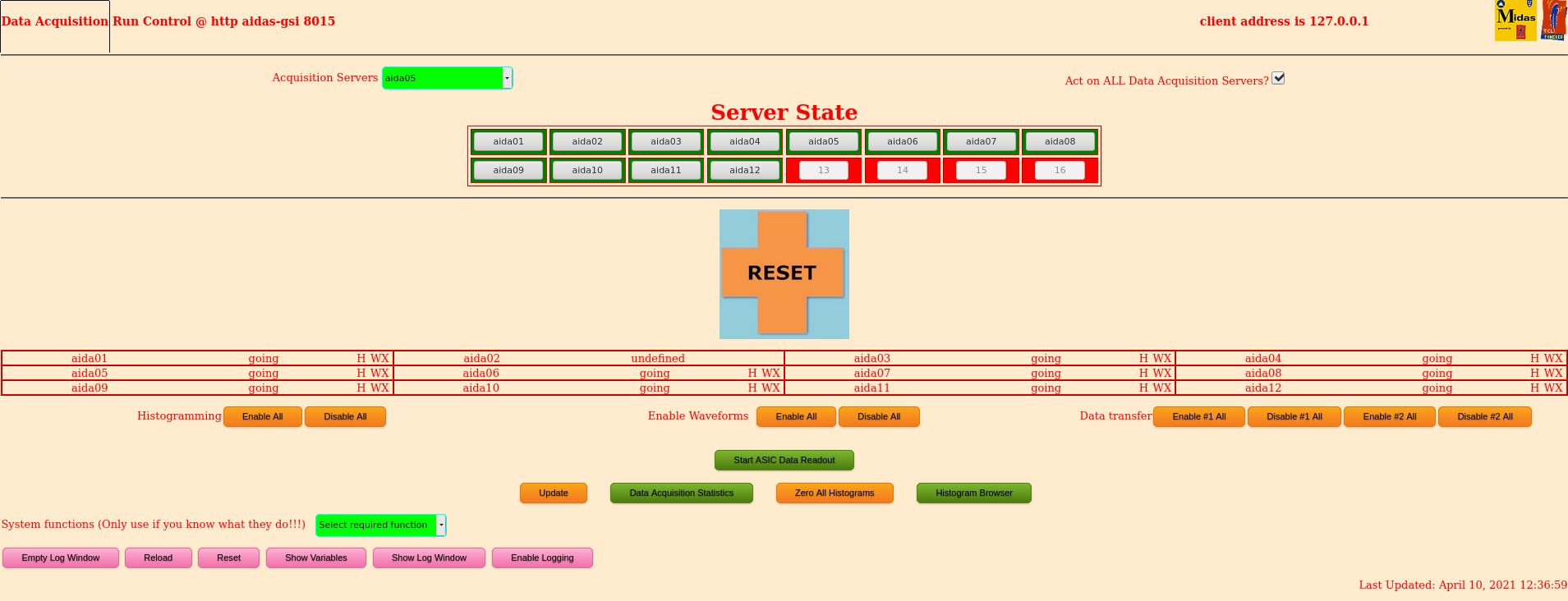

12:37 DAQ found crashed. Had crashed at some time following 7:50am following previous statistics update
      Unable to recover the FEEs so forced to power cycle
      Following power cycle statistics much improved from yesterday.

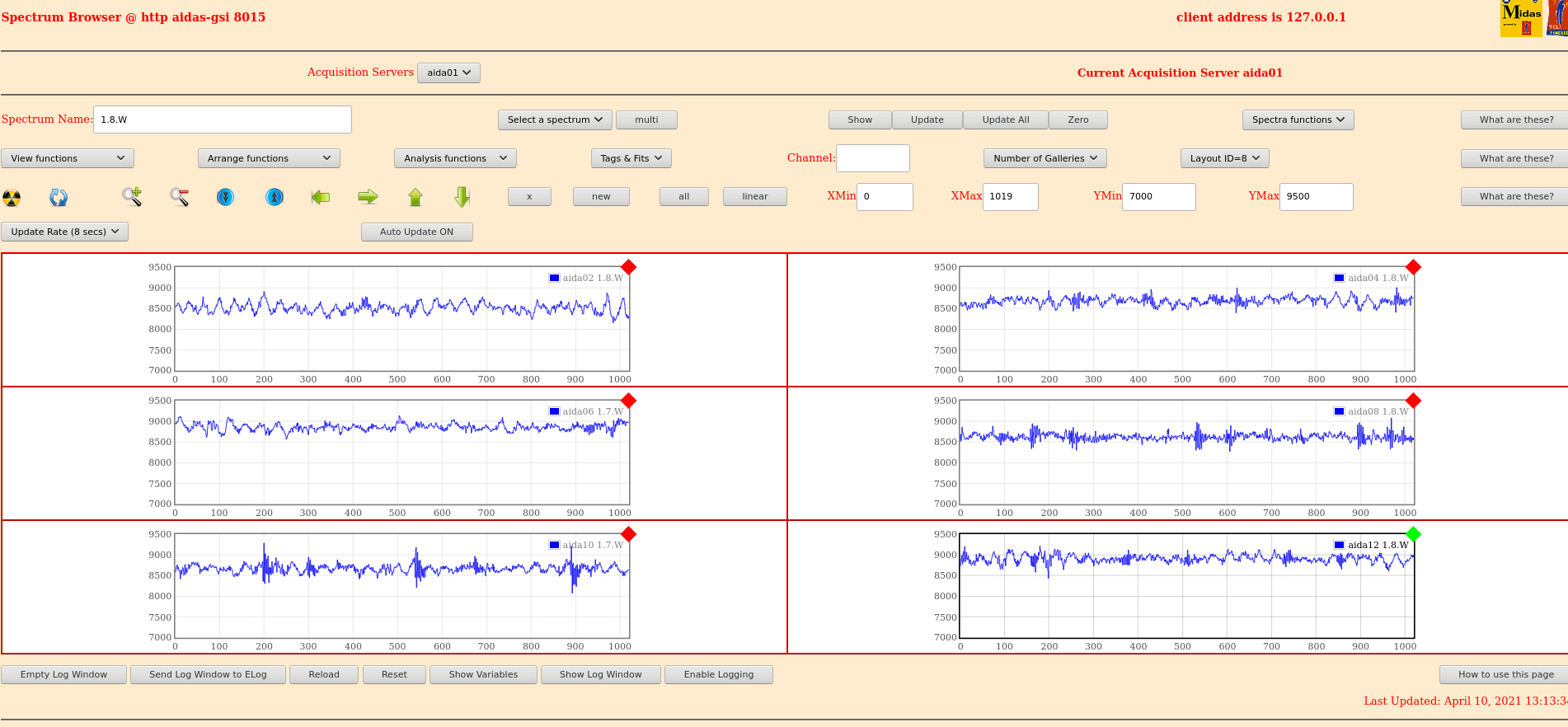

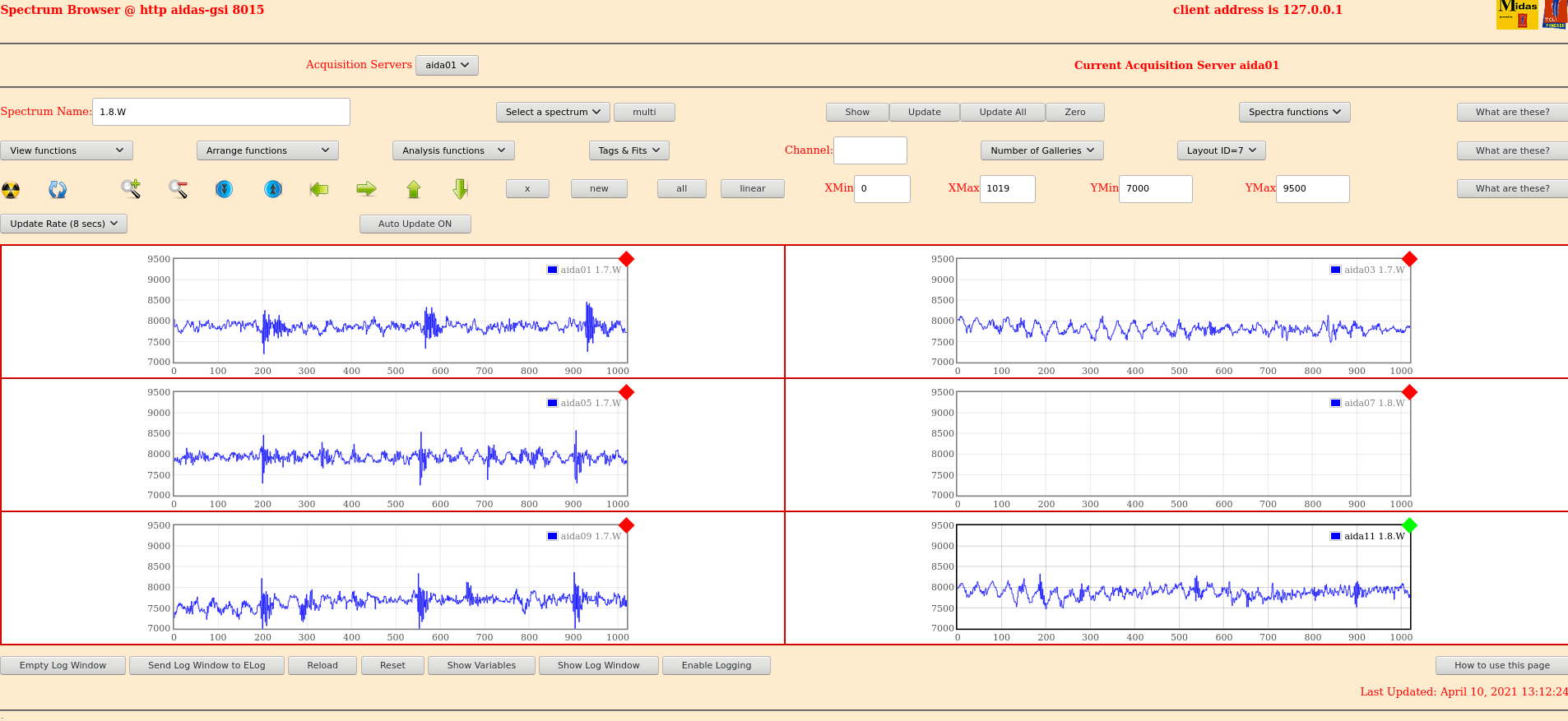

      In the waveforms the lower frequency component that was prevalent yesterday is no longer visible.
      The waveforms are not perfect by any means though
      Also note that following an ASIC synchronisation all of the FEEs lose ADC calibration and must be manually recalibrated.

16.42 UTC+1

      per FEE64 1.8.W spectra

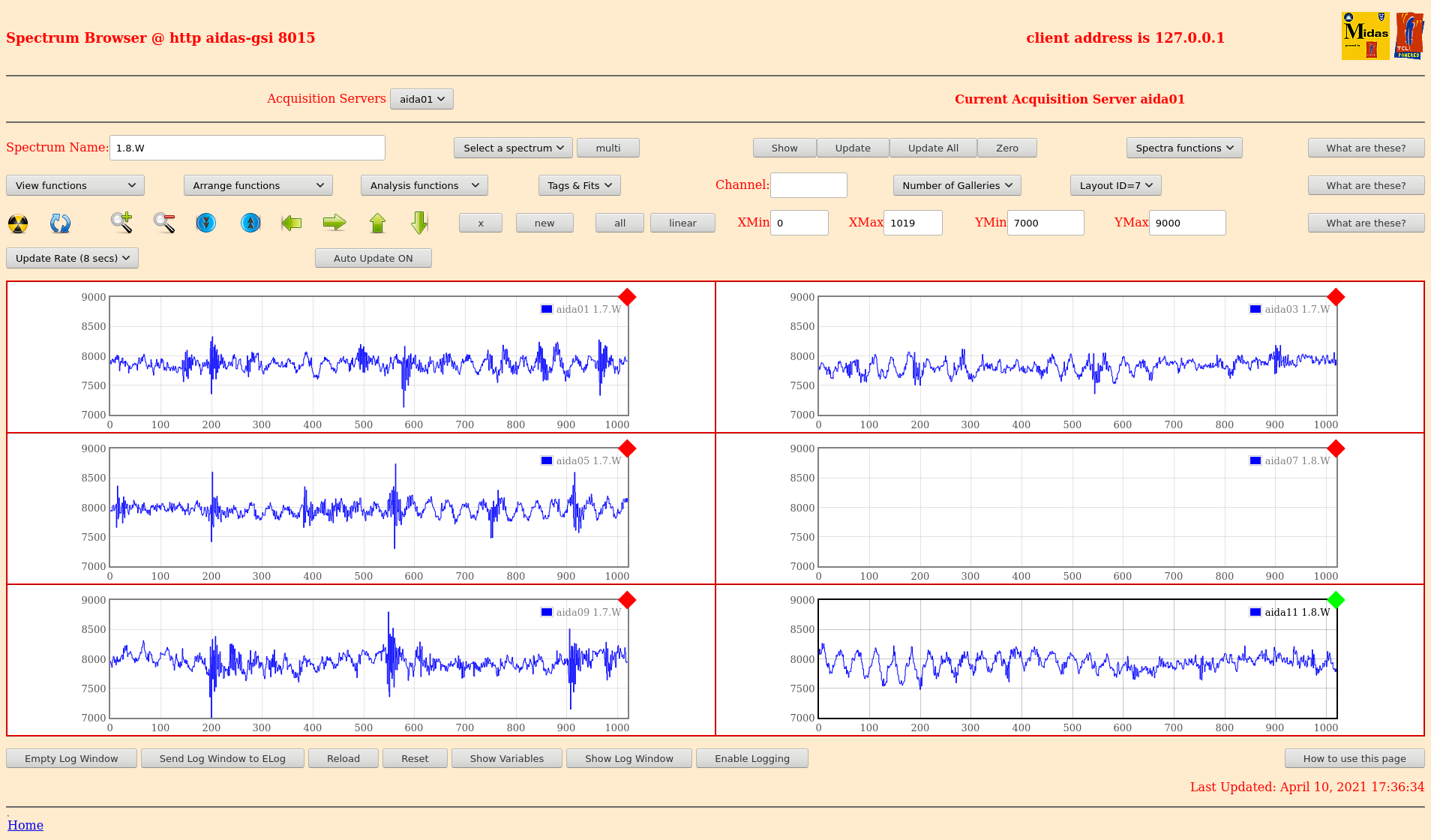

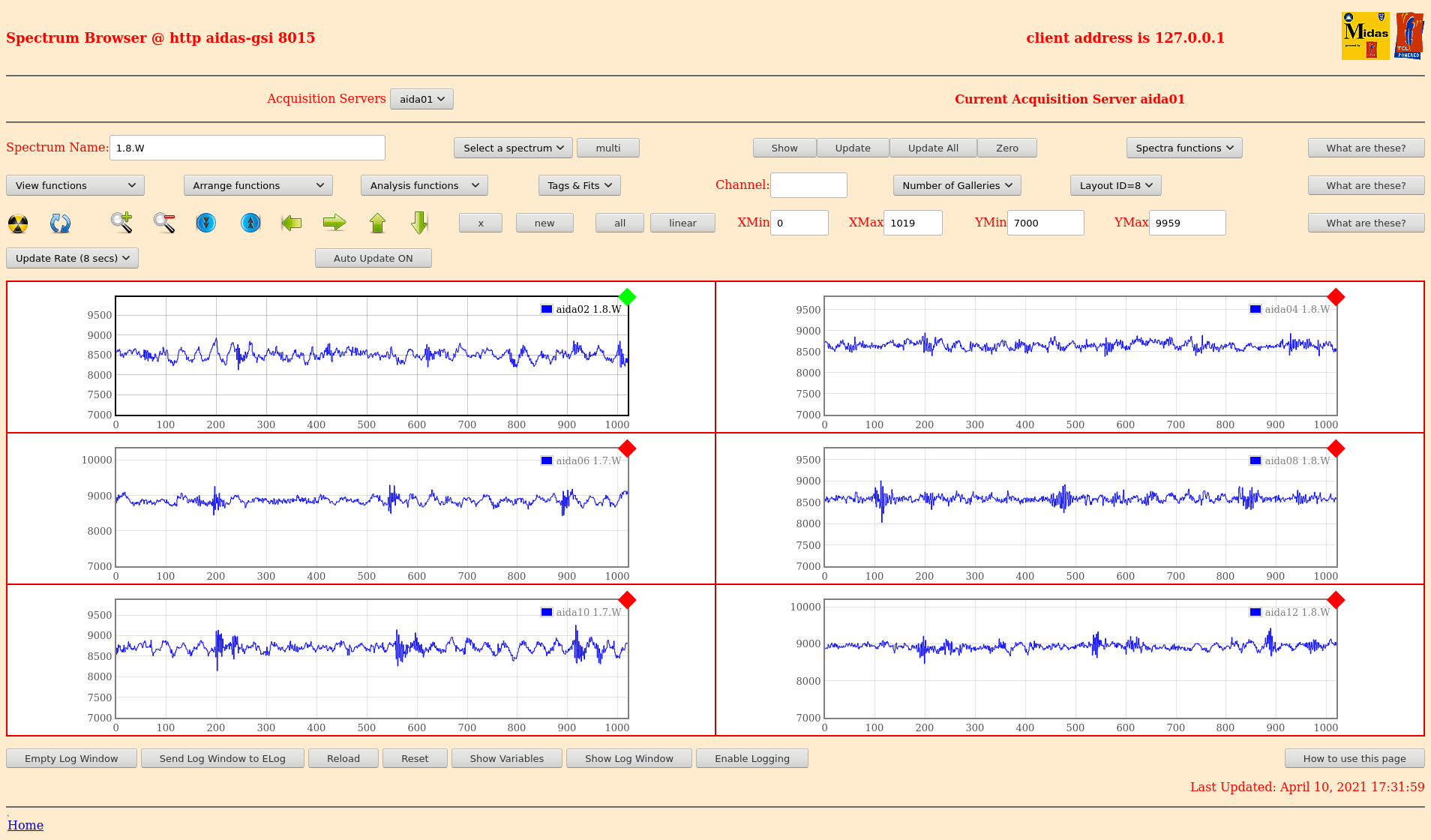

      20us FSR attachments 7 & 8

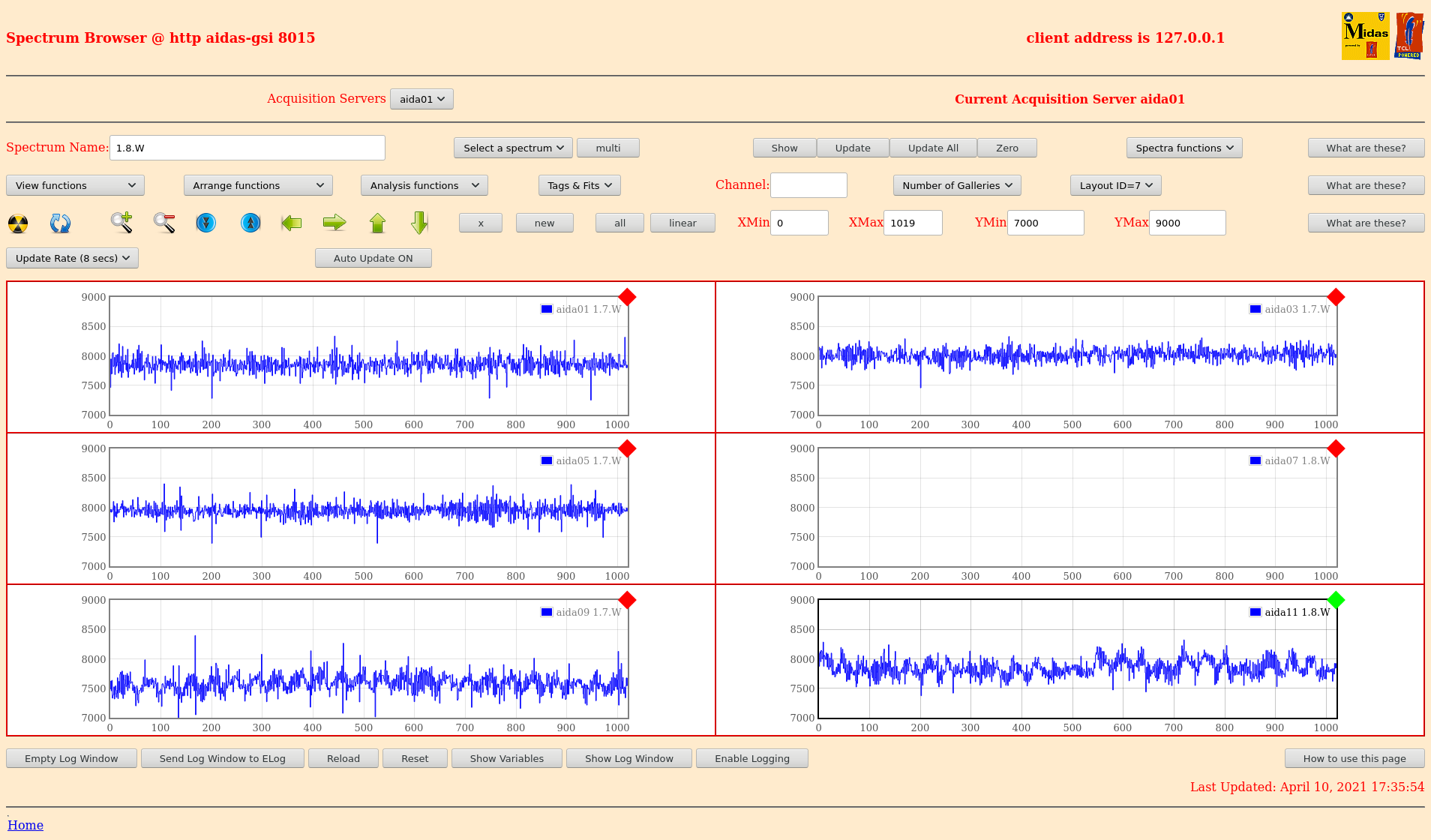

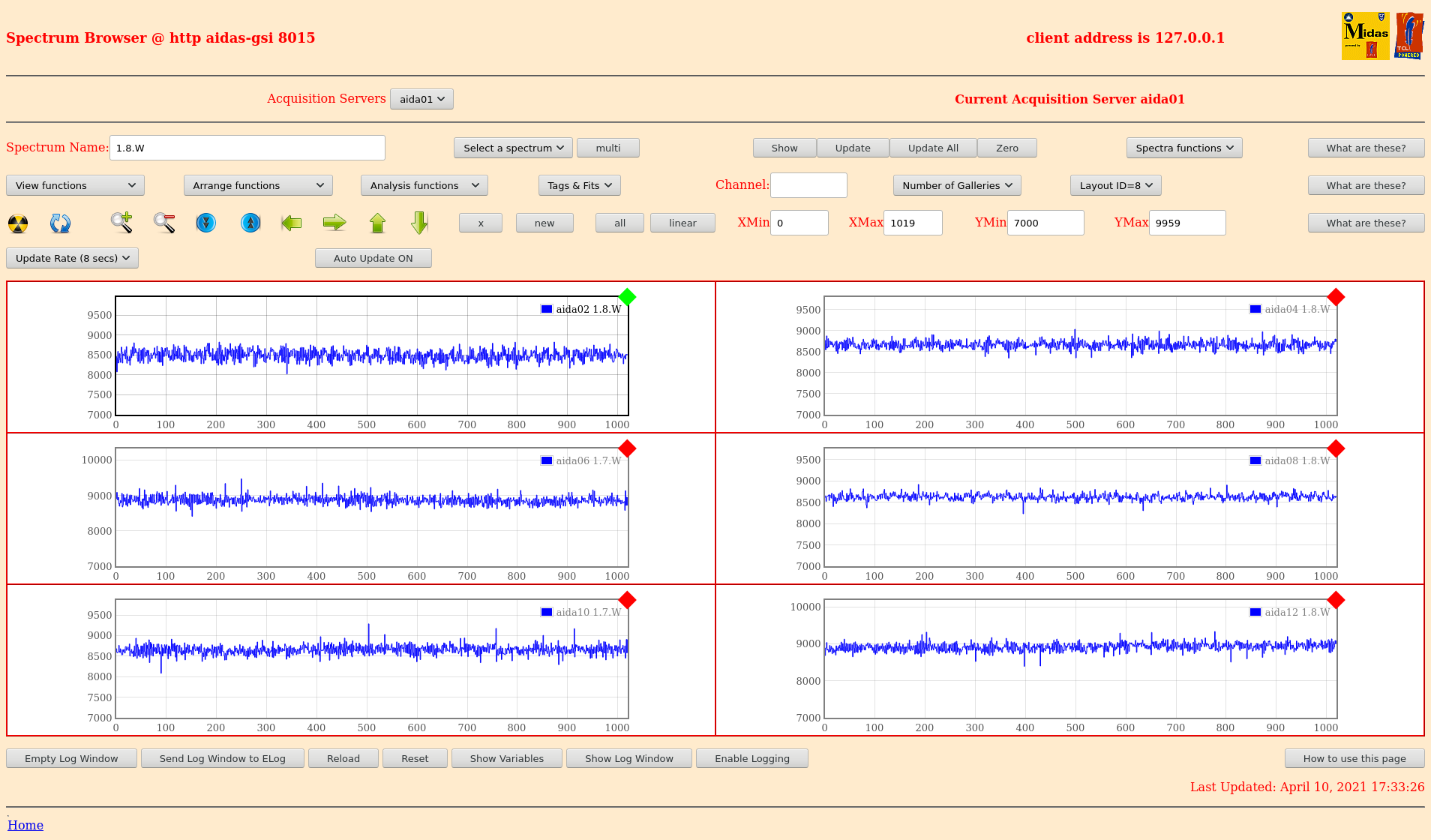

      200us FSR attachments 9 & 10

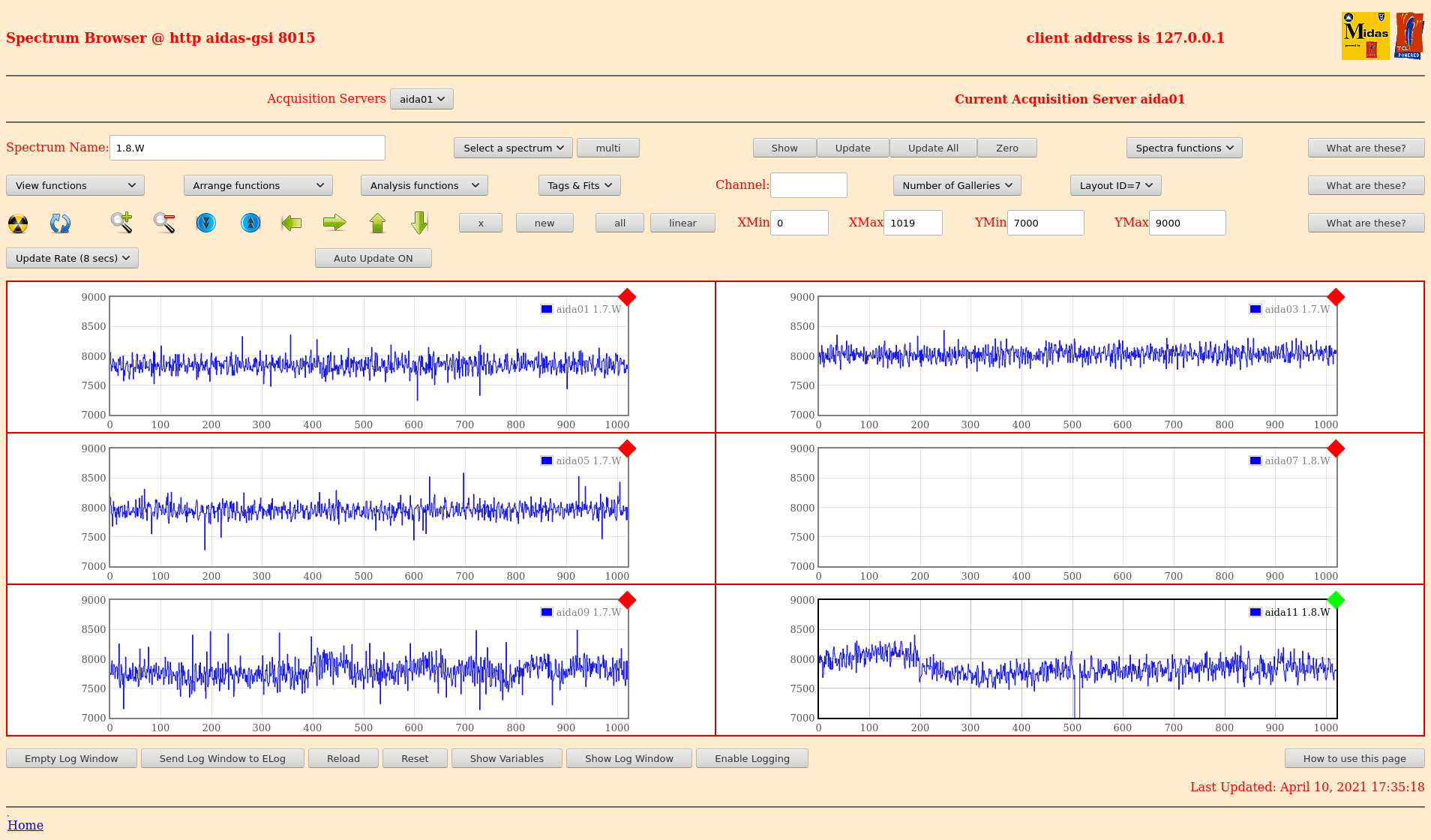

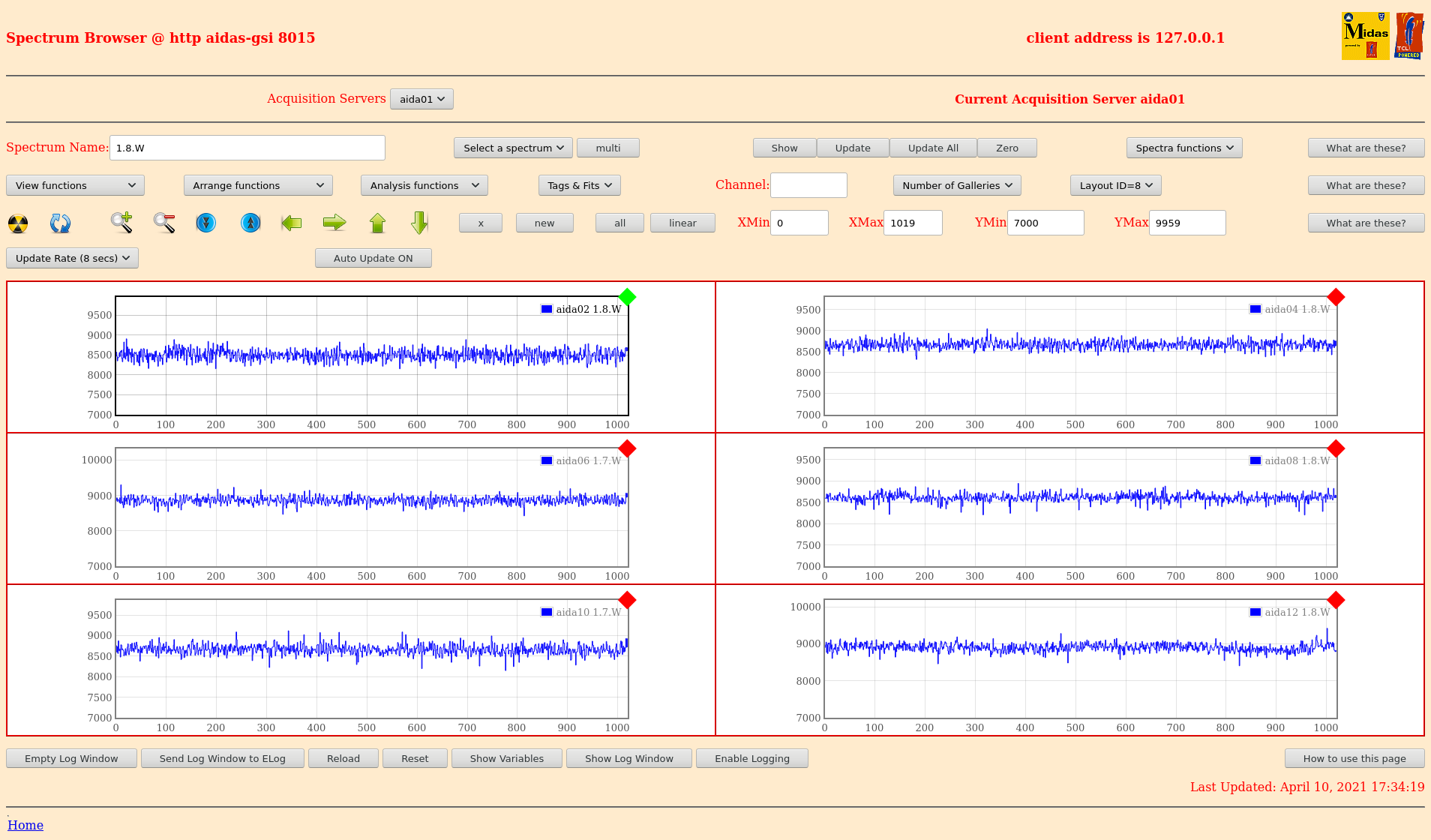

      2ms FSR attachments 11 & 12

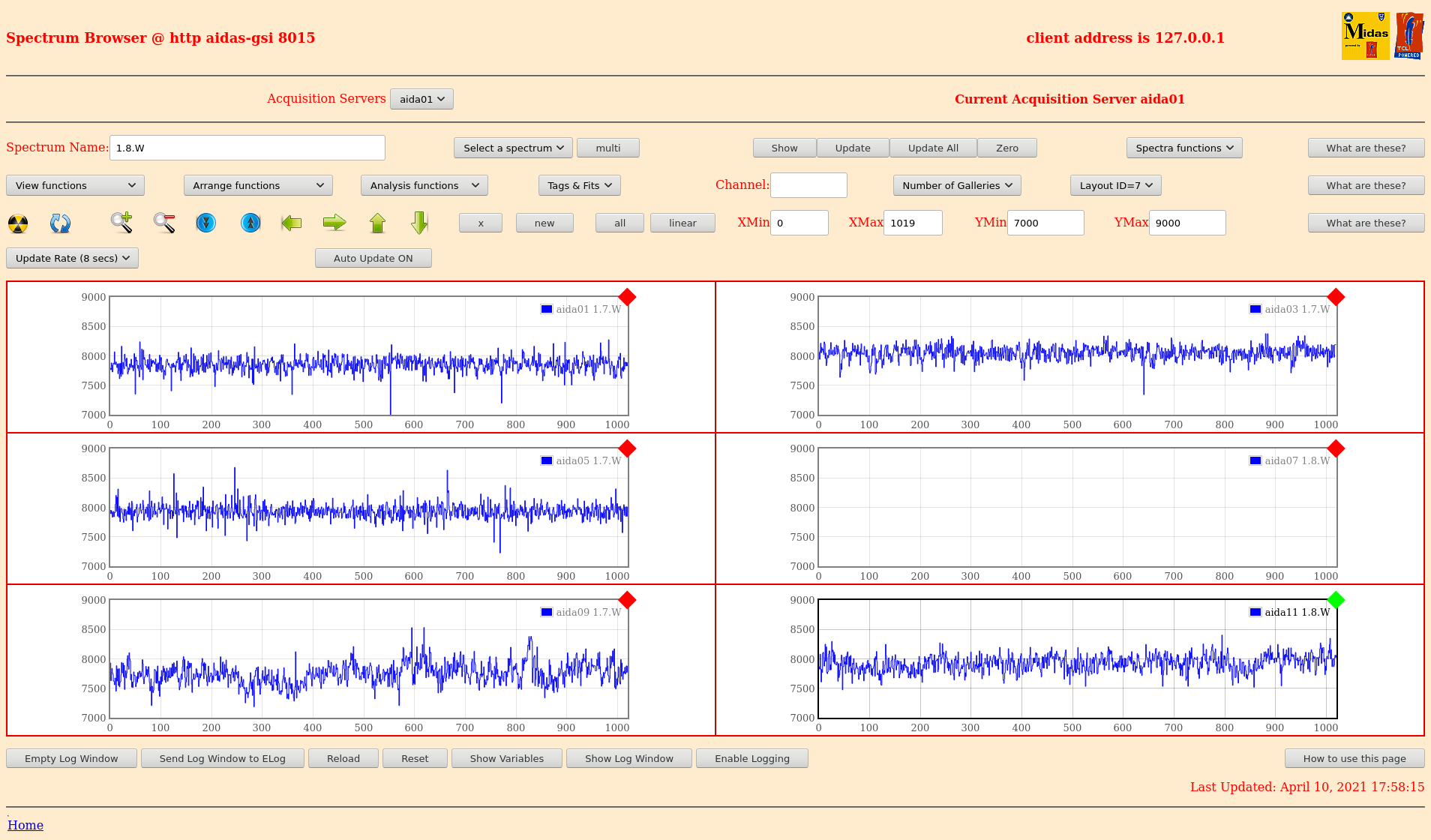

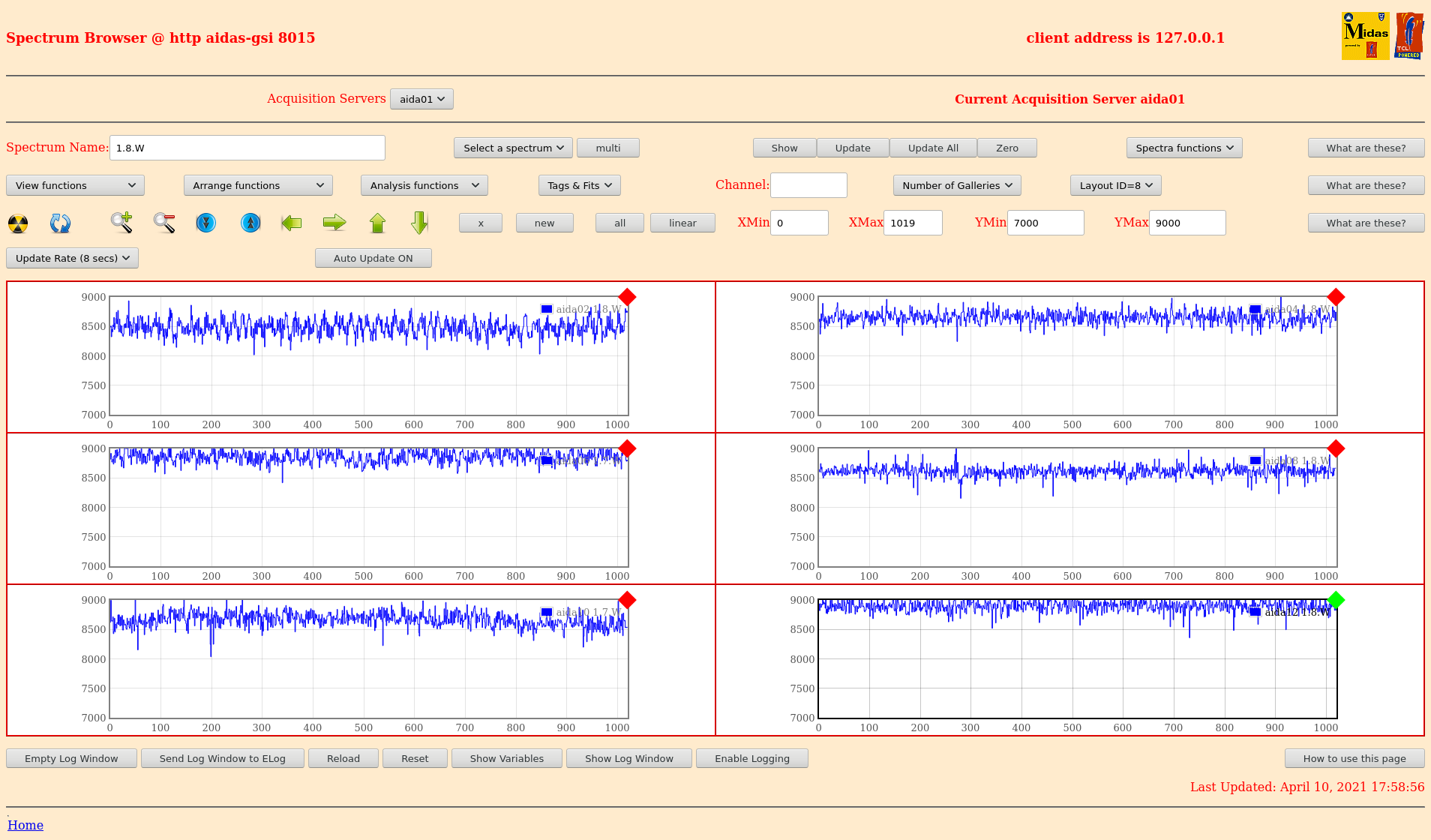

      20ms FSR attachments 15 & 16

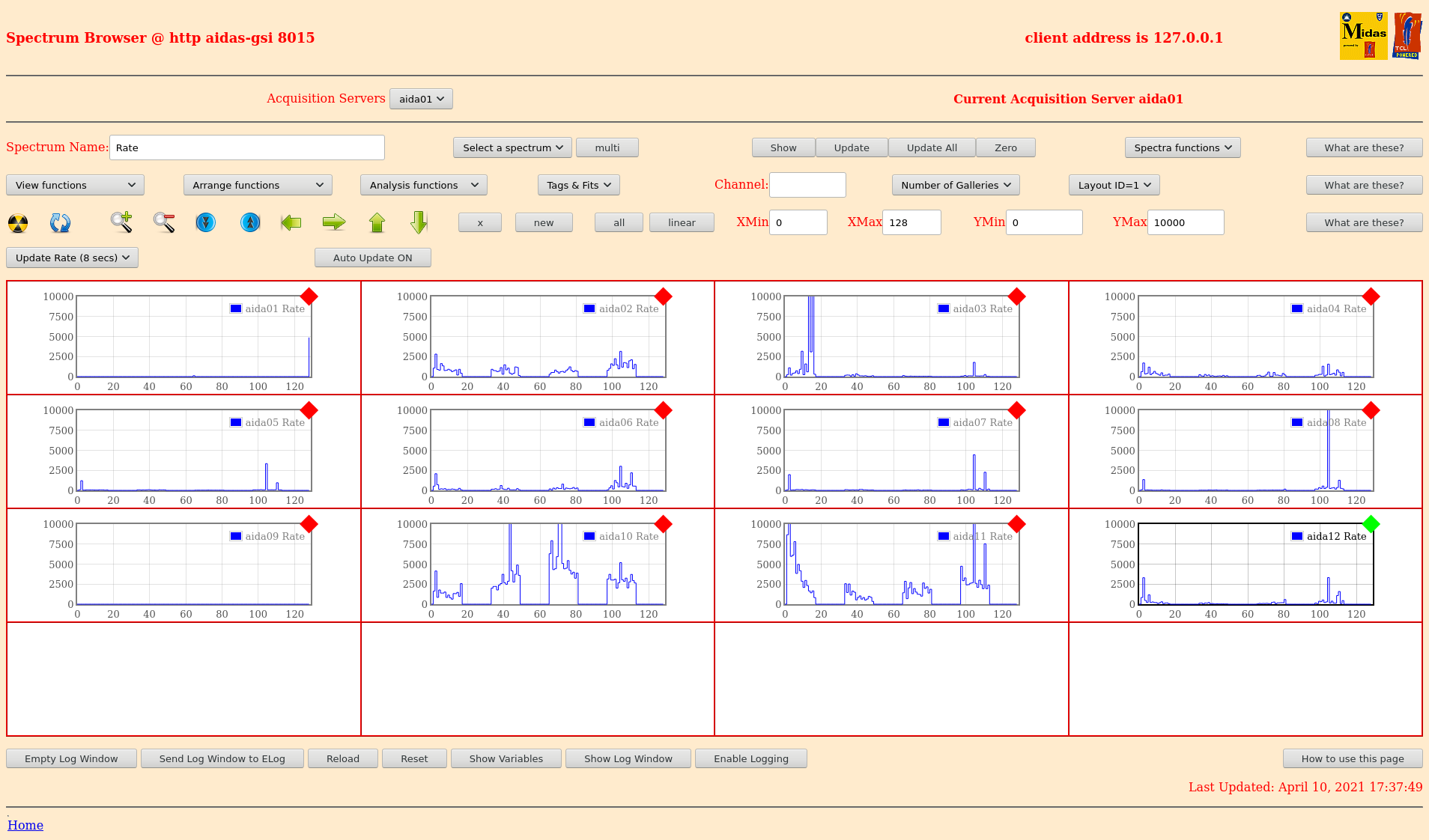

      rate spectra attachment 13
      good events statistics attachment 14
Attachment 1: 210410_1237_Aida_crash.png  107 kB  | Hide | Hide all
Attachment 2: 210410_1242_Crash.png  163 kB  | Hide | Hide all

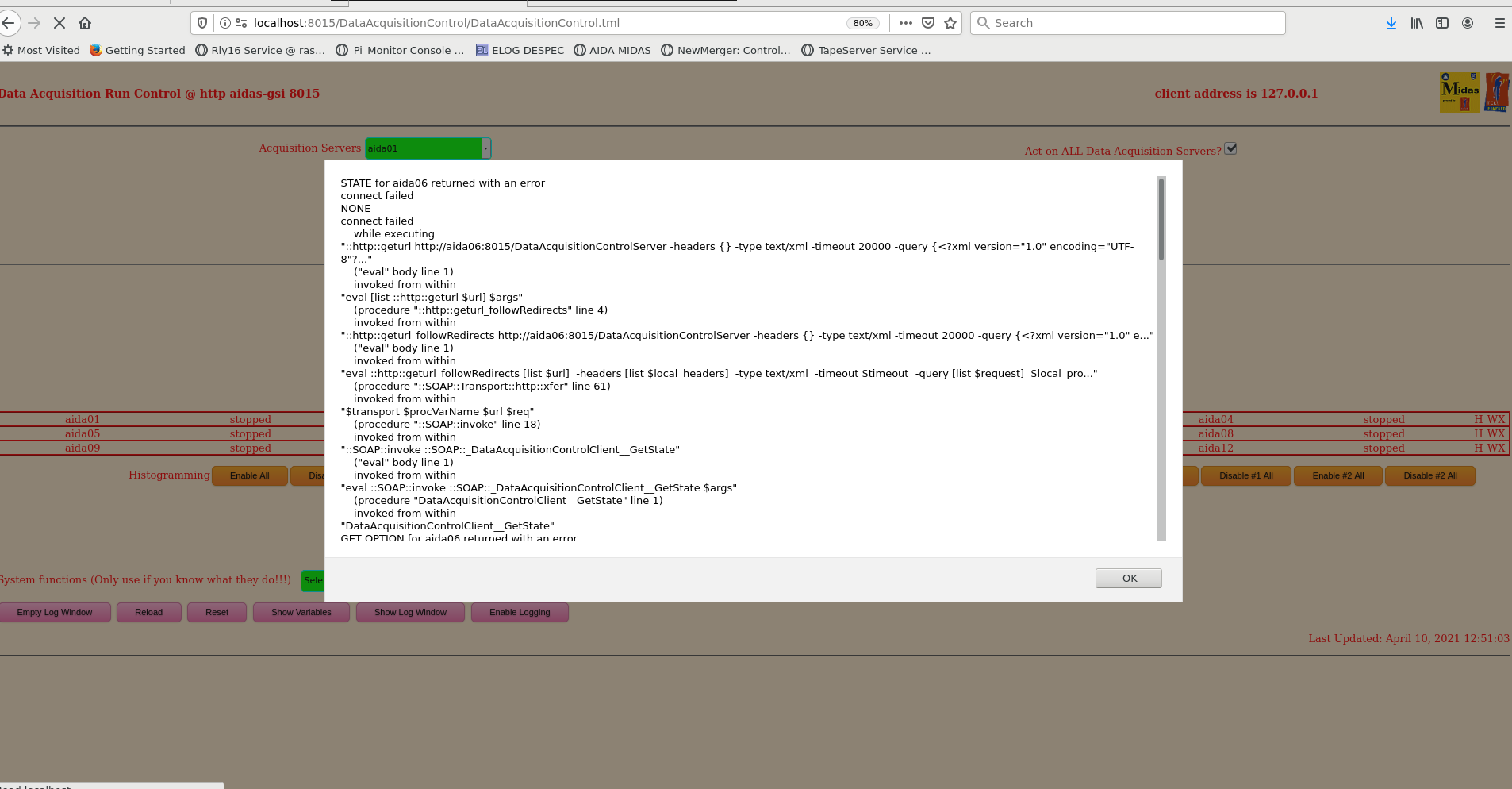

Attachment 3: 210410_1251_aida06_drop.png  175 kB  | Hide | Hide all
Attachment 4: 210410_1312_Waveform1.png  172 kB  | Hide | Hide all
Attachment 5: 210304_1313_Waveform2.png  179 kB  | Hide | Hide all

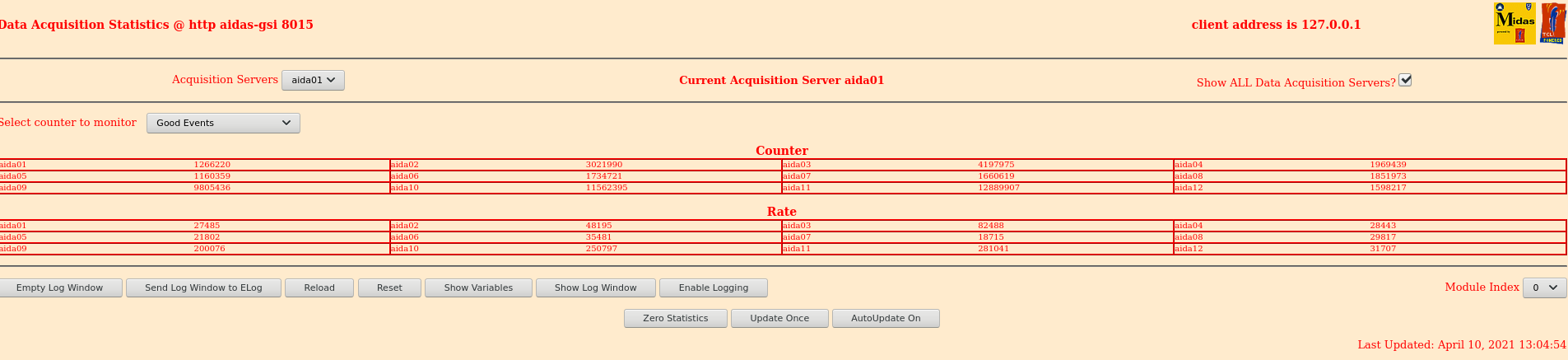

Attachment 6: 210410_1318_Stats.png  65 kB  Uploaded Sat Apr 10 13:18:29 2021  | Hide | Hide all
Attachment 7: Screenshot_2021-04-10_Spectrum_Browser_aidas-gsi.png  225 kB  Uploaded Sat Apr 10 17:39:51 2021  | Hide | Hide all
Attachment 8: Screenshot_2021-04-10_Spectrum_Browser_aidas-gsi(5).png  221 kB  Uploaded Sat Apr 10 17:40:14 2021  | Hide | Hide all
Attachment 9: Screenshot_2021-04-10_Spectrum_Browser_aidas-gsi(1).png  239 kB  Uploaded Sat Apr 10 17:40:34 2021  | Hide | Hide all
Attachment 10: Screenshot_2021-04-10_Spectrum_Browser_aidas-gsi(4).png  232 kB  Uploaded Sat Apr 10 17:41:01 2021  | Hide | Hide all
Attachment 11: Screenshot_2021-04-10_Spectrum_Browser_aidas-gsi(2).png  240 kB  Uploaded Sat Apr 10 17:41:20 2021  | Hide | Hide all
Attachment 12: Screenshot_2021-04-10_Spectrum_Browser_aidas-gsi(3).png  233 kB  Uploaded Sat Apr 10 17:41:37 2021  | Hide | Hide all
Attachment 13: Screenshot_2021-04-10_Spectrum_Browser_aidas-gsi(6).png  173 kB  Uploaded Sat Apr 10 17:41:53 2021  | Hide | Hide all
Attachment 14: Screenshot_2021-04-10_Statistics_aidas-gsi.png  84 kB  Uploaded Sat Apr 10 17:42:11 2021  | Hide | Hide all
Attachment 15: Screenshot_2021-04-10_Spectrum_Browser_aidas-gsi(7).png  234 kB  Uploaded Sat Apr 10 17:59:55 2021  | Hide | Hide all
Attachment 16: Screenshot_2021-04-10_Spectrum_Browser_aidas-gsi(8).png  239 kB  Uploaded Sat Apr 10 18:00:13 2021  | Hide | Hide all
