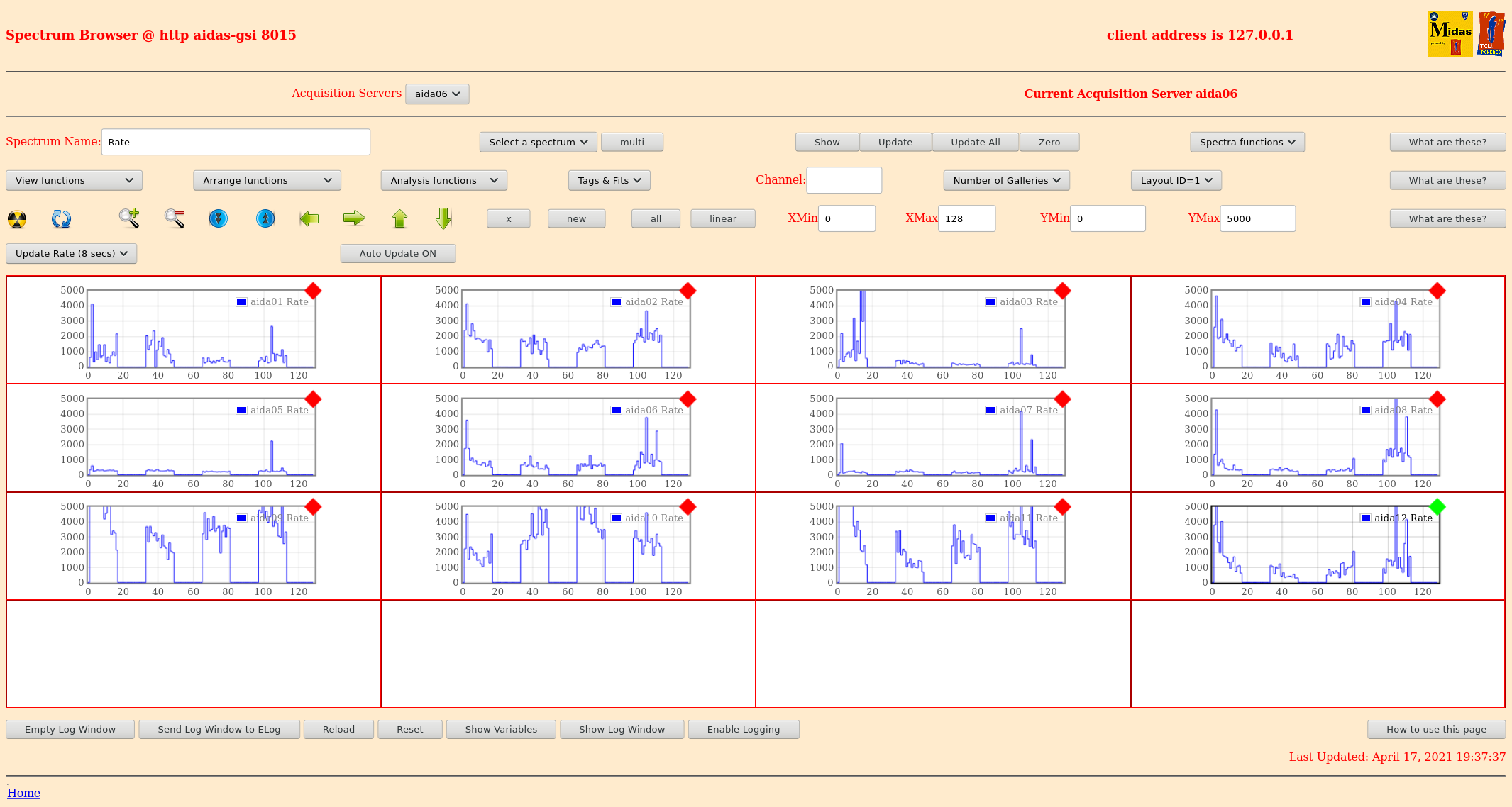

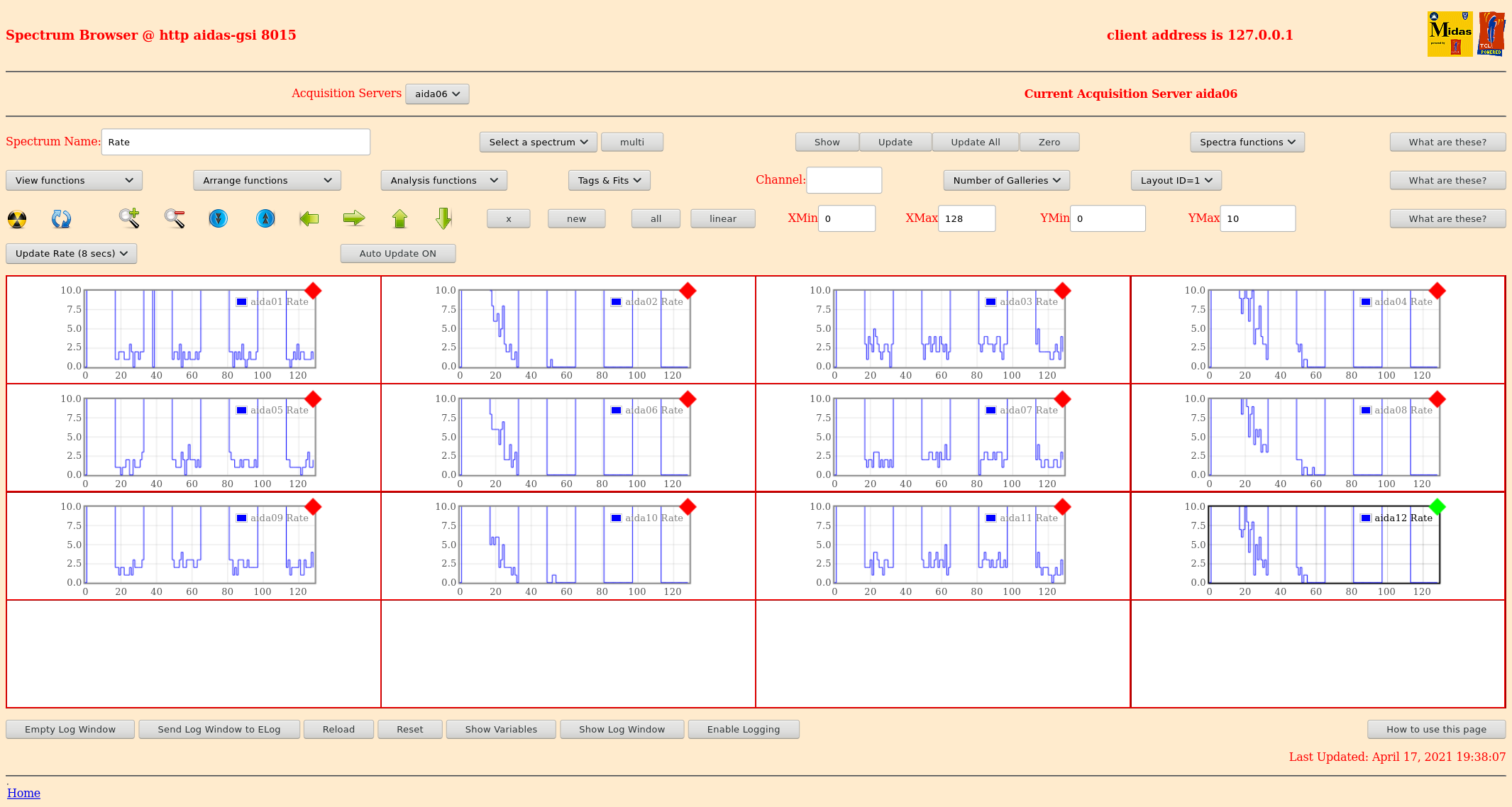

19.37 per FEE64 rate spectra - attachments 1 & 2

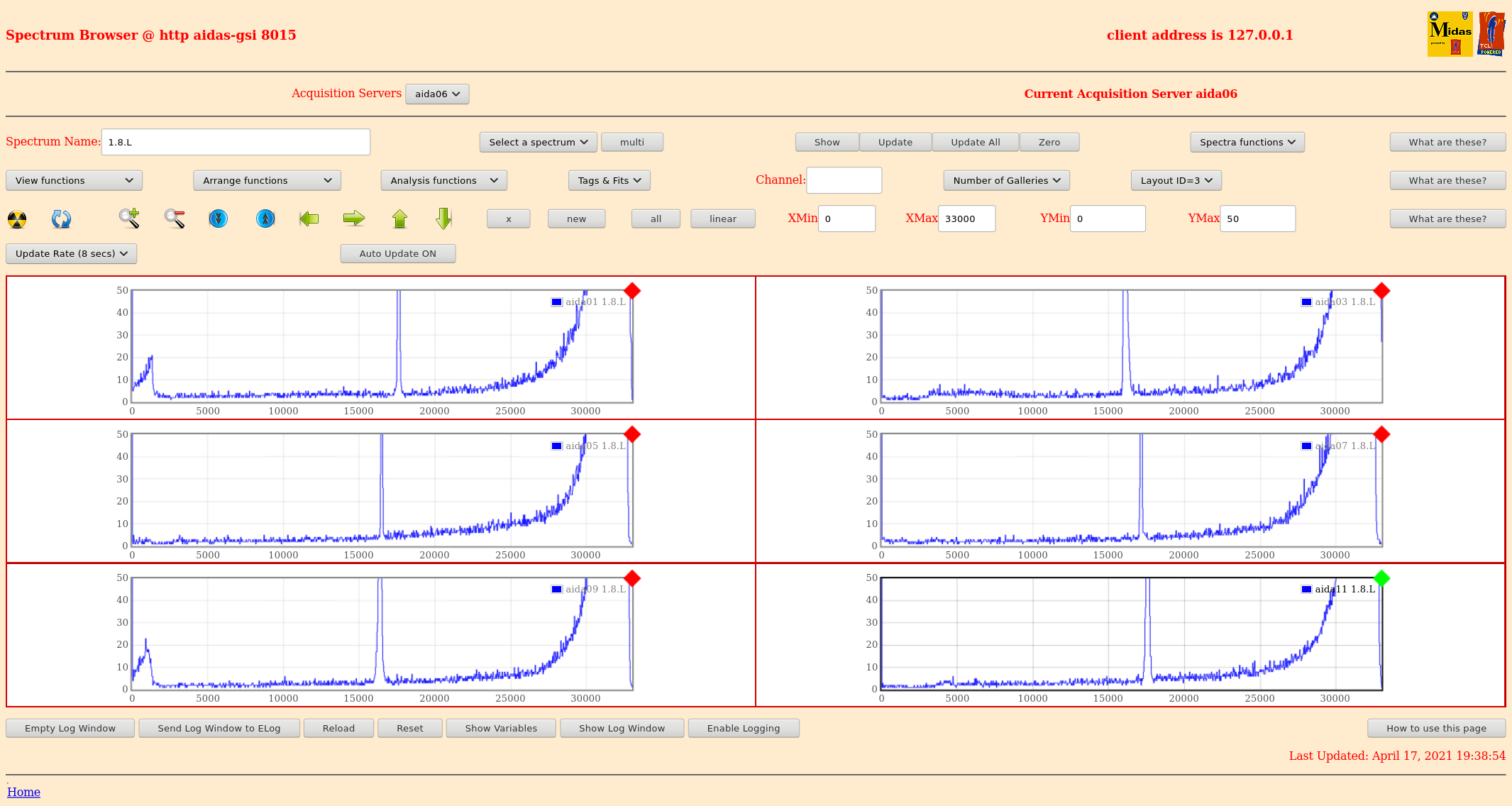

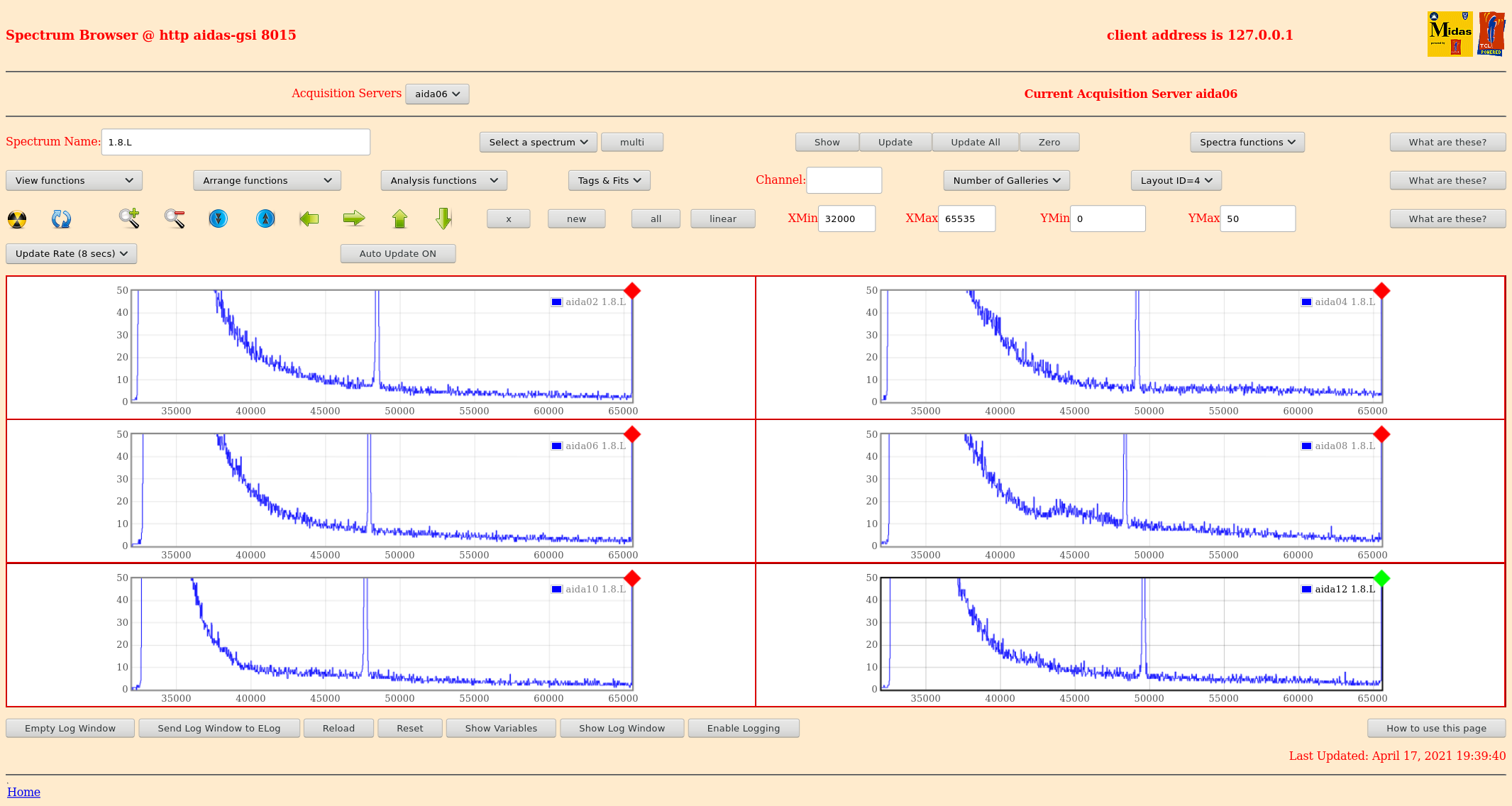

      1.8.L spectra - attachments 3 & 4

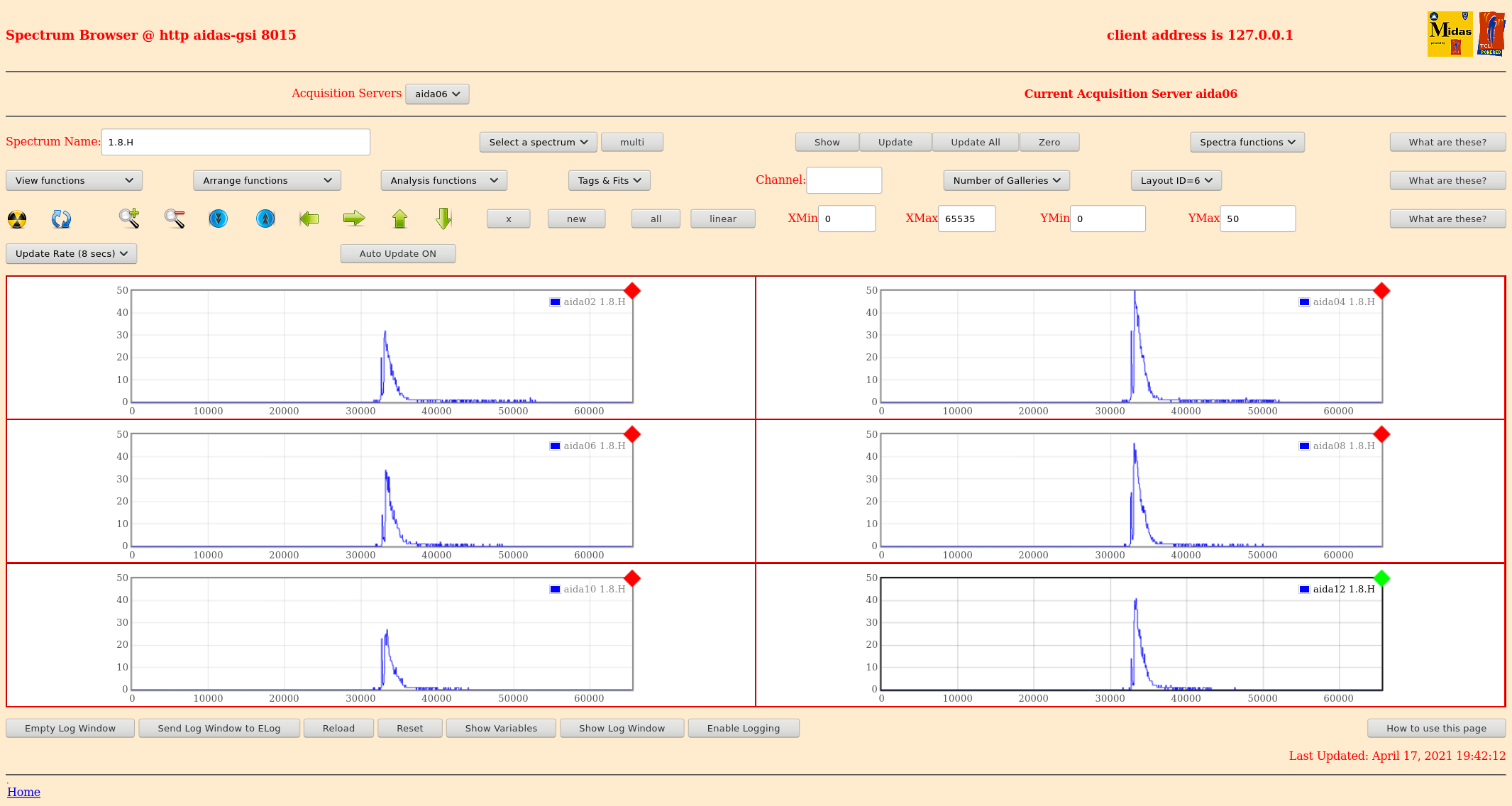

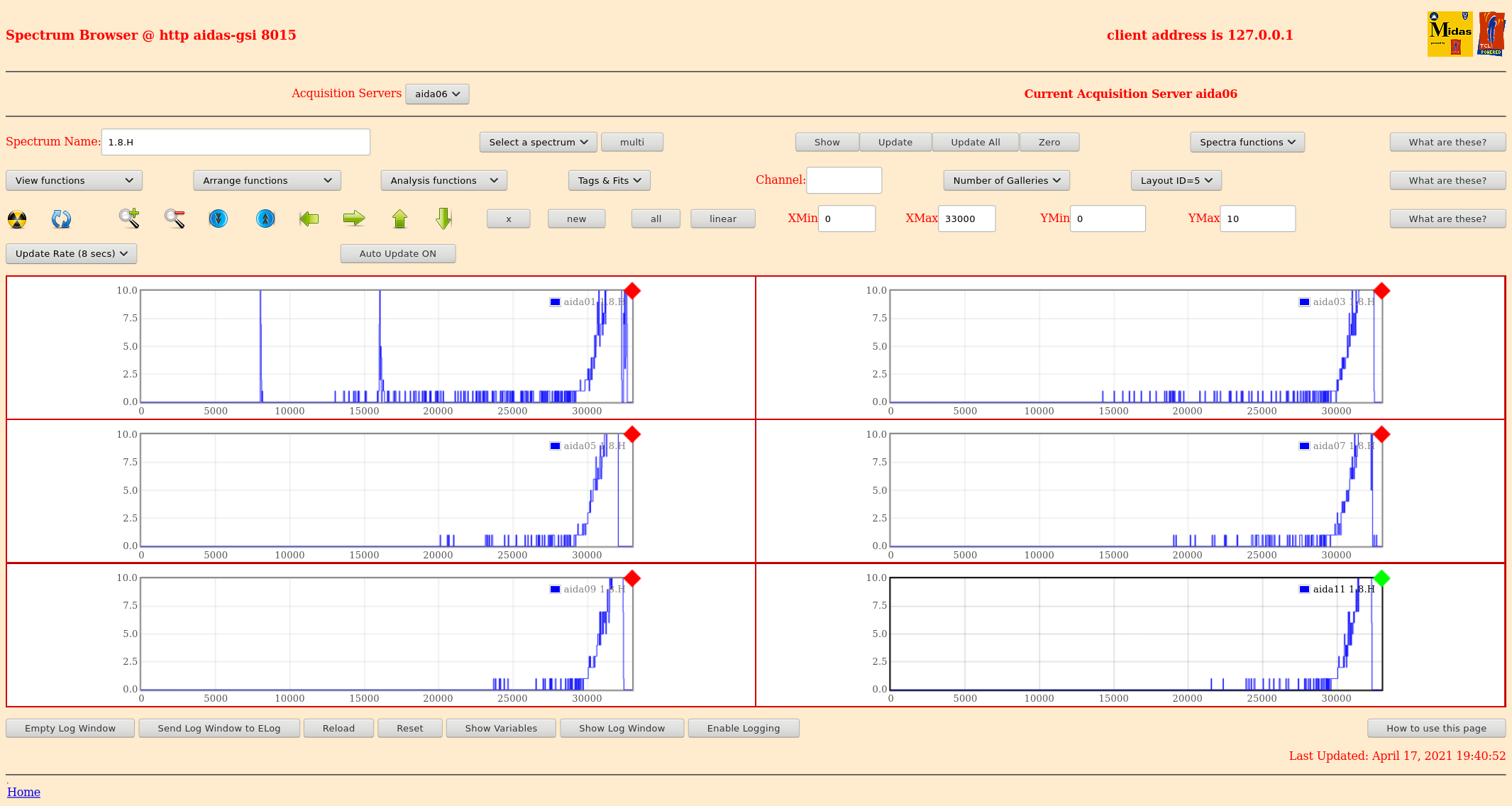

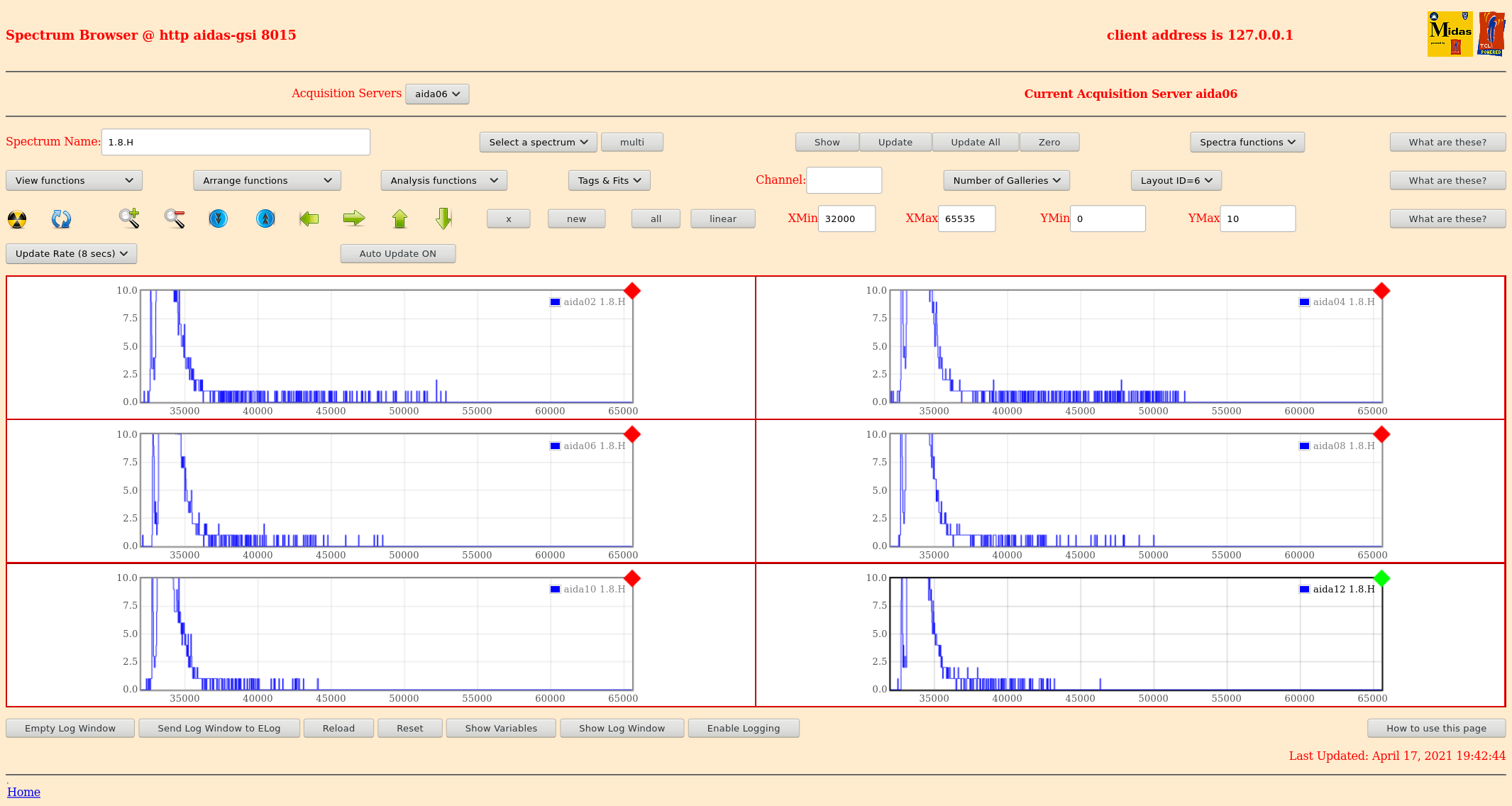

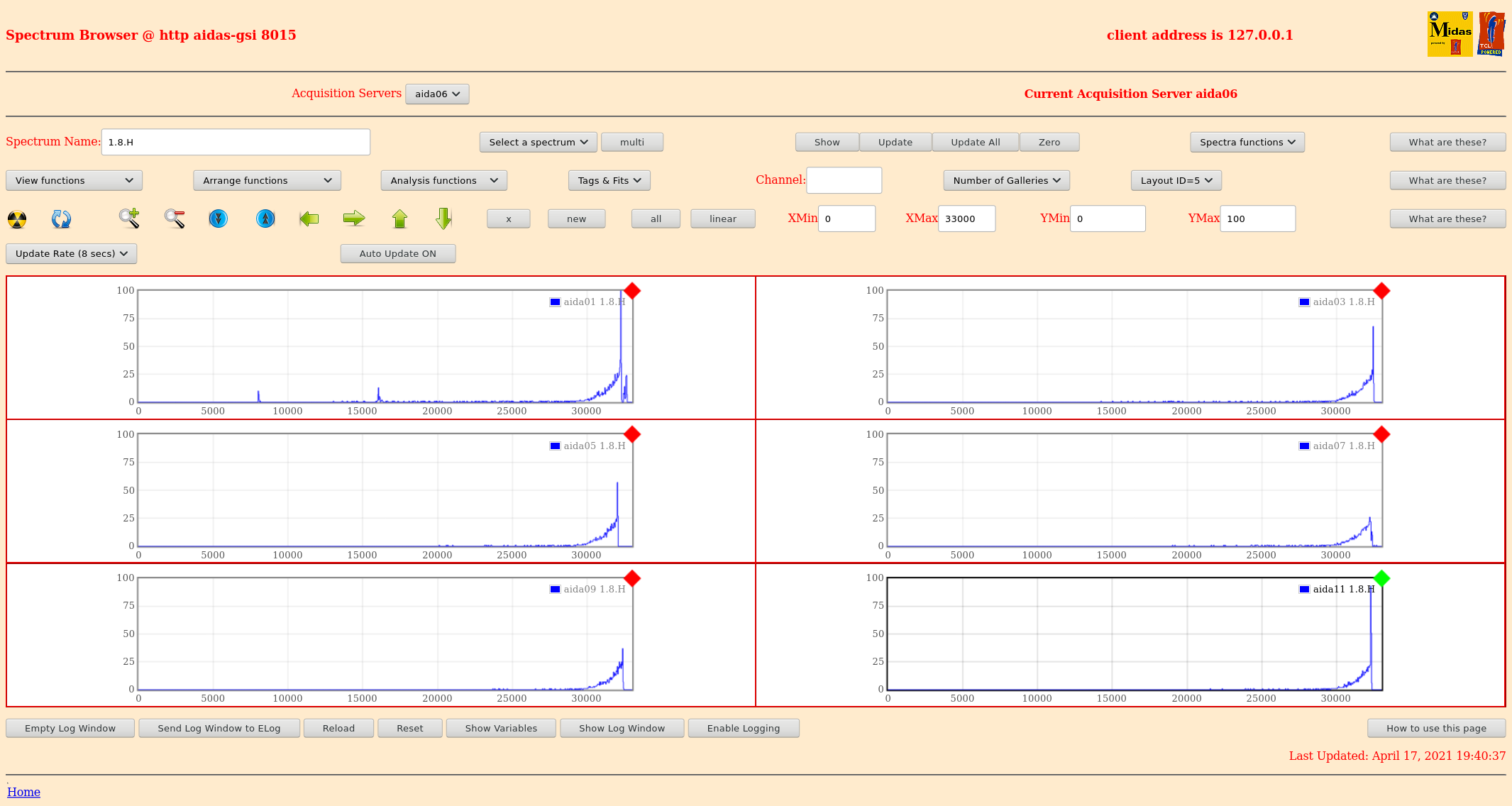

      1.8.H spectra - attachments 5-8

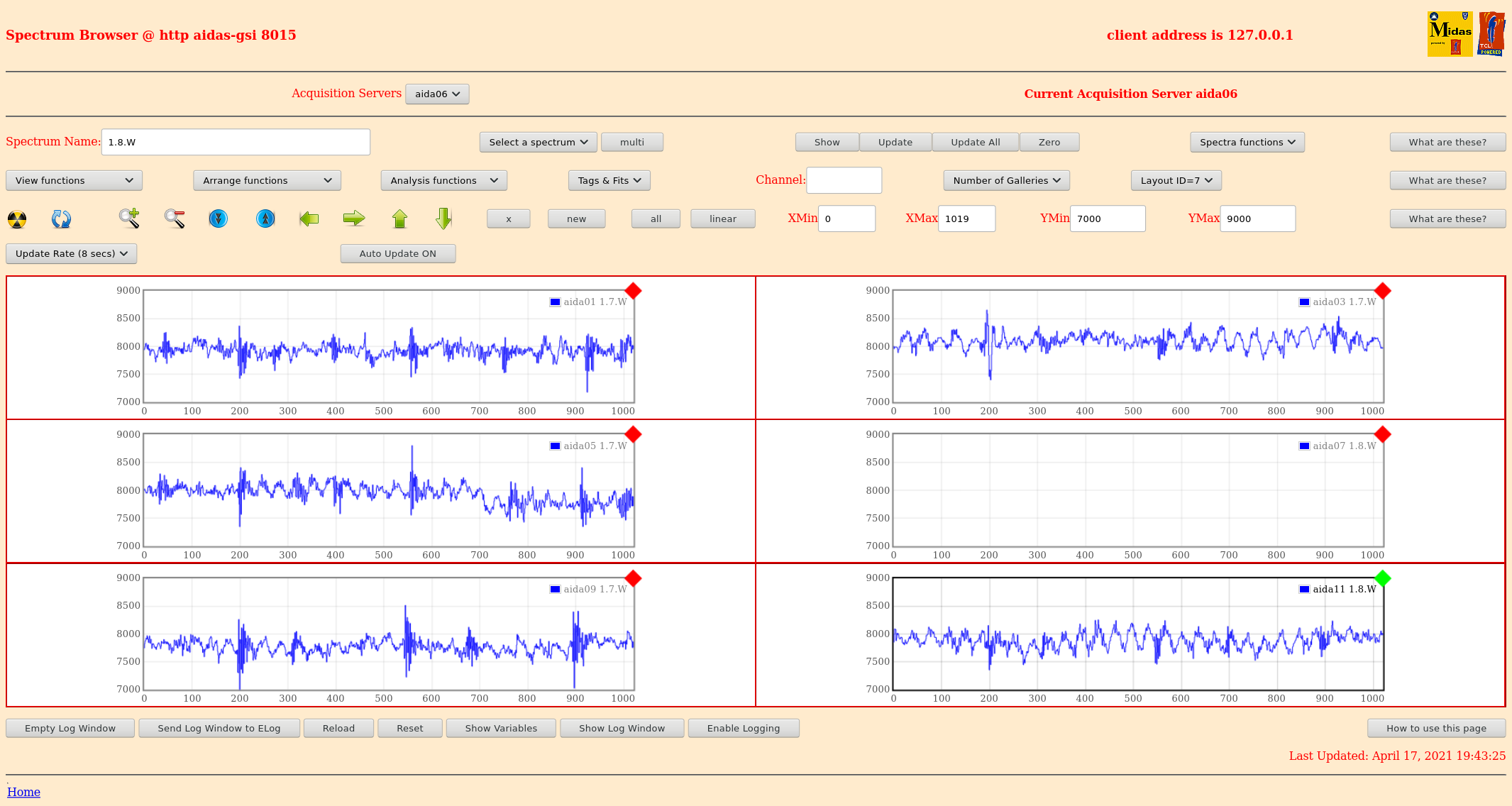

      1.8.W spectra - attachments 9 & 10

20.42 DAQ contrinues file NULL/R30_233



		 Base 		Current 	Difference
aida05 fault 	 0x1a52 : 	 0x1a55 : 	 3
aida06 fault 	 0x4f3e : 	 0x4f41 : 	 3
aida07 fault 	 0x3bcd : 	 0x3bd7 : 	 10
aida08 fault 	 0xc7c7 : 	 0xc7ca : 	 3
White Rabbit error counter test result: Passed 8, Failed 4

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR


			 Base 		Current 		Difference
aida09 fault 	 0x0 : 	 0x1 : 	 1
aida12 fault 	 0x0 : 	 0x4 : 	 4
FPGA Timestamp error counter test result: Passed 10, Failed 2
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

-------
23:48
Clock status test result: Passed 12, Failed 0

Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic '1'
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable



FEE64 module aida06 failed
FEE64 module aida07 failed
FEE64 module aida10 failed
Calibration test result: Passed 9, Failed 3

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module


		 Base 		Current 	Difference
aida05 fault 	 0x1a52 : 	 0x1a55 : 	 3
aida06 fault 	 0x4f3e : 	 0x4f41 : 	 3
aida07 fault 	 0x3bcd : 	 0x3bde : 	 17
aida08 fault 	 0xc7c7 : 	 0xc7ca : 	 3
White Rabbit error counter test result: Passed 8, Failed 4

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR


			 Base 		Current 		Difference
aida09 fault 	 0x0 : 	 0x1 : 	 1
aida12 fault 	 0x0 : 	 0x7 : 	 7
FPGA Timestamp error counter test result: Passed 10, Failed 2
If any of these counts are reported as in error
The ASIC readout system has detected a timeslip.
That is the timestamp read from the time FIFO is not younger than the last

Returned 0 0 0 0 0 0 0 0 0 0 0 0
Mem(KB) :	4	8	16	32	64	128	256	512	1k	2k	4k
aida01 :     26      5      6      2      1      3      1      3      3      3      6   : 36336
aida02 :      7      9     10      3      2      2      2      4      2      3      6   : 36068
aida03 :     26      7      8      4      3      4      2      4      2      3      6   : 36448
aida04 :     18      8      2      1      2      2      3      4      2      3      6   : 36168
aida05 :     24      7      9      4      3      1      3      2      2      4      6   : 37352
aida06 :     17     10      3      1      3      5      1      3      3      3      6   : 36644
aida07 :      7     11      2      2      3      2      3      2      4      3      6   : 37268
aida08 :     23      4      1      5      1      1      2      3      3      3      6   : 36332
aida09 :     14      6      3      2      1      3      2      3      3      3      6   : 36504
aida10 :      2      2      2      2      1      2      2      2      3      3      6   : 35768
aida11 :      2      2      1      2      2      2      2      4      2      3      6   : 35816
aida12 :     26      8      5      5      4      3      1      3      3      3      6   : 36632
----
